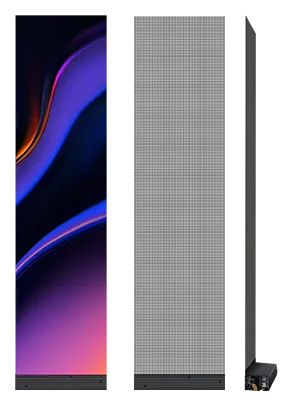

Invisilite P3.91-1024
Welcome to Invisilite, where cutting-edge technology meets elegant design. Invisilite is a revolutionary LED holographic invisible screen that seamlessly integrates into any environment.
- Series
- Invisilite
- Pixel pitch (h/v.mm)
- H:3.91 / V:3.91
- Brightness
- 3500cd / m²
- Module size
- 1025mm*250mm
- Resolution
- 256 × 64
- Weight
- 1.04kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Invisilite P3.91-1024Price on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 18 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications18
- Pixel Pitch (H/V.mm)
- H:3.91 / V:3.91
- Density
- 65536 dot / m²
- Transparency
- >80%
- Module Size
- 1025mm*250mm
- Cabinet Size
- 1045mm*250mm*72mm
- LED
- 2121
- Weight
- 1.04kg
- Resolution
- 256 × 64
- Brightness
- 3500cd / m²
- Viewing Angle (H/V,°)
- 160 / 140
- Lifespan
- >= 100000 Hrs
- Color Depth
- >= 16 (bit)
- Color Temperature
- 5500K – 15000K Adjustable
- Max Power Consumption
- 1200 w / m²
- Avg. Power Consumption
- 450 w / m²
- Power Suplly
- 200V -240V +- 10% ; AC 50Hz
- Operating/Storage Temp.
- 0°C to +60°C / -20 °C to +65°C
- Operating Humidity
- 20%RH – 85%RH / 10%RH – 85% RH
Show the full specificationHide the rest of the specification0 more groups · 0 values
02Models6 models in the family
Models compared.
| Model | Invisilite P3.91-1024 | Invisilite P3.91-1200 | Invisilite P3.91-1500 | Invisilite P6.25-1025 | Invisilite P6.25-1200 | Invisilite P6.25-1500 |
|---|---|---|---|---|---|---|
| Pixel Pitch (H/V.mm) | H:3.91 / V:3.91 | H:3.91 / V:3.91 | H:3.91 / V:3.91 | H:6.25 / V:6.25 | H:6.25 / V:6.25 | H:6.25 / V:6.25 |
| Density | 65536 dot / m² | 65536 dot / m² | 65536 dot / m² | 25600 dot / m² | 25600 dot / m² | 25600 dot / m² |
| Transparency | >80% | >80% | >80% | >80% | >90% | >90% |
| Module Size | 1025mm*250mm | 1200mm*250mm | 1500mm*250mm | 1025mm*250mm | 1200mm*250mm | 1500mm*250mm |
| Cabinet Size | 1045mm*250mm*72mm | 1220mm*250mm*72mm | 1520mm*250mm*72mm | 1045mm*250mm*72mm | 1220mm*250mm*72mm | 1520mm*250mm*72mm |
| LED | 2121 | 2121 | 2121 | 2121 | 2121 | 2121 |
| Weight | 1.04kg | 1.11kg | 1.21kg | 1.07kg | 1.11kg | 1.21kg |
| Resolution | 256 × 64 | 300 × 64 | 376 × 64 | 160 × 40 | 188 × 40 | 232 × 40 |
| Brightness | 3500cd / m² | 3000cd / m² | 2500cd / m² | 5000cd / m² | 4500cd / m² | 3000cd / m² |
| Viewing Angle (H/V,°) | 160 / 140 | 160 / 140 | 160 / 140 | 160 / 140 | 160 / 140 | 160 / 140 |
| Lifespan | >= 100000 Hrs | >= 100000 Hrs | >= 100000 Hrs | >= 100000 Hrs | >= 100000 Hrs | >= 100000 Hrs |
| Color Depth | >= 16 (bit) | >= 16 (bit) | >= 16 (bit) | >= 16 (bit) | >= 16 (bit) | >= 16 (bit) |
| Color Temperature | 5500K – 15000K Adjustable | 5500K – 15000K Adjustable | 5500K – 15000K Adjustable | 5500K – 15000K Adjustable | 5500K – 15000K Adjustable | 5500K – 15000K Adjustable |
| Max Power Consumption | 1200 w / m² | 1200 w / m² | 1200 w / m² | 1200 w / m² | 1200 w / m² | 1200 w / m² |
| Avg. Power Consumption | 450 w / m² | 450 w / m² | 450 w / m² | 450 w / m² | 450 w / m² | 450 w / m² |
| Power Suplly | 200V -240V +- 10% ; AC 50Hz | 200V -240V +- 10% ; AC 50Hz | 200V -240V +- 10% ; AC 50Hz | 200V -240V +- 10% ; AC 50Hz | 200V -240V +- 10% ; AC 50Hz | 200V -240V +- 10% ; AC 50Hz |
| Operating/Storage Temp. | 0°C to +60°C / -20 °C to +65°C | 0°C to +60°C / -20 °C to +65°C | 0°C to +60°C / -20 °C to +65°C | 0°C to +60°C / -20 °C to +65°C | 0°C to +60°C / -20 °C to +65°C | 0°C to +60°C / -20 °C to +65°C |
| Operating Humidity | 20%RH – 85%RH / 10%RH – 85% RH | 20%RH – 85%RH / 10%RH – 85% RH | 20%RH – 85%RH / 10%RH – 85% RH | 20%RH – 85%RH / 10%RH – 85% RH | 20%RH – 85%RH / 10%RH – 85% RH | 20%RH – 85%RH / 10%RH – 85% RH |
03DescriptionManufacturer's description
What it is.

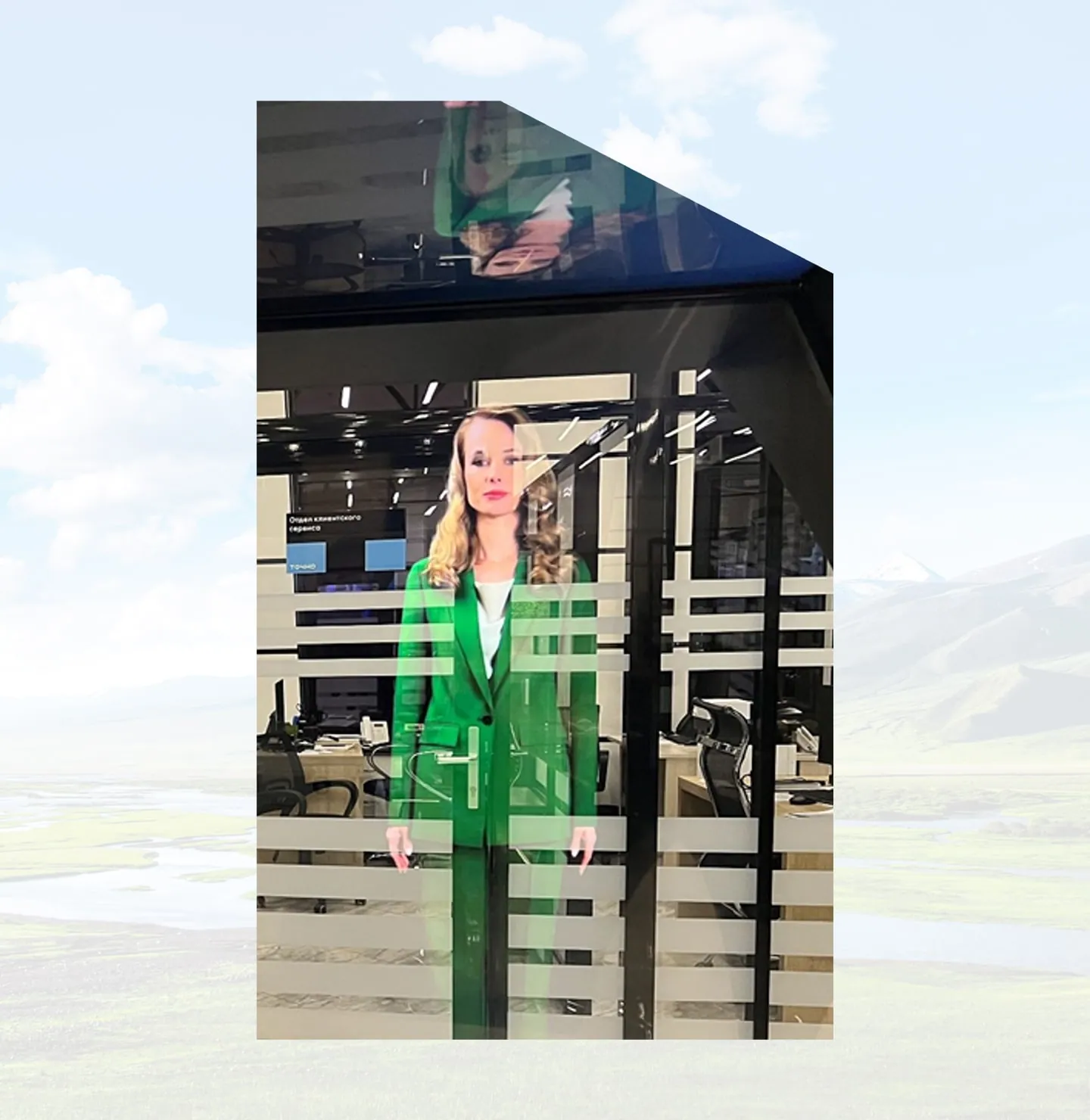

Welcome to Invisilite, where cutting-edge technology meets elegant design. Invisilite is a revolutionary LED holographic invisible screen that seamlessly integrates into any environment. With its high transparency and vibrant display, Invisilite enhances the visual appeal of any space while maintaining the original decor. Ideal for retail, hospitality, corporate showrooms, trade shows, and more, Invisilite transforms ordinary spaces into extraordinary experiences.
At AET, we believe in pushing the boundaries of display technology. Our LED holographic screens offer a unique combination of transparency, flexibility, and high-definition display, making them perfect for a wide range of applications. Here’s why Invisilite stands out:
Unmatched Transparency
With over 90% transparency, Invisilite ensures clear visibility without obstructing light or line of sight.
Flexible & Adaptable

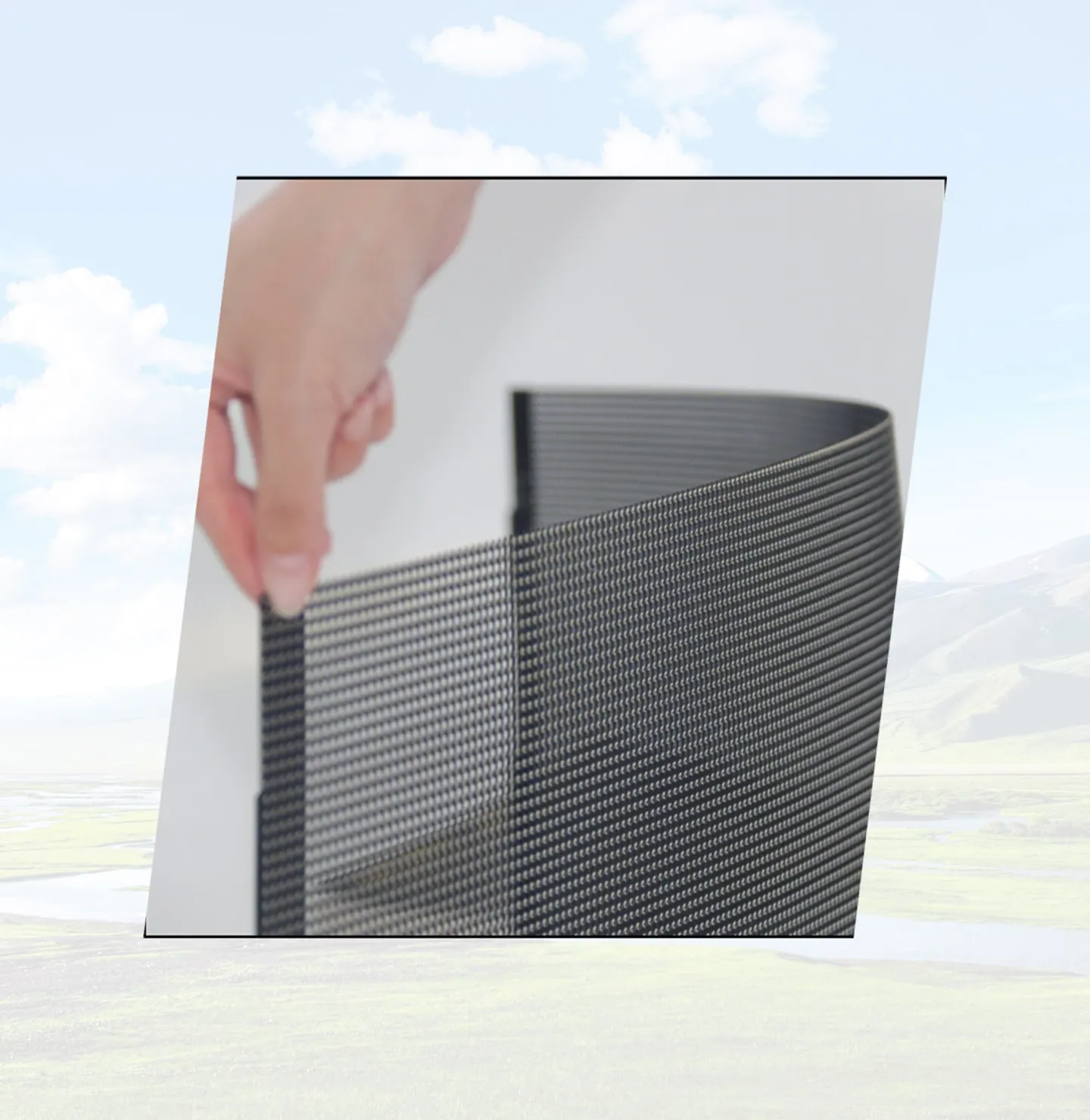

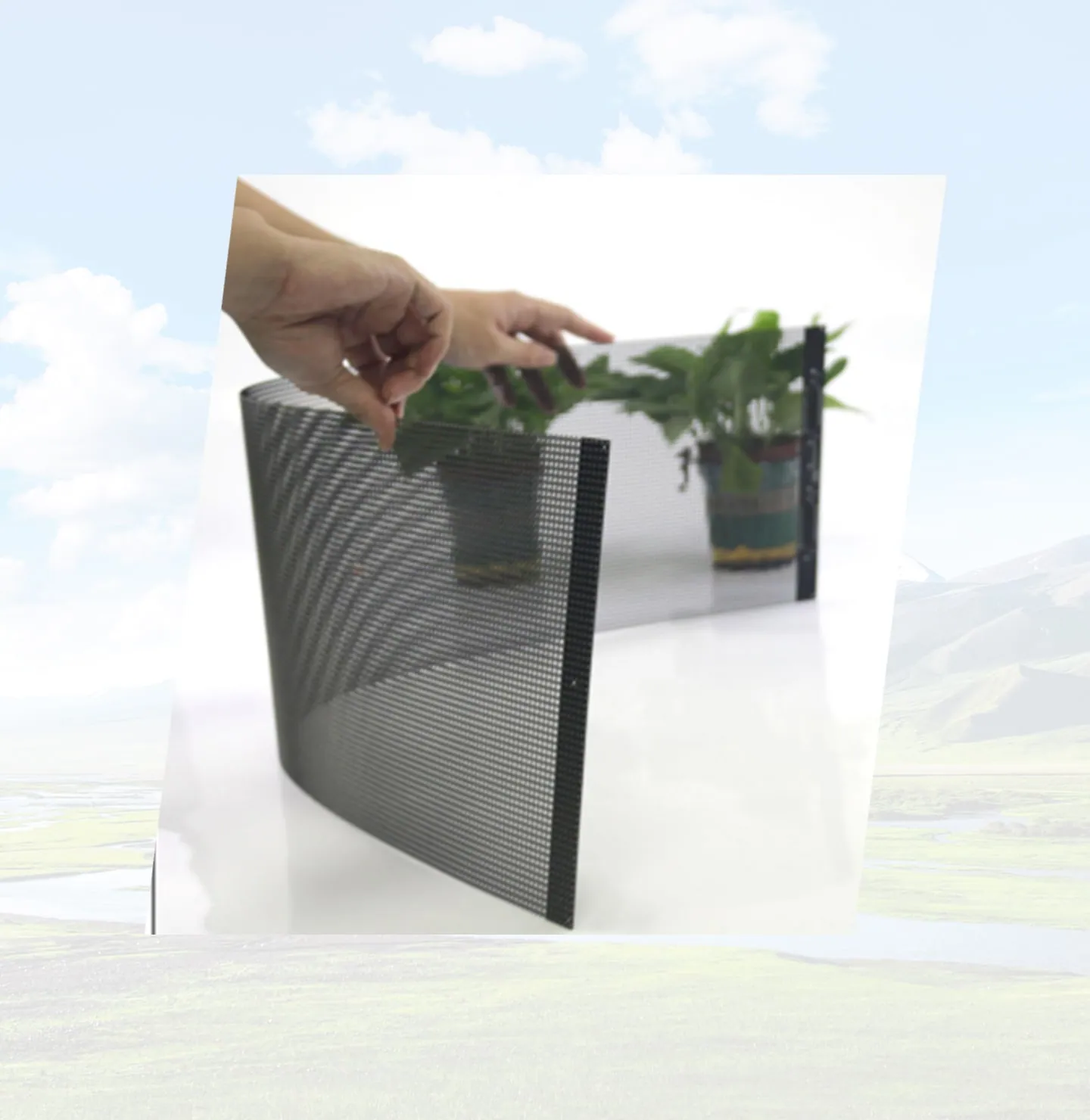

Our screens can be bent and shaped to fit various surfaces and designs, offering limitless creative possibilities.
Lightweight Design
At just 2mm thick and 0.34kg/m², Invisilite is incredibly lightweight, making installation a breeze.
High Brightness & Contrast
Delivering a brightness of 5000 cd/m² and a contrast ratio of 9000:1, Invisilite provides stunning, high-definition visuals.
Energy Efficiency
Designed to consume minimal power while delivering maximum performance.
