Sheet 05.1451
DESAY · Transparent and creative displays
B100
Strips could be fitted into a cabinet frame, very convenient to install.
- Series
- B Series
- Brightness
- 4000 nits
- Panel size
- 3200 × 12 × 13 mm
- Pixel matrix per panel
- 80 × 1
- Panel weight
- 0.27 kg/m
- Maintenance
- Front access / rear access
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
B100Price on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 8 values
What this product is, in numbers.

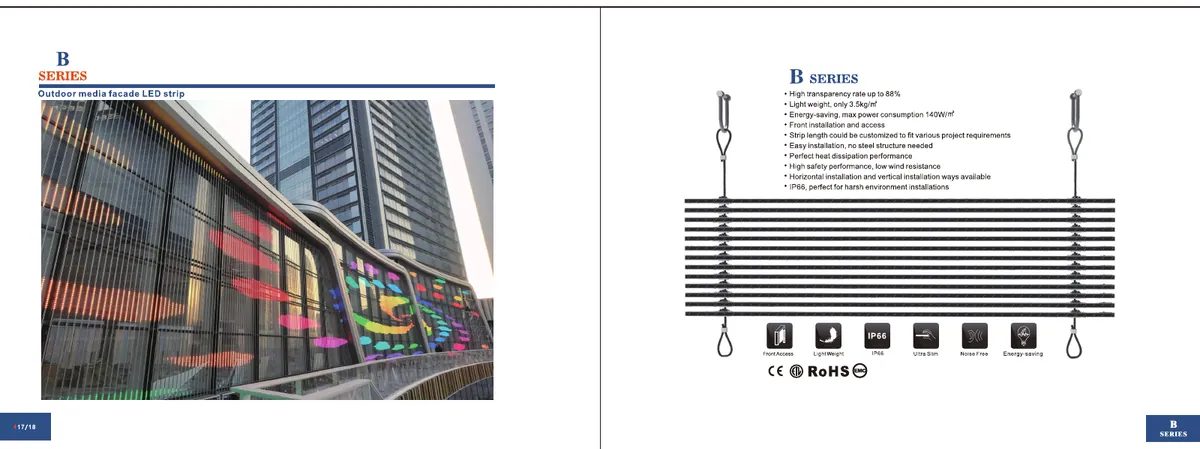

PDFDatasheetEN · 2 pages · 6.1 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications8
- Brightness
- 4000 nits
- Panel size
- 3200 × 12 × 13 mm
- Pixel matrix per panel
- 80 × 1
- Transparency rate (%)
- 88
- Panel material
- Aluminum
- Panel weight
- 0.27 kg/m
- Ingress protection (front/rear) (IP)
- 66 / 66
- Maintenance
- Front access / rear access
Show the full specificationHide the rest of the specification0 more groups · 0 values
02Models4 models in the family
Models compared.
| Model | B25 | B31.25 | B42.5 | B100 |
|---|---|---|---|---|
| Pixel pitch (mm) | 25 | 31.25 | 42.5 | |
| Brightness (nits) | 7000 | 7000 | 5500 | 4000 |
| Panel size (mm) | 3000 × 12 × 13 | 3375 × 12 × 13 | 3400 × 12 × 13 | 3200 × 12 × 13 |
| Pixel matrix per panel | 120 × 1 | 108 × 1 | 80 × 1 | 80 × 1 |
| Transparency rate (%) | 45 | 60 | 68 | 88 |
| Panel material | Aluminum | Aluminum | Aluminum | Aluminum |
| Panel weight (Kg/m) | 0.27 | 0.27 | 0.27 | 0.27 |
| Ingress protection (front/rear) (IP) | 66 / 66 | 66 / 66 | 66 / 66 | 66 / 66 |
| Maintenance | Front access / rear access | Front access / rear access | Front access / rear access | Front access / rear access |
03DescriptionManufacturer's description
What it is.

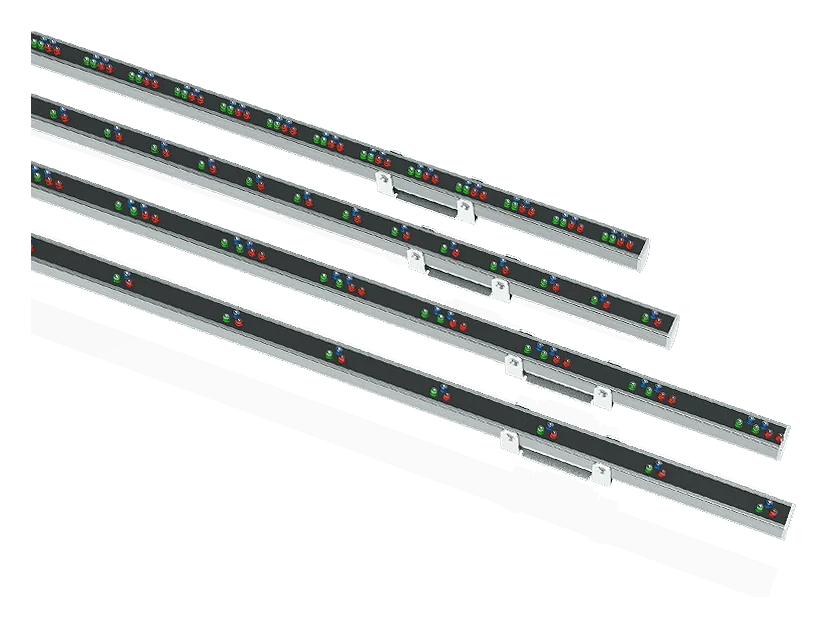

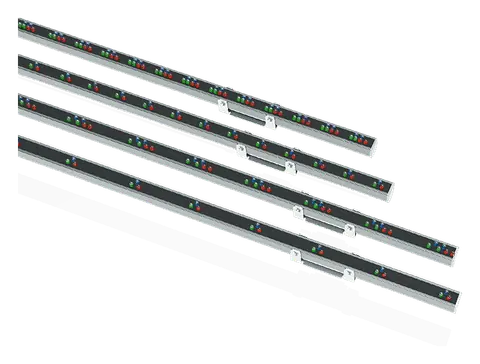

Outdoor media facade LED strip.
Key points
Transparancy screen
Ultra-light weight aluminum strip
Fast buckle for convenient installation
Strong water-proof
Customized strip length
Flexible installation
High refresh rate: 5000Hz

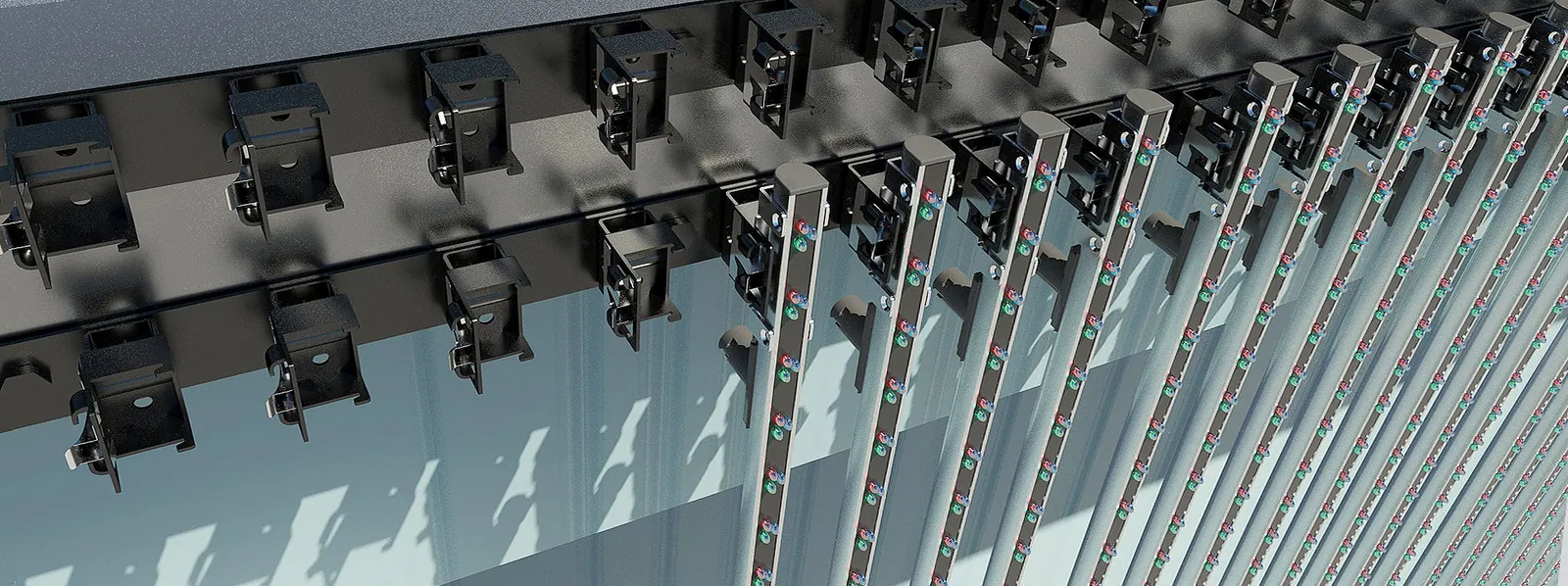

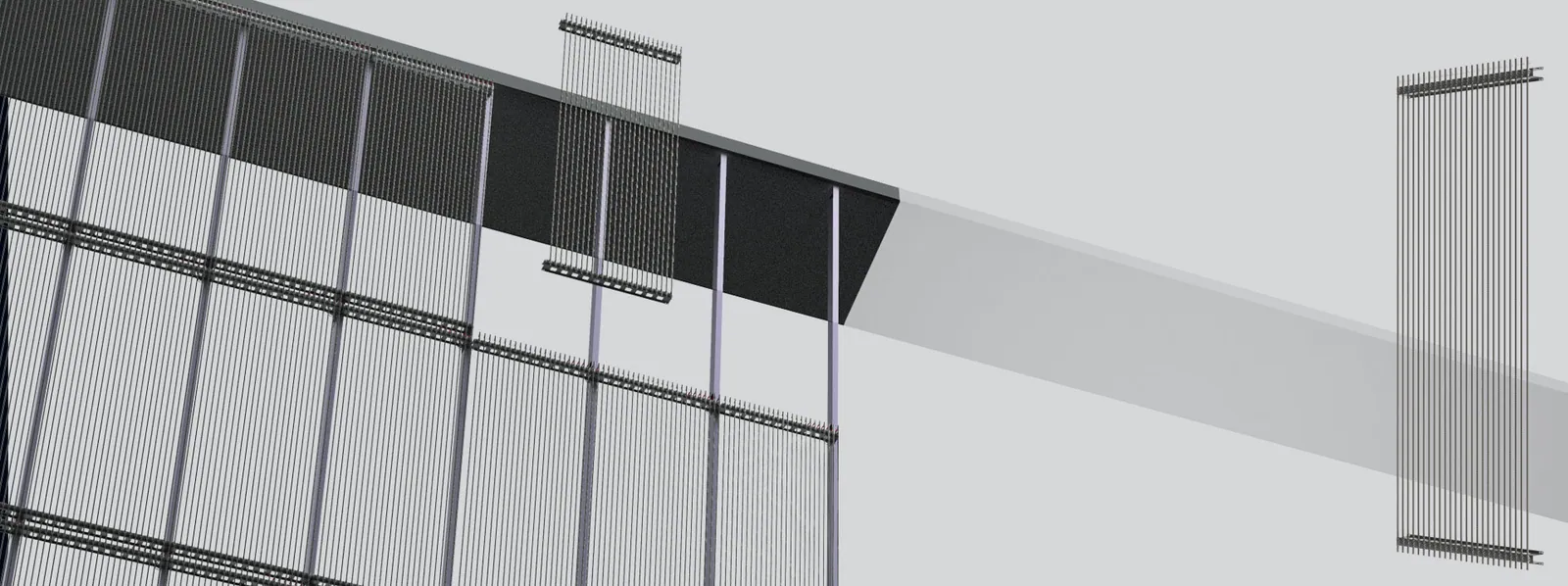

Cabinet Version
Creative Design

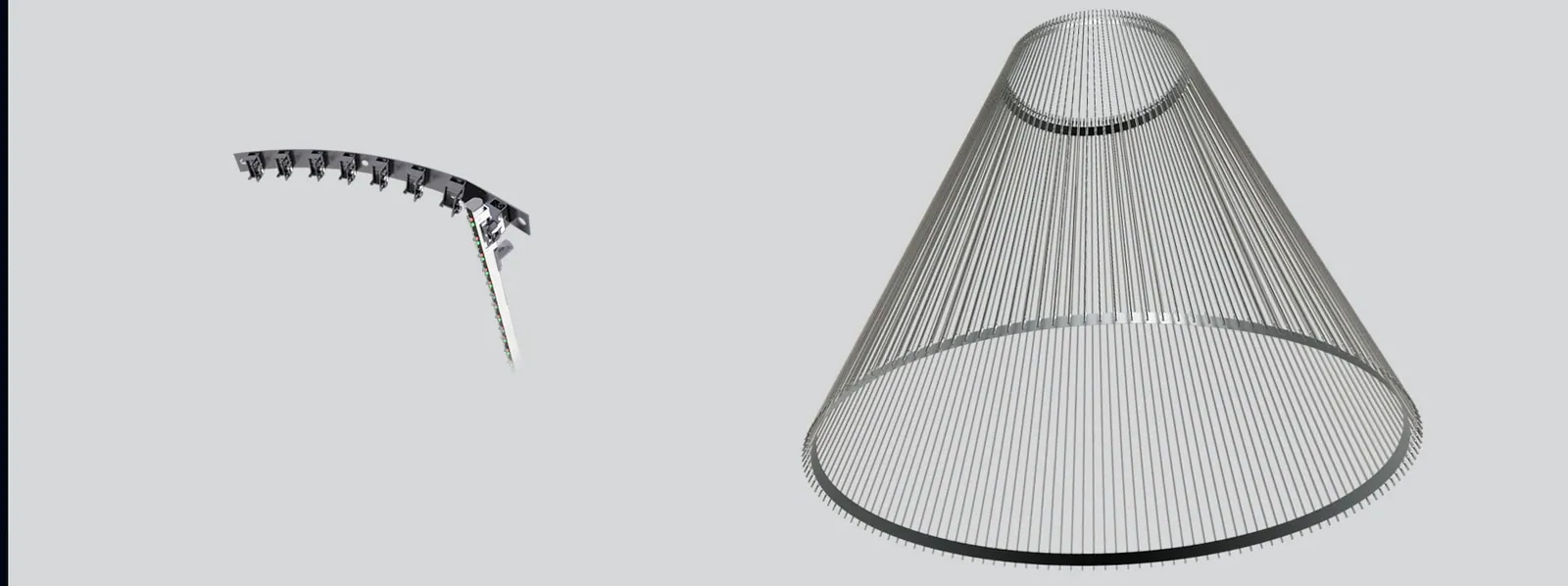

The strips could be creatively installed by varioty design ideas.

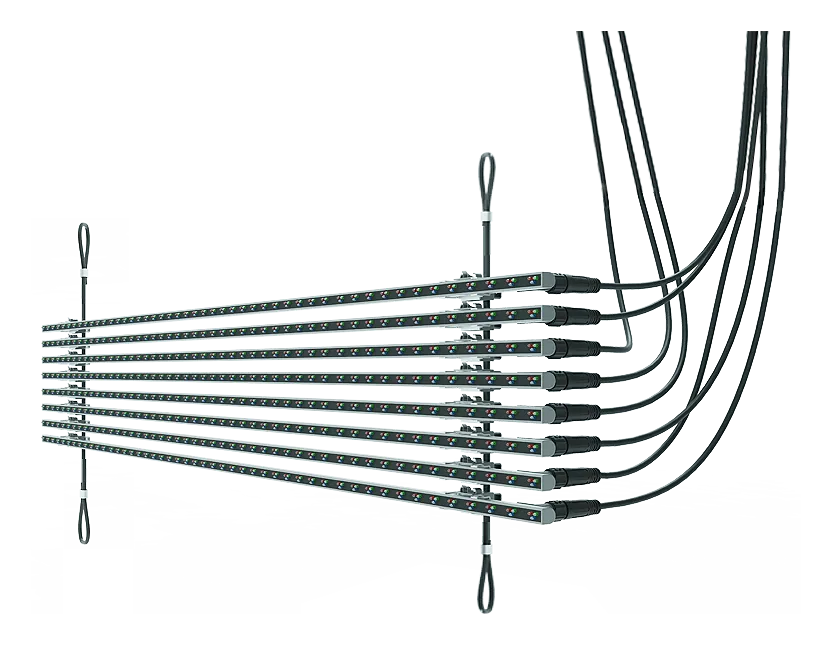

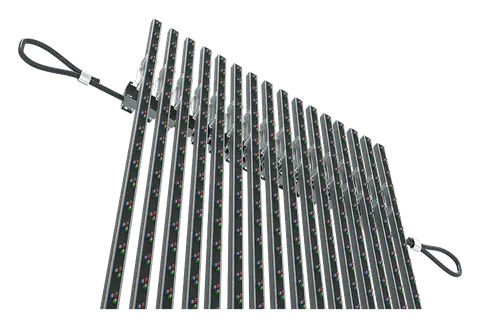

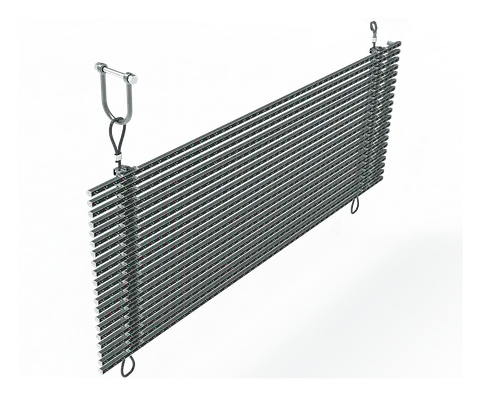

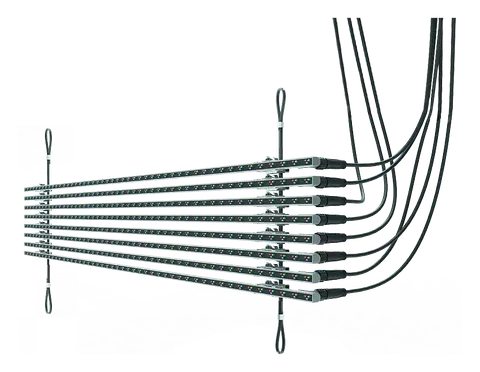

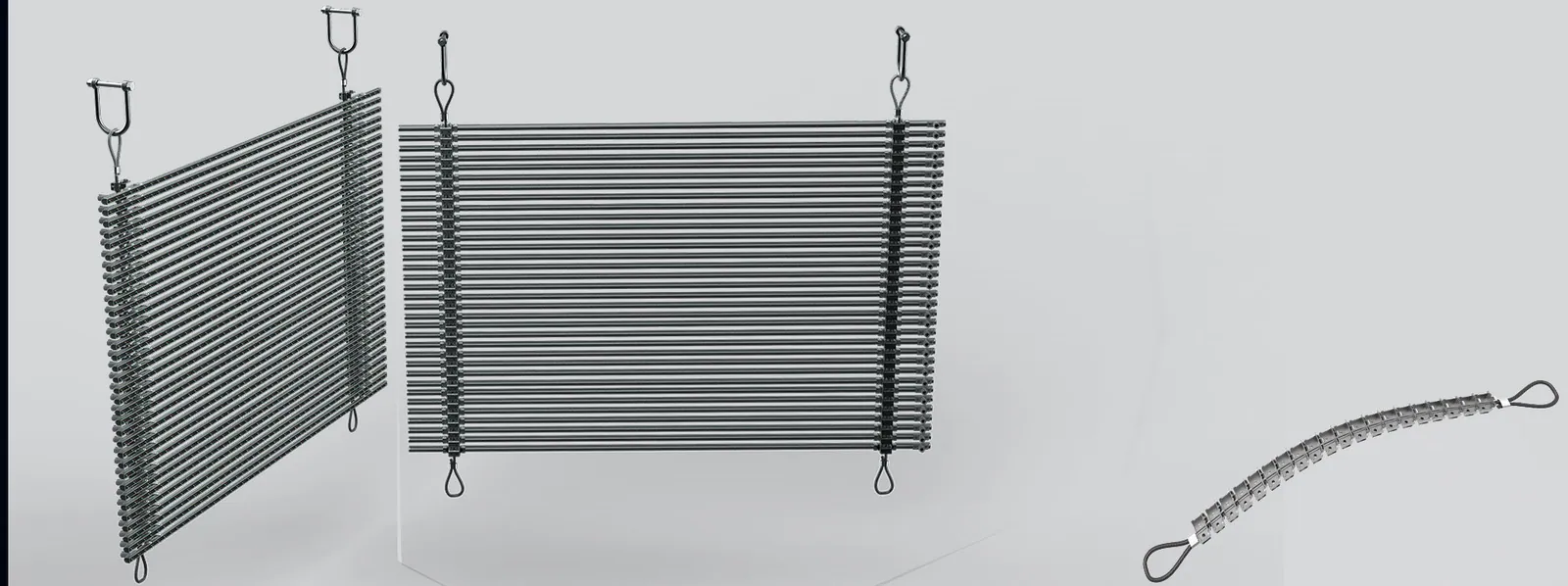

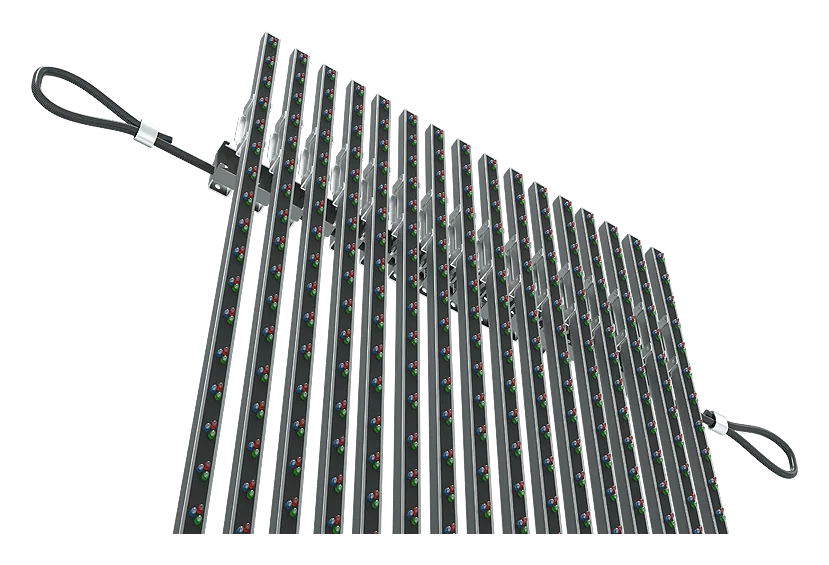

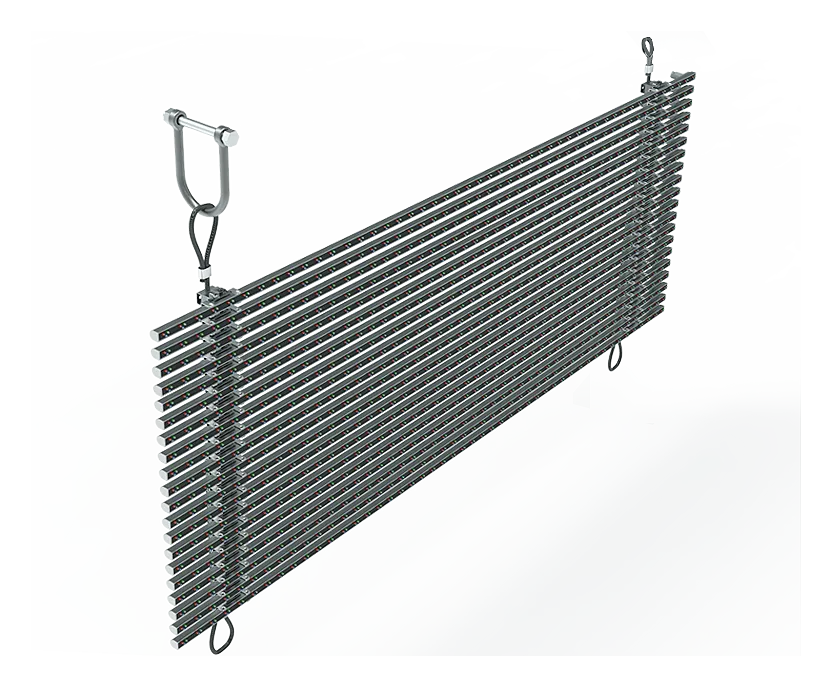

Stainless Steel Wire Version
The stripes could be installed in a strong stainless steel wires, no need any extra steel frame structure;
Save installation space, manpower, installation time;
Easy Installation

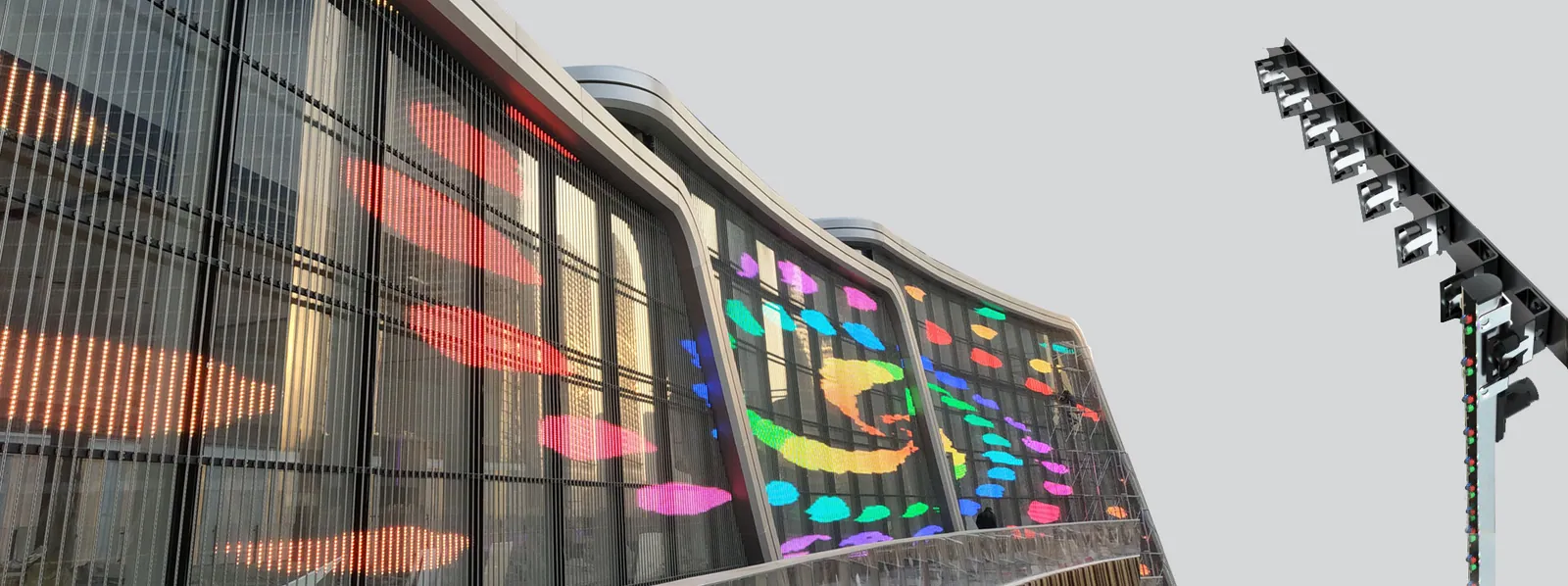

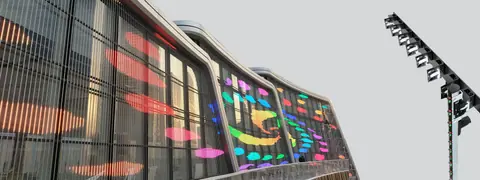

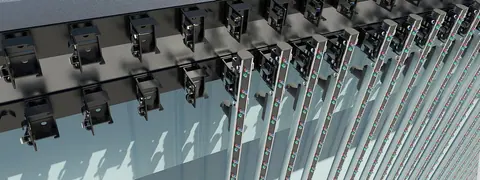

Simple frame structure or stainless steel wire installation enable the B stripes to be installed very easy, fast, and tidy, fits for lage-sized media facade installations, like skycrapers, business buildings, shoppingmall, statium, city landmark;
- DOOH and advertising
