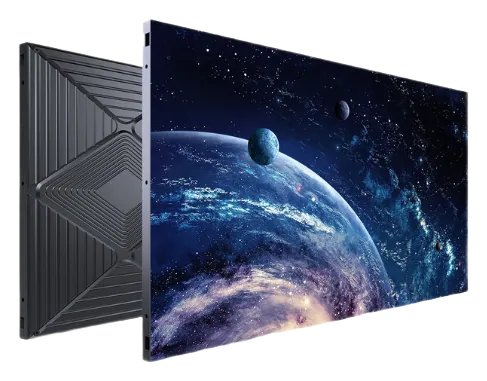

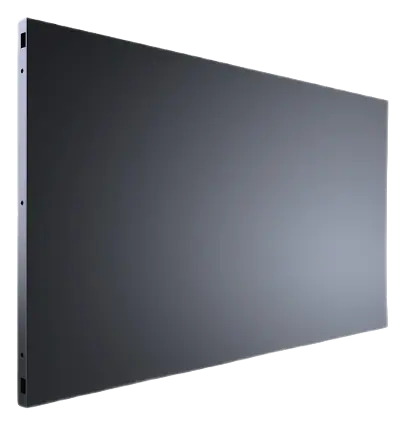

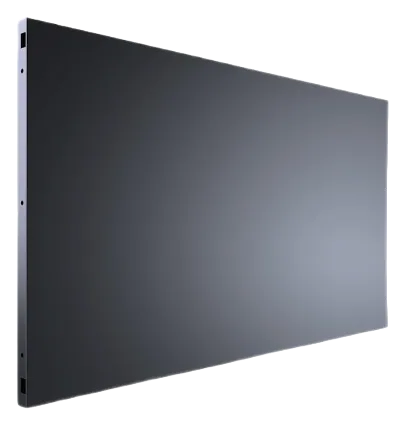

NX COB Ultra 1.25

At the heart of NX COB ULTRA is our proprietary AET INX Driver IC- a revolutionary all-in-one chip that integrates row drivers, column drivers, logic processing, and a receiving card.

Series: NX COB Ultra
Pixel pitch: 1.25 mm
Brightness: 600 cd / m², 0–100% adjustable
Module size: 150 × 168.75 mm
Module resolution: 120 × 135
Refresh rate: 3840–7680 Hz
Packaging process: COB full flip
Protection level: IP65

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 35 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications35

Pixel Pitch: 1.25 mm
Packaging process: COB full flip
Pixel density: 6,40,000 px/m²
Module size: 150 × 168.75 mm
Module Resolution: 120 × 135
Light board surface technology: Matte matte coating
Protection Level: IP65
Box module composition: 4 × 2
Cabinet resolution: 480 × 270
Cabinet size (mm): 600 × 337.5 × 37.7
Power supply scheme: Common cathode circuit
Flash correction storage: Have
Machine weight: 4.5 kg
Maintenance method: Front maintenance

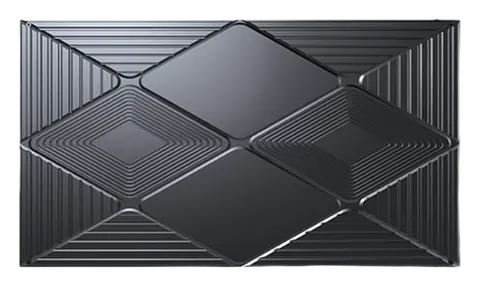

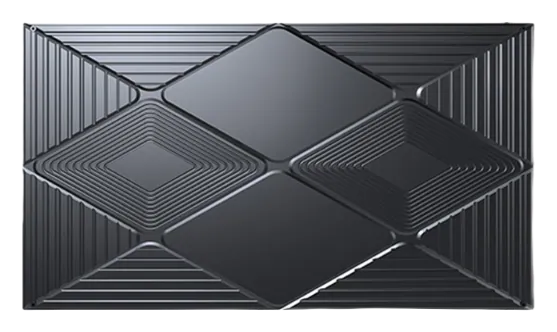

Box material: Die-cast aluminum housing + removable plastic back cover
Grayscale: Chip Native 22-bit
Brightness: 600 cd / m², 0–100% adjustable
Contrast: ≥28000:1@10Lux = 1000000:1@darkroom environment
Color gamut: ≥ 125% NTSC
Color temperature: Typ 9000, 1000–23000K adjustable
Horizontal / vertical viewing angle: 178° / 178°
Chromaticity uniformity: ±0.001Cx, Cy
Brightness uniformity: ≥99%
Flatness: ≤0.02mm
Light point center distance deviation: ≤0.6%
Single point brightness correction: Support
Single-point chromaticity correction: Support
Power supply requirements: AC100–240V, 50 / 60Hz
Max. power consumption: ≤200 W/m²
Avg. power consumption: ≤67 W/m²
Line Sweep: 45 (up to 90 scans)
Refresh rate: 3840–7680 Hz
Drive mode: PM constant current drive
Receiving function: Built-in receiving function, built-in frame storage, Gamma table, point-by-point correction RAM
Data transfer mode: LVDS interface

02Models2 models in the family

Models compared.

Model	NX COB Ultra 0.9	NX COB Ultra 1.25
Pixel Pitch (mm)	0.9375	1.25
Packaging process	COB full flip	COB full flip
Pixel density (dots/m²)	11,37,778	6,40,000
Module size (mm)	150 × 168.75	150 × 168.75
Module Resolution	160 × 180	120 × 135
Light board surface technology	Matte matte coating	Matte matte coating
Protection Level	IP65	IP65
Box module composition	4 × 2	4 × 2
Cabinet resolution	640 × 360	480 × 270
Cabinet size (mm) (W × H × D)	600 × 337.5 × 29.2	600 × 337.5 × 37.7
Power supply scheme	Common cathode circuit	Common cathode circuit
Flash correction storage	Have	Have
Machine weight (kg)	4.5	4.5
Maintenance method	Front maintenance	Front maintenance
Box material	Die-cast aluminum housing + removable plastic back cover	Die-cast aluminum housing + removable plastic back cover
Grayscale (Bit)	Chip Native 22-bit	Chip Native 22-bit
Brightness (cd/m²)	600 cd / m², 0–100% adjustable	600 cd / m², 0–100% adjustable
Contrast	≥28000:1@10Lux = 1000000:1@darkroom environment	≥28000:1@10Lux = 1000000:1@darkroom environment
Color gamut	≥ 125% NTSC	≥ 125% NTSC
Color temperature (K)	Typ 9000, 1000–23000K adjustable	Typ 9000, 1000–23000K adjustable
Horizontal / vertical viewing angle	178° / 178°	178° / 178°
Chromaticity uniformity	±0.001Cx, Cy	±0.001Cx, Cy
Brightness uniformity	≥99%	≥99%
Flatness	≤0.02mm	≤0.02mm
Light point center distance deviation	≤0.6%	≤0.6%
Single point brightness correction	Support	Support
Single-point chromaticity correction	Support	Support
Power supply requirements	AC100–240V, 50 / 60Hz	AC100–240V, 50 / 60Hz
Max. power consumption (W/m²)	≤200	≤200
Avg. power consumption (W/m²)	≤67	≤67
Line Sweep	45 (up to 90 scans)	45 (up to 90 scans)
Refresh rate (Hz)	3840–7680	3840–7680
Drive mode	PM constant current drive	PM constant current drive
Receiving function	Built-in receiving function, built-in frame storage, Gamma table, point-by-point correction RAM	Built-in receiving function, built-in frame storage, Gamma table, point-by-point correction RAM
Data transfer mode	LVDS interface	LVDS interface

03DescriptionManufacturer's description

What it is.

AET Owned Industry’s first All-in-One INX Driver IC

At the heart of NX COB ULTRA is our proprietary AET INX Driver IC- a revolutionary all-in-one chip that integrates row drivers, column drivers, logic processing, and a receiving card. This innovation simplifies LED architecture, reduces the number of components, and enhances overall display performance.

Power Packed Performance

Zero Delay Processing: With a zero frame delay, NX COB ULTRA ensures real-time, smooth content delivery, making it ideal for applications where timing is critical.

Common Cathode Technology: Reduces power consumption by 35%, offering a sustainable and cost-efficient solution that aligns with modern energy-saving goals.

7680Hz Ultra High Refresh Rate: Delivers flicker-free, lag-free visuals, perfect for broadcasting, retail, and control room applications.

Unrivalled Visual Brilliance

NX COB ULTRA- the next gen of NX COB, is engineered to deliver cinematic-quality visuals outperforming traditional LED displays in every way:

22-bit Native Grayscale Depth: Offers a wider, richer color range for lifelike image reproduction, ensuring that every detail is captured with precision.

HDR Support: Provides deeper contrast, superior brightness, and enhanced sharpness, making it ideal for high-impact visual applications.

PSWM + PWM + PAM Dimming: Ensures vibrant visuals even in ultra-low brightness environments, maintaining image quality across all lighting conditions.
