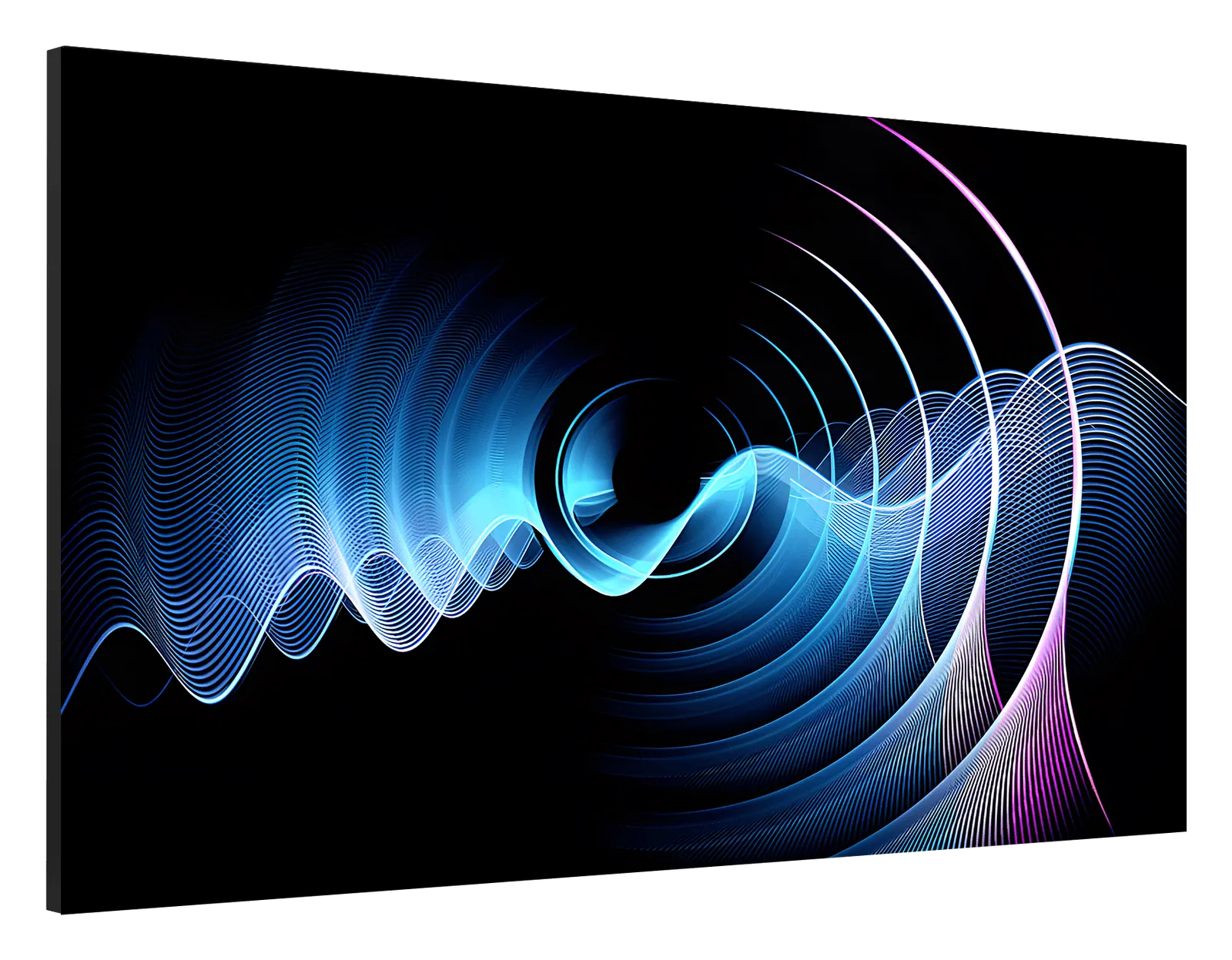

Quantum AT 55″ MIP

The AET QUANTUM Series, an AT 55” 0.63mm pixel pitch based on MIP Technology represents AET’s commitment to standardized excellence in indoor LED displays.

Series
Quantum Series
Pixel pitch
0.63 mm
Brightness
450 nits
Power consumption
max 260 / avg 88 W/m²
Cabinet resolution
1920 × 1080
Refresh rate
≥ 3840 Hz
IP rating
≥ IP 5X
Weight
≤ 18.5 kg
PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 10 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications10
Pixel Pitch
0.63 mm
Drive
Cathode
Cabinet Resolution
1920 × 1080
Weight
≤ 18.5 kg
IP Rating
≥ IP 5X
Brightness
450 nits
Viewing Angle (H/V,°)
≥ 160
Max. Contrast Ratio
≥ 7000:1
Refresh Rate
≥ 3840 Hz
Max/Avg. Power Consumption
≤ 260 / ≤ 88 W/m²
02DescriptionManufacturer's description

What it is.

The AET QUANTUM Series, an AT 55” 0.63mm pixel pitch based on MIP Technology represents AET’s commitment to standardized excellence in indoor LED displays. This flagship series is engineered for environments where visual clarity, reliability, and ease of maintenance are critical. From corporate boardrooms to high-stakes control rooms, the AT Series is designed to perform consistently at the highest level.

Welcome to the Future of LED Display Technology

At AET Displays Limited, we bring you the AET QUANTUM Series, a revolutionary LED direct display based on AT 55” 0.63mm pixel pitch based on MIP series, that embodies innovation, standardization, and quality. This brochure will guide you through our AT Series’s features, applications, and advantages, showcasing why it stands out in the market.

Mass In Package (MIP) technology for ultra-fine pixel pitch and exceptional image quality

AET Quantum AT 55″ MIP: Mass In Package (MIP) technology for ultra-fine pixel pitch and exceptional image quality

Features

Revolutionizing LED Displays with International Standard Sizes

Our innovative approach ensures compatibility, ease of installation, and a seamless user experience. Available in common sizes including 43”, 46”, 54”, 55”, and 60”, our displays set a new benchmark in the industry.

  • Universal Compatibility: Simplifies integration with existing systems.
  • Ease of Installation: Standard sizes make setup quick and straightforward.
  • Enhanced User Experience: Consistent sizing ensures a uniform viewing experience across various applications.
AET Quantum AT 55″ MIP: Revolutionizing LED Displays with International Standard Sizes

Features

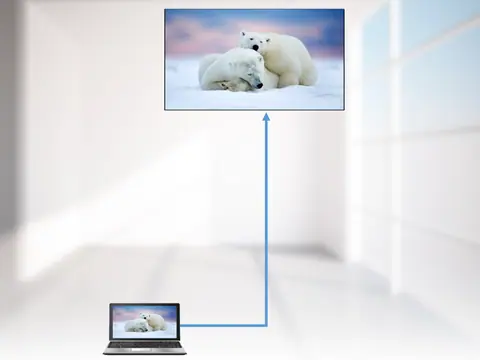

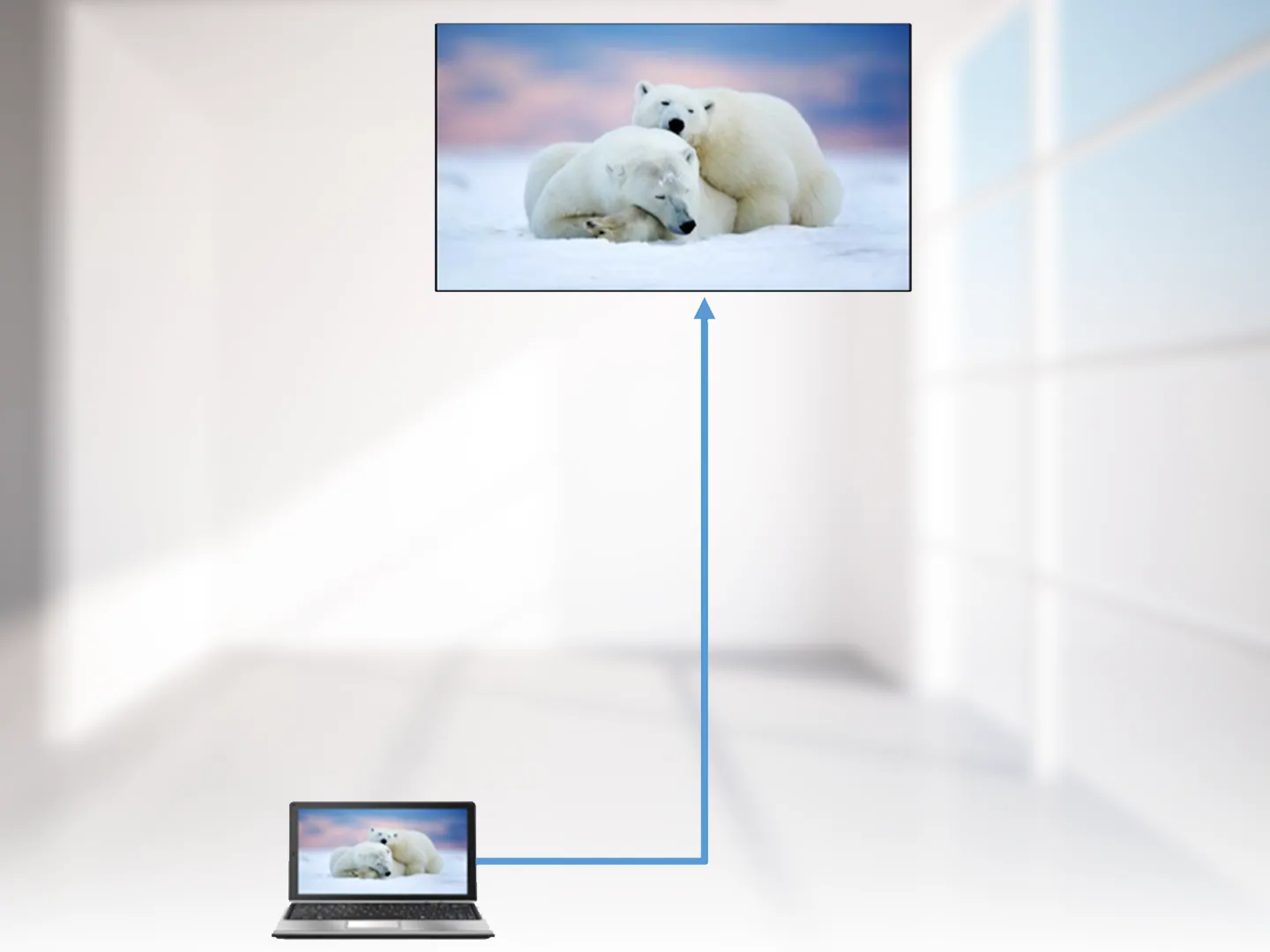

Effortless Integration with AET’s Plug and Play Technology (Standard Interface)

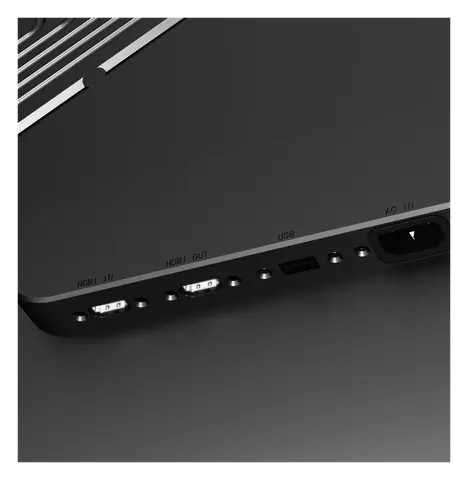

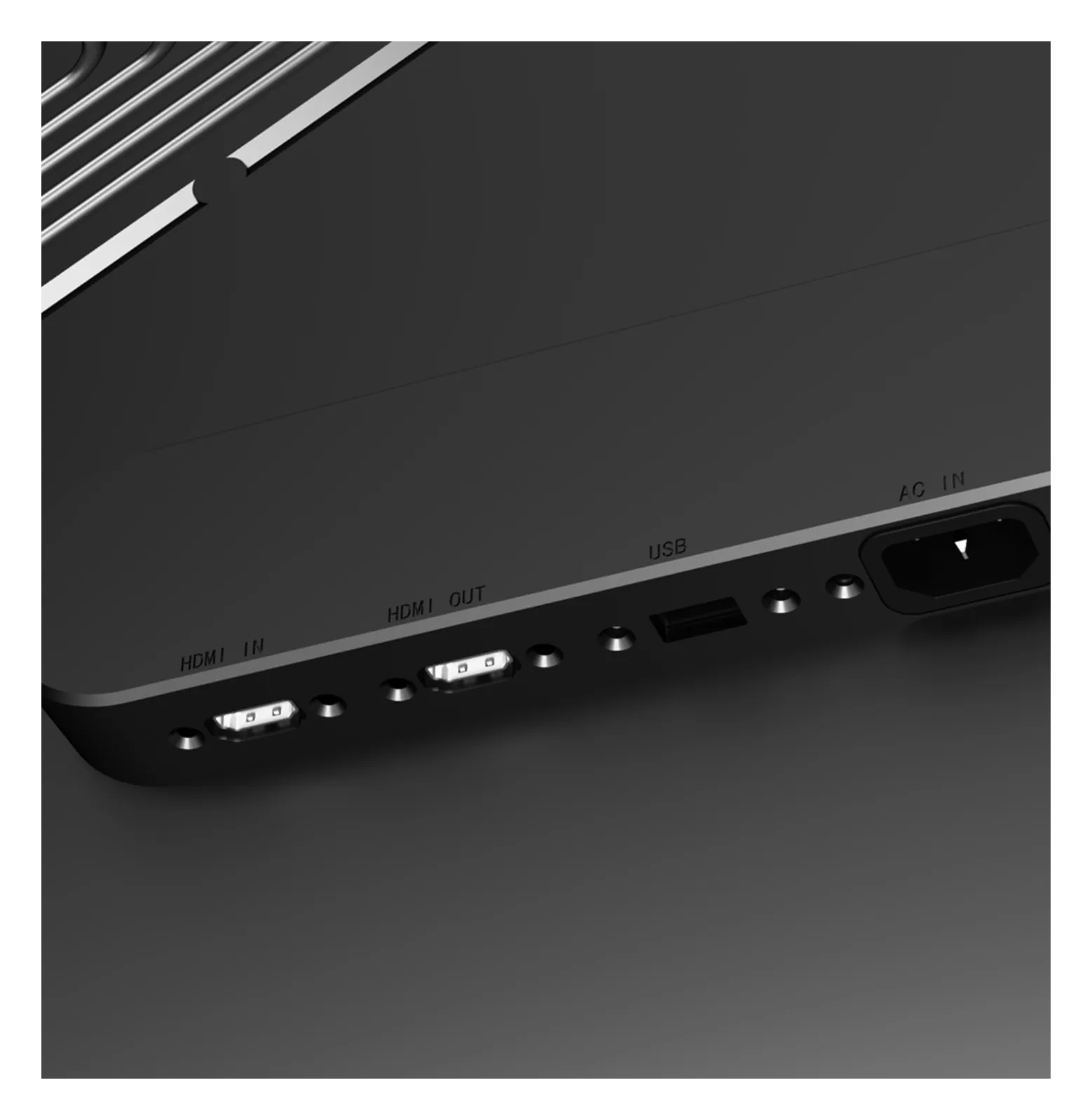

Our standard interfaces allow for direct plug-and-play of standard video sources without the need for a sending box. Featuring HDMI, HDBaseT, Fiber, MPO, and IP ports, our AT Series simplifies the connection process, transforming the way you experience video displays.

Efficiency and Convenience: Reduce setup time and enhance usability with our streamlined interface.

  • Plug and Play: Directly connect standard video sources for immediate use.
  • Simplified Setup: Eliminate the need for additional equipment like splicers and sending cards.
  • Versatile Ports: HDMI, HDBaseT, Fiber, MPO, and IP ports for diverse connectivity options.
AET Quantum AT 55″ MIP: Effortless Integration with AET’s Plug and Play Technology (Standard Interface)

Features

Innovative Third-Generation Architecture for Superior Performance

Introducing the third-generation 3-in-one architecture, integrating the power supply, receiving card, and HUB board into a single, all-in-one (AIO) unit. This ground breaking design simplifies installation, enhances reliability, and optimizes performance, setting a new standard in LED display technology.

Enhanced Performance: Optimized for superior display quality and operational efficiency.

  • Integrated Design: Combines power supply, receiving card, and HUB board for a streamlined setup.
  • All-in-One Efficiency: Reduces complexity and increases reliability with fewer components.
AET Quantum AT 55″ MIP: Innovative Third-Generation Architecture for Superior Performance

Features

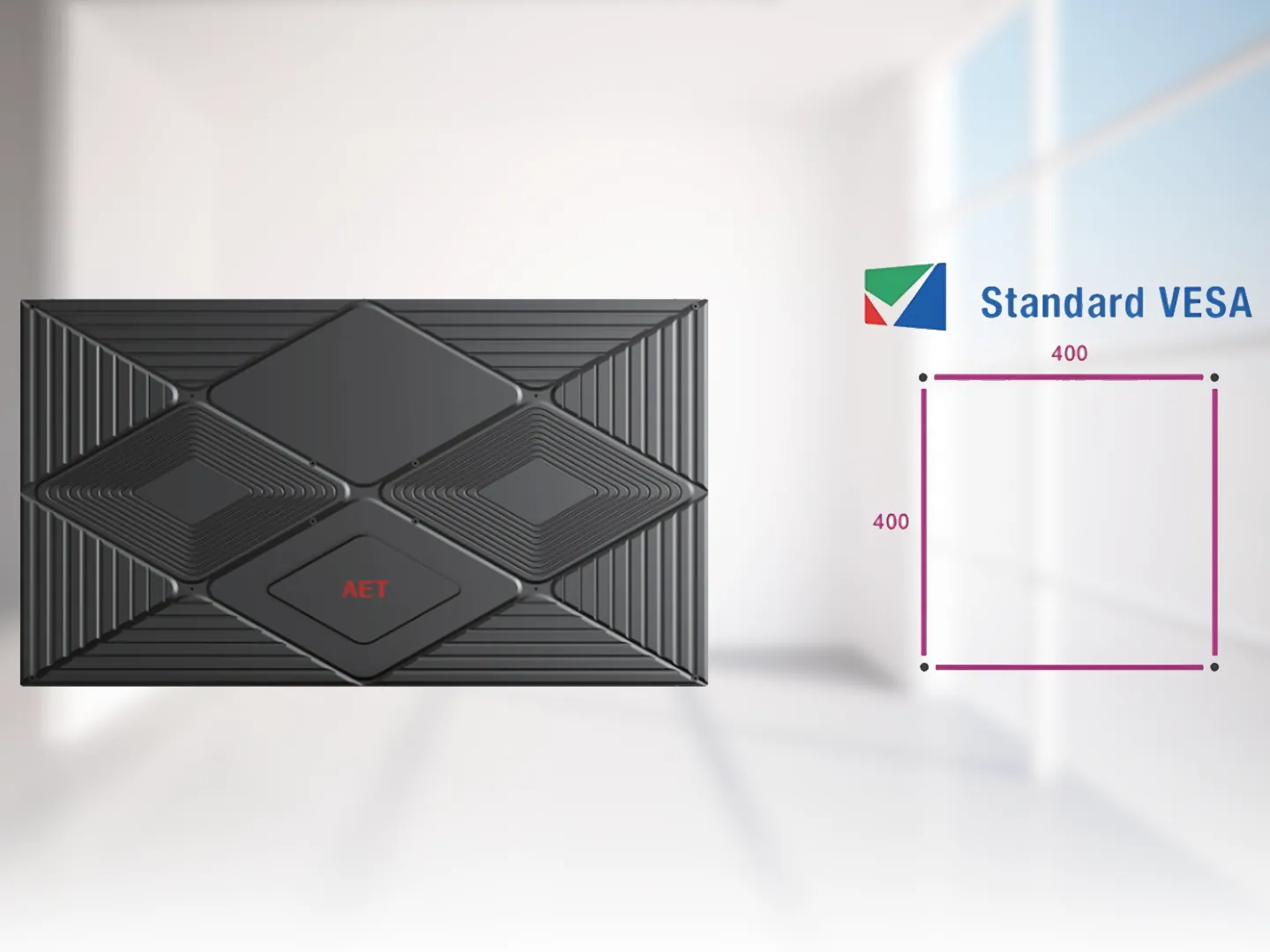

Effortless Installation with VESA-Compatible Brackets

Standardized bracket system that complies with the “VESA” bracket standard. Our brackets are compatible with the installation sizes and hole positions of traditional LCD splicing screens, ensuring a hassle-free transition. The modular wall mount design allows for easy expansion, making it perfect for various configurations, including 2*2 wall mounting setups.

Effortless Setup: Simplifies installation and ensures a secure fit.

  • Universal Compatibility: Fits traditional LCD splicing screen sizes and hole positions.
  • Modular Design: Expandable wall mounts adapt to various installation needs.
AET Quantum AT 55″ MIP: Effortless Installation with VESA-Compatible Brackets

Features

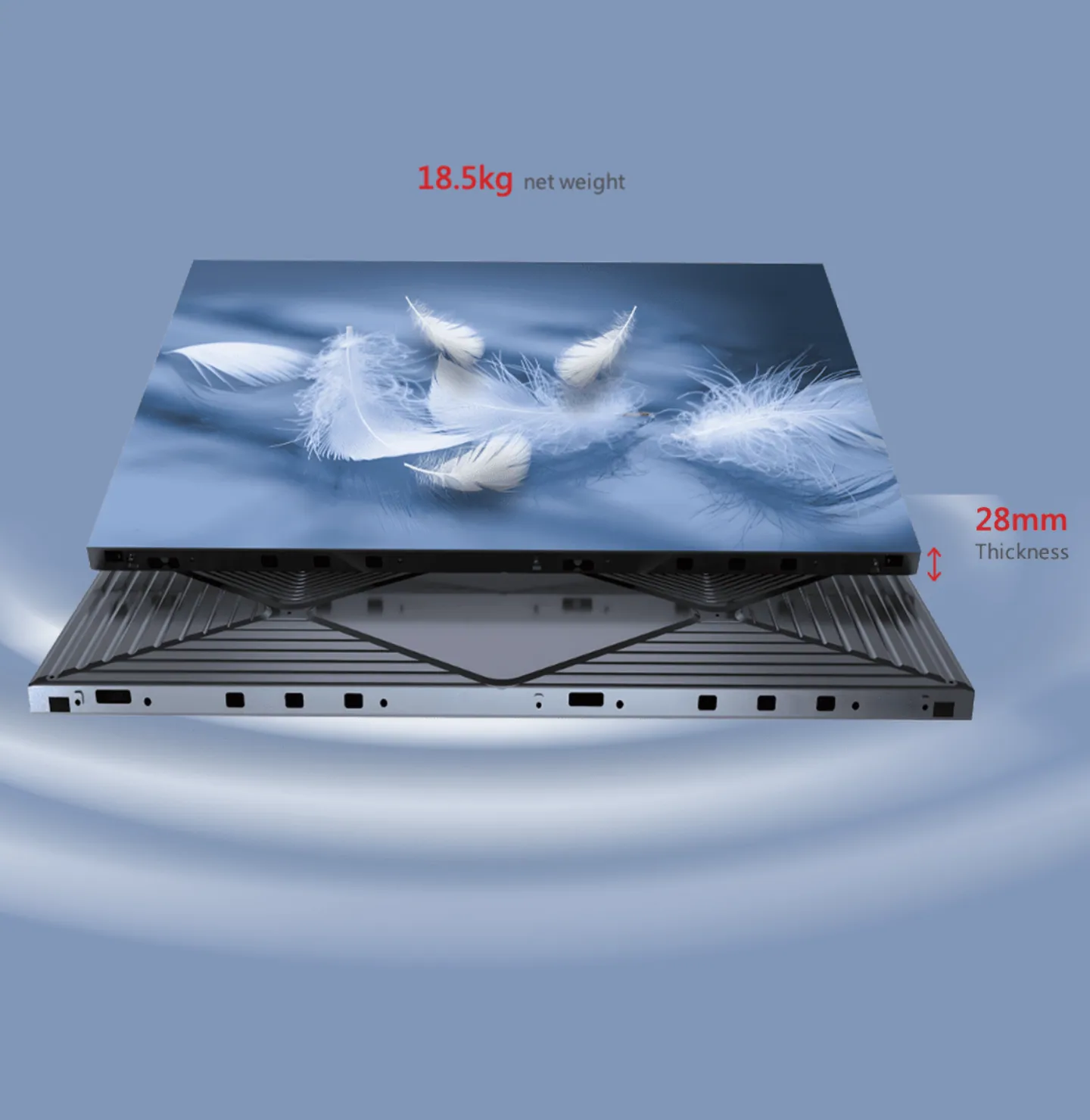

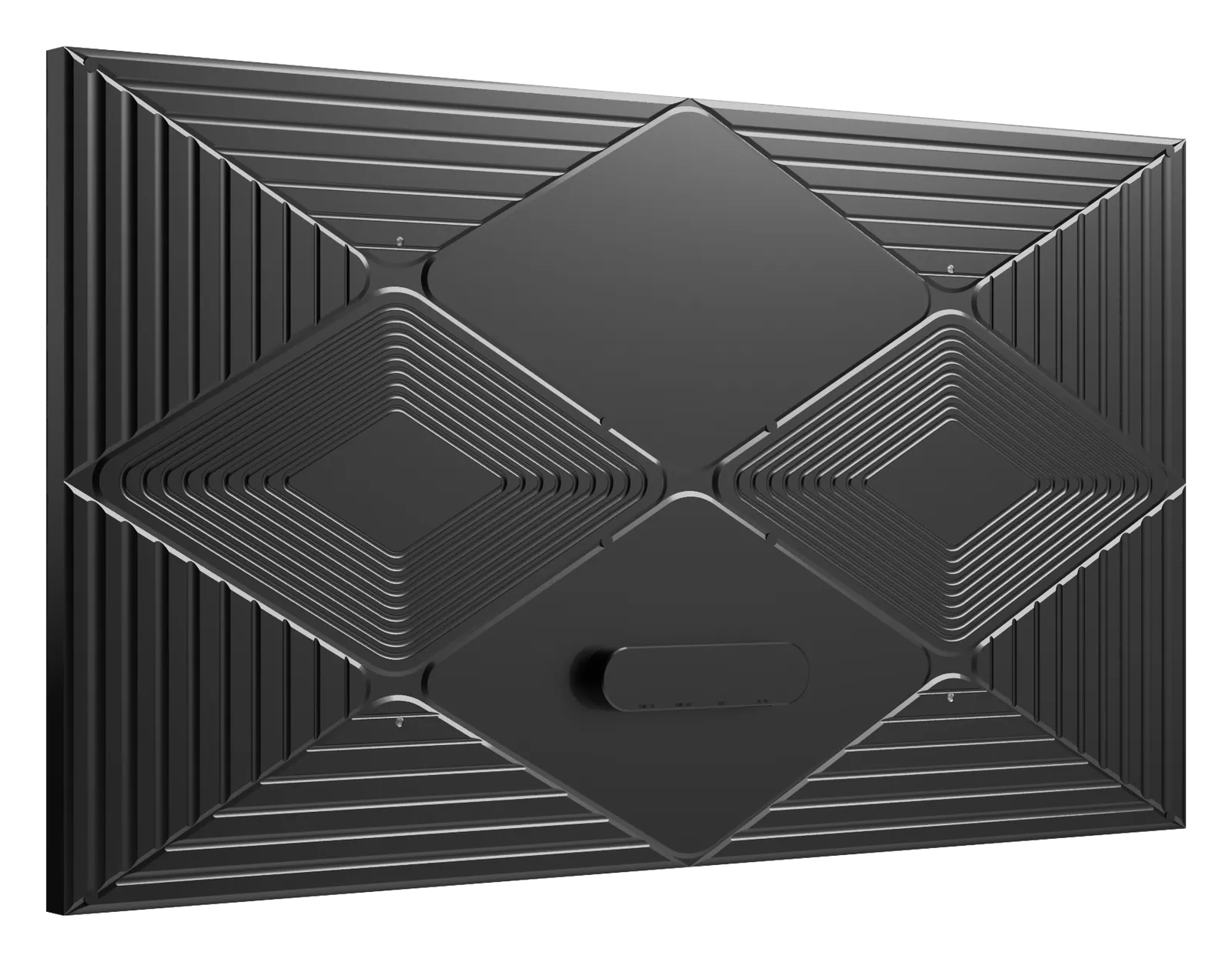

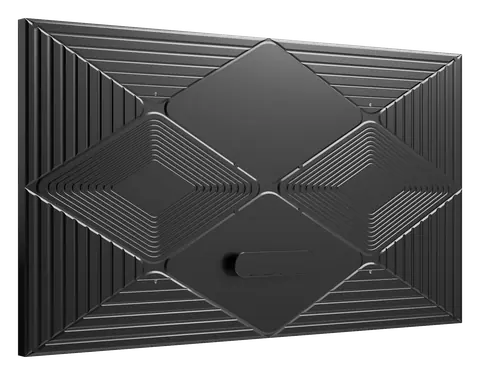

Ultra-Thin, Ultra-Light, Ultra-Stylish

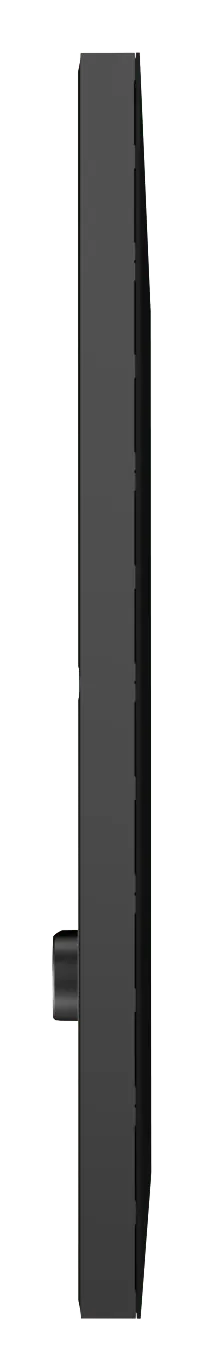

Our ultra-thin and lightweight design features one-piece molding and industrial aesthetics, making it a visually appealing addition to any environment. At just 28mm thick and a net weight of 18.5kg, our displays are easy to install, move, and maintain without compromising on durability or performance.

  • One-Piece Molding: Seamless design for a modern, sleek look.
  • Industrial Aesthetic: Enhances the visual appeal of any space.
  • Easy Handling: Lightweight and slim profile simplify installation and maintenance.
  • Durable Performance: Engineered for strength and reliability despite the slim design.
AET Quantum AT 55″ MIP: Ultra-Thin, Ultra-Light, Ultra-Stylish

Features

Maximizing Performance with Energy-Saving Technology

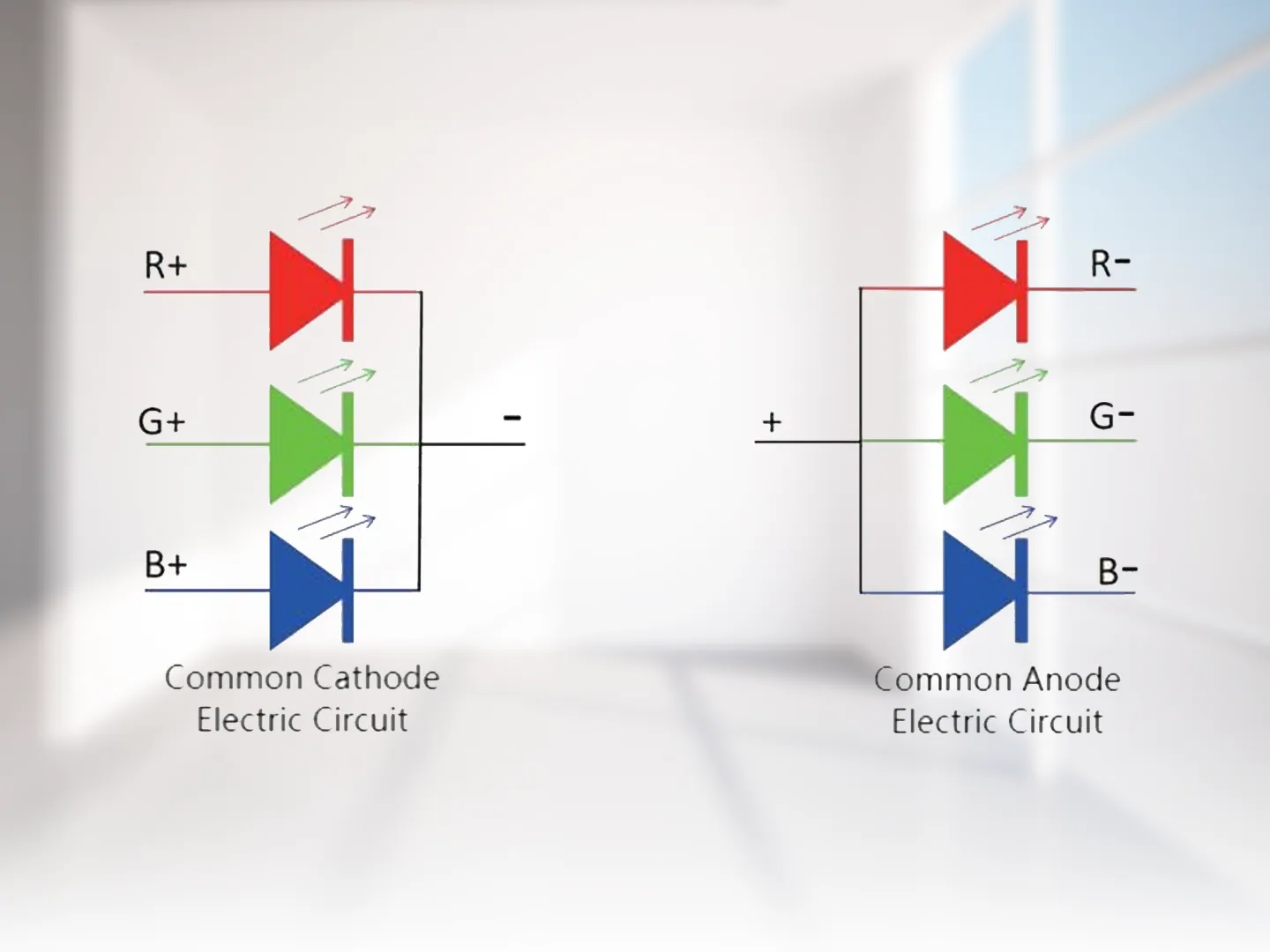

Our innovative common cathode driver connects the cathodes of red, green, and blue primary color lights, allowing the LEDs in the same pixel to share a negative electrode. This efficient design reduces energy usage and enhances the overall efficiency of our displays.

  • Common Cathode Driver: Reduces power consumption by sharing a negative electrode among LEDs.
  • Integrated Design: Efficiently connects red, green, and blue LED cathodes.
  • Eco-Friendly: Lowers energy usage, contributing to a greener environment.
AET Quantum AT 55″ MIP: Maximizing Performance with Energy-Saving Technology
  • AET Quantum AT 55″ MIP: Common Cathode Technology

    Common Cathode Technology

  • AET Quantum AT 55″ MIP: Automotive Grade Adjustable Connectors

    Automotive Grade Adjustable Connectors

  • AET Quantum AT 55″ MIP: Front Maintenance

    Front Maintenance

  • AET Quantum AT 55″ MIP: Easy Power Supply

    Easy Power Supply

  • AET Quantum AT 55″ MIP: DCI – P3 (Optional)

    DCI – P3 (Optional)

  • AET Quantum AT 55″ MIP: Point 2 Point Caliberation

    Point 2 Point Caliberation
