Sheet 05.612

Color Imagination · Beam

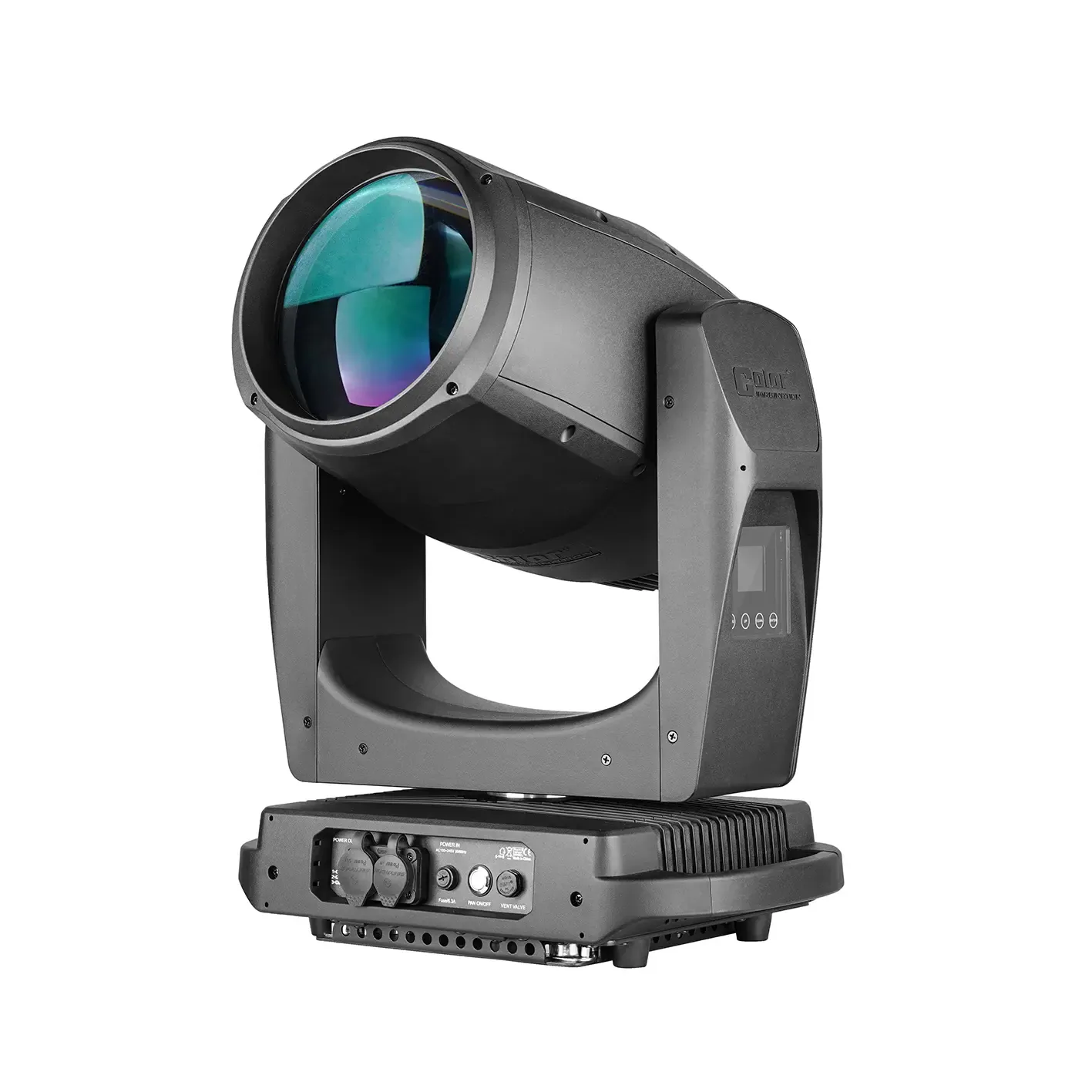

FAST 330LC

ModelFL330C

2° Angle, CMY, Ø180mm Front Lens, Continuous PAN/TILT

Light source: 1*OSRAM 270W White LED module
Power consumption: 320W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP66 protection rating
Net weight: 24.4kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 21 groups · 80 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source6

Source: 1*OSRAM 270W White LED module
Color Temperature: 8000K(±500)
CRI: ≥70; Flicker free operation for broadcast TV and FILM
Life Span: 20000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics4

A set of high resolution and precise optics

Ø180mm Front lens

2°Beam angle

Smooth and precise linear focus

03Movement10

PAN: 2 modes; 1. 360°Continuous movement; 2. 540°(8/16 bit)
TILT: 2 modes; 1. 360°Continuous movement; 2. 270°(8/16 bit); Fast, quiet, smooth and precise 3-Phase motors; Smooth, fast and precise resolution for PAN/TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement; PAN/TILT reversible

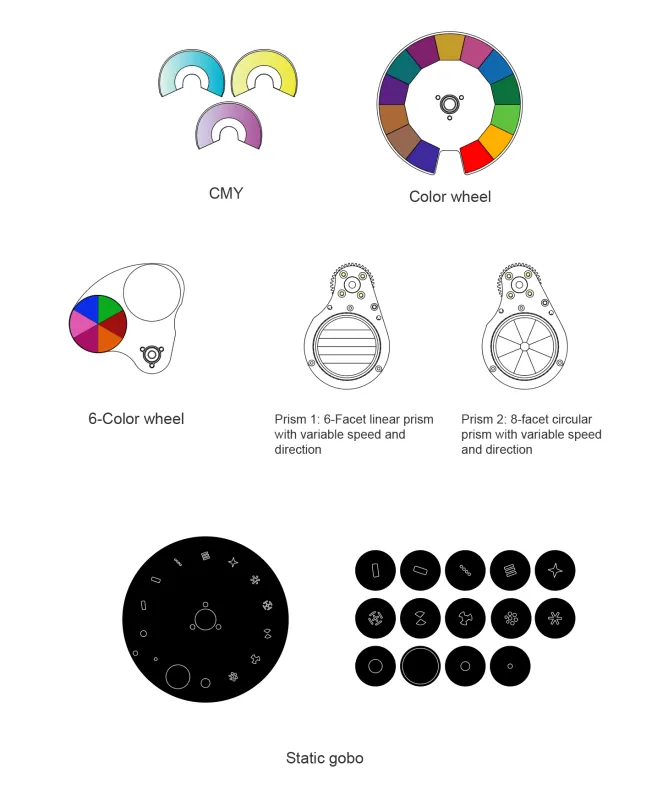

04Color System4

CMY color mixing system

1 Color wheel with 13 dichroic colors plus open

Variable direction rainbow effect with speed adjustable

6-Color wheel with variable direction and speed control

05Gobo System1

1 Static gobo wheel with 13 gobos plus open

06Prism System5

2 Prisms design
Prism 1: 6-Facet linear prism with variable speed and direction
Prism 2: 8-facet circular prism with variable speed and direction; Prism 1 indexing; Prism overlay (prism morphing)

Show the full specificationHide the rest of the specification15 more groups · 50 values

07Strobe Effect2

0-25Hz shutter/strobe effect with variable speed

Preset variable/random strobe and dimming pulse effect

08Wash System1

Even and soft coverage

09Dimming System1

0-100% Smooth linear dimming

10Control System9

22 DMX channels USITT DMX-512

DMX512, master-slave, or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Art-NET (Optional)

Wireless receiver system built-in (Optional)

Shielded input signal protection for stable signal without interference

Waterproof RJ45 etherCON IN/OUT (Optional with Art-Net)

Waterproof SEETRONIC’s 3-Pin and 5-pin XLR DMX connectors IN/OUT

11Software Update2

Software up-datable through USB connector or DMX connectors

Muilt units up-datable in daisy chain

12Display System5

1.8″ TFT LCD display (in the arm)

4 Touch control buttons

180°Reversible for LCD display

Display auto OFF

DMX signal monitoring indicator

13Cooling System3

Advanced low noise self-adjusting fan cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management

14Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

Waterproof SEETRONIC’s TRUE1 powerCON connectors IN&OUT

320W Power consumption

15Housing4

High tension molded fire proof housing with carbon fiber; Skeleton made of aluminum and steel metal plates; Two side handles on base
Exterior finish: Black

16Installation2

2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)

1*Safety attachment point

17Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP66 protection rating

18Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

19Weight2

N.W.: 24.4kg
G.W.: 28.1kg

20Dimensions2

Product Dimensions: 268.4(D)*407.5(W)*581.5(H)mm
Packing Dimensions: 495(D)*675W)*350(H)mm

21Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1,4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

FAST 330LC

The FAST 330C in new IP66 concept is an ultra compact and light weight stylish moving head beam light with a white OSRAM LED in a reliable, sage and fully sealed module, integrated with a set of unique high resolution optical system (180CM front lens).

The fixture features 2°beam angle which helps to provide solid beam effect. The FAST 330C is designed with a range of effects: CMY system, 13 static gobos, 13 dichroic colors, 6-Color Wheel, 2 prisms, frost, focus, etc. It provides 360° continuous fast and smooth PAN/TILT movement with variable speed which delivers even more vivid visual effect to the show. The fixture supports DMX, RDM (Remote Device Management).

The fixture’s exterior housing is beautifully balanced basing on a modern design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the The FAST 330C achieves more than just a striking look. The 2*1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy.

It’s fast and quiet operation LED source moving head beam. The FAST 330C’s applications are unlimited. It could be placed at any outdoor environment such as fountain shows, theme park,architectural shows, live concerts, and so on.
