Sheet 05.610

Color Imagination · Beam

CRAZY 4

ModelSI-113

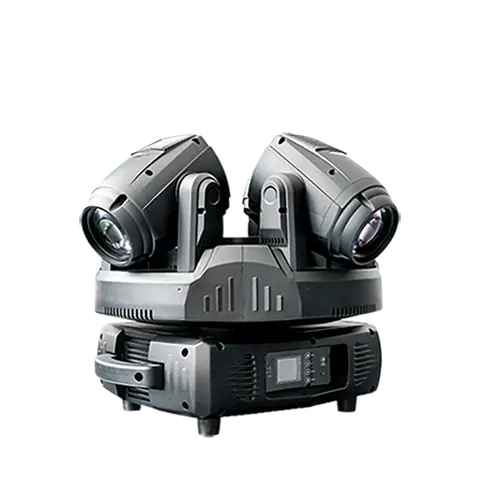

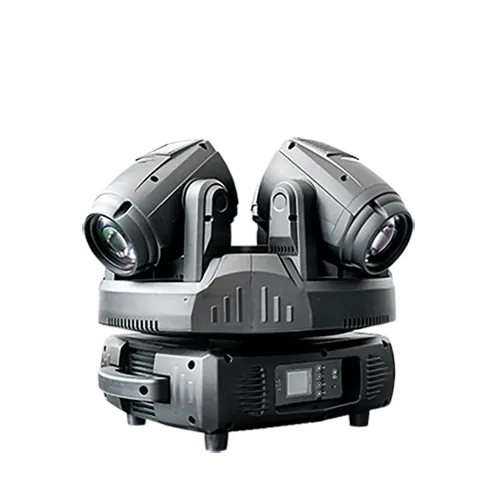

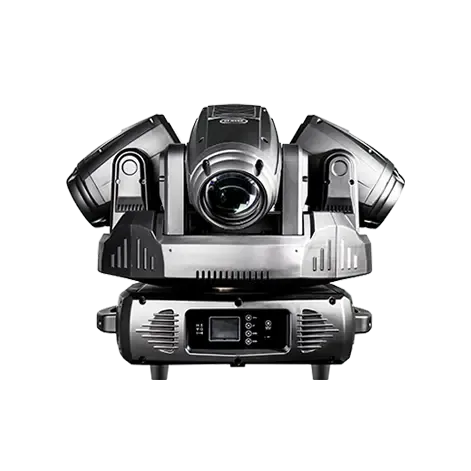

The CRAZY 4, where legend begins, integrates 4 individual compact BEAM moving heads (same functions) in an UFO shape revolver with fast and precise 360° continuous PAN movement.

Light source: 4*Philips 190W lamp
Power consumption: 1150W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 54kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video on YouTube

Color Imagination CRAZY 4Open on YouTube

02SpecificationManufacturer's data · 19 groups · 88 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source8

Source: 4*Philips 190W lamp; Flicker free operation; for broadcast TV and FILM
Life Span: 2000H; The life span may vary depending on
several following factors but not limited to: Environmental Conditions,; Power/Voltage, Usage Patterns; (On-Off Cycling), Control, etc.

02Optics4

4 Sets of high resolution and precise optics

Anti-reflection front lens

3.8°Beam angle

Smooth electronic focus

03Movement10

PAN movement: 360°continuous (8/16 bit)
Tilt movement: 180° (8/16 bit); Fast, quiet, smooth; and precise 3-Phase motors; Smooth, fast and precise; resolution for PAN/TILT movement; with low noise operation; Scan position memory, auto reposition; after unexpected movement; PAN/TILT reversible

04Color System5

4 Color wheels with 4*11 dichroic

colors plus open

Variable direction rainbow

effect with speed adjustable

Color time controllable

Show the full specificationHide the rest of the specification15 more groups · 61 values

05Gobo System3

4 Static gobo wheels

with 4*14 gobos plus open

Gobo time controllable

06Prism System2

4*8-Facet prism

with variable speed and direction

07Dimming System2

0-100% Smooth linear mechanichal

dimming

08Control System8

11/46/46/48 DMX channels USITT

DMX-512

DMX512, master-slave,

sound activated or auto operation

Sound sensitivity adjustable

Shielded input signal protection for stable

signal without interference

3-Pin XLR connectors IN/OUT

09Preset Program2

Auto programs

Macro effects

10Display System4

2.4″ High resolution TFT LCD display

4 Control buttons

180°Reversible for LCD display

Display auto OFF

11Cooling System7

Advanced cooling system integrated

aluminum and copper with liquid

Efficient low noise

self adjusting fan cooling system

Constant temperature readout and

management function

Over temperature protection management

12Power Supply5

Electronic ballast

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON connectors IN/OUT

1150W Power consumption

13Housing5

Moulded fire proof ABS PC; Skeleton made of; aluminum and steel metal plates; Two side handles on base
Exterior finish: Black

14Installation3

1 Set specially designed hanging system

3 Clamps

1*Safety attachment point

15Compliance7

2014/35/EU – Safety of electrical

equipment supplied at low voltage (LVD)

2014/30/EU –

Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of

certain hazardous substances (RoHS)

16Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25?? to 45?? ambient temperature; IP20 protection rating

17Weight2

N.W.: 54kg
G.W.: 89kg(with flight case)

18Dimensions2

Product Dimensions: 564(D)*555(W)*545(H)mm
Packing Dimensions: 640(D)*730(W)*910(H)mm (Flight Case)

19Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

03DescriptionManufacturer's description

What it is.

CRAZY 4

The CRAZY 4, where legend begins, integrates 4 individual compact BEAM moving heads (same functions) in an UFO shape revolver with fast and precise 360° continuous PAN movement. Each head comes with a PHILIPS 189W 5R lamp, independent TILT adjustment and high definition 3.8° optic lens. The fixtures offers a full complement of professional characteristics, including static gobo wheel, color wheel, 8-facet prism, linear electronic focus, 0-100% linear dimmer, variable speed shutter/strobe.

The fixture’s exterior housing is beautifully balanced basing on a modern design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the CRAZY 4 achieves more than just a striking look. It’s applicable for large scale live concerts, TV productions, clubs, etc.
