MAGICBAR 6155P

ModelM6155P

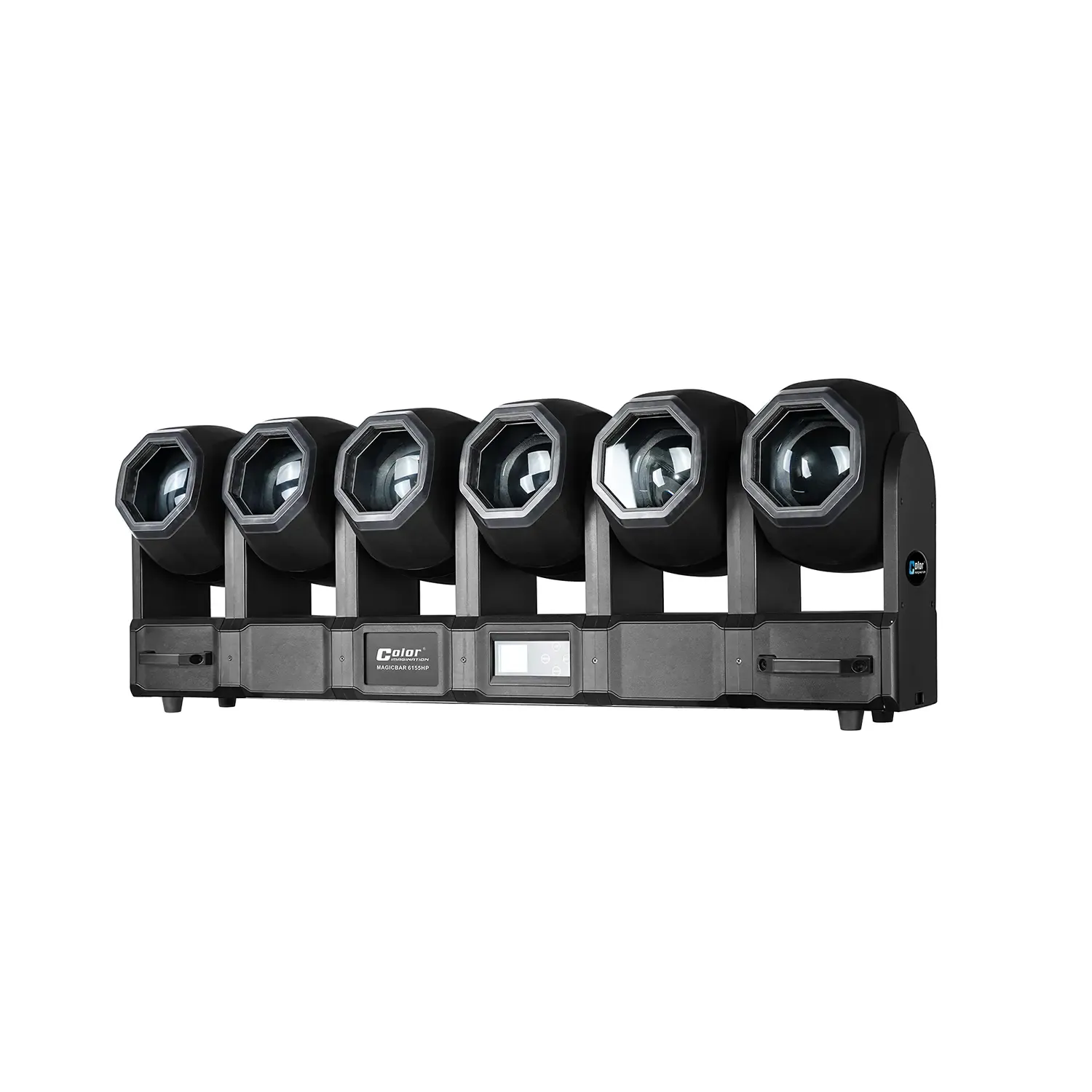

The MAGICBAR 6155P is an IP66 high-performance stage lighting bar fixture that features 6 individual moving MINI heads, each of which is equipped with a powerful 155W 4-IN-1 RGBL LED light source.

Light source: 6*155W 4-IN-1 RGBL LEDs
Power consumption: 790W Power consumption
Power supply: AC100-240V 50/60Hz

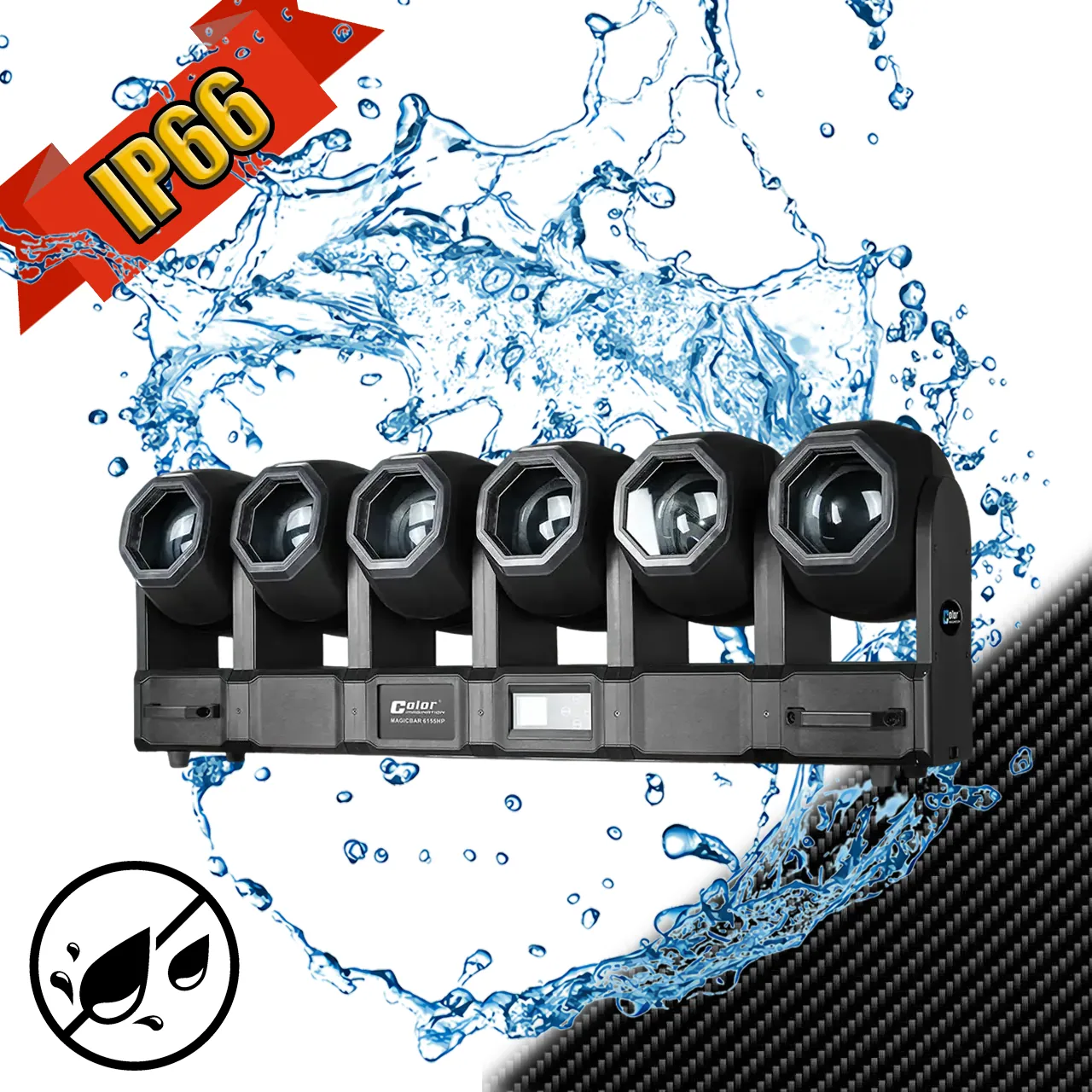

Ingress protection: IP66 protection rating
Net weight: 29.3kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 19 groups · 73 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source6

Source: 6*155W 4-IN-1 RGBL LEDs; (6*34)*0.5W 3-IN-1 SMD RGB LEDs; Flicker free operation for broadcast TV and FILM
Life Span: 50000H; 900Hz-2.5KHz LED frequency adjustable
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

02Optics2

6PCS high efficiency lens

3°-37.5°Zoom range

03Movement6

TILT: 2 modes; 1. 360° Continuous movement; 2. 270° (8/16 bit); Fast, quiet, smooth and precise 3-phase motors; Smooth, fast and precise resolution for TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement

04Colors8

Pixel mapping capability with each LEDs controllable individually

Sophisticated 4 colors RGBL mixed

Linear CTO 2800-8000K

Sharp beam effect

Pure and even wash effect

Preset static patterns

Preset dynamic patterns with variable speed

Preset dynamic color macro with variable speed

05Strip Effect2

Each head with strip effect with different built-in macros

(variable speed control)

06Strobe Effect3

1-25Hz shutter/strobe effect with variable speed

Preset pulse strobe effect with variable speed

Random strobe effect with variable speed

Show the full specificationHide the rest of the specification13 more groups · 46 values

07Dimming System2

0-100% Smooth linear LED dimming

4 Dimming curves, linear/square law/Inv square law/S-curve

08Control System6

32/44/76 DMX channels USITT DMX-512

DMX512, master-slave, sound activated or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Shielded input signal protection for stable signal without interference

Waterproof 3-Pin XLR connectors IN/OUT

09Software Update2

Software up-datable through USB or DMX connectors

Muilt units up-datable in daisy chain

10Display System5

1.8″ TFT LCD display

English/Chinese menu

5 Touch control buttons

180°Reversible for LCD display

Display auto OFF

11Cooling System3

Advanced self-adjusting fan cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management

12Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

Waterproof SEETRONIC’s TRUE 1 PowerCON IN/OUT with fuse

790W Power consumption

13Housing3

High tension molded fire proof housing with carbon fibre; Skeleton made of aluminum and steel metal plates
Exterior finish: Black

14Installation4

2*1/4 turn fastening Omega Clamps

Specific parts for seamless combination between lights

4 Handles

2*Safety attachment point

15Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP66 protection rating

16Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

17Weight2

N.W.: 29.3kg
G.W.: 34.7kg

18Dimensions2

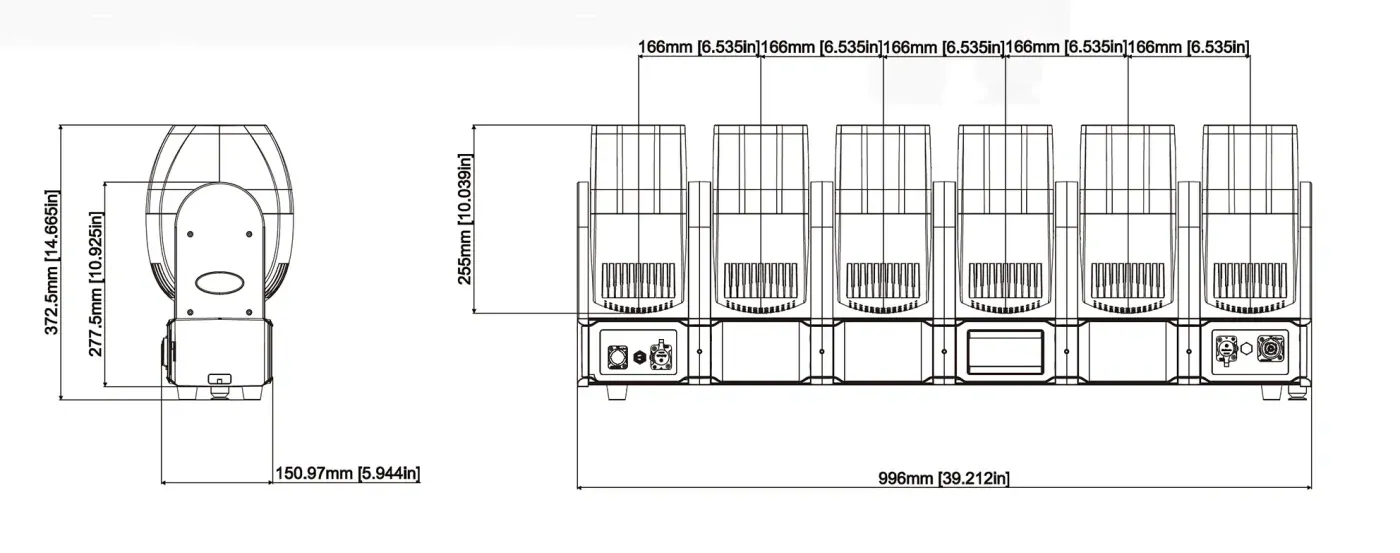

Product Dimensions: 200(D)*996(W)*372.5(H)mm
Packing Dimensions: 500(D)*1245(W)*320(H)mm

19Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1,4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

MAGICBAR 6155P

The MAGICBAR 6155P is an IP66 high-performance stage lighting bar fixture that features 6 individual moving MINI heads, each of which is equipped with a powerful 155W 4-IN-1 RGBL LED light source. With its versatile design and advanced features, the specially designed optical system, the MAGICBAR 6155P is capable of producing a wide range of dynamic sharp/collimated BEAM and pure/even WASH lighting effects that are sure to captivate audiences and enhance performances. Also, thanks to the ingenious front neon ring design on each head, the BAR could bring ultra brilliant and magic lighting effect to the lighting designers.

One of the standout features of the MAGICBAR 6155P is its flexible 360°continuous TILT movement, which allows each lighting head to be easily adjusted and aimed in any direction. This makes it easy for lighting professionals and performers to create customized lighting setups that are tailored to the unique needs of their events.

The MAGICBAR 6155P also features a range of advanced lighting effects, including strobe, color mixing, and chase effects. These effects can be easily accessed and controlled via the controller, allowing for precise and customizable lighting setups.

In addition to its advanced features, the MAGICBAR 6155P is built to withstand the rigors of live events and touring. Its rugged construction and high-quality components ensure that it will deliver reliable and consistent performance night after night. The users could connect different MAGICBAR 6155P seamlessly and get synchronized movement that produces an impressive wave of light (BEAM or WASH or kaleidoscope effect), paralleled to each other due to it’s 3°-37.5°zoom range.

There is another special application for the bar which is designed to have preset installing points. Users can install the bar vertically or horizontally on our MAGICBASE 2, to make the bar to be a complete moving head light. This way creates more possibility to the MAGICBAR 6155P for its users.

Overall, the MAGICBAR 6155P is a powerful and versatile lighting fixture that is sure to impress audiences and enhance performances. Its advanced features and flexible design make it a popular choice among lighting professionals and performers alike.

The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for any outdoor environment such as fountain shows, theme park,architectural shows, live concerts, and so on.
