MAGICBAR 8140H

ModelM8140H

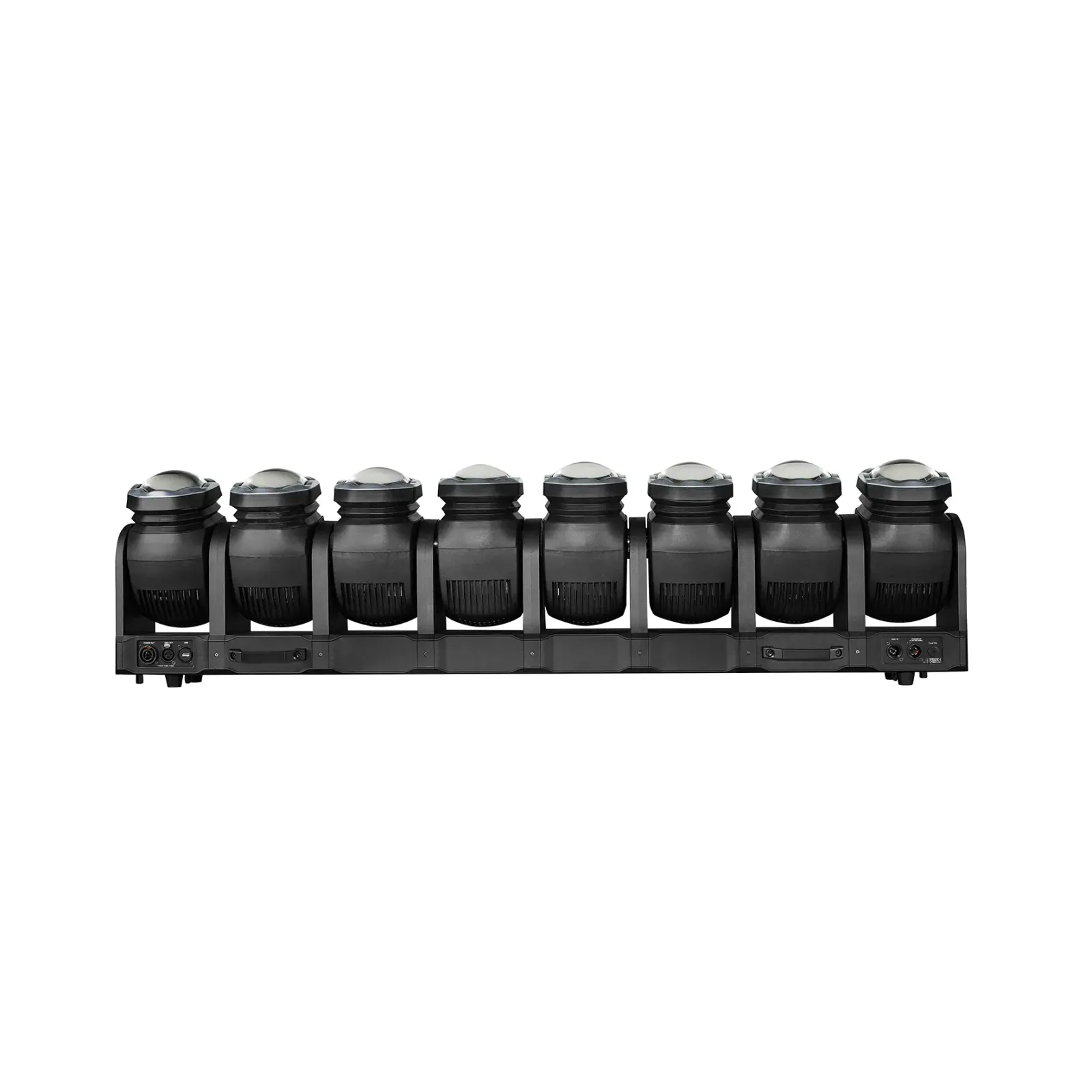

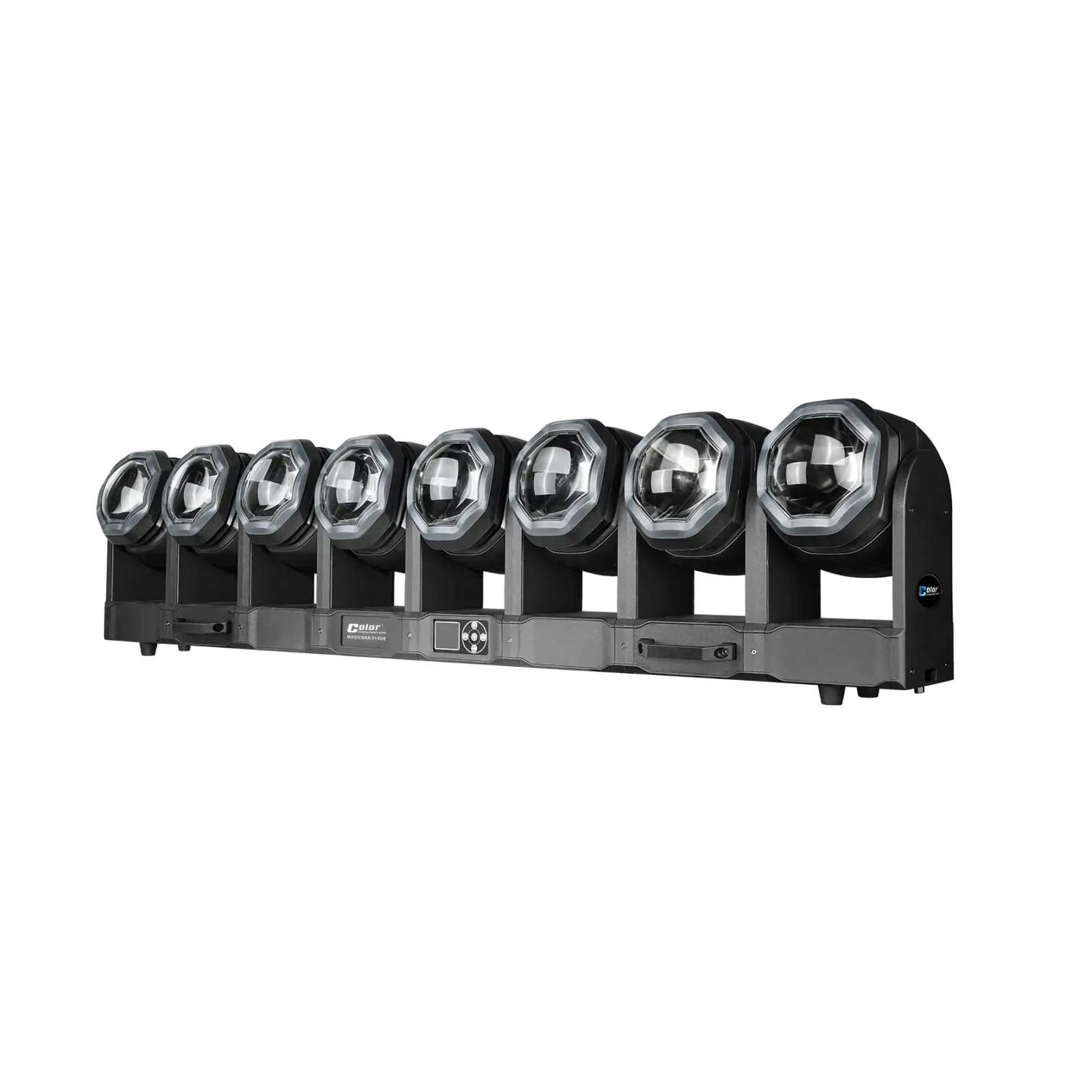

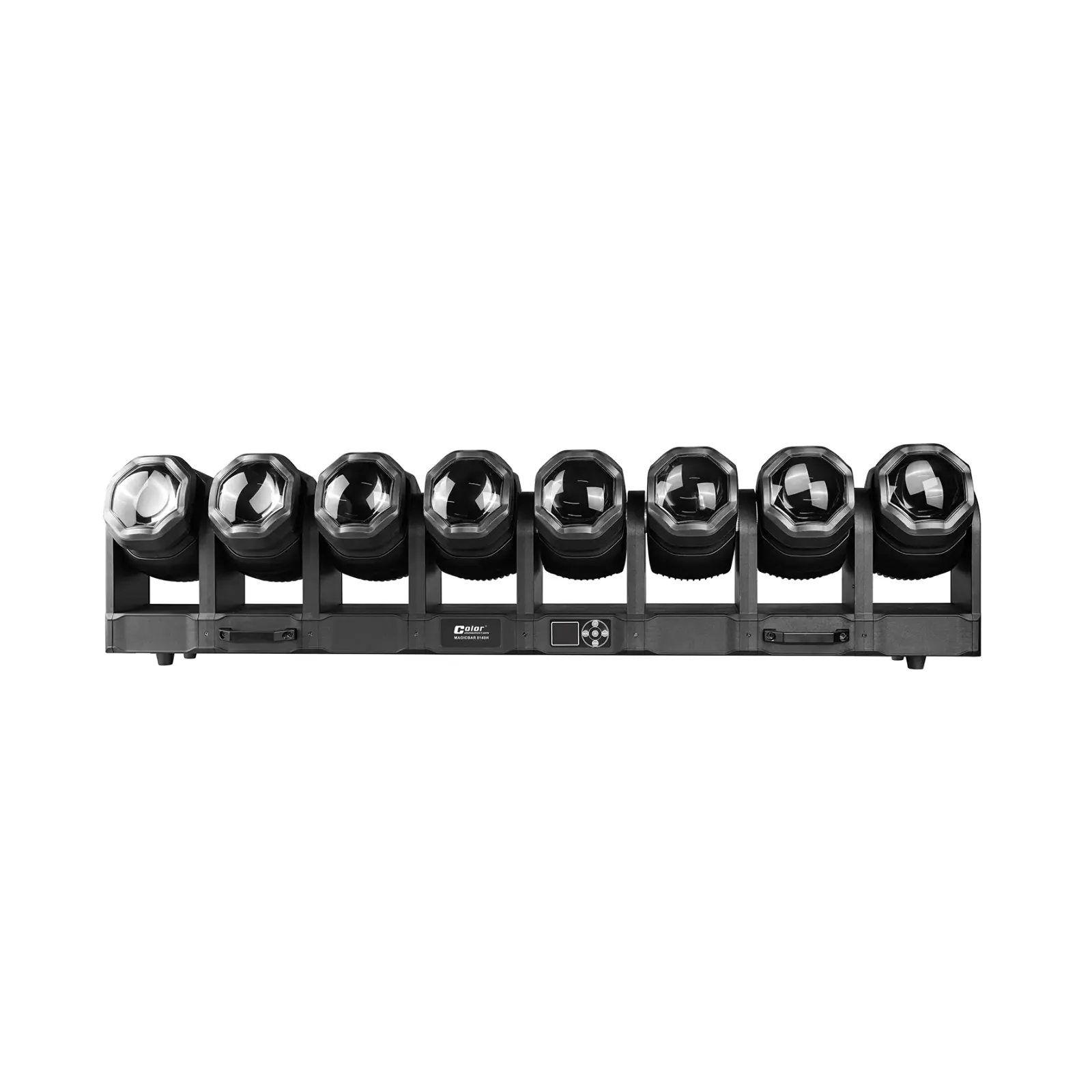

The MAGICBAR 8140H is a high-performance stage lighting bar fixture that features 8 individual moving MINI heads, each of which is equipped with a powerful 140W 4-IN-1 RGBL LED light source.

Light source: 8*140W 4-IN-1 RGBL LEDs
Power consumption: 1214W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 38.6kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 21 groups · 76 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source6

Source: 8*140W 4-IN-1 RGBL LEDs; (8*32)*0.5W 3-IN-1 SMD RGB LEDs; Flicker free operation for broadcast TV and FILM
Life Span: 50000H; 900Hz-2.5KHz LED frequency adjustable
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

02Optics3

8PCS high efficiency lens

3°-37.5°Zoom range

Retractable for the front part of each head when it zooms

03Movement6

TILT: 2 modes; 1. 360° Continuous movement; 2. 270° (8/16 bit); Fast, quiet, smooth and precise 3-phase motors; Smooth, fast and precise resolution for TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement

04Colors8

Pixel mapping capability with each LEDs controllable individually

Sophisticated 4 colors RGBL mixed

Linear CTO 2800-8000K

Sharp beam effect

Pure and even wash effect

Preset static patterns

Preset dynamic patterns with variable speed

Preset dynamic color macro with variable speed

05Strip Effect2

Each head with strip effect with different built-in macros

(variable speed control)

06Kaleidoscope Effect (patented)2

Multi tiny beam punching out from each head

Rotatable continuously with variable speed and direction

Show the full specificationHide the rest of the specification15 more groups · 49 values

07Prism System1

4-facet linear prism with variable speed and direction

08Strobe Effect3

1-25Hz shutter/strobe effect with variable speed

Preset pulse strobe effect with variable speed

Random strobe effect with variable speed

09Dimming System2

0-100% Smooth linear LED dimming

4 Dimming curves, linear/square law/Inv square law/S-curve

10Control System6

37/64/130 DMX channels USITT DMX-512

DMX512, master-slave, sound activated or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Shielded input signal protection for stable signal without interference

3-Pin XLR connectors IN/OUT

11Software Update2

Software up-datable through USB or DMX connectors

Muilt units up-datable in daisy chain

12Display System5

1.8″ TFT LCD display

English/Chinese menu

5 Control buttons

180°Reversible for LCD display

Display auto OFF

13Cooling System3

Advanced self-adjusting fan cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management

14Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

SEETRONIC’s TRUE 1 PowerCON IN/OUT with fuse

1214W Power consumption

15Housing3

High tension molded fire proof housing with PA6+fibre; Skeleton made of aluminum and steel metal plates
Exterior finish: Black

16Installation3

2*1/4 turn fastening Omega Clamps

Specific parts for seamless combination between lights

2*Safety attachment point

17Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP20 protection rating

18Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

19Weight2

N.W.: 38.6kg
G.W.: 25kg

20Dimensions2

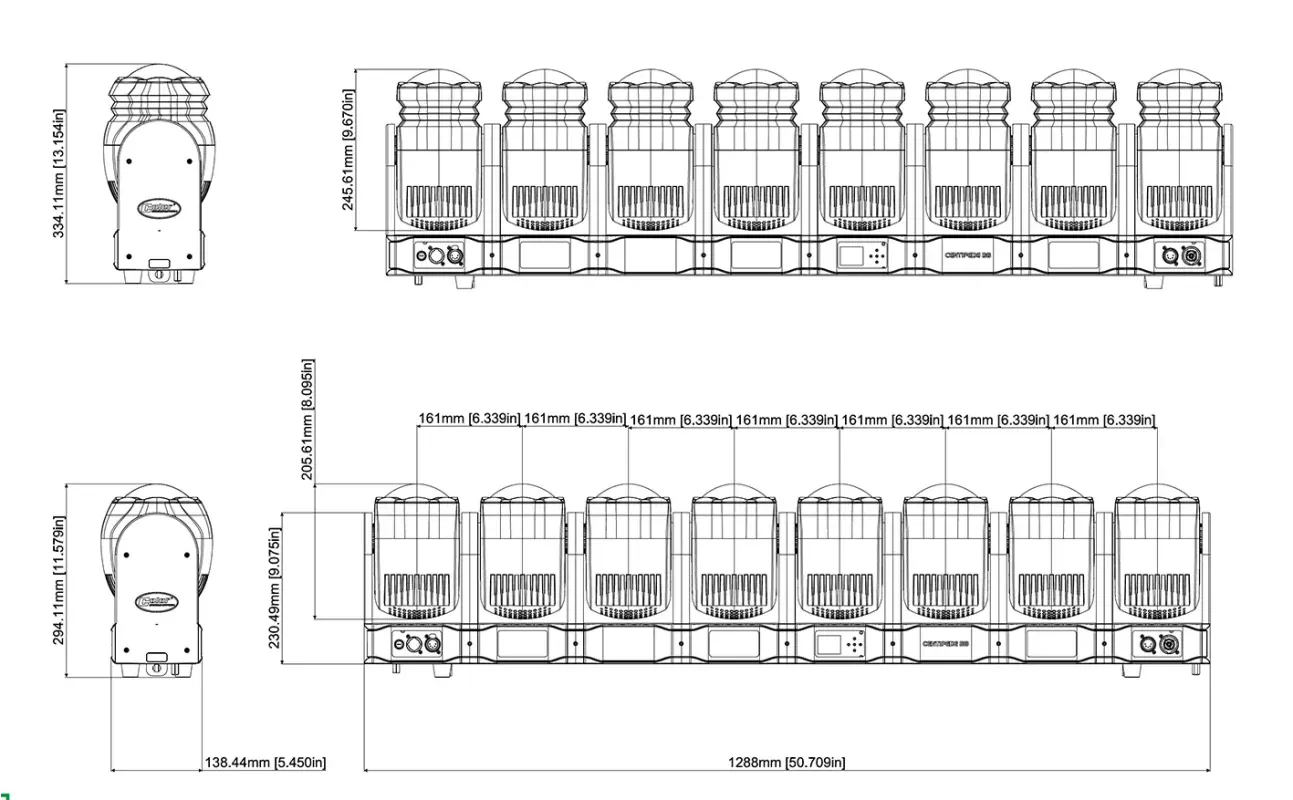

Product Dimensions: 170(D)*1288(W)*334.1(H)mm
Packing Dimensions: 460(D)*1505(W)*290(H)mm

21Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1,4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

MAGICBAR 8140H

The MAGICBAR 8140H is a high-performance stage lighting bar fixture that features 8 individual moving MINI heads, each of which is equipped with a powerful 140W 4-IN-1 RGBL LED light source. With its versatile design and advanced features, the specially designed optical system, the MAGICBAR 8140H is capable of producing a wide range of dynamic sharp/collimated BEAM and pure/even WASH lighting effects that are sure to captivate audiences and enhance performances. There is another very unique feature that the BAR provides ultra eye-catching colorful kaleidoscope effect (patented). It’s designed with a 4-facet linear prism which brings more vivid benefit to its users. Also, thanks to the ingenious front neon ring design on each head, the BAR could bring ultra brilliant and magic lighting effect to the lighting designers.

One of the standout features of the MAGICBAR 8140H is its flexible 360°continuous TILT movement, which allows each lighting head to be easily adjusted and aimed in any direction. This makes it easy for lighting professionals and performers to create customized lighting setups that are tailored to the unique needs of their events.

The MAGICBAR 8140H also features a range of advanced lighting effects, including strobe, color mixing, and chase effects. These effects can be easily accessed and controlled via the controller, allowing for precise and customizable lighting setups.

In addition to its advanced features, the MAGICBAR 8140H is built to withstand the rigors of live events and touring. Its rugged construction and high-quality components ensure that it will deliver reliable and consistent performance night after night. The users could connect different MAGICBAR 8140H seamlessly and get synchronized movement that produces an impressive wave of light (BEAM or WASH or kaleidoscope effect), paralleled to each other due to it’s 3°-37.5°zoom range.

Overall, the MAGICBAR 8140H is a powerful and versatile lighting fixture that is sure to impress audiences and enhance performances. Its advanced features and flexible design make it a popular choice among lighting professionals and performers alike.

The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, clubs/bars, weddings, etc.
