Sheet 05.806

Color Imagination · Effects and lasers

MAGICDOT 155P

ModelM155P

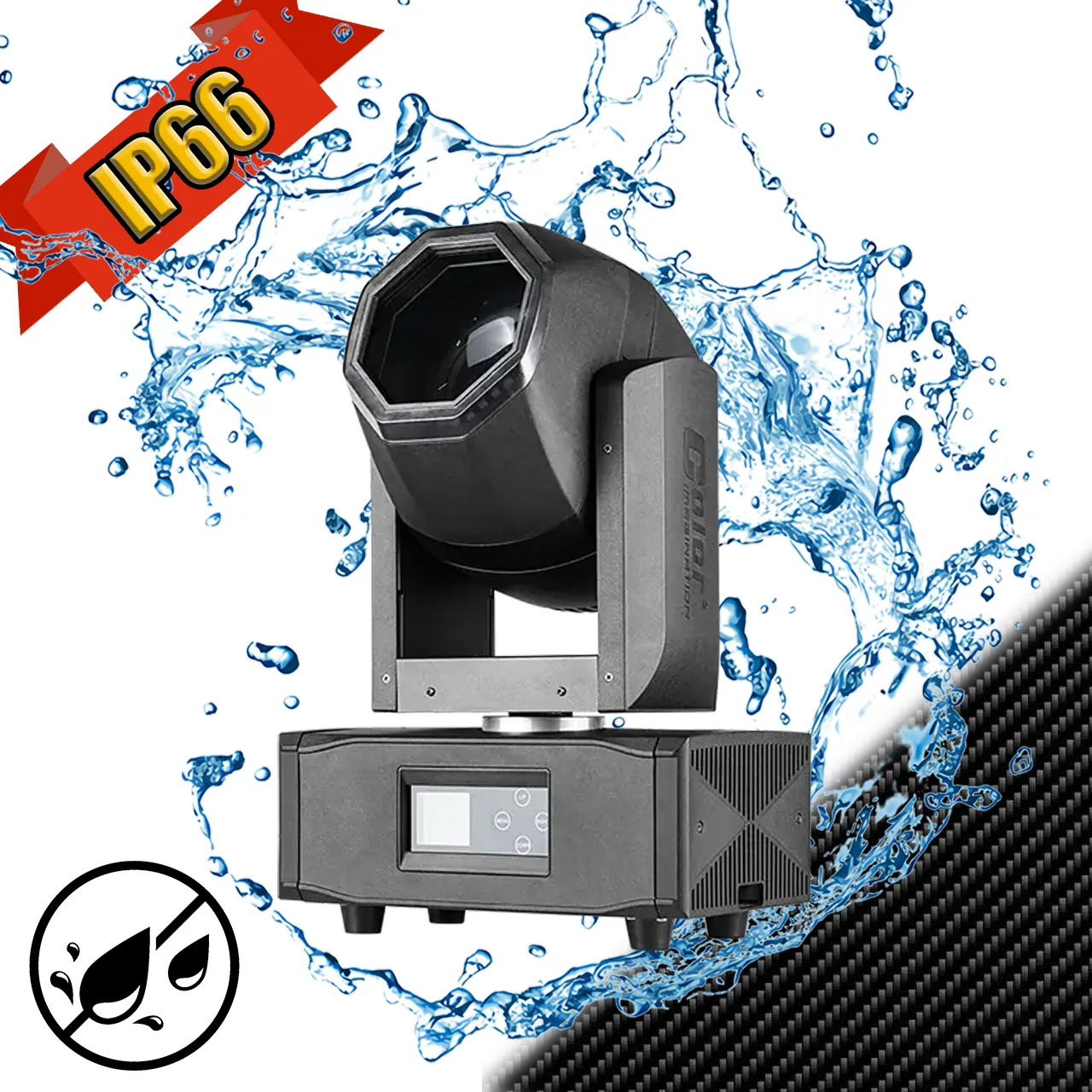

The MAGICDOT 155P is an IP66 rated high-performance MINI LED moving head effect light that is equipped with a powerful 155W 4-IN-1 RGBL LED light source.

Light source: 1*155W 4-IN-1 RGBL LEDs
Power consumption: 150W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP66 protection rating
Net weight: 8.7kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 21 groups · 76 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source6

Source: 1*155W 4-IN-1 RGBL LEDs; 34*0.5W 3-IN-1 SMD RGB LEDs; Flicker free operation for broadcast TV and FILM
Life Span: 50000H; 900Hz-2.5KHz LED frequency adjustable
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

02Optics2

1PCS high efficiency lens

3°-37.5°Zoom range

03Movement9

PAN: 2 modes; 1. 360° Continuous movement; 2. 270° (8/16 bit)
TILT: 2 modes; 1. 360° Continuous movement; 2. 270° (8/16 bit); Fast, quiet, smooth and precise 3-phase motors; Smooth, fast and precise resolution for PAN/TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement

04Colors6

Sophisticated 4 colors RGBL mixed

Linear CTO 2800-8000K

Sharp beam effect

Pure and even wash effect

Preset dynamic patterns with variable speed

Preset dynamic color macro with variable speed

05Strip Effect2

Strip effect with different built-in macros

(variable speed control)

06Kaleidoscope Effect (patented)2

Multi tiny beam punching out from the head

Rotatable continuously with variable speed and direction

Show the full specificationHide the rest of the specification15 more groups · 49 values

07Prism System1

4-facet linear prism with variable speed and direction

08Strobe Effect3

1-25Hz shutter/strobe effect with variable speed

Preset pulse strobe effect with variable speed

Random strobe effect with variable speed

09Dimming System2

0-100% Smooth linear LED dimming

4 Dimming curves, linear/square law/Inv square law/S-curve

10Control System6

24/35 DMX channels USITT DMX-512

DMX512, master-slave, sound activated or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Shielded input signal protection for stable signal without interference

Waterproof 3-Pin XLR connectors IN/OUT

11Software Update2

Software up-datable through USB or DMX connectors

Muilt units up-datable in daisy chain

12Display System5

1.8″ TFT LCD display

English/Chinese menu

5 Control buttons

180°Reversible for LCD display

Display auto OFF

13Cooling System3

Advanced self-adjusting fan cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management

14Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

Waterproof SEETRONIC’s TRUE 1 PowerCON IN/OUT with fuse

150W Power consumption

15Housing3

High tension molded fire proof housing with carbon fibre; Skeleton made of aluminum and steel metal plates
Exterior finish: Black

16Installation3

1*1/4 turn fastening Omega Clamps

Specific parts for seamless combination between lights

1*Safety attachment point

17Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP66 protection rating

18Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

19Weight2

N.W.: 8.7kg
G.W.: 11.2kg

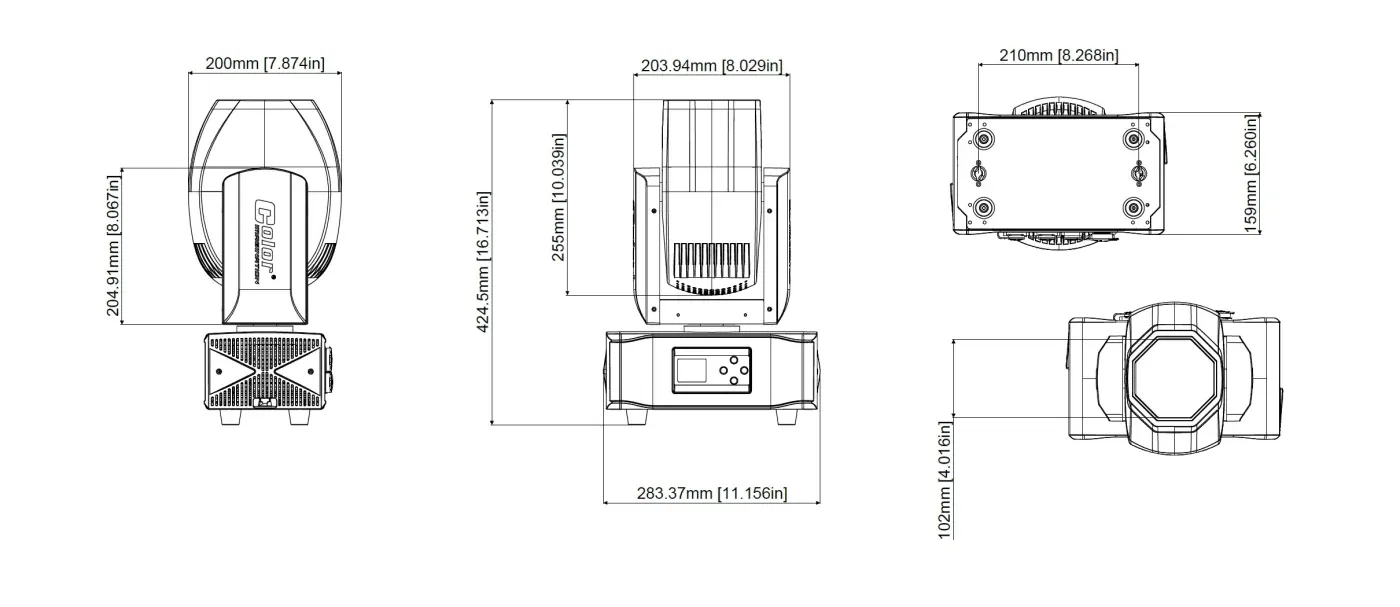

20Dimensions2

Product Dimensions: 200(D)*283.4(W)*424.5(H)mm
Packing Dimensions: 385(D)*525(W)*320(H)mm

21Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1,4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

MAGICDOT 155P

The MAGICDOT 155P is an IP66 rated high-performance MINI LED moving head effect light that is equipped with a powerful 155W 4-IN-1 RGBL LED light source. With its versatile design and advanced features, the specially designed optical system, the MAGICDOT 155P is capable of producing a wide range of dynamic sharp/collimated BEAM and pure/even WASH lighting effects that are sure to captivate audiences and enhance performances. There is another very unique feature that the DOT provides ultra eye-catching colorful kaleidoscope effect (patented). It’s designed with a 4-facet linear prism which brings more vivid benefit to its users. Also, thanks to the ingenious front neon ring design, the DOT could bring ultra brilliant and magic lighting effect to the lighting designers.

The MAGICDOT 155P is designed flexible 360°continuous PAN/TILT movement, which allows the head to be easily adjusted and aimed in any direction. This makes it easy for lighting professionals and performers to create customized lighting setups that are tailored to the unique needs of their events.

The MAGICDOT 155P also features a range of advanced lighting effects, including strobe and color mixing effects. These effects can be easily accessed and controlled via the controller, allowing for precise and customizable lighting setups.

In addition to its advanced features, the MAGICDOT 155P is built to withstand the rigors of live events and touring. Its rugged construction and high-quality components ensure that it will deliver reliable and consistent performance night after night. The users could connect different MAGICDOT 155P seamlessly to make them a lighting bar and get synchronized movement that produces an impressive wave of light (BEAM or WASH or kaleidoscope effect), paralleled to each other due to its 3°-37.5°zoom range.

The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for any outdoor environment such as fountain shows, theme park,architectural shows, live concerts, and so on.
