Sheet 05.804

Color Imagination · Effects and lasers

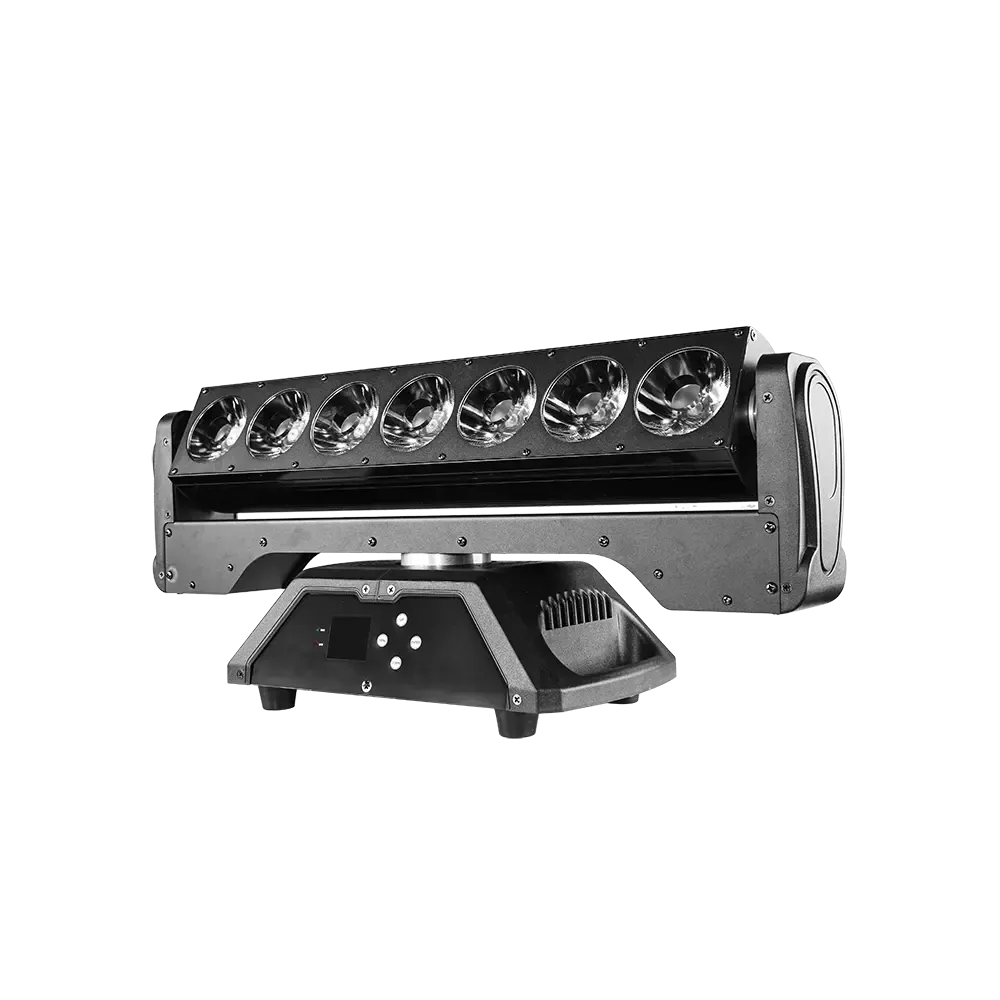

MAGICBLADE 715FP

ModelMB715

Light source: 7*15W RGBW 4-in-1 LEDs
Power consumption: 180W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 7.3kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 17 groups · 59 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source4

Source: 7*15W RGBW 4-in-1 LEDs; Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

02Optics2

7PCS high efficiency lens

4.5°Beam angle

03Movement9

PAN: 2 modes; 1. 360° Continuous movement; 2. 540° (8/16 bit)
TILT: 2 modes; 1. 360° Continuous movement; 2. 270° (8/16 bit); Fast, quiet, smooth and precise 2-phase motors; Smooth, fast and precise resolution for TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement

04Colors and Effect3

Perfect RGBW LED beam and saturate wash effect

Pixel mapping capability

Preset dynamic patterns with variable speed

05Strobe1

1-25Hz shutter/strobe effect with variable speed

06Dimming1

0-100% linear dimming

Show the full specificationHide the rest of the specification11 more groups · 39 values

07Control System6

18/42 DMX channels USITT DMX-512

DMX512, master-slave, sound activated or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Shielded input signal protection for stable signal without interference

3-Pin XLR connectors IN/OUT

08Display System5

LCD display

English/Chinese menu

4 Control buttons

180°Reversible for LCD display

Display auto OFF

09Cooling System3

Advanced self-adjusting fan cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management

10Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON IN with switch and fuse

180W Power consumption

11Housing2

Skeleton made of aluminum and steel metal plates
Exterior finish: Black

12Installation2

2*1/4 turn fastening Omega Clamps

1*Safety attachment point

13Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25° to 45° ambient temperature; IP20 protection rating

14Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

15Weight2

N.W.: 7.3kg
G.W.: 9.5kg

16Dimensions2

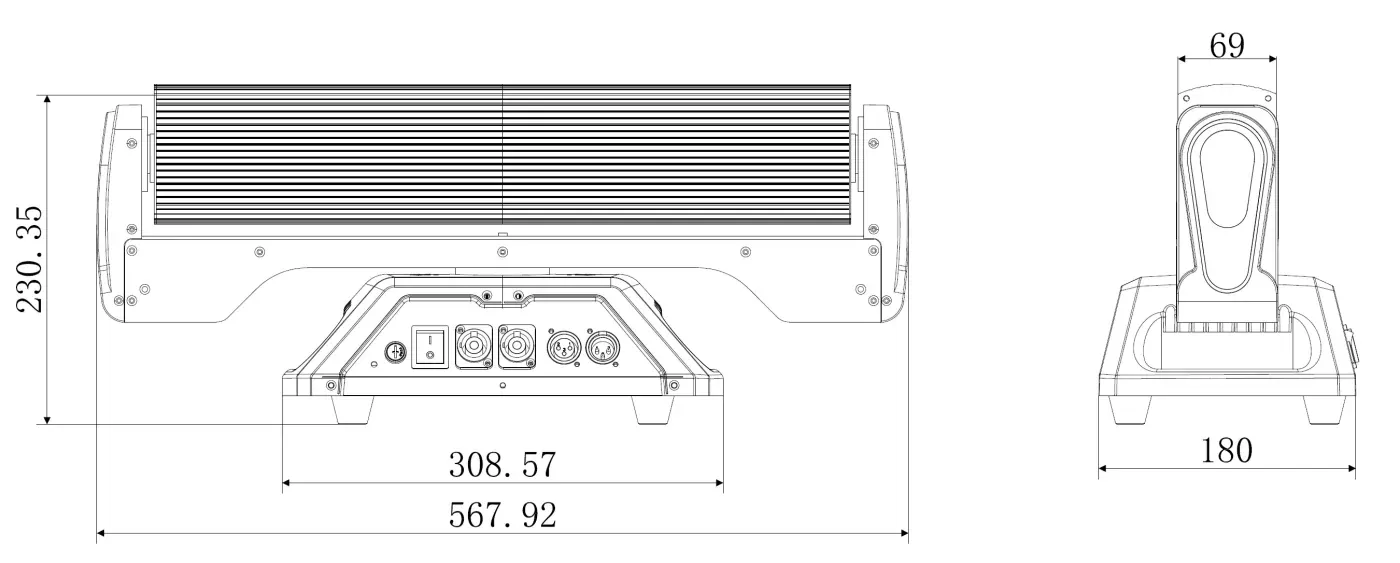

Product Dimensions: 180(D)*567.9(W)*230.4(H)mm
Packing Dimensions: 290(D)*640(W)*340(H)mm

17Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

MAGICBLADE 715FP

The MAGICBLADE 715FP is a unique moving head effect bar light. It features 7*15W RGBW 4-in-1 LEDs for beautiful and saturate beam and wash effects. The pixel mapping capability allows you to create dynamic visual effects and color variations. Each LED will act as a pixel functioning all kinds of graphic images. Also it provides variable built-in dynamic patterns to the users for easy operation. Designed with a smart and compact stylish fireproof housing, it ensures a smooth, fast and quiet movement, with a 360°continuous PAN/TILT movement. It supports DMX/RDM. And the 2*1/4 turn fastening omega clamps make the mounting easy and convenient.

The fixture is tuned with proper LED refresh rate for flicker free operation. It’s a perfect option for large scale live concerts, TV productions, road shows, clubs/bars, weddings, etc.
