Sheet 05.683

Color Imagination · Wash

MAGICEYE 7155HP

ModelM7155HP

BEAM, WASH, B-EYE, Kaleidoscope Effect, Prism Effect, Strip Light Effect

Light source: 7*155W 4-IN-1 RGBL LEDs (main light)
Power consumption: 1100W Power consumption
Power supply: AC100-240V 50/60Hz

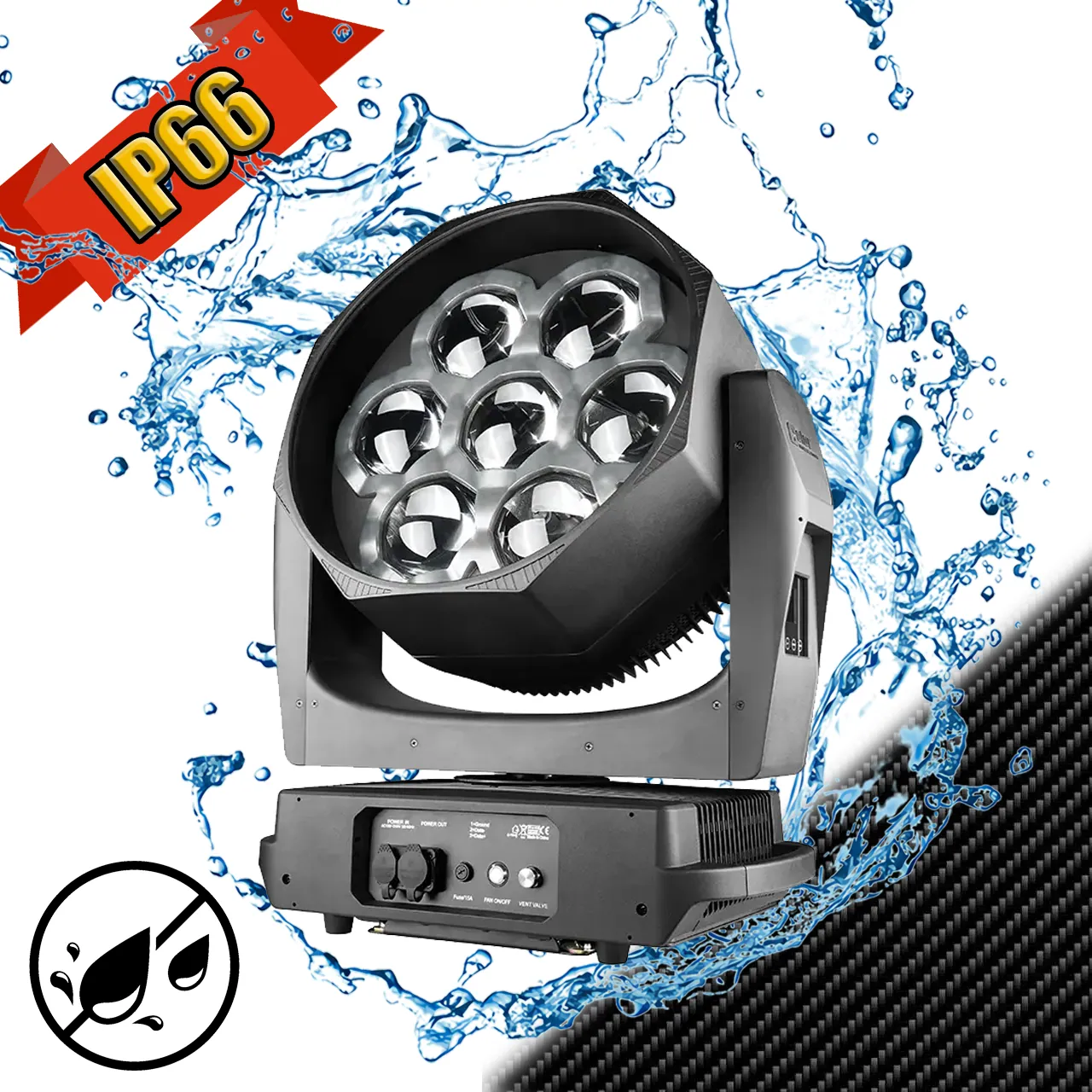

Ingress protection: IP66 protection rating
Net weight: 37.3kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 22 groups · 84 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source6

Source: 7*155W 4-IN-1 RGBL LEDs (main light); 180*0.5W 3-IN-1 SMD RGB LEDs (strip light); Flicker free operation for broadcast TV and FILM
Life Span: 50000H; 900Hz-2.5KHz LED frequency adjustable
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

02Optics2

7PCS high efficiency lens (110mm each)

5°-35°Zoom range

03Movement9

PAN: 2 modes; 1. 360° Continuous movement; 2. 540° (8/16 bit)
TILT: 2 modes; 1. 360° Continuous movement; 2. 270° (8/16 bit); Fast, quiet, smooth and precise 3-phase motors; Smooth, fast and precise resolution for TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement

04Colors7

Pixel mapping capability with each LEDs controllable individually

Sophisticated 4 colors RGBL mixed

Linear CTO 2800-8000K

Color macros effect

Sharp beam effect

Pure and even wash effect (with frost filters IN)

Preset dynamic effects with variable speed

05Strip Effect2

Each eye with strip effect with different built-in macros

(variable speed control)

Show the full specificationHide the rest of the specification17 more groups · 58 values

06Kaleidoscope Effect (patented)2

Multi tiny beam punching out from each head

Rotatable continuously with variable speed and direction

07Prism System1

4-facet linear prism with variable speed and direction

08Visual Effect (Bee Eye)5

Different static shape selections

Different dynamic shape selections with variable speed

Shape fading effect

Shape color options with 0-100% dimming

Background colors options with 0-100% dimming

09Strobe Effect3

1-25Hz shutter/strobe effect with variable speed

Preset pulse strobe effect with variable speed

Random strobe effect with variable speed

10Dimming System2

0-100% Smooth linear LED dimming

4 Dimming curves, linear/square law/Inv square law/S-curve

11Control System9

38/86 DMX channels USITT DMX-512

DMX512, master-slave, sound activated or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Art-NET (Optional)

Wireless receiver system (Optional)

Shielded input signal protection for stable signal without interference

SEETRONIC’s waterproof RJ45 etherCON IN/OUT (Optional with Art-Net)

SEETRONIC’s waterproof 3-Pin/5-pin XLR connectors IN/OUT

12Software Update2

Software up-datable through USB or DMX connectors

Multi units up-datable in daisy chain

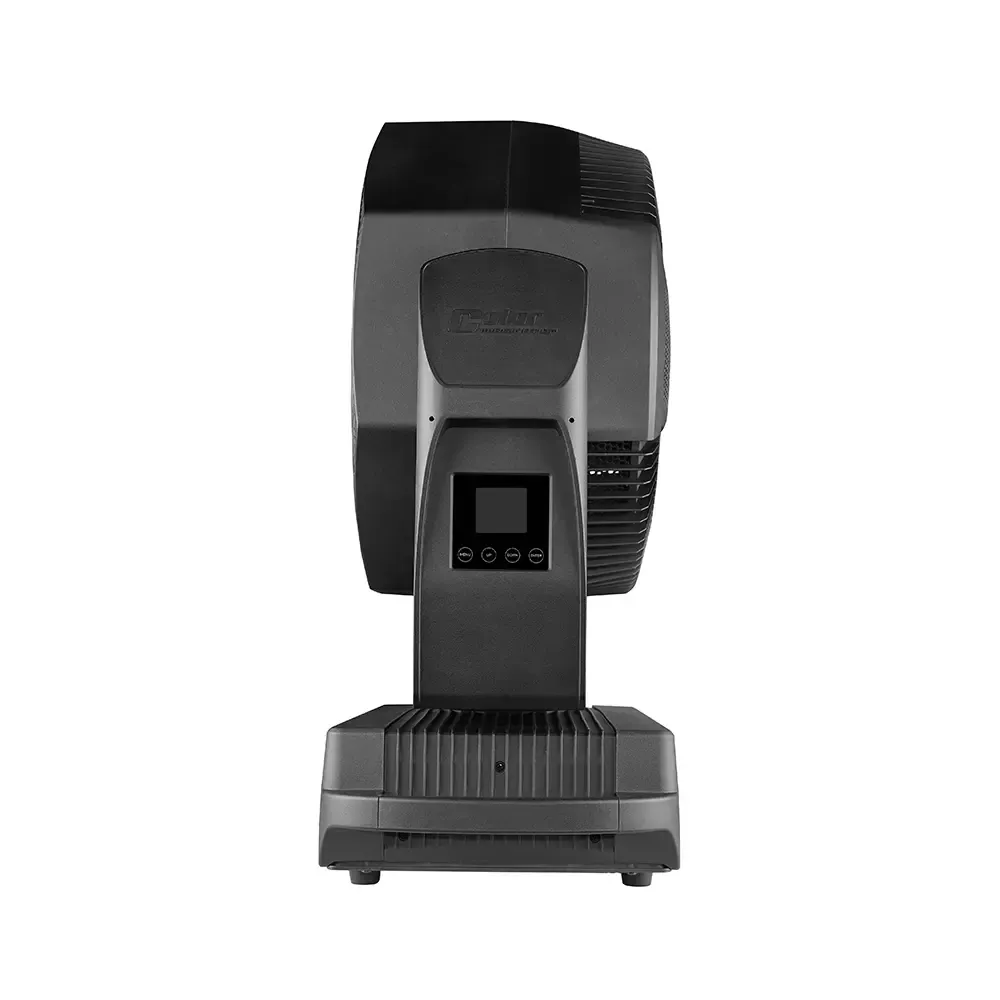

13Display System5

1.8″ TFT LCD display

English/Chinese menu

5 Touch control buttons

180°Reversible for LCD display

Display auto OFF

14Cooling System3

Advanced self-adjusting fan cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management

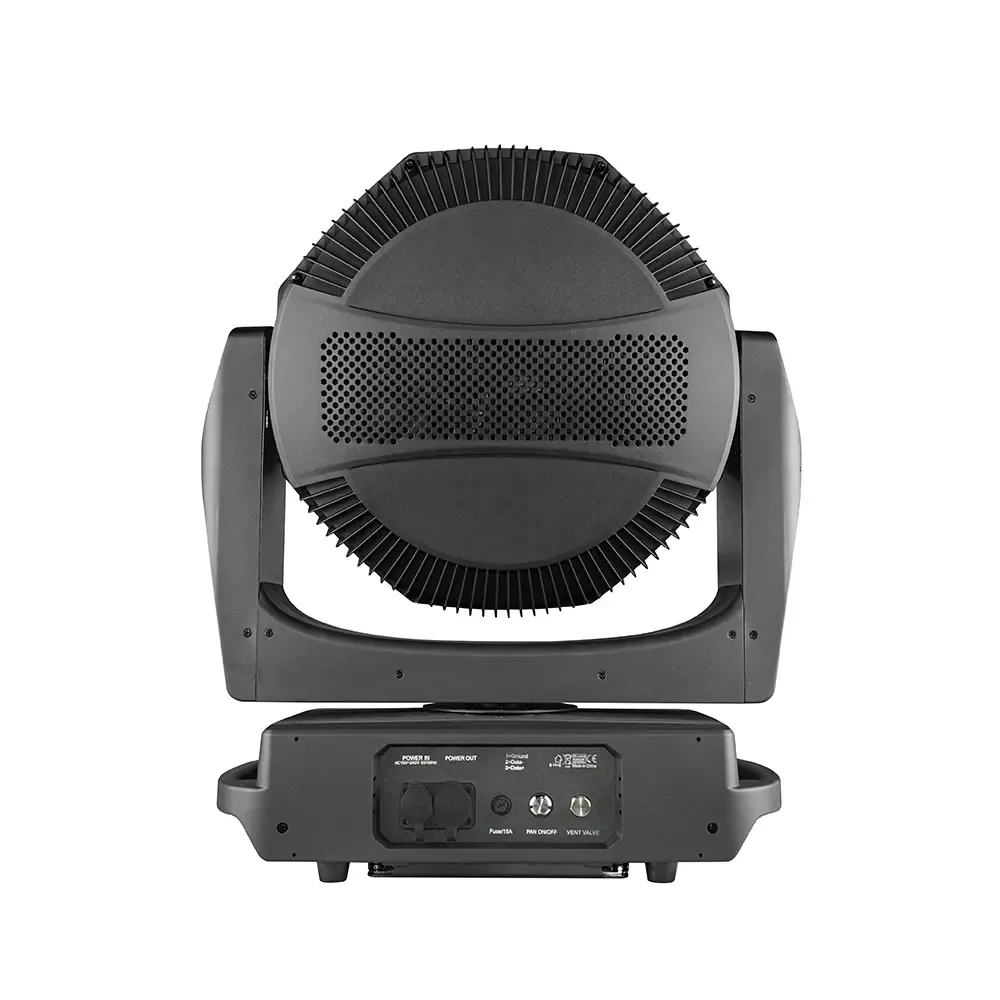

15Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

SEETRONIC’s waterproof TRUE 1 PowerCON IN/OUT with fuse

1100W Power consumption

16Housing3

High tension molded fire proof housing with carbon fibre; Skeleton made of aluminum and steel metal plates
Exterior finish: Black

17Installation2

2*1/4 turn fastening Omega Clamps

1*Safety attachment point

18Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP66 protection rating

19Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

20Weight2

N.W.: 37.3kg
G.W.: 42.5kg

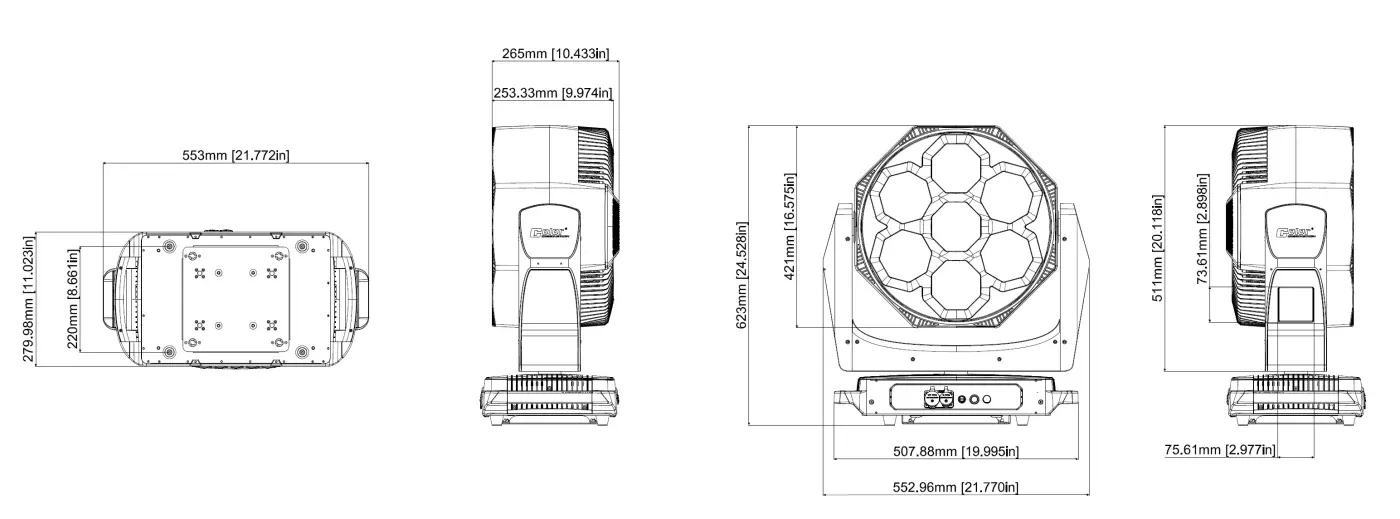

21Dimensions2

Product Dimensions: 279.98(D)*553.96(W)*623(H)mm
Packing Dimensions: 400(D)*660(W)*760(H)mm

22Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1,4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

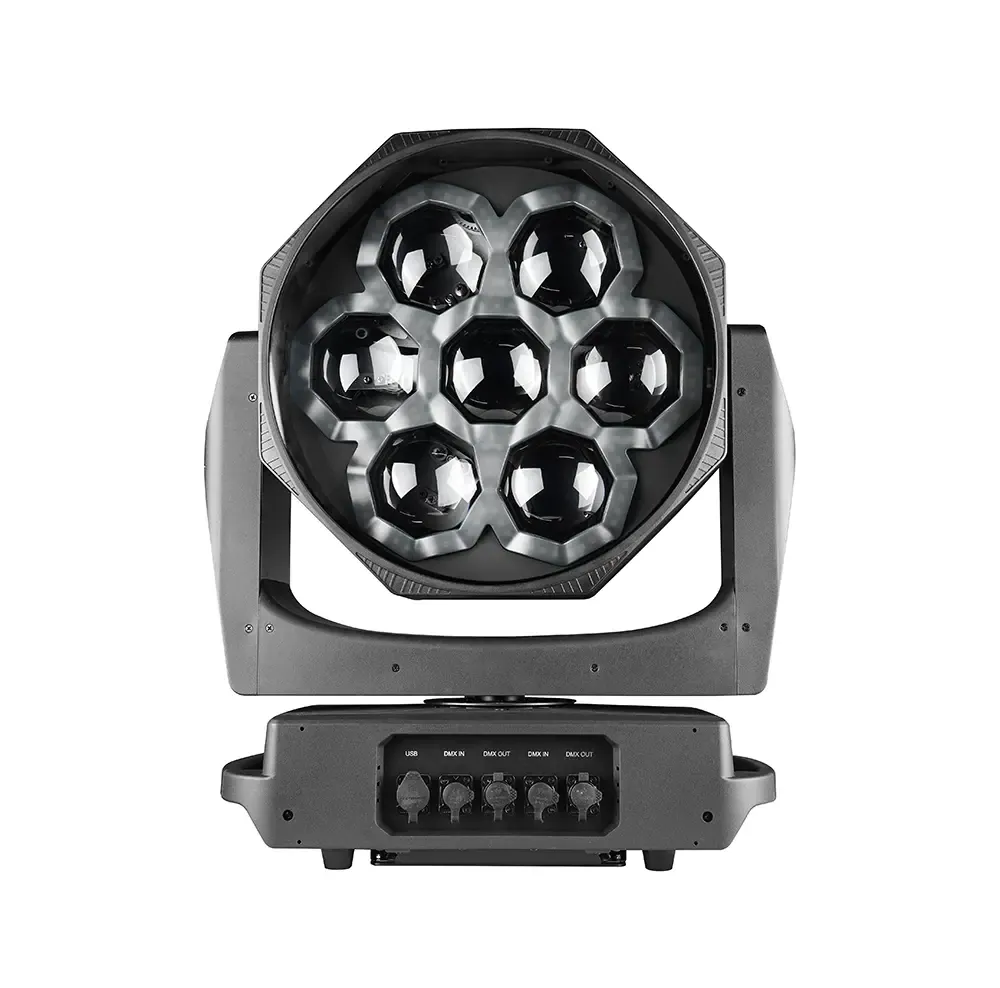

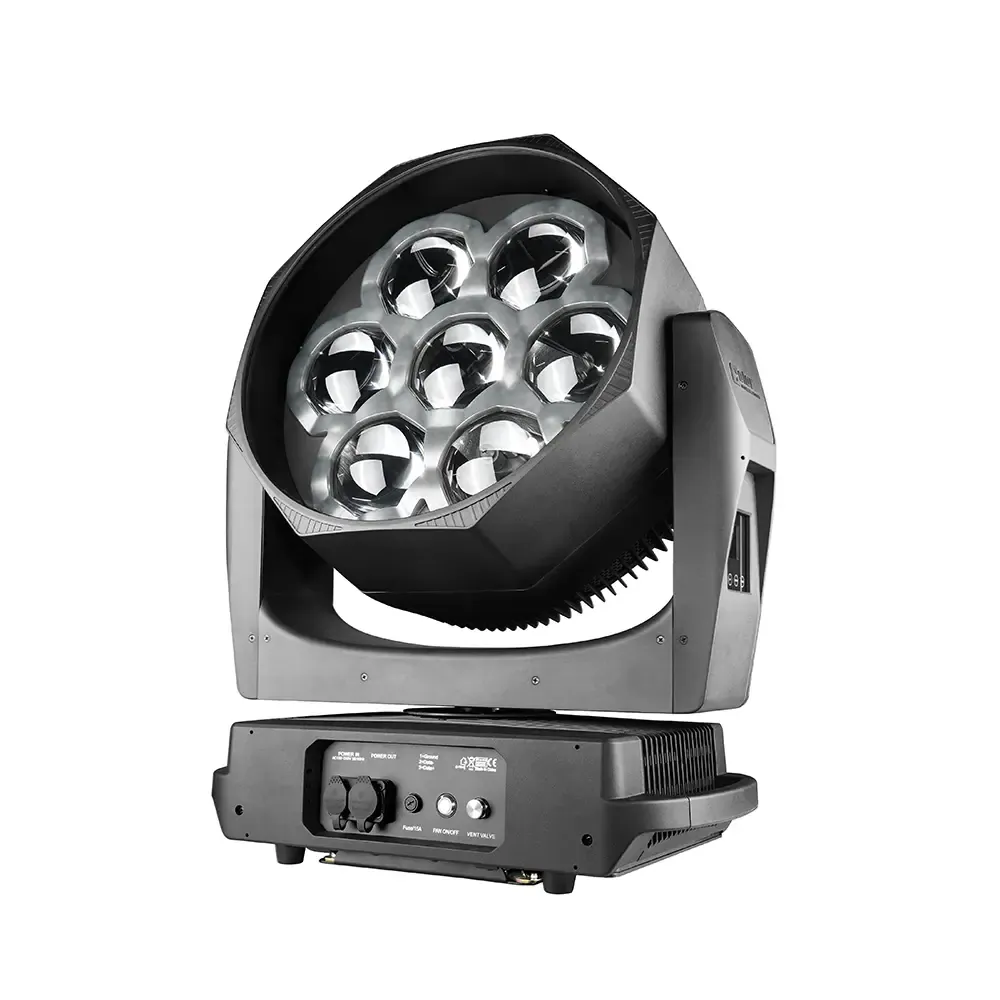

MAGICEYE 7155HP

110mm Lens, 155W RGBL LEDs

Thanks to our R&D teams’ effort, we are proud to launch a new generation intelligent moving head light with ultra innovative ideas,unique design concepts and functions that will exceed your imagination. This helps to make this head much novel and differentiated than traditional moving lights. It’s ultra high power, multifunctional and big “eye” (110m lens) fixture. The MAGICEYE 7155HP, with an IP66 protection rate, features 7*110mm lens each of which is equipped with a powerful 155W 4-IN-1 RGBL LED light source. With its versatile design and advanced features, the specially designed optical system, the MAGICEYE 7155HP is capable of producing a wide range of dynamic sharp/collimated BEAM and pure/even WASH lighting effects that are sure to captivate audiences and enhance performances. There is another very unique feature that the MAGICEYE provides ultra eye-catching colorful kaleidoscope effect (patented). It’s designed with a 6-facet linear prism which brings more vivid benefit to its users. The whole front lens can rotate continuously to create multi petal-like micro fine rays (Bee eye effects) that are programmable for individual colors, as each LED and each color is controllable independently. The micro rays could be opened and closed to produce dynamic graphic lighting effects. Also, thanks to the ingenious front neon ring design surrounding the 110mm lens, the MAGICEYE could bring ultra brilliant and magic lighting effect to the lighting designers.

The MAGICEYE 7155HP is with two PAN/TILT modes, mode 1 for its flexible 360°continuous movement and mode 2 for its 540°PAN/270°TILT, which allows each lighting head to be easily adjusted and aimed in any direction. This makes it easy for lighting professionals and performers to create customized lighting setups that are tailored to the unique needs of their events.

The MAGICEYE 7155HP also features a range of advanced lighting effects, including strobe, color mixing, and chase effects. These effects can be easily accessed and controlled via the controller, allowing for precise and customizable lighting setups.

In addition to its advanced features, the MAGICEYE 7155HP is built to withstand the rigors of live events and touring. Its rugged construction and high-quality components ensure that it will deliver reliable and consistent performance night after night.

Overall, the MAGICEYE 7155HP is a powerful and versatile lighting fixture that is sure to impress audiences and enhance performances. Its advanced features and flexible design make it a popular choice among lighting professionals and performers alike.

The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for any outdoor environment such as fountain shows, theme park,architectural shows, live concerts, and so on.
