Sheet 05.685

Color Imagination · Wash

MZOOM 1940P

ModelMZ1940P

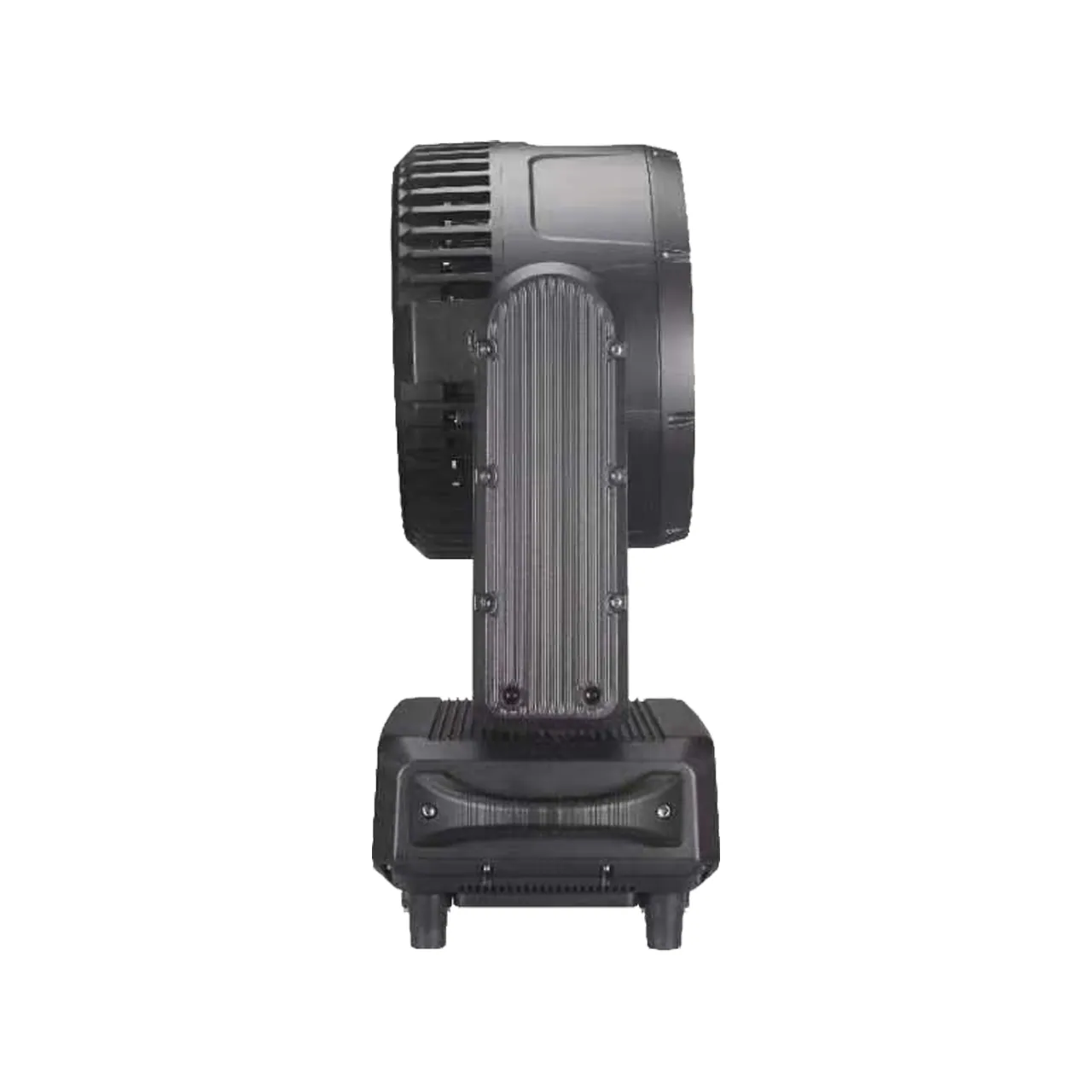

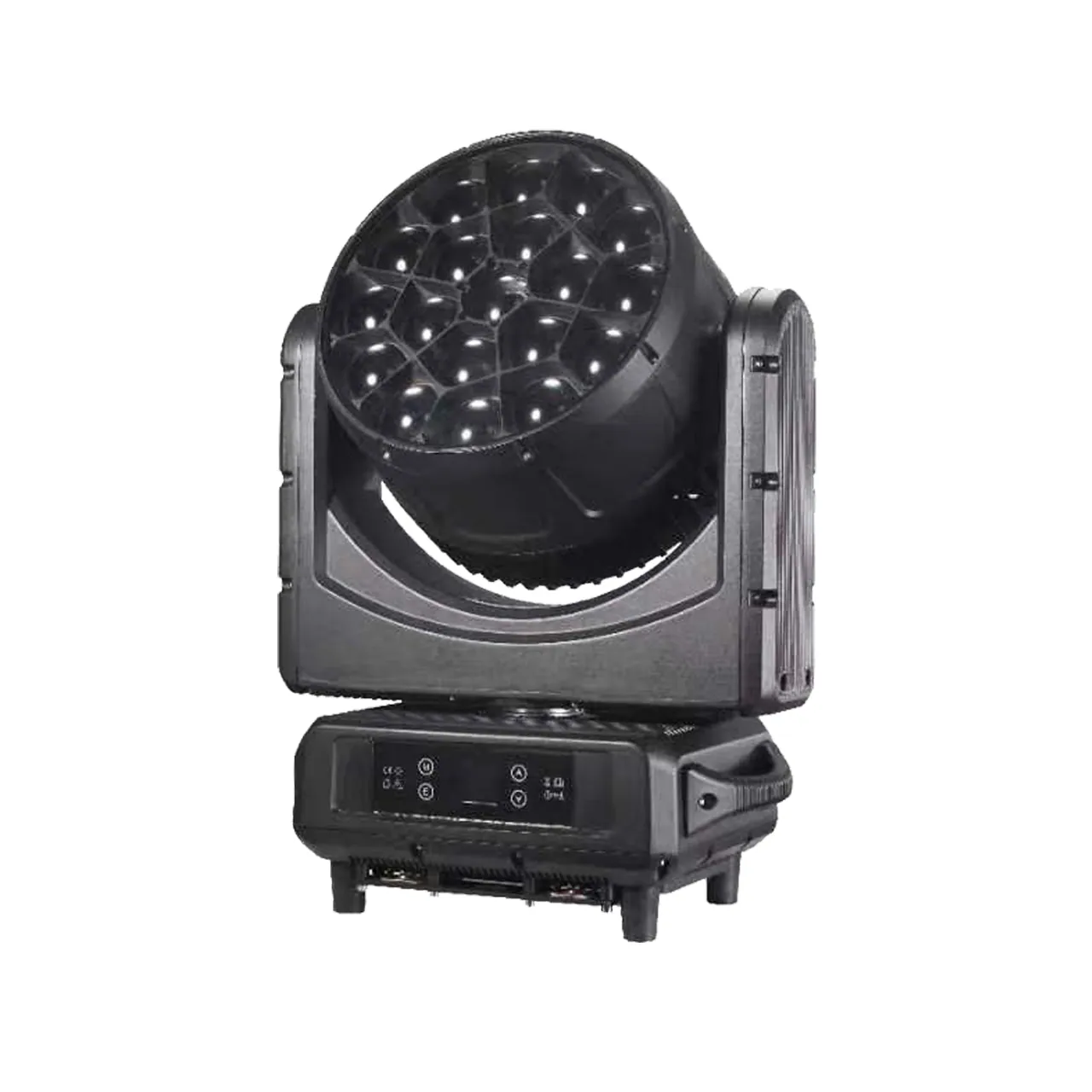

The MZOOM 1940P is an ultra high power LED based moving head wash with smart and compact stylish housing with a smooth, fast and quiet motorized zoom from 6°-60°range.

Light source: 19*40W RGBW 4-in-1 LEDs
Power consumption: 890W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP65 protection rating
Net weight: 28.6kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 18 groups · 69 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01General4

Source: 19*40W RGBW 4-in-1 LEDs; Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

02Optics3

19PCS high efficiency acrylic lens

Optimized light pipe for higher LED efficiency

6°-60°Smooth and quiet linear motorized zoom with fine control

03Movement6

PAN movement: 540° (8/16 bit)
TILT movement: 270° (8/16 bit); Fast, quiet, smooth and precise 3-Phase motors; Smooth, fast and precise resolution for PAN/TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement; PAN/TILT reversible

04Colors5

Pixel mapping capability with each LED

Sophisticated 4 colors RGBW mixed

Even and soft light coverage with pure mixing

Linear color temperature adjustment

Preset color macros

05Visual Effect5

Different static shape selections

Different dynamic shape selections with variable speed

Shape fading effect

Shape color options with 0-100% dimming

Background colors options with 0-100% dimming

06Strobe Effect4

1-25Hz shutter/strobe effect with variable speed

Random strobe effect with variable speed

Preset pulse strobe effect

Different foreground/background strobe effect

Show the full specificationHide the rest of the specification12 more groups · 42 values

07Dimming System2

0-100% Smooth linear LED dimming

Fine dimming control

08Control System6

20/22/34/77/91/96/98 DMX channels USITT DMX-512

DMX512, master-slave, auto operation and sound control

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Shielded input signal protection for stable signal without interference

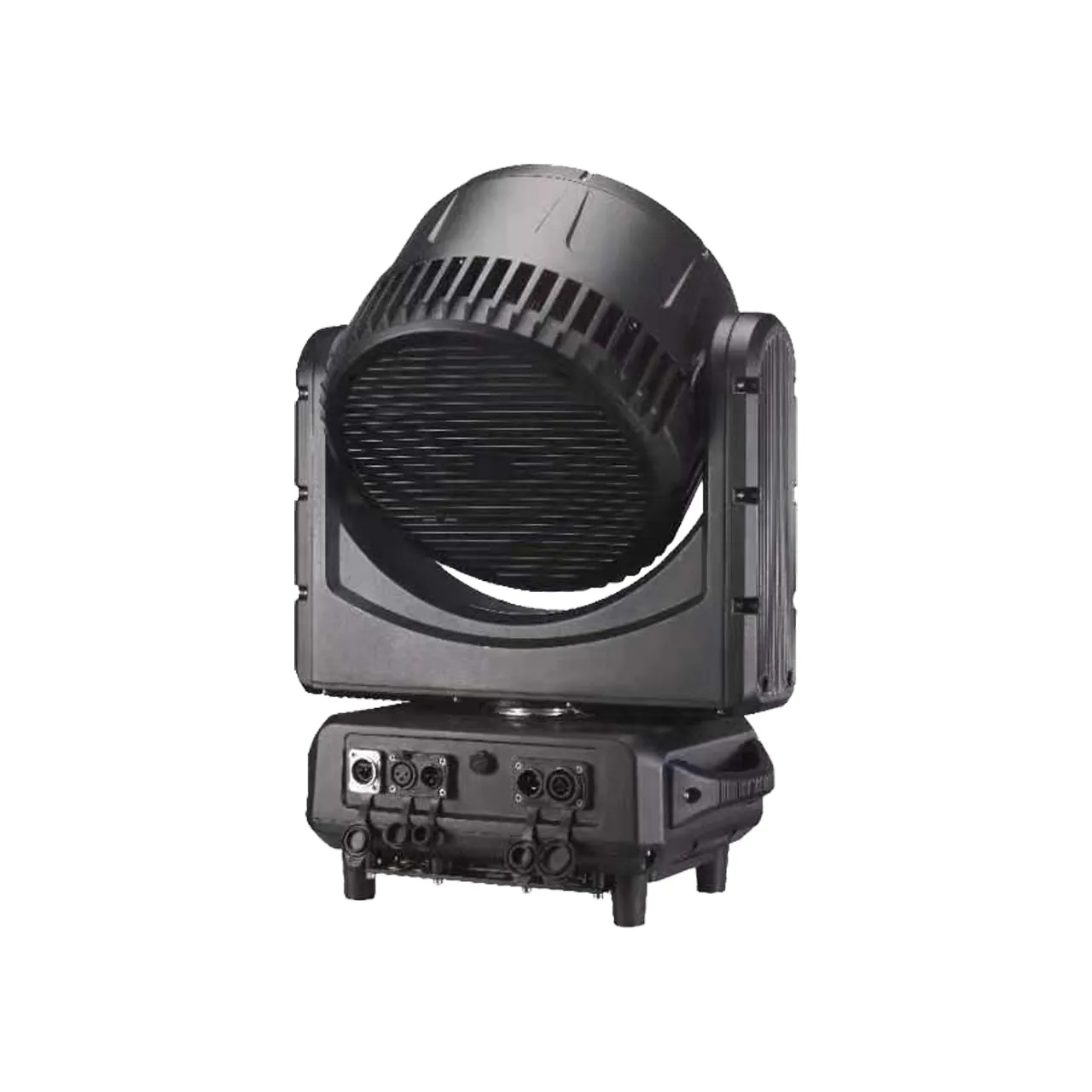

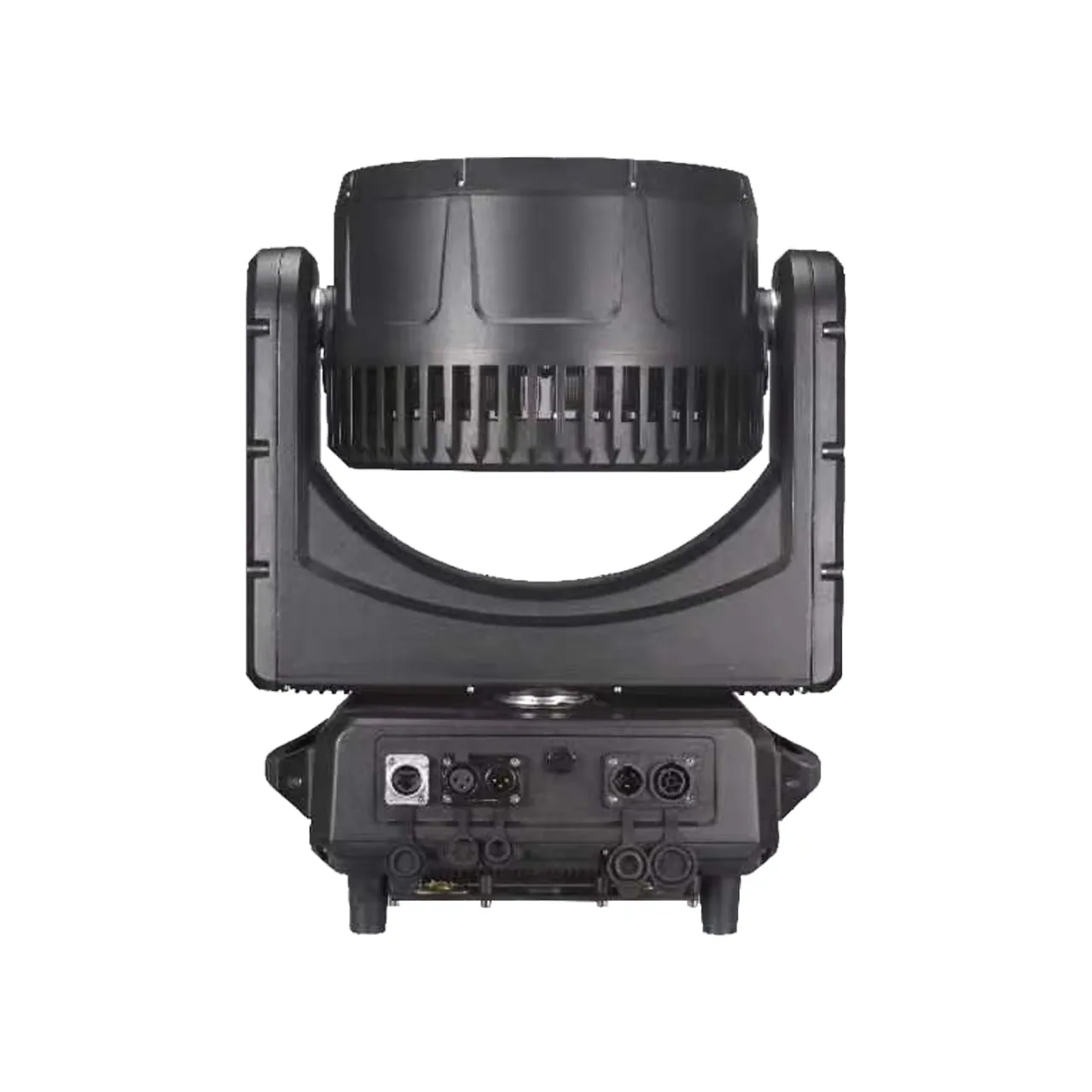

IP65 3-pin XLR DMX connectors IN/OUT

09Display System4

2.4″ TFT LCD display

4 Touch control buttons

180°Reversible for LCD display

Display auto OFF

10Cooling System4

Advanced cooling system integrated aluminum and copper with liquid

Efficient low noise self adjusting fan cooling system

Constant temperature readout and management function

Over temperature protection management (output decreased when over heat)

11Power Supply4

Electronic power supply

AC100-240V 50/60Hz

IP65 True-1 power connectors IN/OUT with fuse

890W Power consumption

12Housing3

Skeleton made of Die-cast aluminum and steel metal plates; Two side handles on base
Exterior finish: Black

13Installation2

2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)

1*Safety attachment point

14Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°to 45°ambient temperature; IP65 protection rating

15Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

16Weight2

N.W.: 28.6kg
G.W.: 32kg

17Dimensions2

Product Dimensions: 302(D)*388.1(W)*490.1(H)mm
Packing Dimensions: 400(D)*520(W)*610(H)mm

18Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

MZOOM 1940P

The MZOOM 1940P is an ultra high power LED based moving head wash with smart and compact stylish housing with a smooth, fast and quiet motorized zoom from 6°-60°range. It features 19*40W 4-in-1 RGBW LED sources with pixel mapping capability which not only allows you to create an endless range of color variations, but also to use each led as a pixel in order to draw all kinds of graphic images that change dynamically both in shape and color. The MZOOM 1940P is flicker-free fixture with even, soft edge and pure color mixing coverage. It provides variable speed shutter/strobe effect, virtual color macro effect, dynamic patterns, static patterns, preset linear color temperature adjustment options to it’s users for easy operation. It also comes with incredibly fast and smooth PAN/TILT movement, simple and complex DMX channel profiles. The 2*1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy.

The MZOOM 1940P’s applications are unlimited. It could be placed at any outdoor environment such as fountain shows, theme park,architectural shows, live concerts, and so on.
