Sheet 05.913

Color Imagination · Theatre lighting

MINIPROFILE 100MZ-D

ModelPF100MD

Light source: 1*100W 2-IN-1 LED (CW+WW), 3200K+5600K
Power consumption: 50W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 2.9kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 18 groups · 58 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source6

Source: 1*100W 2-IN-1 LED (CW+WW), 3200K+5600K; 50W Constant power output at any color temperature
CRI: ≥90; Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics4

A set of high resolution and precise optics

15°-30°Manual zoom range

Lens tube 45°rotatable

Manual focus

03Framing System1

4 Metal spot cutting slots

04Color System3

Pure and even coverage

3200K-5600K Linear color temperature adjustment

Color frame as optional

05Gobo System1

Gobo holder as optional

06Strobe Effect1

0-25Hz LED shutter/strobe effect with variable speed

Show the full specificationHide the rest of the specification12 more groups · 42 values

07Dimming System2

0-100% Smooth linear LED dimming

Dimming speed adjustable

08Control System6

2 DMX channels

RDM available (Remote Device Management)

DMX512, master-slave, or auto operation

DMX recorder and edit function integrated

Shielded input signal protection for stable signal without interference

3-Pin XLR DMX cables IN/OUT

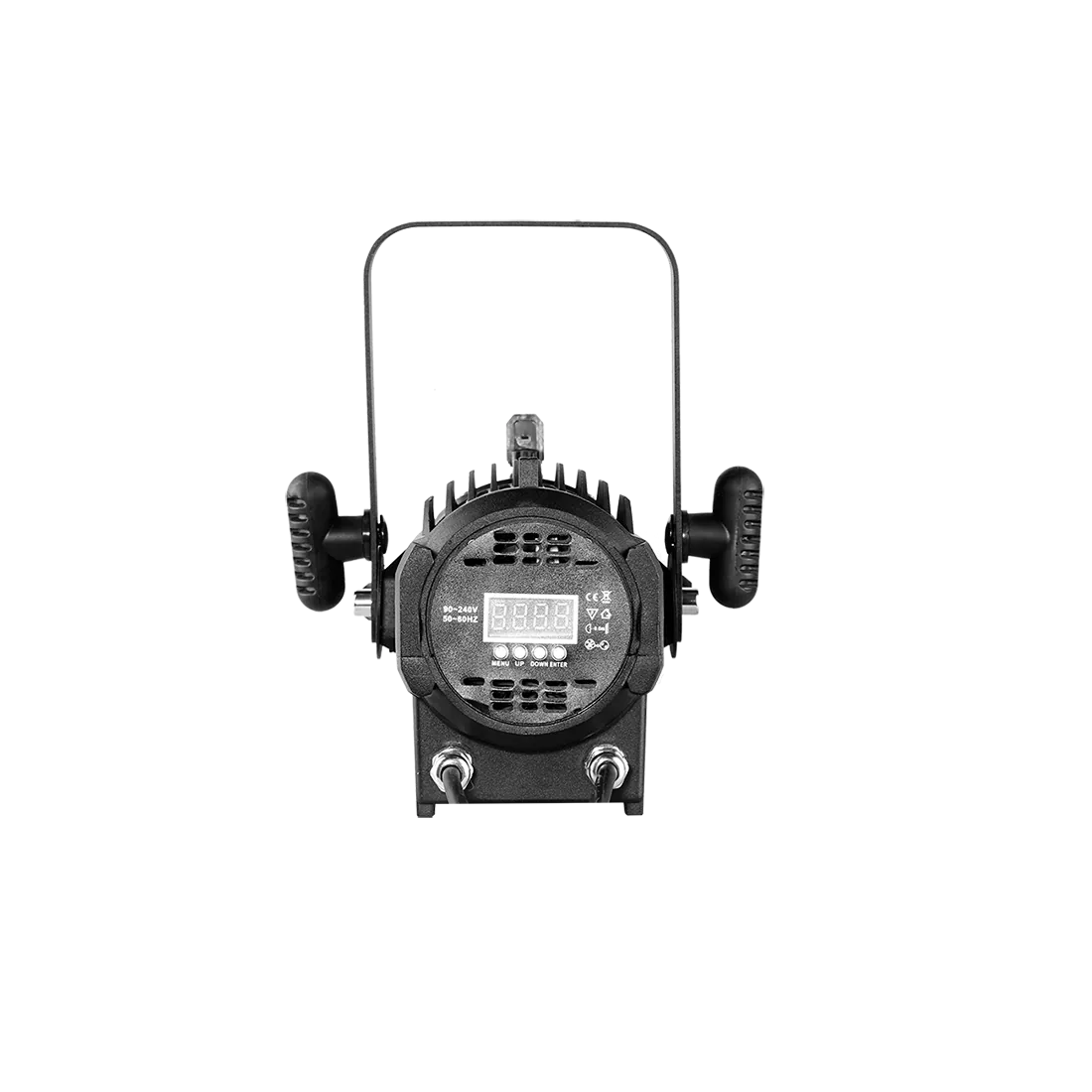

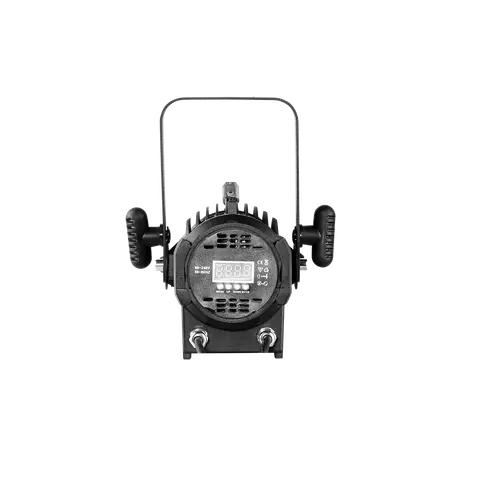

09Display System4

High resolution OLED display (0.96”)

4 Control buttons

180°Reversible for LCD display

Display Auto OFF

10Cooling System4

Advanced cooling system integrated aluminum and copper with liquid

Ultra silent performance (No fan designed)

Constant temperature readout and management function

Over temperature protection management

11Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

Power cable IN with switch and fuse

50W Power consumption

12Housing2

Skeleton made of aluminum and steel metal plates
Exterior finish: Black

13Installation2

Single hanging bracket

1*Safety attachment point

14Operating Condition3

Operating positions: all; -25°C to 45°C ambient temperature; IP20 protection rating

15Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

16Weight2

N.W.: 2.9kg
G.W.: 3.5kg(1PCS)/15.8kg(4PCS)

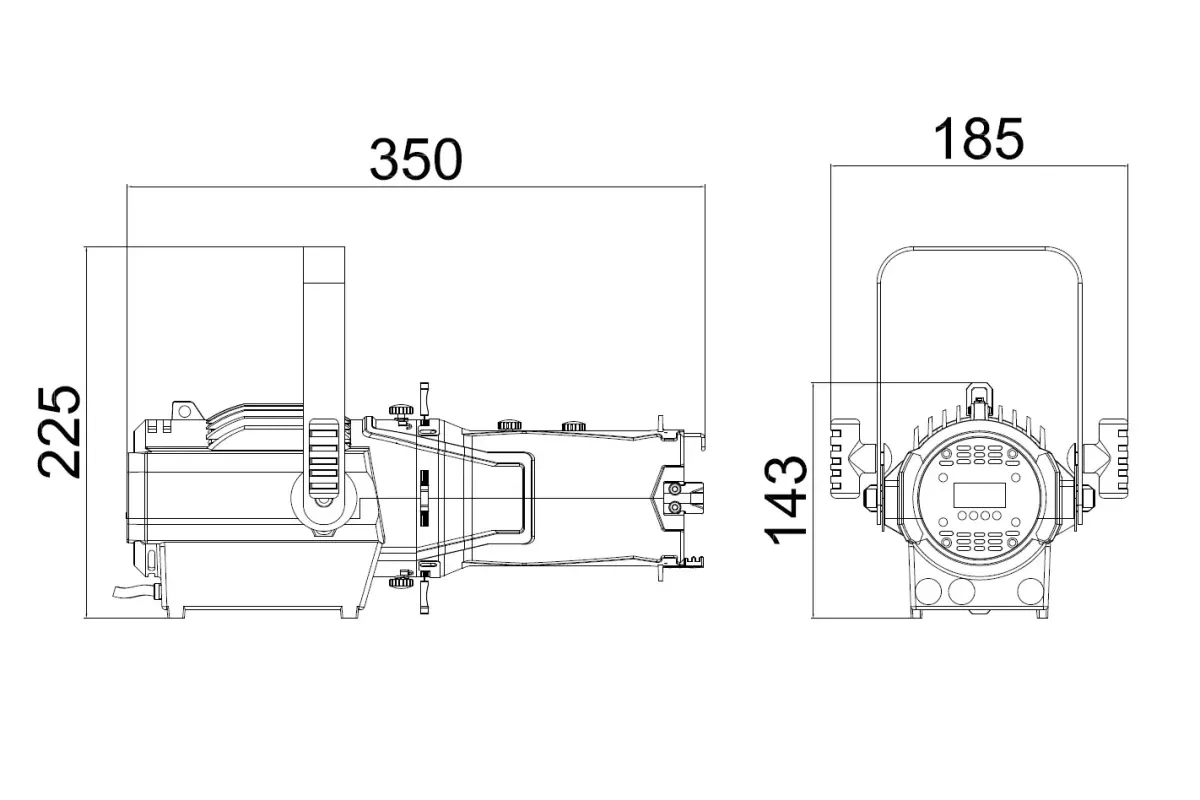

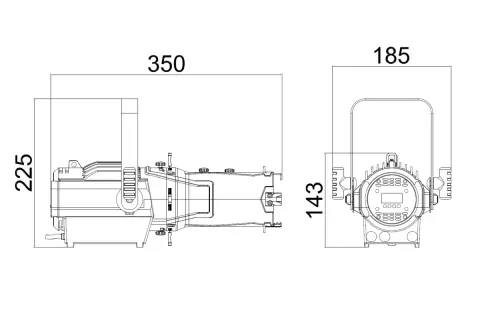

17Dimensions3

Product Dimensions: 185(D)*350(W)*143(H)mm
Packing Dimensions: 240(D)*450(W)*250(H)mm(1PCS)/; 470(D)*510(W)*460(H)mm(4PCS)

18Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

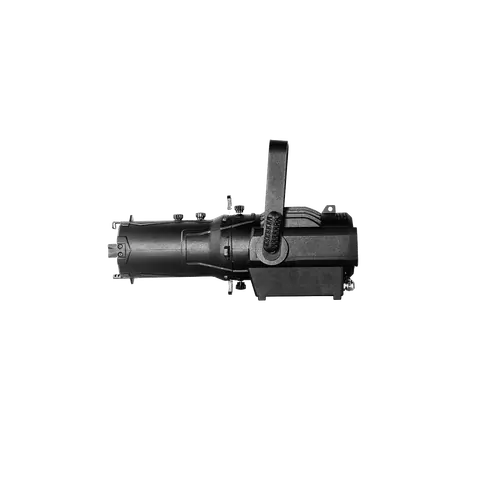

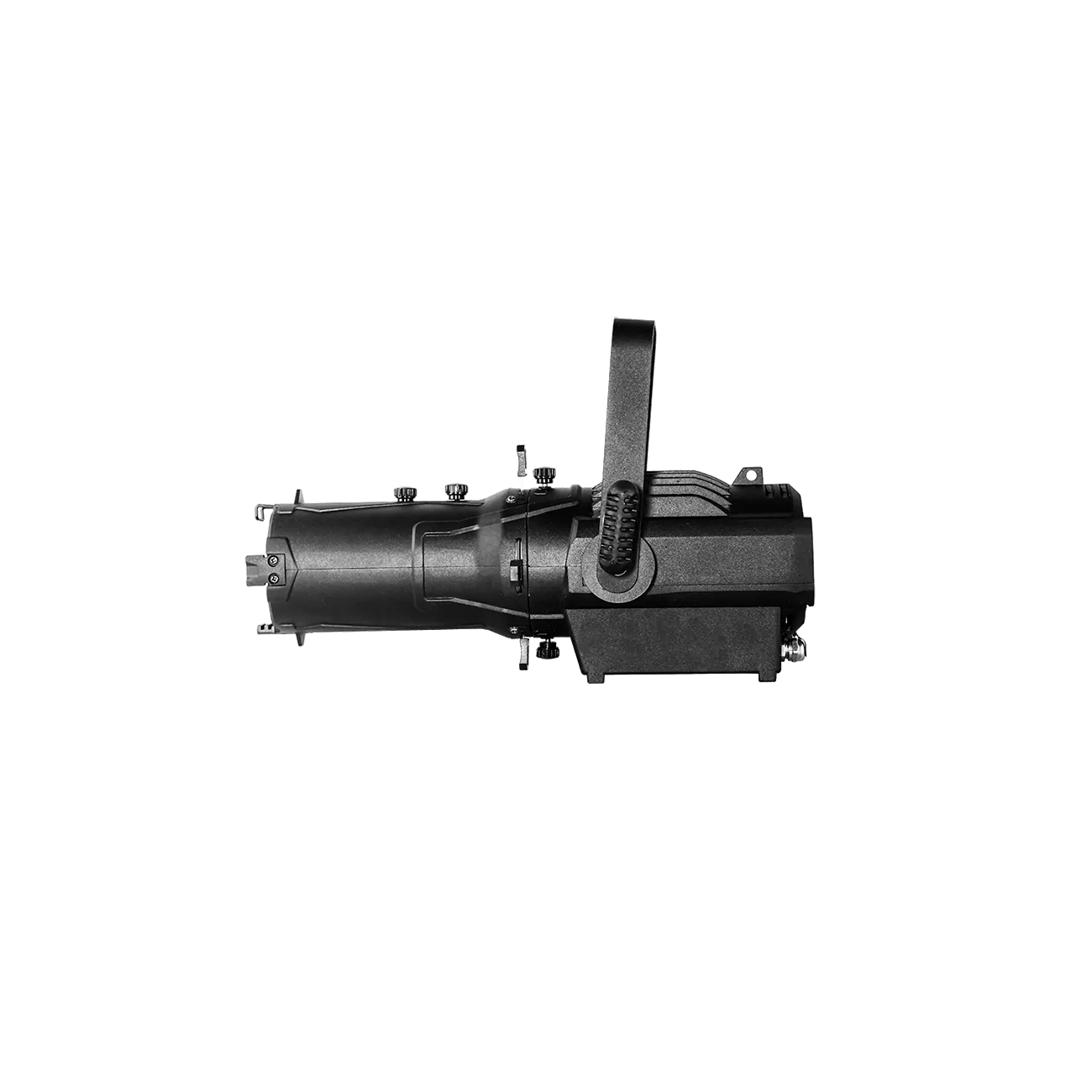

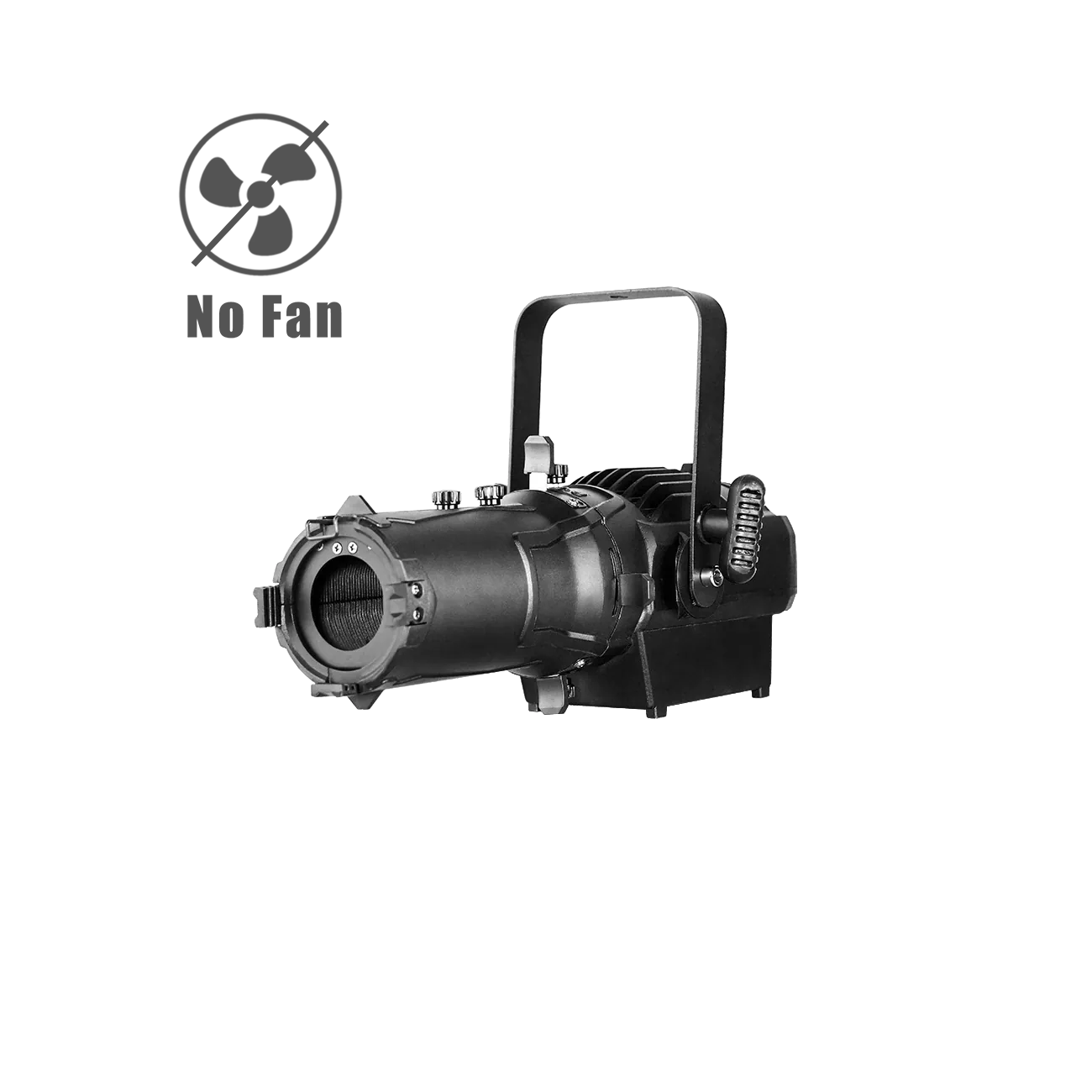

MINIPROFILE 100MZ-D

This profile is a high definition and NO-FAN designed MINI LED studio light integrated into a die-cast aluminum alloy housing. It features a 100W 2-IN-1 LED, CW+WW which delivers brightest output and the boldest rendering of the colors. The fixture is a professional SPOT lighting system with manual zoom range from 15°-30°for on-site application need.

The PROFILE is equipped with a very versatile dimming system and reasonable LED driving frequency. The CRI is ≥90. It’s controllable by DMX512 or RDM.

The fixture comes with 4 metal spot cutting slots by which the users could cut the spot into kinds of shapes. Color frame and gobo slot are optional kits.

The PROFILE is ideal for TV studios, conference rooms, museums, retail outlets, restaurants, light labs, and other small scale installations where size matters.
