Sheet 05.915

Color Imagination · Theatre lighting

PANEL 224

ModelP224

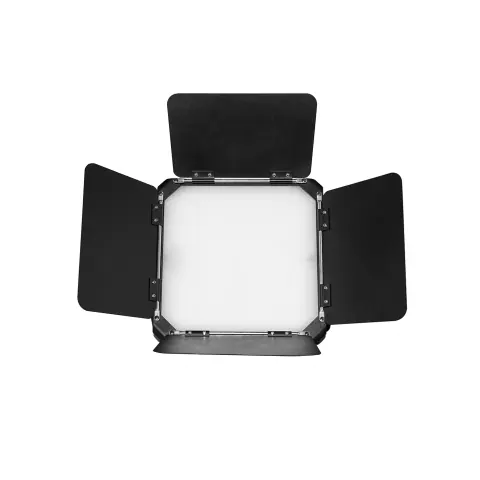

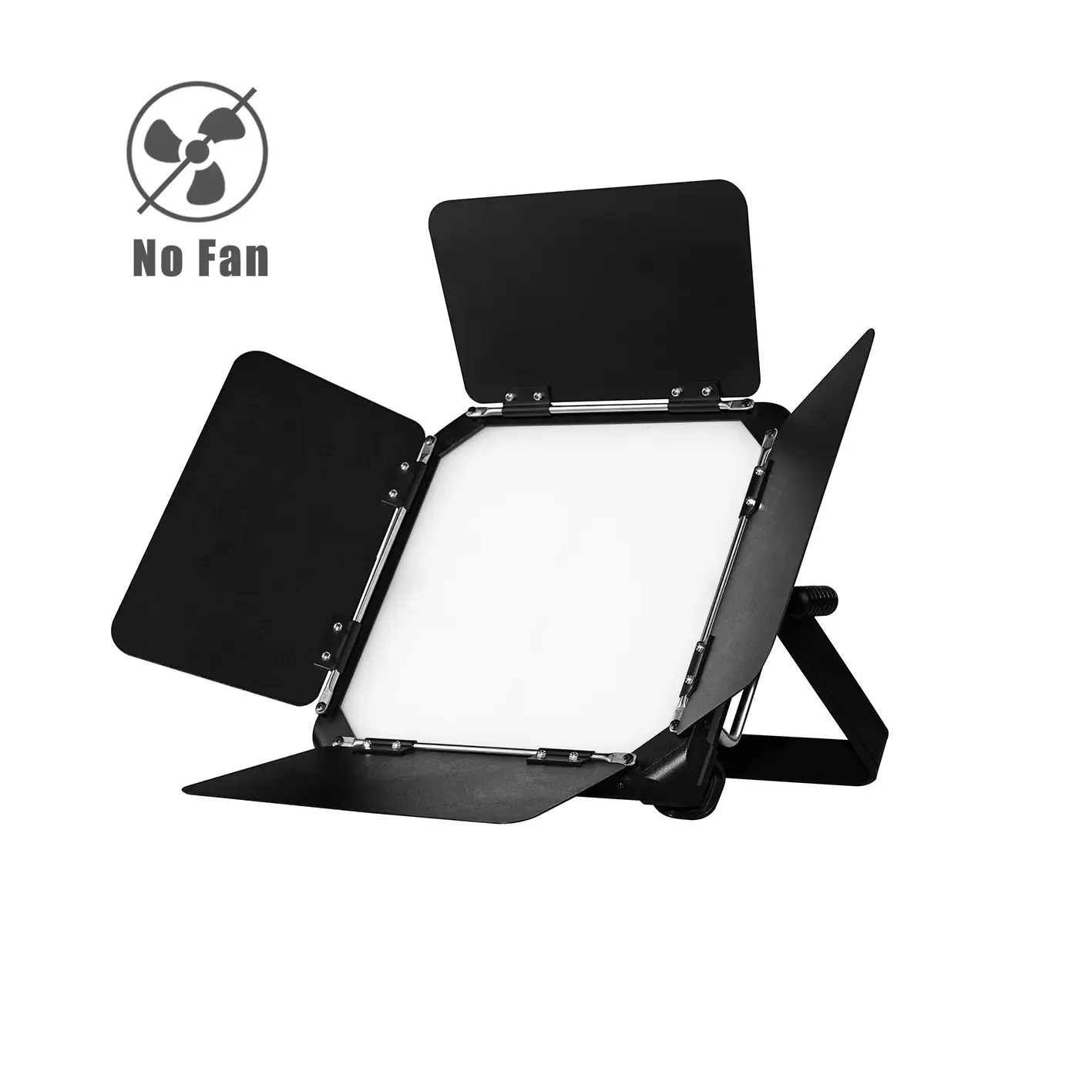

The flexible and modular concept PANEL 224 is a new generation NO-FAN designed soft studio panel light for the industry featuring 224*0.5W premium quality, high CRI and surface mount stable LEDs (CW+WW) with high efficiency optics, cool white and warm white integrated. The bi-colors are individually tunable to achieve innovative tungsten to daylight advantages, color temperature adjustable from 3200K to 6000K. These features provide the PANEL with superior color reproduction and a great light output, offering greater flexibility than tradition ones. The fixture also comes with a front soft diffusion panel that makes the light coverage more even.The housing is made by rugged, die cast aluminum alloy, slim, compact and light weight.

Light source: 112*0.5W cold white+112*0.5W warm white LEDs
Power consumption: 100W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 4.7kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 16 groups · 55 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source6

Source: 112*0.5W cold white+112*0.5W warm white LEDs
CRI: ≥95; Flicker free operation for broadcast TV and FILM; Frequency adjustable between 10KHz and 15KHz
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics2

High resolution and precise front soft diffusion panel

180°Projection angle

03Color System2

CW+WW color mixing

3200K-6000K Color temperature adjustable

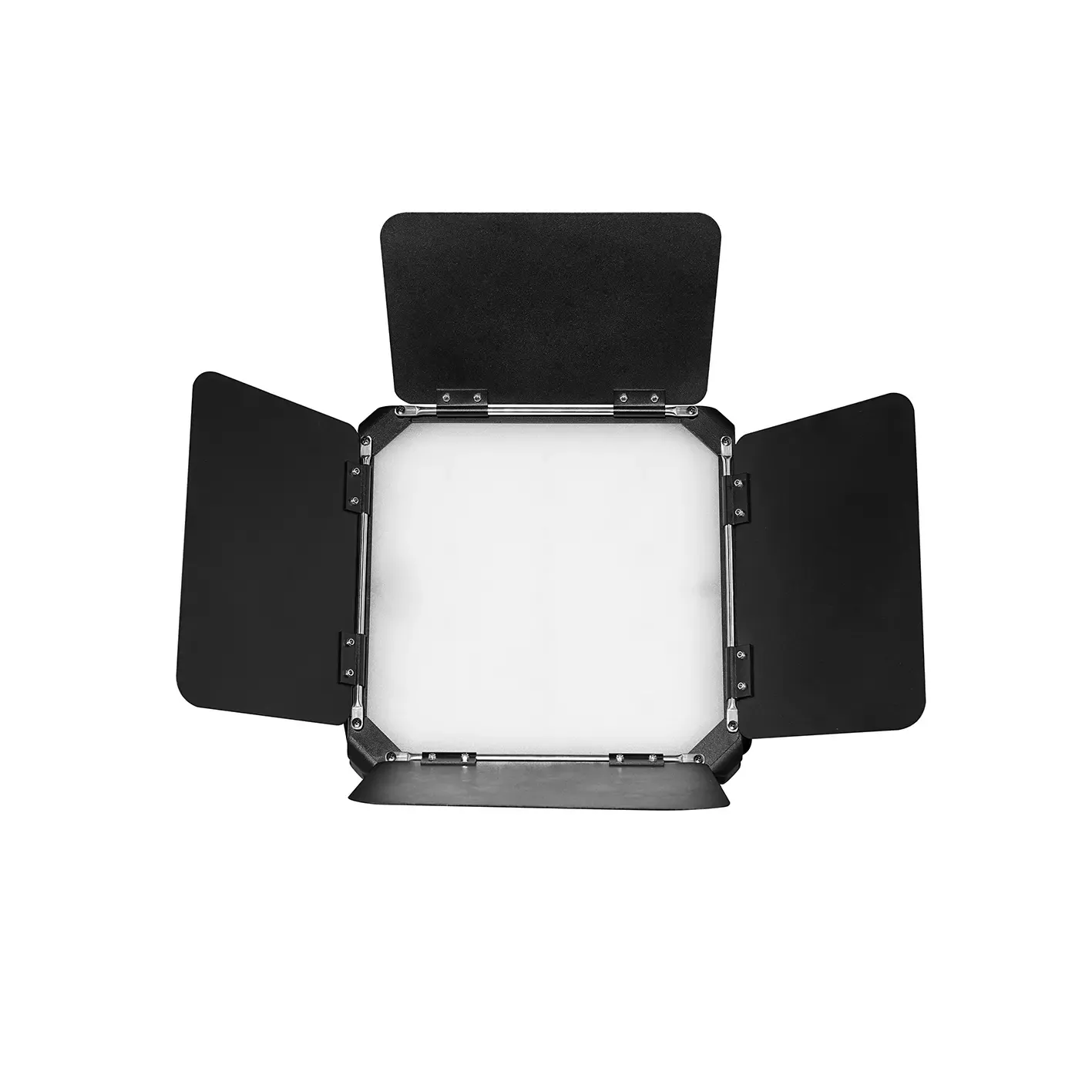

04Barn Door System1

4-Leaf rotating barn doors included

05Dimming System3

0-100% Smooth linear LED dimming

4 Dimming curve modes, linear/square law/Inv square law/S-curve

2 Individual dimmer knobs

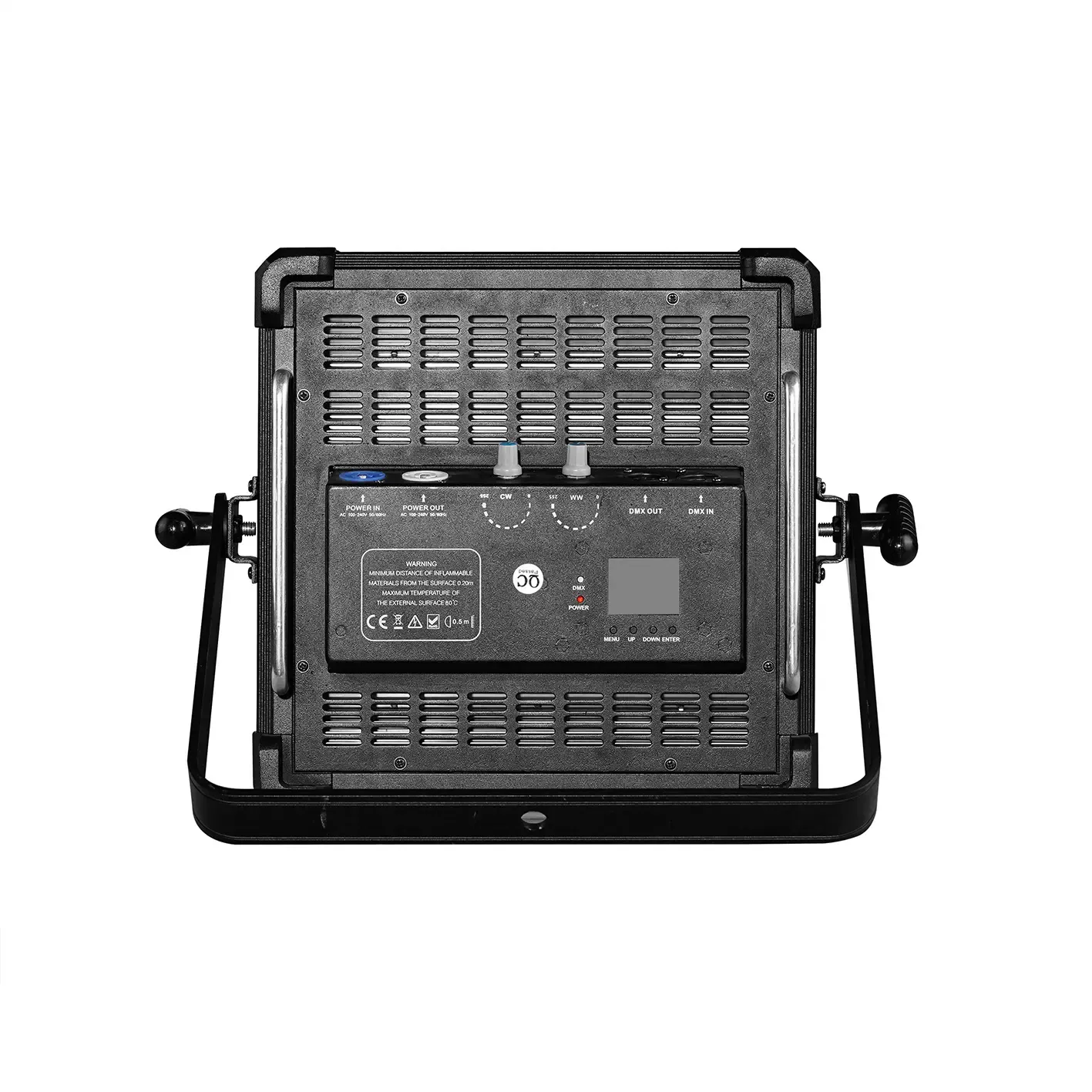

06Control System6

4 DMX channels USITT DMX-512

RDM available (Remote Device Management)

DMX512, master-slave, or auto operation

DMX recorder and edit function integrated

Shielded input signal protection for stable signal without interference

3-Pin XLR DMX connectors IN/OUT

Show the full specificationHide the rest of the specification10 more groups · 35 values

07Display System5

1.8″ TFT LCD display

4 Control buttons

2 Control knobs

180°Reversible for LCD display

Display Auto OFF

08Cooling System4

Advanced cooling system integrated aluminum and copper with liquid

Noise free featured (NO-FAN Designed)

Constant temperature readout and management function

Over temperature protection management

09Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON IN/OUT with fuse

100W Power consumption

10Housing2

Skeleton made of aluminum and steel metal plates
Exterior finish: Black

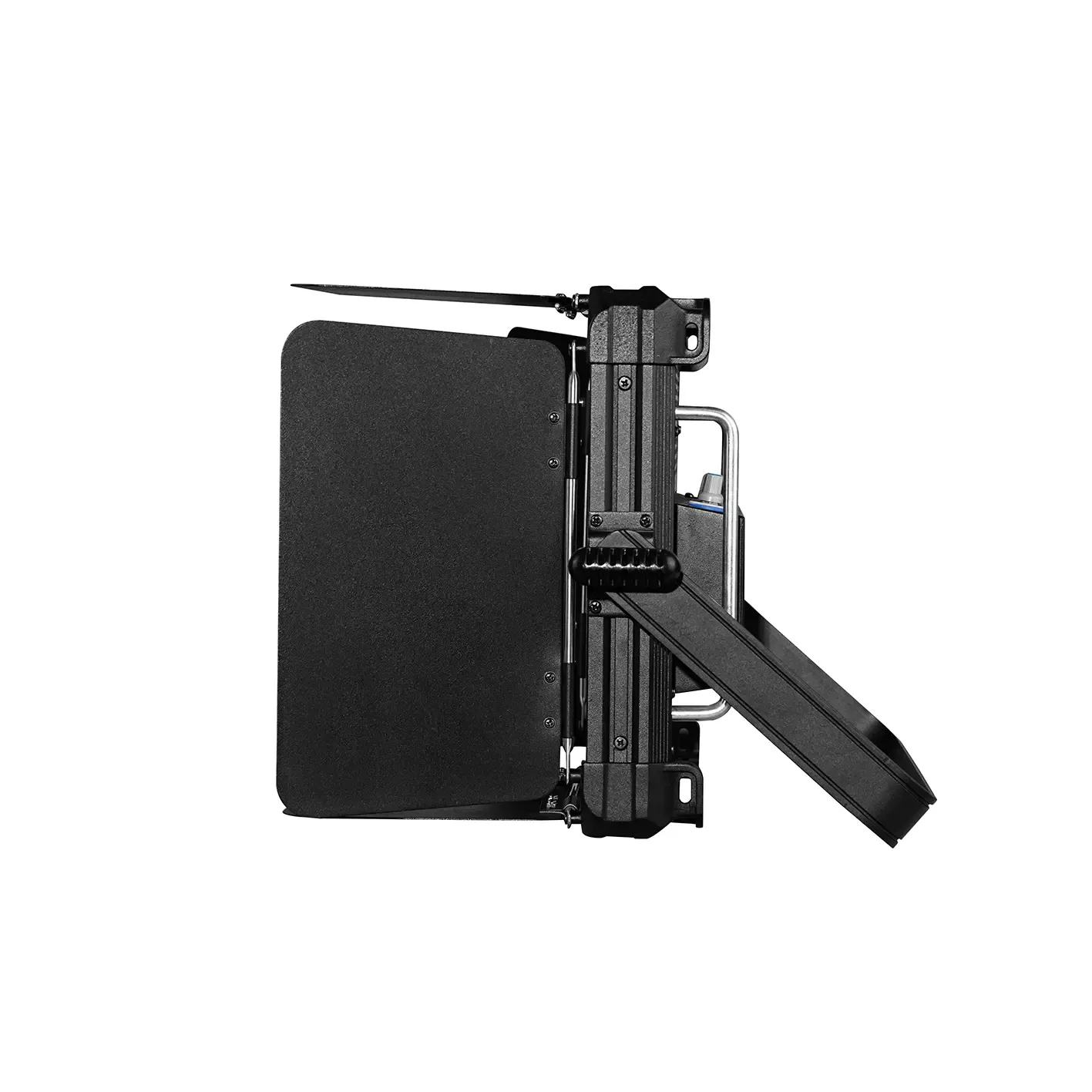

11Installation2

Single hanging bracket

1*Safety attachment point

12Operating Condition4

Operating positions: all; Tripod stand as optional; -25°C to 45°C ambient temperature; IP20 protection rating

13Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

14Weight2

N.W.: 4.7kg
G.W.: 5.5kg

15Dimensions2

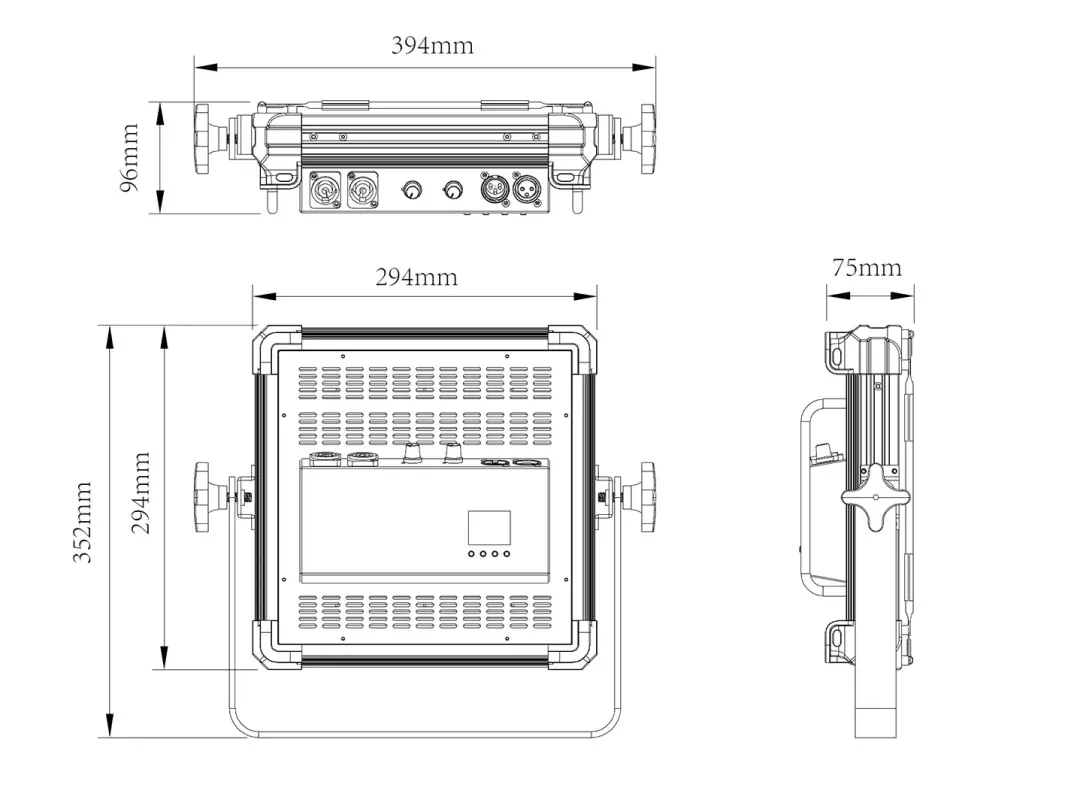

Product Dimensions: 96(D)*394(W)*294(H)mm
Packing Dimensions: 400(D)*420(W)*160(H)mm

16Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

PANEL 224

The PANEL is RDM and DMX protocol supported, offering 4 dimming curves and LED frequency adjustable from 10KHz and 15KHz.

The PANEL is meticulously crafted to deliver a new standard in the form and function needed for independent and field production as well as studio installations.
