PANEL 1400
ModelP1400

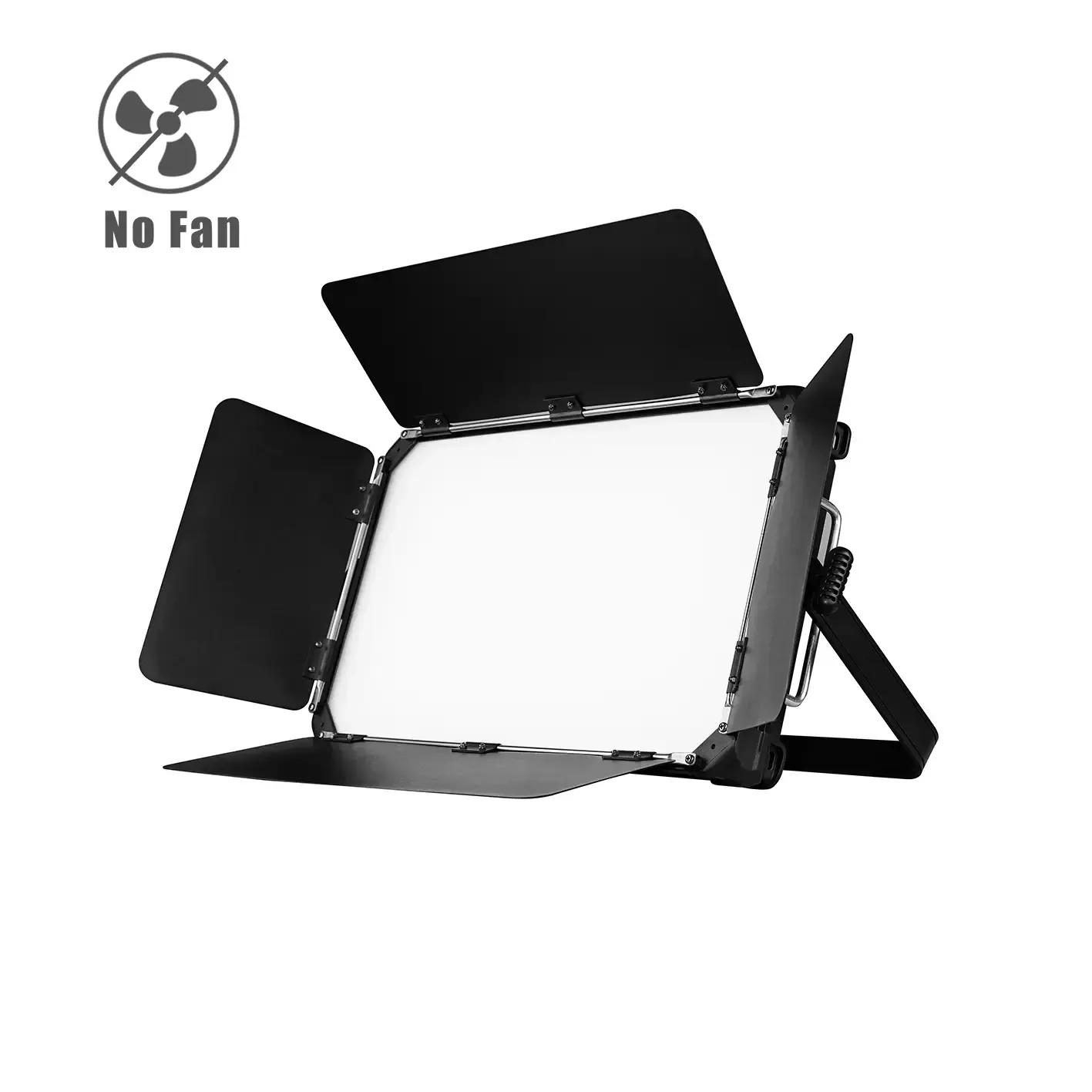

The flexible and modular concept PANEL 1400 is a new generation NO-FAN designed soft studio panel light for the industry featuring 1400*0.5W premium quality, high CRI and surface mount stable LEDs (CW+WW) with high efficiency optics, cool white and warm white integrated. The bi-colors are individually tunable to achieve innovative tungsten to daylight advantages, color temperature adjustable from 3000K to 6500K. These features provide the PANEL with superior color reproduction and a great light output, offering greater flexibility than tradition ones. The fixture also comes with a front soft diffusion panel that makes the light coverage more even.The housing is made by rugged, die cast aluminum alloy, slim, compact and light weight.
- Light source
- 700*0.5W cold white+700*0.5W warm white LEDs
- Power consumption
- 300W Power consumption
- Power supply
- AC100-240V 50/60Hz
- Ingress protection
- IP20 protection rating
- Net weight
- 10kg
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Light Source6
- Source
- 700*0.5W cold white+700*0.5W warm white LEDs
- CRI
- ≥95
- Flicker free operation for broadcast TV and FILM
- Frequency adjustable between 10KHz and 15KHz
- Life Span
- 50000H
- The life span may vary depending on several following factors but not limited to
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)
02Optics2
- High resolution and precise front soft diffusion panel
- 180°Projection angle
03Color System2
- CW+WW color mixing
- 3000K-6500K Color temperature adjustable
04Barn Door System1

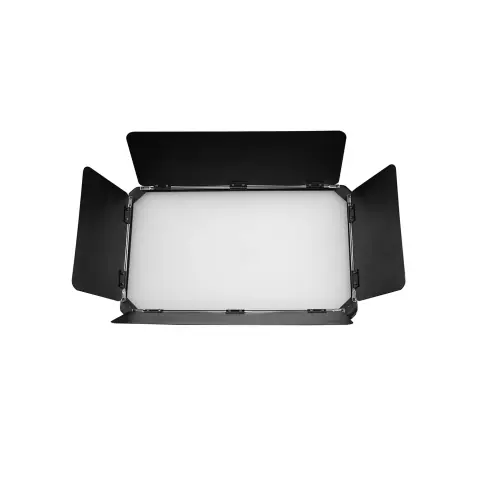

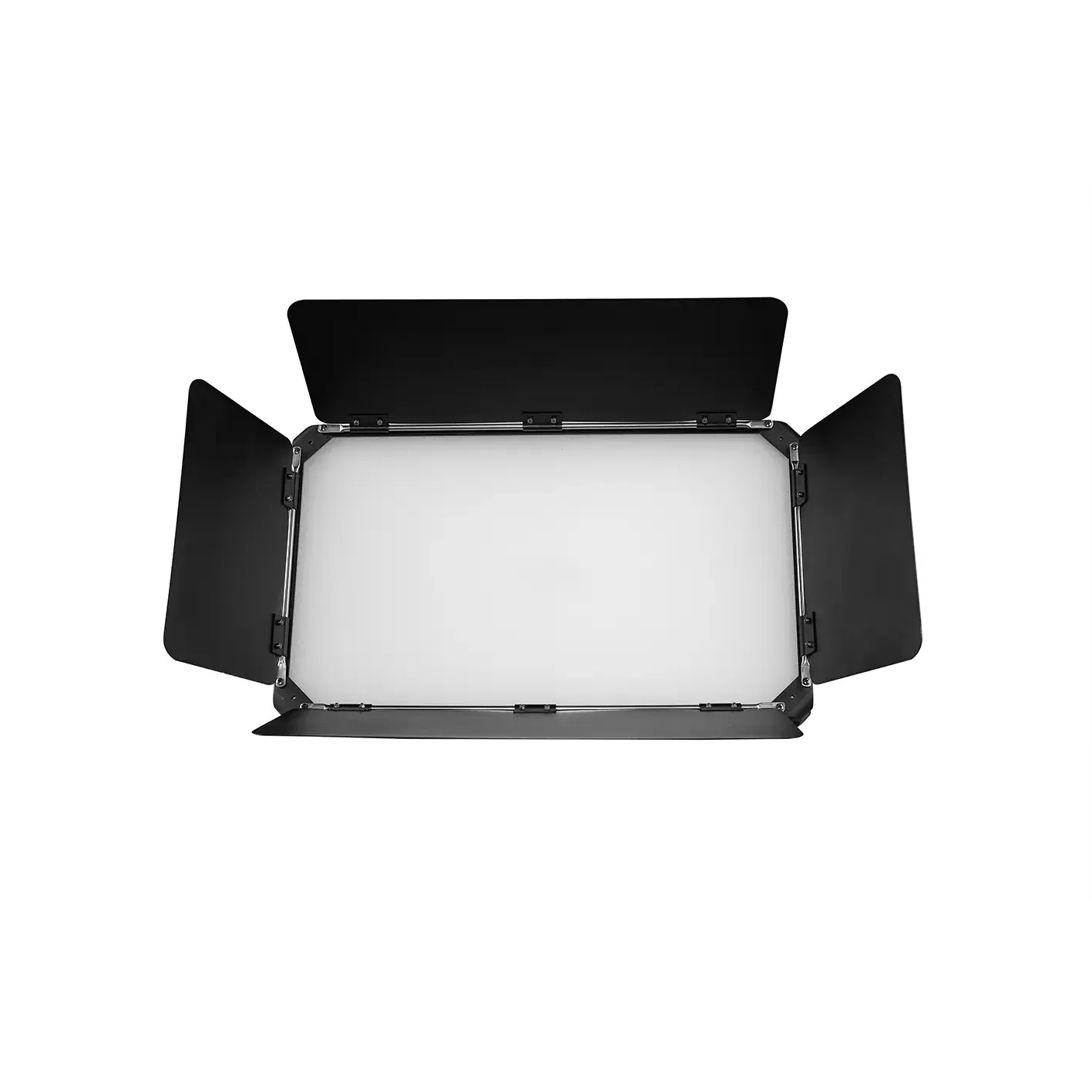

- 4-Leaf rotating barn doors included
05Dimming System3
- 0-100% Smooth linear LED dimming
- 4 Dimming curve modes, linear/square law/Inv square law/S-curve
- 2 Individual dimmer knobs
06Control System6
- 4 DMX channels USITT DMX-512
- RDM available (Remote Device Management)
- DMX512, master-slave, or auto operation
- DMX recorder and edit function integrated
- Shielded input signal protection for stable signal without interference
- 3-Pin XLR DMX connectors IN/OUT
Show the full specificationHide the rest of the specification10 more groups · 35 values

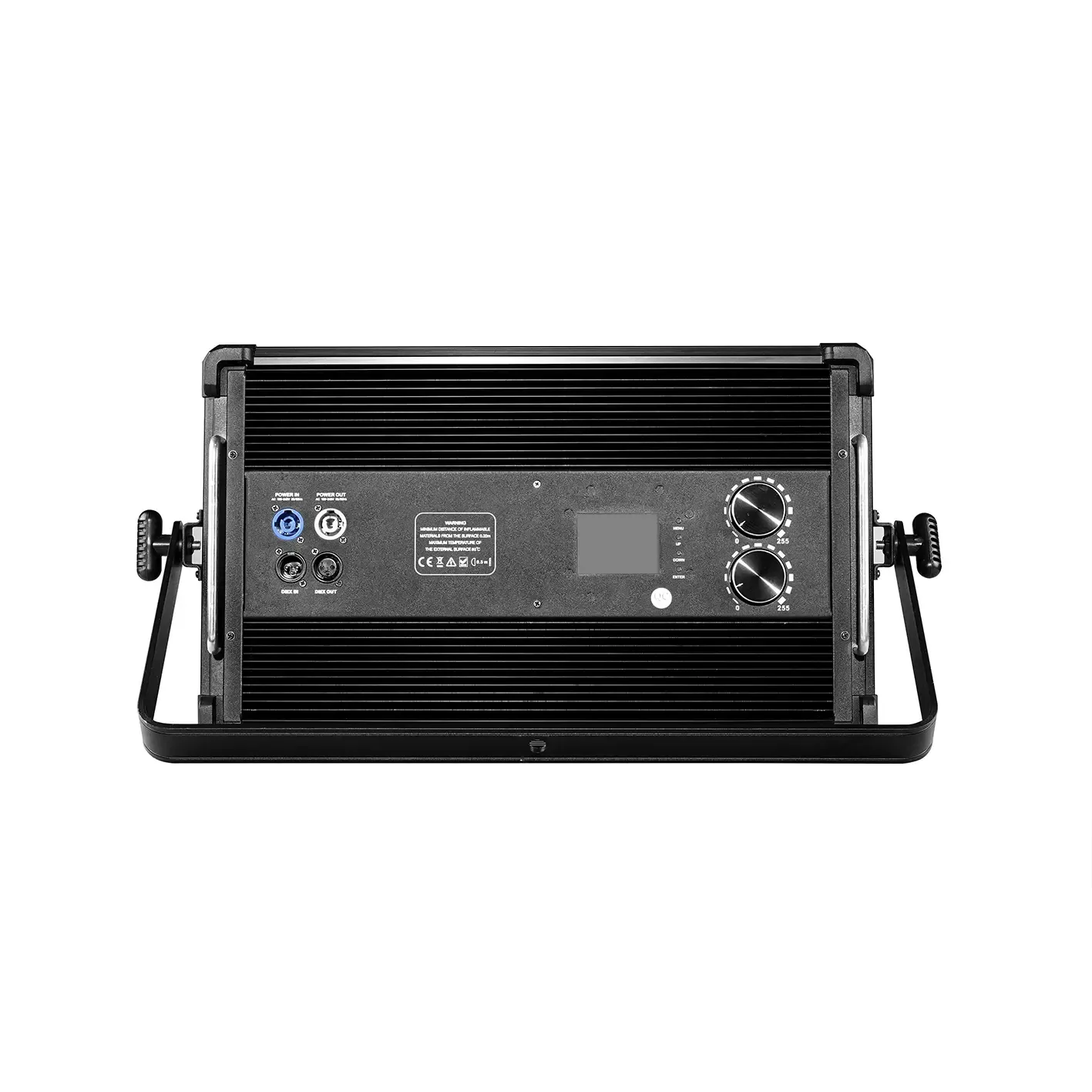

07Display System5
- 2.8″ Touch TFT LCD display
- 4 Control buttons
- 2 Control knobs
- 180°Reversible for LCD display
- Display Auto OFF
08Cooling System4
- Advanced cooling system integrated aluminum and copper with liquid
- Noise free featured (NO-FAN Designed)
- Constant temperature readout and management function
- Over temperature protection management
09Power Supply4
- Electronic supply with active PFC
- AC100-240V 50/60Hz
- PowerCON IN/OUT with fuse
- 300W Power consumption
10Housing2
- Skeleton made of aluminum and steel metal plates
- Exterior finish
- Black
11Installation2
- Single hanging bracket
- 1*Safety attachment point
12Operating Condition4
- Operating positions
- all
- Tripod stand as optional
- -25°C to 45°C ambient temperature
- IP20 protection rating
13Compliance4
- CE
- 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU – Electromagnetic Compatibility (EMC)
- 2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
14Weight2
- N.W.
- 10kg
- G.W.
- 11.8kg

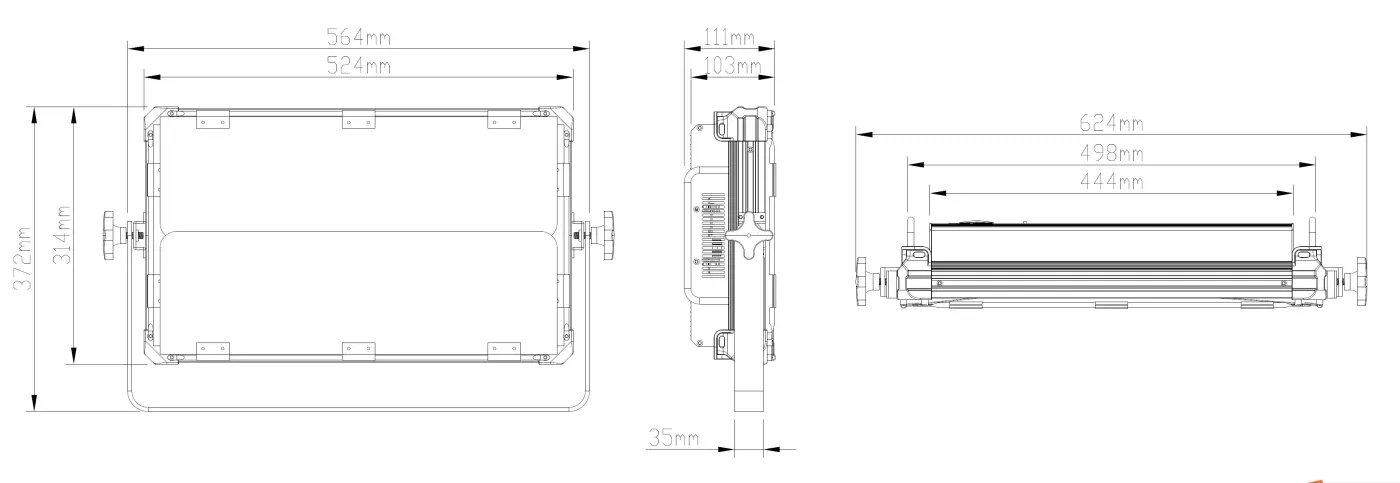

15Dimensions2
- Product Dimensions
- 111(D)*624(W)*314(H)mm
- Packing Dimensions
- 440(D)*670(W)*180(H)mm
16Accessories6
- Power Cable STANDARD code: QTY: 1PCS
- Signal Cable STANDARD code: QTY: 1PCS
- Omega STANDARD code: QTY: 2PCS
- Safety Cable STANDARD code: QTY: 1PCS
- Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions
- Clamps OPTIONAL code: QTY: 2PCS
What it is.
PANEL 1400
The PANEL is RDM and DMX protocol supported, offering 4 dimming curves and LED frequency adjustable from 10KHz and 15KHz.
The PANEL is meticulously crafted to deliver a new standard in the form and function needed for independent and field production as well as studio installations.
