Sheet 05.917
Color Imagination · Theatre lighting
PANEL 1260
ModelP1260
The flexible and modular concept PANEL 1260 is a new generation NO-FAN designed soft studio panel light for the industry featuring 1260*0.3W high CRI and surface mount stable LEDs RGBWW with high efficiency optics integrated.
- Light source
- 420*0.3W 3-IN-1 LEDs (RGB)+420*0.3W cold white LEDs+420*0.3W warm white LEDS
- Power consumption
- 300W Power consumption
- Power supply
- AC100-240V 50/60Hz
- Ingress protection
- IP20 protection rating
- Net weight
- 8.5kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
PANEL 1260Price on requestRequest a quotation
01SpecificationManufacturer's data · 17 groups · 57 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Light Source6
- Source
- 420*0.3W 3-IN-1 LEDs (RGB)+420*0.3W cold white LEDs+420*0.3W warm white LEDS
- CRI
- ≥95
- Flicker free operation for broadcast TV and FILM
- Frequency adjustable between 10K-15KHz
- Life Span
- 50000H
- The life span may vary depending on several following factors but not limited to
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)
02Optics2
- High resolution and precise front soft diffusion panel
- 180°Projection angle
03Color System2
- RGBWA color mixing
- 2700K-10000K Color temperature adjustable
04Preset Programs1
- Different preset programs with variable speed

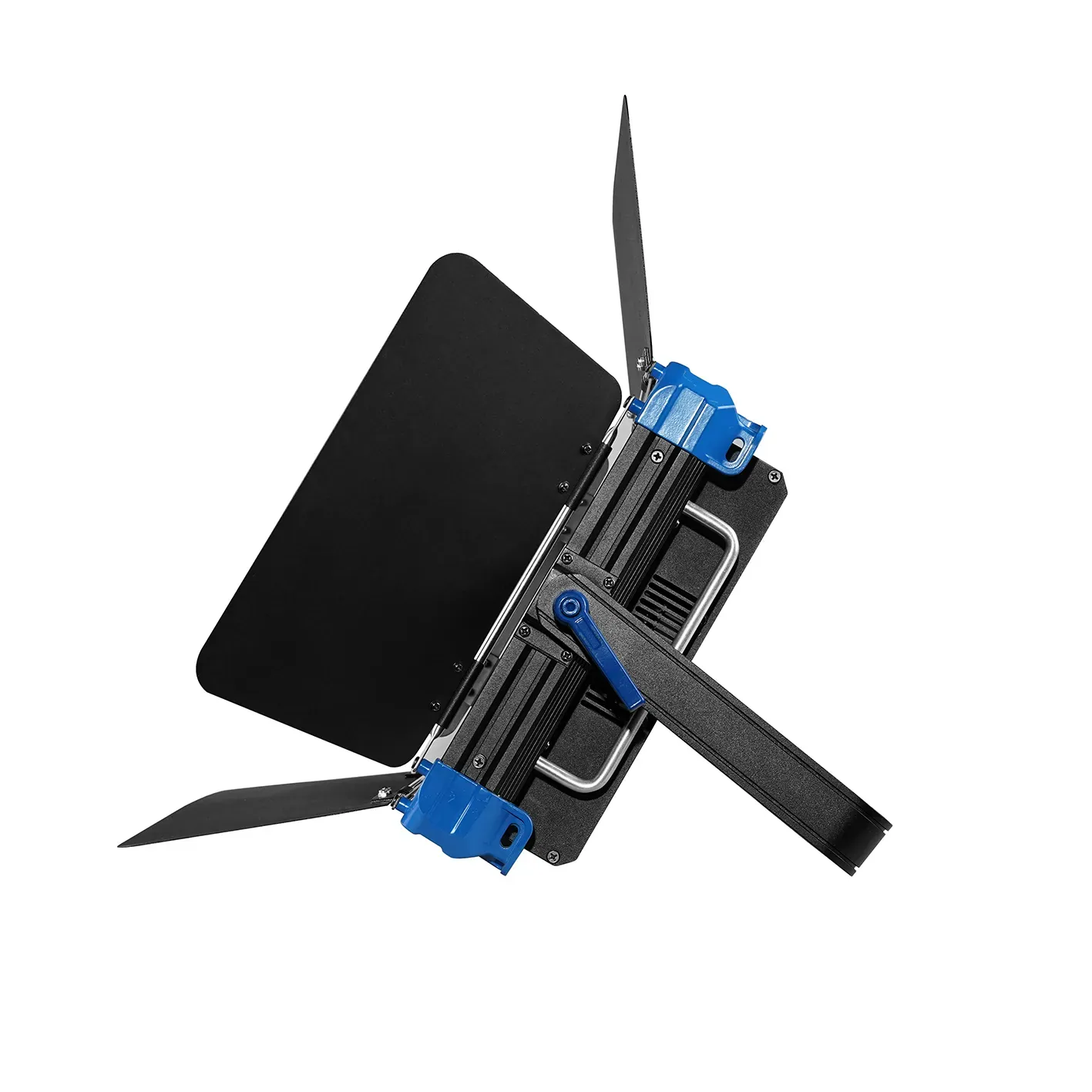

05Barn Door System1
- 4-Leaf rotating barn doors included
06Dimming System4
- 0-100% Smooth linear LED dimming
- 4 Dimming curve, linear/square law/Inv square law/S-curve
- 2 Dimming modes
- 2 Individual dimmer knobs
Show the full specificationHide the rest of the specification11 more groups · 41 values
07Control System6
- 10 DMX channels USITT DMX-512
- RDM available (Remote Device Management)
- DMX512, master-slave, or auto operation
- DMX recorder and edit function integrated
- Shielded input signal protection for stable signal without interference
- 3-Pin XLR DMX connectors IN/OUT

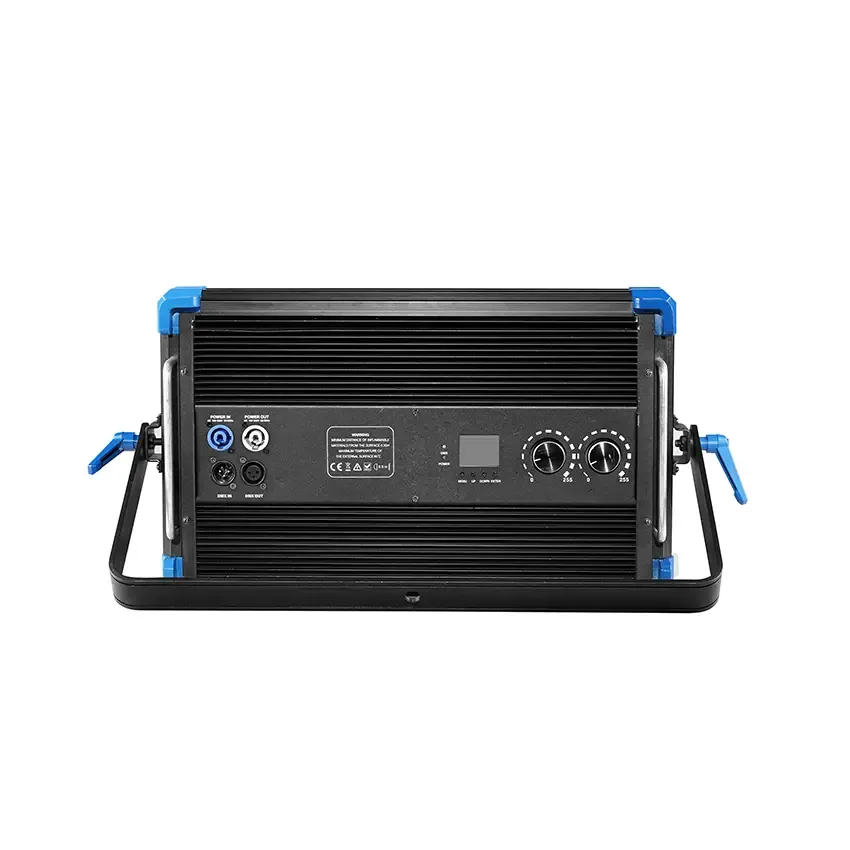

08Display System5
- 2.8″ Touch TFT LCD display
- 4 Control buttons
- 2 Control knobs
- 180°Reversible for LCD display
- Display Auto OFF
09Cooling System4
- Advanced cooling system integrated aluminum and copper with liquid
- Noise free featured (NO-FAN Designed)
- Constant temperature readout and management function
- Over temperature protection management
10Power Supply4
- Electronic supply with active PFC
- AC100-240V 50/60Hz
- PowerCON IN/OUT with fuse
- 300W Power consumption
11Housing2
- Skeleton made of aluminum and steel metal plates
- Exterior finish
- Black
12Installation2
- Single hanging bracket
- 1*Safety attachment point
13Operating Condition4
- Operating positions
- all
- Tripod stand as optional
- -25°C to 45°C ambient temperature
- IP20 protection rating
14Compliance4
- CE
- 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU – Electromagnetic Compatibility (EMC)
- 2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
15Weight2
- N.W.
- 8.5kg
- G.W.
- 10.3kg

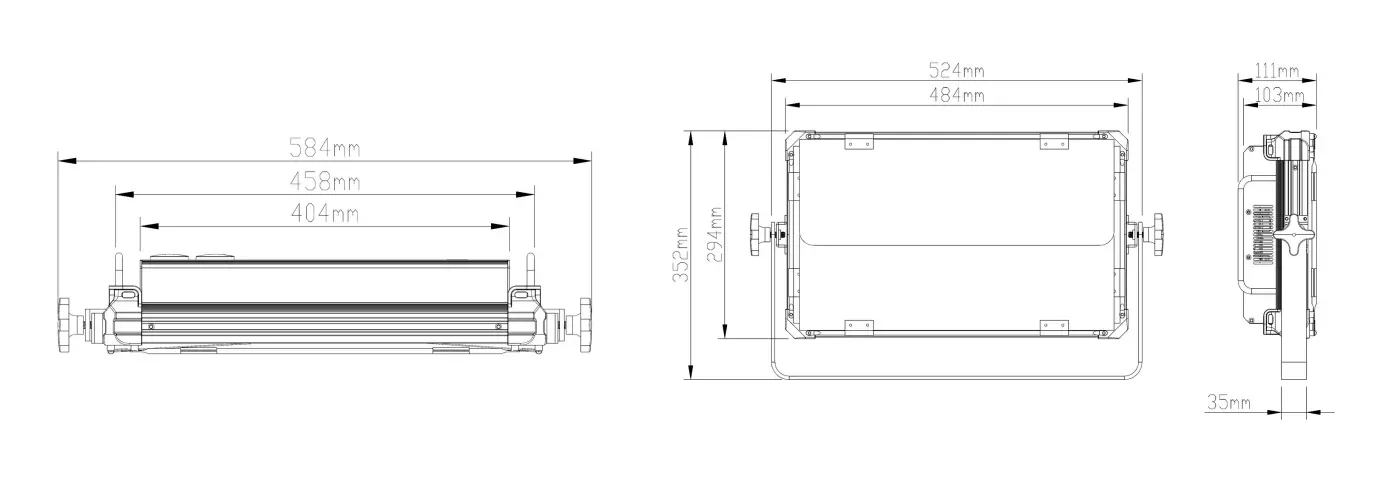

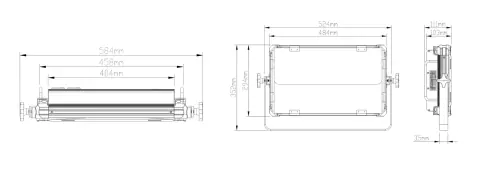

16Dimensions2
- Product Dimensions
- 110(D)*584(W)*294(H)mm
- Packing Dimensions
- 440(D)*670(W)*180(H)mm
17Accessories6
- Power Cable STANDARD code: QTY: 1PCS
- Signal Cable STANDARD code: QTY: 1PCS
- Omega STANDARD code: QTY: 2PCS
- Safety Cable STANDARD code: QTY: 1PCS
- Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions
- Clamps OPTIONAL code: QTY: 2PCS
02DescriptionManufacturer's description
What it is.
PANEL 1260
The flexible and modular concept PANEL 1260 is a new generation NO-FAN designed soft studio panel light for the industry featuring 1260*0.3W high CRI and surface mount stable LEDs RGBWW with high efficiency optics integrated. The fixtures are individually tunable to achieve innovative tungsten to daylight advantages, color temperature adjustable from 2700K to 10000K. These features provide the PANEL with superior color reproduction and a great light output, offering greater flexibility than tradition ones. The fixture also comes with a front soft diffusion panel that makes the light coverage more even.The housing is made by rugged, die cast aluminum alloy, slim, compact and light weight.
The PANEL is RDM and DMX protocol supported, offering 4 dimming curves and LED frequency adjustable from 10KHz and 15KHz.
The PANEL is meticulously crafted to deliver a new standard in the form and function needed for independent and field production as well as studio installations.
