Sheet 05.837

Color Imagination · PAR and static light

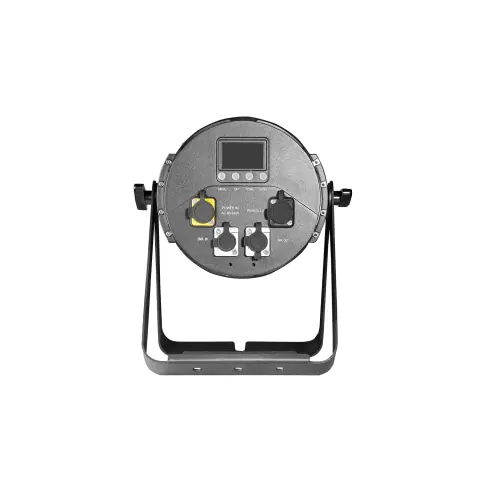

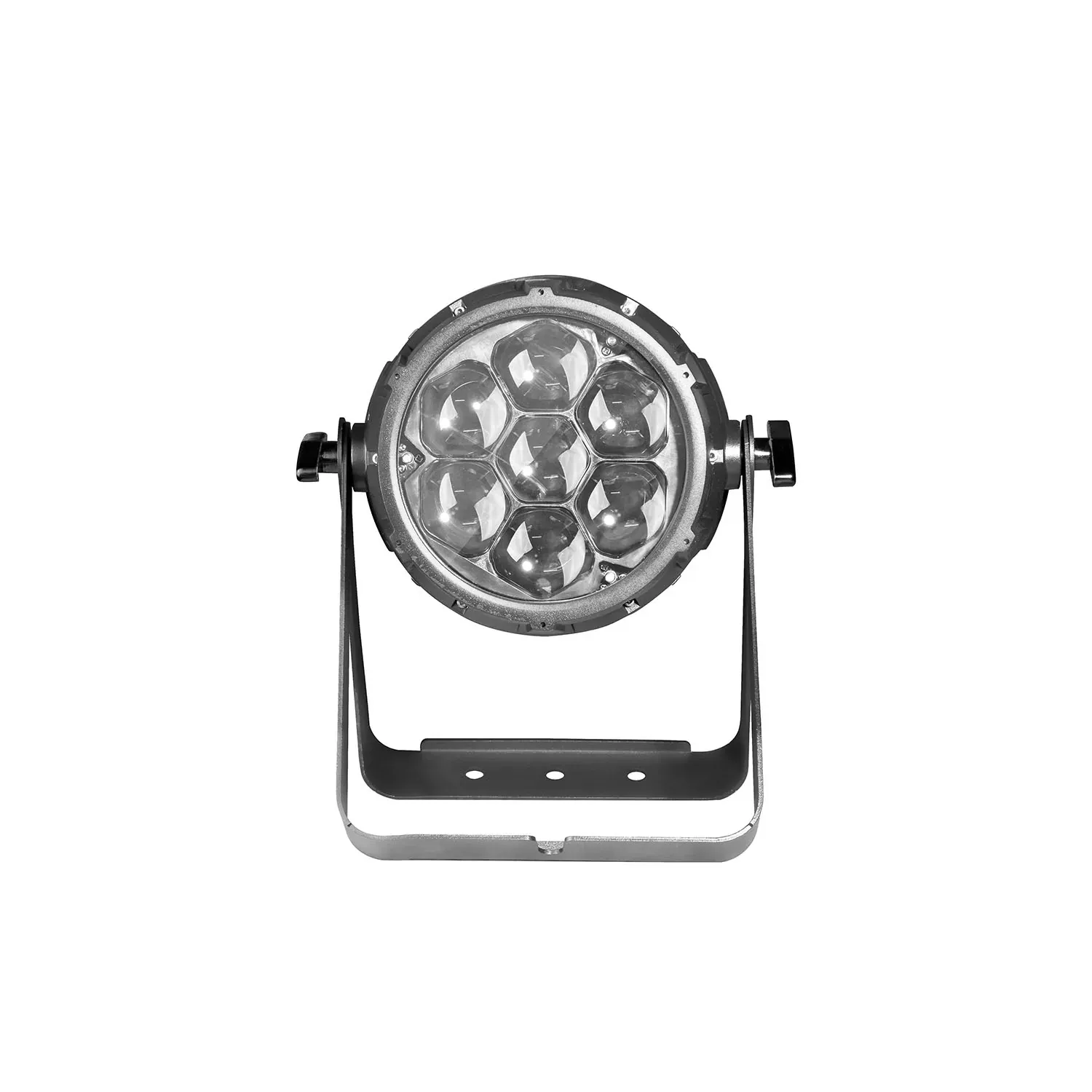

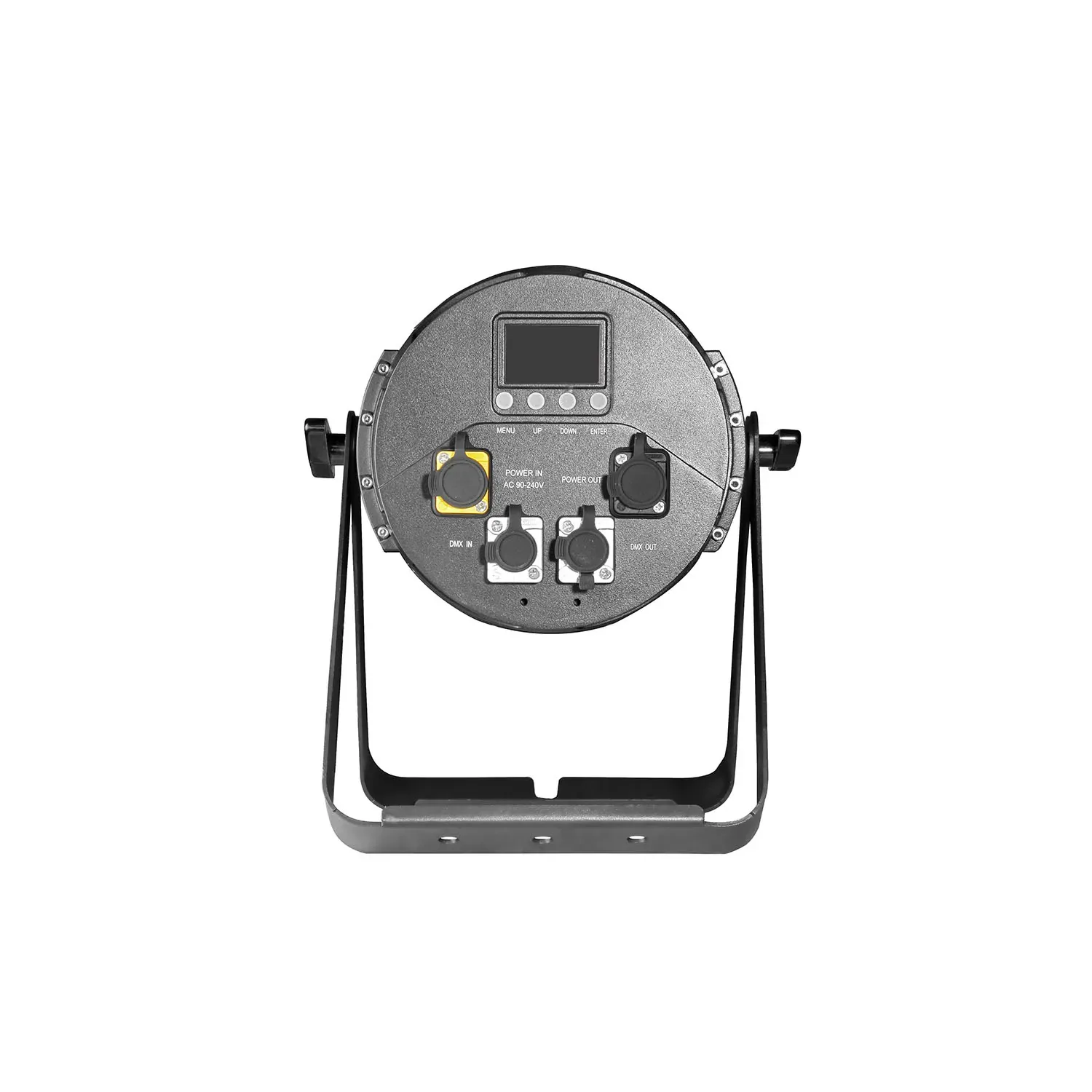

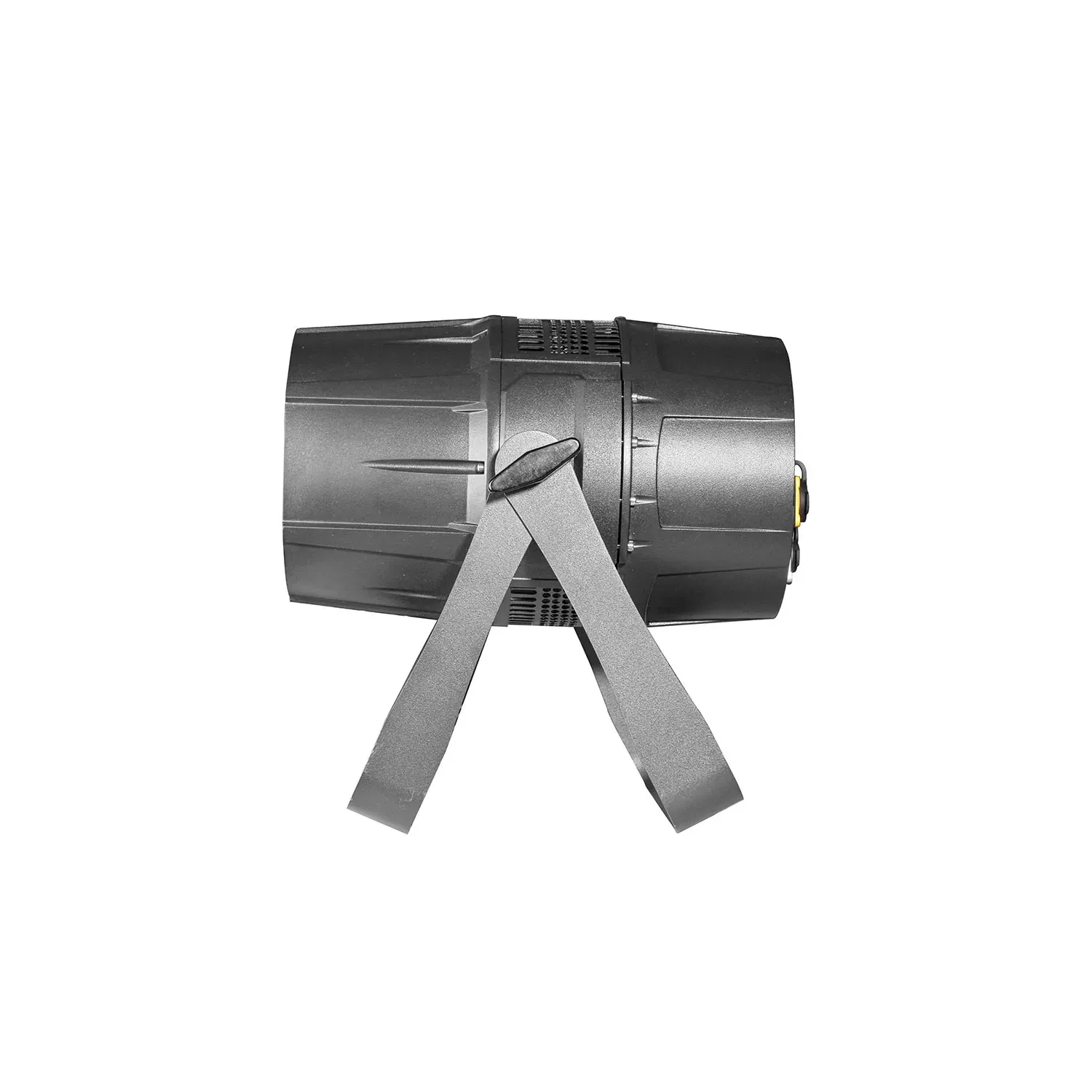

PARZOOM 740FIP

ModelPZ740

This fixture is a zoom par light with 7*40W 4-IN-1 RGBW LEDs, IP65 rated, featuring a lightweight and compact die-case aluminum alloy housing.

Light source: 7*40W 4-IN-1 LED, RGBW
Power consumption: 280W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP65 protection rating
Net weight: 7.5kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 16 groups · 50 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source4

Source: 7*40W 4-IN-1 LED, RGBW; Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics3

High efficiency optic system

8°-60°Motorized linear zoom

High output

03Color System2

RGBW

Smooth and pure color mixing capability

04Strobe Effect2

0-25Hz LED shutter/strobe effect with

variable speed

05Dimming System1

0-100% Smooth linear LED dimming

06Control System6

11 DMX channels USITT DMX-512

DMX512, master-slave, sound or auto operation

RDM available (Remote Device Management)

Multi built-in default programs

Shielded input signal protection for stable signal without interference

IP65 3-Pin XLR Connectors IN/OUT

Show the full specificationHide the rest of the specification10 more groups · 32 values

07Display System3

LCD display

4 Control buttons

Display auto OFF

08Cooling System2

Advanced cooling system integrated aluminum

Over temperature protection

09Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

IP65 PowerCON connectors IN/OUT

280W Power consumption

10Housing2

Aluminum die-casting structure
Exterior finish: Black

11Installation1

1*Safety attachment point

12Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25° to 45° ambient temperature; IP65 protection rating

13Compliance7

2014/35/EU – Safety of electrical equipment

supplied at low voltage (L VD)

2014/30/EU – Electromagnetic Compatibility

(EMC)

2011/65/EU – Restriction of the use of certain

hazardous substances (RoHS)

14Weight2

N.W.: 7.5kg
G.W.: 8.3kg

15Dimensions2

Product Dimensions: 343(D)*235(W)*200(H)mm
Packing Dimensions: 270(D)*270(W)*530(H)mm

16Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

PARZOOM 740FIP

The PARZOOM 740FIP is designed with a smooth and quiet 8°-60°motorized linear zoom system. It’s with very high light output, smooth and pure color mixing and even light coverage. The linear electronic dimming combines with a flicker free control system specially for TV production and film. The unit comes with dual rigging brackets/floor stand.

PARZOOM 740FIP is ideal for outdoor application like architectural lighting, live concerts, road shows, clubs, theme park, wedding party, etc.
