Sheet 05.835
Color Imagination · PAR and static light
COBPAR 350E
ModelCP350E

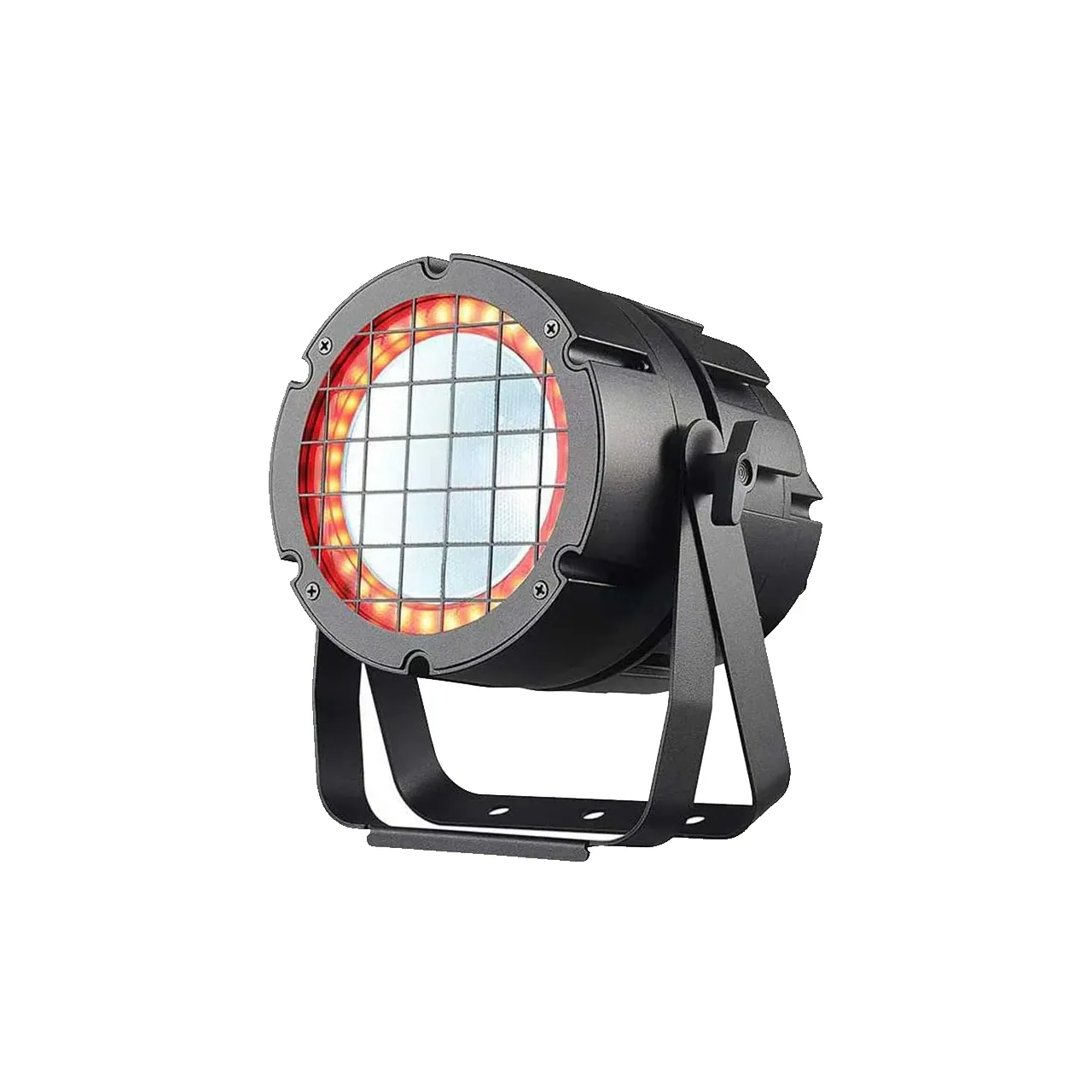

This rugged, waterproof COBPAR 350E PAR delivers punchy, even color and creative effects in a compact, die-cast aluminum housing.
- Light source
- 1*350W 5-IN-1 COB LED (RGBWA)32*0.5W RGB 3-IN-1 LEDs for auxiliary ring with 32 zones control
- Power consumption
- 350W Power consumption
- Power supply
- AC100-240V 50/60Hz

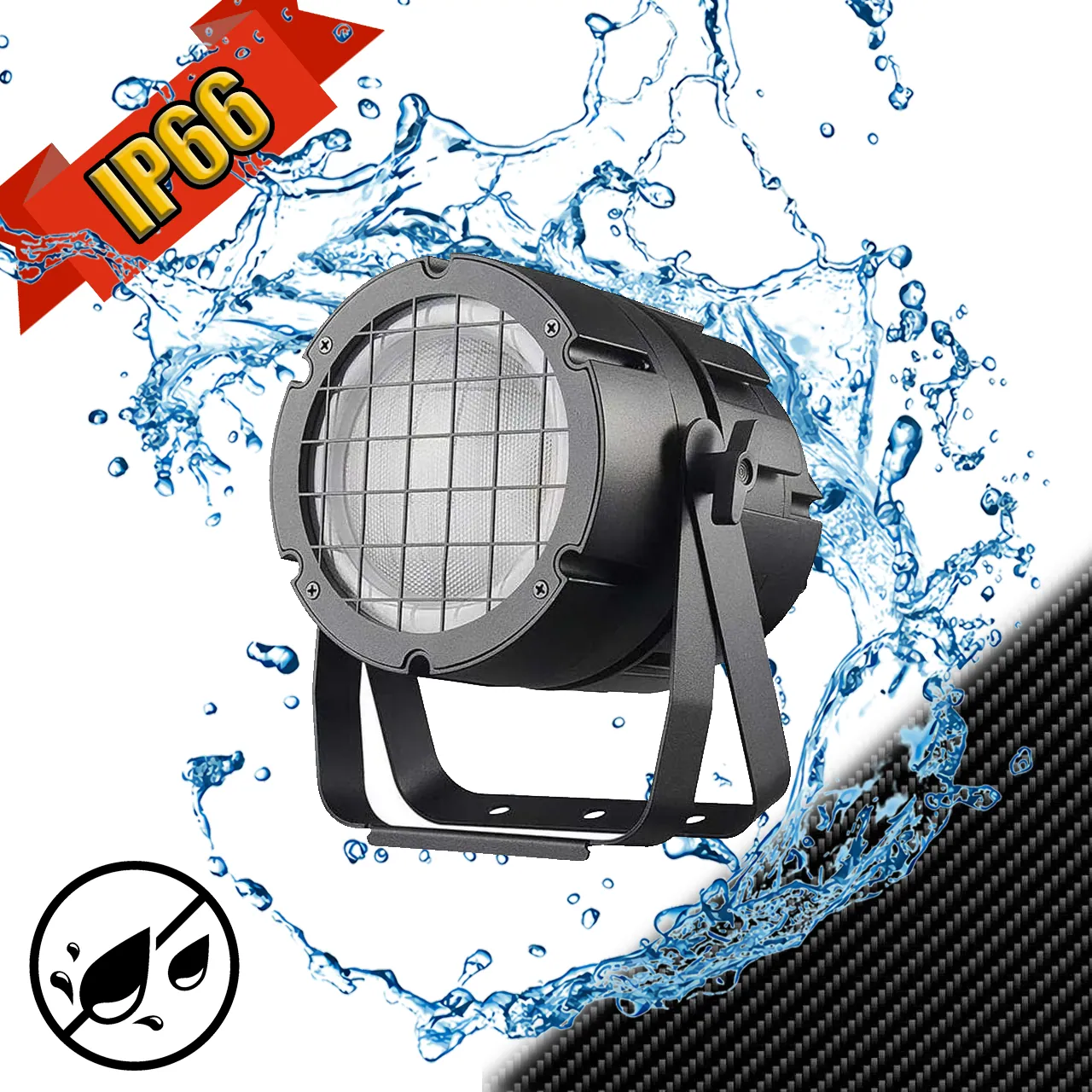

- Ingress protection
- IP65 protection rating
- Net weight
- 2.8kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
COBPAR 350EPrice on requestRequest a quotation
01SpecificationManufacturer's data · 18 groups · 60 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01General5
- Source
- 1*350W 5-IN-1 COB LED (RGBWA)32*0.5W RGB 3-IN-1 LEDs for auxiliary ring with 32 zones control
- 1K-25KHz Frequency adjustable
- Flicker free operation for broadcast TV and FILM
- Life Span
- 50000H
- The life span may vary depending on several following factors but not limited to
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)
02Optics3
- High efficiency optic system
- 60°Beam angle
- High output
03Color System4
- RGBWA
- Smooth and pure color mixing capability
- 2000K-10000K Color temperature adjustment
- Different preset color macros
04Strip Effect2
- Strip effect with different built-in macros
- (variable speed control)
05General1
- Different built-in dynamic effects with variable speed
06Strobe Effect1
- 0-25Hz LED shutter/strobe effect with variable speed
Show the full specificationHide the rest of the specification12 more groups · 44 values
07Dimming System4
- 0-100% Smooth linear LED dimming
- Fine control for dimming
- 4 Dimming curves, linear/square law/Inv square law/S-curve
- 4 Dimming modes
08Control System6
- 7/10A/15/10B/6/16/19/22/25/8/18/24/29 DMX channels
- DMX512, master-slave, sound or auto operation
- DMX recorder and edit function integrated
- RDM available (Remote Device Management)
- Shielded input signal protection for stable signal without interference
- IP65 Rated 3-pin XLR connectors IN/OUT

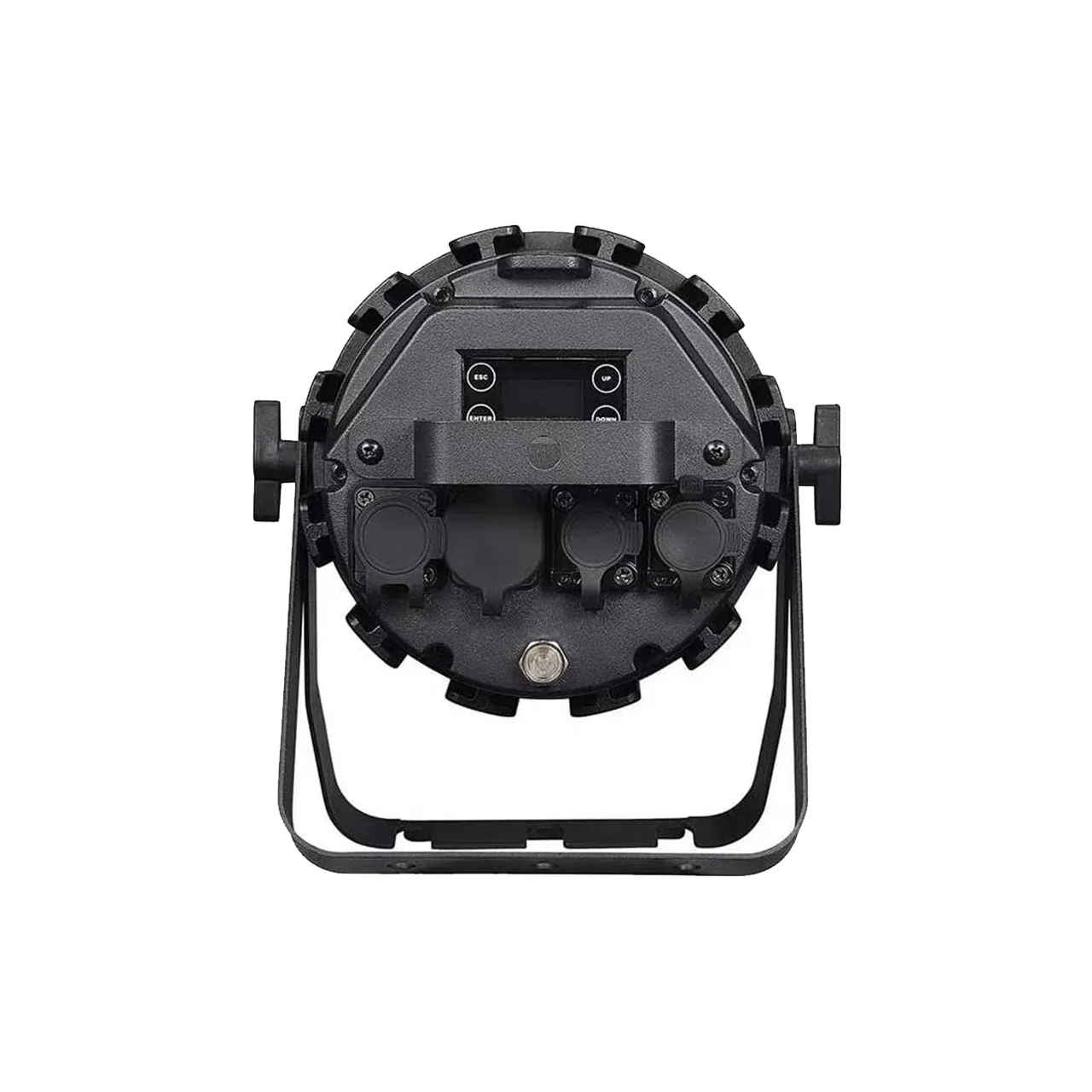

09Display System5
- 1.44” TFT LCD display
- 4 Touch control buttons
- 180°Reversible for LCD display
- Display auto OFF
- DMX signal and error monitoring indicators
10Cooling System3
- Advanced low noise self-adjusting fan cooling system integrated aluminum
- Constant temperature readout and management function
- Over temperature protection management
11Power Supply4
- Electronic supply with active PFC
- AC100-240V 50/60Hz
- IP65 TRUE1 powerCON connectors IN&OUT
- 350W Power consumption
12Housing3
- Aluminum die-casting structure

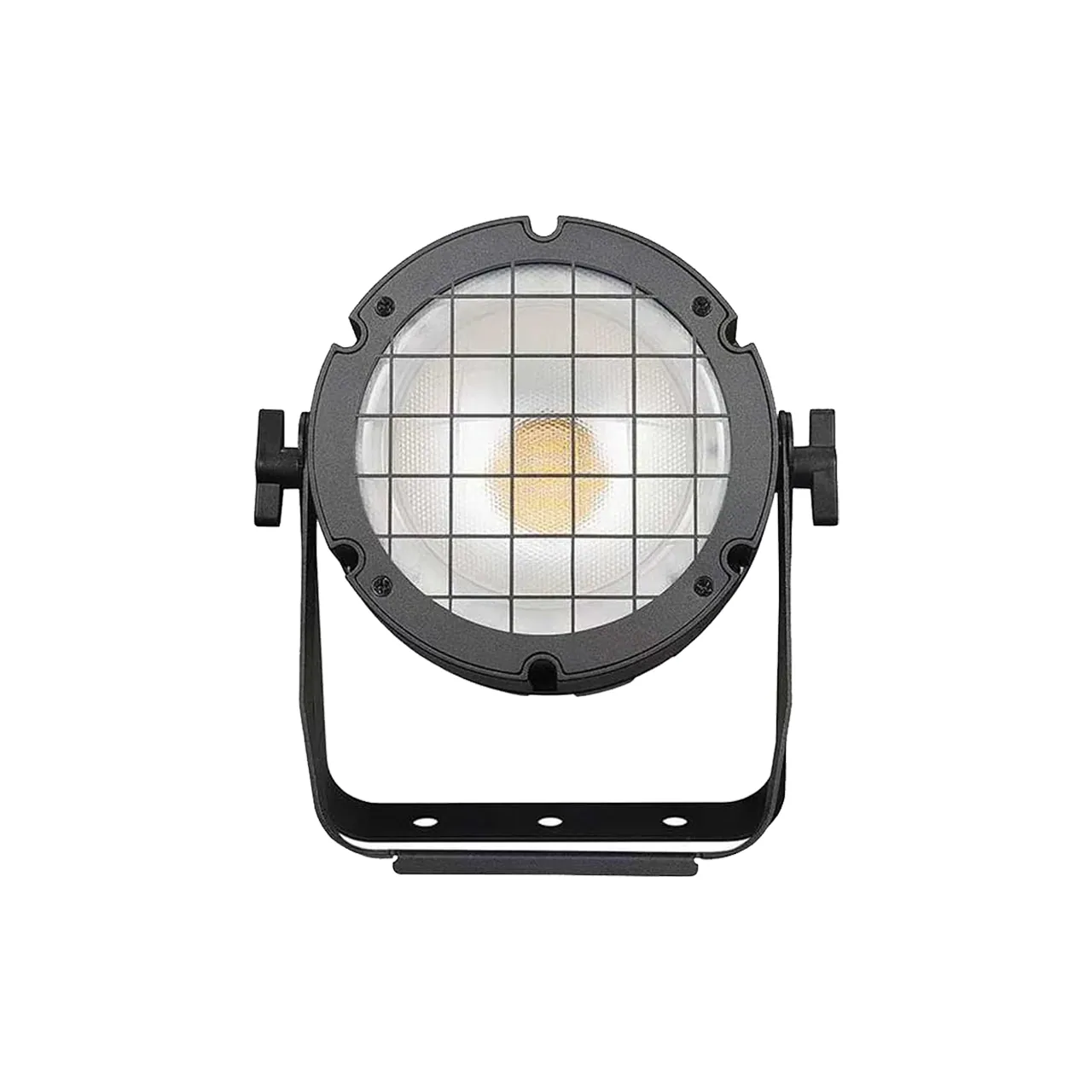

- 1 Hanging brackets (Standard)
- Exterior finish
- Black
13Installation2
- 1*Safety attachment point

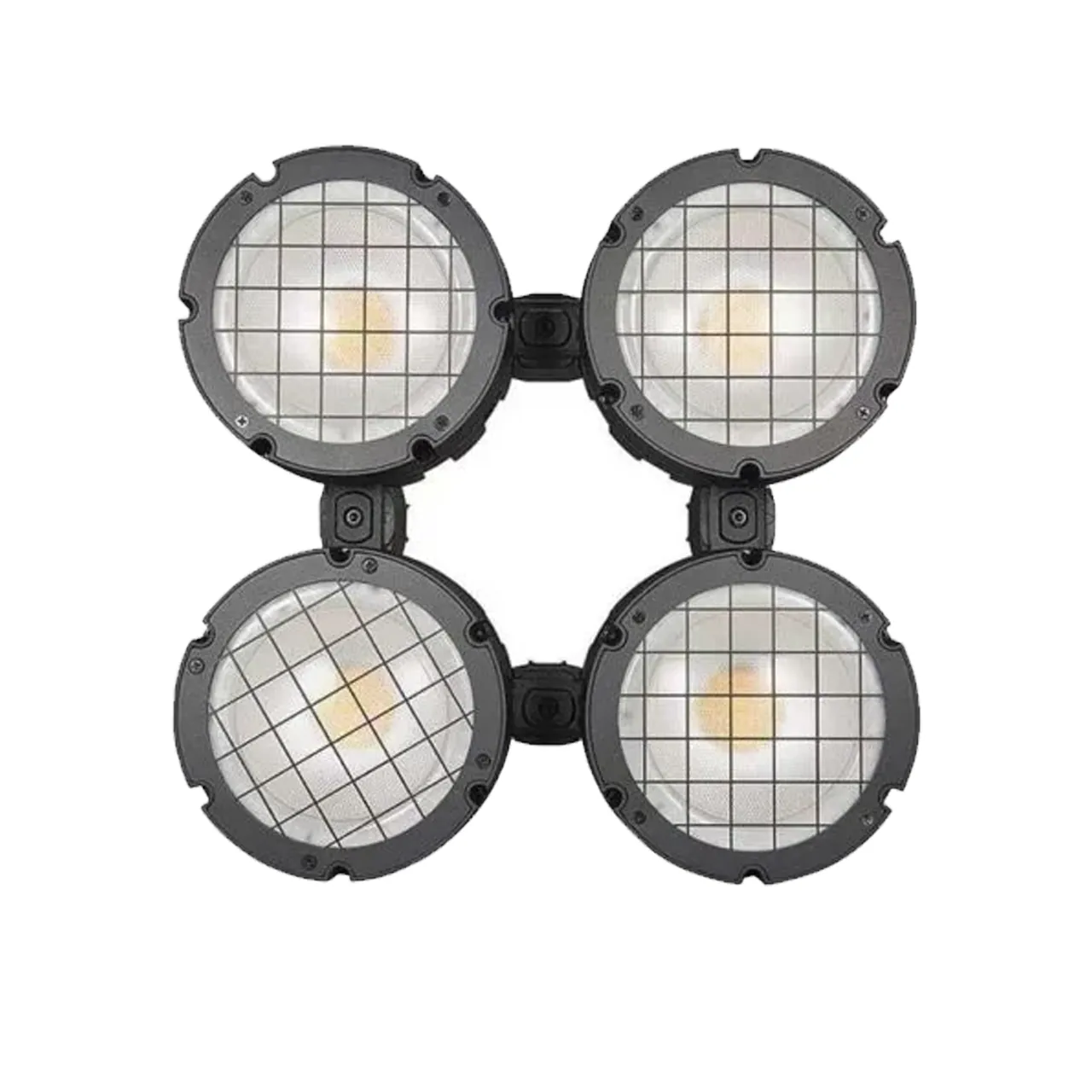

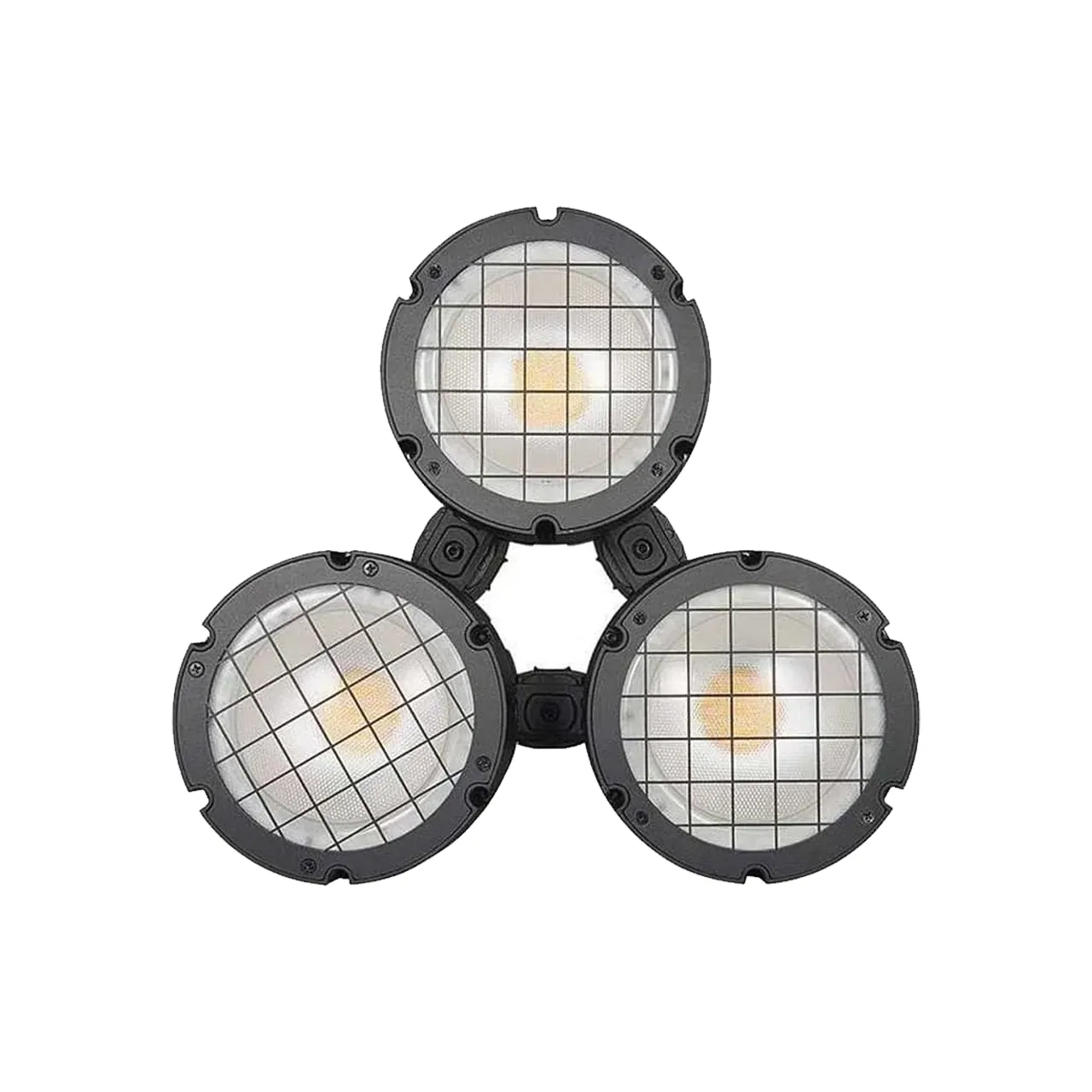

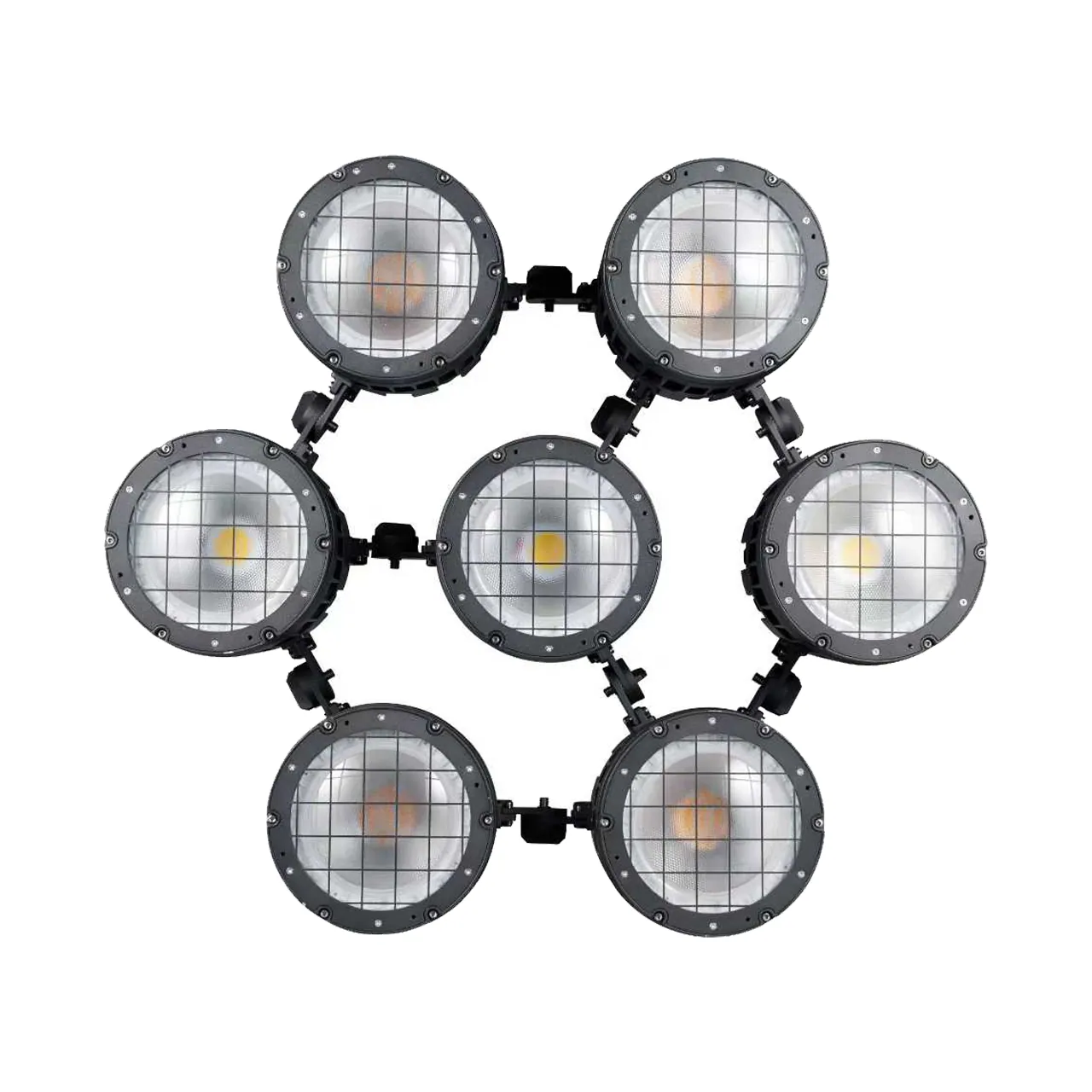

- Multi fixtures can be combined into custom shape with modular mounting accessories (optional)
14Operating Condition3
- Operating positions
- all (device on floor or fixed to a support)
- -25°C to 45°C ambient temperature
- IP65 protection rating
15Compliance4
- CE
- 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU – Electromagnetic Compatibility (EMC)
- 2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
16Weight2
- N.W.
- 2.8kg
- G.W.
- 3.2kg

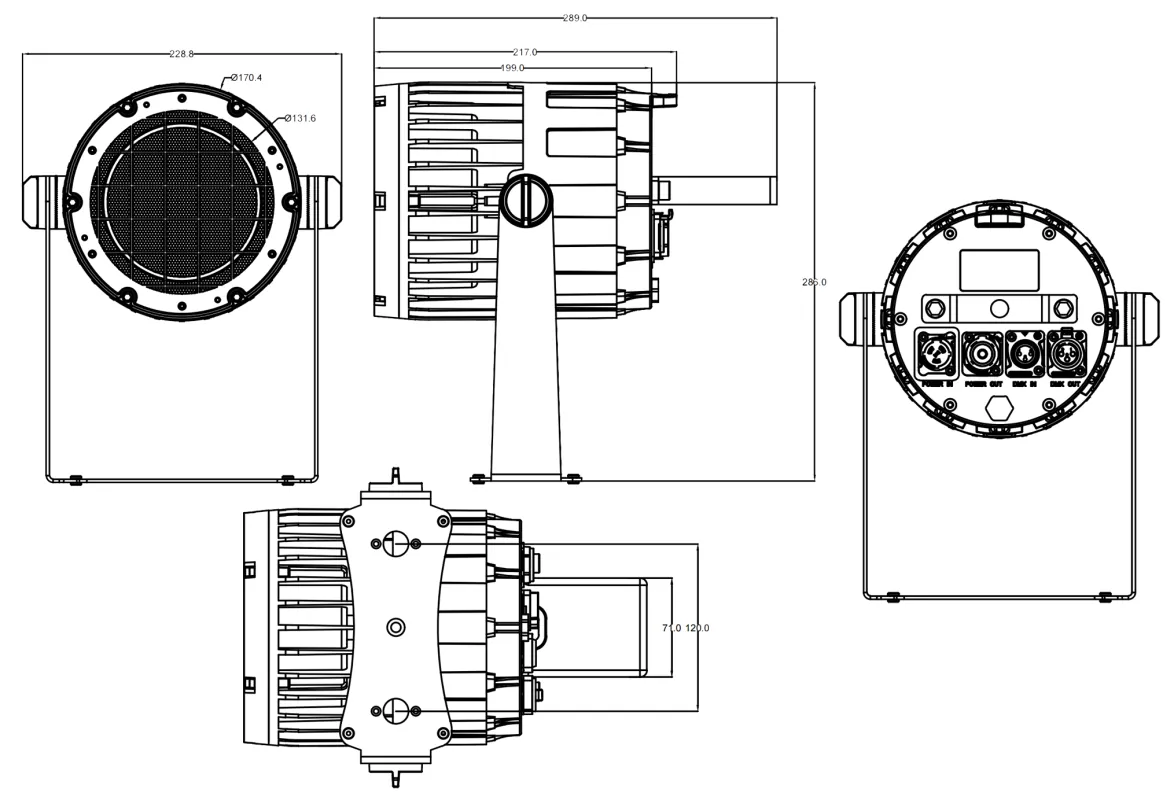

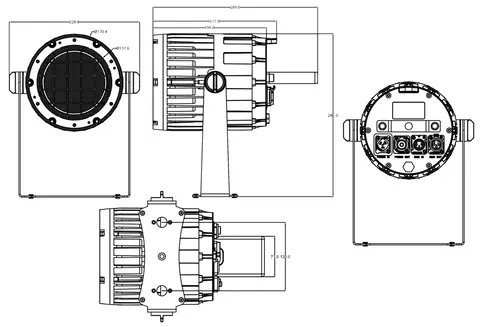

17Dimensions2
- Product Dimensions
- 217(D)*228.8(W)*286(H)mm
- Packing Dimensions
- 3000(D)*340(W)*340(H)mm
18Accessories6
- Power Cable STANDARD code: QTY: 1PCS
- Signal Cable STANDARD code: QTY: 1PCS
- Omega STANDARD code: QTY: 2PCS
- Safety Cable STANDARD code: QTY: 1PCS
- Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

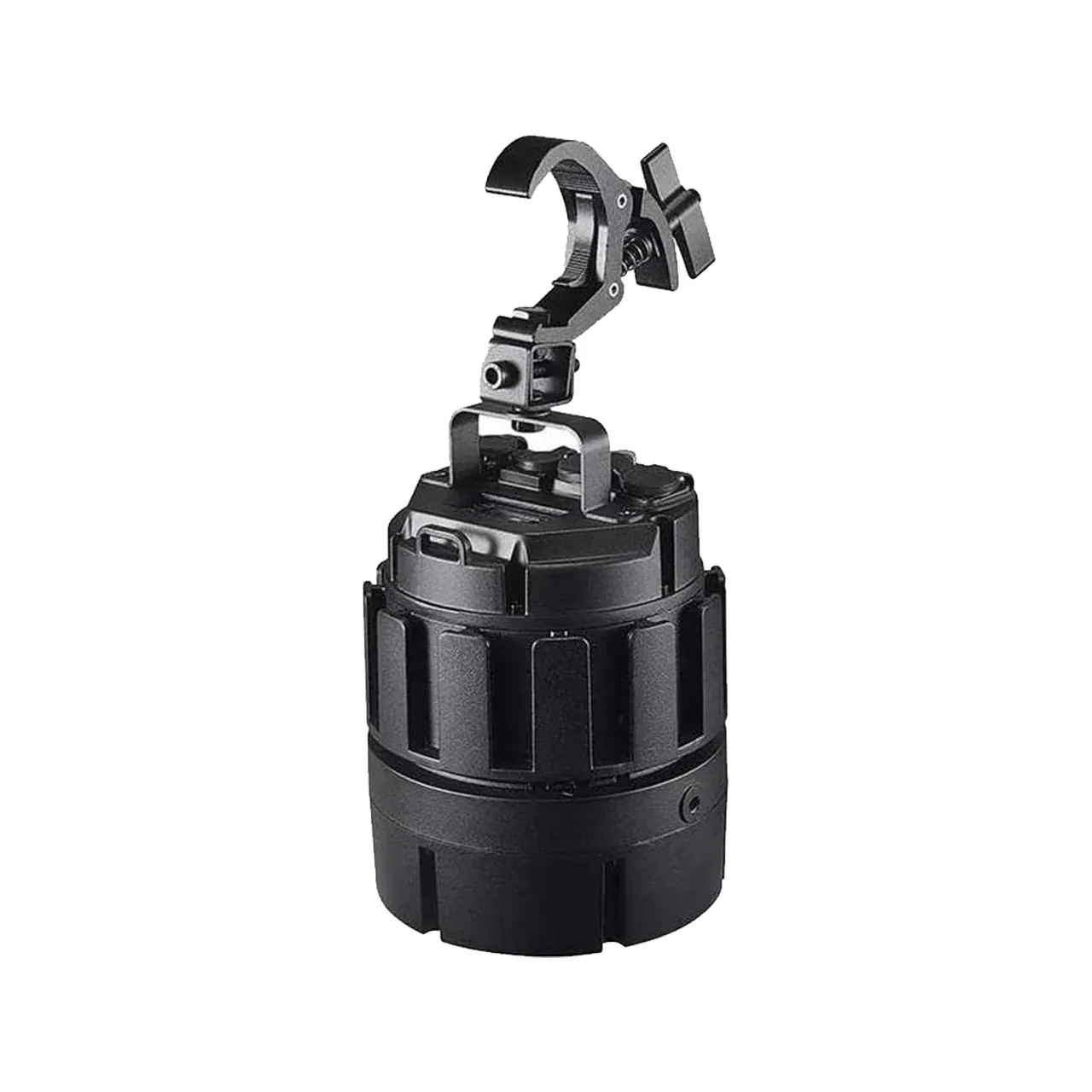

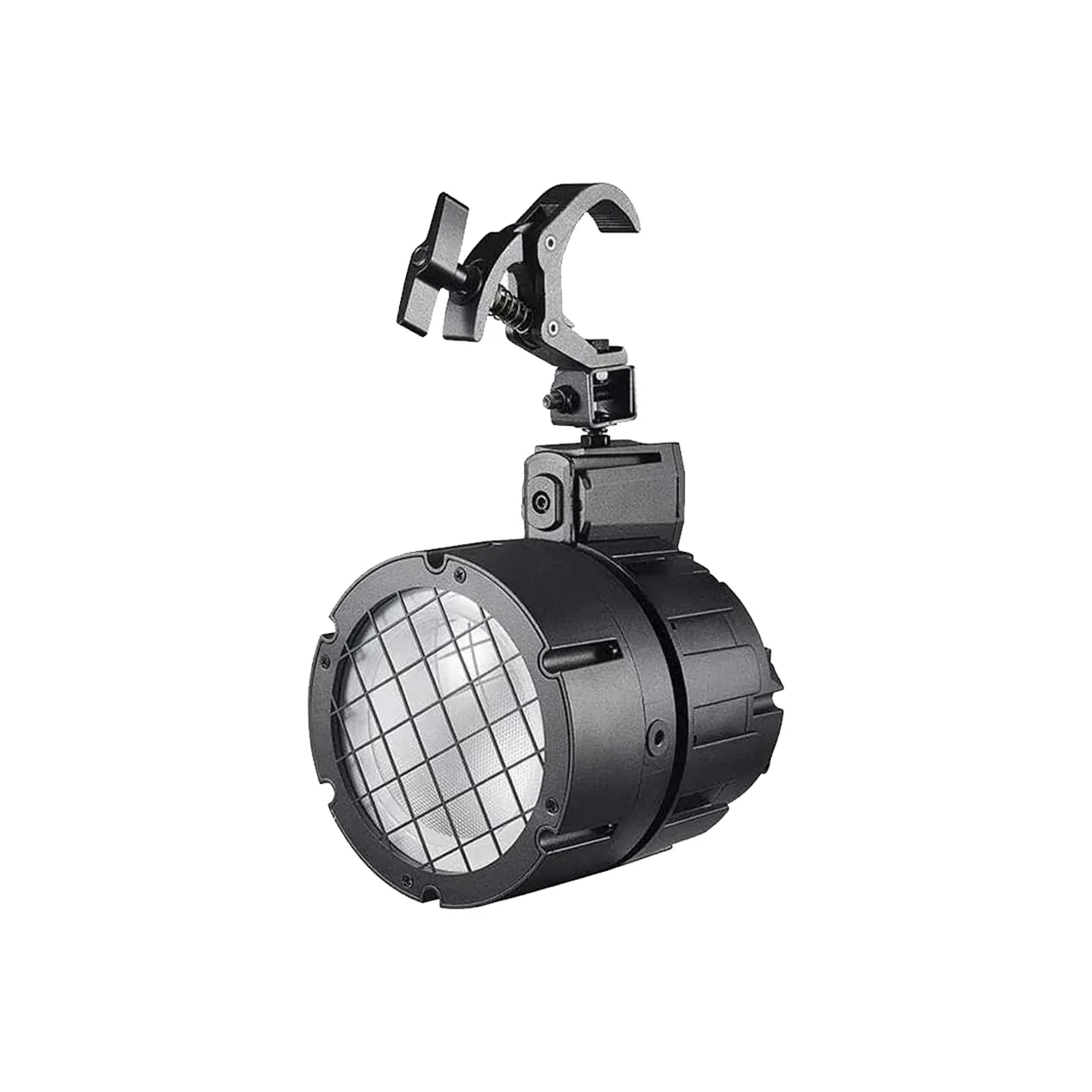

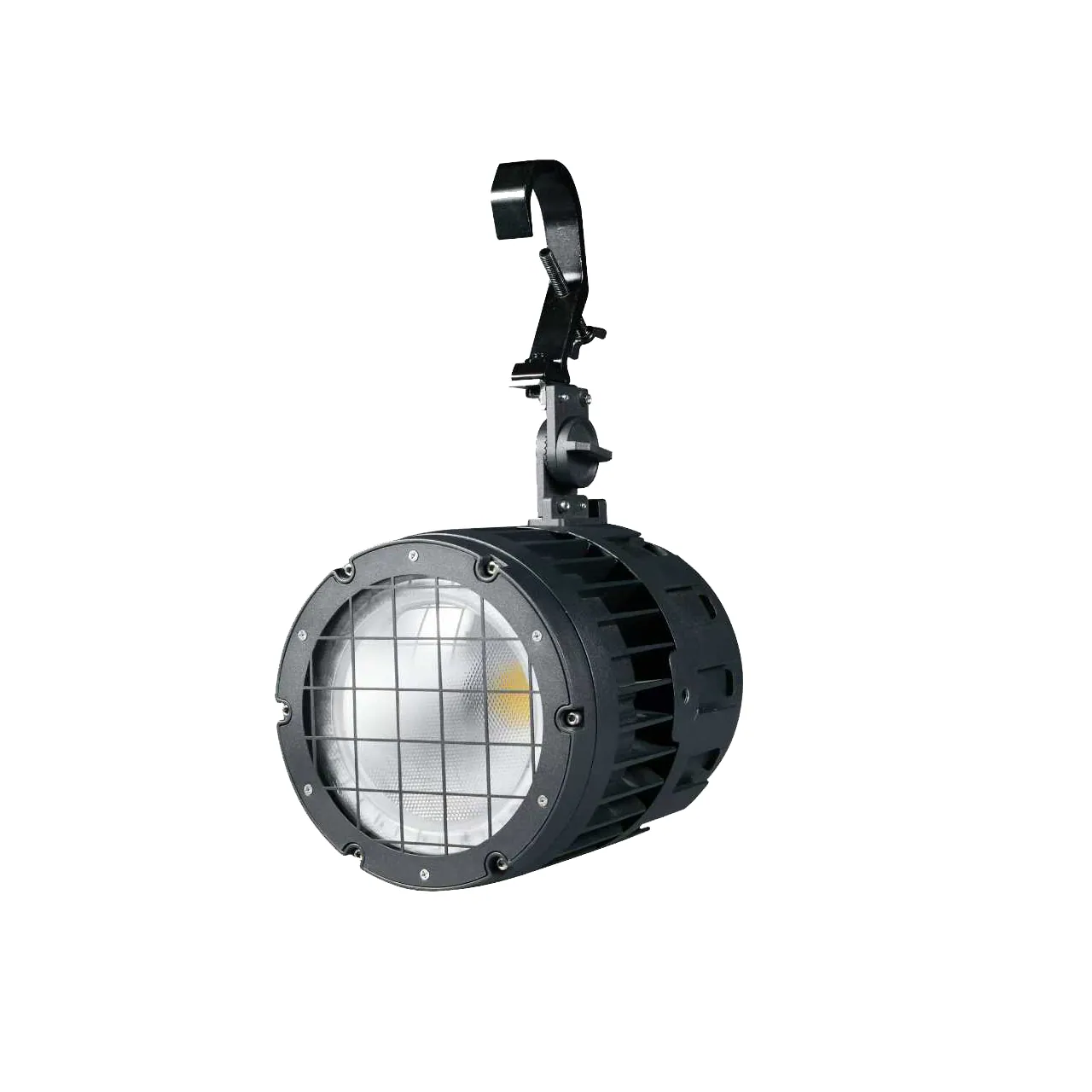

- Clamps OPTIONAL code: QTY: 2PCS
02DescriptionManufacturer's description
What it is.
COBPAR 350E

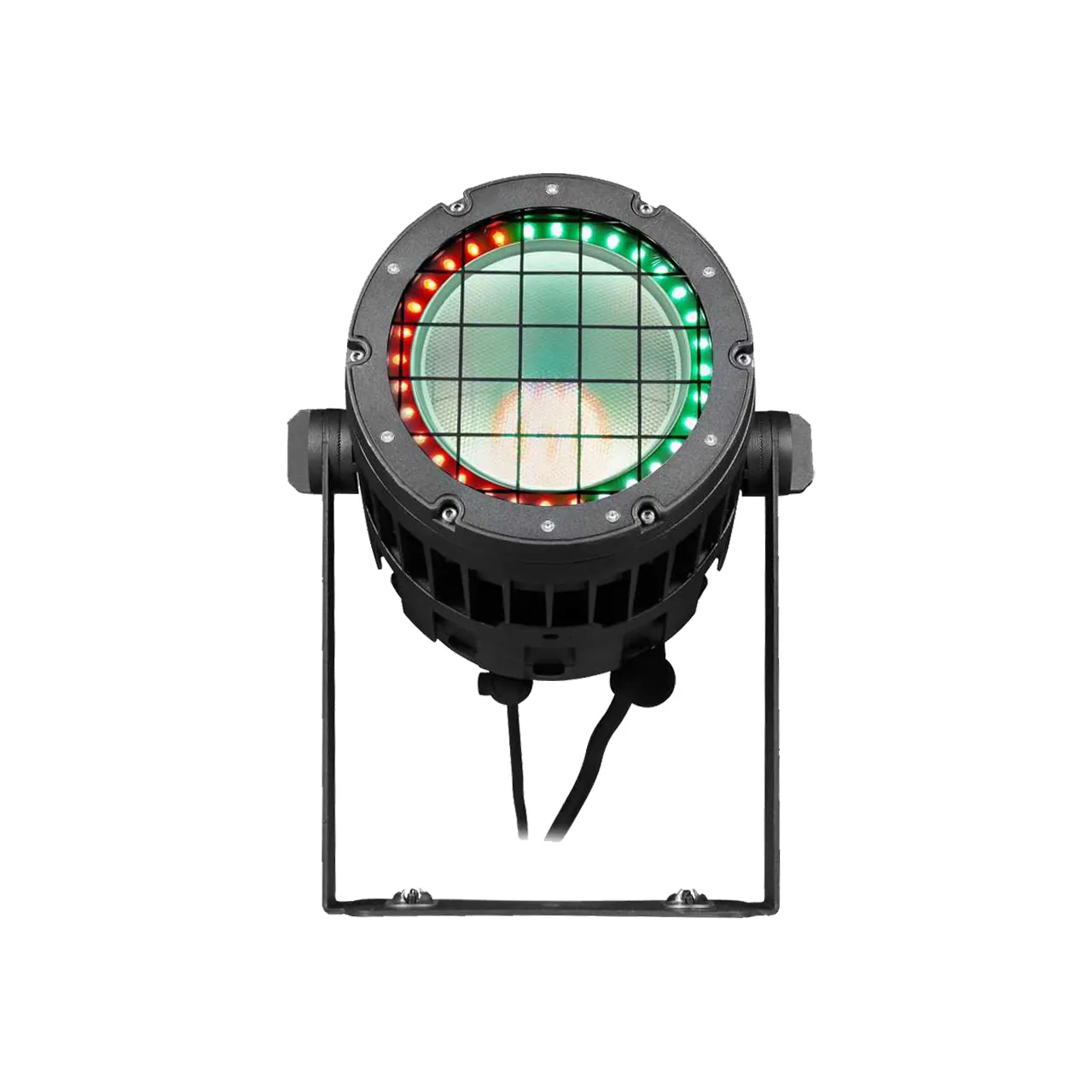

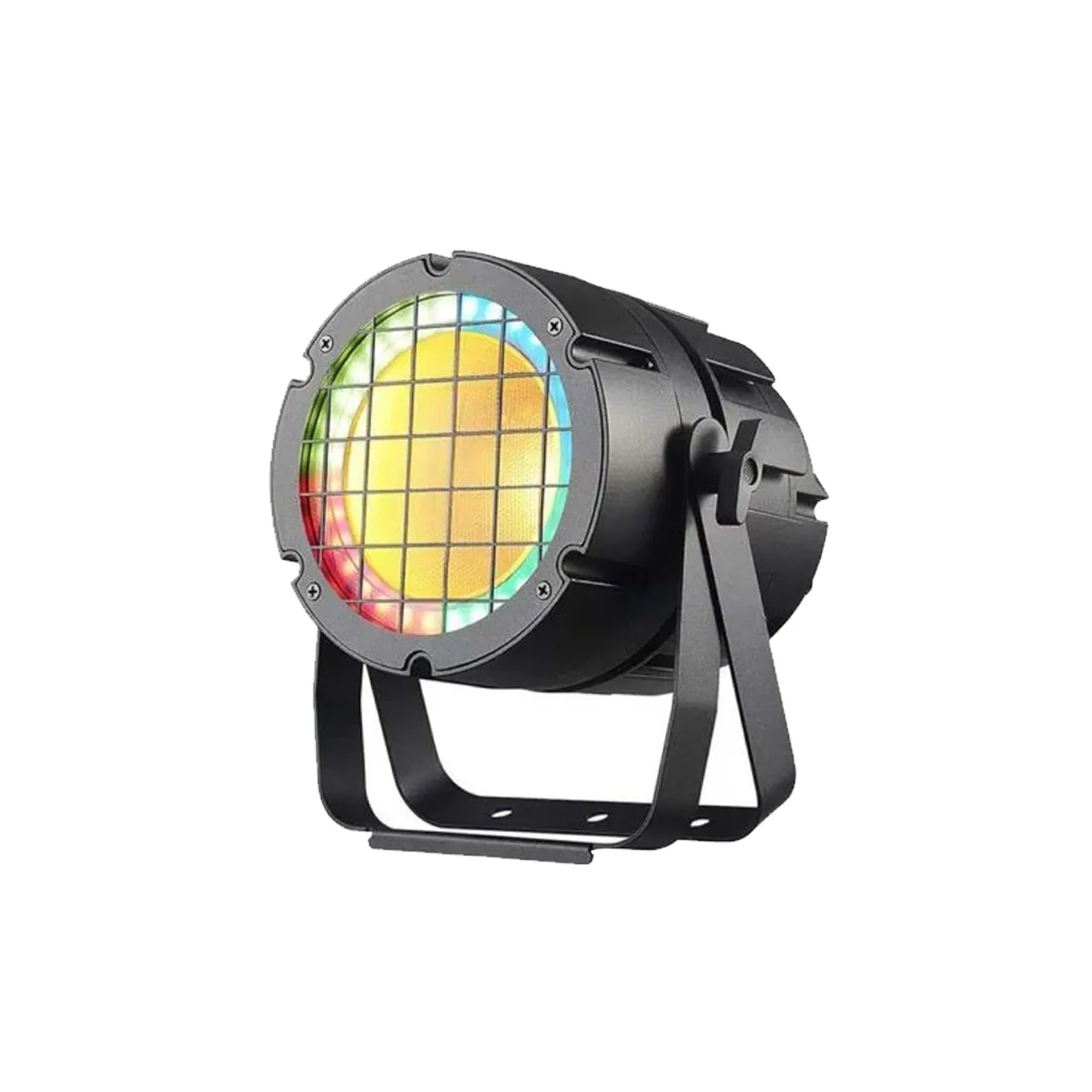

This rugged, waterproof COBPAR 350E PAR delivers punchy, even color and creative effects in a compact, die-cast aluminum housing. Its 350W RGBWA 5-in-1 COB LED engine produces rich, saturated hues and nuanced pastels, while adjustable color temperature lets you dial in clean, flicker-free whites for cameras and live audiences. A concentric ring of 32 × 0.5W RGB 3-in-1 LEDs adds dynamic pixel effects; each of the 32 segments is individually controllable for chases, halos, and eye-candy looks. With modular mounting accessories, multiple fixtures can be combined into custom shapes—lines, arcs, grids—to adapt to any stage or scenic concept.
The PAR is designed for applications as concerts, TV studios, conference halls, bars, pubs, DJ entertainment, architectural lighting projects, gardens, theme parks, etc.
