Sheet 05.633

Color Imagination · Beam

PROBEAM 295

ModelSI-320

ThePROBEAM 295 is a stylish moving head beam in a very compact and lightweight housing. It delivers high light output and even coverage field. It features a Philips MSD Platinum 14R Lamp.

Light source: Philips MSD Platinum 14R Lamp
Power consumption: 430W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 12kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video on YouTube

Color Imagination PROBEAM 295Open on YouTube

02SpecificationManufacturer's data · 20 groups · 79 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source9

Source: Philips MSD Platinum 14R Lamp
Color Temperature: 7800 K; Flicker free operation for broadcast; TV and FILM
Life Span: 2000H; The life span may vary depending on
several following factors but not limited to: Environmental Conditions, Power/Voltage,; Usage Patterns (On-Off Cycling), Control,; etc.

02Optics5

A set of high resolution and precise optics

Anti-reflection 140mm front lens

2°Beam angle

464000lux@10m

Smooth and linear electric focus

03Movement7

PAN movement: 540°(8/16 bit)
PAN movement: 270°(8/16 bit); Fast, quiet, smooth and precise 3-Phase motors; Magnet encoding wheel integrated with motor; Smooth, fast and precise resolution for PAN/TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement; PAN/TILT time controllable

04Color System4

1 Color wheel with 14 dichroic colors plus open (half-way color mode available)

Variable direction rainbow effect with speed adjustable

7-Color effect wheel with variable direction with speed adjustable

Color time controllable

05Gobo System2

1 Static gobo wheel with 17 gobos plus open (3 glass gobos included)

Gobo time controllable

Show the full specificationHide the rest of the specification15 more groups · 52 values

06Prism System3

8-Facet prism with variable speed and direction

8+16-Facet prism with variable speed and direction

Prism morphing effect

07Strobe Effect1

0-20Hz high speed shutter/strobe effect with variable speed

08Dimming System1

Smooth linear mechanichal dimming

09Control System6

16/22 DMX channels USITT DMX-512

DMX512, master-slave, sound activated or auto operation

Sound sensitivity adjustable

RDM available (Remote Device Management)

Shielded input signal protection for stable signal without interference

3-Pin XLR connectors IN/OUT

10Wash System3

Frost filer system (Hybrid effect for wash)

Even and soft coverage

Bigger wash coverage when 8-facet prism IN

11Preset Program1

Auto programs

12Display System4

1.8" High resolution TFT LCD display

5 Control buttons

180°Reversible for LCD display

Display auto OFF

13Cooling System5

Efficient low noise self adjusting fan

cooling system

Constant temperature readout and

management function

Over temperature protection management

14Power Supply6

Electronic ballast: PT STAGE 295W; Electronic power supply; AC100-240V 50/60Hz; PowerCON connectors IN with fuse and; switch; 430W Power consumption

15Housing5

Moulded fire proof ABS PC; Skeleton made of; aluminum and steel metal plates; Two side handles on base
Exterior finish: Black

16Installation3

2*1/4 turn fastening Omega Clamps

(Adaptable vertically and horizontally)

1*Safety attachment point

17Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25?? to 45?? ambient temperature; IP20 protection rating

18Compliance7

2014/35/EU - Safety of electrical

equipment supplied at low voltage (LVD)

2014/30/EU -

Electromagnetic Compatibility (EMC)

2011/65/EU - Restriction of the use of

certain hazardous substances (RoHS)

19Weight2

N.W.: 12kg
G.W.: 14.3kg

20Dimensions2

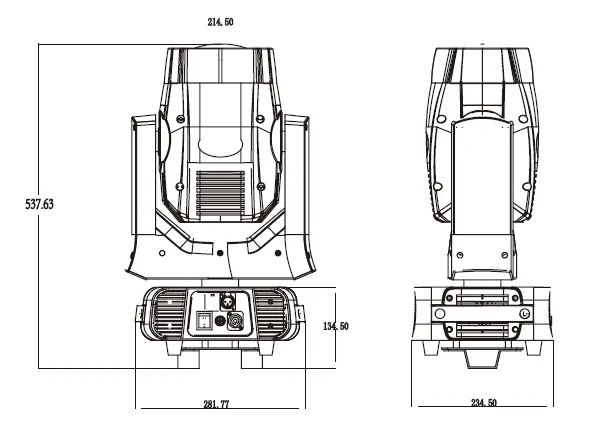

Product Dimensions: 235(D)*316.8(W)*519(H)mm
Packing Dimensions: 360(D)*365(W)*520(H)mm

03DescriptionManufacturer's description

What it is.

PROBEAM 295

ThePROBEAM 295 is a stylish moving head beam in a very compact and lightweight housing. It delivers high light output and even coverage field. It features a Philips MSD Platinum 14R Lamp. The lamp equips with the reflector built-in, providing perfect lamp alignment. The moving head features ultra sharp beam effect with low consumption. The fixture is integrated with a full complement of professional characteristics including a static gobo wheel, color wheel, two prisms, 7-color effect wheel, frost filter, motorized linear focus, variable speed shutter/strobe, linear dimmer, color time and gobo time controllable, etc. The fixture supports DMX, RDM (Remote Device Management).

The fixture’s exterior housing is beautifully balanced basing on a modern design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the PROBEAM 295 achieves more than just a striking look. The 2*1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy.It’s applicable for large scale live concerts, TV productions, road shows, clubs, etc.
