Sheet 05.635

Color Imagination · Beam

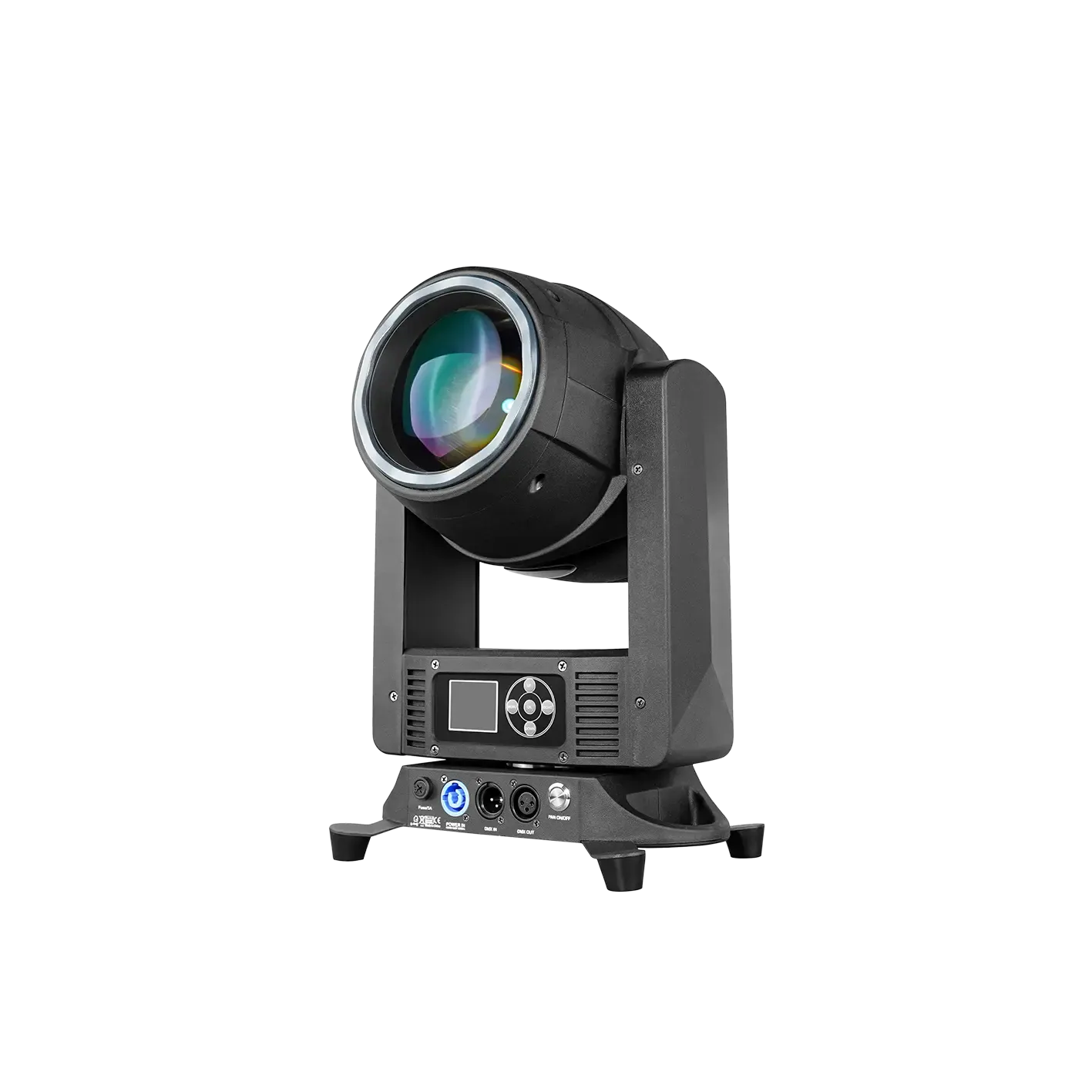

SKYTOUCH 50S

ModelLB50S

White Laser, 0.7° Angle, Front Neon Ring, 2 Prism Wheels, Continuous PAN/TILT

Light source: 1*50W White Laser
Power consumption: 90W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 9.83kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 22 groups · 81 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source8

Source: 1*50W White Laser; 30*0.2W 3-IN-1 RGB LEDs
Color Temperature: 7500K
CRI: ≥70; 2900 Lumen (Source); Flicker free operation for broadcast TV and FILM
Life Span: 12000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics3

A set of high resolution and precise optics

0.7°Beam angle

Smooth and precise linear focus

03Movement10

PAN: 2 modes; 1. 360°Continuous movement; 2. 540°(8/16 bit)
TILT: 2 modes; 1. 360°Continuous movement; 2. 270°(8/16 bit); Fast, quiet, smooth and precise 2-Phase motors; Smooth, fast and precise resolution for PAN/TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement; PAN/TILT reversible

04Color System3

1 Color wheel with 17 dichroic colors plus open

Variable direction rainbow effect with speed adjustable

6-Color wheel with variable direction and speed control

05Neon Effect1

1 Neon ring effect with different built-in macro effects (variable speed control)

06Gobo System1

1 Static gobo wheel with 19 gobos plus open

Show the full specificationHide the rest of the specification16 more groups · 55 values

07Prism System5

2 Prism wheel design
Prism 1: 3 different prisms, 5-Facet linear prism/8+16-facet circular prism/8+16+24-facet circular prism with variable speed and direction
Prism 2: 8-Facet circular prism with variable speed and direction; Prism indexing; Prism overlay (prism morphing)

08Strobe Effect2

0-25Hz shutter/strobe effect with variable speed

Preset variable/random strobe and dimming pulse effect

09Wash System1

Even and soft coverage

10Dimming System1

0-100% Smooth linear dimming

11Control System9

25/28 DMX channels USITT DMX-512

DMX512, master-slave, or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Art-NET (Optional)

Wireless receiver system built-in (Optional)

Shielded input signal protection for stable signal without interference

RJ45 etherCON IN/OUT (Optional with Art-Net)

3-Pin and 5-pin XLR DMX connectors IN/OUT

12Software Update2

Software up-datable through DMX connectors

Muilt units up-datable in daisy chain

13Display System5

1.44″ TFT LCD display

5 Control buttons

180°Reversible for LCD display

Display auto OFF

DMX signal monitoring indicator

14Cooling System3

Advanced low noise self-adjusting fan cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management

15Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON IN/ OUT with fuse

90W Power consumption

16Housing4

High tension molded fire proof housing with PA6+fibre; Skeleton made of aluminum and steel metal plates; Two side handles on base
Exterior finish: Black

17Installation2

2*1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)

1*Safety attachment point

18Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP20 protection rating

19Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

20Weight2

N.W.: 9.83kg
G.W.: 11.95kg

21Dimensions2

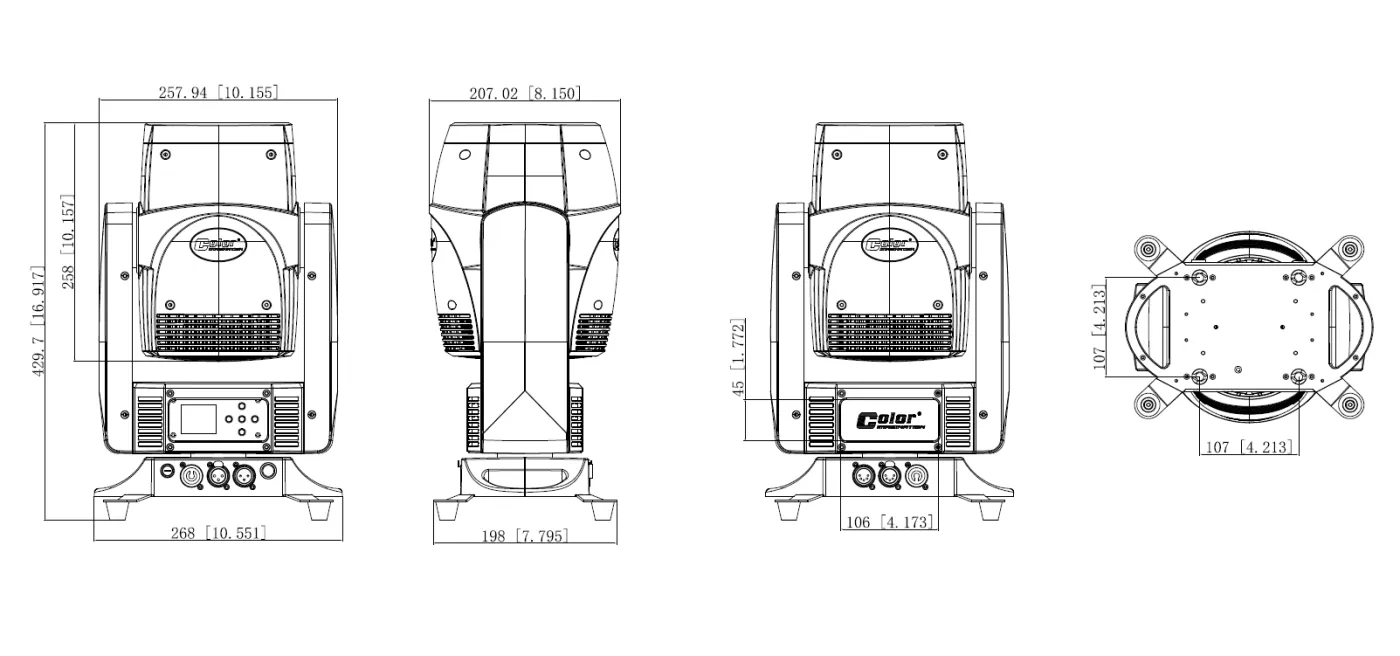

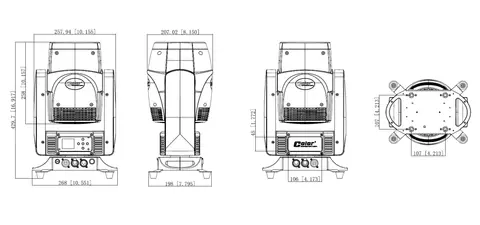

Product Dimensions: 207(D)*268(W)*423.7(H)mm
Packing Dimensions: 570(D)*365(W)*275(H)mm

22Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

SKYTOUCH 50S

The SKYTOUCH 50S is an ultra compact and light weight stylish moving head beam light with a white LASER source in a reliable, sage and fully sealed module, integrated with a set of unique high resolution optical system.

The fixture features 0.7°beam angle which helps to provide ultra long throw solid beam effect that it is close to parallel beam. The SKYTOUCH 50S is designed with a range of effects: 19 static gobos, 17 dichroic colors, 6-Color Wheel, 2 prism wheels, frost, focus, etc. It provides 360° continuous fast and smooth PAN/TILT movement with variable speed which delivers even more vivid visual effect to the show. The fixture supports DMX, RDM (Remote Device Management).

The fixture’s exterior housing is beautifully balanced basing on a modern design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the SKYTOUCH 50S achieves more than just a striking look. The 2*1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy.

It’s fast and quiet operation LASER source moving head beam. It’s a perfect option for indoor application like small concerts, conference hall, DJ shows, club&bar, etc.
