Sheet 05.689

Color Imagination · Wash

SMARTFACE 603C

ModelDM603C

Light source: 60*3W 3-IN-1 LEDs (RGB)
Power consumption: 190W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 7.23 kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 19 groups · 79 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source7

Source

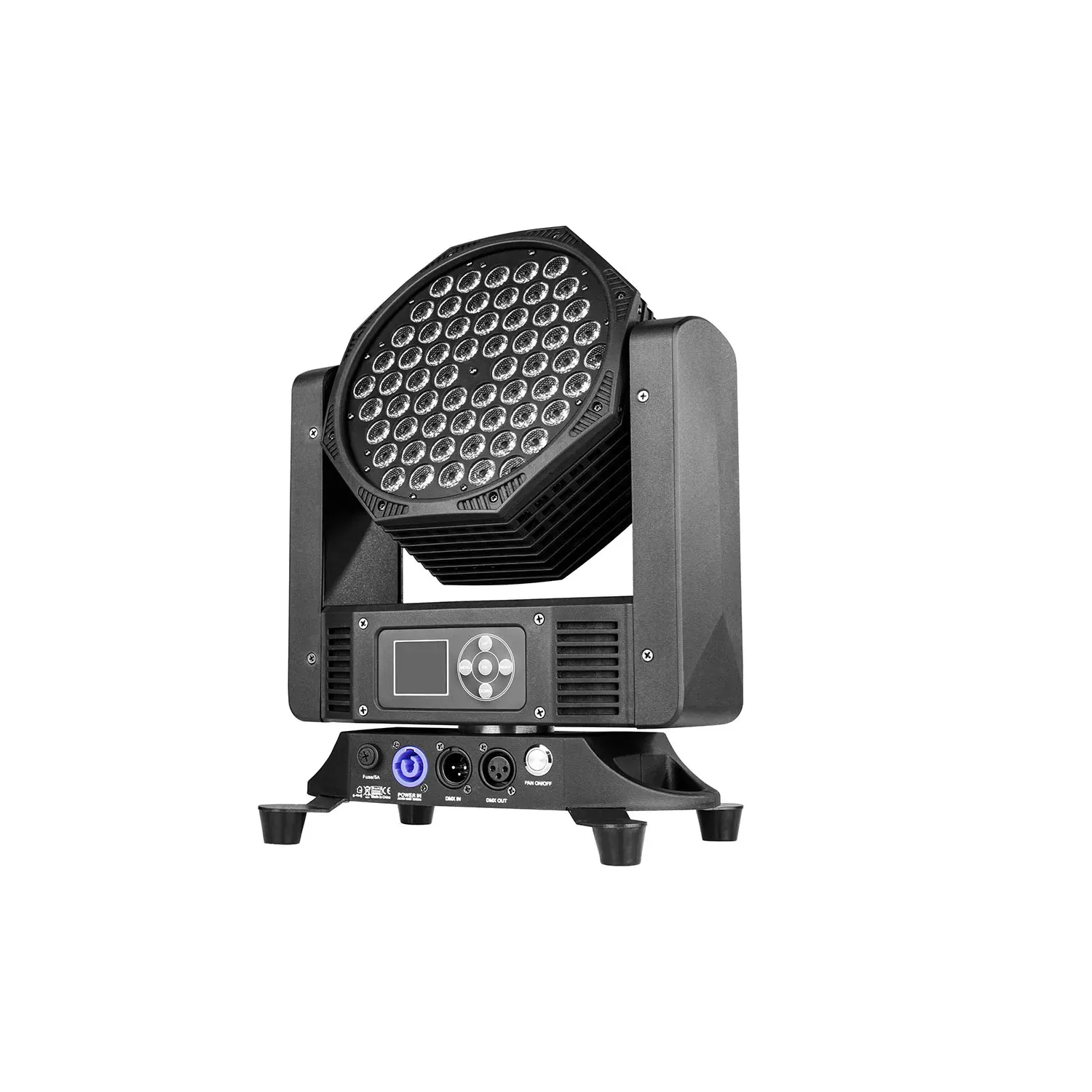

Face 1: 60*3W 3-IN-1 LEDs (RGB); 6 Individual control segments

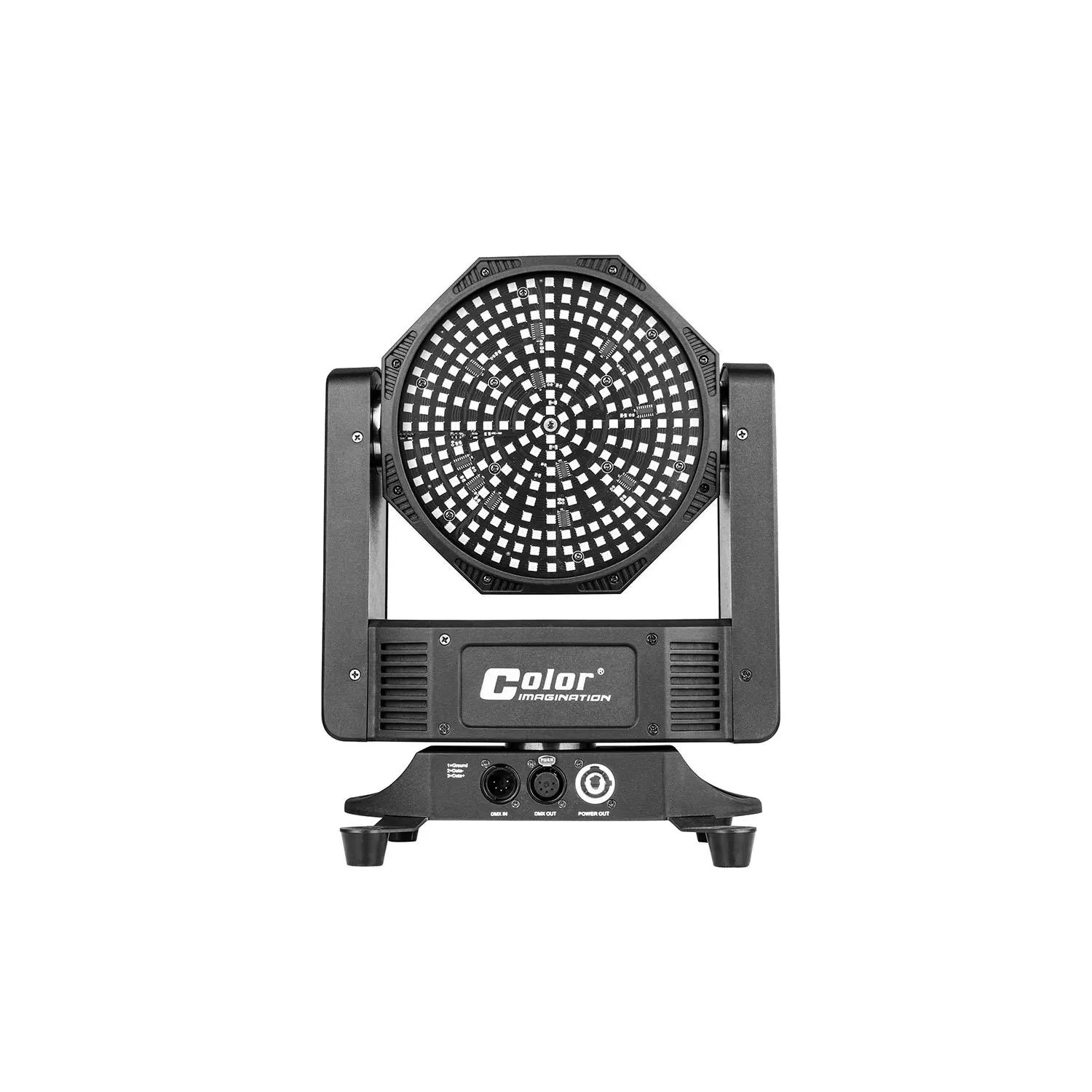

Face 2: 246*0.2W 5050 3-IN-1 LEDs (RGB); 9 Individual control rings; Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics5

Face 1: High efficiency optic system; 25°Beam angle (other angles optional); 35°Field angle
Face 2: 120°Field angle; High output

03Movement10

PAN: 2 modes; 1. 360°Continuous movement; 2. 540°(8/16 bit)
TILT: 2 modes; 1. 360°Continuous movement; 2. 270°(8/16 bit); Fast, quiet, smooth and precise 2-Phase motors; Smooth, fast and precise resolution for PAN/TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement; PAN/TILT reversible

04Color System6

Face 1: RGB; Smooth and pure color mixing capability; CTO, 2800K-5600K color temperature adjustment
Face 2: RGB; Smooth and pure color mixing capability; CTO, 2800K-5600K color temperature adjustment

Show the full specificationHide the rest of the specification15 more groups · 51 values

05Built-in Programs2

Different built-in dynamic effect with variable speed

Different preset colors

06Strobe Effect1

0-25Hz LED shutter/strobe effect with variable speed

07Dimming System1

0-100% Smooth linear LED dimming

08Control System9

9/18 DMX channels USITT DMX-512

DMX512, master-slave, sound or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Art-NET (Optional)

Wireless receiver system built-in (Optional)

Shielded input signal protection for stable signal without interference

RJ45 etherCON IN/OUT (Optional with Art-Net)

3-Pin and 5-pin XLR DMX connectors IN/OUT

09Software Update2

Software up-datable through DMX connectors

Muilt units up-datable in daisy chain

10Display System5

1.44” TFT LCD display

5 Control buttons

180°Reversible for LCD display

Display auto OFF

DMX signal and error monitoring indicators

11Cooling System3

Advanced noise-free cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management

12Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON connectors IN&OUT

190W Power consumption

13Housing4

High tension molded fire proof housing with PA6+fibre; Skeleton made of aluminum and steel metal plates; Two side handles on base
Exterior finish: Black

14Installation3

2*1/4 turn fastening Omega Clamps

(Adaptable vertically and horizontally)

1*Safety attachment point

15Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP20 protection rating

16Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

17Weight2

N.W.: 7.23 kg
G.W.: 9.16 kg

18Dimensions2

Product Dimensions: 139(D)*297.9(W)*376.7(H)mm
Packing Dimensions: 405(D)*365(W)*295(H)mm

19Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

SMARTFACE 603C

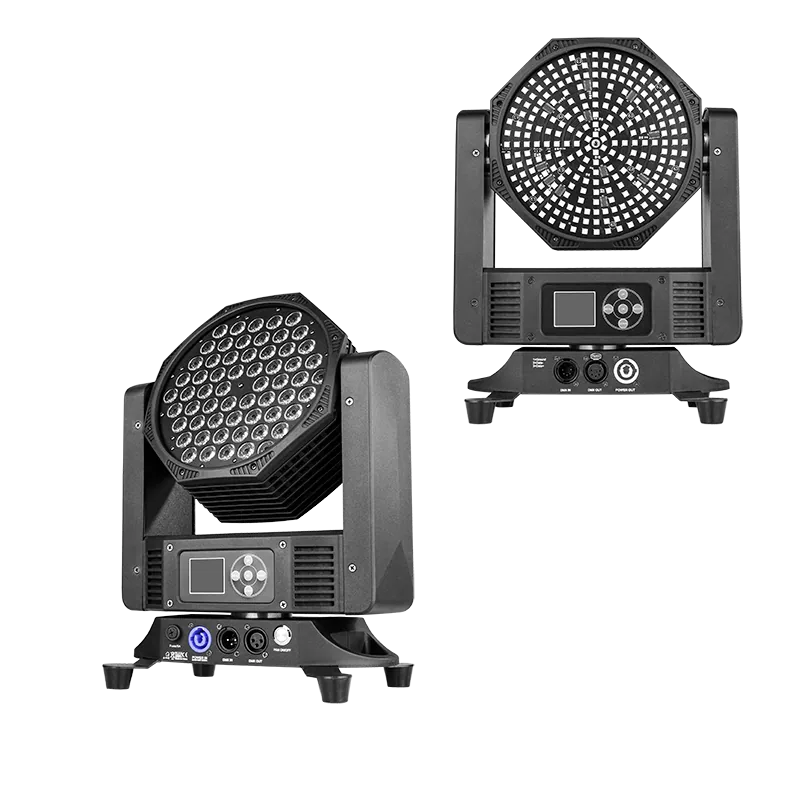

The DOUBLE-SIDED designed SMARTFACE 603C is an ultra compact and light weight stylish moving head WASH+STROBE light (2 Faces). Face 1 features 60*3W 3-IN-1 RGB LEDs which is designed with 6 individual segments. It’s available for 2800K-5600K color temperature adjustment. Face 2 features 246*0.2W 5050 3-IN-1 RGB LEDs which is designed with 9 individual rings. It’s available for 2800K-5600K color temperature adjustment. The fixture could be used not just only as a wash light (specially moving face light) but also as a remarkable moving strobe light.

It provides 360° continuous fast and smooth PAN/TILT movement with variable speed which delivers even more vivid visual effect to the show. The fixture supports DMX, RDM (Remote Device Management).

It features excellent color mixing, quiet running and flicker free control. The fixture is built in with different internal dynamic effect with variable speed. The moving head also features optimum optic design integrated with extremely effective aluminum heat sink system.

The fixture’s exterior housing is beautifully balanced basing on a modern design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the SMARTFACE 603C achieves more than just a striking look. The 2*1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy.

The SMARTFACE 603C is designed for applications as concerts, TV studios, banquet halls, bars, pubs, DJ entertainment, ballrooms, etc.
