Sheet 05.687

Color Imagination · Wash

SMARTEYE 1915

ModelSE1915

Light source: 19*15W 4-IN-1 RGBW LEDs
Power consumption: 246W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 8.6kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 19 groups · 76 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source5

Source: 19*15W 4-IN-1 RGBW LEDs; Pixel control capability; Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

02Optics4

Specific designed high resolution optic system

Optimized light tube for higher LED efficiency

5°-35°Zoom range

360°Continuous front lens rotation with variable speed

03Movement5

PAN: 540° (8/16 bit)
TILT: 270° (8/16 bit); Fast, quiet, smooth and precise 3-phase motors; Smooth, fast and precise resolution for TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement

04Colors6

Pixel mapping capability with each LED controllable individually

Sophisticated 4 colors RGBW mixed

Linear CTO 2800-8500K

Sharp beam effect

Pure and even wash effect

Preset dynamic color macros

05Visual Effect6

Different static shape selections

Different dynamic shape selections with variable speed

Shape fading effect

Shape color options with 0-100% dimming

Background colors options with 0-100% dimming

Foreground colors options with 0-100% dimming

Show the full specificationHide the rest of the specification14 more groups · 50 values

06Strobe Effect3

1-25Hz shutter/strobe effect with variable speed

Preset pulse strobe effect with variable speed

Random strobe effect with variable speed

07Dimming System1

0-100% Smooth linear LED dimming

08Control System9

21/23/35/78/111 DMX channels USITT DMX-512

DMX512, master-slave, sound activated or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Art-NET (Optional)

LUMEN-RADIO wireless receiver built-in (Optional)

Shielded input signal protection for stable signal without interference

RJ45 etherCON IN/OUT (Optional with Art-Net)

3-Pin/5-pin XLR connectors IN/OUT

09Software Update2

Software up-datable through DMX connectors

Multi units up-datable in daisy chain

10Display System5

1.44″ TFT LCD display

English/Chinese menu

5 Touch control buttons

180°Reversible for LCD display

Display auto OFF

11Cooling System3

Advanced self-adjusting fan cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management

12Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON connectors IN/OUT with fuse

246W Power consumption

13Housing4

High tension molded fire proof housing with PA6+fibre; Skeleton made of aluminum and steel metal plates; Two side handles on base
Exterior finish: Black

14Installation2

2*1/4 turn fastening Omega Clamps

1*Safety attachment point

15Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP20 protection rating

16Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

17Weight2

N.W.: 8.6kg
G.W.: 11.2kg

18Dimensions2

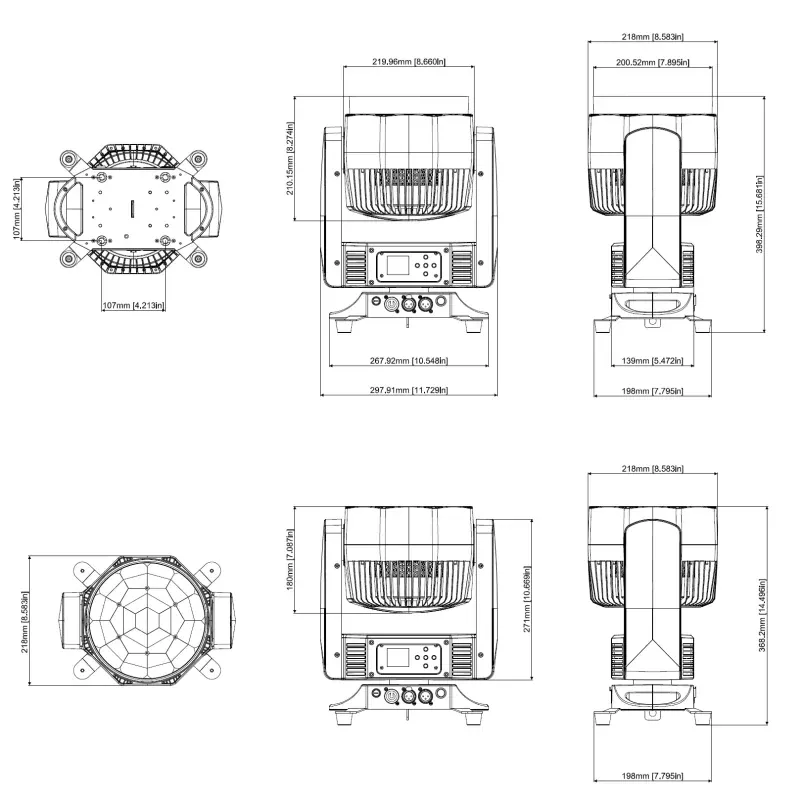

Product Dimensions: 200.6(D)*297.9(W)*368.2@45°/398.3@3°(H)mm
Packing Dimensions: 400(D)*500(W)*320(H)mm

19Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

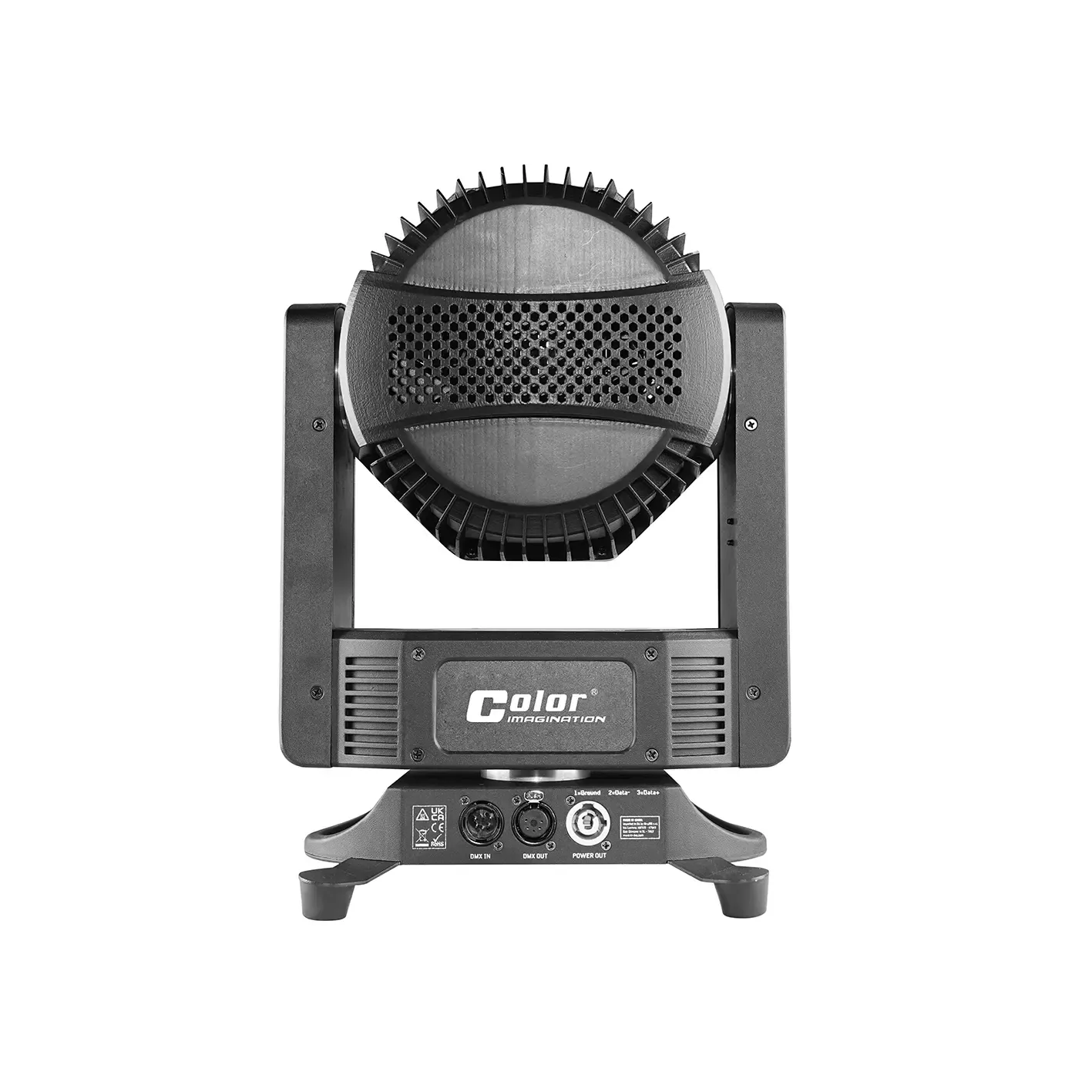

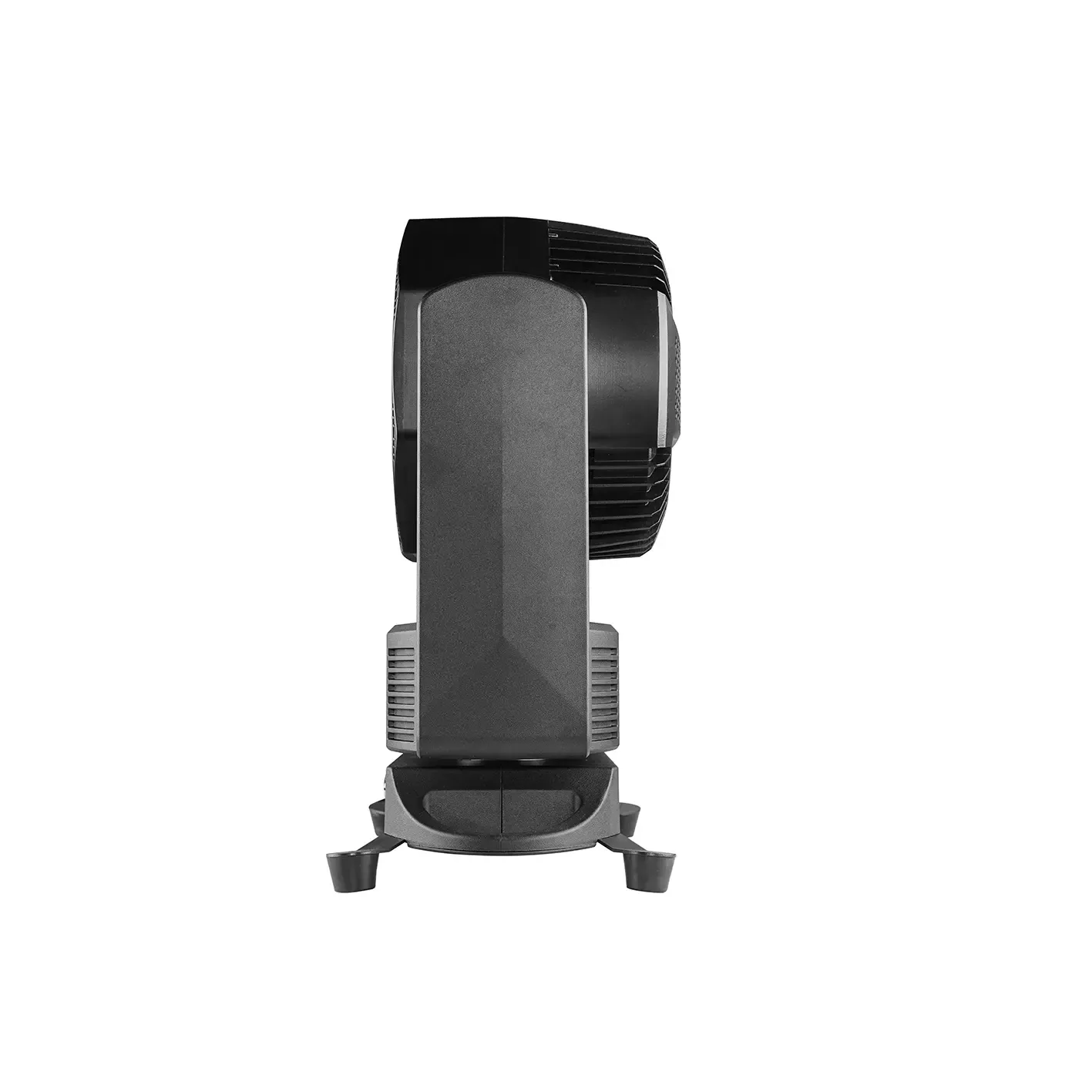

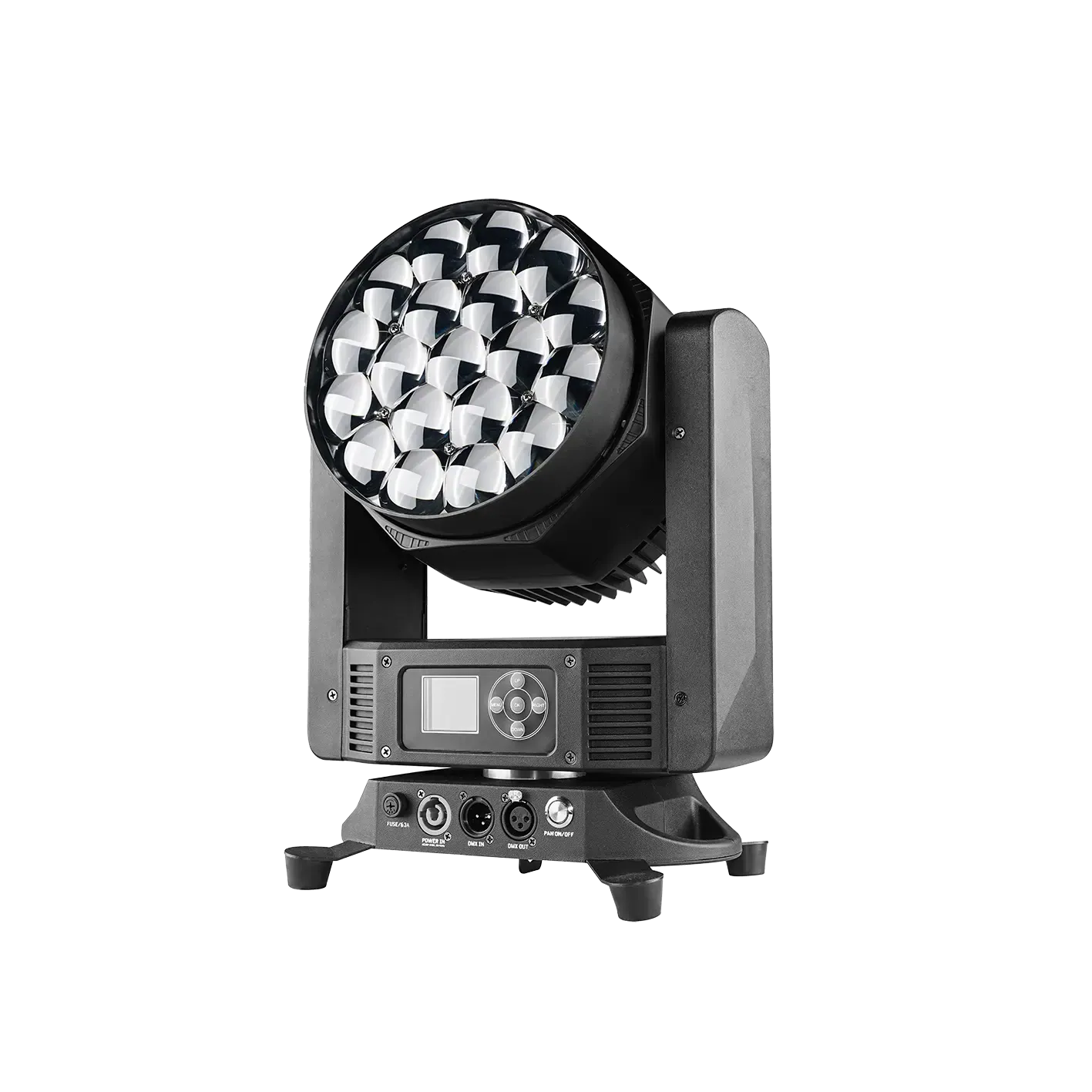

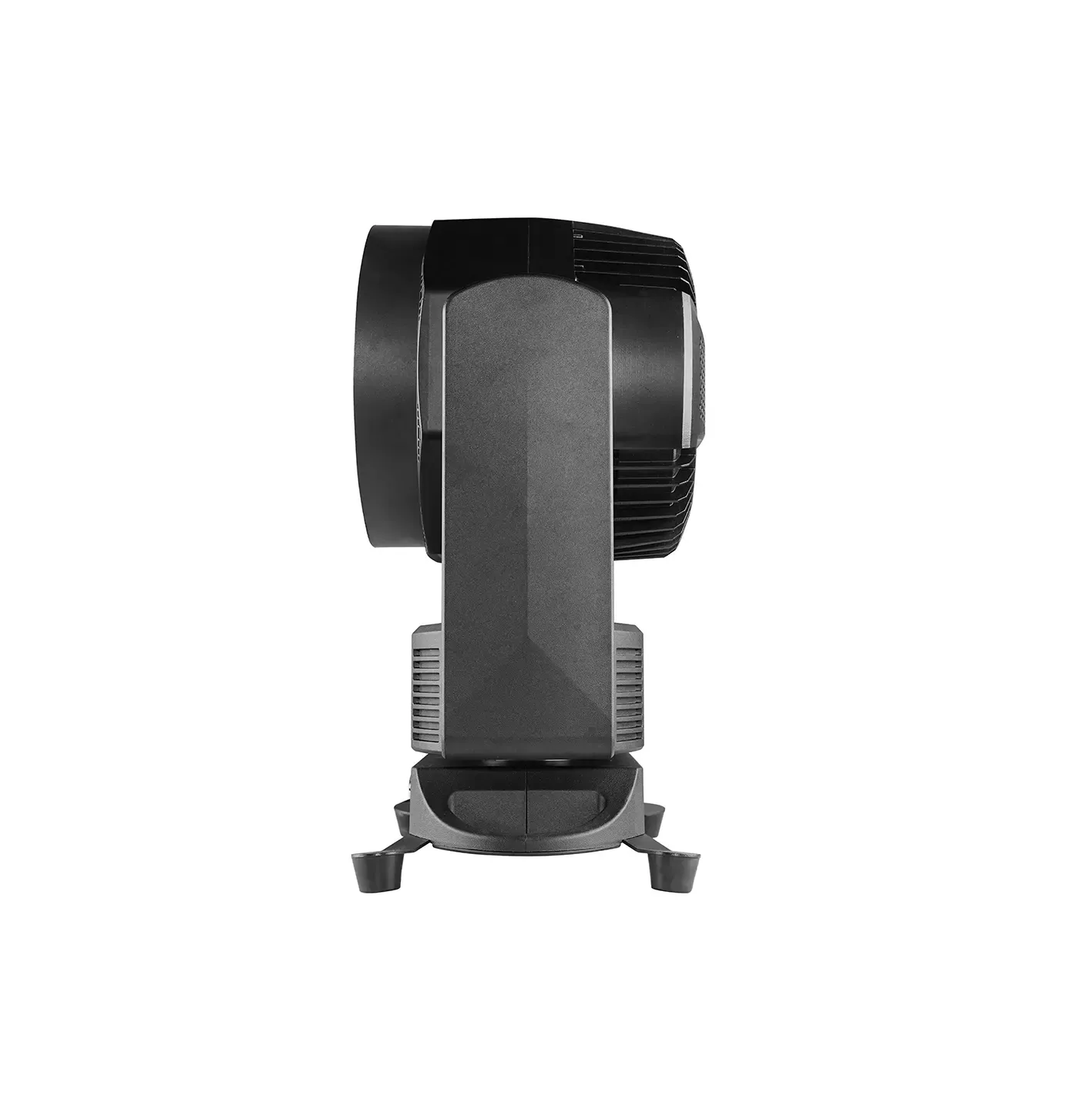

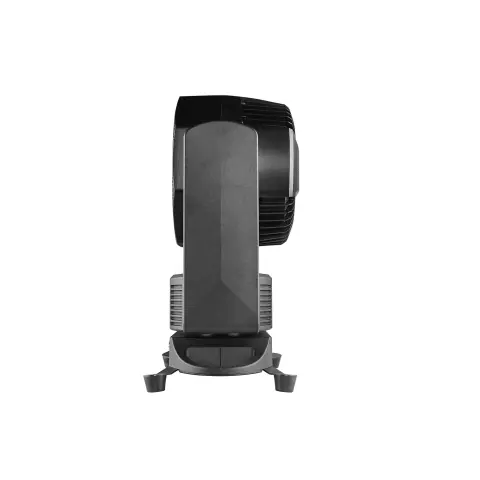

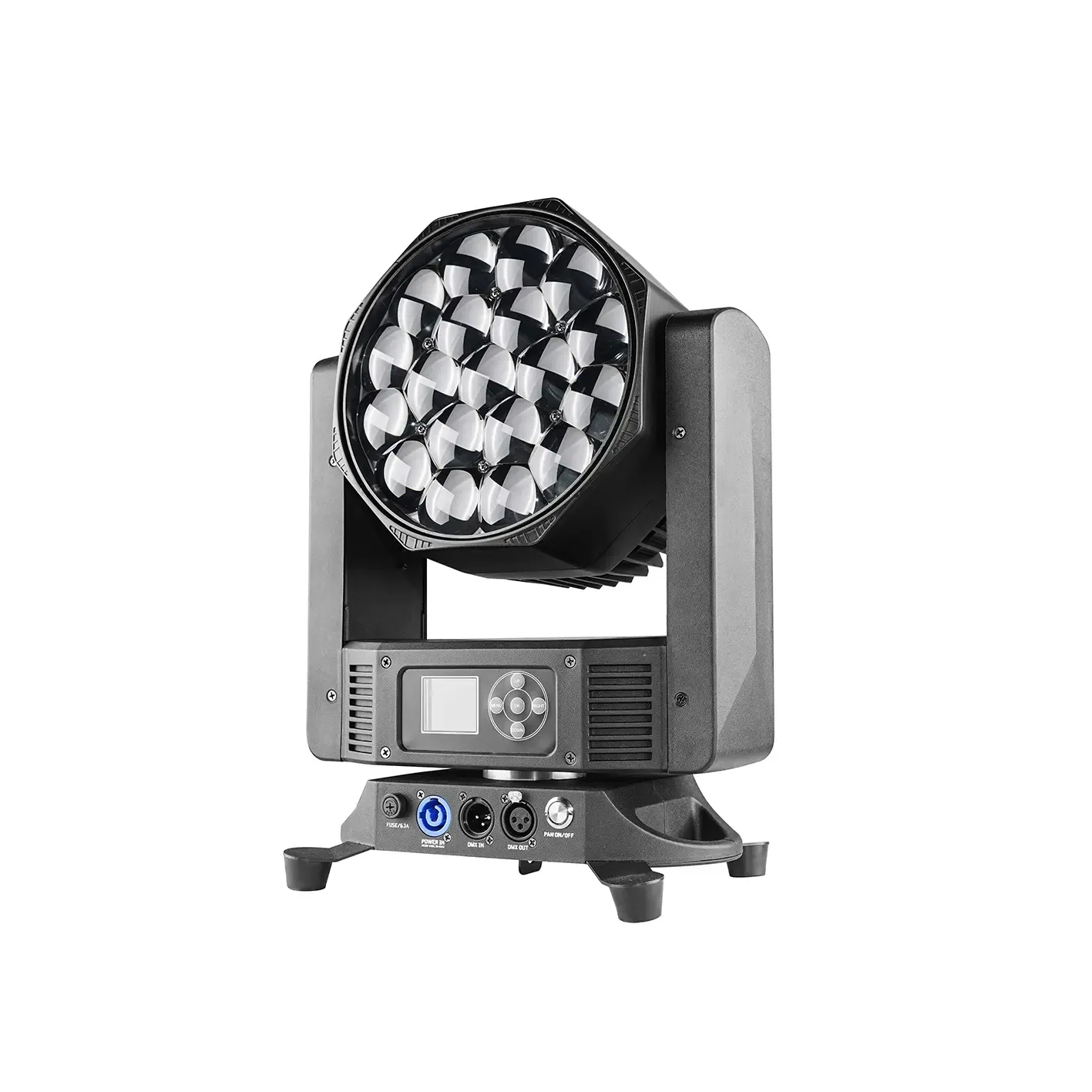

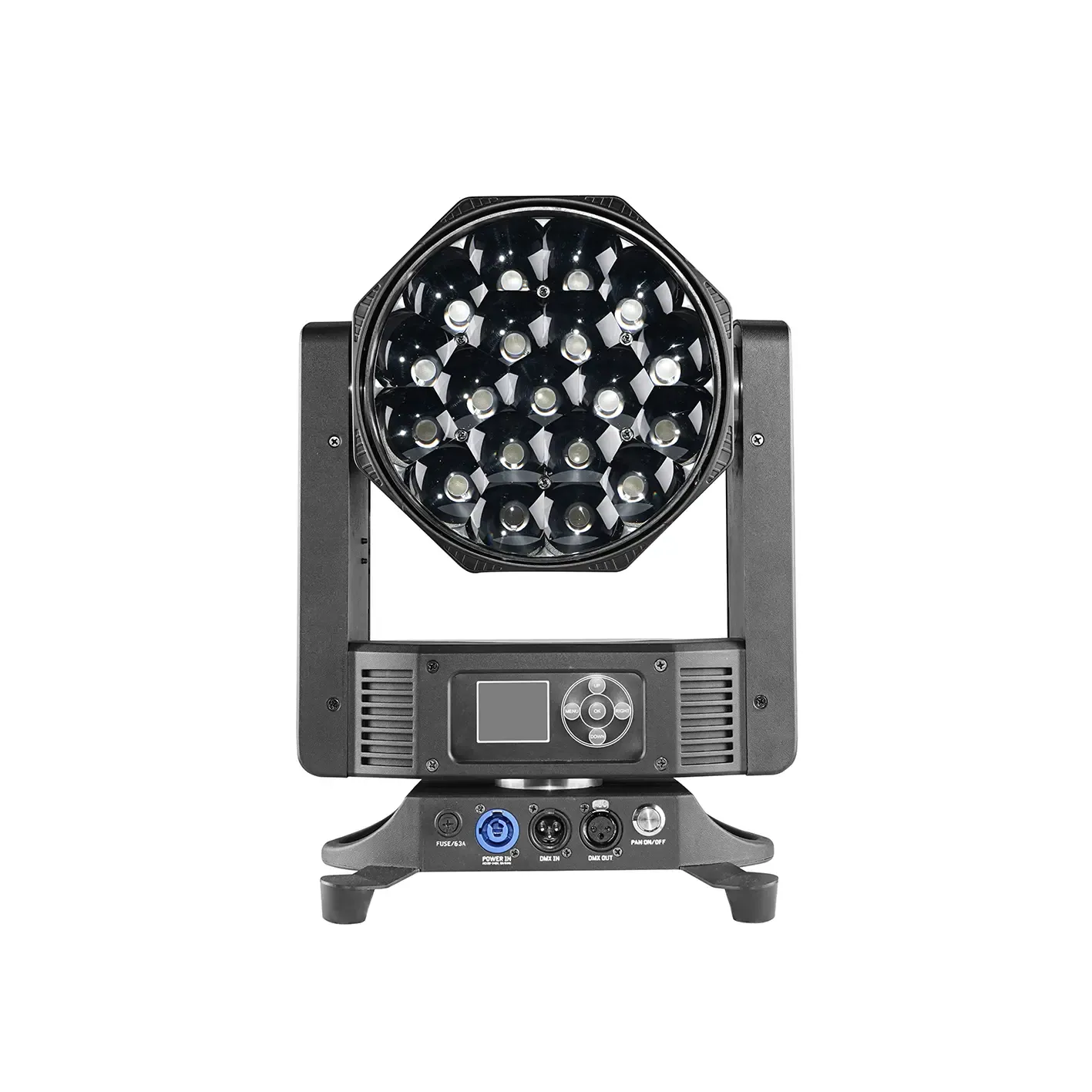

SMARTEYE 1915

The SMARTEYE 1915 is an intelligent moving head effect and wash light designed aiming at providing users LOW-COST, COMPACT-SIZE, LIGHT-WEIGHT and UNIQUE-STYLE benefit. This helps to make this head much novel and differentiated than traditional moving lights. It’s with 19*15W 4-IN-1 RGBW LED light source which are designed with pixel control capability integrated with a specific lens system that offers zoom ranging from 5°-35°. Due to this advantage, the SMARTEYE is capable of producing a wide range of dynamic sharp/collimated BEAM and pure/even WASH lighting effects that are sure to captivate audiences and enhance performances. The fixture could bring ultra brilliant and magic lighting effect to the lighting designers. And, the lens system is capable of rotating possibility to create multi petal-like micro fine rays (bee-eye effects) that are programmable for individual colors, as each LED and each color is controllable independently. The micro rays could be opened and closed to produce dynamic graphic lighting effects.

The SMARTEYE also features a range of advanced lighting effects, including strobe, color macros, shape effects and chase effects. These effects can be easily accessed and controlled via the controller, allowing for precise and customizable lighting setups. Its rugged construction and high-quality components ensure that it will deliver reliable and consistent performance night after night.

The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for small live concerts, road shows, DJ shows, conference halls, club/bars, etc.
