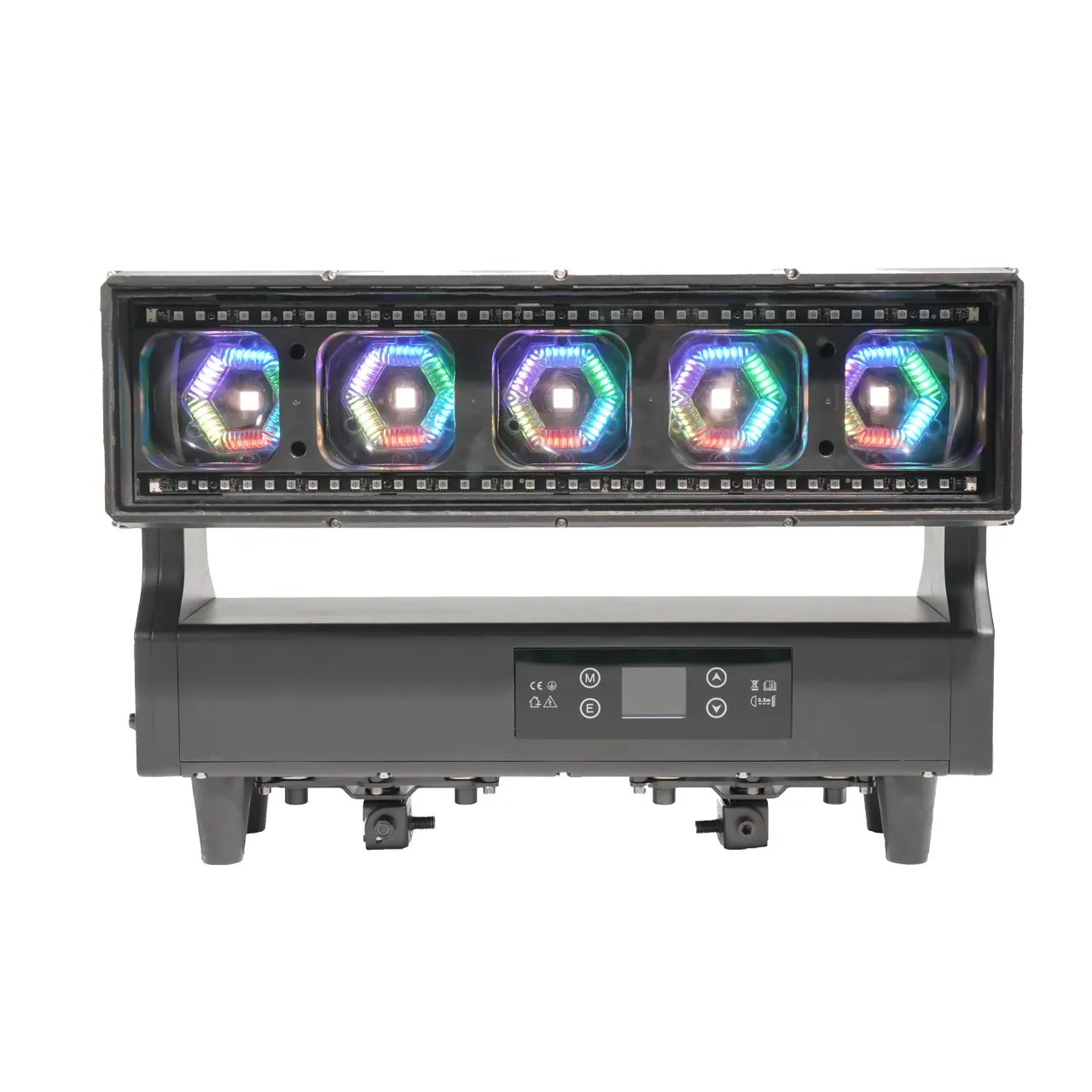

ZOOMBAR 560EP

ModelZB560EP

Light source: 5*60W 4-IN-1 LEDs, RGBW
Power consumption: 430W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP66 protection rating
Beam angle / zoom: 2°-23°
Net weight: 18kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 17 groups · 77 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source6

Source
Main Light: 5*60W 4-IN-1 LEDs, RGBW
Strip Light: 40*1W RGB LEDs+40*1W CW LEDs+40*1W WW LEDs
Back Light: 90*0.2W RGB LEDs; Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)

02Optics5

10PCS high efficiency acrylic lens; Motorized zoom angle for main light; 2 Sections zoomable individually
Beam Angle: 2°-23°
Field Angle: 2.5°-32°

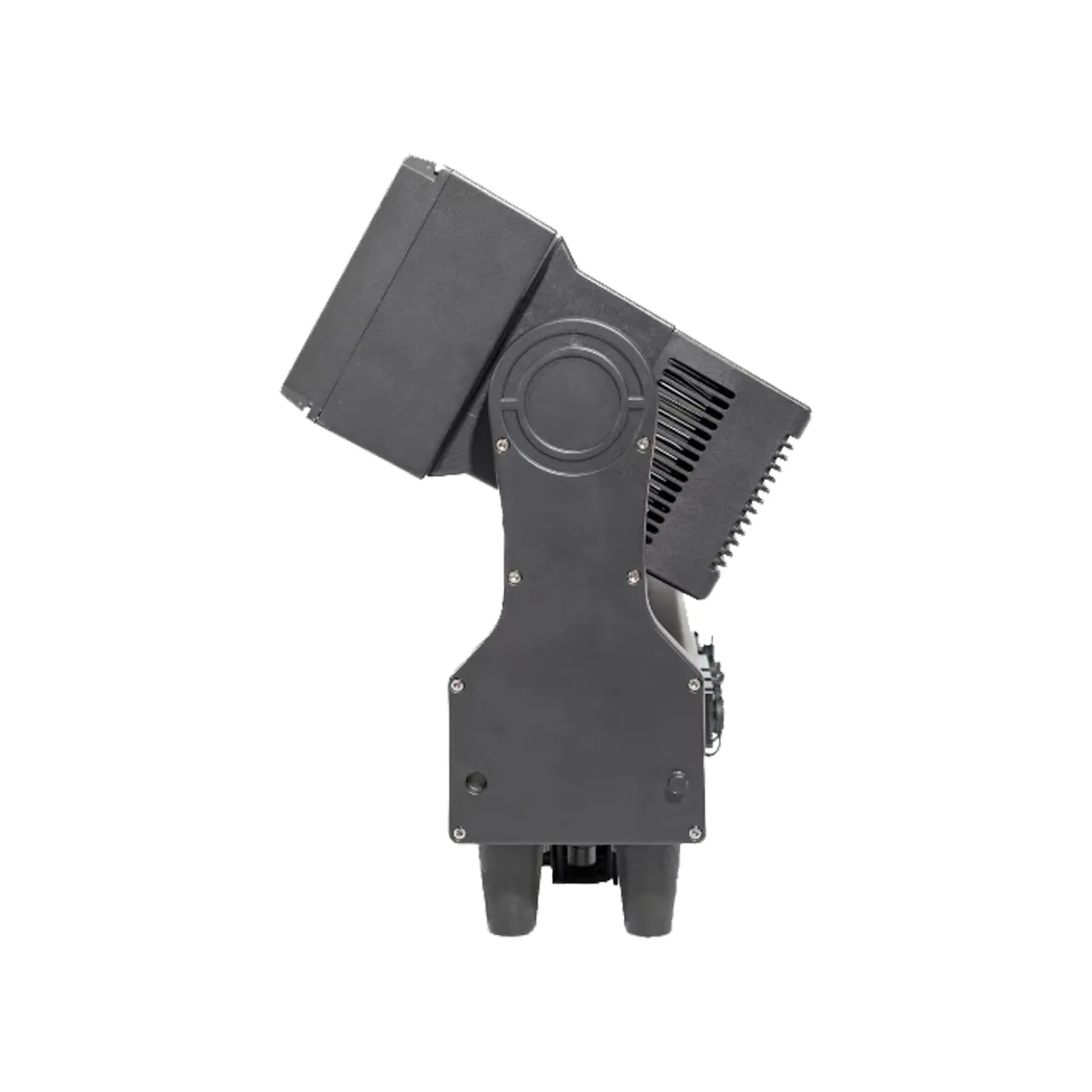

03Movement4

TILT movement: 270°(8/16 bit); Fast, quiet, smooth and precise 3-phase motors; Smooth, fast and precise resolution for TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement

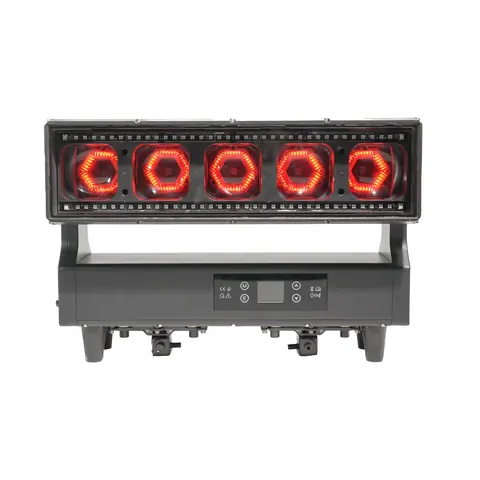

04Colors and Effect17

Main Light (RGBW): Pixel mapping capability with each LEDs controllable individually; Sophisticated 4 colors RGBW mixed; Sharp beam effect; Pure and even wash effect; 2500K-8000K Color temperature adjustment; Preset dynamic patterns with variable speed; Preset color macros
Strip Light (CW+WW): 10 Sections controllable individually; 2600K-6500K Color temperature adjustment; Preset dynamic patterns with variable speed
Strip Light (RGB): RGB mixed; 10 Sections controllable individually; Preset dynamic patterns with variable speed; Preset color macros
Back Light (RGB): 10 Sections controllable individually; Preset dynamic patterns with variable speed; Preset color macros

Show the full specificationHide the rest of the specification13 more groups · 45 values

05Strobe Effect3

1-25Hz high speed shutter/strobe effect with variable speed

Preset pulse strobe effect with variable speed

Random strobe effect with variable speed

06Dimming System3

0-100% Smooth linear LED dimming; 4 Dimming curve modes, linear/square law/Inv square law/S-curve
2 Dimming modes: fast/smooth

07Control System6

21/34/55/69/94/97 DMX channels USITT DMX-512

DMX512, master-slave, sound activated or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Shielded input signal protection for stable signal without interference

Waterproof 3-pin XLR connectors IN/OUT

08Display System4

1.77″ TFT LCD display

4 Touch control buttons

180°Reversible for LCD display

Display auto OFF

09Cooling System3

Advanced low noise cooling system integrated aluminum and fan

Constant temperature readout and management function

Over temperature protection management

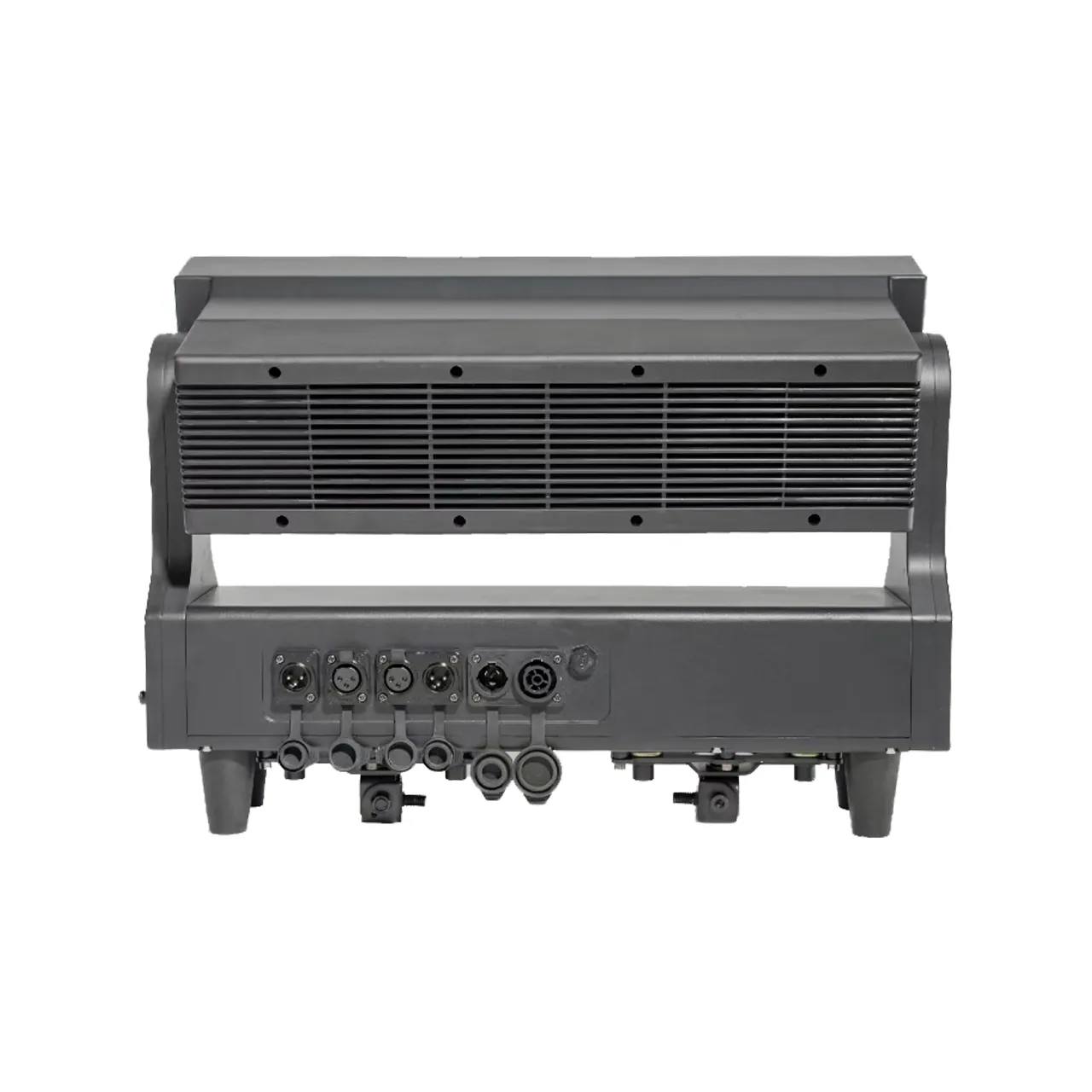

10Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

Waterproof TRUE-1 PowerCON IN/OUT with fuse

430W Power consumption

11Housing3

Die-case aluminum housing; Skeleton made of aluminum and steel metal plates
Exterior finish: Black

12Installation2

2*1/4 turn fastening Omega Clamps

1*Safety attachment point

13Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP66 protection rating

14Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

15Weight2

N.W.: 18kg
G.W.: 20.7kg

16Dimensions2

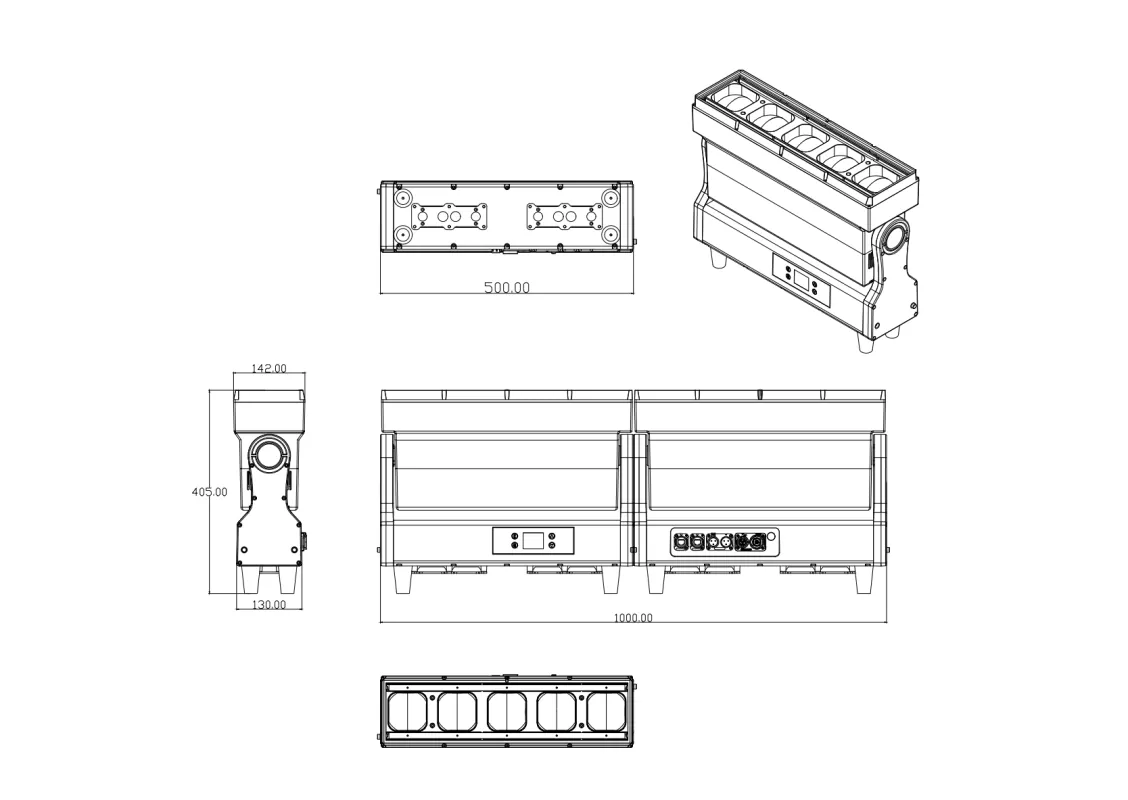

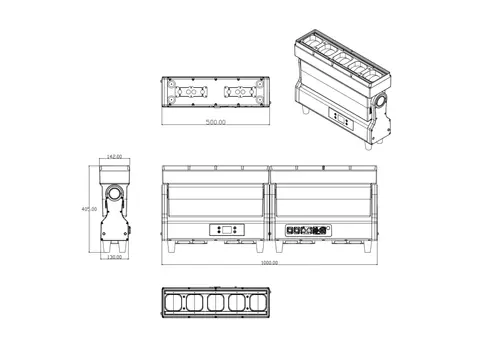

Product Dimensions: 142(D)*500(W)*405(H)mm
Packing Dimensions: 485(D)*580(W)*240(H)mm

17Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

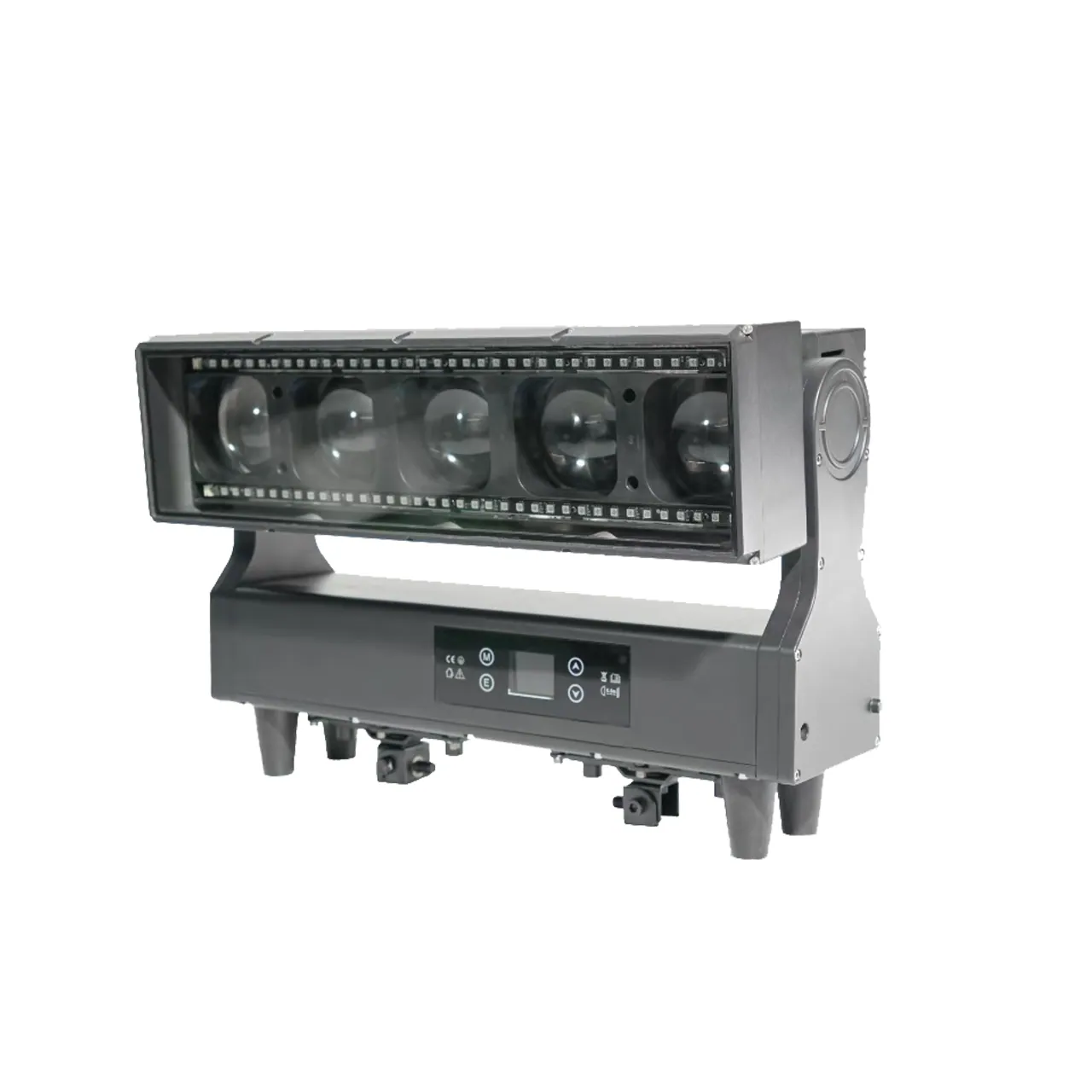

ZOOMBAR 560EP

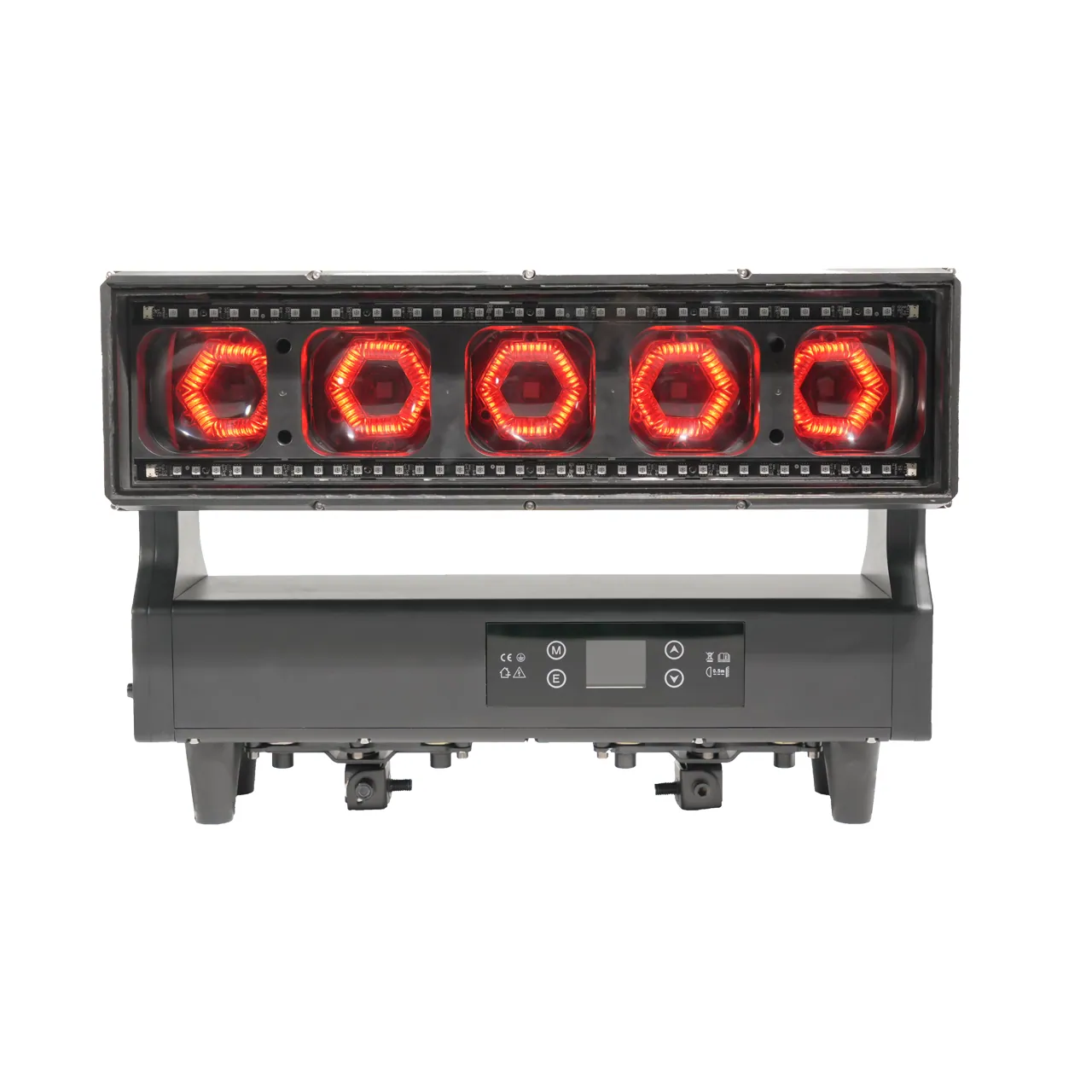

The ZOOMBAR 560EP is an ultra high power LED based moving head effect bar with smart and compact stylish housing with a smooth, fast and quiet TILT movement. The zoom range makes the fixture with sharp beam effect and pure even wash coverage. It features 5*60W 4-IN-1 RGBW LED sources (main light) with pixel mapping capability which not only allows you to create an endless range of color variations, but also to use each LED of the array as a pixel in order to draw all kinds of graphic images that change dynamically both in shape and color. The strip light on two sides and the backlight are designed with many built-in dynamic effects. It provides variable speed shutter/strobe effect, virtual color macro effect, dynamic patterns, static patterns to it’s users for easy operation. The 2*1/4 turn fastening omega clamps. The fixture supports DMX, RDM (Remote Device Management). Two fixtures can be joined together seamlessly with the specific parts.

The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, clubs/bars, weddings, etc.
