Sheet 05.816

Color Imagination · Effects and lasers

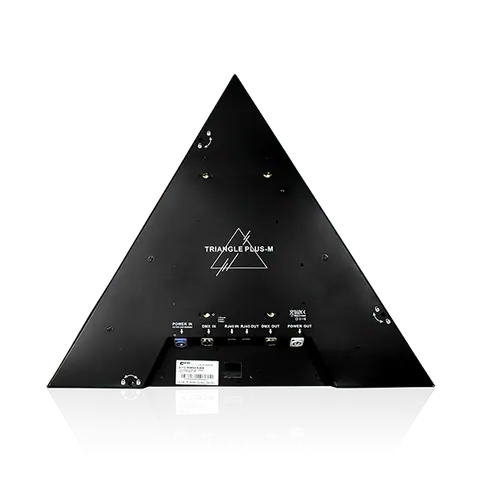

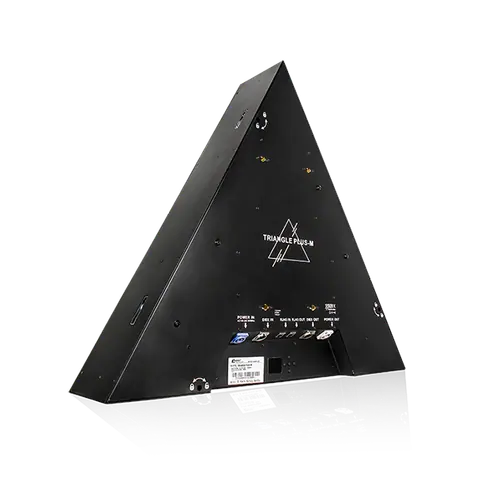

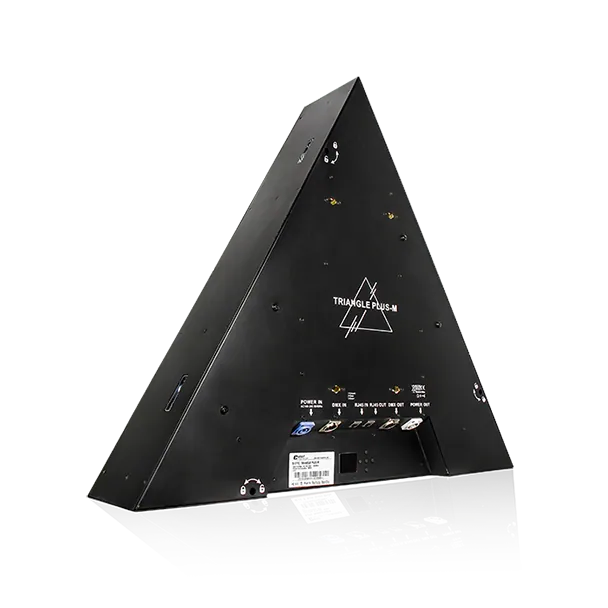

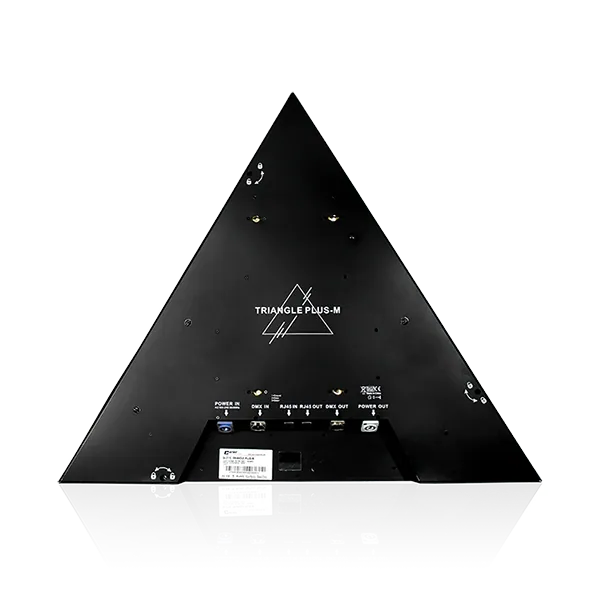

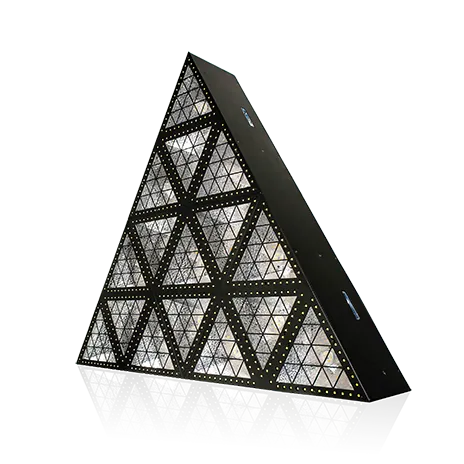

TRIANGLE PLUS-M1

ModelSI-277B

The TRIANGLE PLUS-M1 is an imperial lighting fixture that integrated with nice triangle housing design and tremendous visual effect. The lighting designers could combine each fixture together.

Light source: 16*30W LED modules, 1800K+5500K
Power consumption: 850W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 8.3kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 17 groups · 61 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source8

Source: 16*30W LED modules, 1800K+5500K; 576*0.3W SMD LEDs, 3200K; 16 LED modules controllable individually; Flicker free operation for broadcast TV and FILM; LED driving frequency adjustable; White balance adjustable
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, etc.

02Optics2

A set of high temperature resistant squamous reflector optic system

60°Beam angle for each module

03Color System2

3200K surrounding effect

1500K-5500K color temperature tunable by mixing

04Strobe Effect1

25T/sec high speed shutter/strobe effect with variable speed

05Dimming System2

0-100% Smooth linear LED dimming

5 Dimming curves, linear/square law/Inv square law/S-curve/soft curve

06Control System8

8/80/83/128 DMX channels USITT DMX-512

DMX512, master-slave, sound control or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Art-NET available

Shielded input signal protection for stable signal without interference

RJ45 etherCON IN/OUT

3-Pin XLR connectors IN/OUT

Show the full specificationHide the rest of the specification11 more groups · 38 values

07Software Update2

Software up-datable through DMX connectors

Muilt units up-datable in daisy chain

08Display System4

1.8″ TFT LCD display

5 Control buttons

180°Reversible for LCD display

Display auto OFF

09Cooling System3

Advanced noise free cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management

10Power Supply4

Electronic supply with active PFC

AC100-240V 50/60Hz

PowerCON connectors IN/OUT

850W Power consumption

11Housing3

Skeleton made of high tension steel metal plates; Dual back handles
Exterior finish: Black

12Installation5

2*1/4 Turn fastening Omega Clamps

3 Sets seamless combined system (Female and Male)

Truss-hanging kits, 2 options (Optional)

Wall-mounting kit (Optional)

Floor-stacking kit (Optional)

13Operating Condition3

Operating positions: all; -25°C to 45°C ambient temperature; IP20 protection rating

14Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

15Weight2

N.W.: 8.3kg
G.W.: 10.5kg

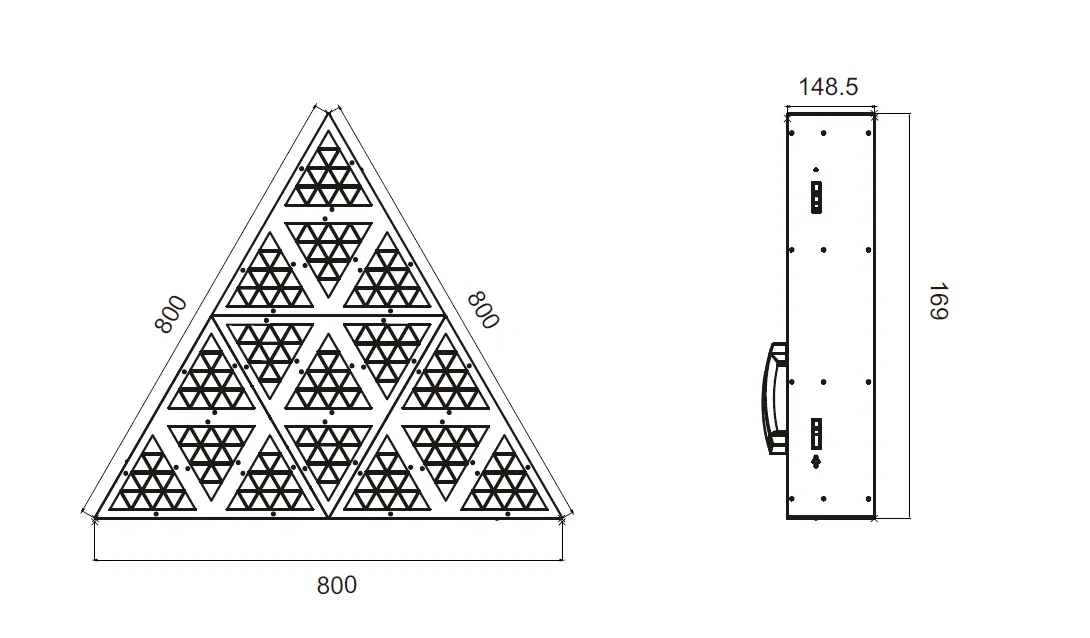

16Dimensions2

Product Dimensions: 148(D)*800(W)*690(H)mm
Packing Dimensions: 238(D)*896(W)*896(H)mm

17Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

Omega STANDARD code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

TRIANGLE PLUS-M1

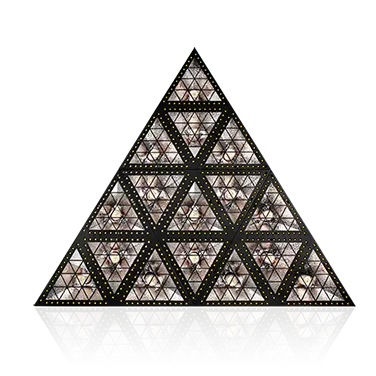

The TRIANGLE PLUS-M1 is an imperial lighting fixture that integrated with nice triangle housing design and tremendous visual effect. The lighting designers could combine each fixture together. The more fixtures combined, the more vivid lighting effects will be created for the stages. It features 16*30W 1500K+5500K LED modules and 576*0.3W 3200K LEDs surrounding the main module as auxiliary light. All the LEDs are controllable individually by 16 modules.

The TRIANGLE PLUS-M1 supports DMX, RDM (Remote Device Management), Art-Net protocol. There are 3 installation capabilities with corresponding kits: truss-hanging, wall-mounting and floor-stacking.

The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, theatre, clubs, etc.
