Sheet 05.1435
DESAY · LED posters and standees
A1.9
Twist off the rear cover to repair power supply
- Series
- A Series
- Pixel pitch
- 1.995 mm
- Brightness
- 3000 nits
- Panel size
- 657 × 2250 × 85 mm
- Pixel matrix per panel
- 288 × 972
- Panel weight
- 67 kg
- Maintenance
- Front access for module, rear access for power box and receiving card
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
A1.9Price on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 8 values
What this product is, in numbers.
PDFDatasheetEN · 2 pages · 6.2 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications8
- Pixel pitch
- 1.995 mm
- Brightness
- 3000 nits
- Panel size
- 657 × 2250 × 85 mm
- Pixel matrix per panel
- 288 × 972
- Panel material
- Aluminum
- Panel weight
- 67 kg
- Ingress protection (front/rear) (IP)
- 65 / 54
- Maintenance
- Front access for module, rear access for power box and receiving card
Show the full specificationHide the rest of the specification0 more groups · 0 values
02Models4 models in the family
Models compared.
| Model | A1.9i | A1.9 | A2.5i | A2.5 |
|---|---|---|---|---|
| Pixel pitch (mm) | 1.995 | 1.995 | 2.571 | 2.571 |
| Brightness (nits) | 800 | 3000 | 1000 | 3500 |
| Panel size (mm) | 585.4 × 1950.1 × 40 | 657 × 2250 × 85 | 585.4 × 1950.1 × 40 | 657 × 2250 × 85 |
| Pixel matrix per panel | 288 × 972 | 288 × 972 | 224 × 756 | 224 × 756 |
| Panel material | Aluminum | Aluminum | Aluminum | Aluminum |
| Panel weight (Kg) | 35 | 67 | 35 | 67 |
| Ingress protection (front/rear) (IP) | 41 / 30 | 65 / 54 | 41 / 30 | 65 / 54 |
| Maintenance | Front access for module, rear access for power box and receiving card | Front access for module, rear access for power box and receiving card | Front access for module, rear access for power box and receiving card | Front access for module, rear access for power box and receiving card |
03DescriptionManufacturer's description
What it is.

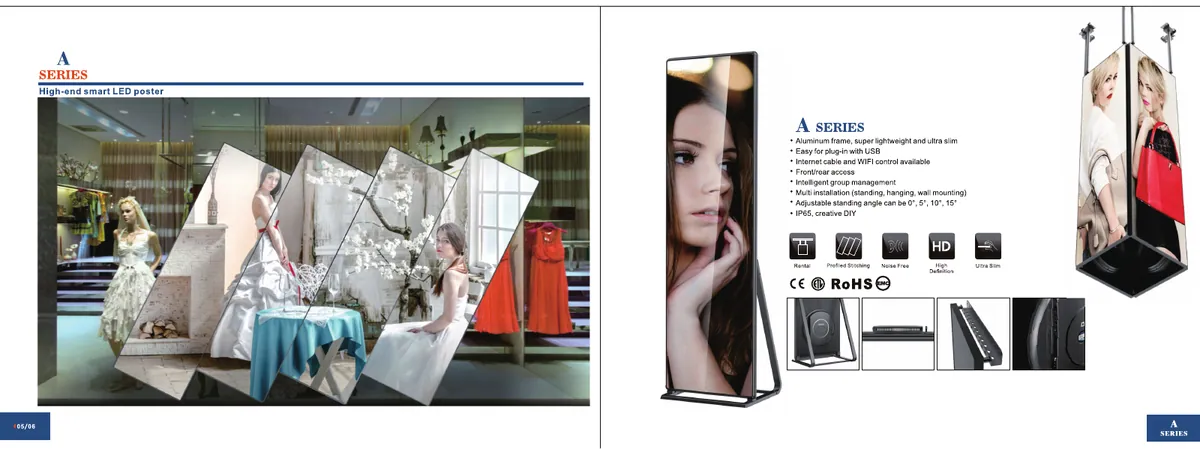

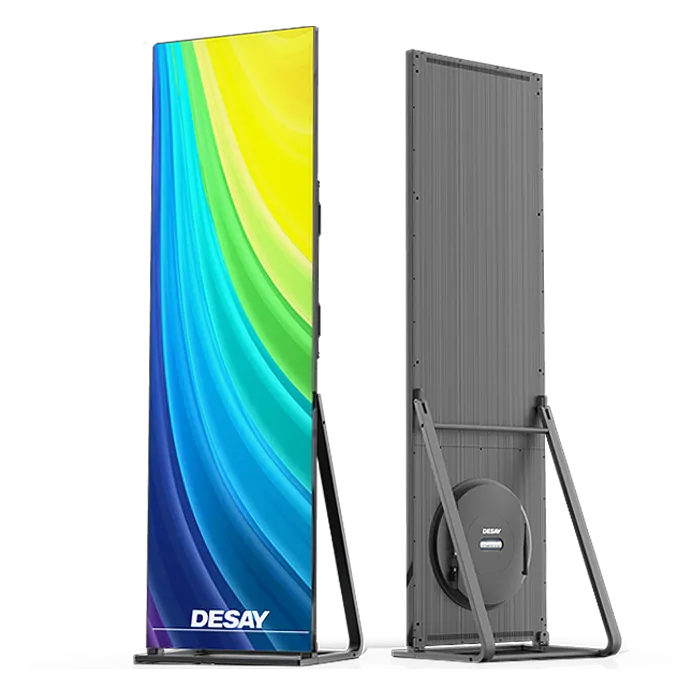

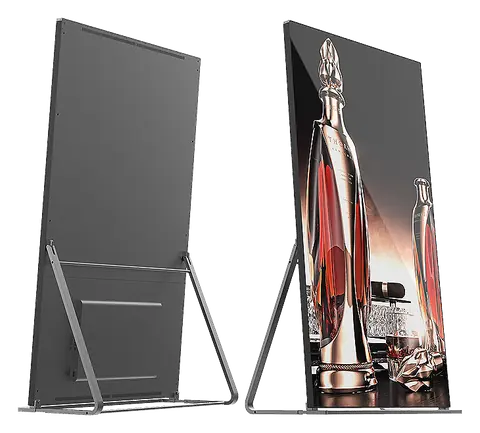

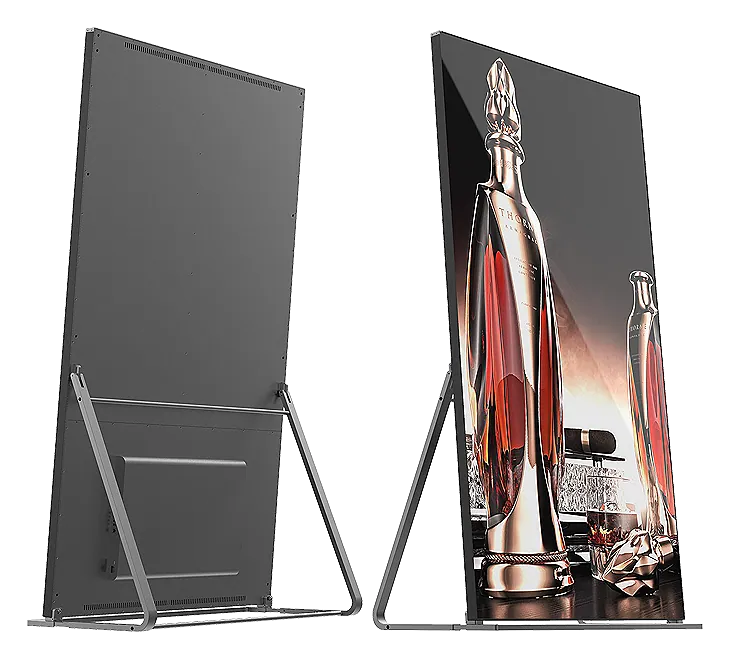

High-end smart LED poster.
Key points
Plug-in & play
Support multi play mode
Multi installation mode
Multi choice of sytle

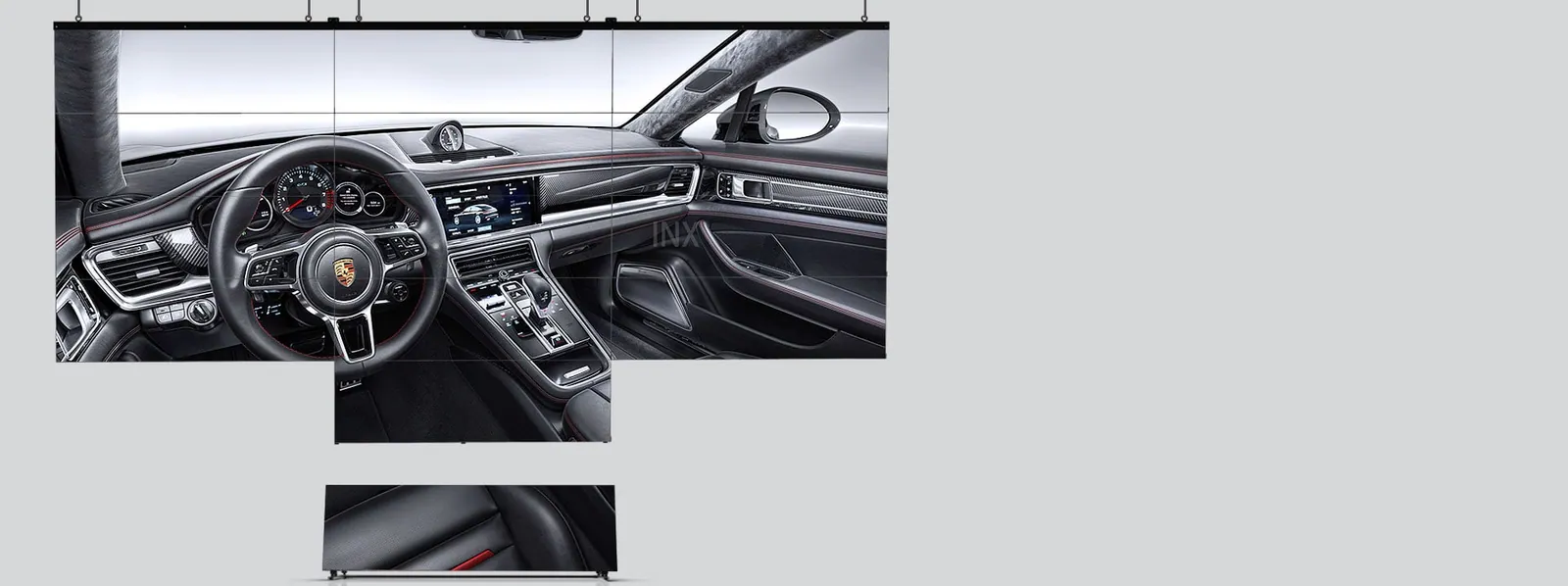

Multi screen splice mode
CE/UL/ETL
3840Hz refresh rate
Multi Installation
Support multi installation
Cluster control
Asynchronous signal transmission

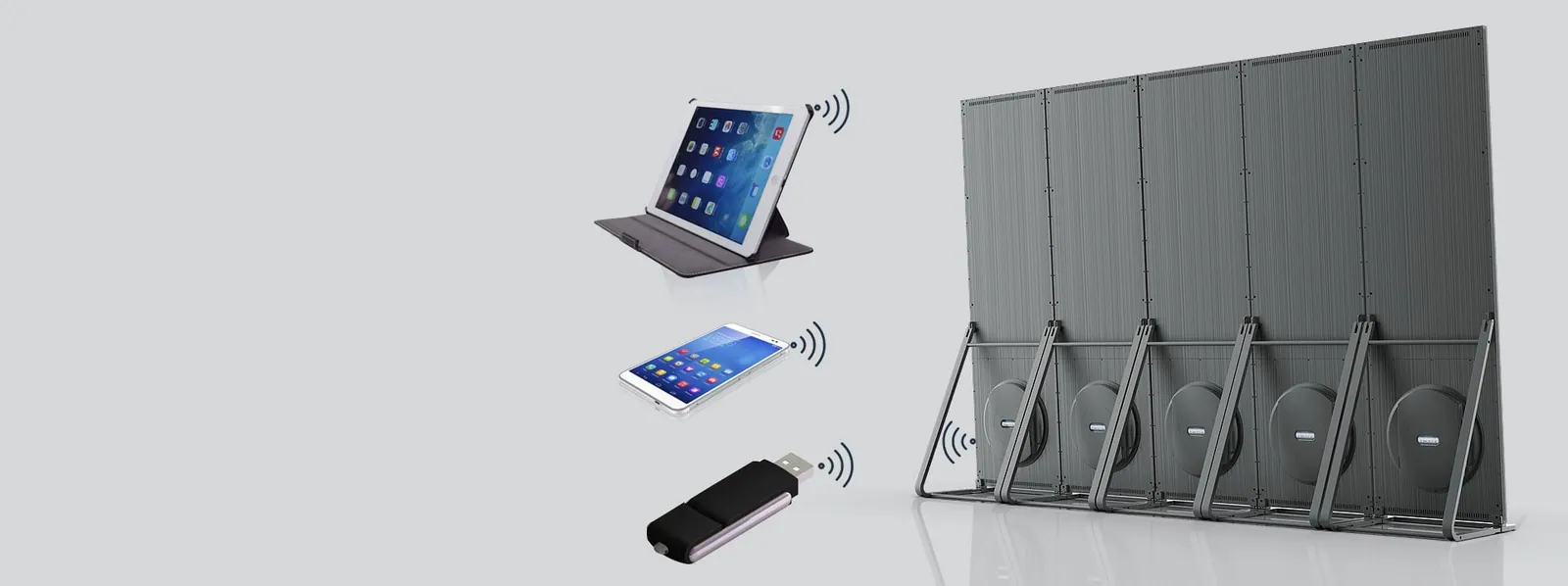

Multi Signal Access
USB, Mobile phone,iPad
Asynchronous signal transmission
Plug & play

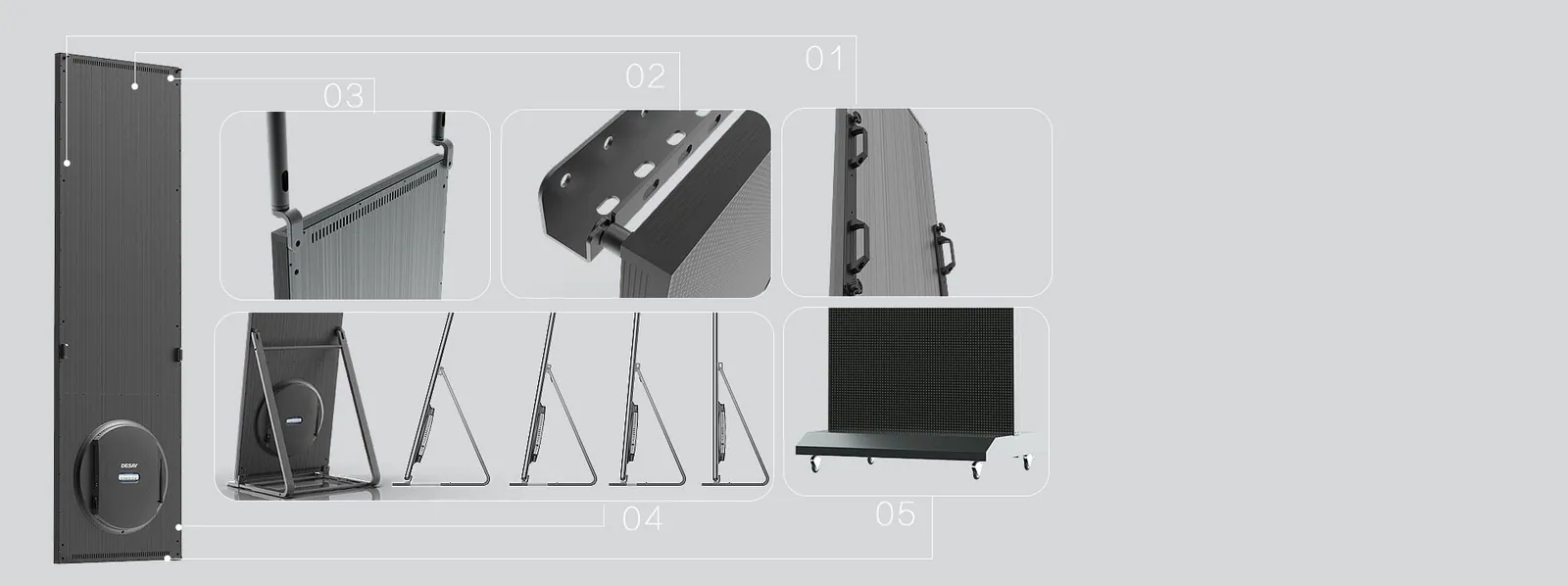

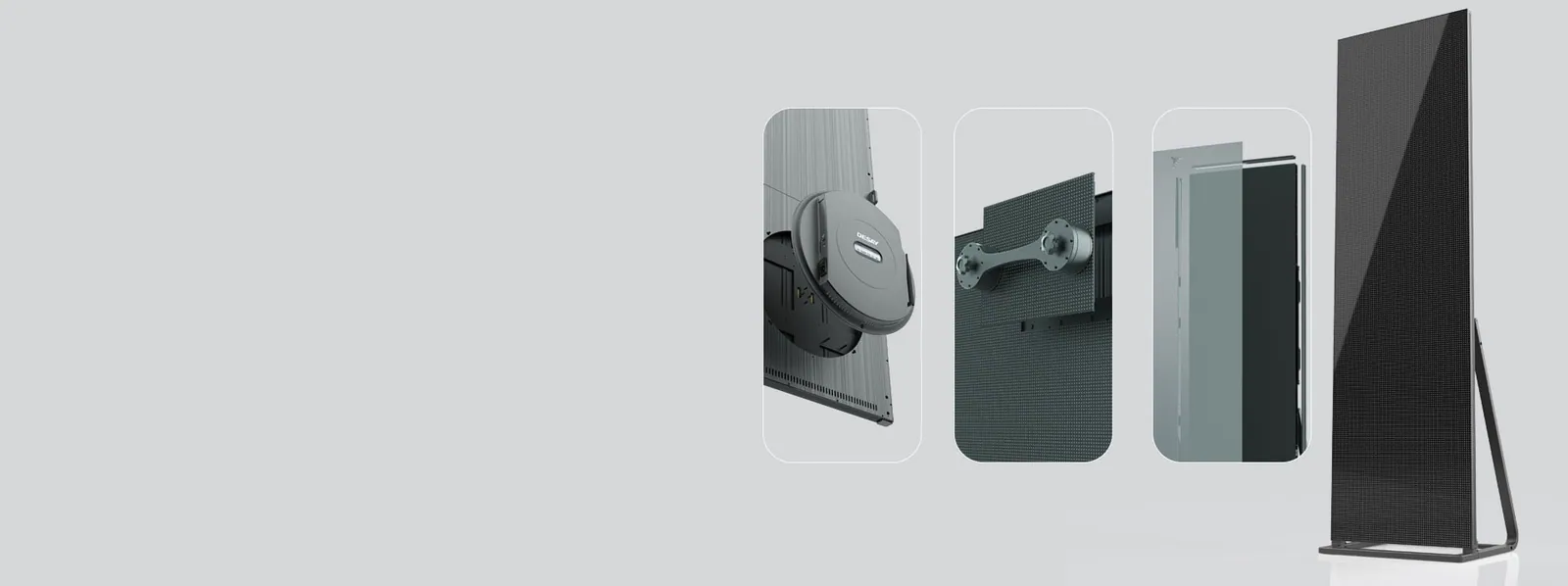

Multi Installation Mode
Optional for handle
Support wall mounting

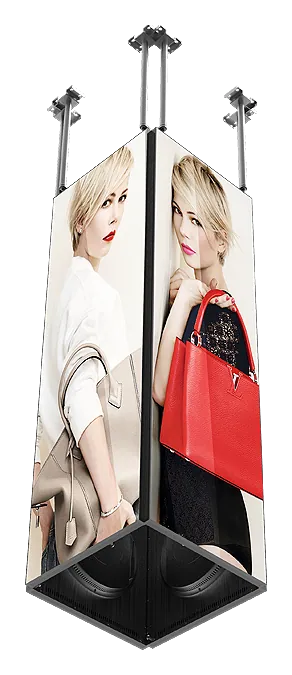

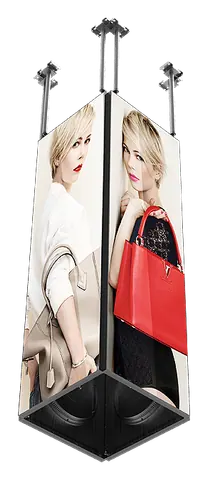

Support hanging

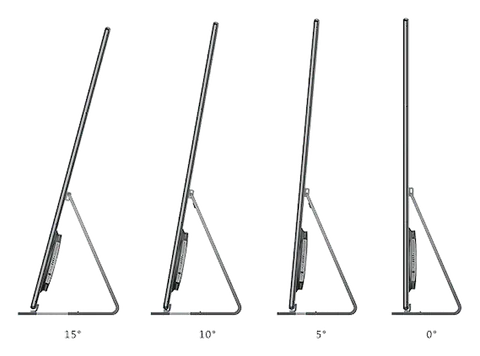

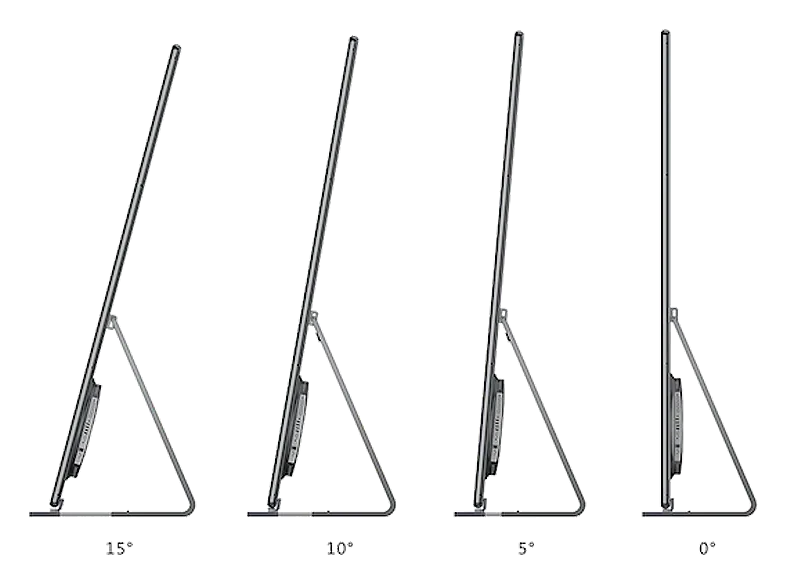

Adjustable floor stand
Movable double-sided poster
Maintenance
Remove acrylic front cover
Take away the LED module

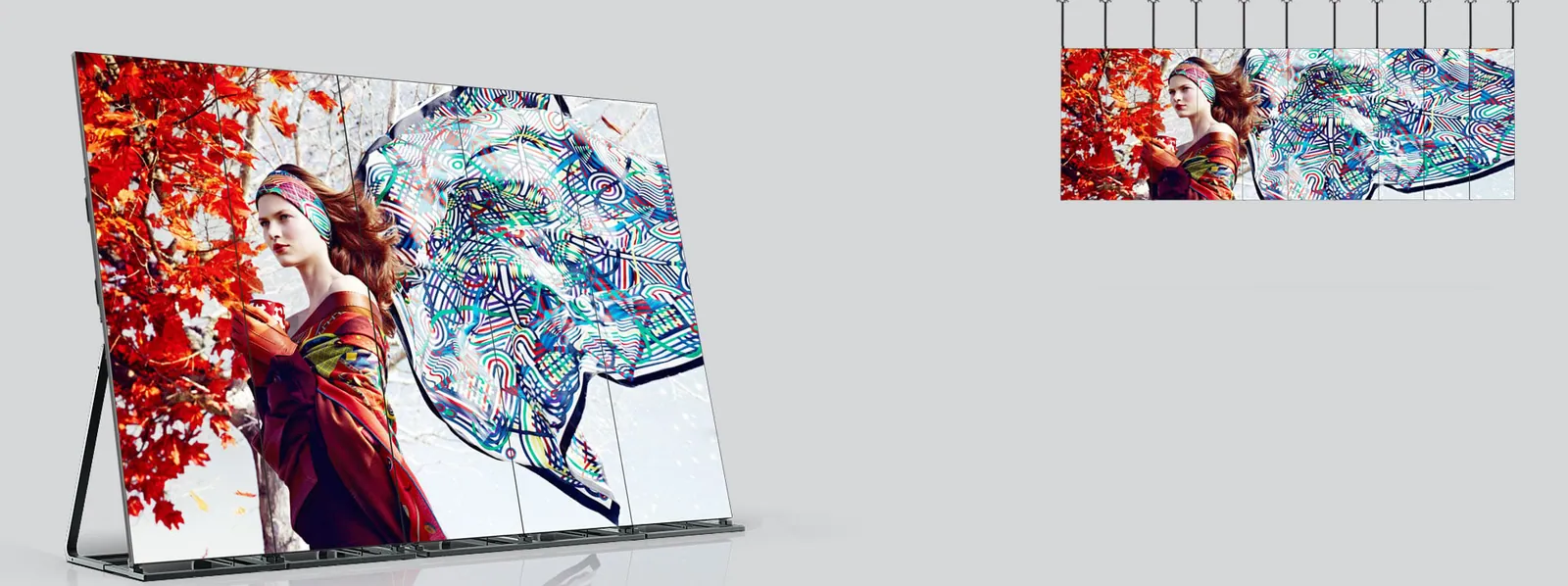

Multi Installation Mode

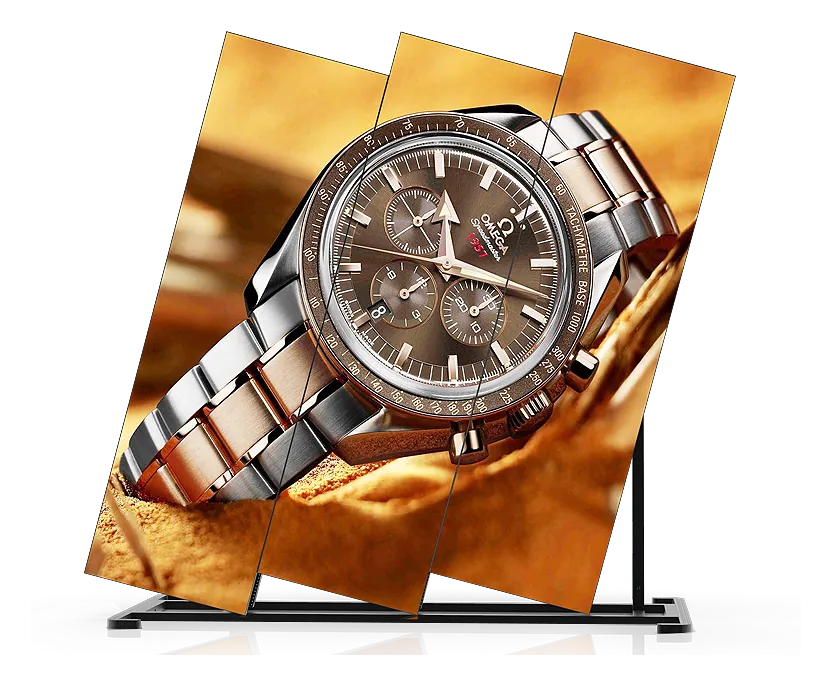

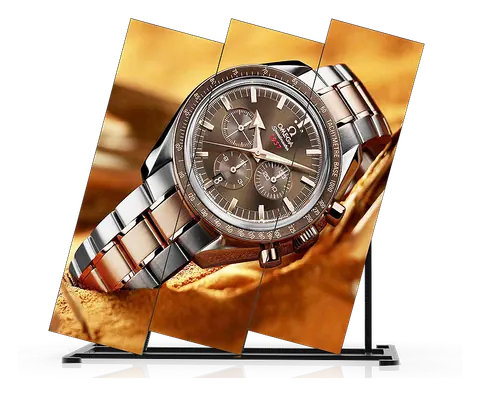

Creative installation
Horizontal and vertical installation
- Retail and hospitality
- DOOH and advertising
- Exhibitions and museums
04Documents1 file · 6.2 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
