DESAY · All-in-one LED screens

iMeeting Series

Integrated display control, intelligent system, audio and video

Series
iMeeting Series
Pixel pitch
iMeeting0.9: 0.9 · iMeeting1.2: 1.2 · iMeeting1.5: 1.5
Brightness
iMeeting0.9: 500 · iMeeting1.2: 700 · iMeeting1.5: 800
Pixel matrix per panel
iMeeting0.9 — 108.4″: 2560 × 1440 / 135.5″: 3200 × 1800 / 162.6″: 3840 × 2160; iMeeting1.2 — 1920 × 1080 / 2400 × 1350 / 2880 × 1620; iMeeting1.5 — 1536 × 864 / 1920 × 1080 / 2304 × 1296
Panel weight
108.4″: 136 / 135.5″: 196 / 162.6″: 286 (same at every pitch)
PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 25 values

What this product is, in numbers.

PDFDatasheetEN · 2 pages · 3.8 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications25
Pixel pitch
iMeeting0.9: 0.9 · iMeeting1.2: 1.2 · iMeeting1.5: 1.5
Display size
108.4 / 135.5 / 162.6 (same 3 sizes at every pitch)
Brightness
iMeeting0.9: 500 · iMeeting1.2: 700 · iMeeting1.5: 800
Pixel configuration (R/G/B)
SMD Mini
Colour temperature (deg.K)
6500
Viewing angle - Horizontal (50% brightness) (deg.)
160° (+80 / -80)
Viewing angle - Vertical (50% brightness) (deg.)
160° (+80 / -80)
Recommended minimum viewing distance (m)
iMeeting0.9: 0.9 · iMeeting1.2: 1.2 · iMeeting1.5: 1.5
Panel width
108.4″: 2419 / 135.5″: 3019 / 162.6″: 3619 (same at every pitch)
Panel height
108.4″: 1460 / 135.5″: 1797 / 162.6″: 2134.5 (same at every pitch)
Panel depth
45.5 mm
Panel area (m²)
108.4″: 3.53 / 135.5″: 5.4 / 162.6″: 7.7 (same at every pitch)
Panel material
Alloy Aluminum
Panel weight
108.4″: 136 / 135.5″: 196 / 162.6″: 286 (same at every pitch)
Ingress protection (front/rear) (IP)
30 / 30
Pixel matrix per panel
iMeeting0.9 — 108.4″: 2560 × 1440 / 135.5″: 3200 × 1800 / 162.6″: 3840 × 2160; iMeeting1.2 — 1920 × 1080 / 2400 × 1350 / 2880 × 1620; iMeeting1.5 — 1536 × 864 / 1920 × 1080 / 2304 × 1296
Brightness control
255
Digital processing
iMeeting0.9 — 14bit / 13bit / 13bit; iMeeting1.2 — 14bit / 14bit / 14bit; iMeeting1.5 — 14bit / 14bit / 14bit
Frame rate (Hertz)
50–60
Display refresh rate (Hertz)
iMeeting0.9 — 3840 / 2880 / 2880; iMeeting1.2 — 3840 / 3840 / 3840; iMeeting1.5 — 3840 / 3840 / 3840
Input voltage (VAC)
100–240
Input power frequency (Hertz)
50–60
Input power (Avg.) (W/Set)
iMeeting0.9 — 735 / 1200 / 1700; iMeeting1.2 — 700 / 1120 / 1600; iMeeting1.5 — 735 / 1200 / 1700
Operating temperature range (deg.C)
-10~+40
Lifetime (50% brightness) (Hour)
100,000
02DescriptionManufacturer's description

What it is.

Key points

  • Display size 108",136",162",16:9 ratio
  • High refresh, high grayscale, wide color gamut
  • Scan code to LED screen, free annotation
  • Optional windows and andriod dual system

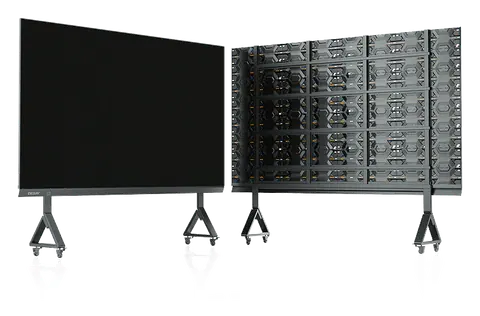

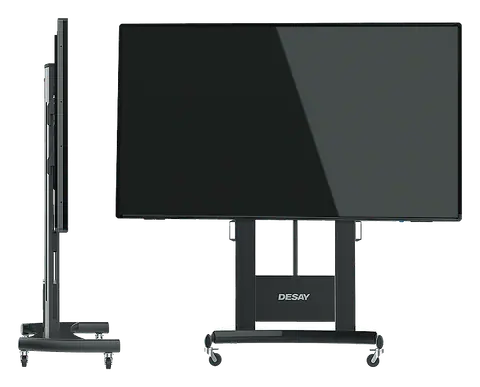

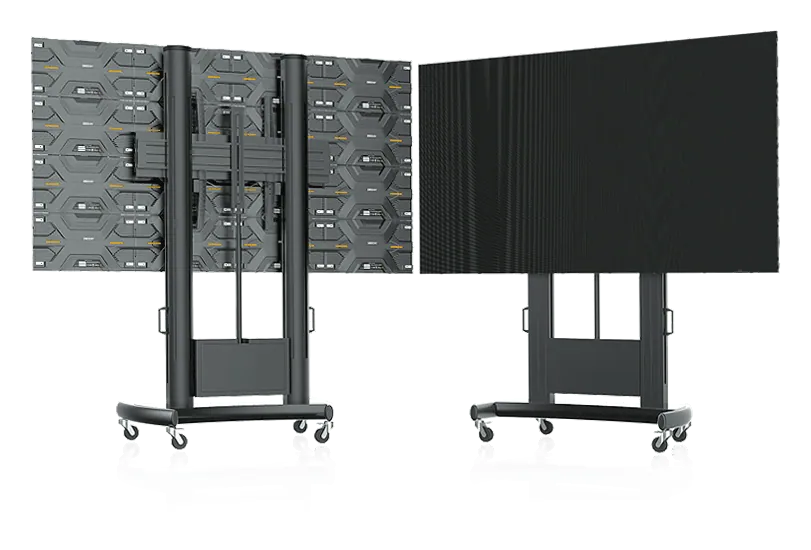

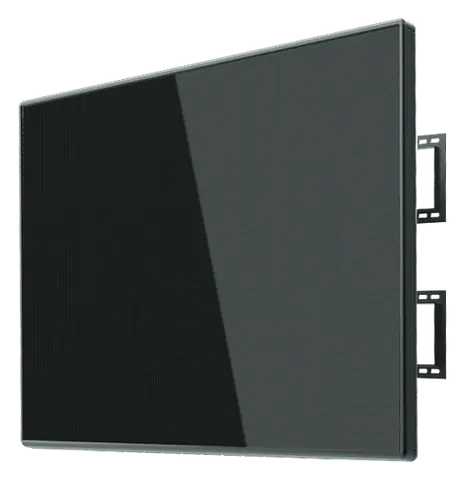

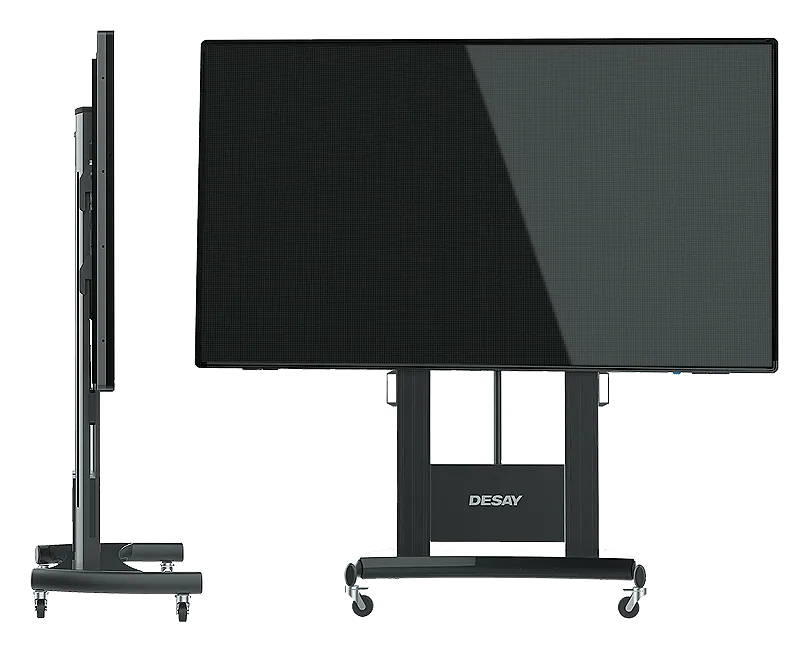

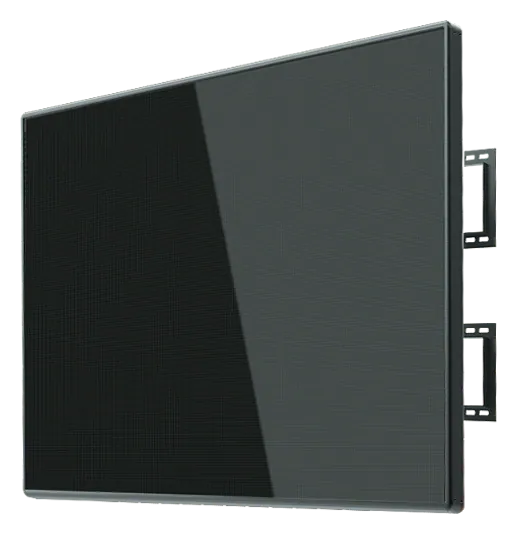

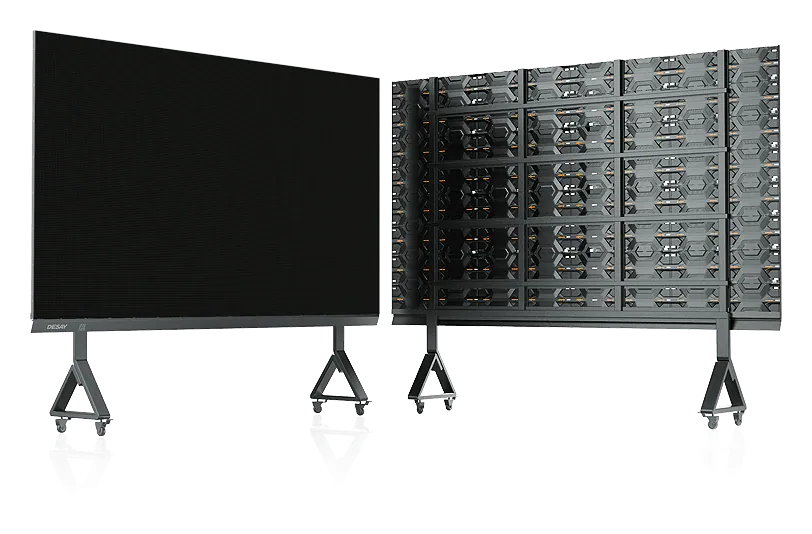

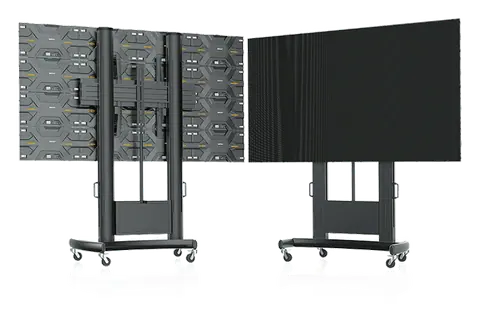

DESAY iMeeting Series: manufacturer’s picture
DESAY iMeeting Series: manufacturer’s picture
DESAY iMeeting Series: manufacturer’s picture
