Sheet 05.1295

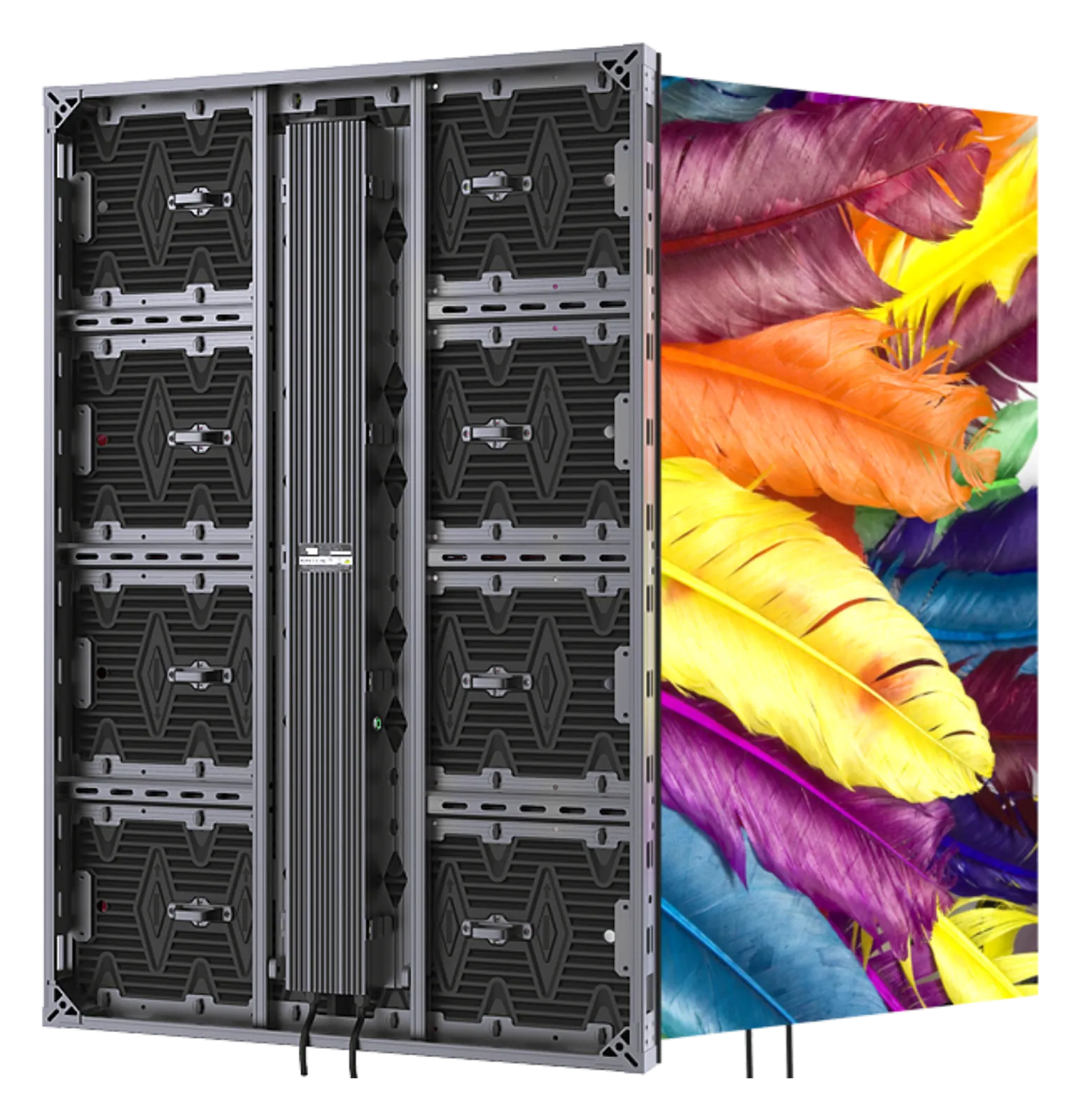

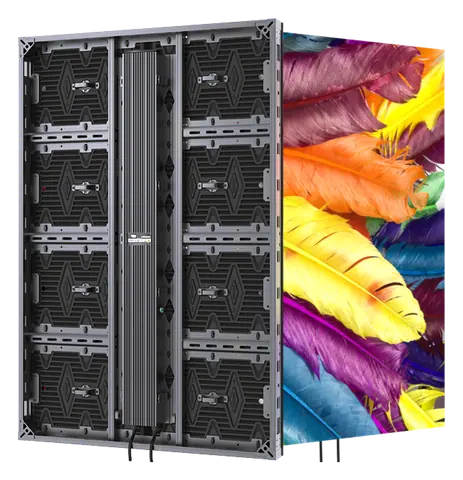

DESAY · Outdoor displays
MB 3
30% energy savings: common cathode design
- Series
- MB Series
- Pixel pitch
- 3.846 mm
- Brightness
- 5000 nits
- Panel size
- 800 × 900 × 112 mm
- Pixel matrix per panel
- 208 × 234
- Panel weight
- 20.5 kg
- Maintenance
- Front access / rear access
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
MB 3Price on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 8 values
What this product is, in numbers.
PDFDatasheetEN · 2 pages · 3.2 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications8
- Pixel pitch
- 3.846 mm
- Brightness
- 5000 nits
- Panel size
- 800 × 900 × 112 mm
- Pixel matrix per panel
- 208 × 234
- Panel material
- Aluminum
- Panel weight
- 20.5 kg
- Ingress protection (front/rear) (IP)
- 65 / 54
- Maintenance
- Front access / rear access
Show the full specificationHide the rest of the specification0 more groups · 0 values
02Models6 models in the family
Models compared.
| Model | MB 3 | MB 6 | MB 8 | MB 10 | MB 12 | MB 16 |
|---|---|---|---|---|---|---|
| Pixel pitch | 3.846 | 6.25 | 8.333 | 10 | 12.5 | 16.667 |
| Brightness (nits) | 5000 | 6000–6500 | 6000–6500 | 6000–6500 | 6000–6500 | 6000–6500 |
| Panel size (mm) | 800 × 900 × 112 | 800 × 900 × 112 | 800 × 900 × 112 | 800 × 900 × 112 | 800 × 900 × 112 | 800 × 900 × 112 |
| Pixel matrix per panel | 208 × 234 | 128 × 144 | 96 × 108 | 80 × 90 | 64 × 72 | 48 × 54 |
| Panel material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Panel weight (Kg) | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 |
| Ingress protection (front/rear) (IP) | 65 / 54 | 65 / 54 | 65 / 54 | 65 / 54 | 65 / 54 | 65 / 54 |
| Maintenance | Front access / rear access | Front access / rear access | Front access / rear access | Front access / rear access | Front access / rear access | Front access / rear access |
03DescriptionManufacturer's description
What it is.

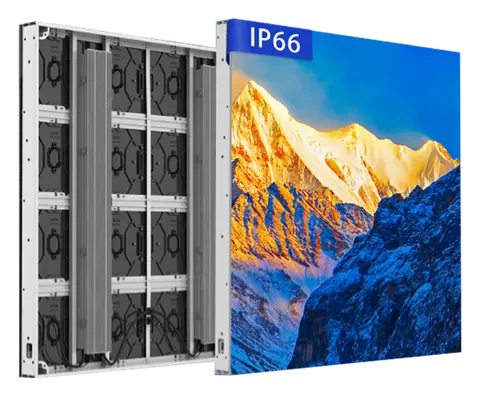

Outdoor fixed LED display.
Key points
- Ultra-lightweight: 20.5kg per panel
- Noise-free: fanless design
- High brightness: ≥6,500nits
- High refresh rate: 3,840 / 7,680Hz
- 8:9 aspect ratio: supports 16:9 & 4:3 assembly
- High security: modules equipped with safety ropes
- Unique waterproof protection: patented integrated drainage channel

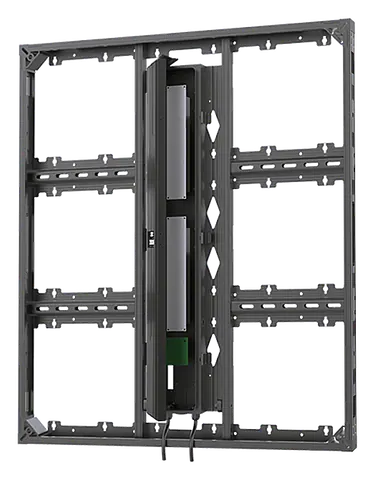

- Professional heat-dissipating power box: excellent heat dissipation performance

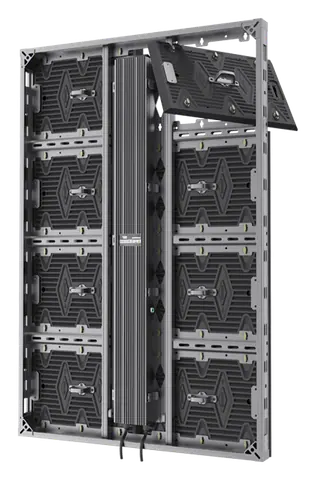

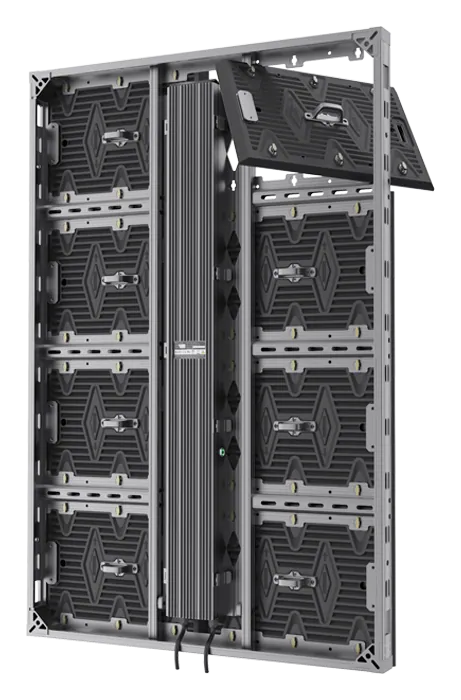

- Full front & rear serviceability for modules & power boxes

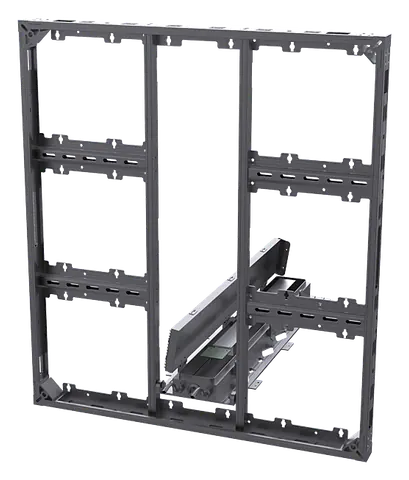

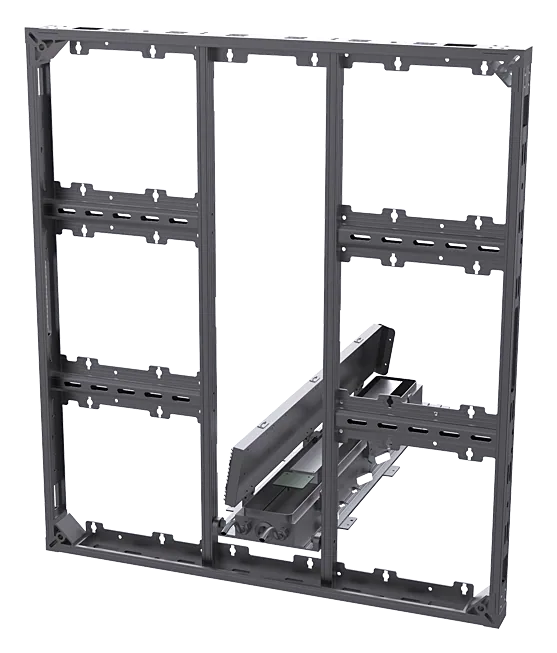

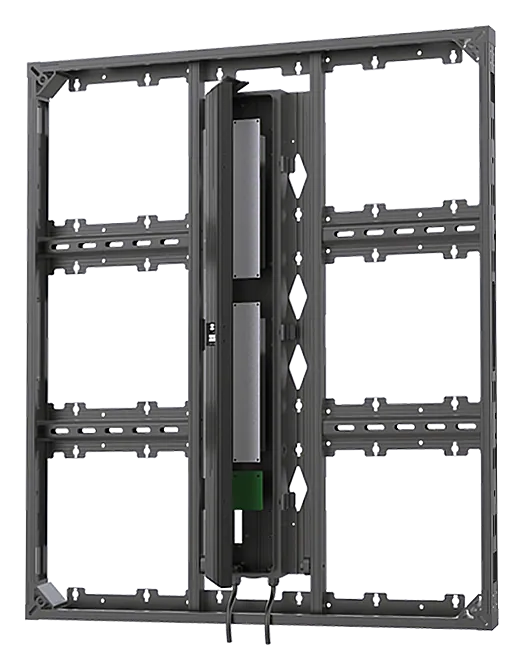

- Space-saving rear design: easy wall-mounting with simple mounting frame
- Dual safety protection: module fuses + power supplies with overcurrent protection
- Optional accessories: impact-resistant soft rubber masks, adjustable rear brackets
04Documents1 file · 3.2 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
