DESAY · Indoor fixed displays

PF Series

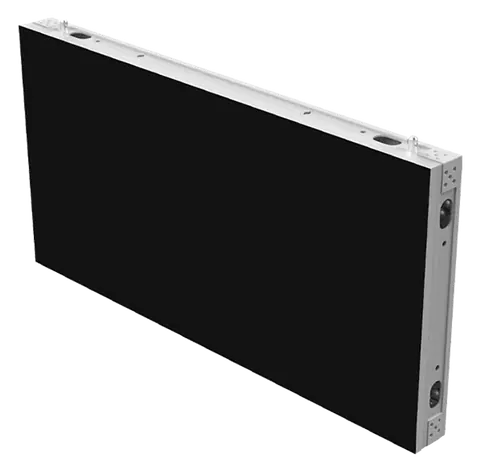

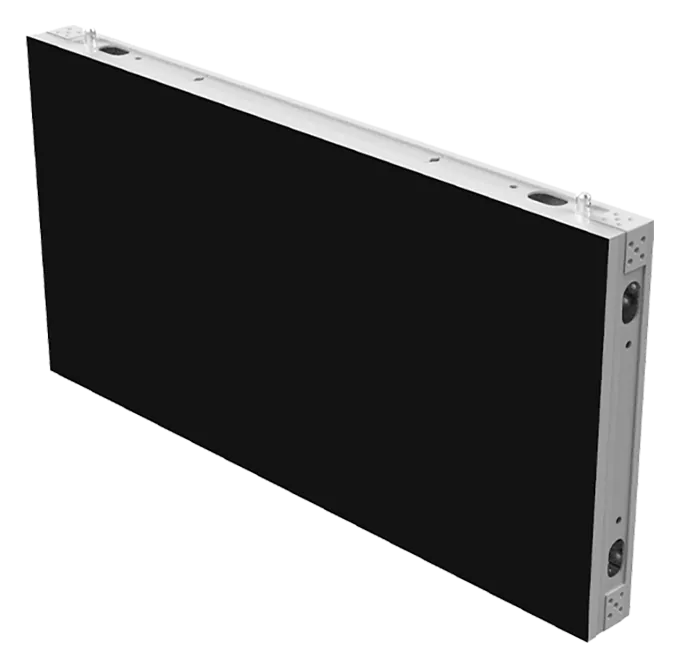

Indoor front and rear maintenance fixed LED display.

Series
PF Series
Pixel pitch
PF2 2.976 / PF3 3.906 / PF4 4.807 / PF6 6.25
Brightness
1000 nits
Power consumption
avg 2 W/m²
Pixel matrix per panel (pf2/pf3/pf4/pf6)
168 × 336 / 128 × 256 / 104 × 208 / 80 × 160
Panel weight
14 kg
PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 24 values

What this product is, in numbers.

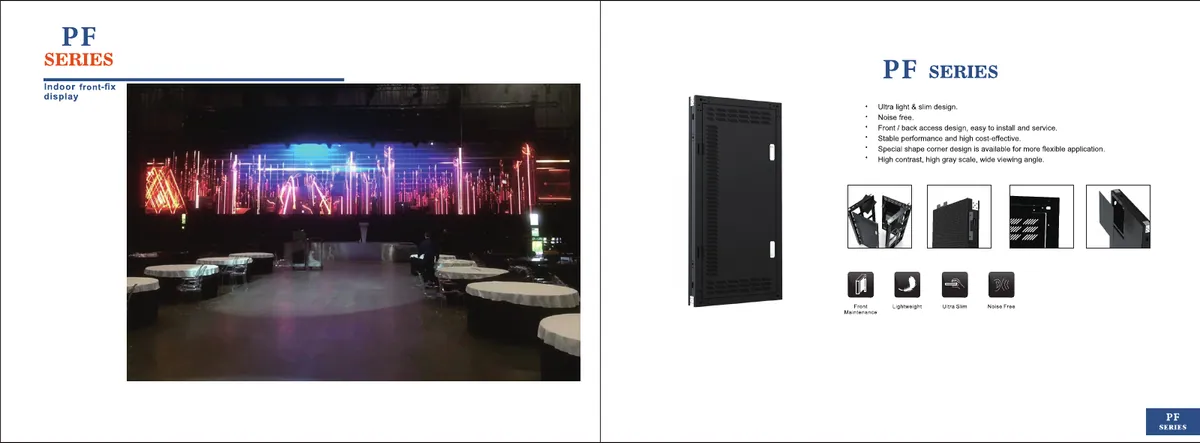

PDFDatasheetEN · 2 pages · 8.2 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications24
Pixel pitch
PF2 2.976 / PF3 3.906 / PF4 4.807 / PF6 6.25
Brightness
1000 nits
Pixel configuration (R/G/B)
SMD 3 in 1
Colour temperature (deg.K)
6500
Viewing angle-Horizontal (50% brightness) (deg.)
140 (+70 / -70)
Viewing angle-Vertical (50% brightness) (deg.)
140 (+70 / -70)
Recommended minimum viewing distance (m)
PF2 2.9 / PF3 3.9 / PF4 4.8 / PF6 6.2
Panel width
500 mm
Panel heigh
1000 mm
Panel depth
70 mm
Panel area (m²)
0.5
Panel material
Aluminum
Panel weight
14 kg
Ingress protection (front/back) (IP)
30 / 30
Pixel matrix per panel (PF2/PF3/PF4/PF6)
168 × 336 / 128 × 256 / 104 × 208 / 80 × 160
Brightness control
255
Digital processing
13 bit
Frame rate (Hertz)
50 / 60
Display refresh rate (Hertz)
1920
Input voltage (VAC)
100–240
Input power frequency (Hertz)
50–60
Input power (Avg.)
PF2 182 / PF3 196 / PF4 192 / PF6 175
Operating temperature range (deg.C)
-10~+45
Lifetime (50% brightness)
100,000 h
02DescriptionManufacturer's description

What it is.

Key points

  • Available pixel:2.6mm/2.9mm/3.9mm/4.8mm/6.25mm
  • Front and rear maintenance
  • Module size:250mm*250mm
  • The cabinet size can be adjusted freely according to the module size
  • Module with safety rope design, improve safety performance
  • It is widely used in indoor retail store solutions, indoor fixed installation, etc

01

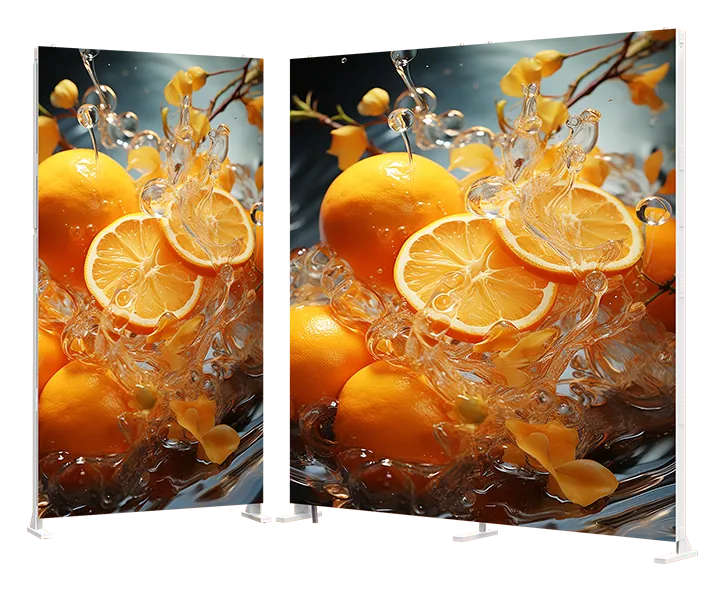

The cabinet size can be adjusted freely according to the module size

The color of the cabinet can be customized

DESAY PF Series: The cabinet size can be adjusted freely according to the module size

02

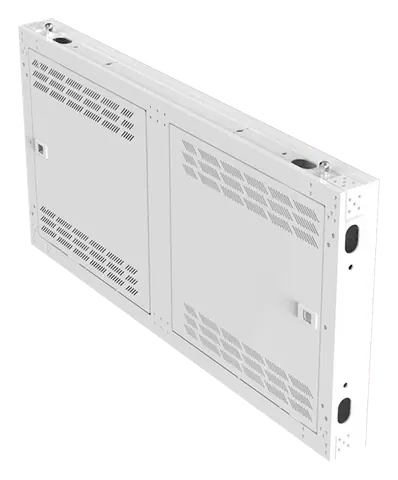

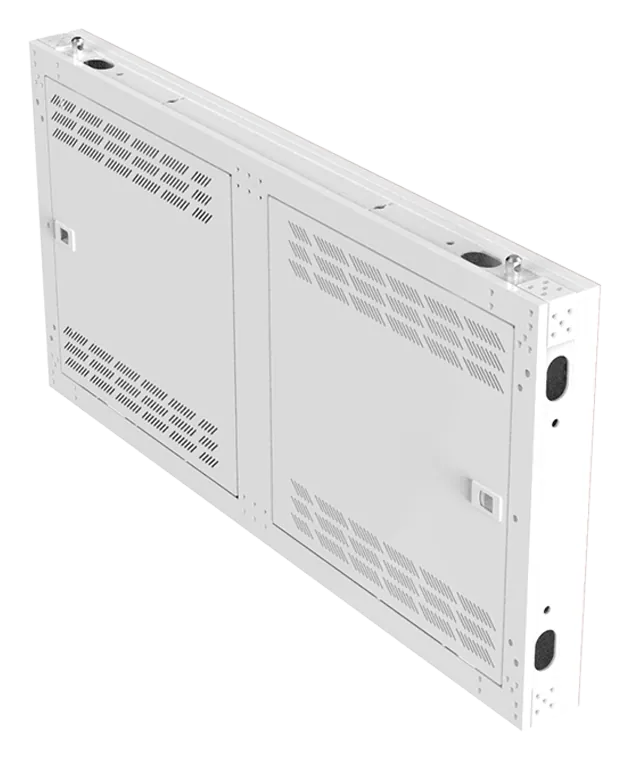

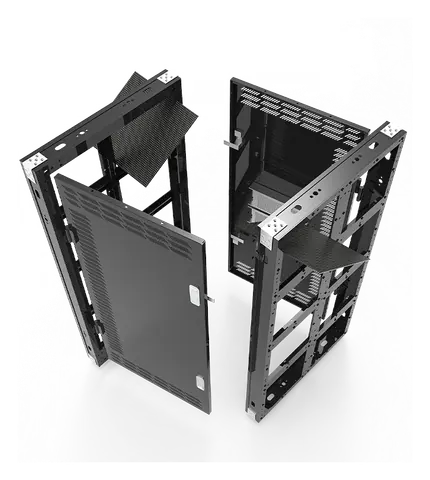

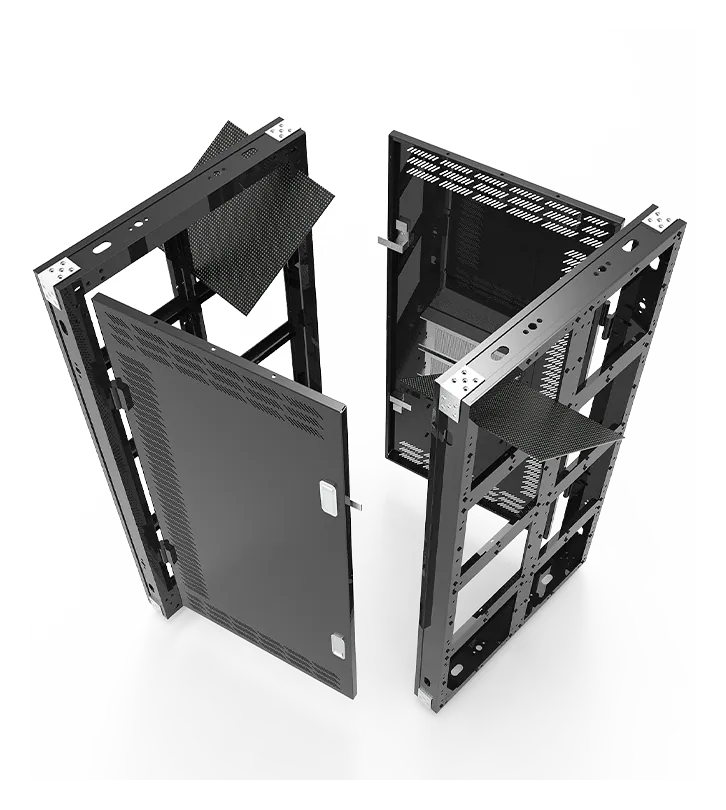

Fully front & rear maintenance

DESAY PF Series: Fully front & rear maintenance
DESAY PF Series: Fully front & rear maintenance

03

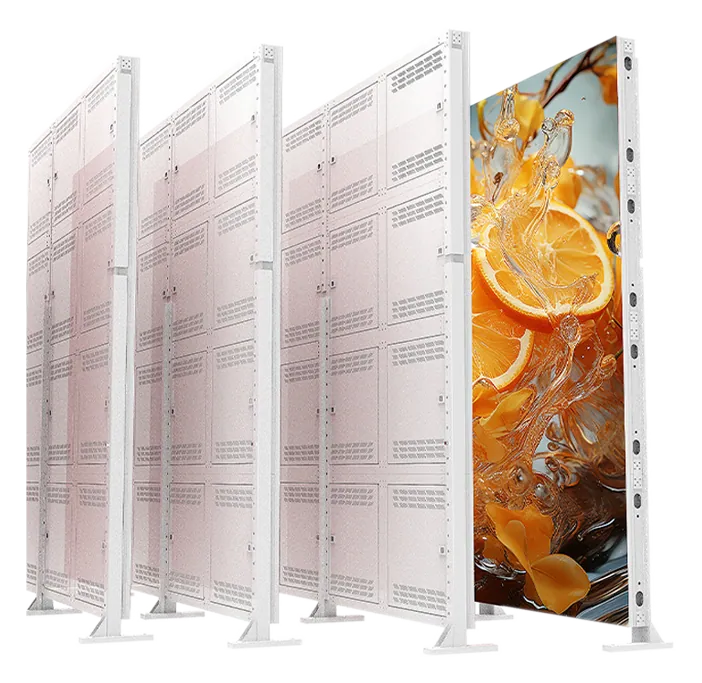

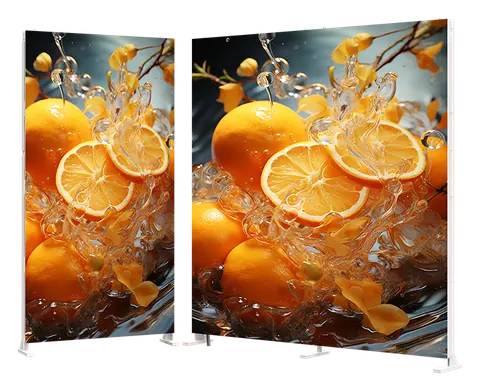

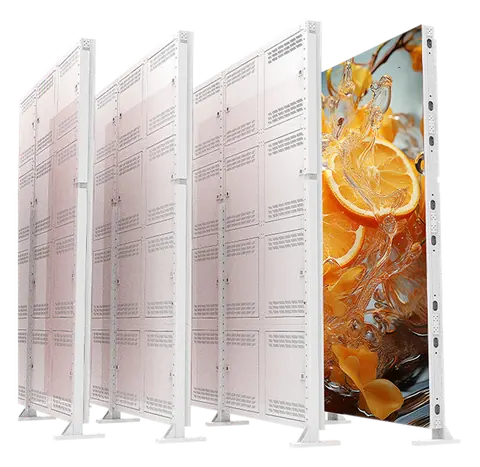

Indoor multi-scene fixed installation

Conventional indoor fixed installation, support wall installation

DESAY PF Series: Indoor multi-scene fixed installation

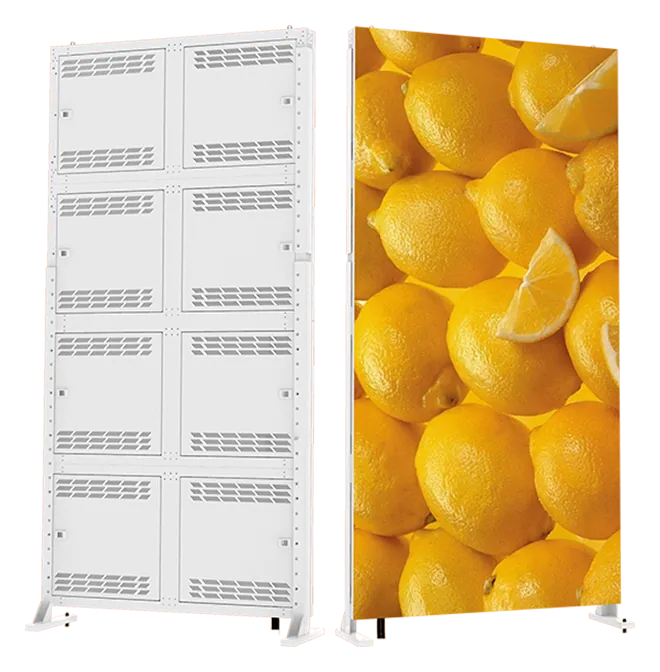

Supports easy landing installation---solution for retail applications

DESAY PF Series: manufacturer’s picture
DESAY PF Series: manufacturer’s picture
