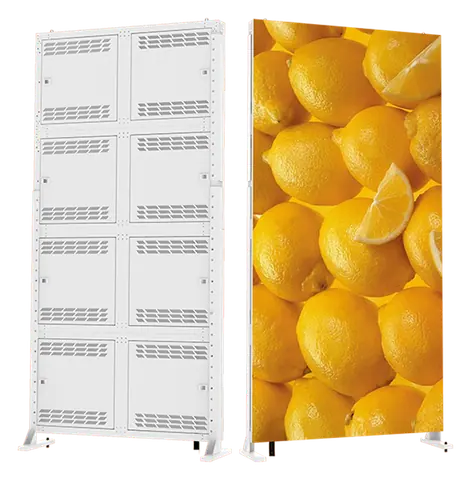

Matrix 2.9

Modular multi-purpose indoor LED display.

Series: Matrix Series
Pixel pitch: 2.976 mm
Brightness: 1000 nits
Panel size: 500 × 500 × 39 / 750 × 250 × 39 / 1000 × 250 × 39 mm
Panel weight: 20 kg
Maintenance: Front access / rear access

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 8 values

What this product is, in numbers.

PDFDatasheetEN · 6 pages · 5.1 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications8

Pixel pitch: 2.976 mm
Brightness: 1000 nits
Panel size: 500 × 500 × 39 / 750 × 250 × 39 / 1000 × 250 × 39 mm
Pixel matrix per module: 84 × 84
Panel material: Die-casting Aluminum
Panel weight: 20 kg
Ingress protection (front/back) (IP): 30 / 30
Maintenance: Front access / rear access

02Models6 models in the family

Models compared.

Model	Matrix 1.2	Matrix 1.5	Matrix 1.9	Matrix 2.6	Matrix 2.9	Matrix 3.9
Pixel pitch (mm)	1.25	1.563	1.953	2.604	2.976	3.906
Brightness (nits)	800	800	800	1000	1000	1000
Panel size (mm)	500 × 500 × 39 / 750 × 250 × 39 / 1000 × 250 × 39	500 × 500 × 39 / 750 × 250 × 39 / 1000 × 250 × 39	500 × 500 × 39 / 750 × 250 × 39 / 1000 × 250 × 39	500 × 500 × 39 / 750 × 250 × 39 / 1000 × 250 × 39	500 × 500 × 39 / 750 × 250 × 39 / 1000 × 250 × 39	500 × 500 × 39 / 750 × 250 × 39 / 1000 × 250 × 39
Pixel matrix per module	200 × 200	160 × 160	128 × 128	96 × 96	84 × 84	64 × 64
Panel material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Panel weight (Kg)	20	20	20	20	20	20
Ingress protection (front/back) (IP)	30 / 30	30 / 30	30 / 30	30 / 30	30 / 30	30 / 30
Maintenance	Front access / rear access	Front access / rear access	Front access / rear access	Front access / rear access	Front access / rear access	Front access / rear access

03DescriptionManufacturer's description

What it is.

Key points

Cabinet dimensions: 500×250 / 500×500 / 500×1000 / 750×250 / 1000×250
Supports horizontal, vertical and mixed splicing combinations
Supports 90° right-angle installation and 45° bevel splicing

Modular block design

Ultra-thin & lightweight

Hidden cable routing

Serviceability: front, rear, or front pull-out

Ultra-thin & Lightweight Design

Serice

Easily enables creative shapes and multi-dimensional structure applications
Universal Modules, Panels Can Be Horizontally or Vertically Mixed and Matched
Dedicated corner panels available for corner wrapping and pillar surrounding installation
Cube design, minimum size 500×500×500mm
Can be configured with corner panels

Supports column surround

Wall-mount thickness: only 58mm (profile mounting or direct wall mounting)
Stacked Installation – Compatible with 40-series aluminum profiles
Double-sided suspension: only 80mm thick; Profiles can be directly assembled into suspension beams
Single-sided suspension: 40mm profile mounting thickness
Ultra-thin all-in-one displays can be configured
Various types of advertising displays can be configured
