Sheet 05.1422
DESAY · Rental displays
TR 2.5
Fast installation with smart locking system
- Series
- TR Series
- Pixel pitch
- 2.583 mm
- Brightness
- 1000 nits
- Panel size

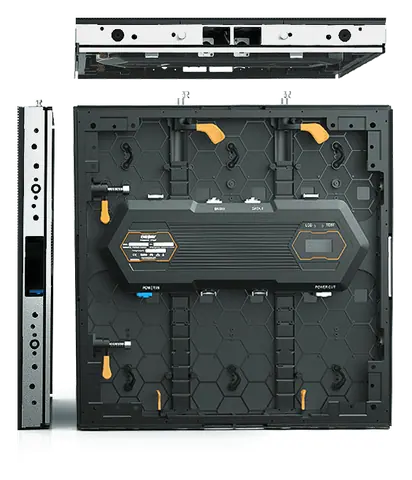

- 496 × 496 × 55 mm
- Pixel matrix per panel
- 192 × 192
- Panel weight
- 7.5 kg
- Maintenance
- Front access / rear access
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
TR 2.5Price on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 8 values
What this product is, in numbers.
PDFDatasheetEN · 2 pages · 2.4 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications8
- Pixel pitch
- 2.583 mm
- Brightness
- 1000 nits
- Panel size
- 496 × 496 × 55 mm
- Pixel matrix per panel
- 192 × 192
- Panel material
- Aluminum
- Panel weight
- 7.5 kg
- Ingress protection (front/rear) (IP)
- 30 / 30
- Maintenance
- Front access / rear access
Show the full specificationHide the rest of the specification0 more groups · 0 values
02Models3 models in the family
Models compared.
| Model | TR 1.9 | TR 2.5 | TR 2.9 |
|---|---|---|---|
| Pixel pitch (mm) | 1.968 | 2.583 | 2.952 |
| Brightness (nits) | 800 | 1000 | 1000 |
| Panel size (mm) | 496 × 496 × 55 | 496 × 496 × 55 | 496 × 496 × 55 |
| Pixel matrix per panel | 252 × 252 | 192 × 192 | 168 × 168 |
| Panel material | Aluminum | Aluminum | Aluminum |
| Panel weight (Kg) | 7.5 | 7.5 | 7.5 |
| Ingress protection (front/rear) (IP) | 30 / 30 | 30 / 30 | 30 / 30 |
| Maintenance | Front access / rear access | Front access / rear access | Front access / rear access |
03DescriptionManufacturer's description
What it is.

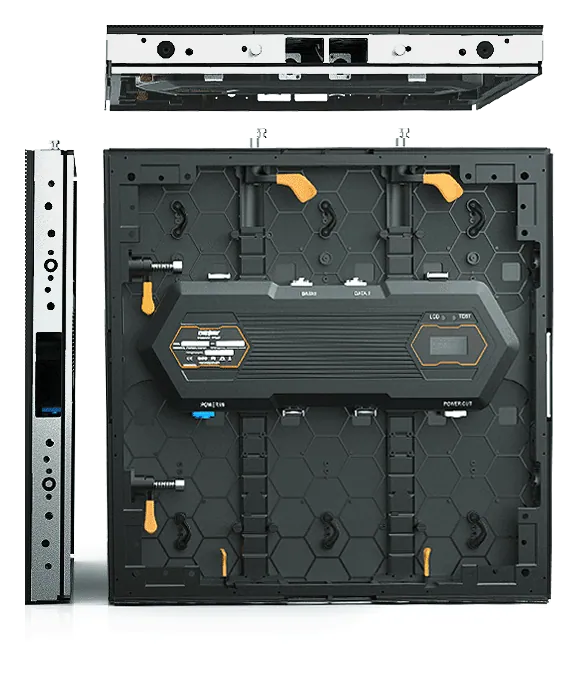

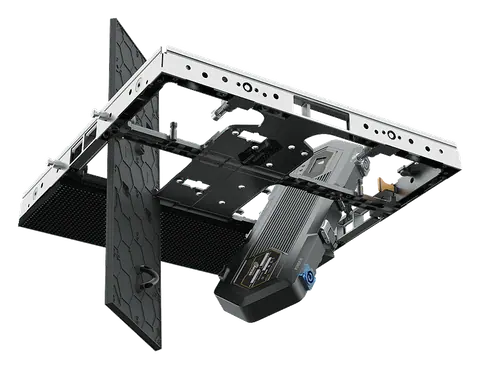

Ultra-slim rental LED panel.
Key points
Panel size:496mm*496mm
Only 55mm in depth

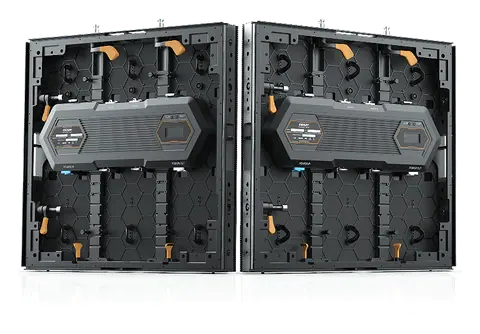

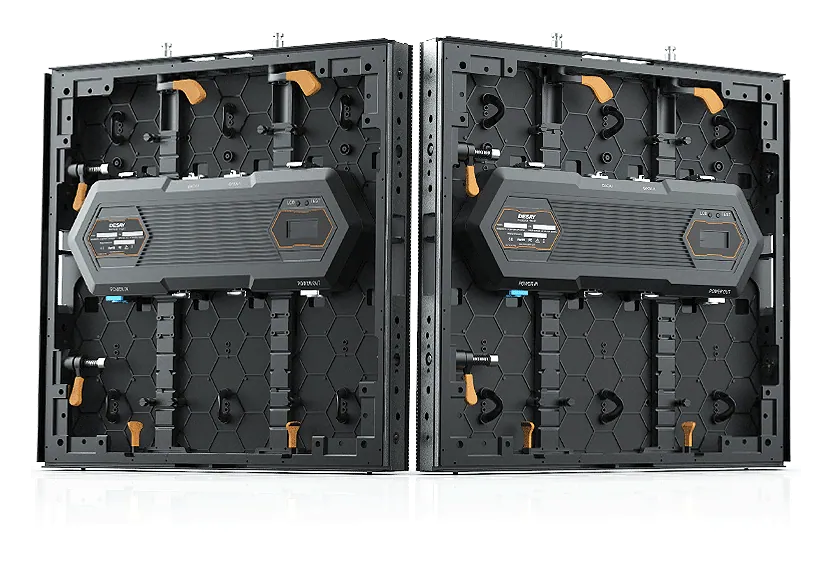

Modular design

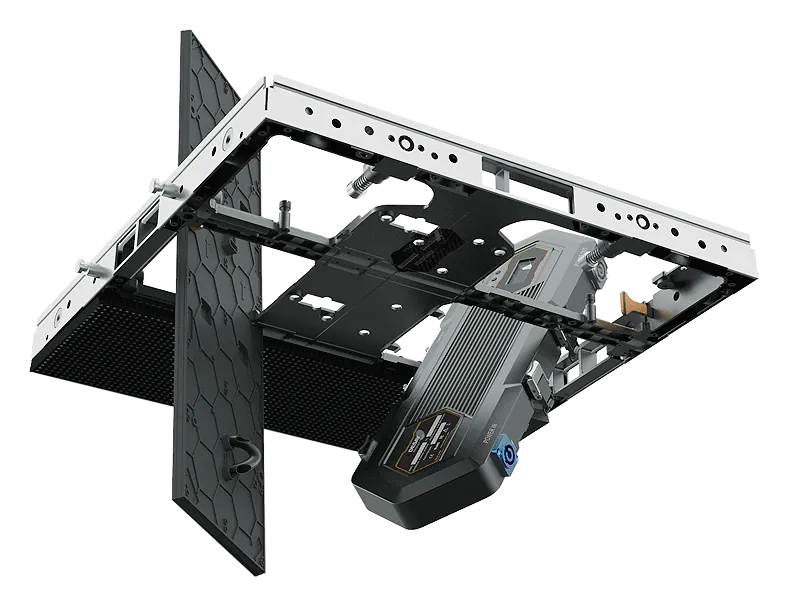

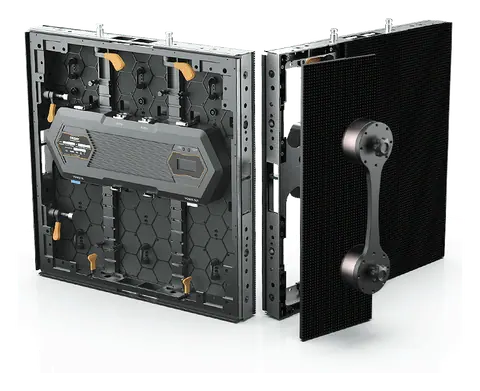

Front & back access

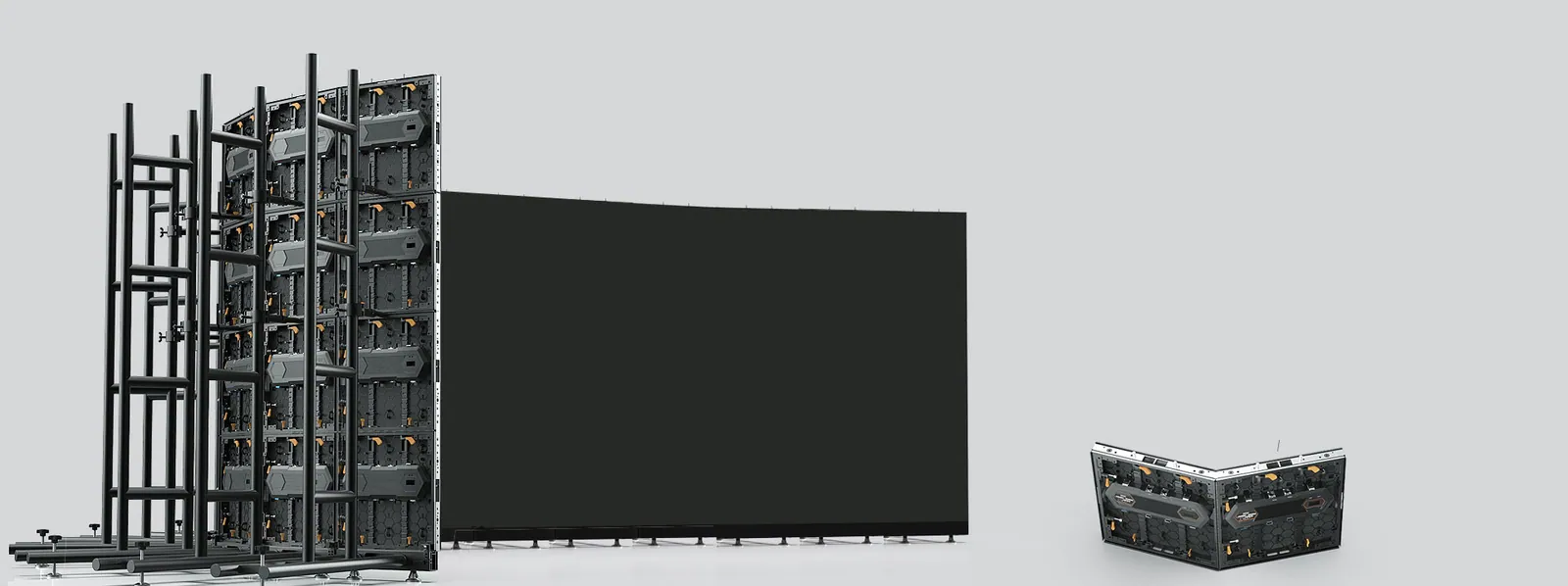

Intelligent IM
90° corner installation
Certificate:CE/FCC/UL/ROHS
Refresh Rate:3840HZ

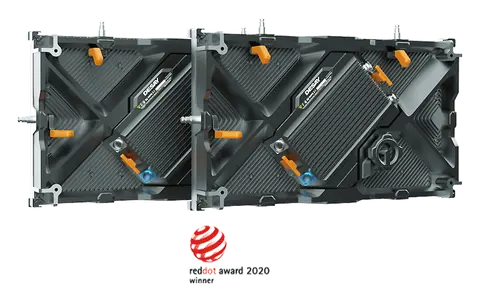

Concave Installation
Panel can be custom concave degrees
Can be custom smart installation frame
Hanging Installation

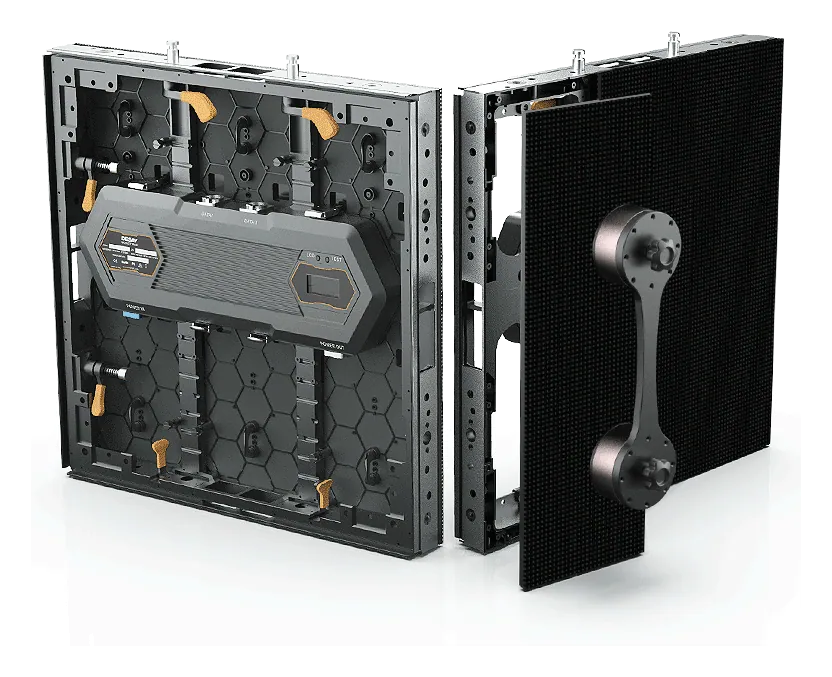

Dual-use Hanging & Stacking bar

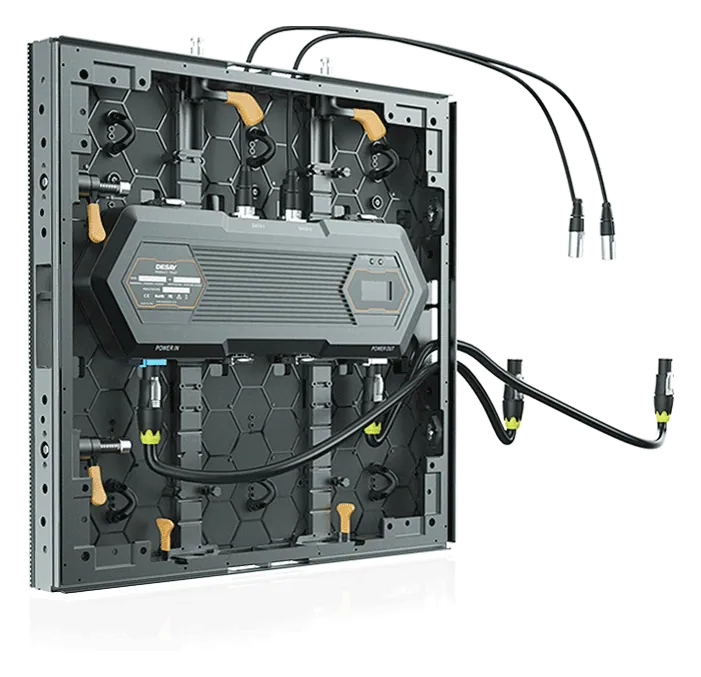

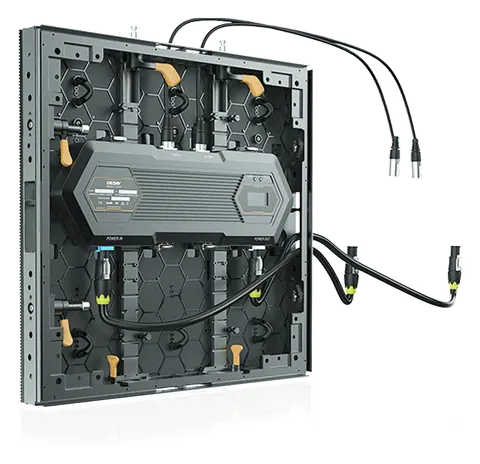

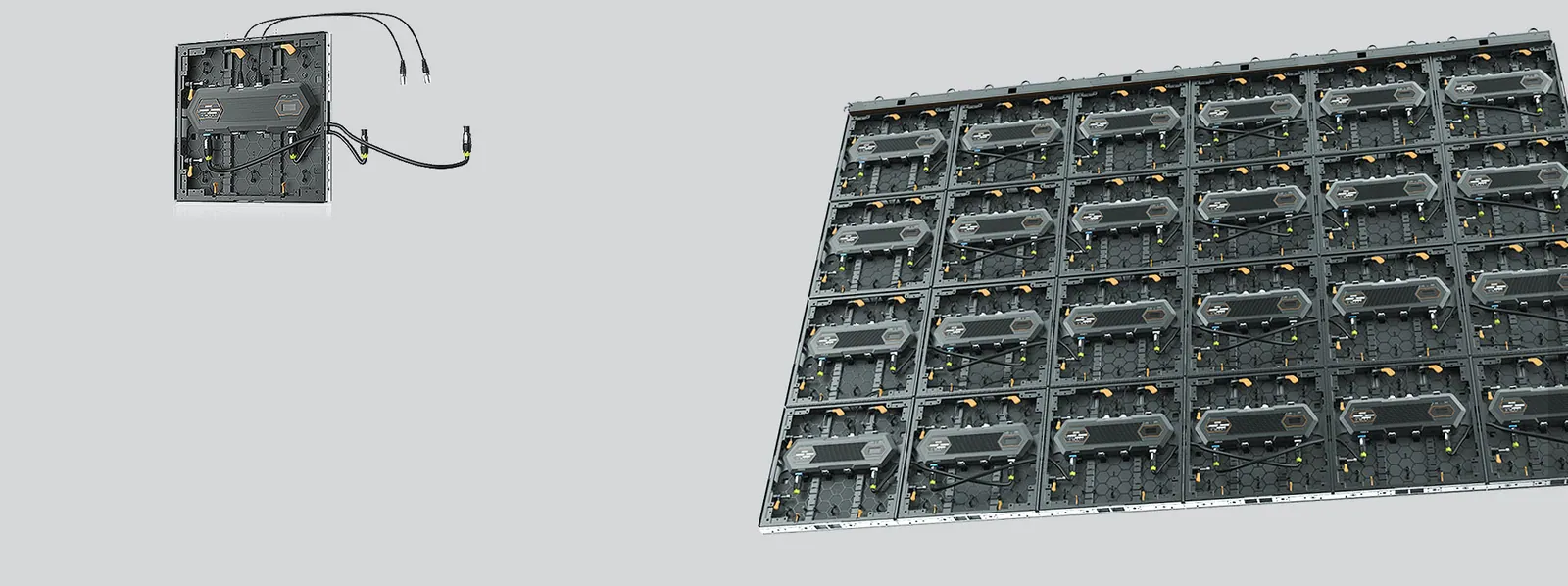

Cabinet side with cable through holes, keep screen backside clean outlook

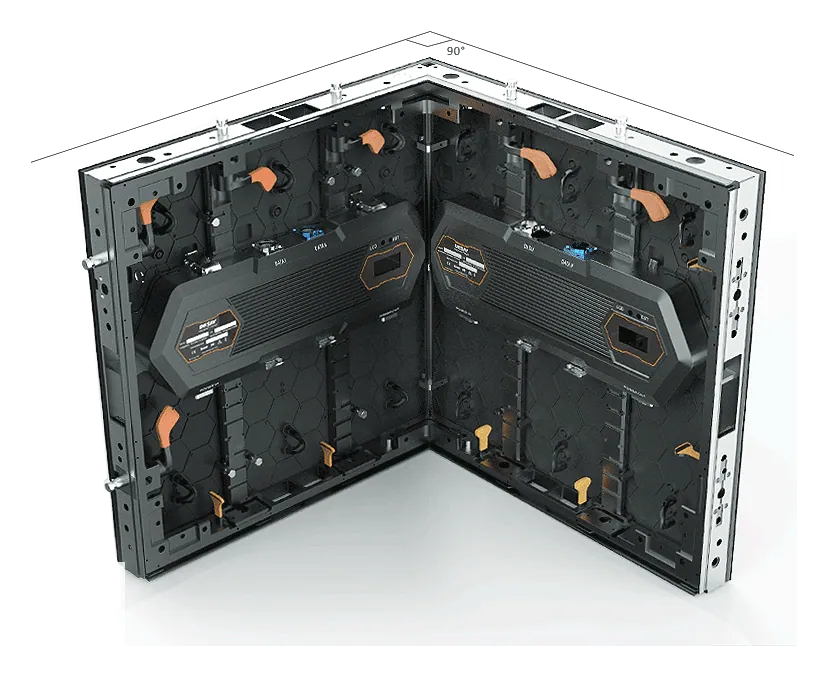

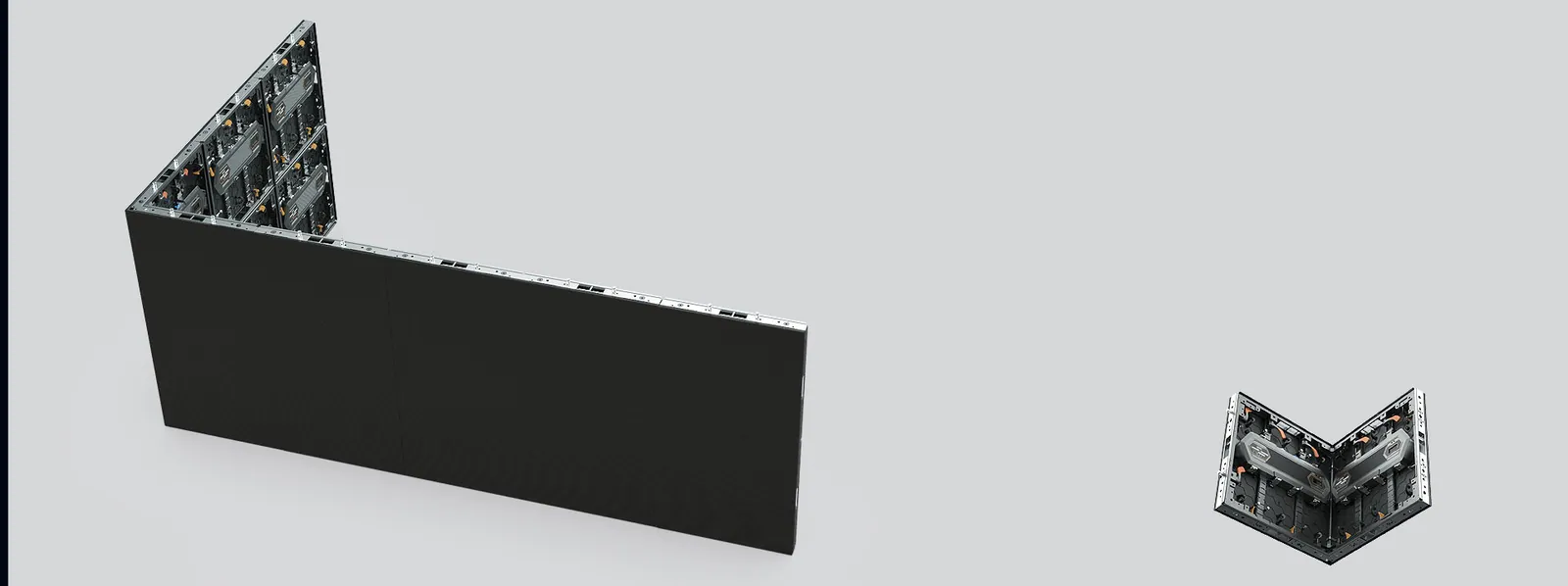

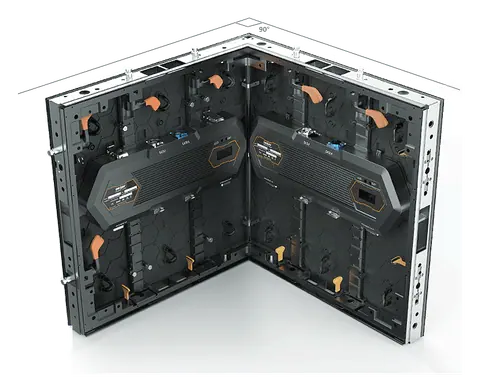

Corner Installation
90°panel option
Corner panel can work together with normal panel

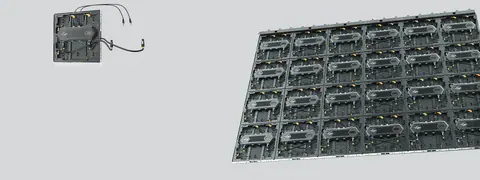

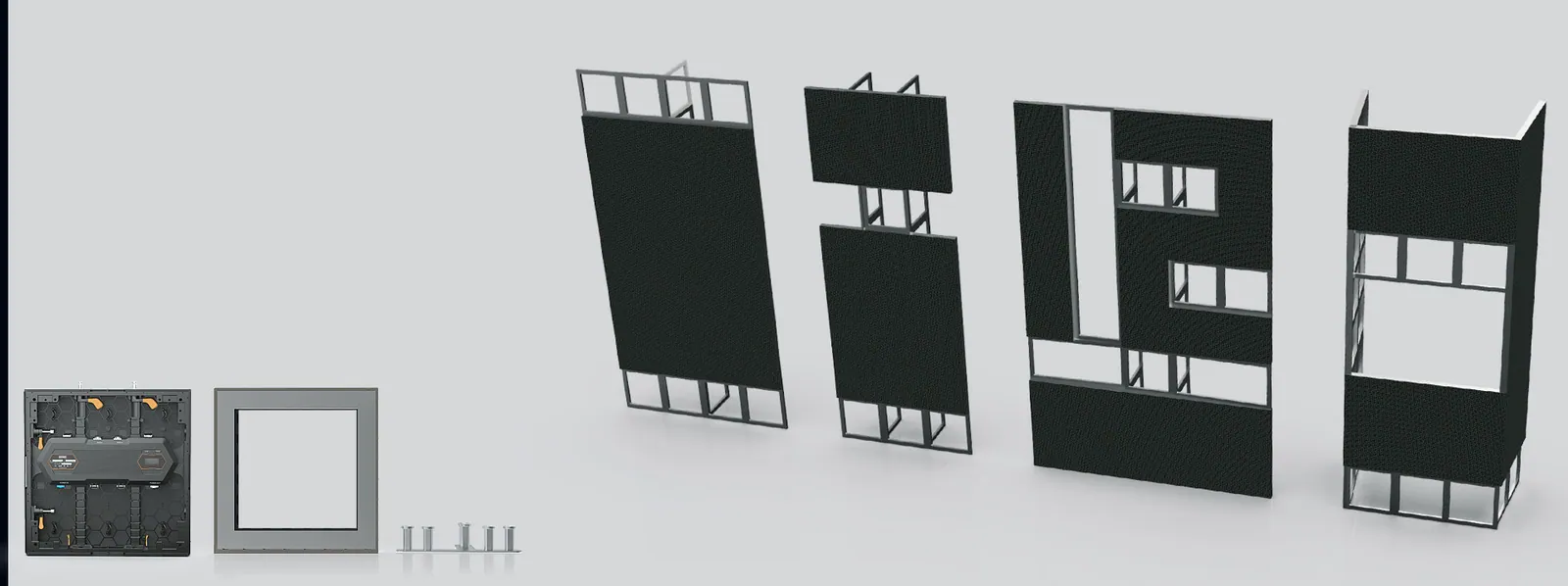

Creative Installation
Work with smart installation frame for creative shape installation
- DOOH and advertising
- Retail and hospitality
- Rental, concerts and stages
