DESAY · Outdoor displays

WT 2.6

Wall-mount weatherproof outdoor LED display.

Series
WT Series
Pixel pitch
2.604 mm
Brightness
5000 nits
Power consumption
max 680 / avg 238 W/m²
Panel size
750 × 250 × 50 / 1000 × 250 × 50 / 1250 × 250 × 50 mm
Pixel matrix per panel
384 × 96
Panel weight
8.5 kg
Maintenance
Full front access
PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 15 values

What this product is, in numbers.

PDFDatasheetEN · 2 pages · 5.6 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications15
Pixel pitch
2.604 mm
Brightness
5000 nits
Panel size
750 × 250 × 50 / 1000 × 250 × 50 / 1250 × 250 × 50 mm
Pixel matrix per panel
384 × 96
Panel weight
8.5 kg
Ingress protection (front/back) (IP)
65 / 54
Maintenance
Full front access
Panel material
Aluminum
Pixel configuration (R/G/B)
SMD 3 in 1
Gray scale
16 bit
Viewing angle-Horizontal (50% brightness) (Deg.)
140 (+70 / -70)
Viewing angle-Vertical (50% brightness) (Deg.)
140 (+70 / -70)
Display refresh rate
3840 Hz
Input voltage (VAC)
100–240
Power Consumption (Max./Avg.)
680±10% / 238±10% W/m²
02Models4 models in the family

Models compared.

ModelWT 1.9WT 2.6WT 2.9WT 3.9
Pixel pitch (mm)1.9532.6042.9763.906
Brightness (nits)3500500050006000
Panel size (mm)750 × 250 × 50 / 1000 × 250 × 50 / 1250 × 250 × 50750 × 250 × 50 / 1000 × 250 × 50 / 1250 × 250 × 50750 × 250 × 50 / 1000 × 250 × 50 / 1250 × 250 × 50750 × 250 × 50 / 1000 × 250 × 50 / 1250 × 250 × 50
Pixel matrix per panel512 × 128384 × 96336 × 84256 × 64
Panel weight (Kg)9.98.58.58.5
Ingress protection (front/back) (IP)65 / 5465 / 5465 / 5465 / 54
MaintenanceFull front accessFull front accessFull front accessFull front access
Panel materialAluminumAluminumAluminumAluminum
Pixel configuration (R/G/B)SMD 3 in 1SMD 3 in 1SMD 3 in 1SMD 3 in 1
Gray scale (bit)16161616
Viewing angle-Horizontal (50% brightness) (Deg.)140 (+70 / -70)140 (+70 / -70)140 (+70 / -70)140 (+70 / -70)
Viewing angle-Vertical (50% brightness) (Deg.)140 (+70 / -70)140 (+70 / -70)140 (+70 / -70)140 (+70 / -70)
Display refresh rate (Hz)3840384038403840
Input voltage (VAC)100–240100–240100–240100–240
Power Consumption (Max./Avg.) (W/m²)600±10% / 210±10%680±10% / 238±10%680±10% / 238±10%650±10% / 227±10%
03DescriptionManufacturer's description

What it is.

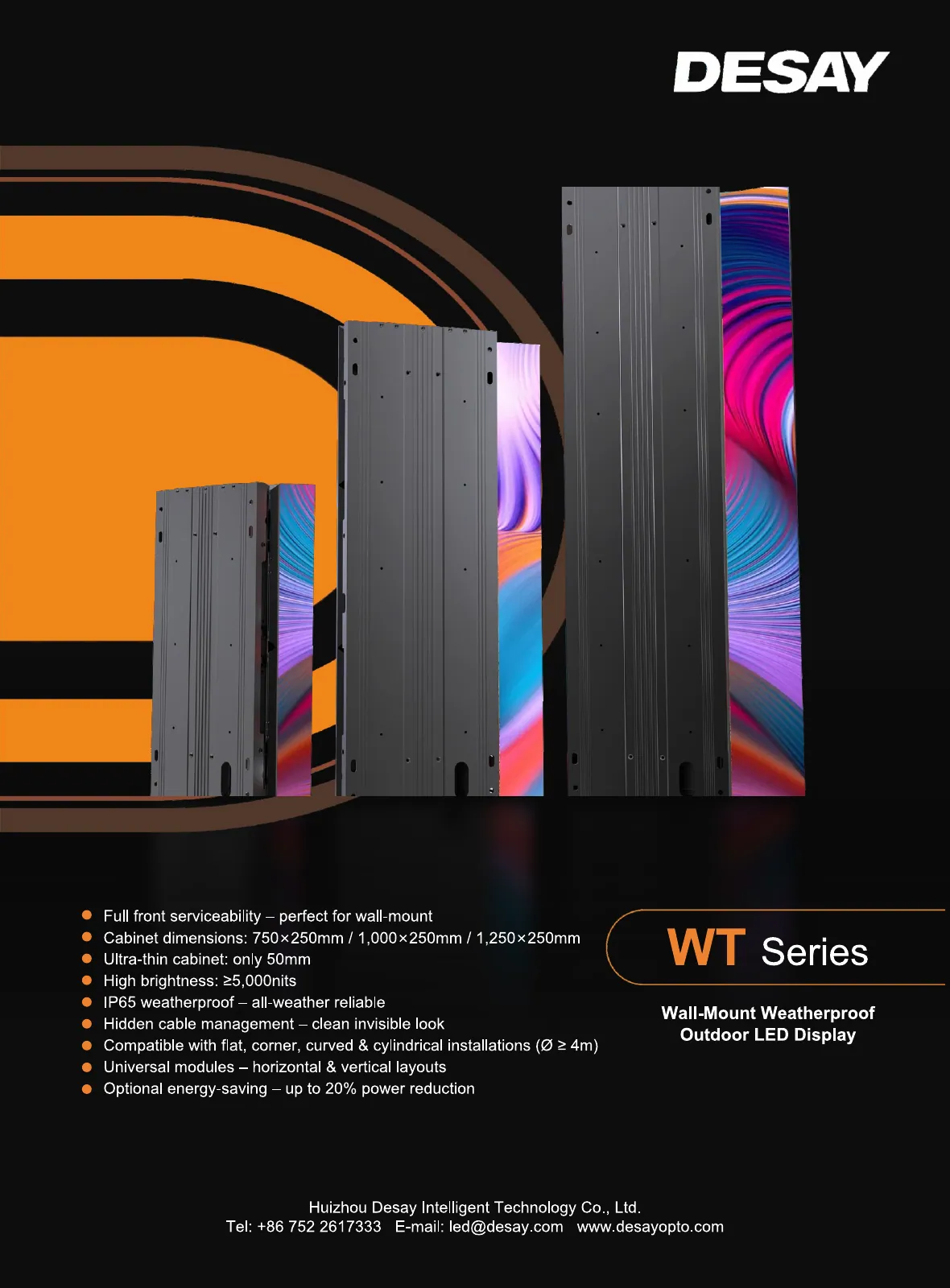

Key points

  • ​​Full front serviceability – perfect for wall-mount

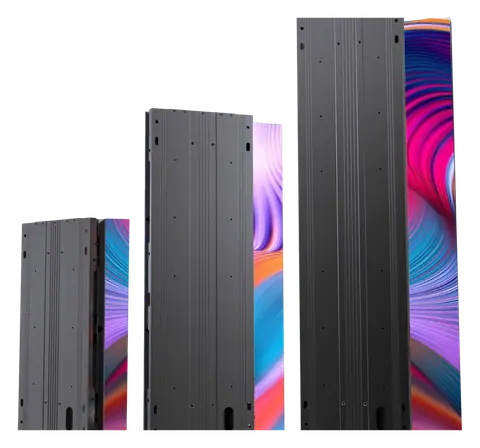

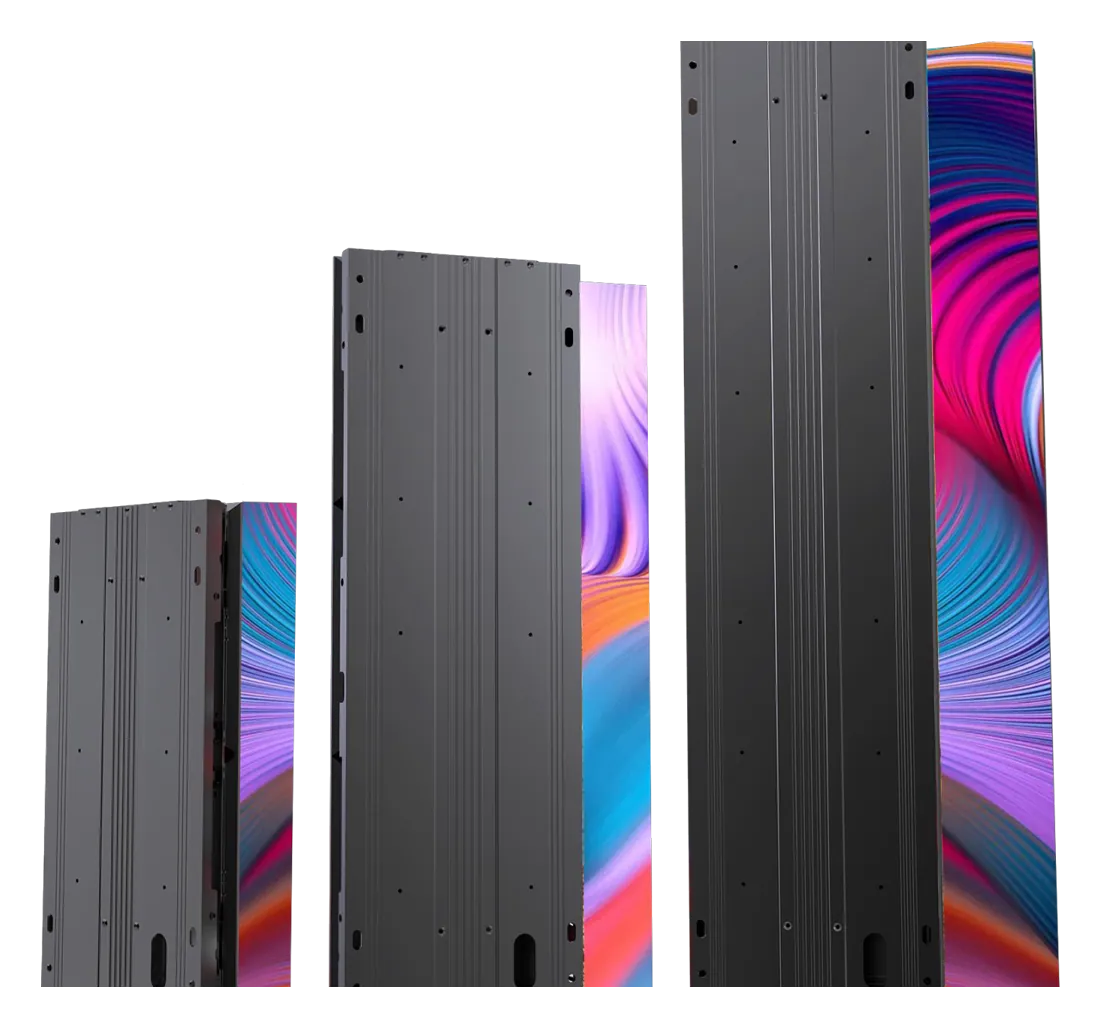

  • Cabinet dimensions: 750×250mm / 1,000×250mm / 1,250×250mm
  • Ultra-thin cabinet: only 50mm
  • High brightness: ≥5,000nits
  • IP65 weatherproof – all-weather reliable
  • Hidden cable management – clean invisible look
  • Compatible with flat, corner, curved & cylindrical installations (Ø ≥ 4m)
  • Universal modules – horizontal & vertical layouts
  • Optional energy-saving – up to 20% power reduction

01

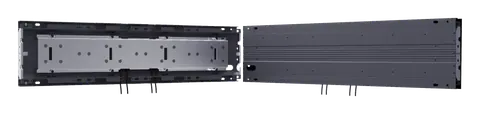

Universal modules – horizontal & vertical layouts

DESAY WT 2.6: Universal modules – horizontal & vertical layouts

02

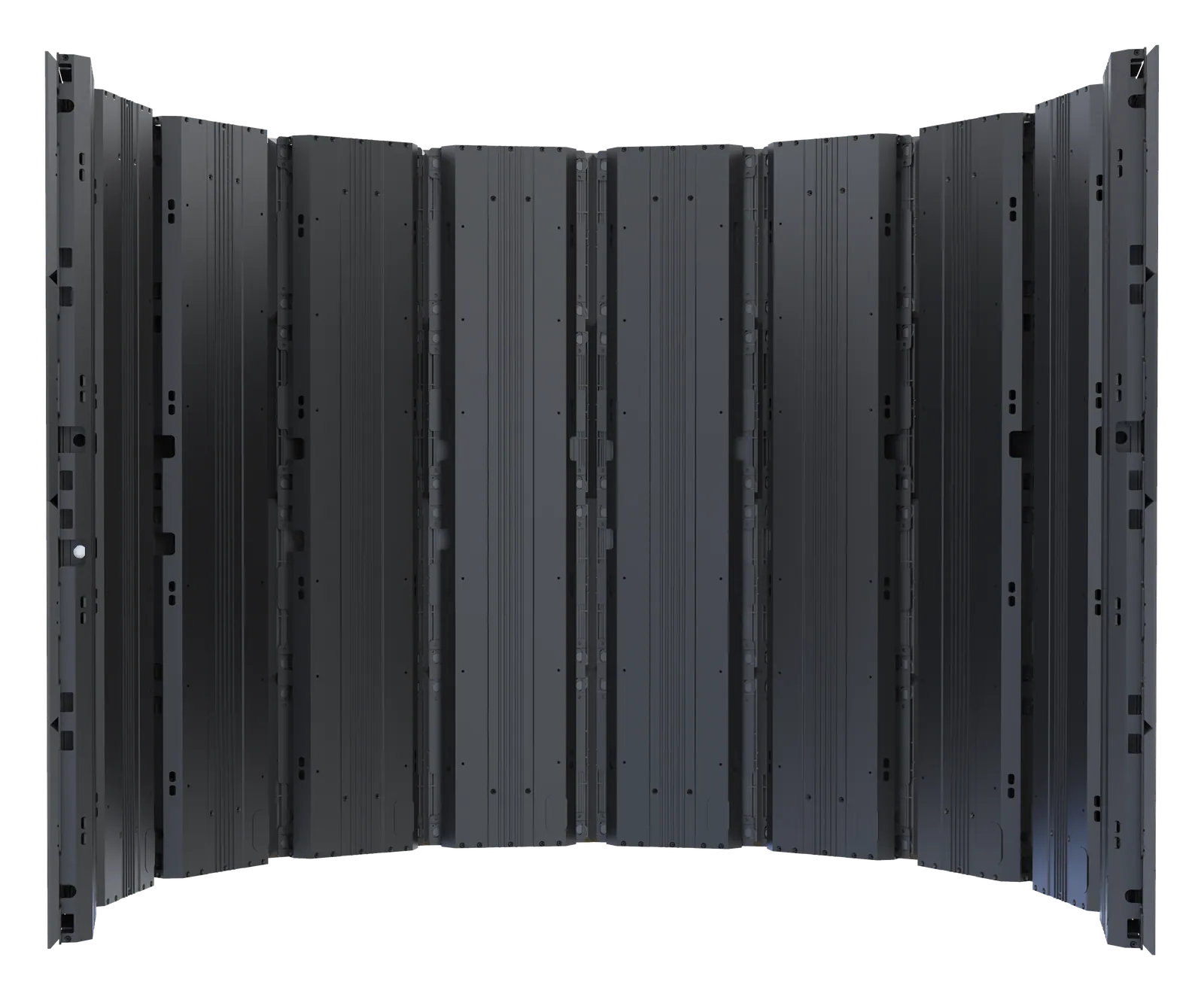

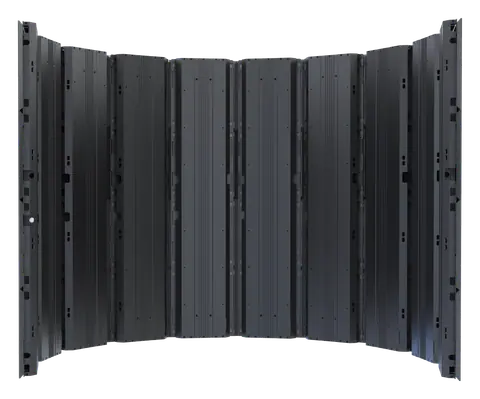

Compatible with flat, corner, curved, & cylindrical installations (Ø≥4m)

DESAY WT 2.6: Compatible with flat, corner, curved, & cylindrical installations (Ø≥4m)
DESAY WT 2.6: Compatible with flat, corner, curved, & cylindrical installations (Ø≥4m)

03

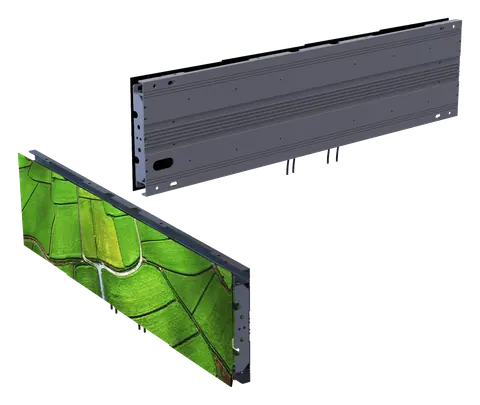

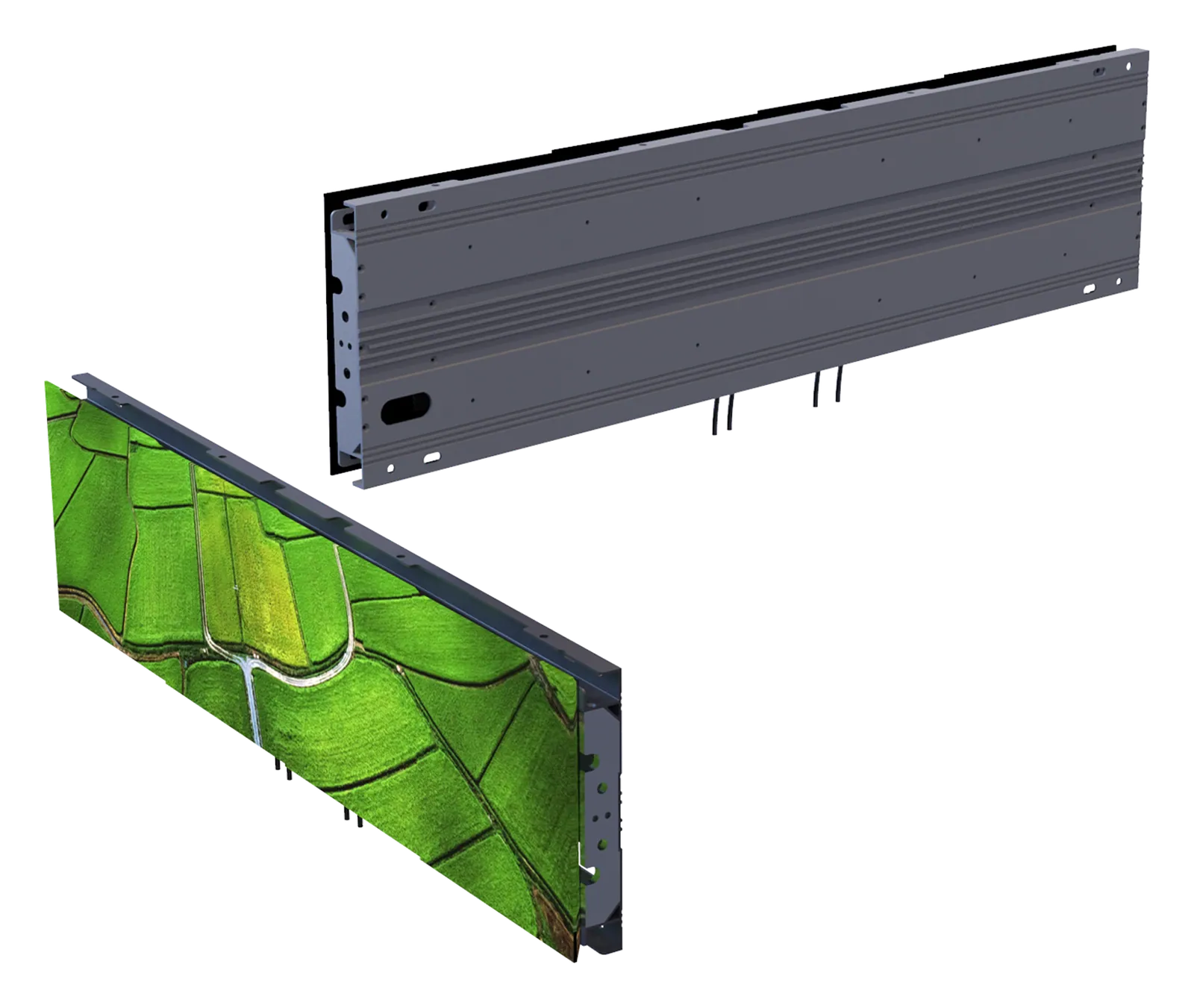

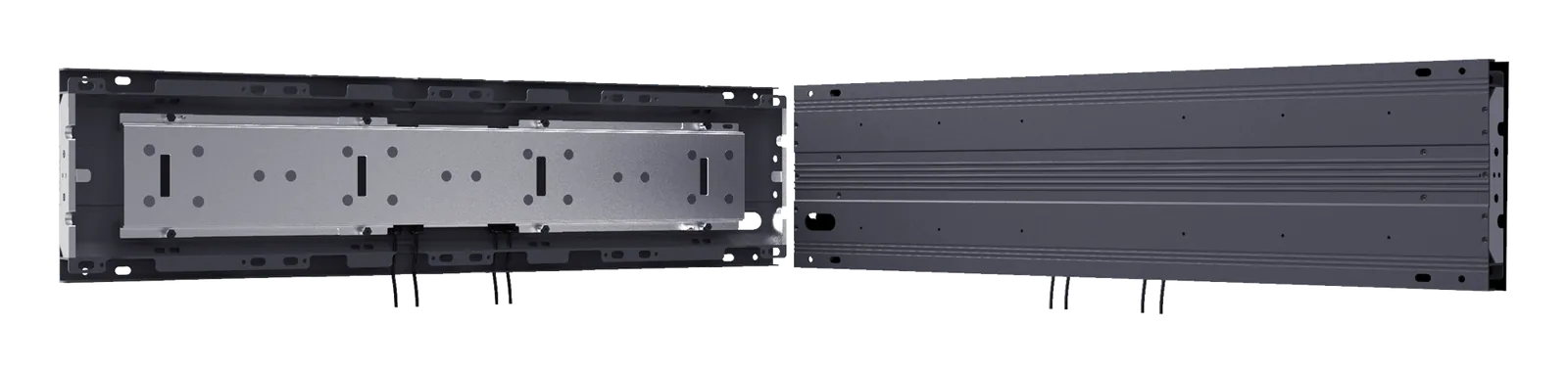

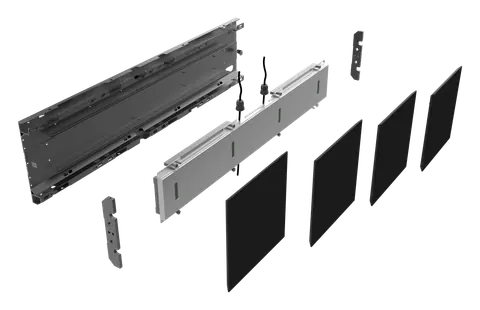

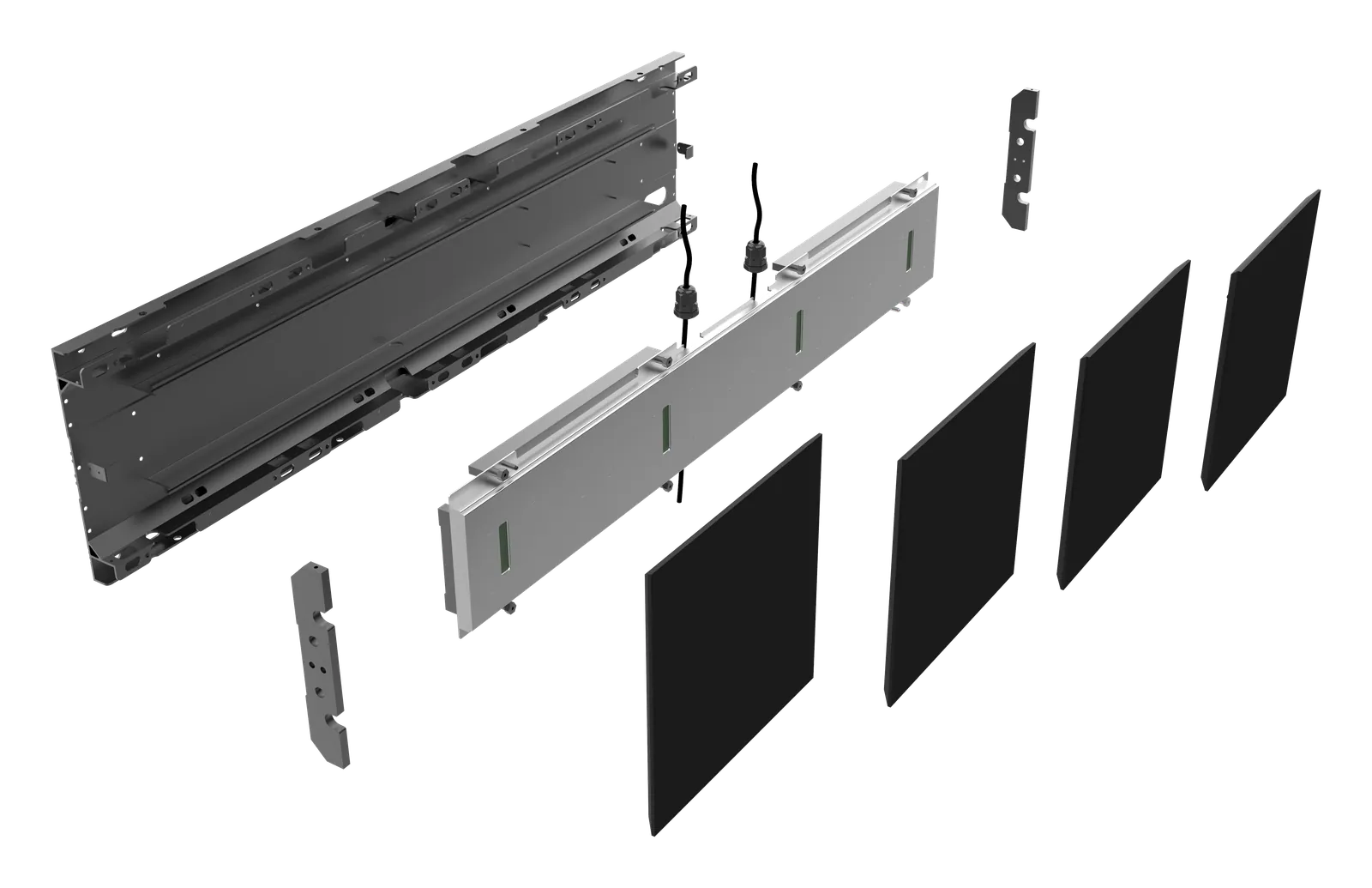

Full front serviceability – perfect for wall-mount

Ultra-thin cabinet with only 50mm thickness

DESAY WT 2.6: Full front serviceability – perfect for wall-mount
DESAY WT 2.6: Full front serviceability – perfect for wall-mount

04

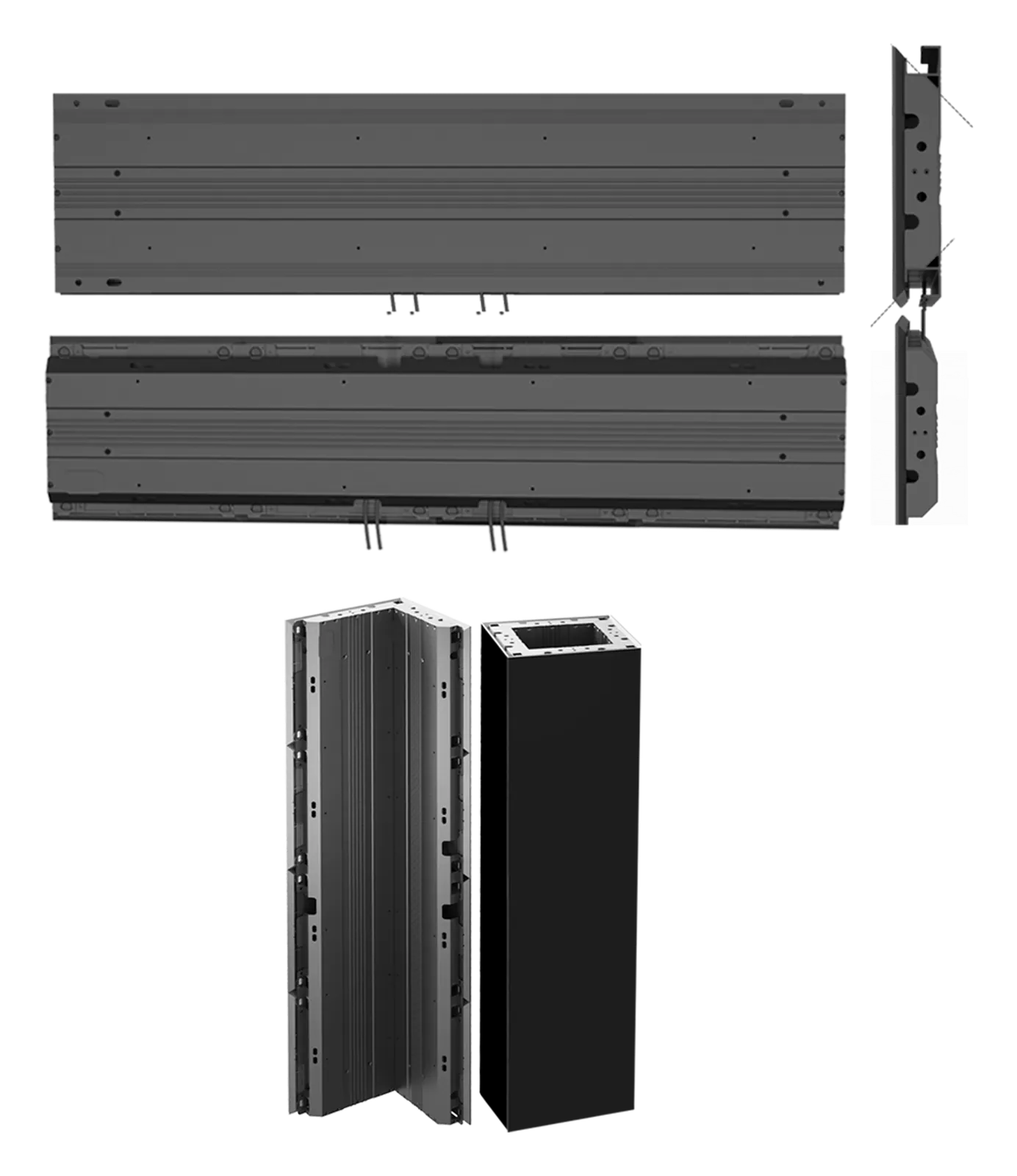

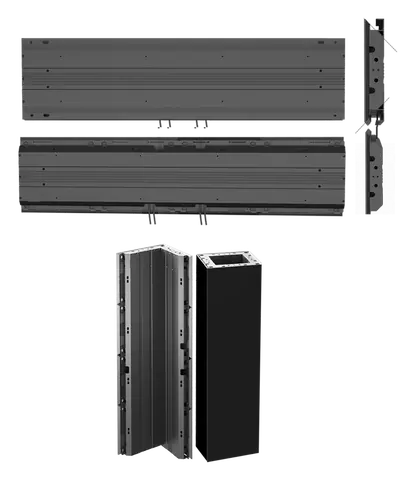

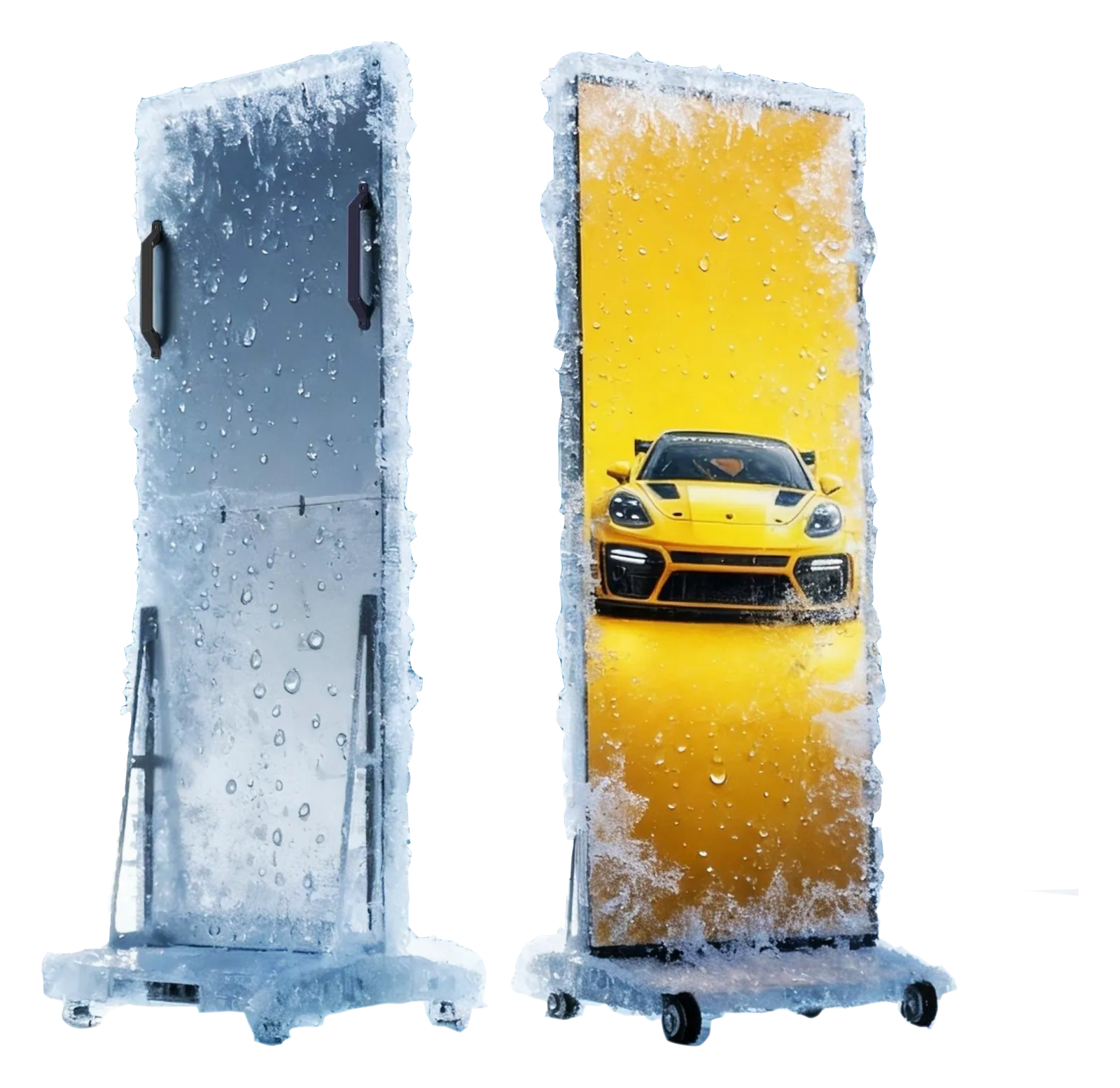

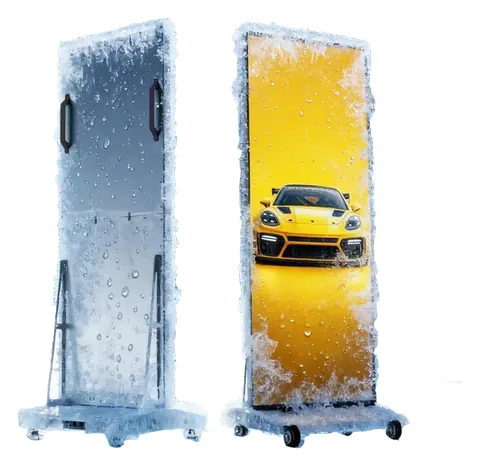

Single-Sided & Double-Sided Totem Applications

DESAY WT 2.6: Single-Sided & Double-Sided Totem Applications
DESAY WT 2.6: Single-Sided & Double-Sided Totem Applications
