Sheet 05.1238
Esdlumen · Indoor fixed displays
BIM Plus-TX1.9
Indoor commercial dual-side display: twin display, unique panel design, excellent dissipation, versatile sizes, flexible maintenance, wireless connection.
- Series
- BIM Plus-T/TX Series
- Pixel pitch
- 1.9 mm
- Brightness
- 800 / 2500 nits
- Panel size
- 500 × 1000 × 45 / 750 × 250 × 45 / 500 × 250 × 45 mm
- Panel resolution
- 128 × 128
- Refresh rate
- 3840 Hz
- LED type
- SMD
- IP rating
- IP30
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
BIM Plus-TX1.9Price on requestRequest a quotation
01VideoManufacturer's video · 1:45
Esdlumen BIM Plus-TX1.9: the manufacturer's video
02SpecificationManufacturer's data · 1 group · 16 values
What this product is, in numbers.
PDFDatasheetEN · 2 pages · 1.1 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications16
- Pixel Pitch
- 1.9 mm
- Panel Size
- 500 × 1000 × 45 / 750 × 250 × 45 / 500 × 250 × 45 mm
- Panel Resolution
- 128 × 128
- Weight
- 12.5 / 6 / 4 kg
- Brightness
- 800 / 2500 nits
- Panel Material
- Die-casting aluminum
- Serviceability
- Front
- Display Mode
- Double side
- Pixel Density
- 262144 px/m²
- LED Type
- SMD
- Module Size W × H
- 250 × 250 mm
- Module Resolution W × H
- 128 × 128 px
- Refresh Rate
- 3840 Hz
- Color Temperature
- 2000–10000 (Adjustable)
- IP Rating
- IP30
- Certifications
- CB, EMC, LVD, RoHS, ETL, PSE, FCC, CCC, Tensile Test Report
Show the full specificationHide the rest of the specification0 more groups · 0 values
03Models8 models in the family
Models compared.
| Model | BIM Plus-T1.5 (COB) | BIM Plus-TX1.5 (COB) | BIM Plus-T1.9 | BIM Plus-TX1.9 | BIM Plus-T2.6 | BIM Plus-TX2.6 | BIM Plus-T3.9 | BIM Plus-TX3.9 |
|---|---|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 1.5 | 1.5 | 1.9 | 1.9 | 2.6 | 2.6 | 3.9 | 3.9 |
| Panel Size (mm) | 500 × 1000 × 43 / 750 × 250 × 43 / 500 × 250 × 43 | 500 × 1000 × 45 / 750 × 250 × 45 / 500 × 250 × 45 | 500 × 1000 × 43 / 750 × 250 × 43 / 500 × 250 × 43 | 500 × 1000 × 45 / 750 × 250 × 45 / 500 × 250 × 45 | 500 × 1000 × 43 / 750 × 250 × 43 / 500 × 250 × 43 | 500 × 1000 × 45 / 750 × 250 × 45 / 500 × 250 × 45 | 500 × 1000 × 43 / 750 × 250 × 43 / 500 × 250 × 43 | 500 × 1000 × 45 / 750 × 250 × 45 / 500 × 250 × 45 |
| Panel Resolution | 160 × 160 | 160 × 160 | 128 × 128 | 128 × 128 | 96 × 96 | 96 × 96 | 64 × 64 | 64 × 64 |
| Weight (Kg/pc) | 11.5 / 5 / 3.5 | 12.5 / 6 / 4 | 11.5 / 5 / 3.5 | 12.5 / 6 / 4 | 11.5 / 5 / 3.5 | 12.5 / 6 / 4 | 11.5 / 5 / 3.5 | 12.5 / 6 / 4 |
| Brightness (nits) | 3000 | 2500 | 800 / 3500 | 800 / 2500 | 900 / 3500 | 900 / 2500 | 1000 | 1000 |
| Panel Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Serviceability | Front / Rear | Front | Front / Rear | Front | Front / Rear | Front | Front / Rear | Front |
| Display Mode | Single side | Double side | Single side | Double side | Single side | Double side | ||
| Pixel Density (pixels/m²) | 409600 | 409600 | 262144 | 262144 | 147456 | 147456 | ||
| LED Type | COB | COB | SMD | SMD | SMD | SMD | ||
| Module Size W × H (mm) | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 | ||
| Module Resolution W × H (pixel) | 160 × 160 | 160 × 160 | 128 × 128 | 128 × 128 | 96 × 96 | 96 × 96 | ||
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | ||
| Color Temperature (K) | 2000–10000 (Adjustable) | 2000–10000 (Adjustable) | 2000–10000 (Adjustable) | 2000–10000 (Adjustable) | 2000–10000 (Adjustable) | 2000–10000 (Adjustable) | ||
| IP Rating | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 | ||
| Certifications | CB, EMC, LVD, RoHS, ETL, PSE, FCC, CCC, Tensile Test Report | CB, EMC, LVD, RoHS, ETL, PSE, FCC, CCC, Tensile Test Report | CB, EMC, LVD, RoHS, ETL, PSE, FCC, CCC, Tensile Test Report | CB, EMC, LVD, RoHS, ETL, PSE, FCC, CCC, Tensile Test Report | CB, EMC, LVD, RoHS, ETL, PSE, FCC, CCC, Tensile Test Report | CB, EMC, LVD, RoHS, ETL, PSE, FCC, CCC, Tensile Test Report |
04DescriptionManufacturer's description
What it is.

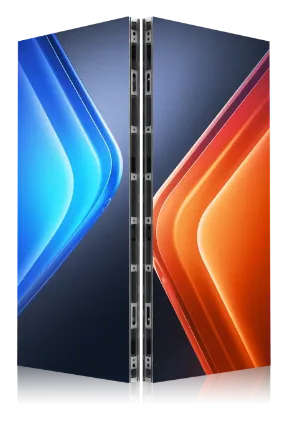

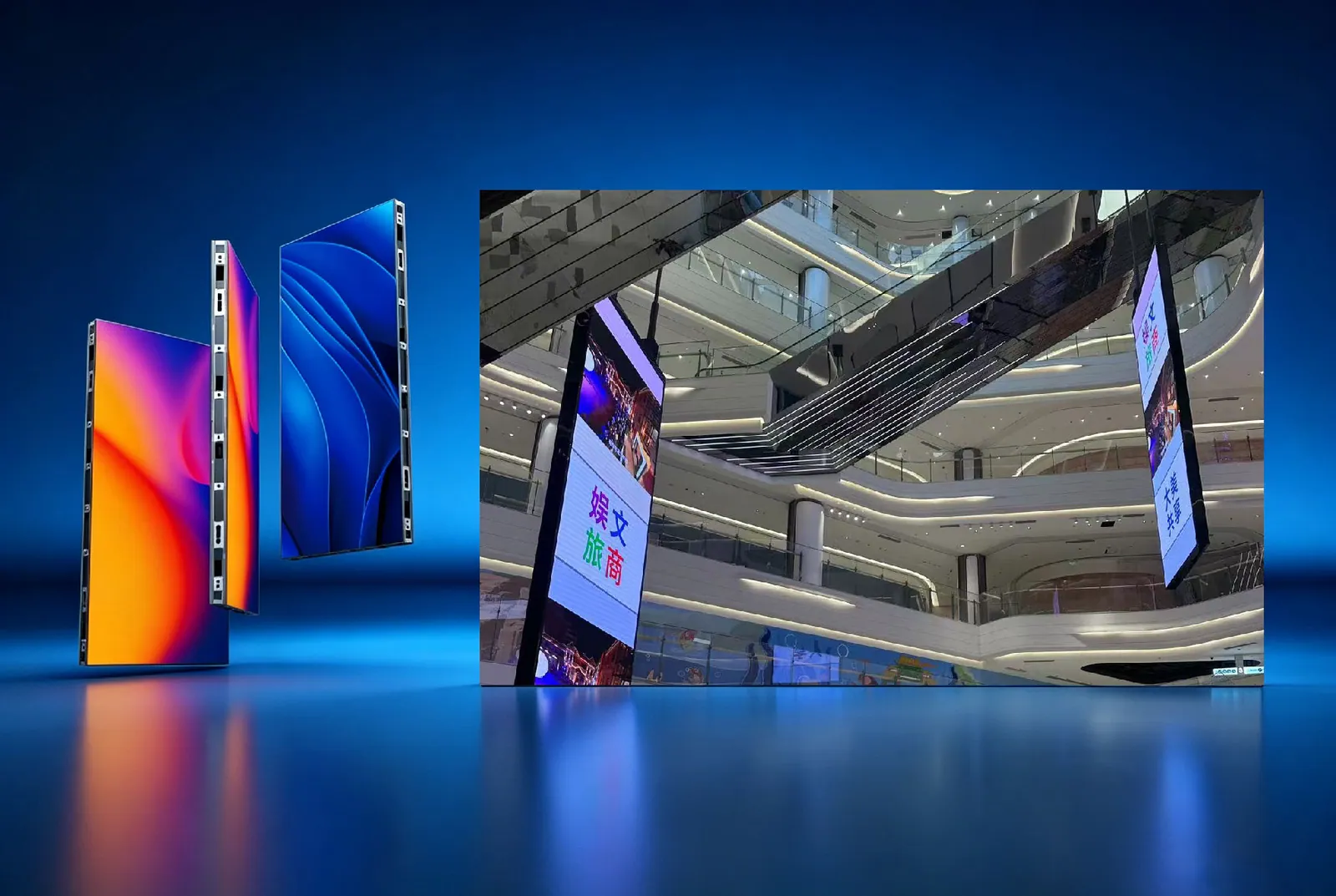

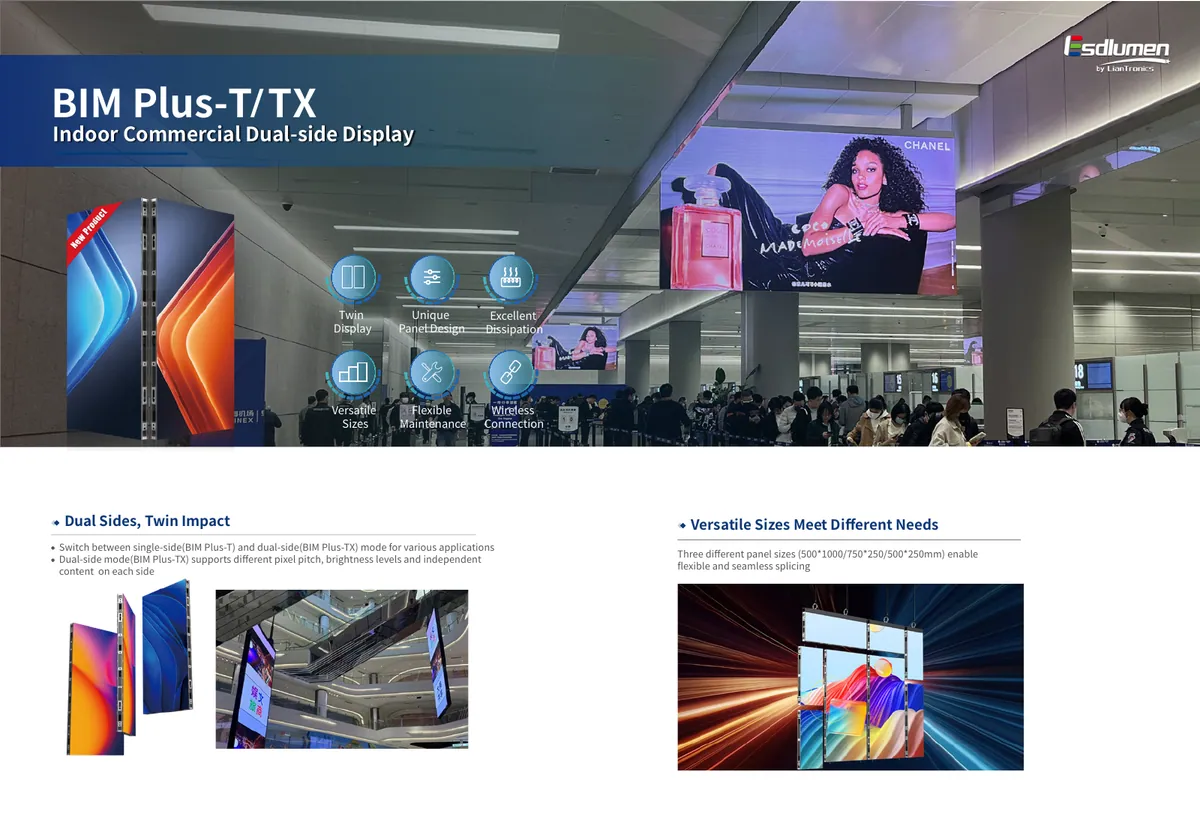

Dual Sides, Twin Impact
Switch between single-side (BIM Plus-T) and dual-side (BIM Plus-TX) mode for various applications
Dual-side mode (BIM Plus-TX) supports different pixel pitch, brightness levels and independent content on each side
Versatile Sizes Meet Different Needs
Three different panel sizes (500*1000/750*250/500*250mm) enable flexible and seamless splicing

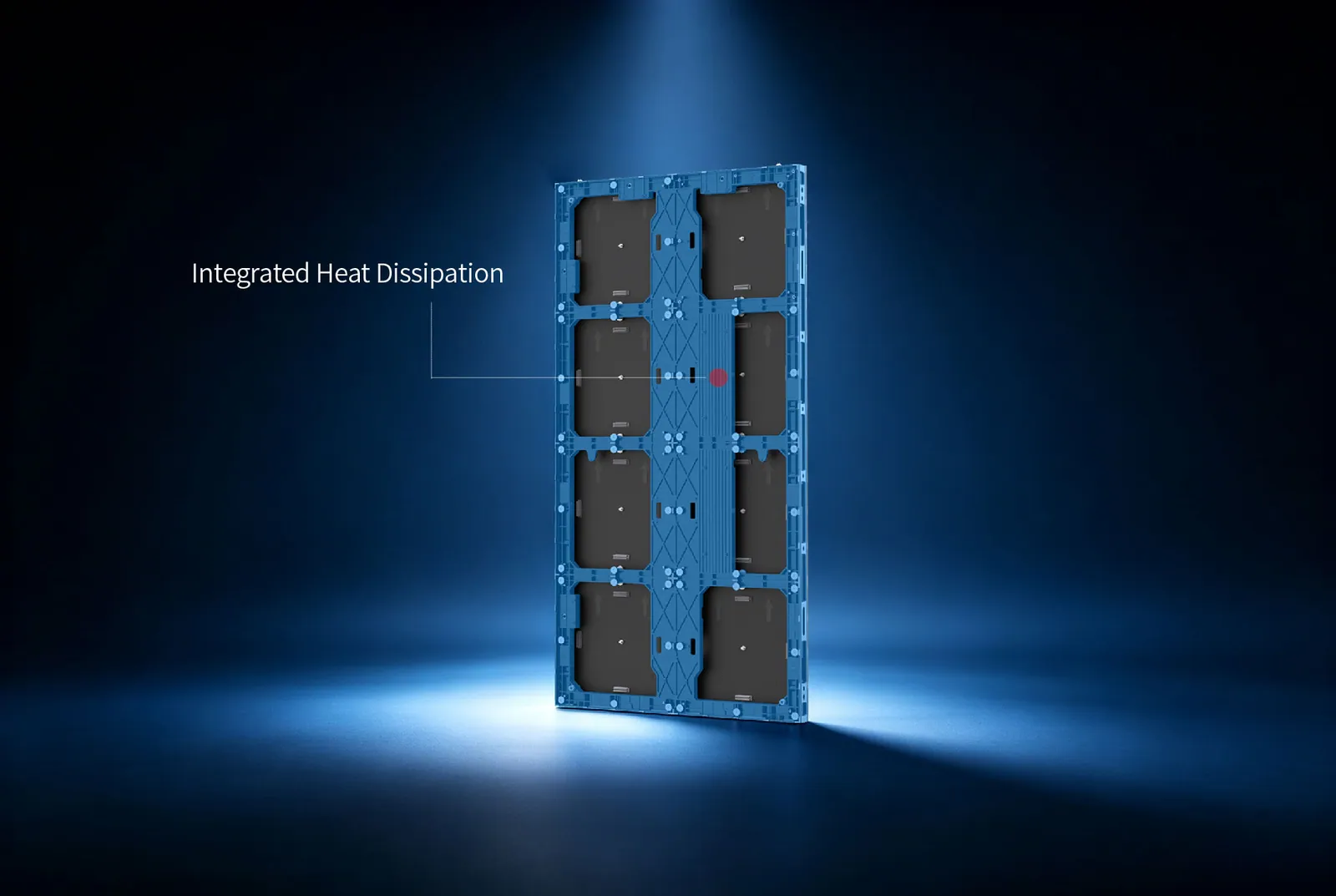

Massive Dissipation Structure
Die-casting aluminum board with heat dissipation ribs forms massive dissipation area, enhancing display uniformity
Multiple side ventilation holes enhance internal airflow
Stable Wireless Connection
Wireless module connectivity ensures efficient installation and maintenance, and secures higher stability during prolonged use

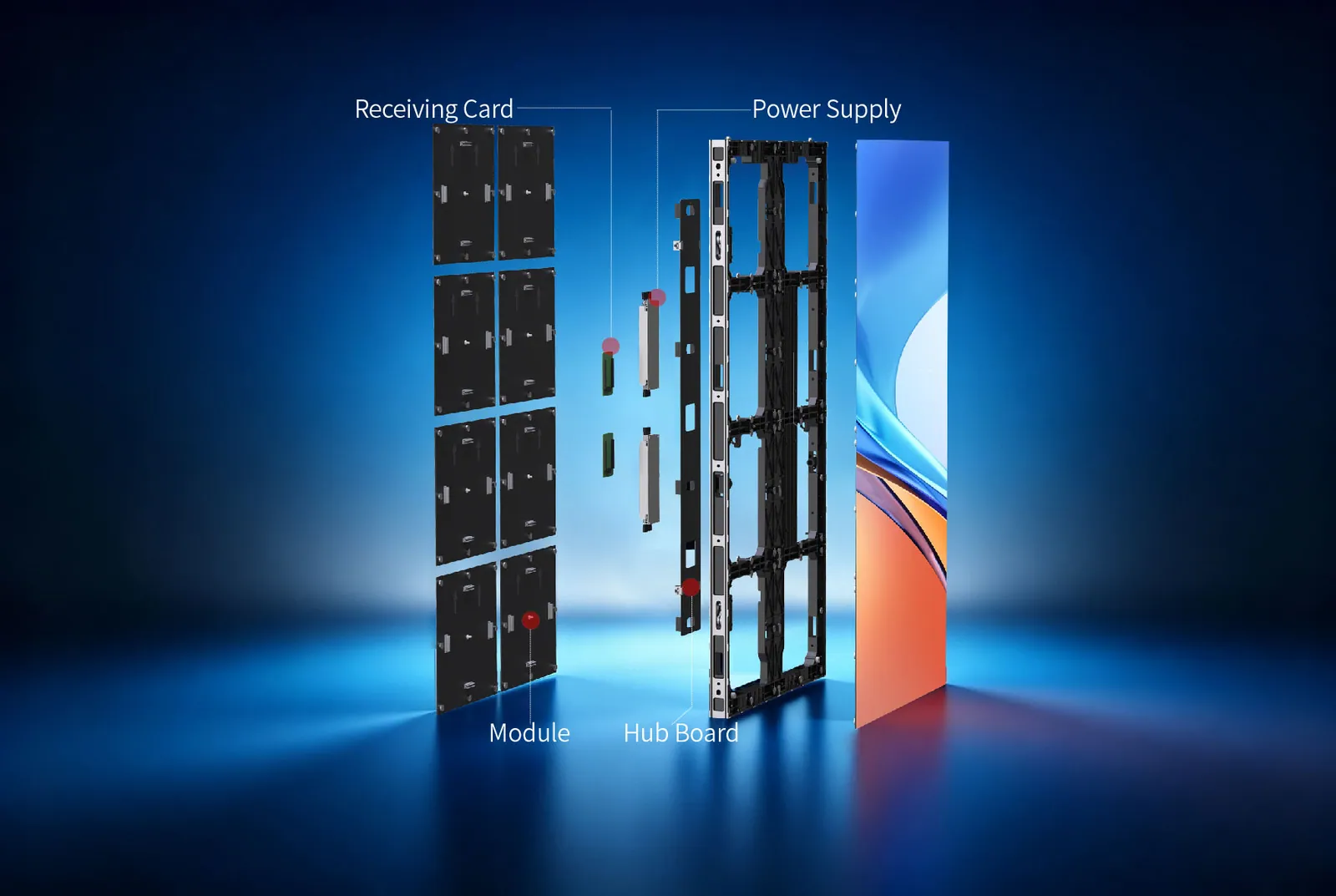

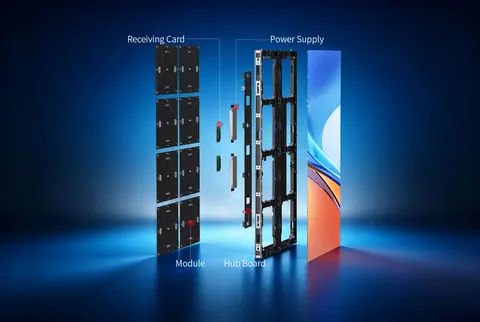

Unique Panel Design

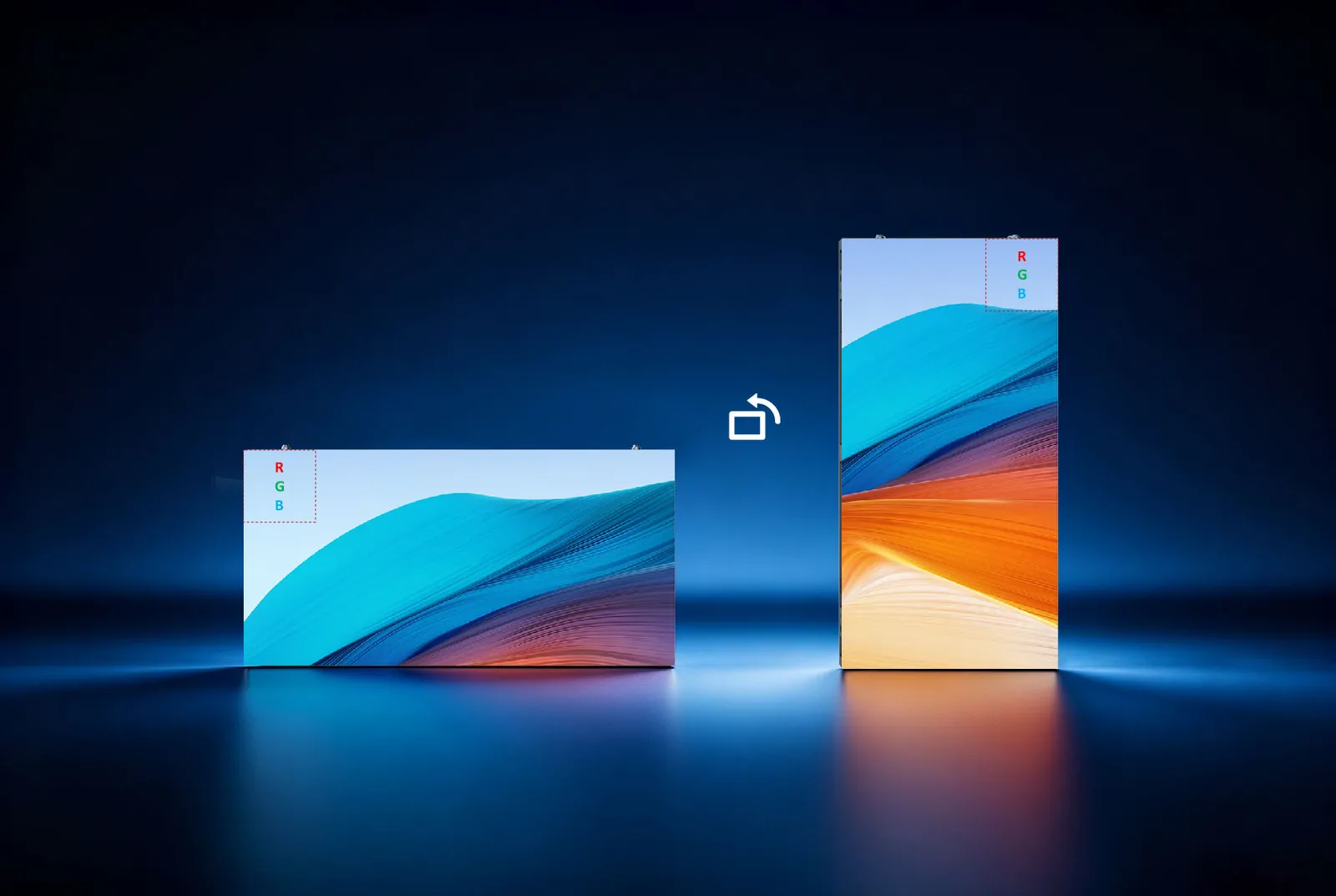

- Supports 90°rotation with highly consistent color performance (optional)
- Universal modules reduce spare part inventory
- 25kg/m² lightweight and 45mm thin cabinet reduces transportation & installation costs
Flexible Installation & Maintenance

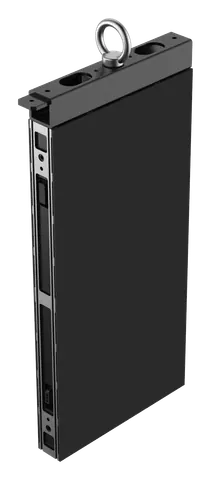

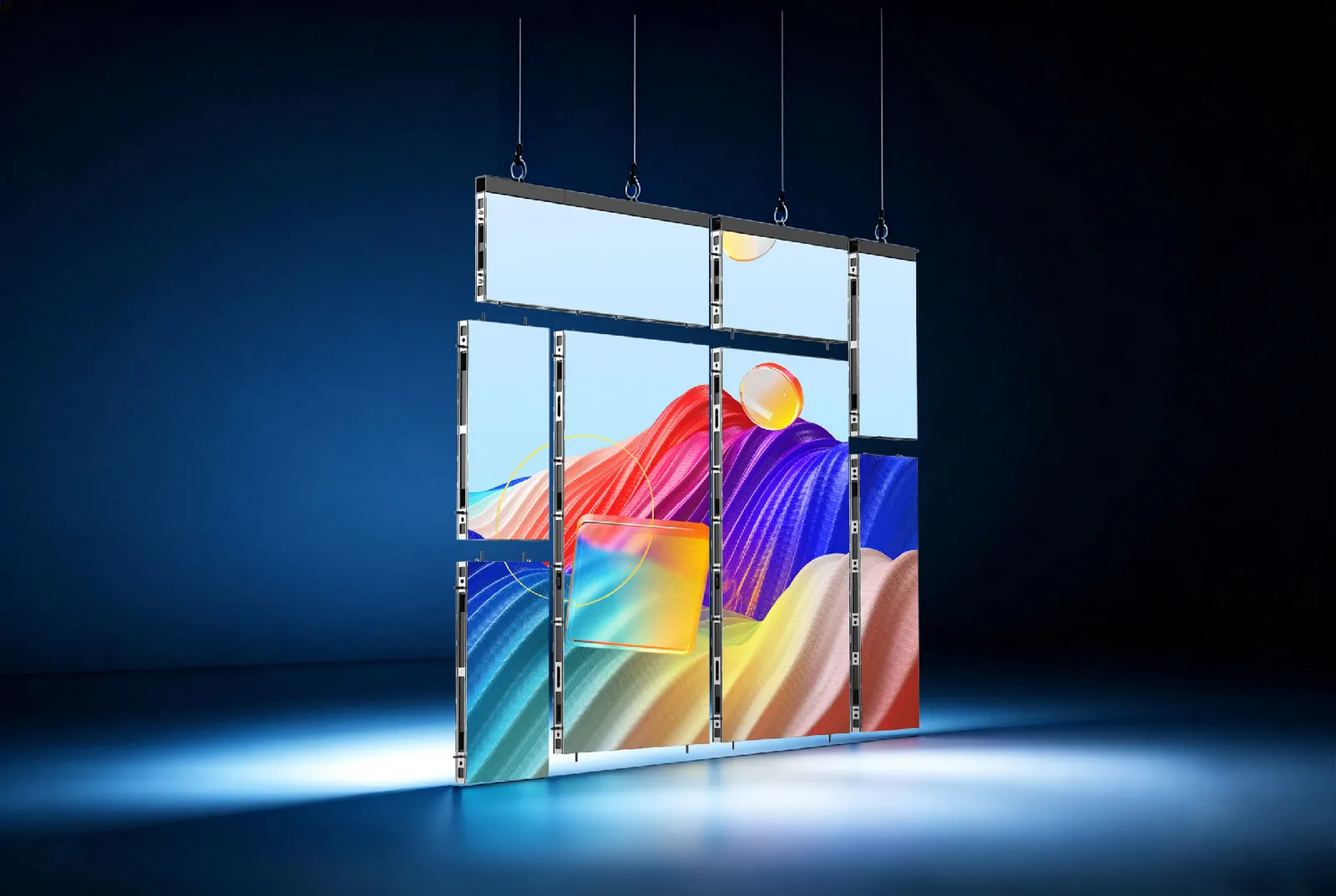

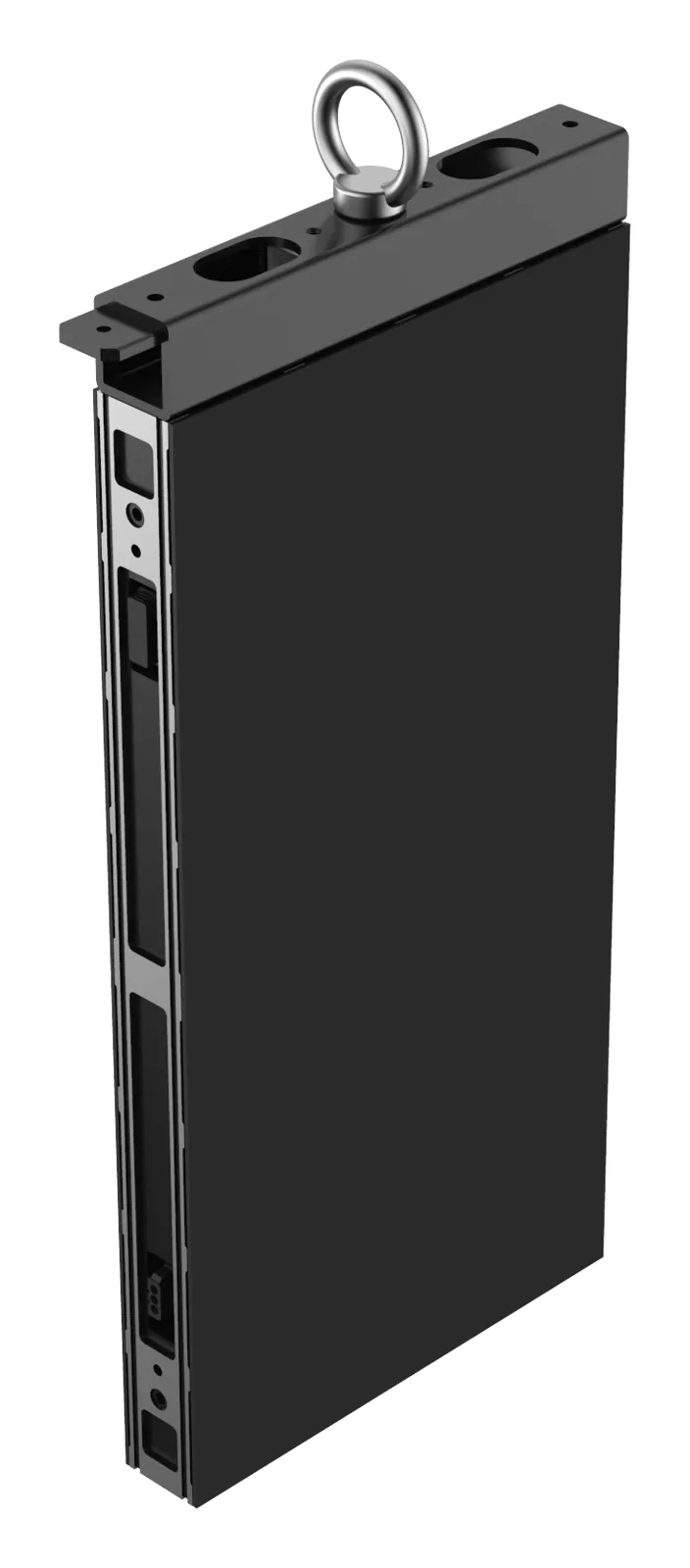

Enables hanging installation (up to 10 meters)

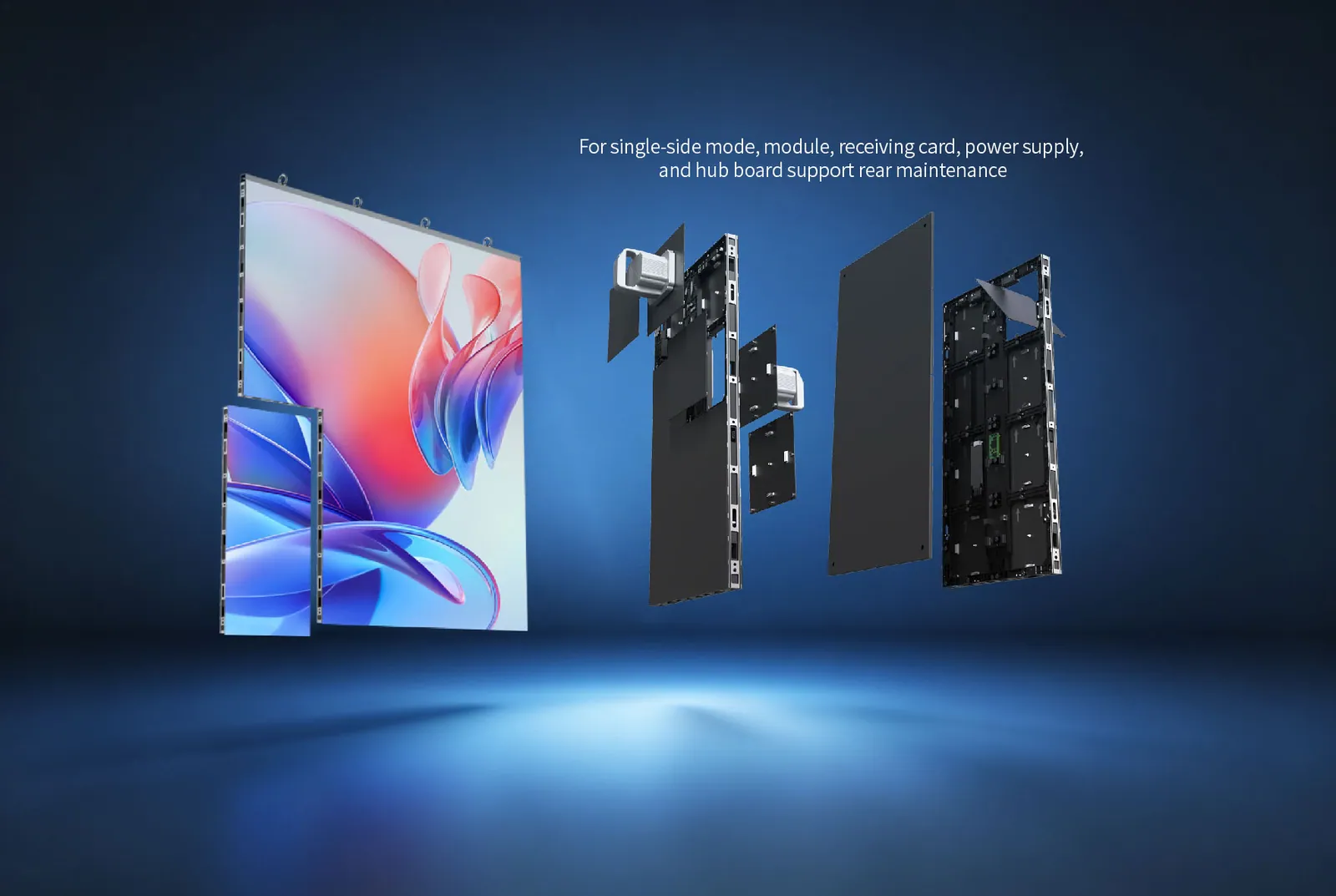

Supports front maintenance for dual-side mode (BIM Plus-TX), rear maintenance for single-side mode (BIM Plus-T)
- Retail and hospitality
- Corporate and meeting rooms
- Control rooms and command centres
- Exhibitions and museums
- Transport hubs
* All specification values given are per panel. The specifications are for reference only, actual values may vary.
