Sheet 05.1253
Esdlumen · Indoor fixed displays

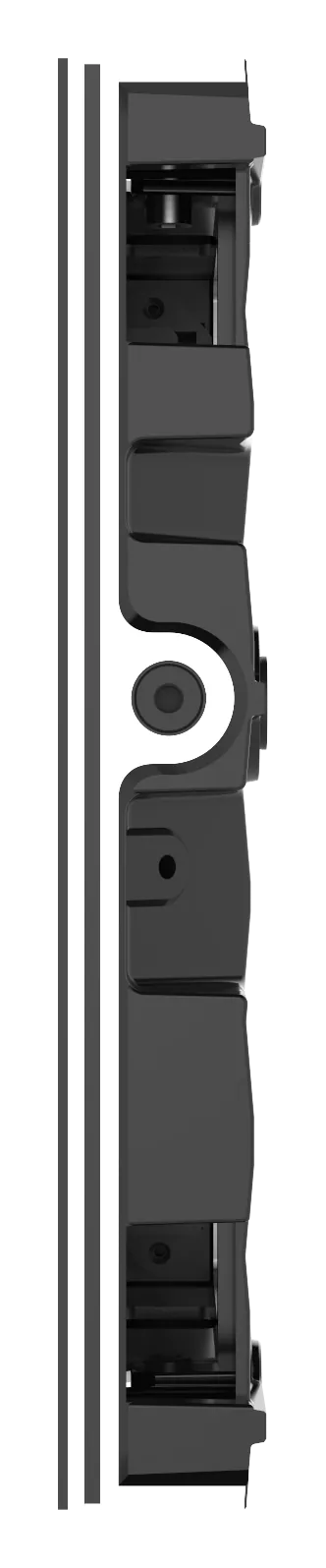

BIM Pro 4

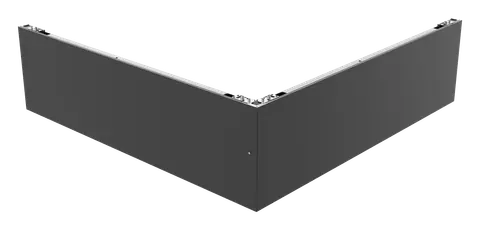

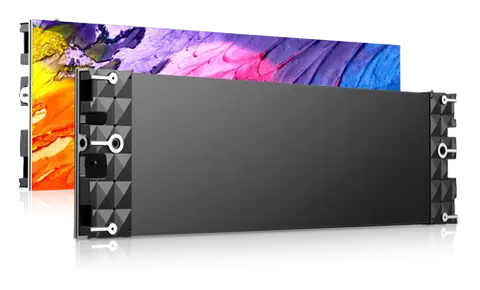

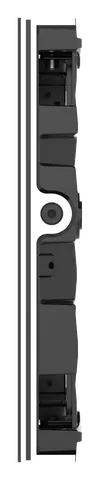

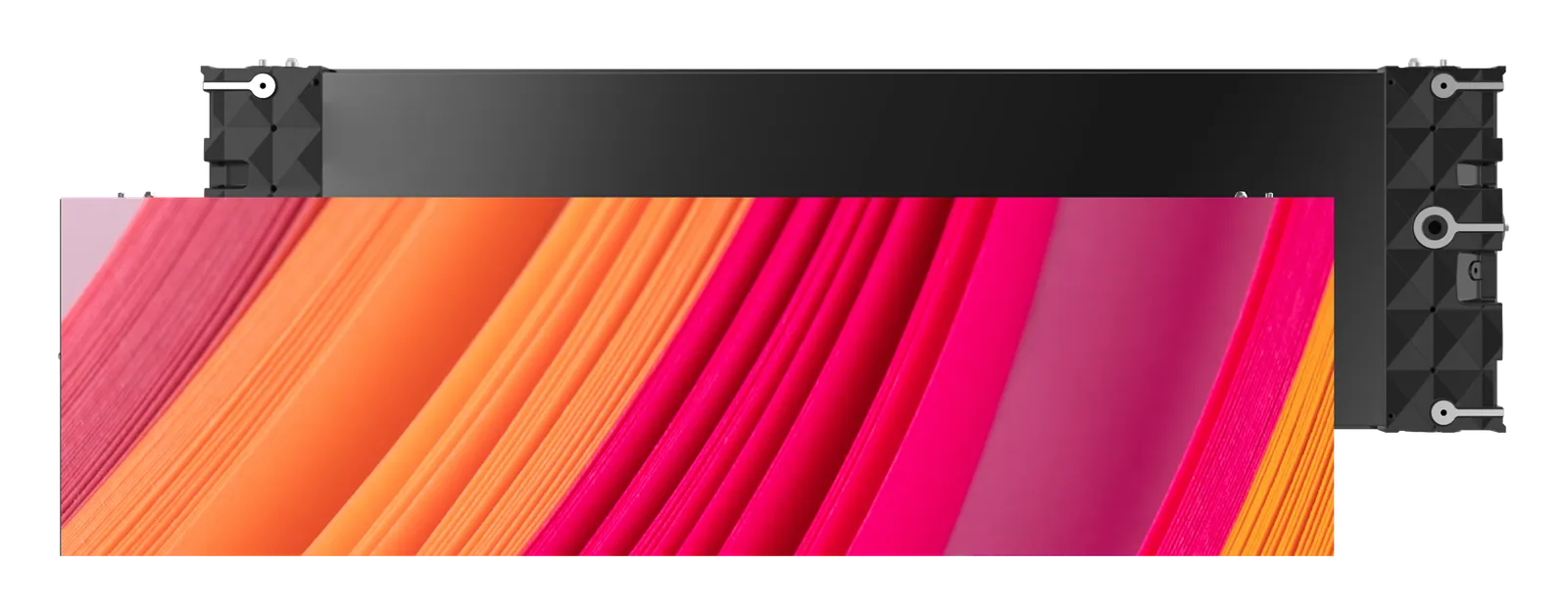

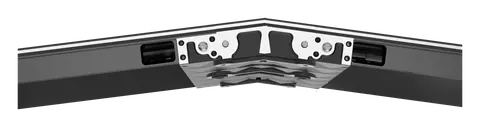

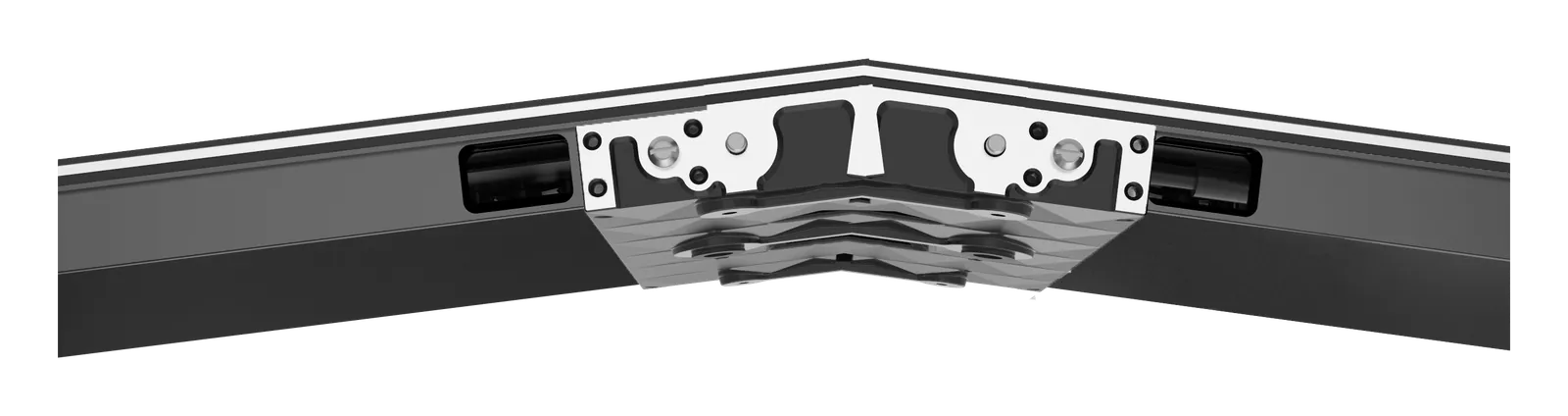

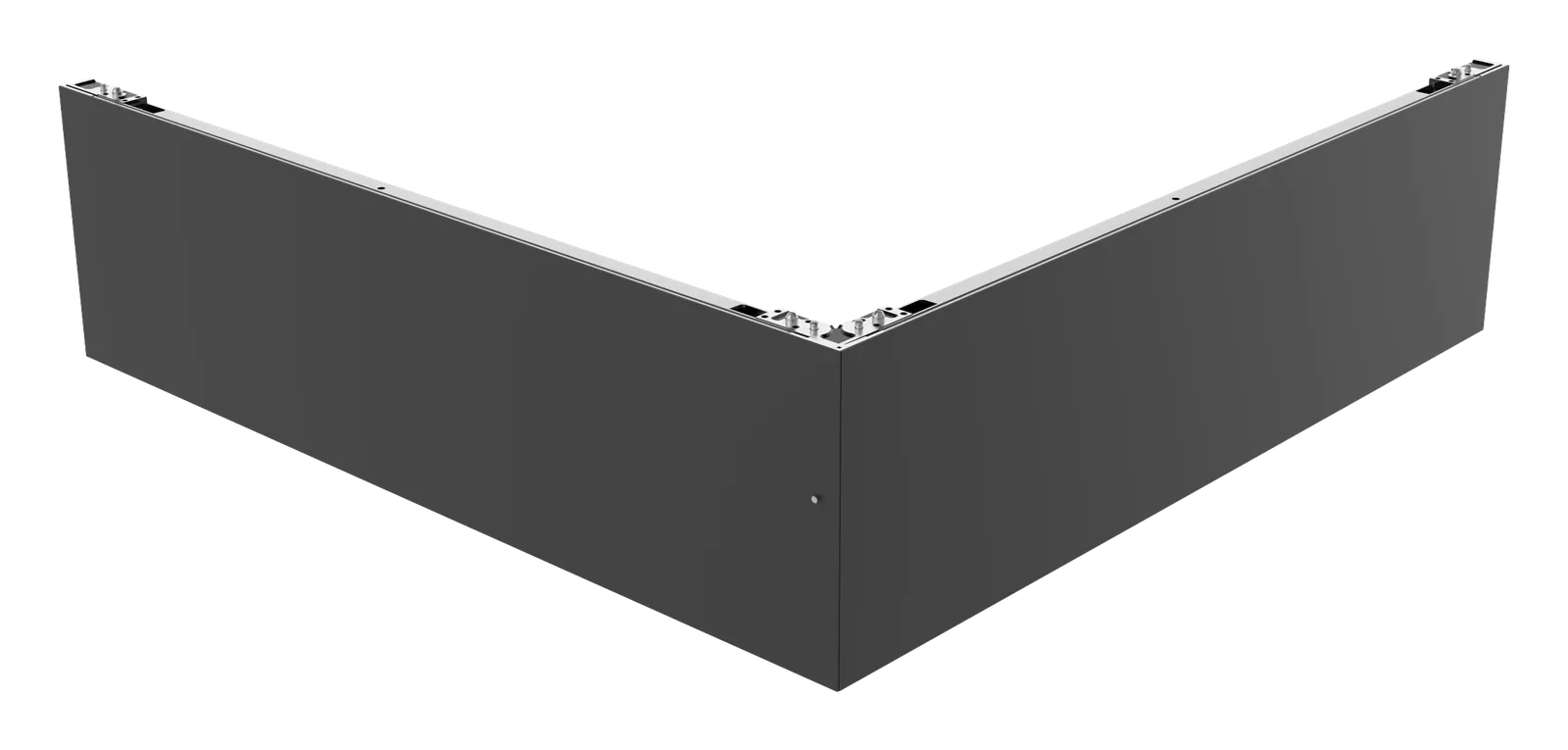

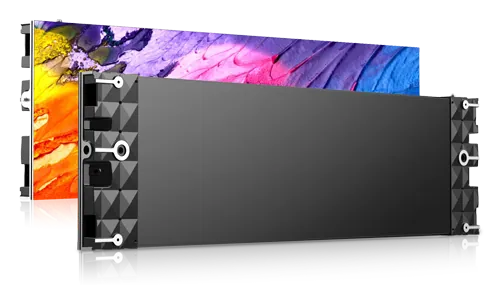

Proven 16:9 indoor fixed LED display: light & thin ever, higher stability, front serviceability with ease, 16:9 golden ratio, customized bevels, flexible splicing.
- Series
- BIM Pro Series
- Pixel pitch
- 4 mm
- Brightness
- 900 / 3000 nits
- Panel size
- 1024 × 288 × 42 / 768 × 288 × 42 / 512 × 288 × 42 mm
- Panel resolution
- 256 × 72 / 192 × 72 / 128 × 72
- Weight
- 6.8 / 5.6 / 4.8 kg
- Serviceability
- Front
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
BIM Pro 4Price on requestRequest a quotation
01VideoManufacturer's video · 1:28
Esdlumen BIM Pro 4: the manufacturer's video
02Models4 models in the family
Models compared.
| Model | BIM Pro 1.6 | BIM Pro 1.9 | BIM Pro 2.6 | BIM Pro 4 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 1.6 | 1.9 | 2.6 | 4 |
| Panel Size (mm) | 1024 × 288 × 42 / 768 × 288 × 42 / 512 × 288 × 42 | 1024 × 288 × 42 / 768 × 288 × 42 / 512 × 288 × 42 | 1024 × 288 × 42 / 768 × 288 × 42 / 512 × 288 × 42 | 1024 × 288 × 42 / 768 × 288 × 42 / 512 × 288 × 42 |
| Panel Resolution | 640 × 180 / 480 × 180 / 320 × 180 | 520 × 145 / 390 × 145 / 260 × 145 | 384 × 108 / 288 × 108 / 192 × 108 | 256 × 72 / 192 × 72 / 128 × 72 |
| Weight (Kg/pc) | 6.8 / 5.6 / 4.8 | 6.8 / 5.6 / 4.8 | 6.8 / 5.6 / 4.8 | 6.8 / 5.6 / 4.8 |
| Brightness (nits) | 800 | 800 / 4000 | 800 / 3000 | 900 / 3000 |
| Panel Material | Aluminum extrusions | Aluminum extrusions | Aluminum extrusions | Aluminum extrusions |
| Serviceability | Front | Front | Front | Front |
03DescriptionManufacturer's description
What it is.
- Retail and hospitality
- Corporate and meeting rooms
- Control rooms and command centres
- Exhibitions and museums
- Transport hubs
