Sheet 05.1254
DESAY · Indoor fixed displays
Matrix 1.2

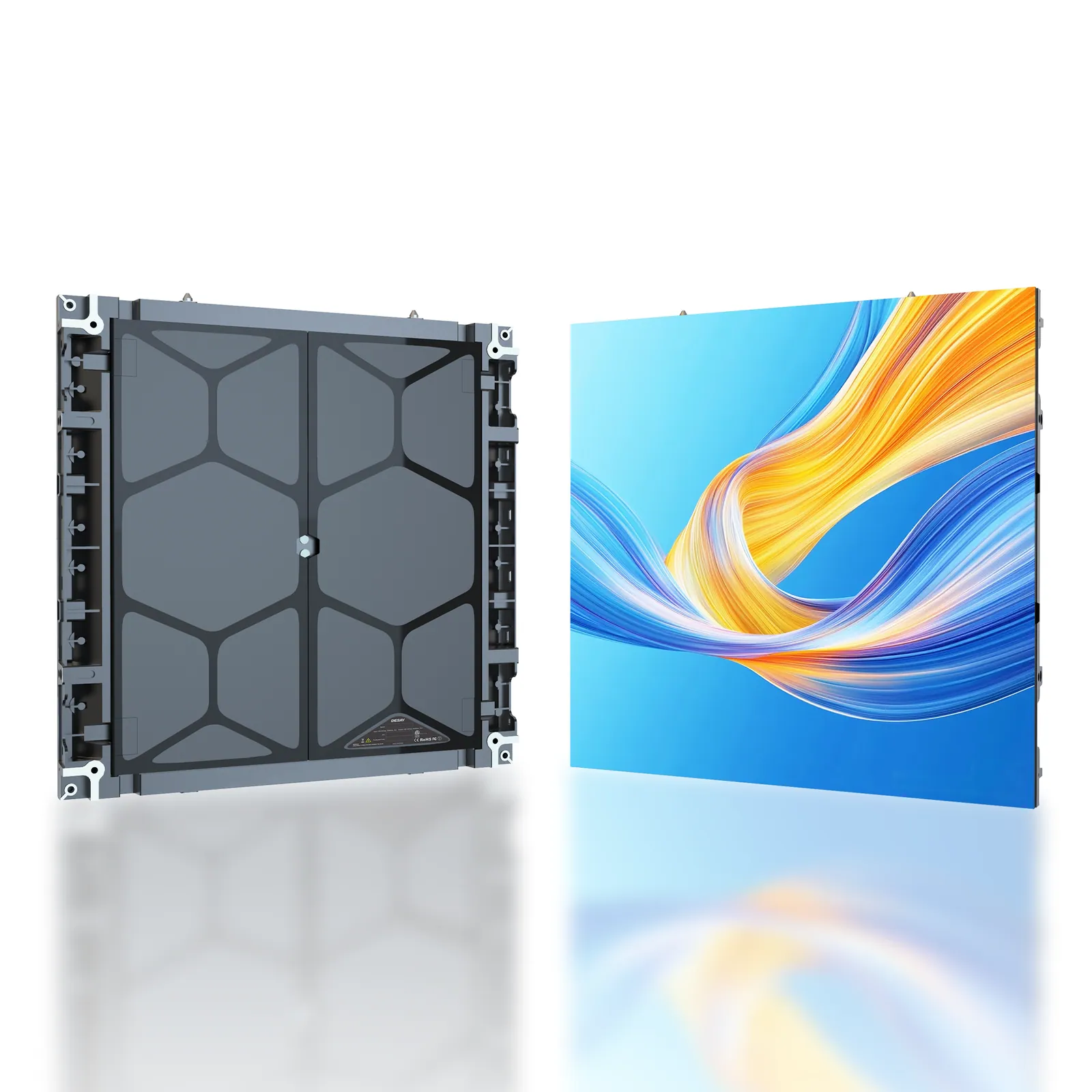

Modular multi-purpose indoor LED display.
- Series
- Matrix Series
- Pixel pitch
- 1.25 mm
- Brightness
- 800 nits
- Panel size
- 500 × 500 × 39 / 750 × 250 × 39 / 1000 × 250 × 39 mm
- Panel weight
- 20 kg
- Maintenance
- Front access / rear access
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Matrix 1.2Price on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 8 values
What this product is, in numbers.
PDFDatasheetEN · 6 pages · 5.1 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications8
- Pixel pitch
- 1.25 mm
- Brightness
- 800 nits
- Panel size
- 500 × 500 × 39 / 750 × 250 × 39 / 1000 × 250 × 39 mm
- Pixel matrix per module
- 200 × 200
- Panel material
- Die-casting Aluminum
- Panel weight
- 20 kg
- Ingress protection (front/back) (IP)
- 30 / 30
- Maintenance
- Front access / rear access
Show the full specificationHide the rest of the specification0 more groups · 0 values
02Models6 models in the family
Models compared.
| Model | Matrix 1.2 | Matrix 1.5 | Matrix 1.9 | Matrix 2.6 | Matrix 2.9 | Matrix 3.9 |
|---|---|---|---|---|---|---|
| Pixel pitch (mm) | 1.25 | 1.563 | 1.953 | 2.604 | 2.976 | 3.906 |
| Brightness (nits) | 800 | 800 | 800 | 1000 | 1000 | 1000 |
| Panel size (mm) | 500 × 500 × 39 / 750 × 250 × 39 / 1000 × 250 × 39 | 500 × 500 × 39 / 750 × 250 × 39 / 1000 × 250 × 39 | 500 × 500 × 39 / 750 × 250 × 39 / 1000 × 250 × 39 | 500 × 500 × 39 / 750 × 250 × 39 / 1000 × 250 × 39 | 500 × 500 × 39 / 750 × 250 × 39 / 1000 × 250 × 39 | 500 × 500 × 39 / 750 × 250 × 39 / 1000 × 250 × 39 |
| Pixel matrix per module | 200 × 200 | 160 × 160 | 128 × 128 | 96 × 96 | 84 × 84 | 64 × 64 |
| Panel material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Panel weight (Kg) | 20 | 20 | 20 | 20 | 20 | 20 |
| Ingress protection (front/back) (IP) | 30 / 30 | 30 / 30 | 30 / 30 | 30 / 30 | 30 / 30 | 30 / 30 |
| Maintenance | Front access / rear access | Front access / rear access | Front access / rear access | Front access / rear access | Front access / rear access | Front access / rear access |
03DescriptionManufacturer's description
What it is.

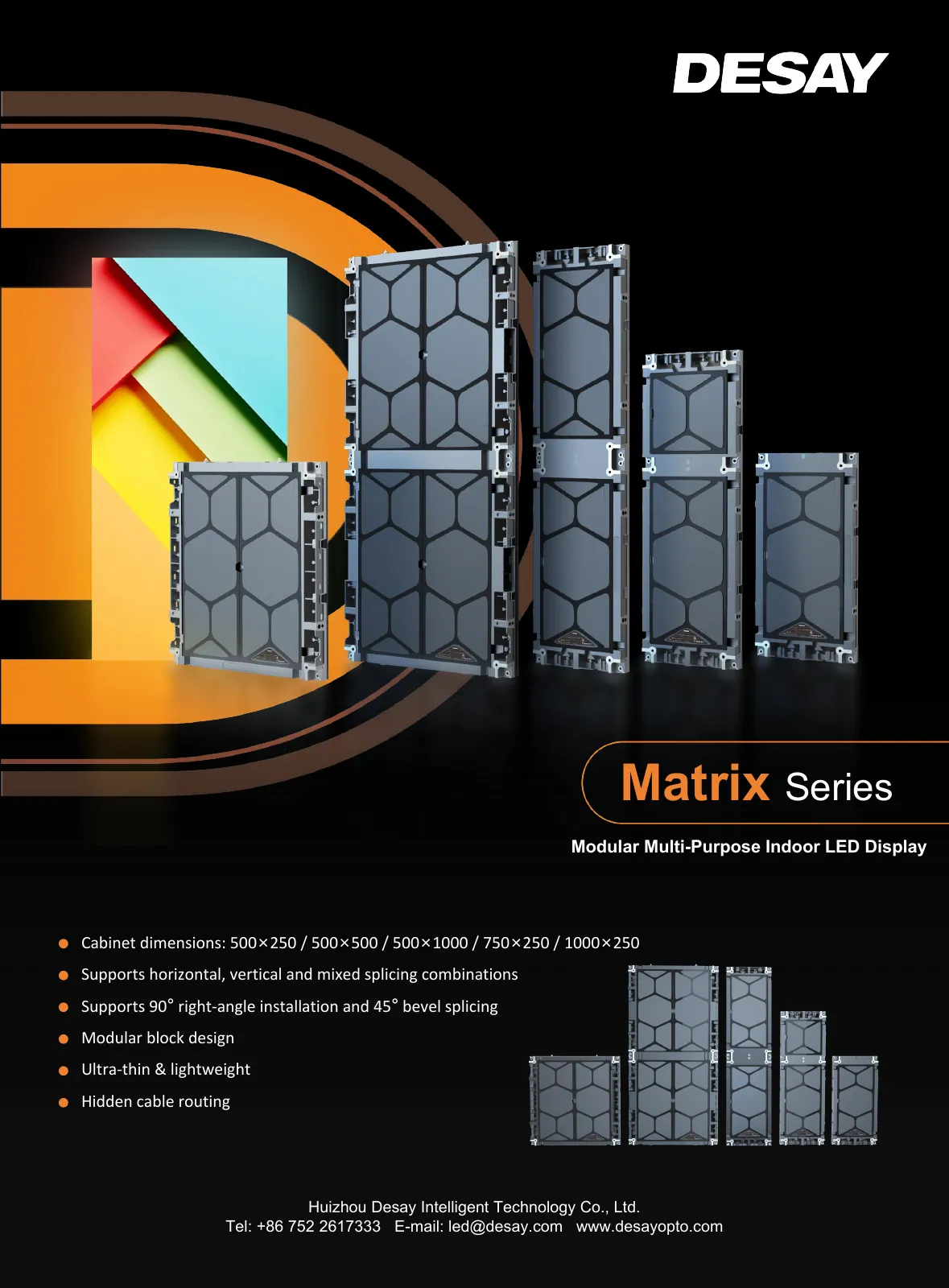

Key points

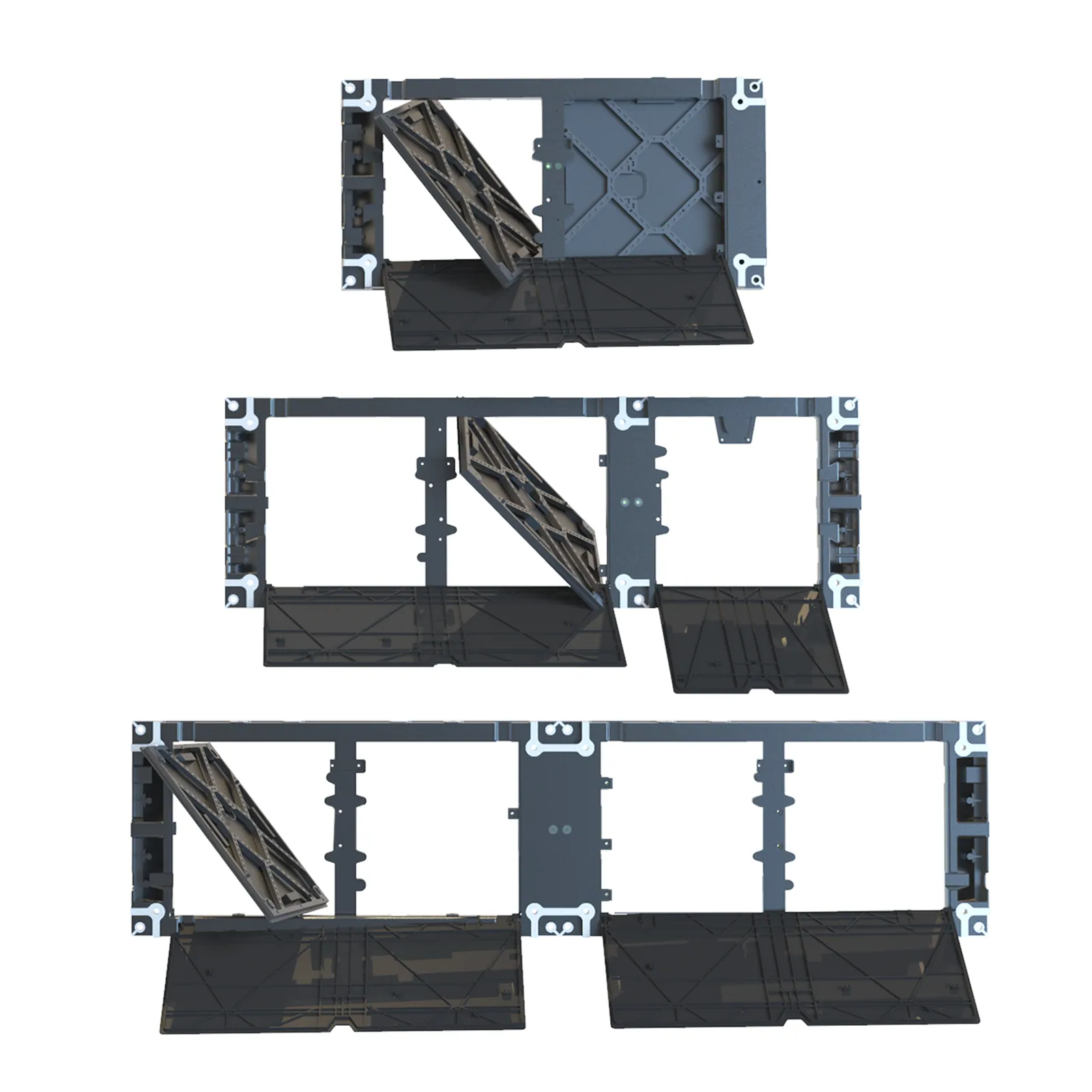

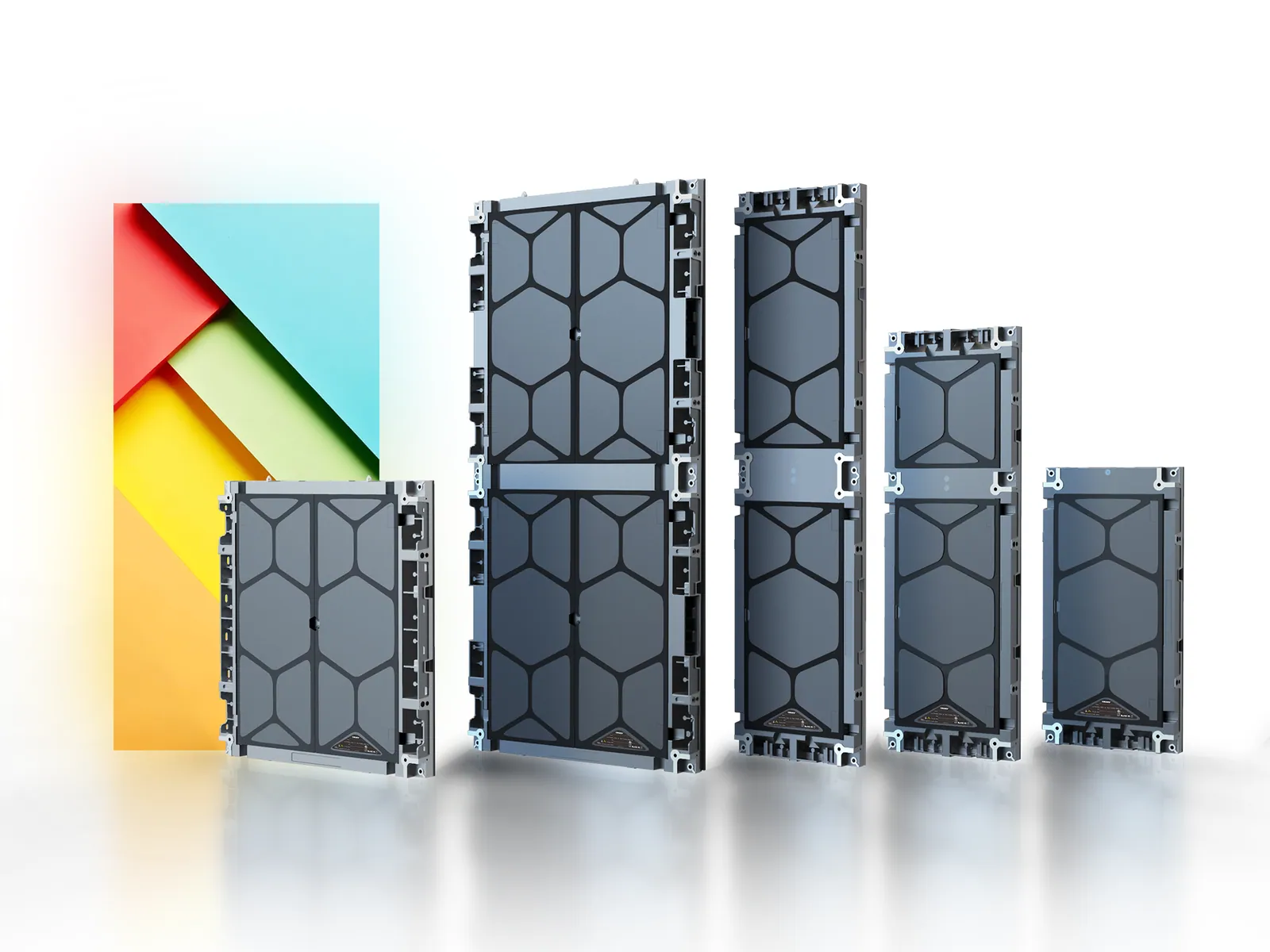

- Cabinet dimensions: 500×250 / 500×500 / 500×1000 / 750×250 / 1000×250

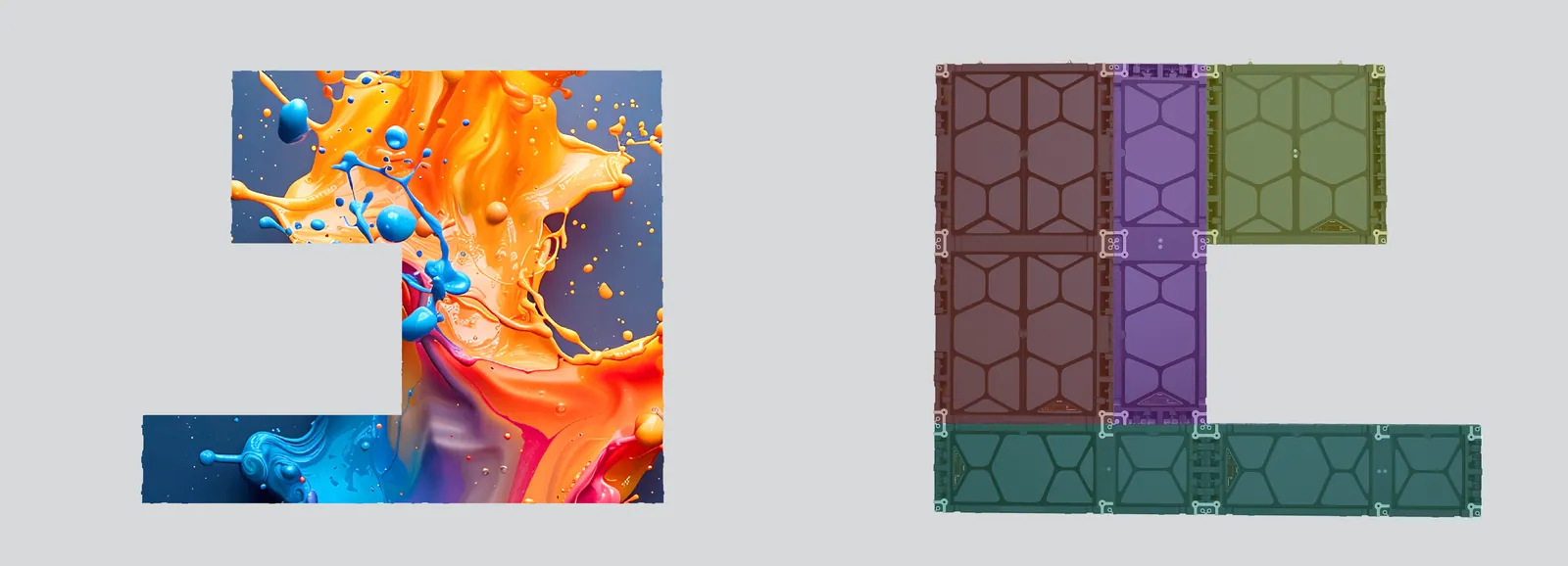

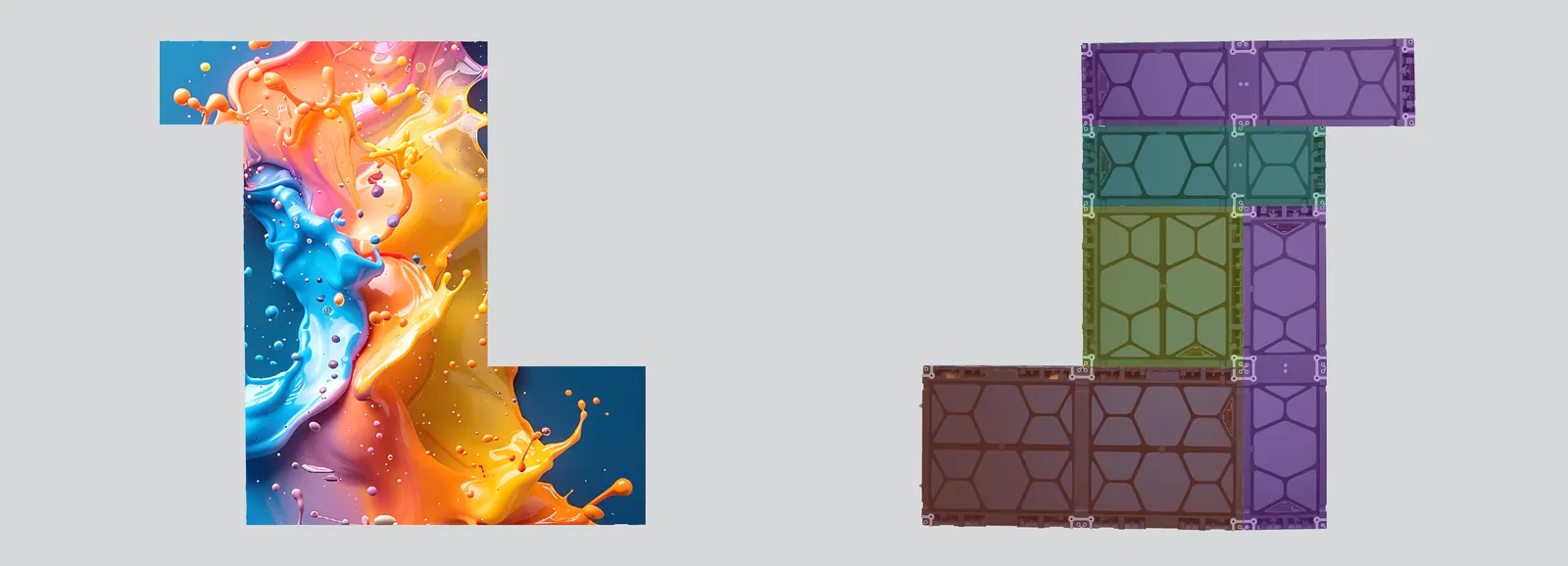

- Supports horizontal, vertical and mixed splicing combinations

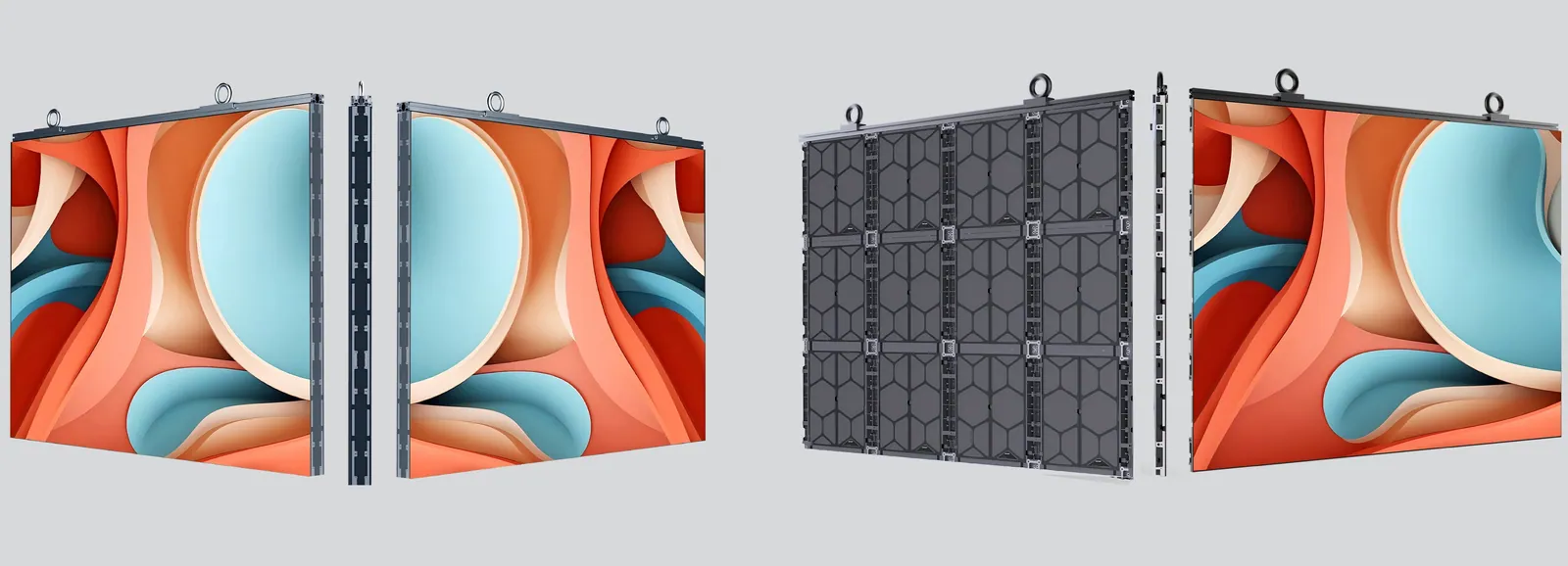

- Supports 90° right-angle installation and 45° bevel splicing
Modular block design
Ultra-thin & lightweight
Hidden cable routing

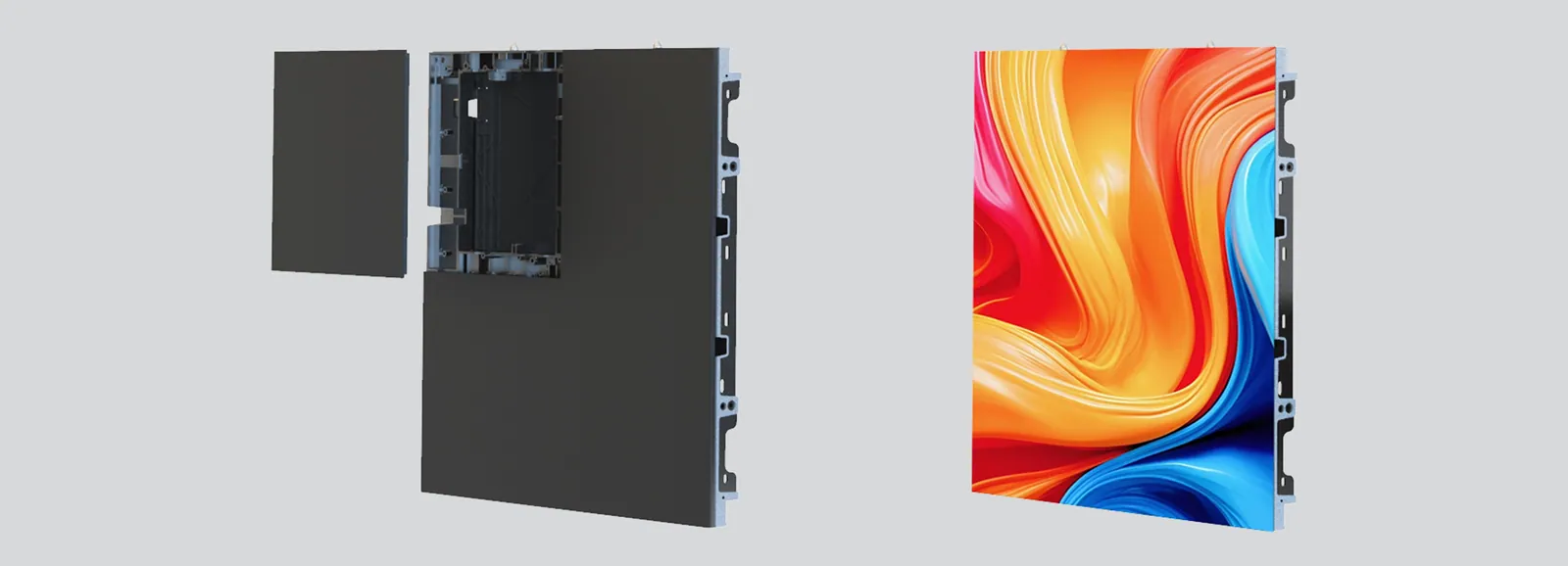

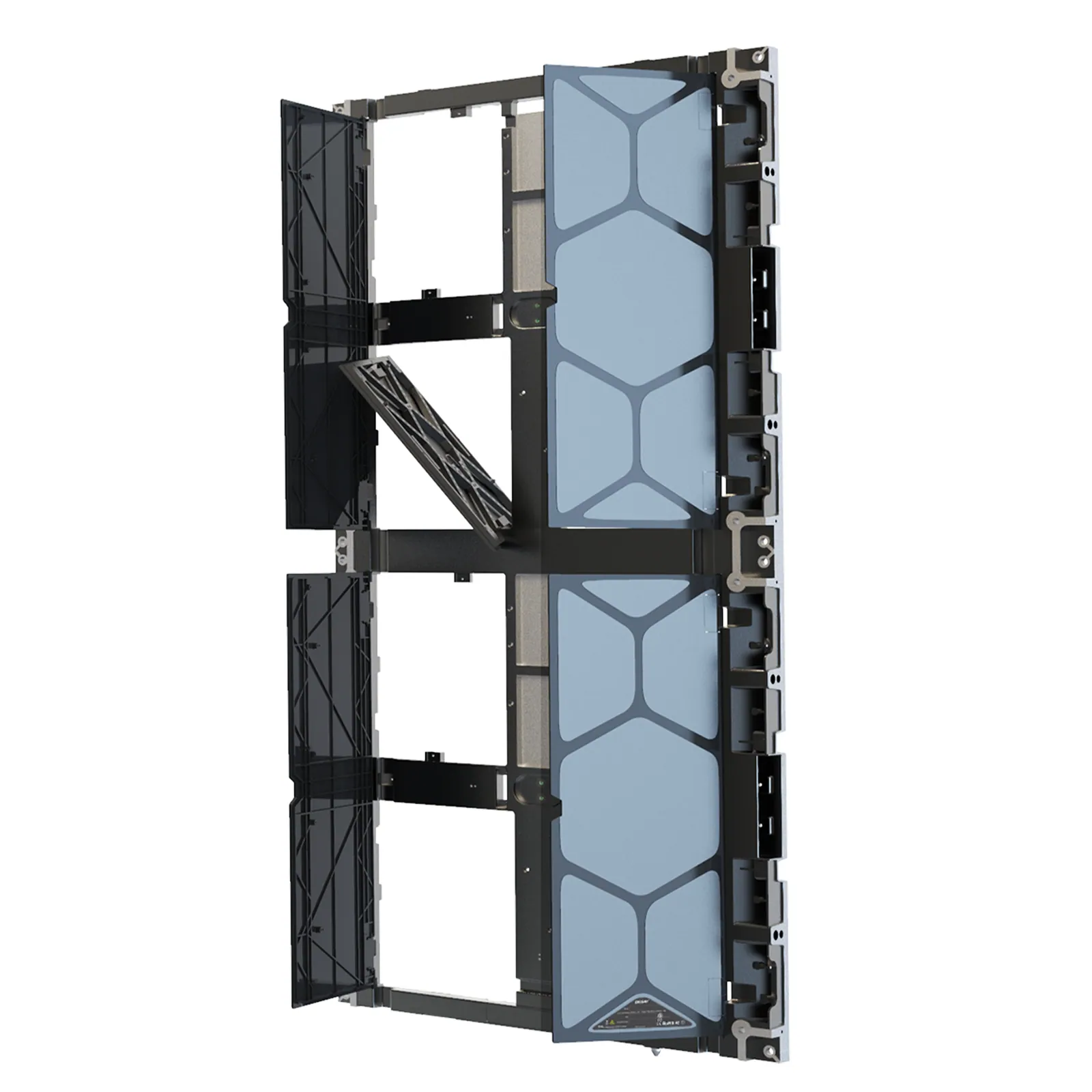

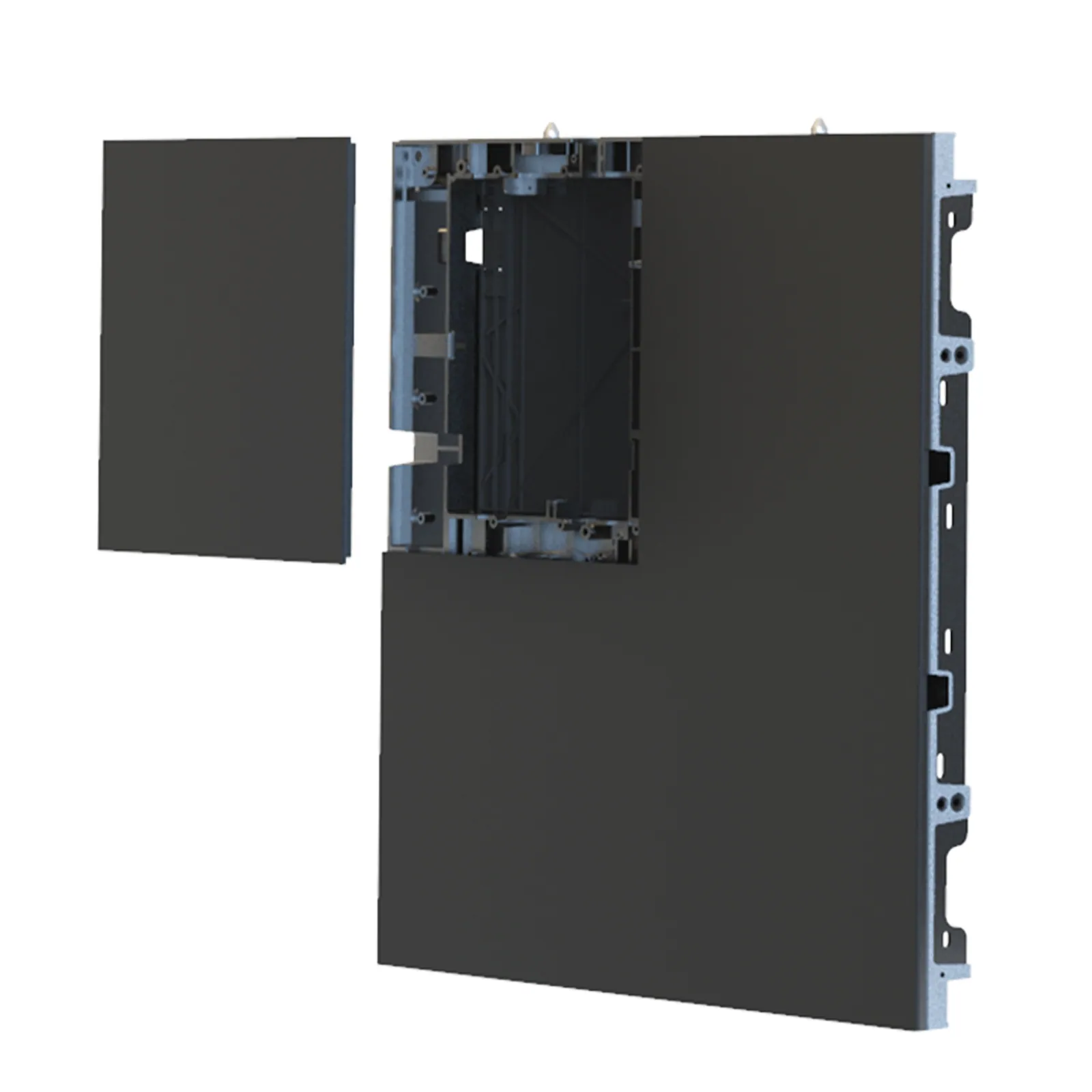

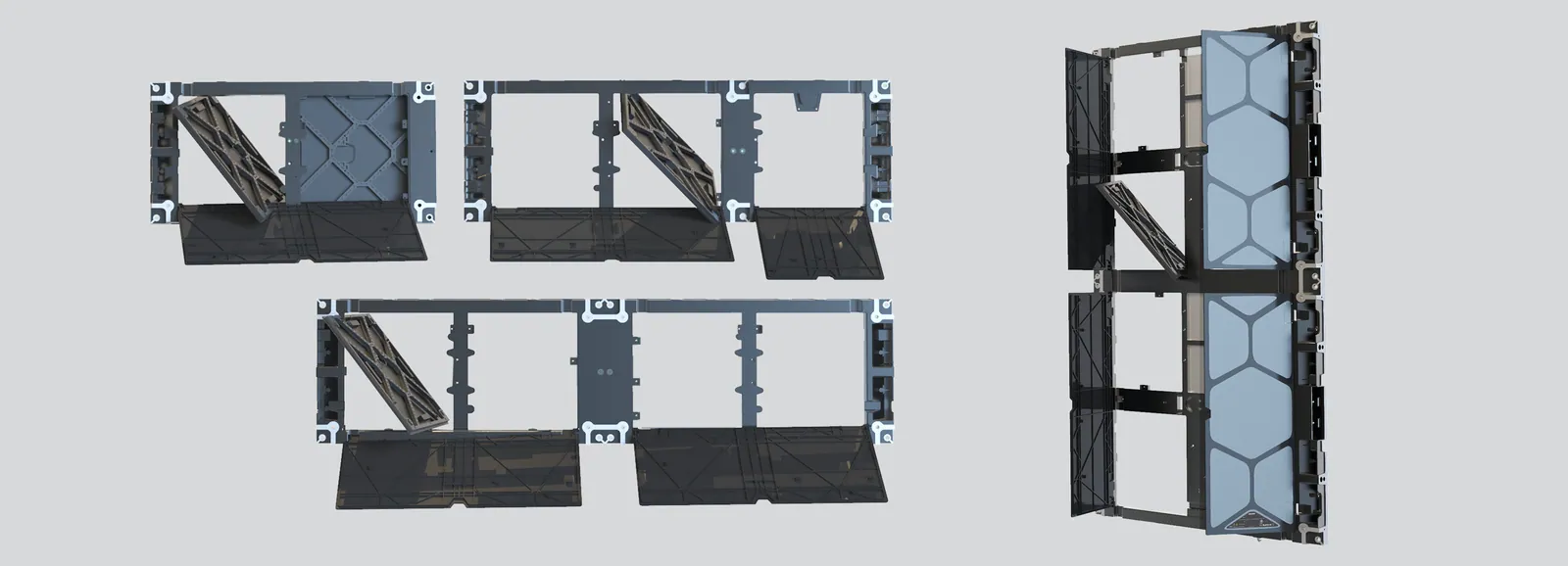

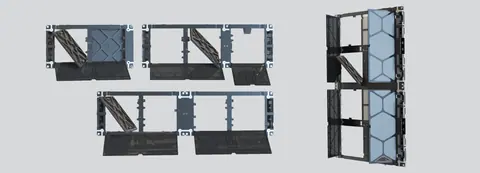

Serviceability: front, rear, or front pull-out
Ultra-thin & Lightweight Design
Serice
- Easily enables creative shapes and multi-dimensional structure applications
- Universal Modules, Panels Can Be Horizontally or Vertically Mixed and Matched
- Dedicated corner panels available for corner wrapping and pillar surrounding installation

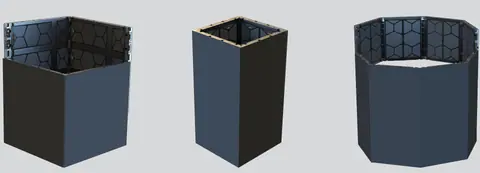

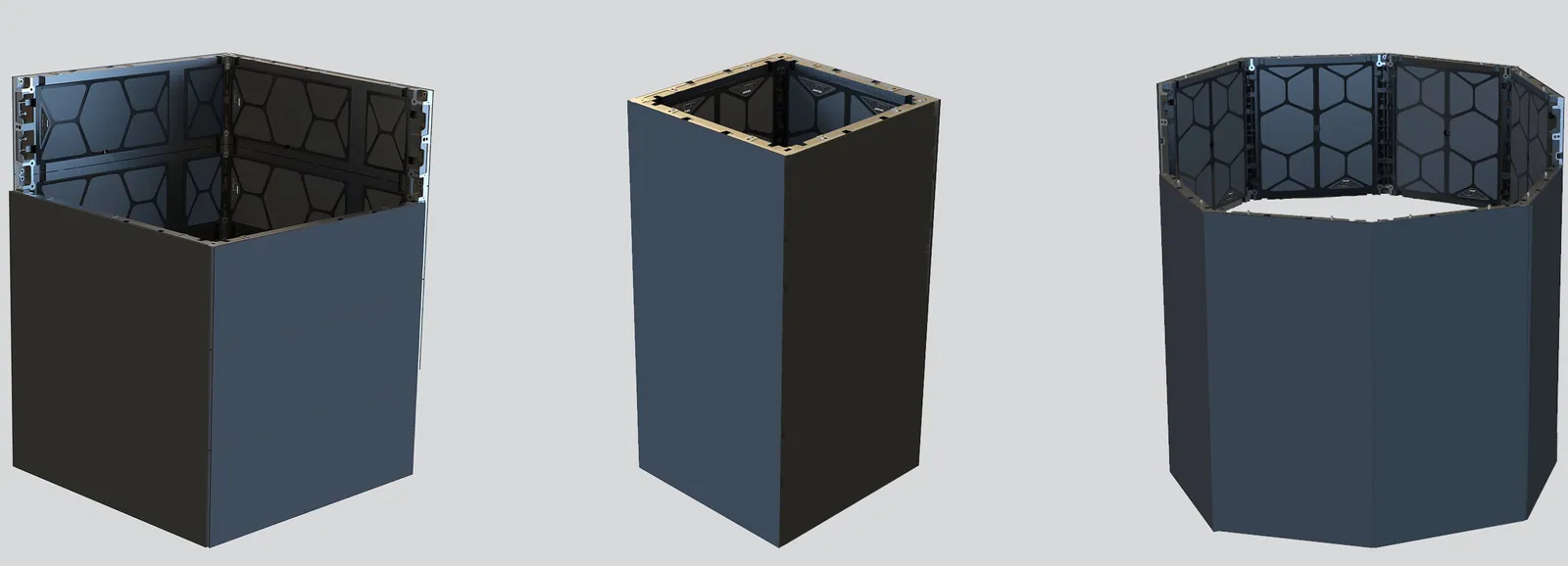

- Cube design, minimum size 500×500×500mm
- Can be configured with corner panels

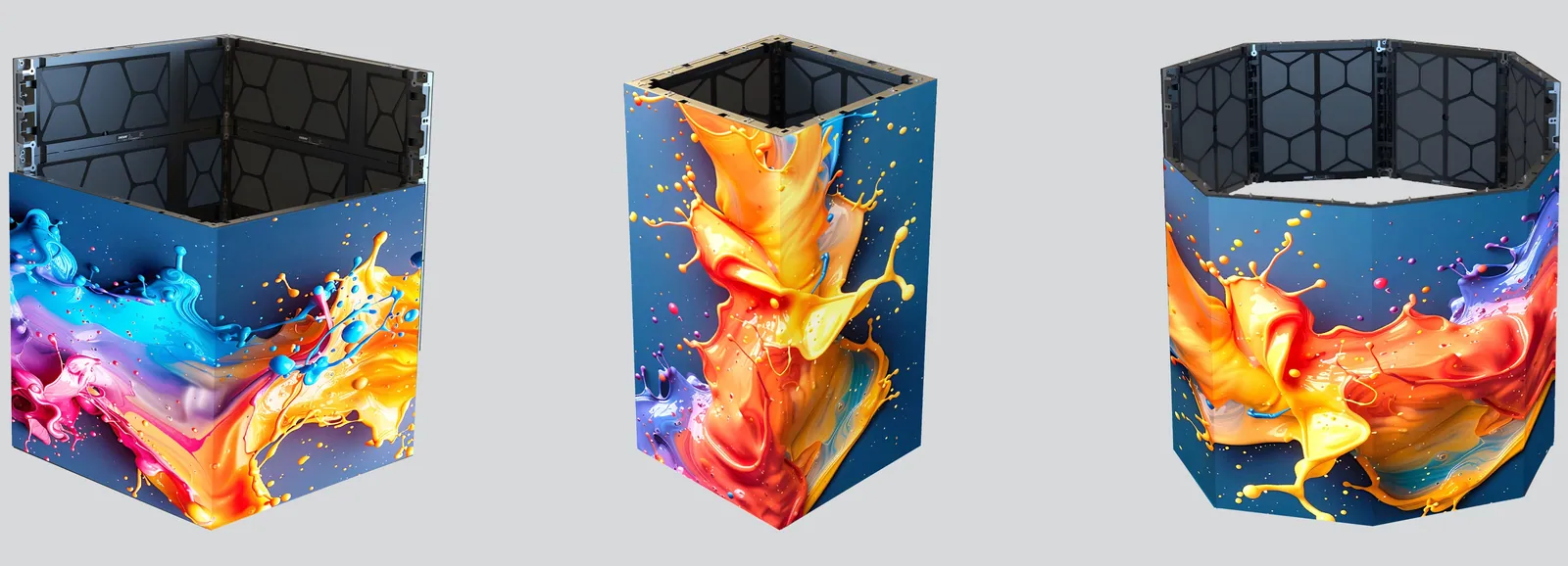

Supports column surround

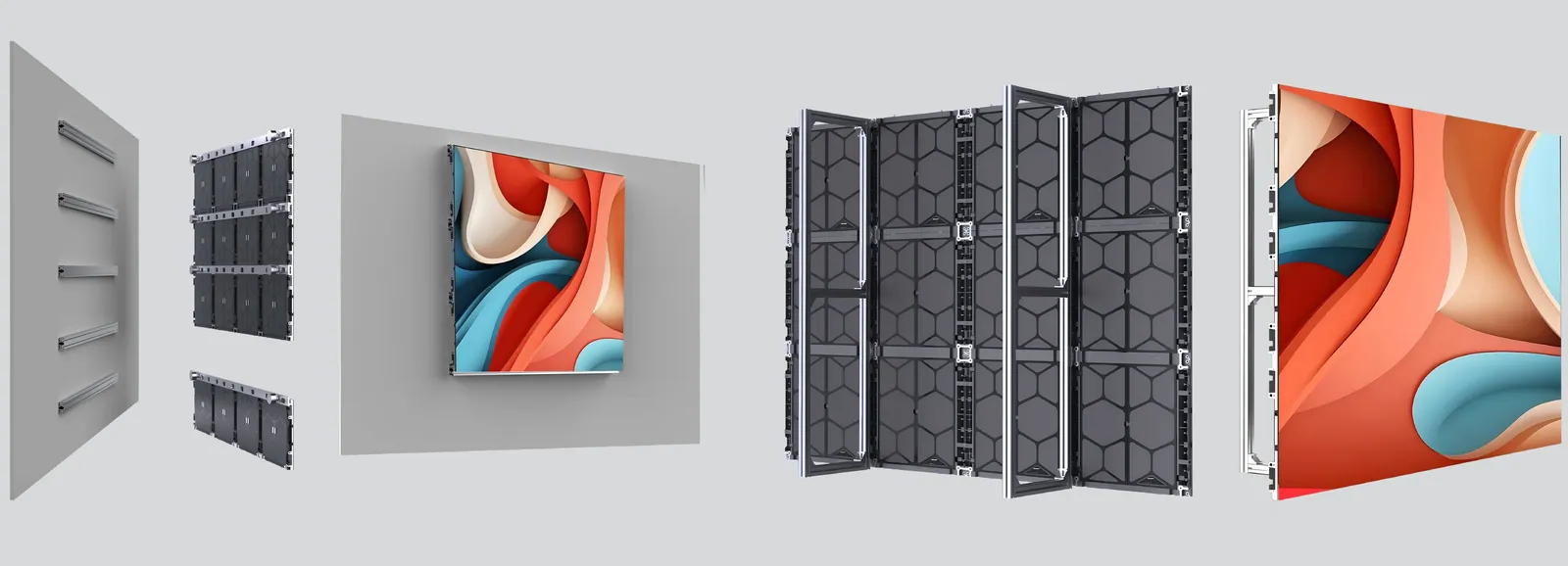

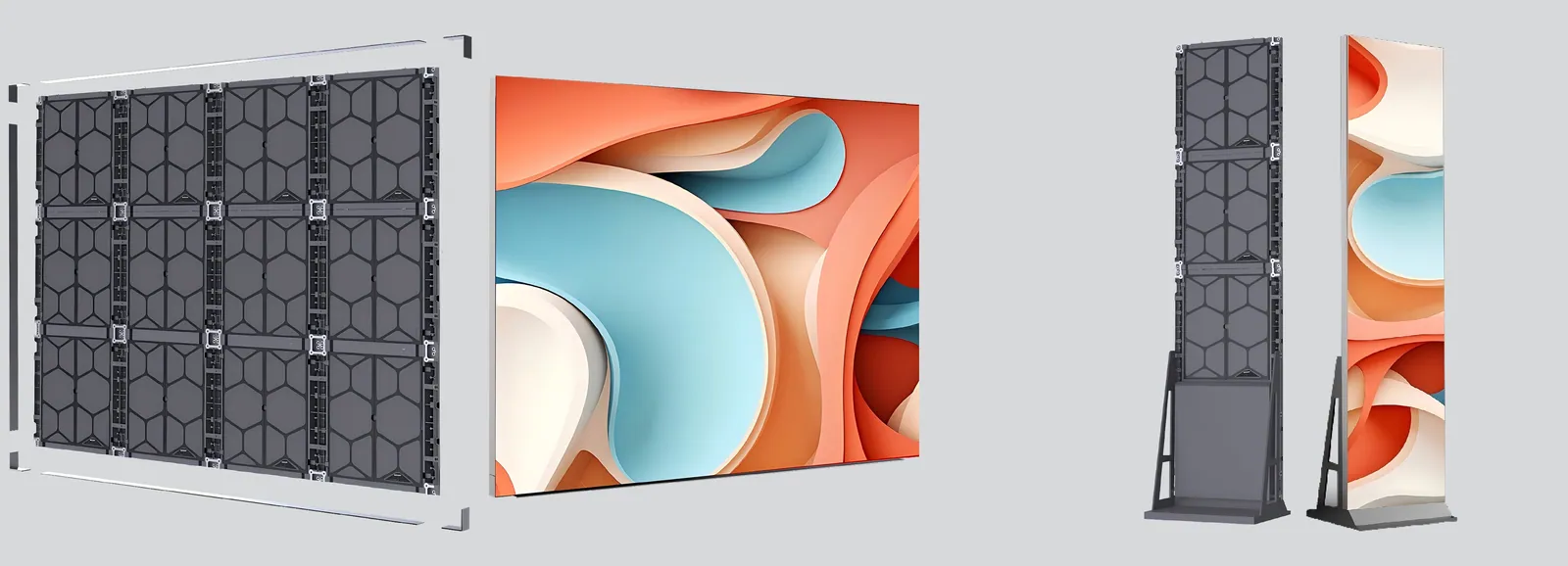

- Wall-mount thickness: only 58mm (profile mounting or direct wall mounting)
- Stacked Installation – Compatible with 40-series aluminum profiles

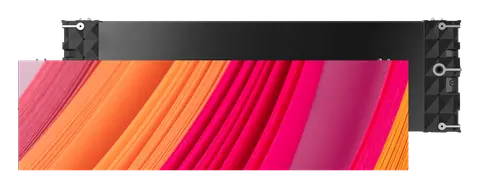

- Double-sided suspension: only 80mm thick; Profiles can be directly assembled into suspension beams
- Single-sided suspension: 40mm profile mounting thickness
- Ultra-thin all-in-one displays can be configured
- Various types of advertising displays can be configured
