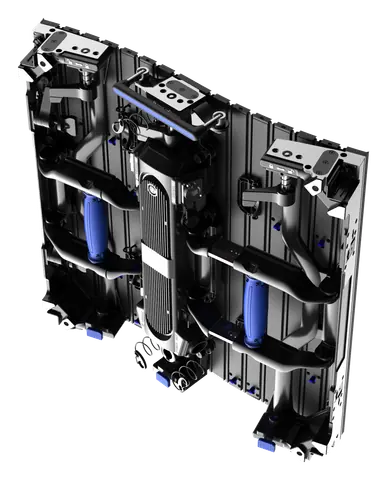

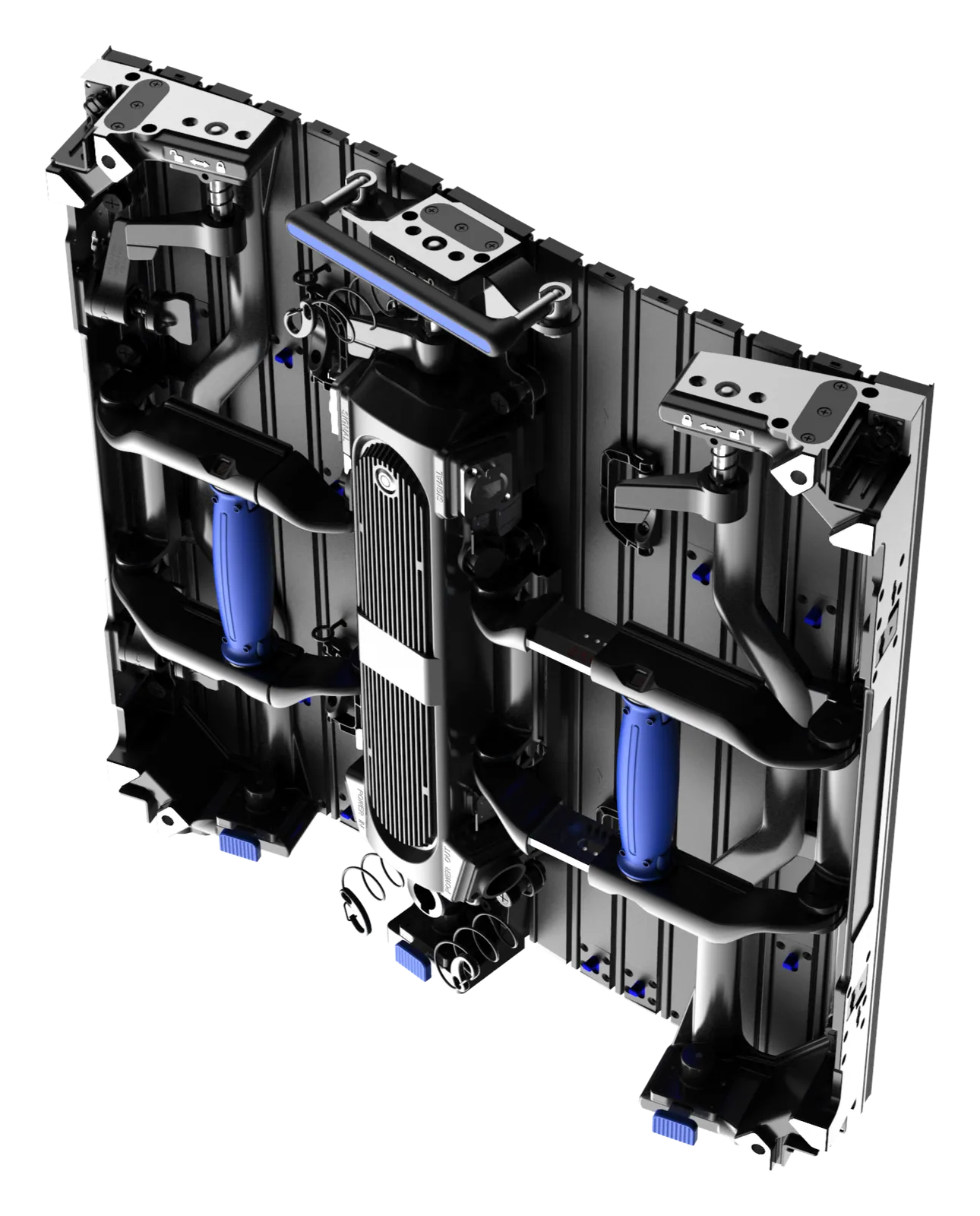

E-Swan Outdoor ES3.9T
Ultra-flexible outdoor curved LED display: lightweight panel, angle adjustment, edge-free creative splicing, quicker installation, easier maintenance, safety-assured hanging.
- Series
- E-Swan Series (Outdoor)
- Pixel pitch
- 3.9 mm
- Brightness
- 5000 (White) / 3500 (Black)
- Panel size
- 500 × 500 × 74 mm
- Panel resolution
- 128 × 128
- Refresh rate
- 7680 Hz
- LED type
- SMD
- IP rating
- Front IP65
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
E-Swan Outdoor ES3.9TPrice on requestRequest a quotation
01VideoManufacturer's video · 1:10
Esdlumen E-Swan Outdoor ES3.9T: the manufacturer's video
02SpecificationManufacturer's data · 1 group · 14 values
What this product is, in numbers.

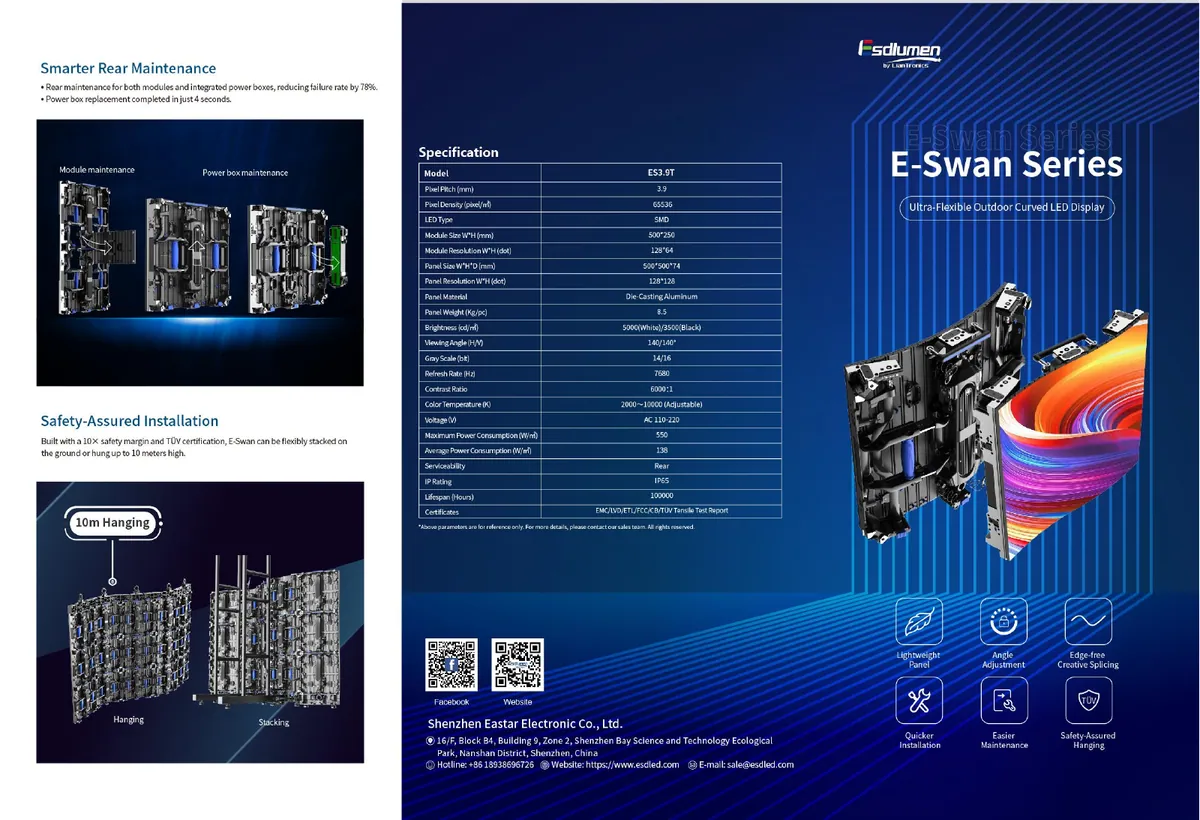

PDFDatasheetEN · 2 pages · 1.1 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications14
- Pixel Pitch
- 3.9 mm
- Panel Size
- 500 × 500 × 74 mm
- Panel Resolution
- 128 × 128
- Weight
- 8.5 kg
- Brightness
- 5000 (White) / 3500 (Black)
- Panel Material
- Die-casting Aluminum
- Serviceability
- Rear
- Pixel Density
- 65536 px/m²
- LED Type
- SMD
- Viewing Angle (H/V)
- 140° / 140°
- Refresh Rate
- 7680 Hz
- Contrast Ratio
- 6000:1
- Color Temperature
- 2000–10000 (Adjustable)
- IP Rating
- Front IP65
Show the full specificationHide the rest of the specification0 more groups · 0 values
03DescriptionManufacturer's description
What it is.
Curves That Follow Your Imagination

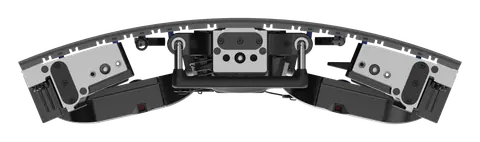

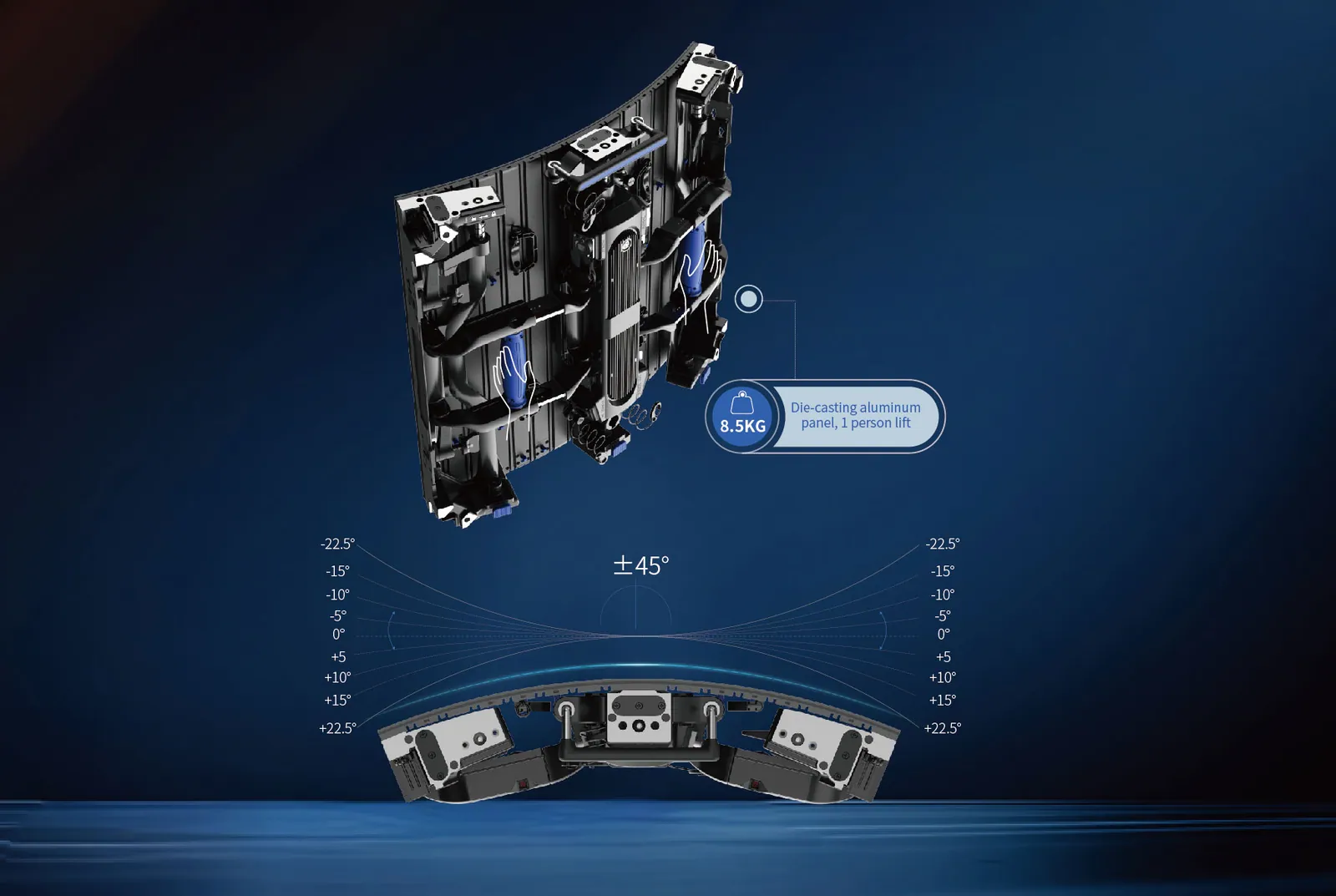

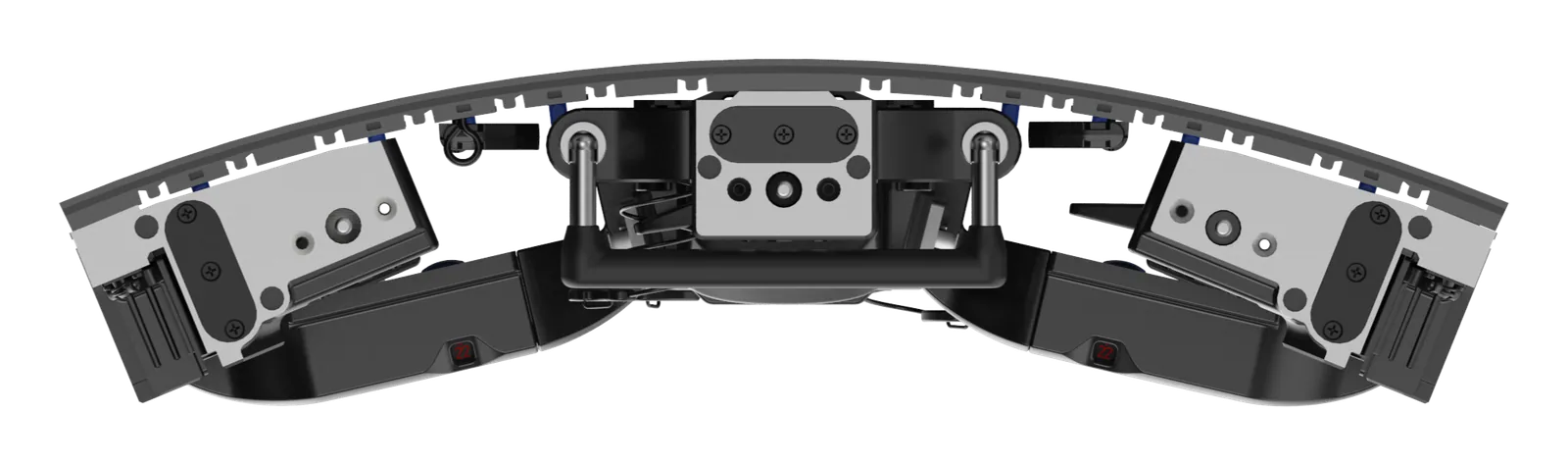

9 angles, switched in 1 second
One turn, and your ideas come to life

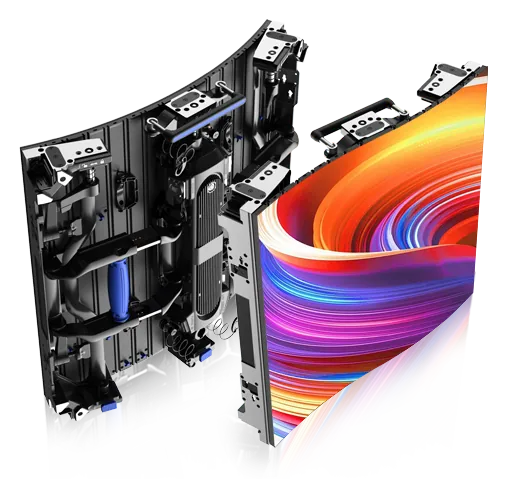

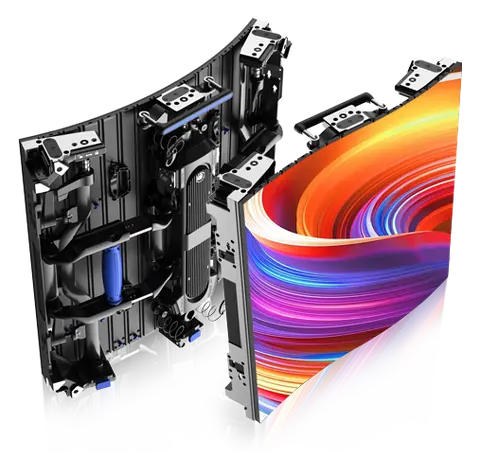

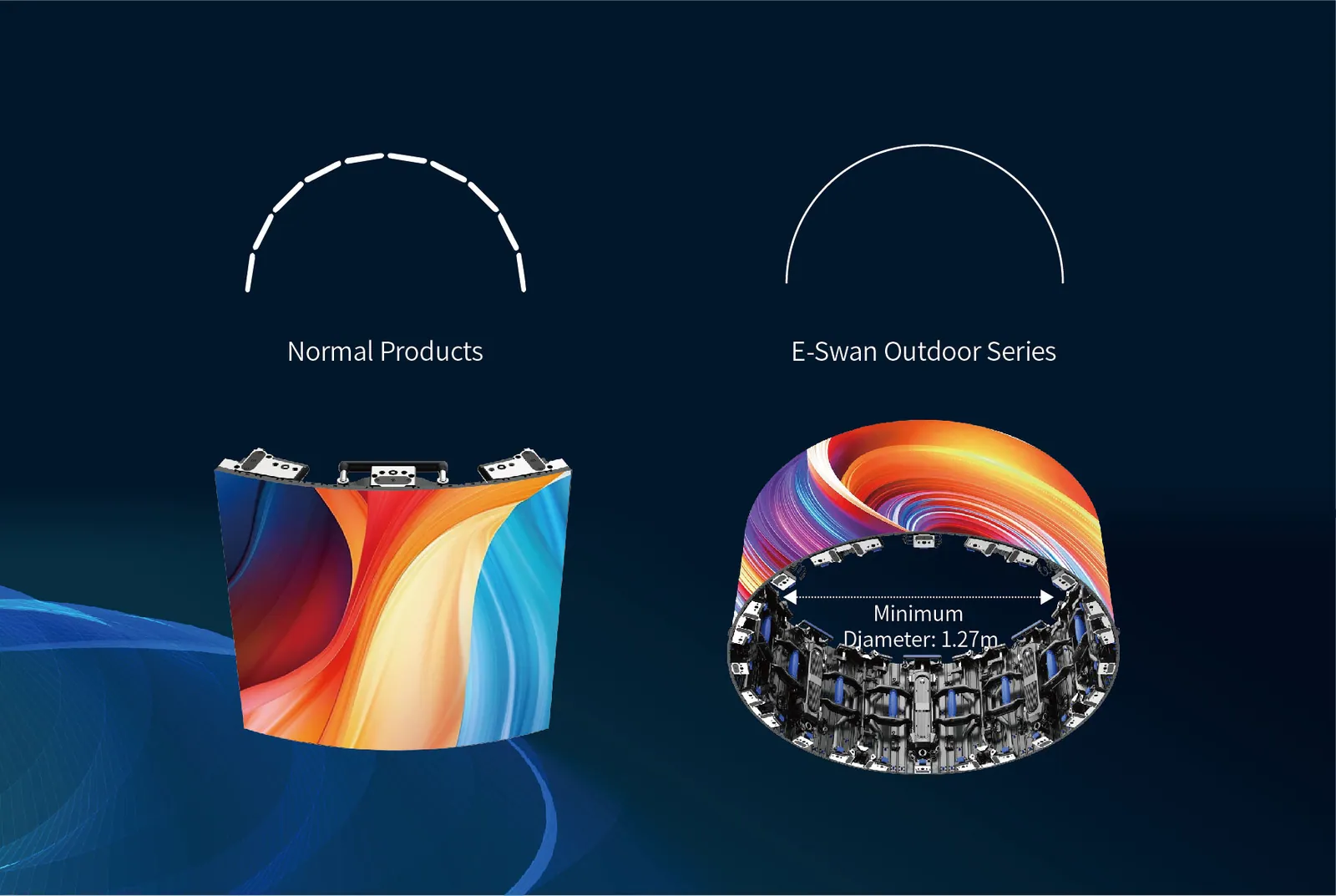

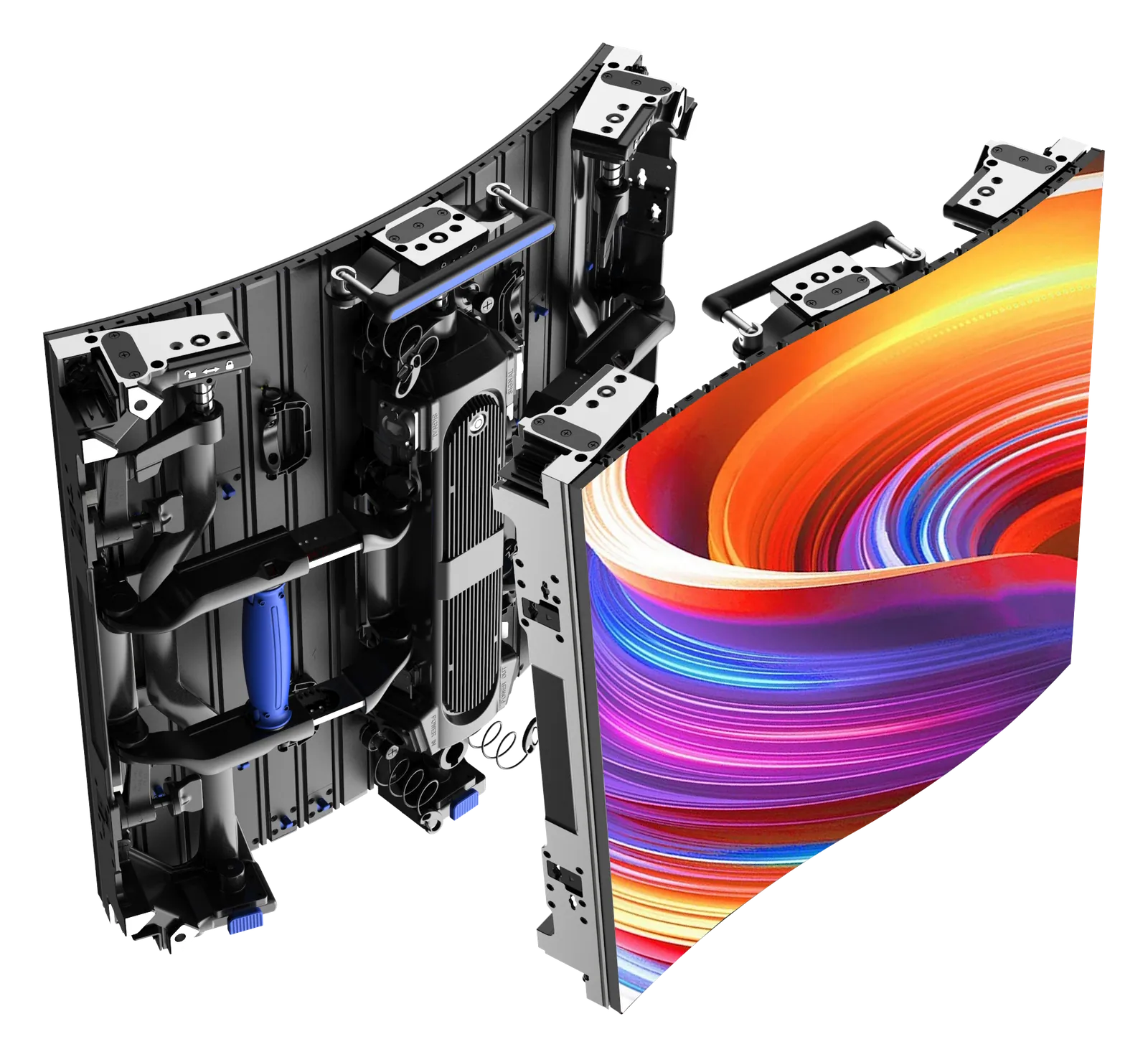

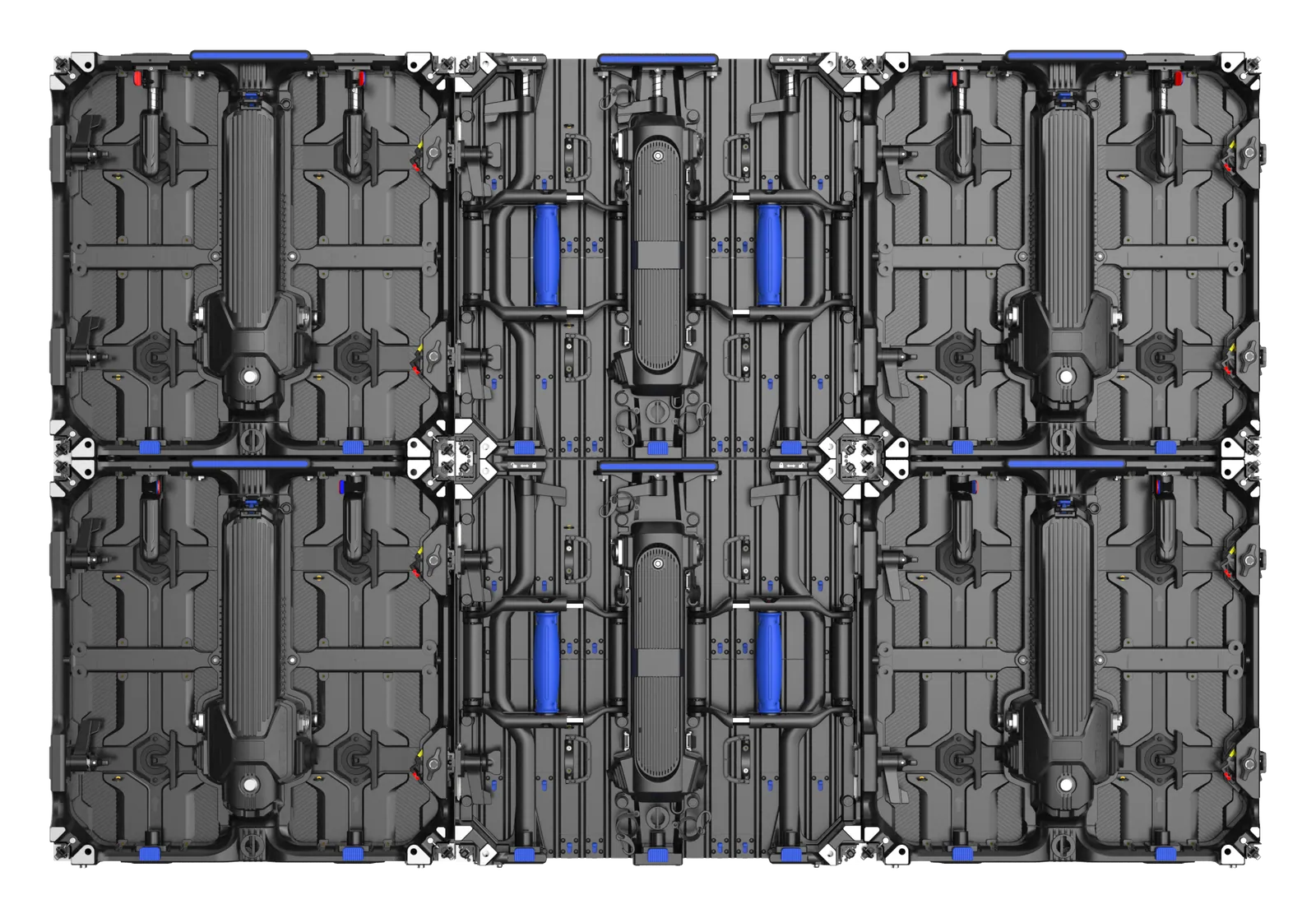

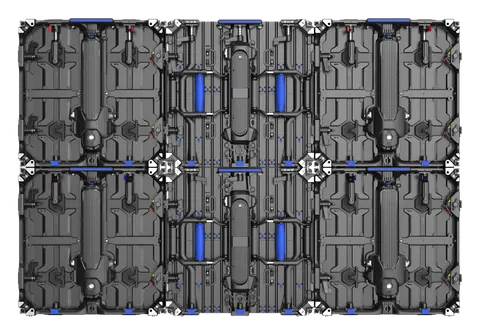

Large Modules, Seamless Splicing Solution
2 flexible modules create a perfectly curved surface with 40% higher smoothness, edge-free under any condition

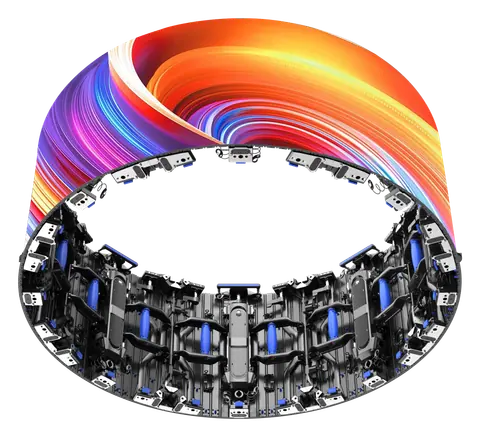

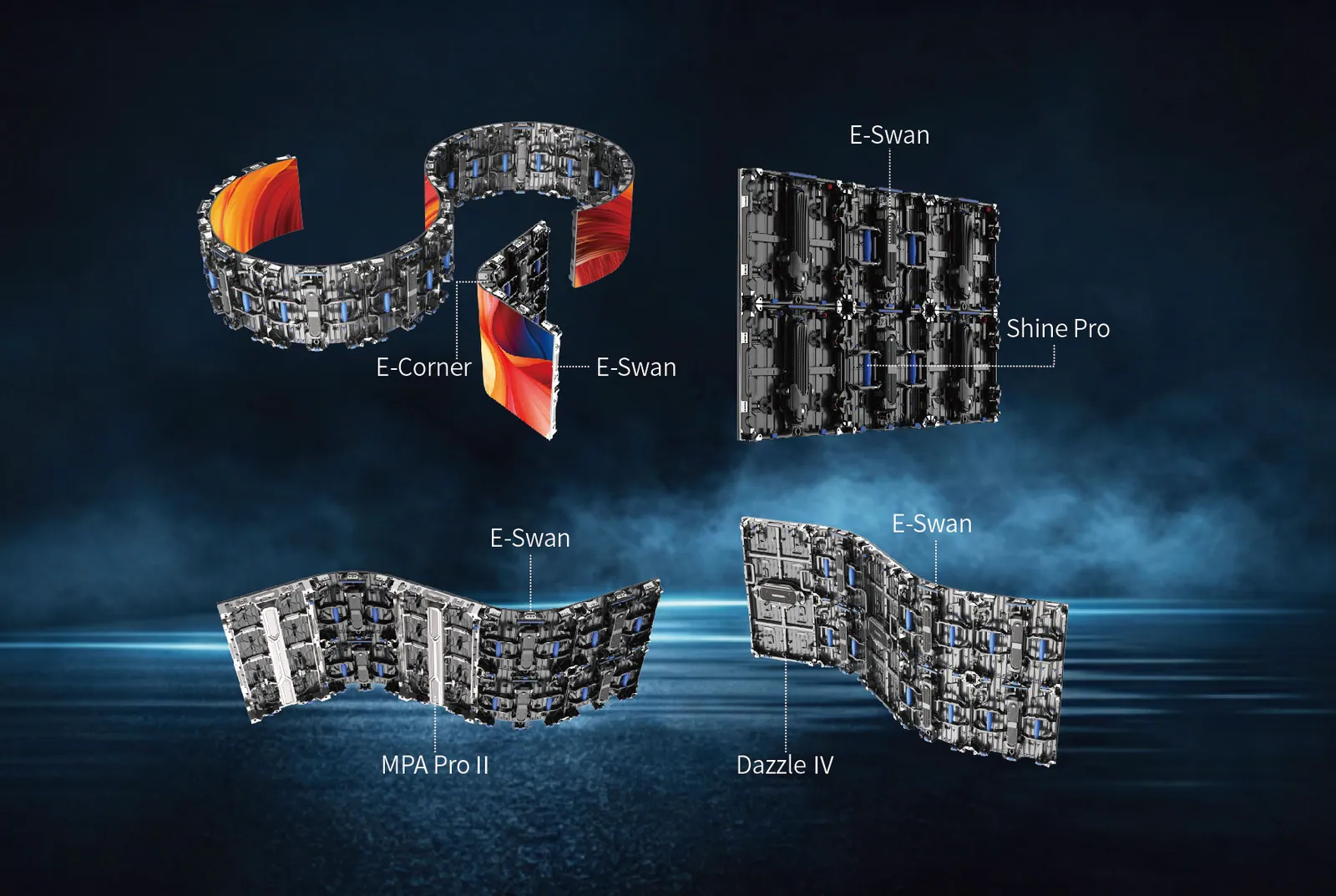

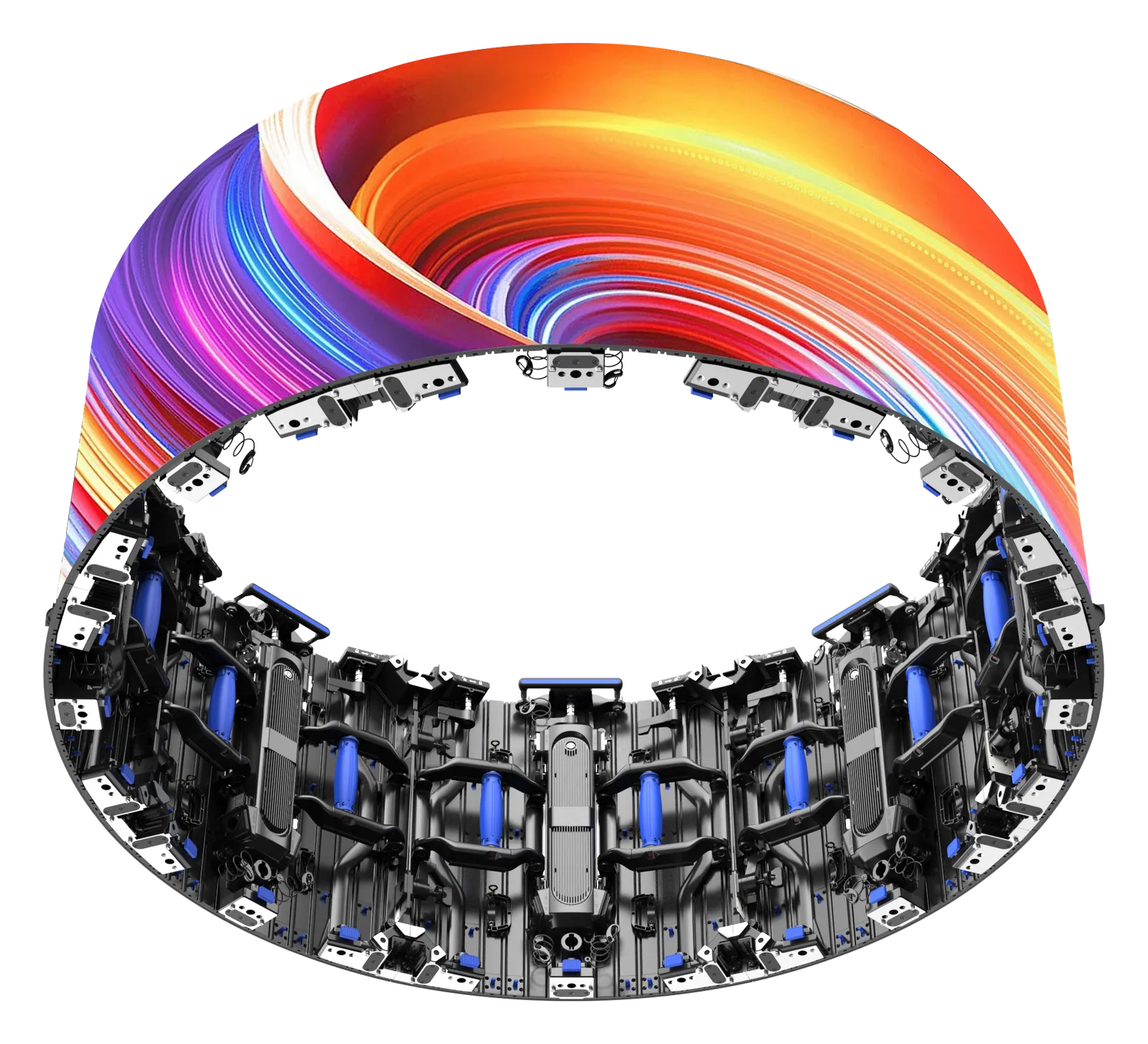

Designed for Endless Creativity
Waves, circles, corners-shape E-Swan your way, from trade shows to city landmarks

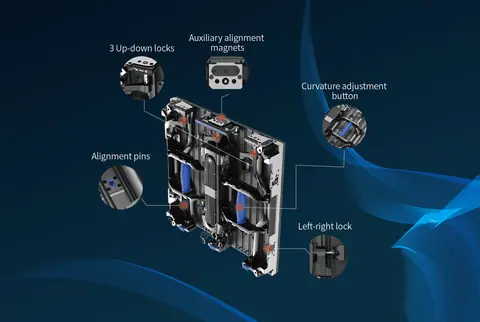

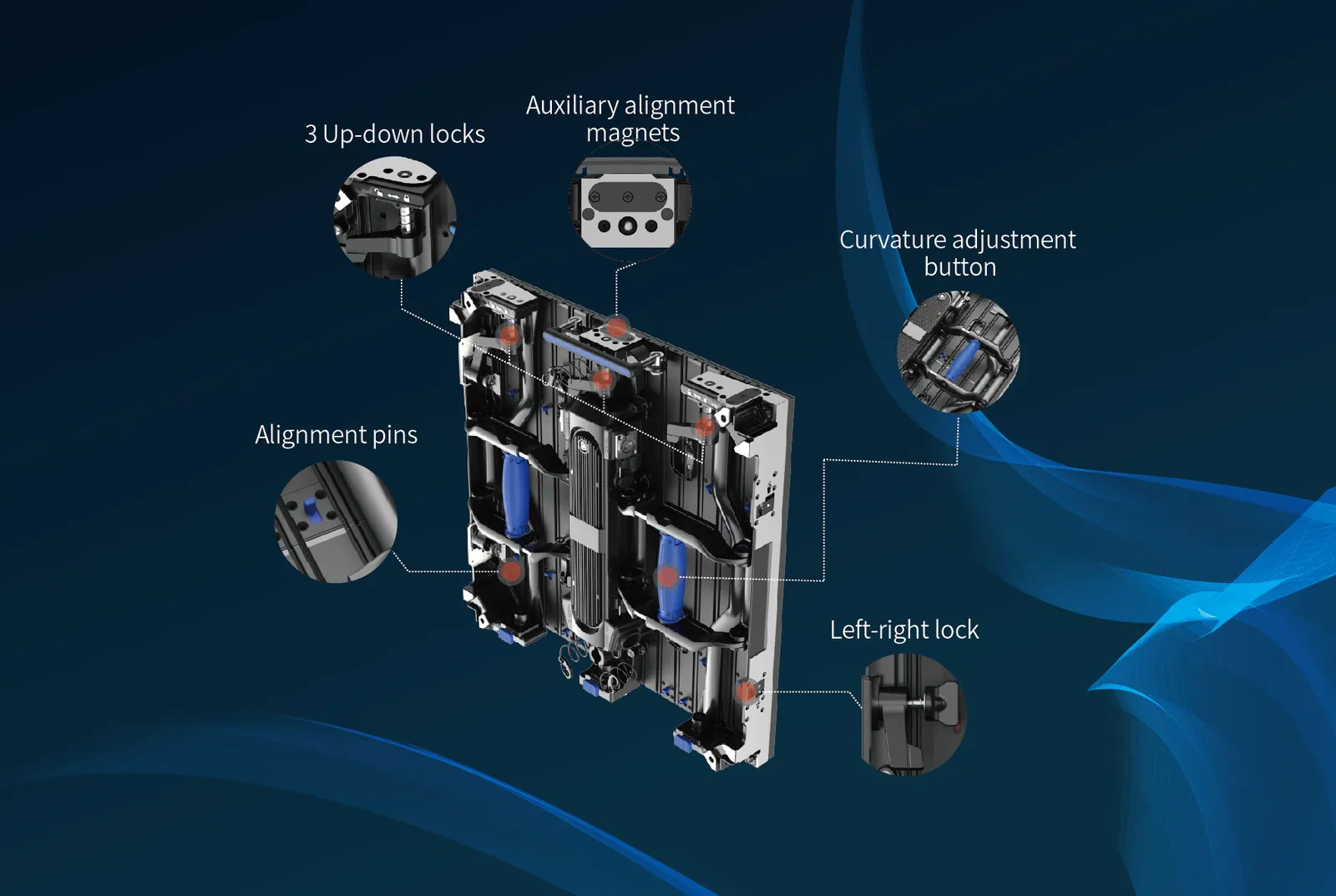

Quicker Installation
Magnets and 3-lock design at the top and bottom ensure perfect alignment and boost safety by 60%

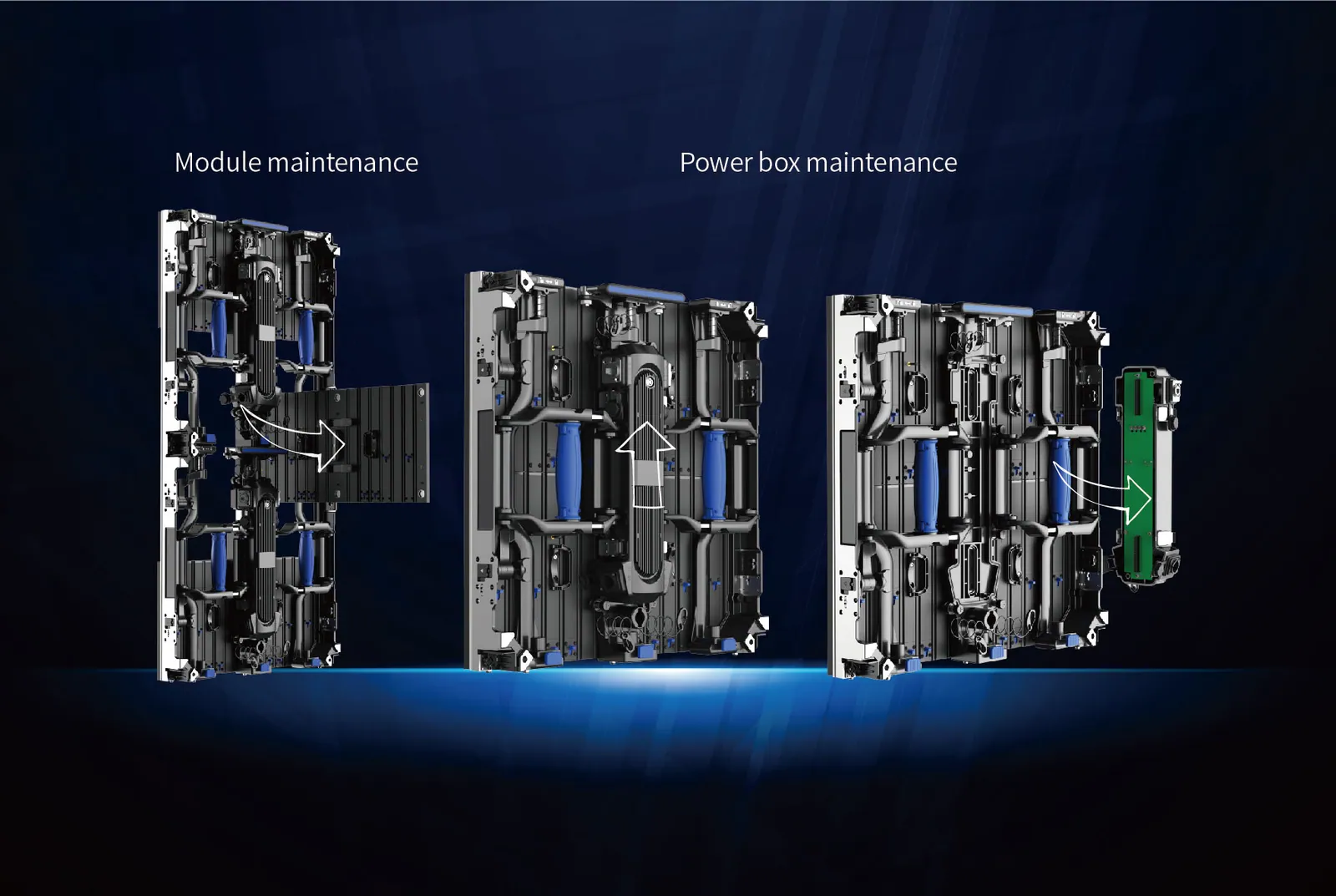

Smarter Rear Maintenance
Rear maintenance for both modules and integrated power boxes, reducing failure rate by 78%
Power box replacement completed in just 4 seconds

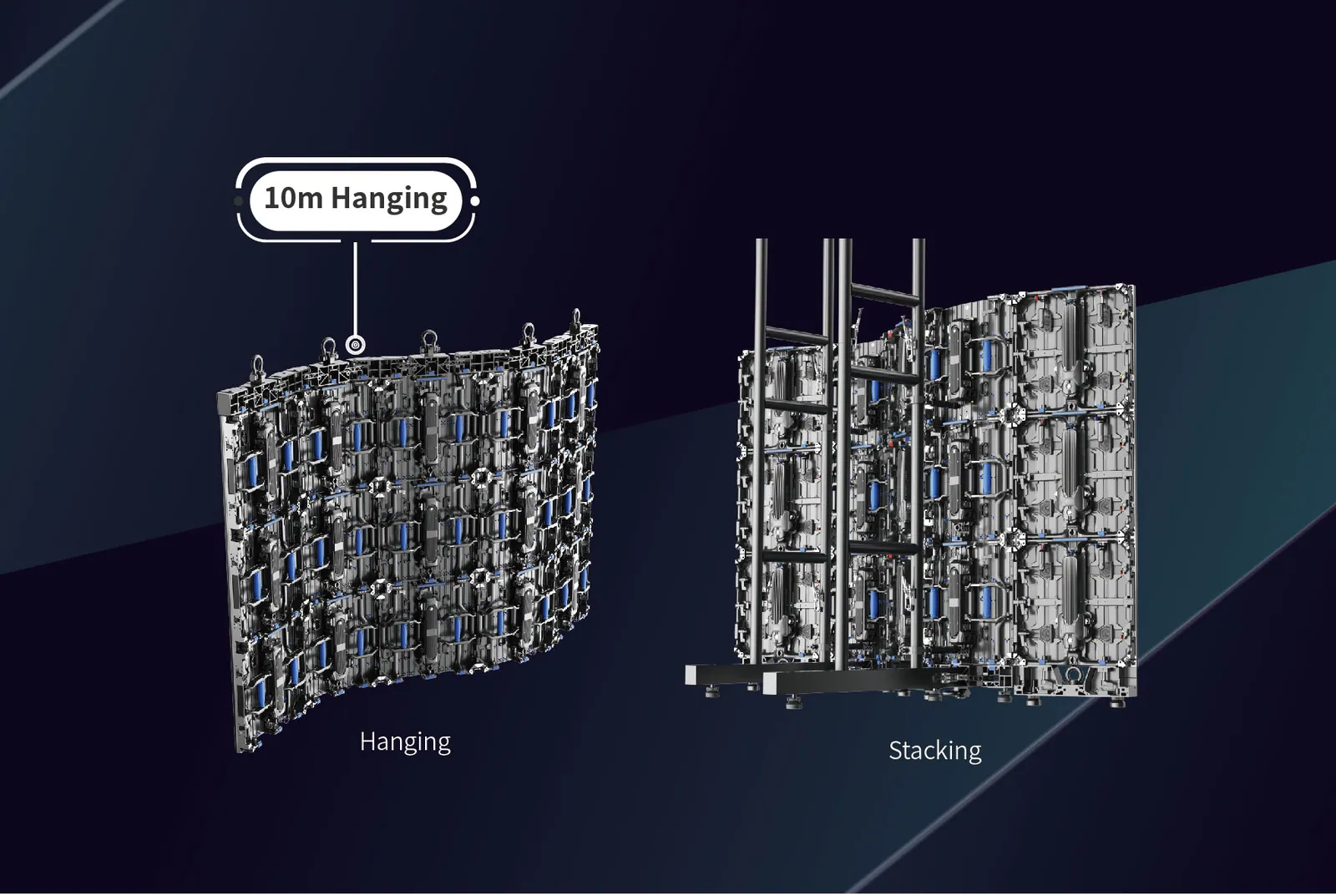

Safety-Assured Installation
Built with a 10X safety margin and TÜV certification, E-Swan can be flexibly stacked on the ground or hung up to 10 meters high
- Rental, concerts and stages
- Corporate and meeting rooms
- Control rooms and command centres
* All specification values given are per panel. The specifications are for reference only, actual values may vary.
