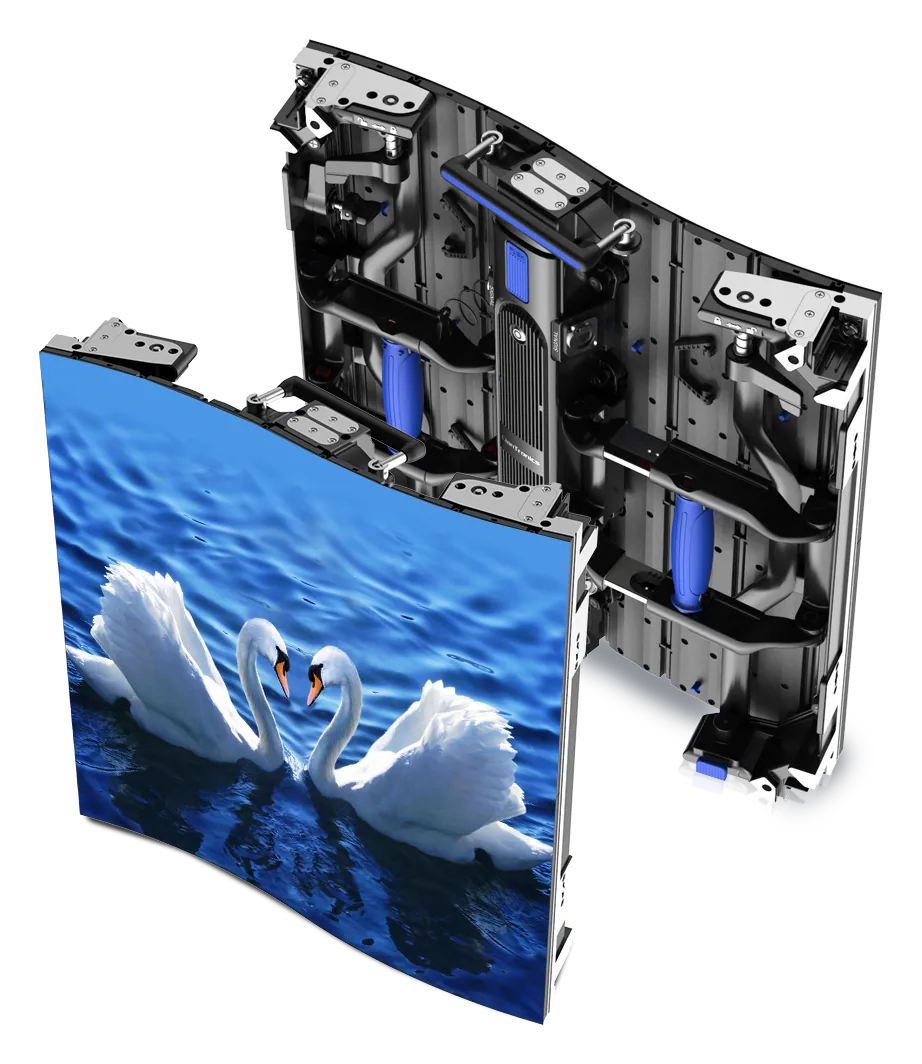

E-Swan Indoor ES2.6
Ultimate flexible indoor curved rental LED display: ultra-slim & light, angle adjustment, curved splicing, mixed splicing, install & maintain with ease, exceptional visual effects.
- Series
- E-Swan Series (Indoor)
- Pixel pitch
- 2.6 mm
- Brightness
- 900–1500 nits
- Panel size
- 500 × 500 × 73 mm
- Panel resolution
- 192 × 192
- Refresh rate
- 3840 / 7680 Hz
- LED type
- SMD
- IP rating
- IP20
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
E-Swan Indoor ES2.6Price on requestRequest a quotation
01VideoManufacturer's video · 2:20
Esdlumen E-Swan Indoor ES2.6: the manufacturer's video
02SpecificationManufacturer's data · 1 group · 14 values
What this product is, in numbers.

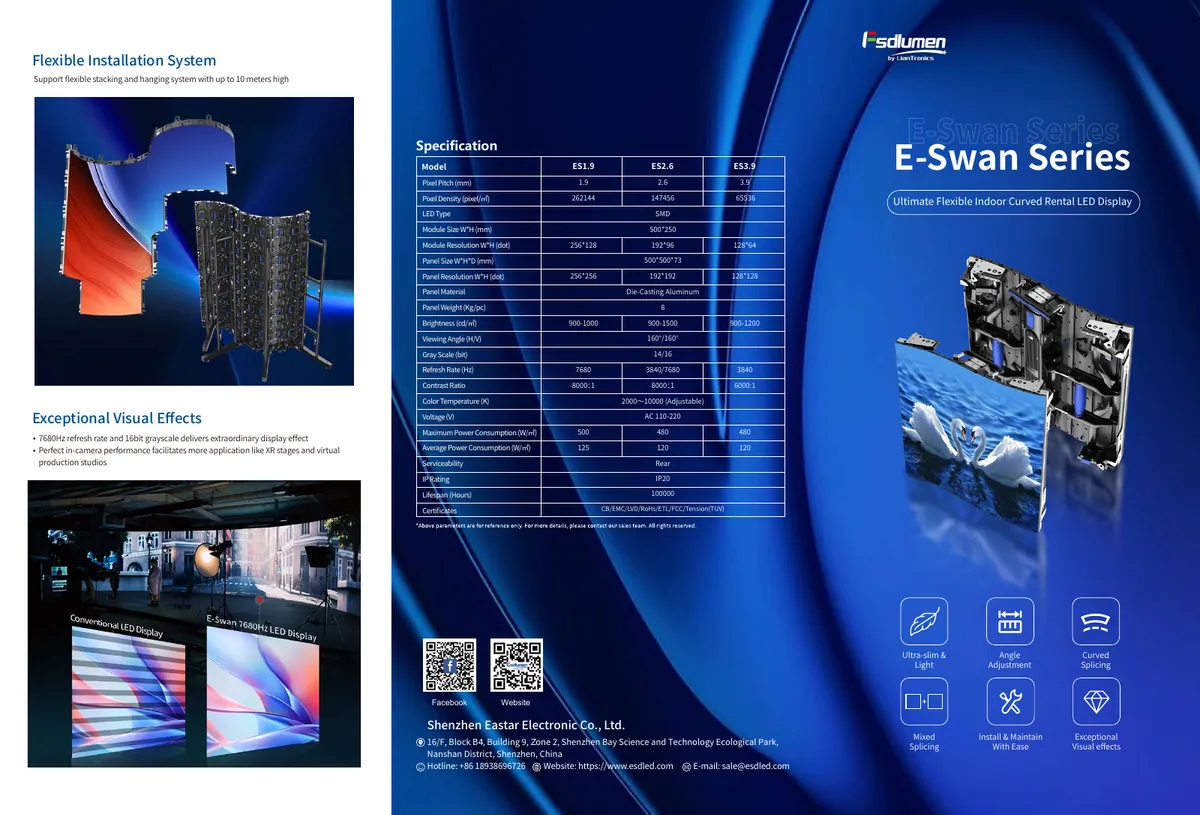

PDFDatasheetEN · 2 pages · 987 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications14
- Pixel Pitch
- 2.6 mm
- Panel Size
- 500 × 500 × 73 mm
- Panel Resolution
- 192 × 192
- Weight
- 8 kg
- Brightness
- 900–1500 nits
- Panel Material
- Die-casting Aluminum
- Serviceability
- Rear
- Pixel Density
- 147456 px/m²
- LED Type
- SMD
- Viewing Angle (H/V)
- 160° / 160°
- Refresh Rate
- 3840 / 7680 Hz
- Contrast Ratio
- 8000:1
- Color Temperature
- 2000–10000 (Adjustable)
- IP Rating
- IP20
Show the full specificationHide the rest of the specification0 more groups · 0 values
03Models3 models in the family
Models compared.
| Model | E-Swan Indoor ES1.9 | E-Swan Indoor ES2.6 | E-Swan Indoor ES3.9 |
|---|---|---|---|
| Pixel Pitch (mm) | 1.9 | 2.6 | 3.9 |
| Panel Size (mm) | 500 × 500 × 73 | 500 × 500 × 73 | 500 × 500 × 73 |
| Panel Resolution | 256 × 256 | 192 × 192 | 128 × 128 |
| Weight (Kg/pc) | 8 | 8 | 8 |
| Brightness (nits) | 900–1000 | 900–1500 | 900–1200 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Serviceability | Rear | Rear | Rear |
| Pixel Density (pixels/m²) | 262144 | 147456 | 65536 |
| LED Type | SMD | SMD | SMD |
| Viewing Angle (H/V) | 160° / 160° | 160° / 160° | 160° / 160° |
| Refresh Rate (Hz) | 7680 | 3840 / 7680 | 3840 |
| Contrast Ratio | 8000:1 | 8000:1 | 6000:1 |
| Color Temperature (K) | 2000–10000 (Adjustable) | 2000–10000 (Adjustable) | 2000–10000 (Adjustable) |
| IP Rating | IP20 | IP20 | IP20 |
04DescriptionManufacturer's description
What it is.

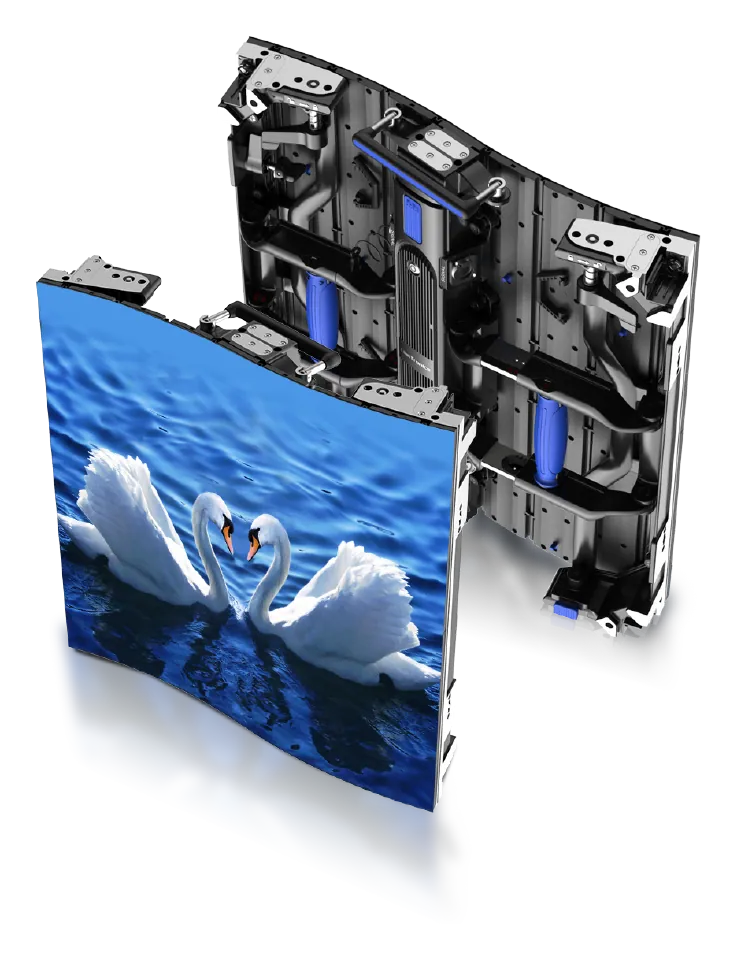

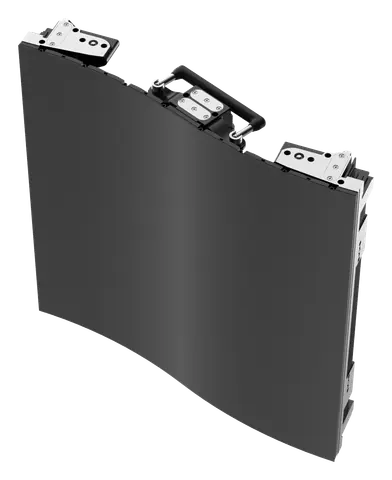

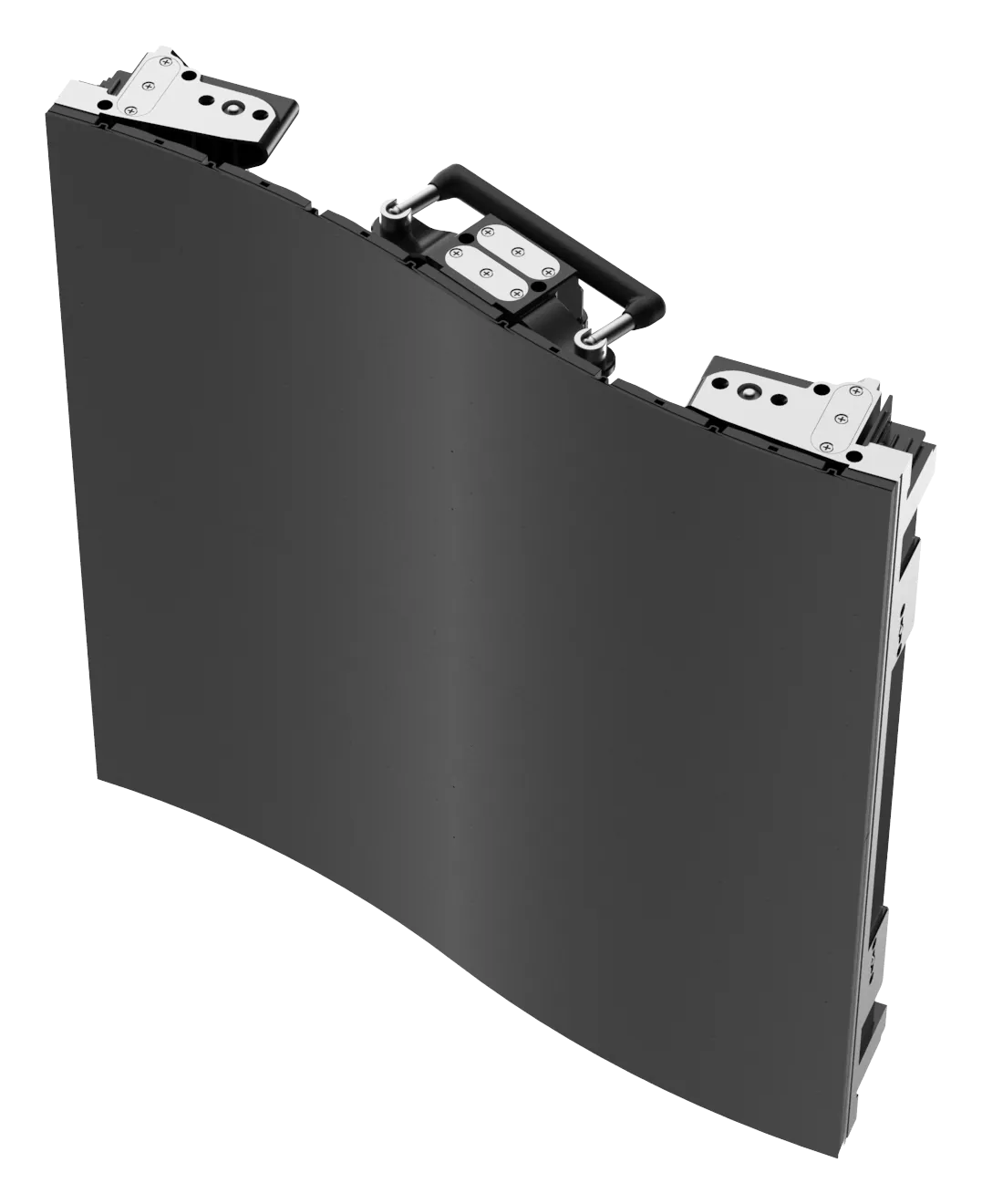

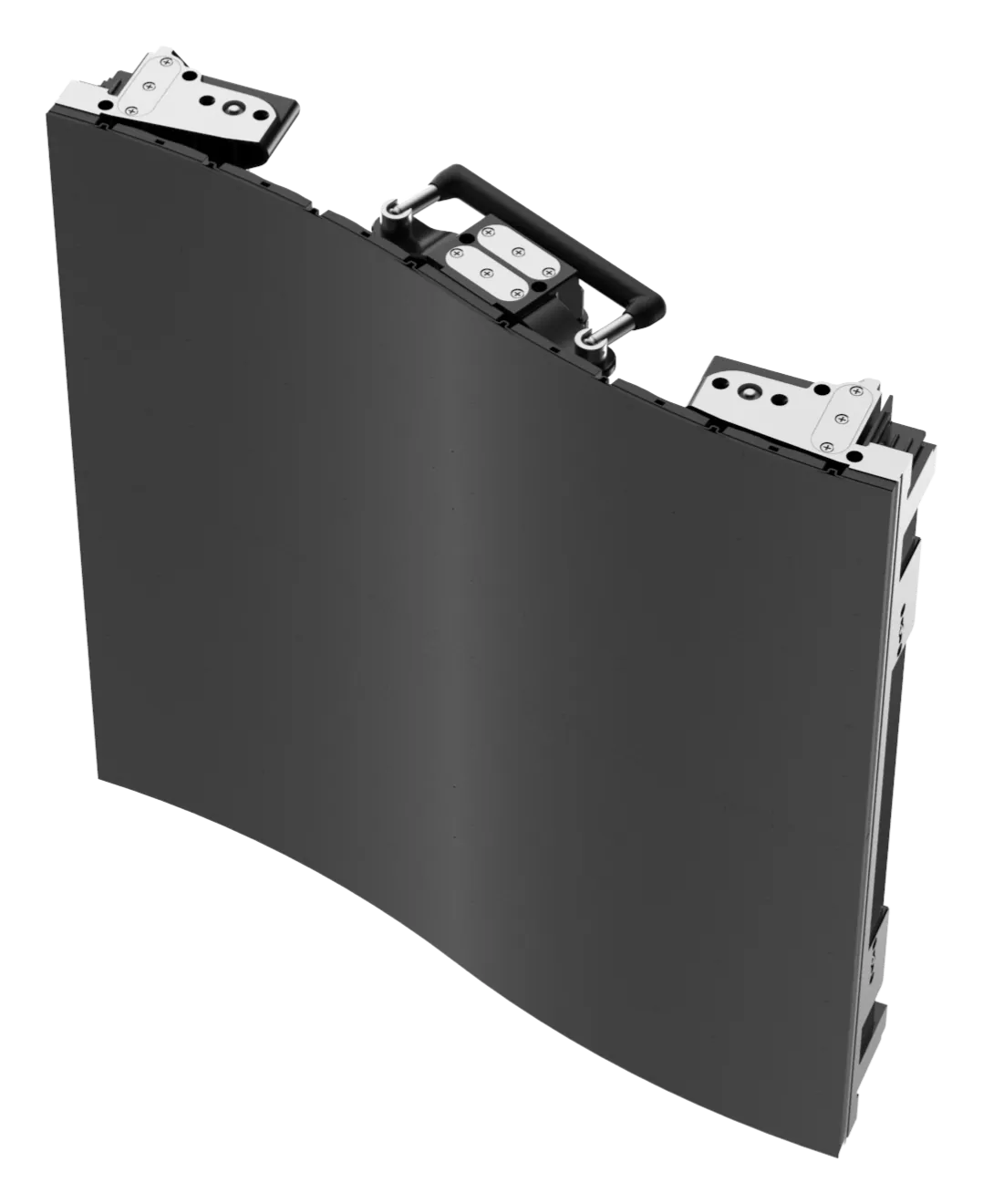

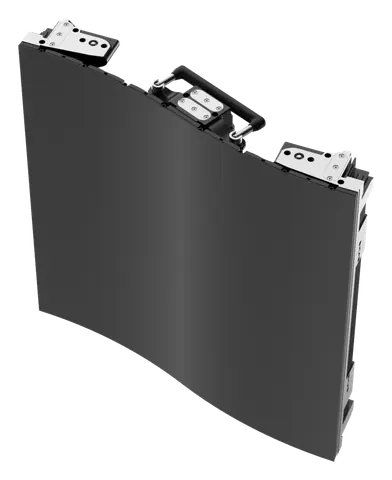

Ultimate Flexible Curved Panel

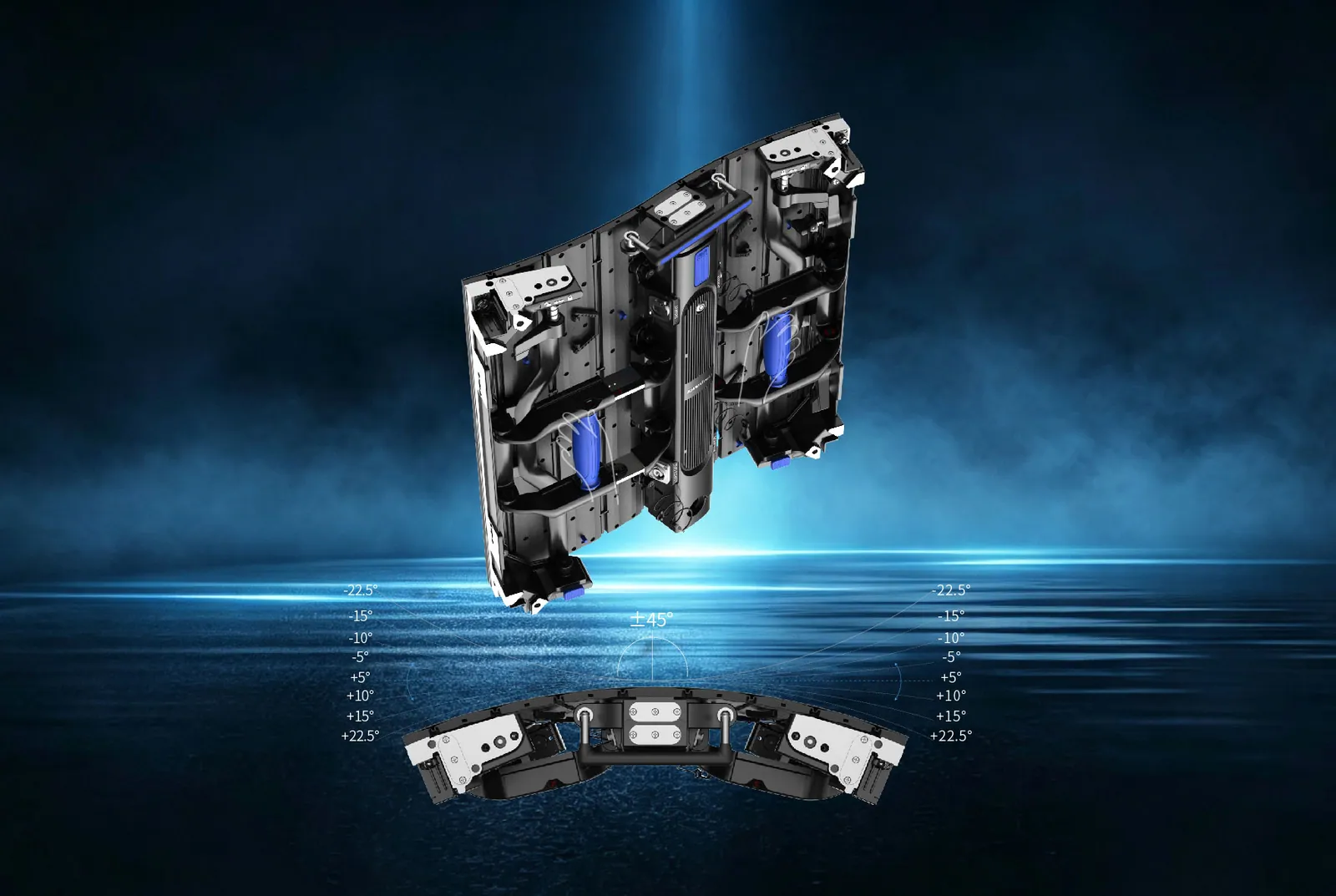

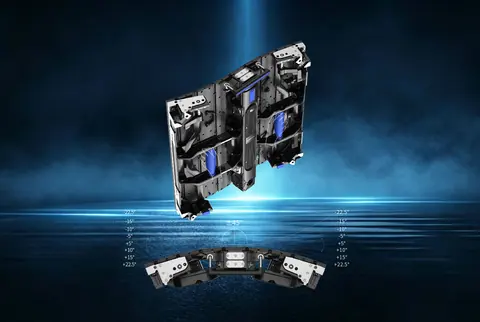

9 adjustable scales grant each panel to be bent up to 45° inward and outward

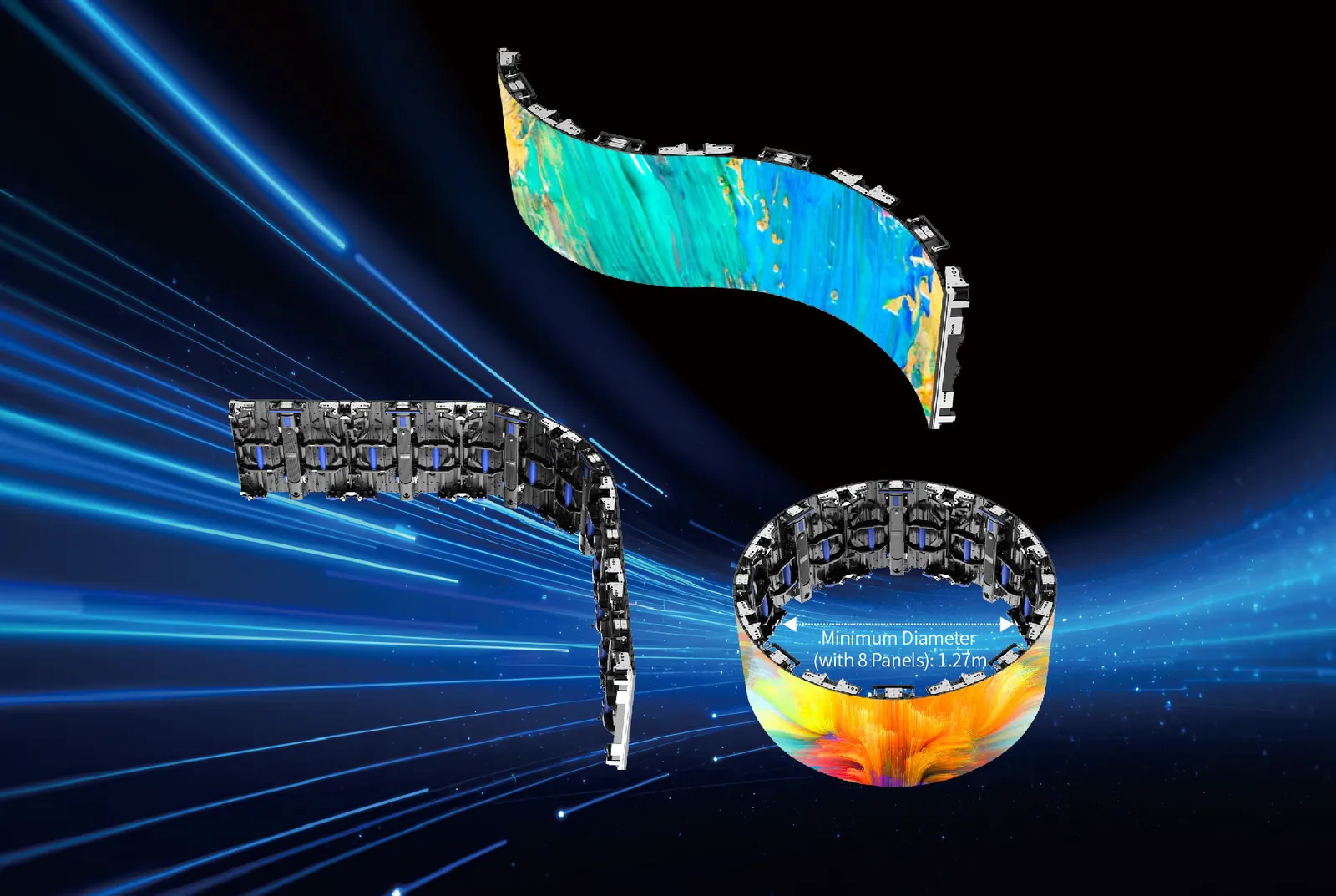

Inventive Smooth Curved Splicing Solution

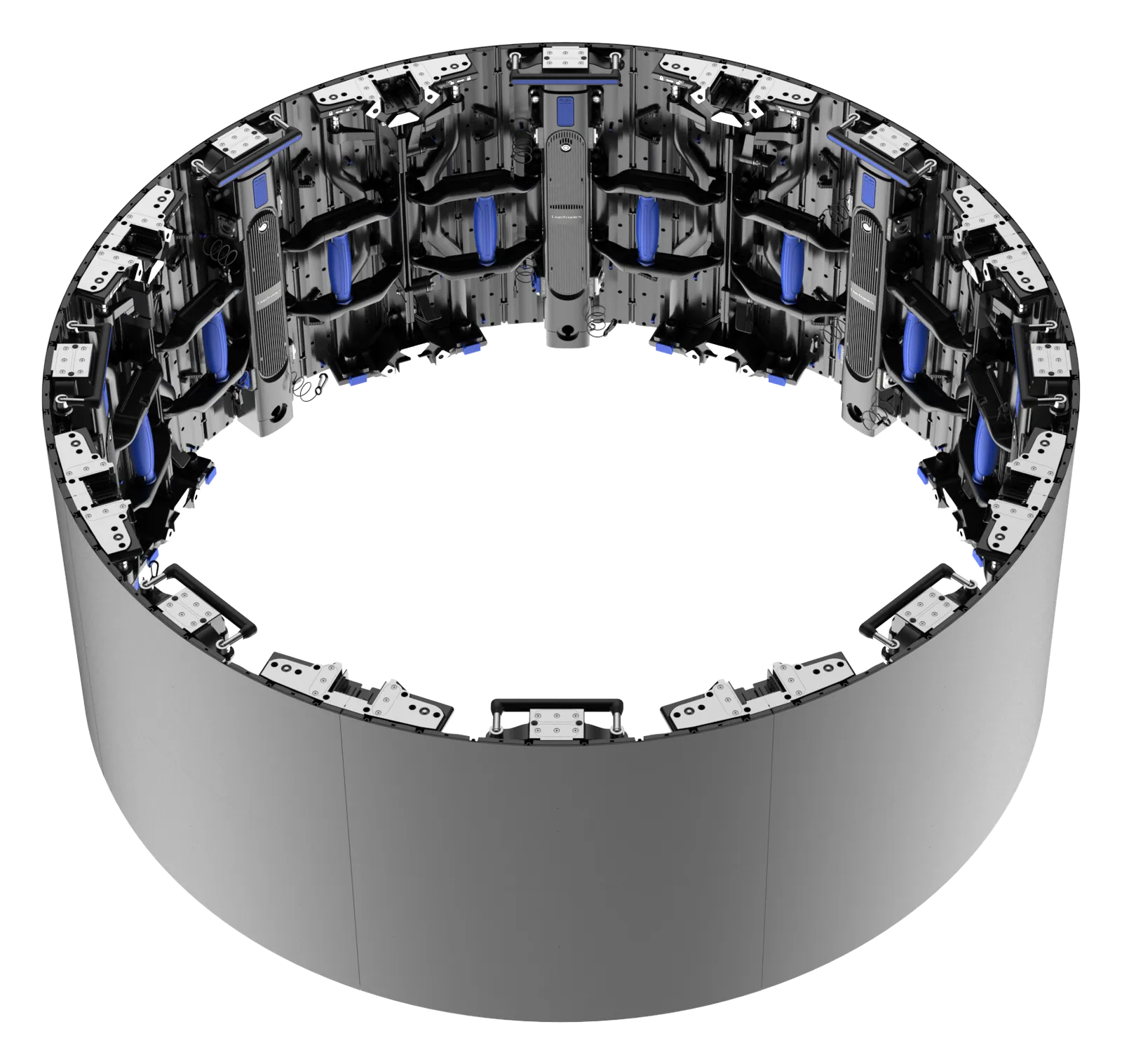

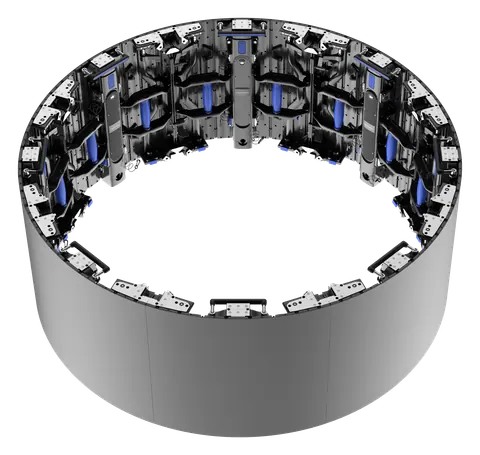

Support curved shapes such as wave, right-angle corner, cylinder

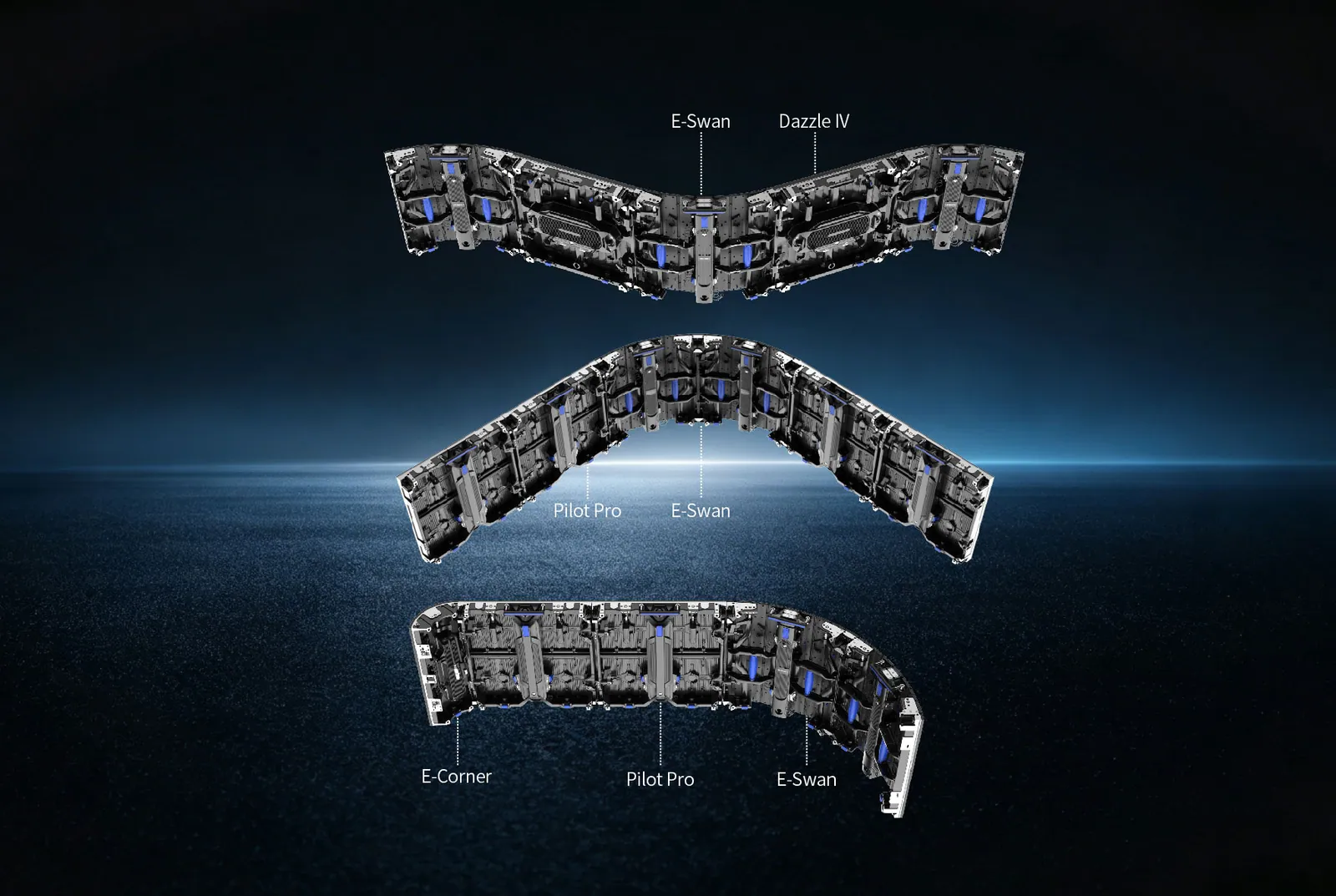

Mixed Splicing for More Possibilities
Mixed splicing with other rental displays for more creativity

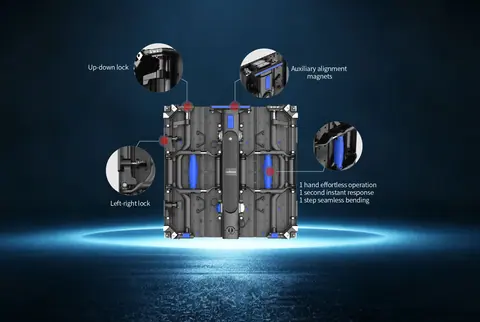

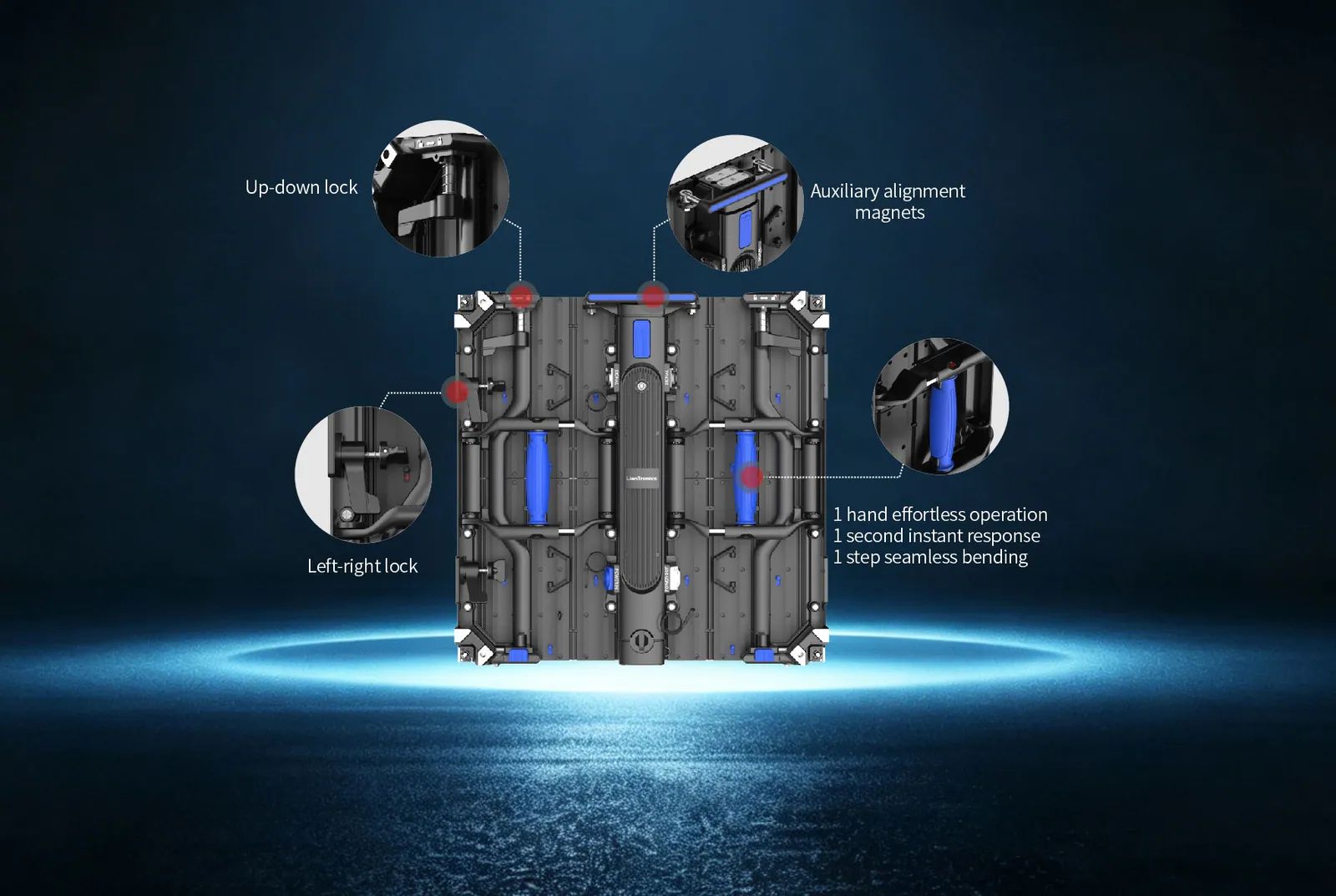

Quick Installation, Easy Maintenance
Ultra-slim & light die-casting aluminum panels with each weighing 8 kg, 73mm thinness

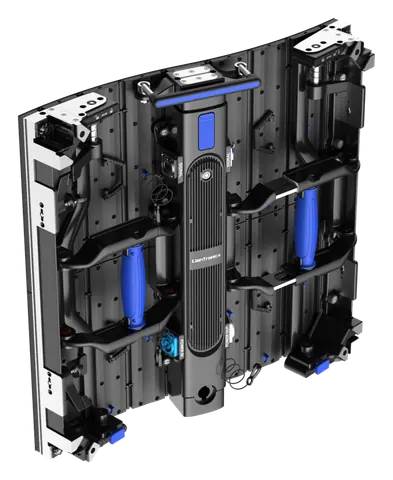

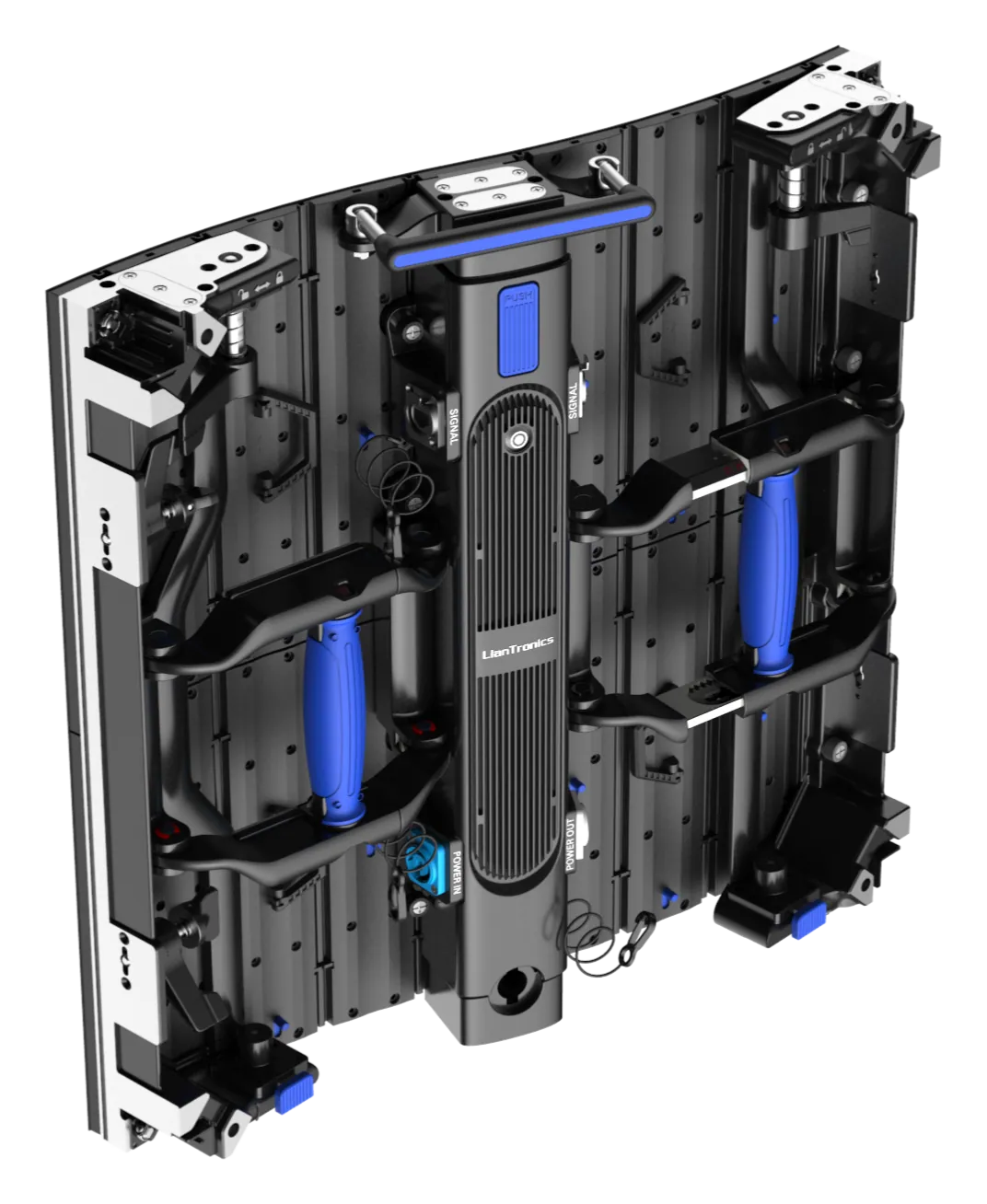

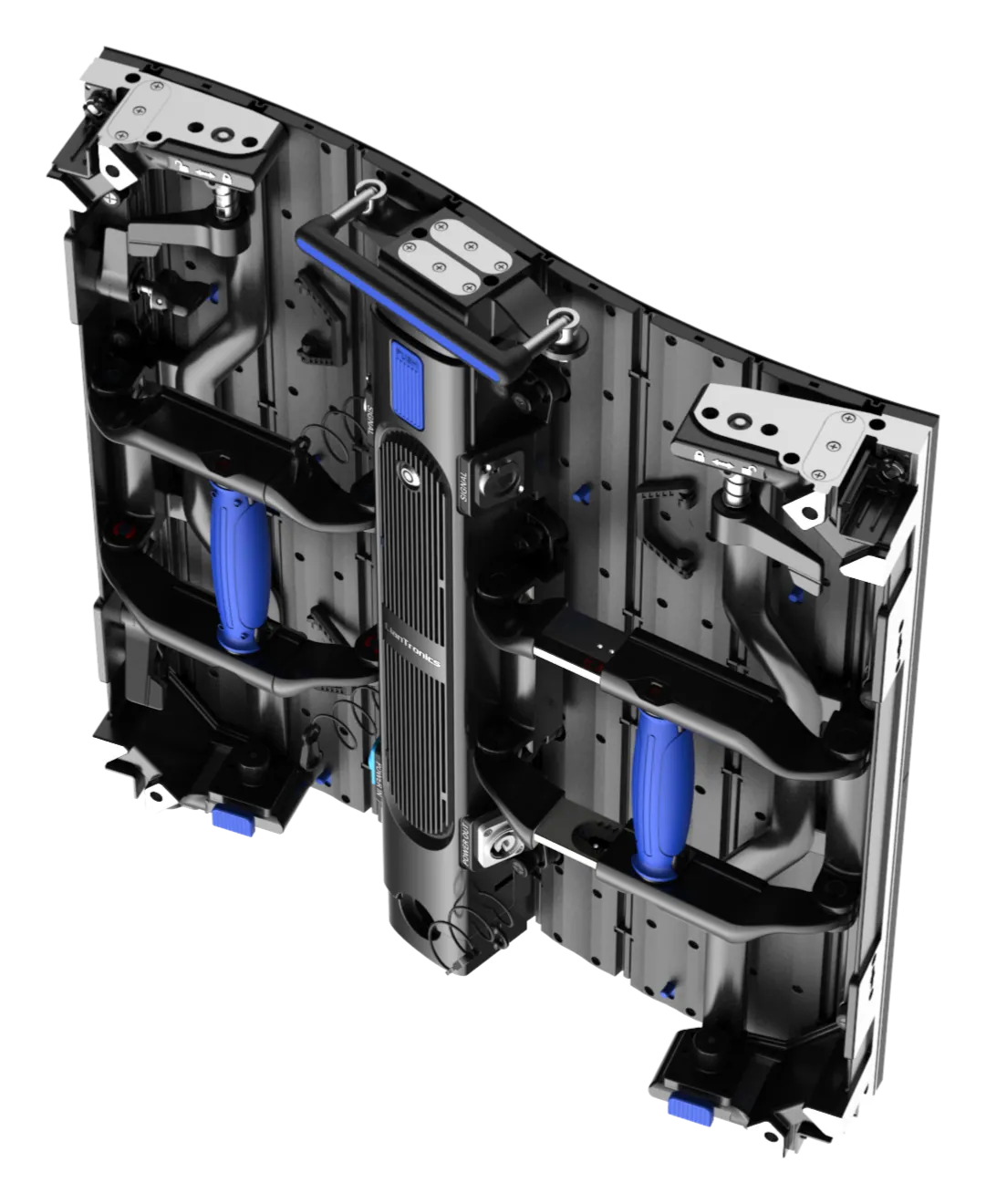

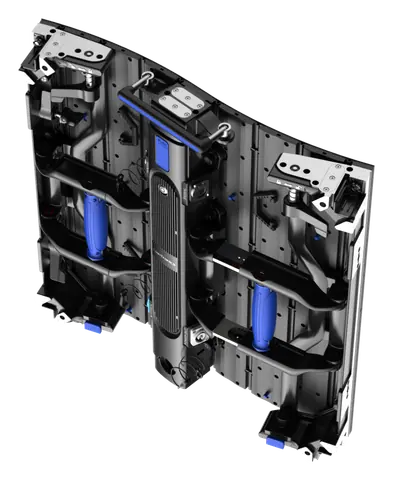

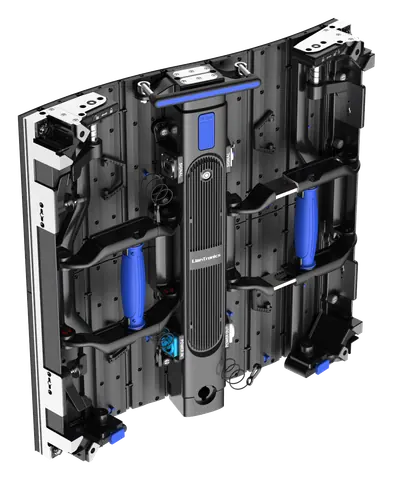

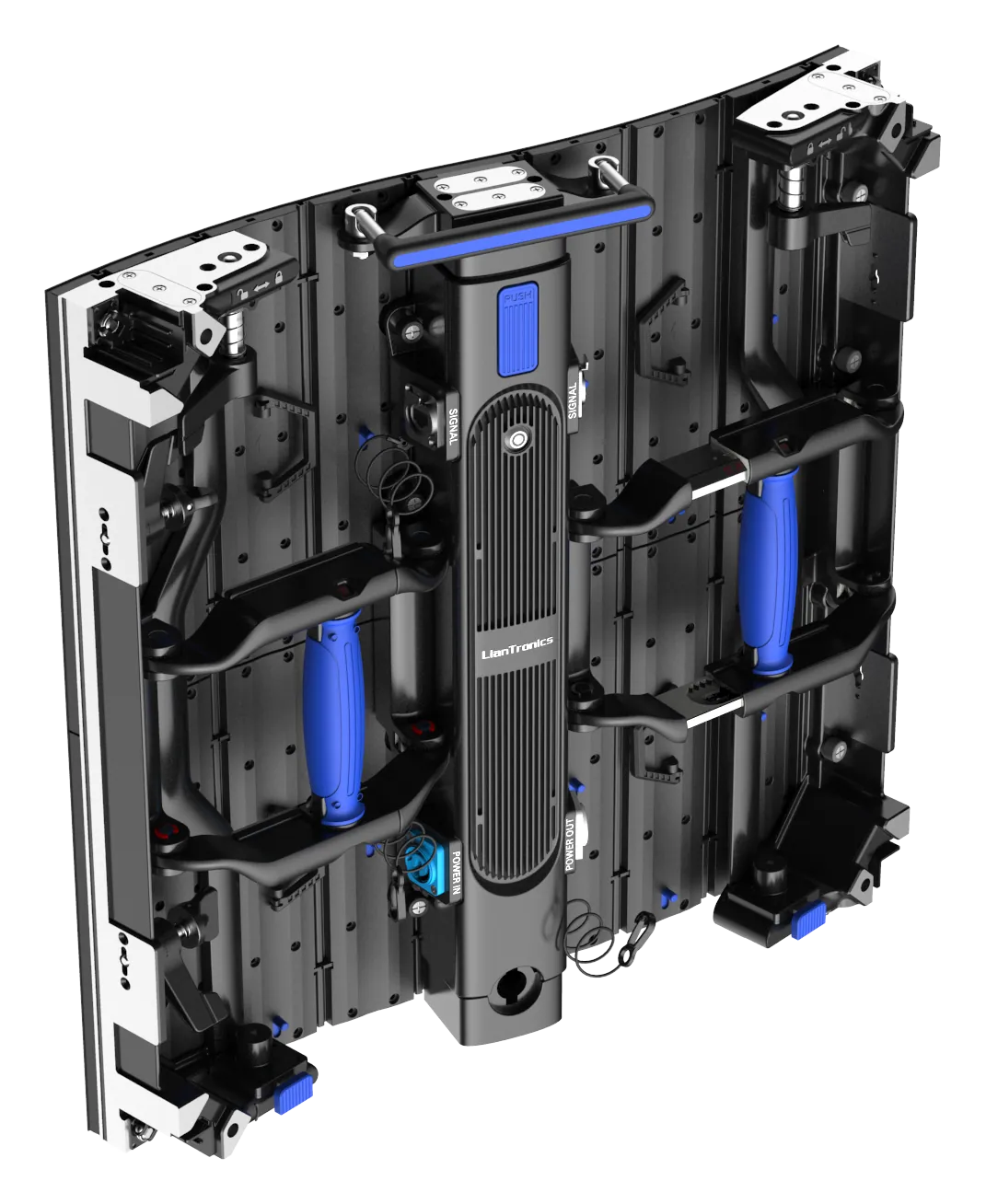

Modules and power boxes support full rear maintenance

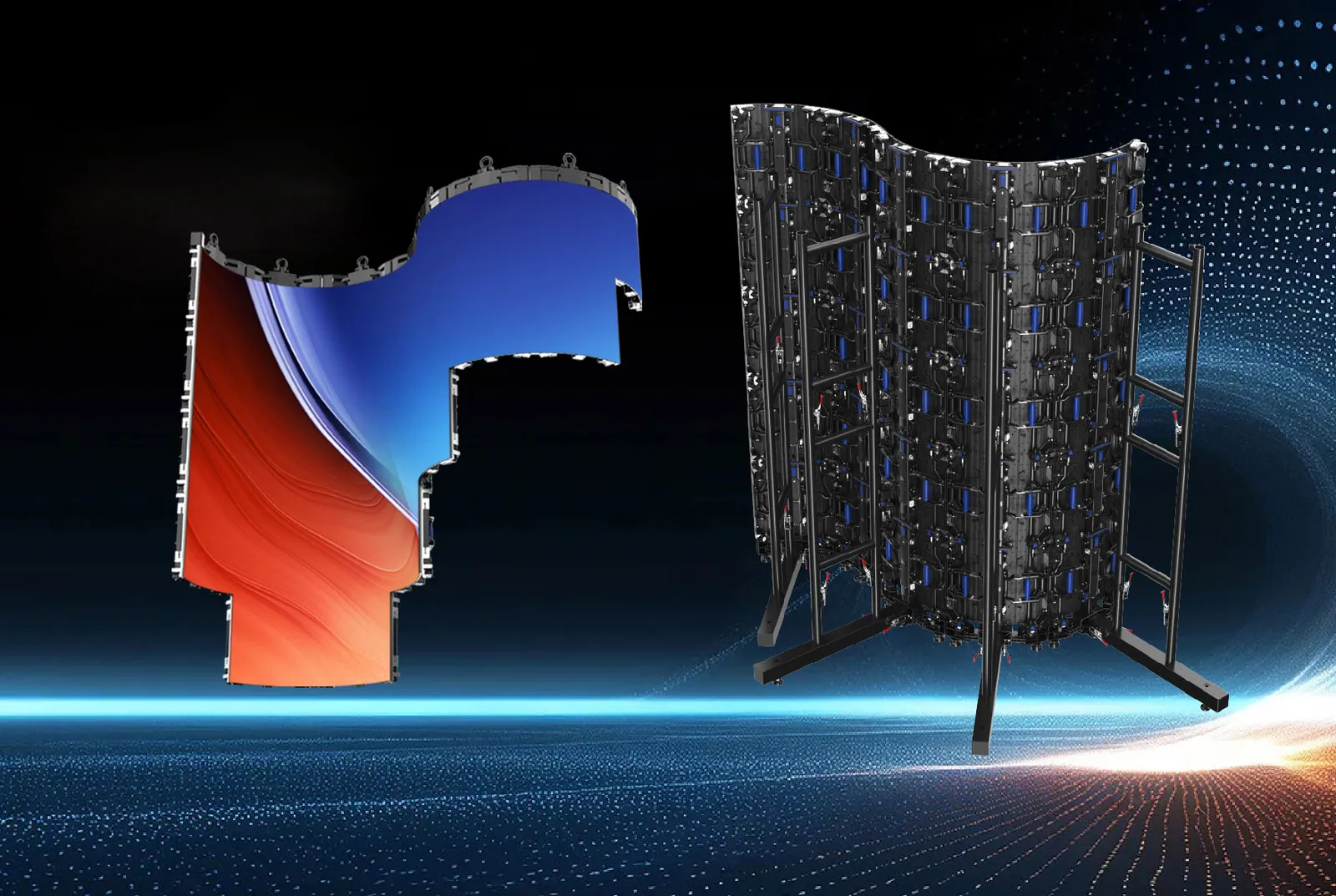

Flexible Installation System
Support flexible stacking and hanging system with up to 10 meters high
Exceptional Visual Effects

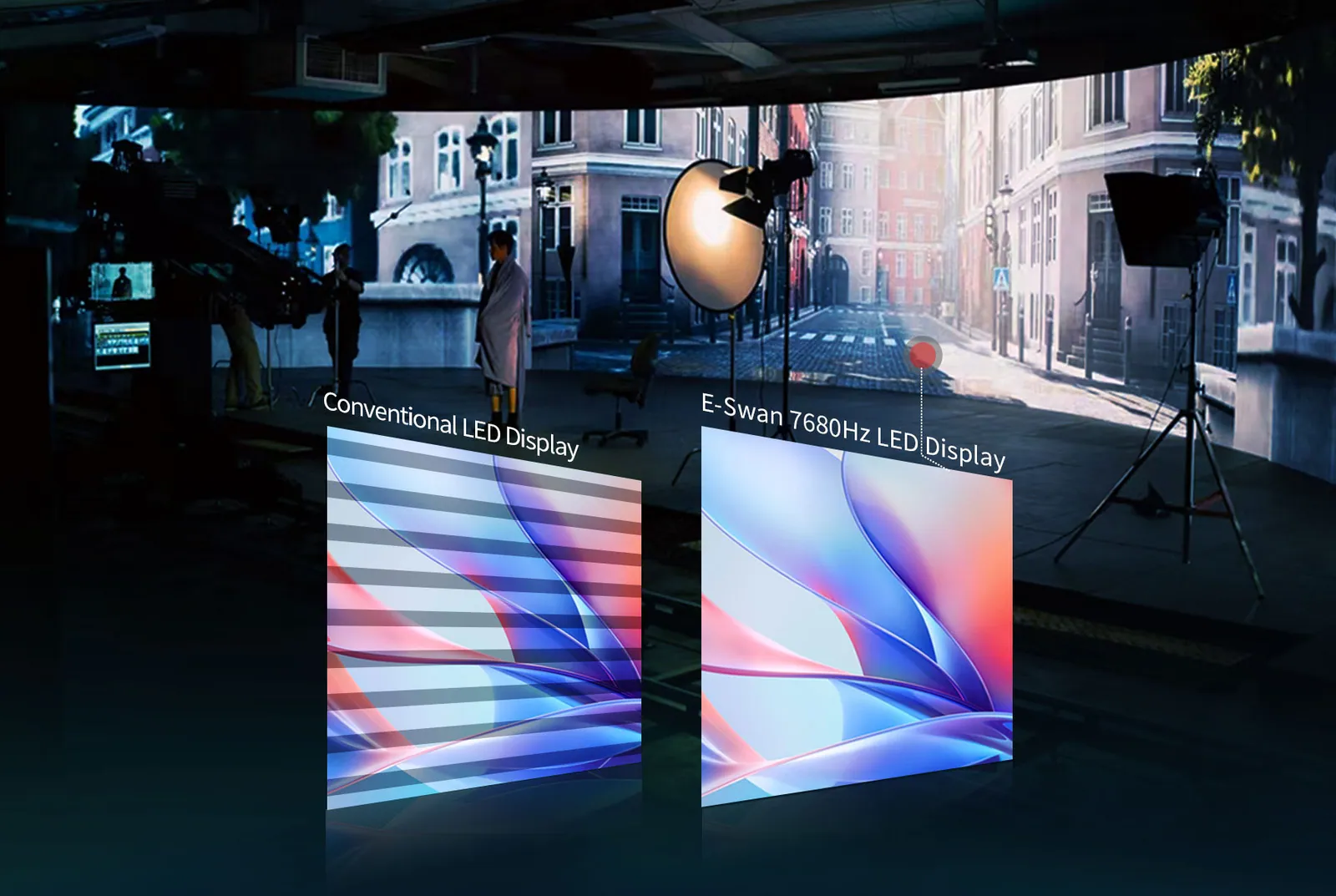

7680Hz refresh rate and 16bit grayscale delivers extraordinary display effect
Perfect in-camera performance facilitates more application like XR stages and virtual production studios
- Rental, concerts and stages
- Virtual production and xR
- Corporate and meeting rooms
- Control rooms and command centres
- Exhibitions and museums
* All specification values given are per panel. The specifications are for reference only, actual values may vary.
