FS 5

Outdoor LED digital billboard for creative glasses-free 3D display: excellent display effect, true-to-life presentation.

Series
FS Series
Pixel pitch
5 mm
Brightness
5500–7000 nits
Power consumption
max 680 / avg 170 W/m²
Panel size
960 × 960 × 109 mm
Panel resolution
192 × 192
Refresh rate
3840–7680 Hz
LED type
SMD1921
PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 24 values

What this product is, in numbers.

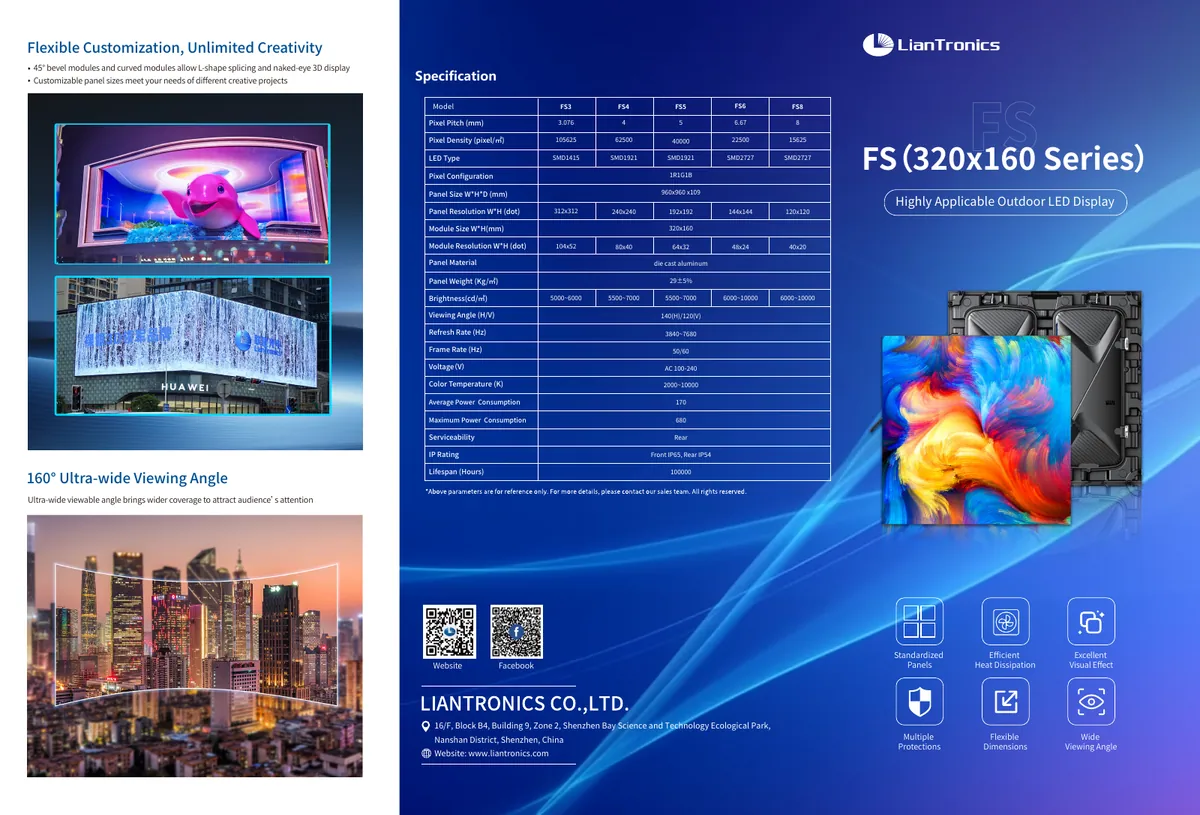

PDFDatasheetEN · 2 pages · 9.7 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications24
Pixel Pitch
5 mm
Panel Size W × H
960 × 960 × 109 mm
Panel Resolution
192 × 192
Panel Material
Die-casting Aluminum
Panel Weight
29±5% kg/m²
Brightness
5500–7000 nits
Serviceability
Rear
Pixel Density
40000 px/m²
LED Type
SMD1921
Brightness Adjustment
Programmable / Auto / Manual
Refresh Rate
3840–7680 Hz
Average Power Consumption
170 W/m²
Color Temperature
2000–10000 K
IP Rating
Front IP65 / Rear IP54
Maximum Power Consumption
680 W/m²
Module Size W × H
320 × 160 mm
Module Resolution W × H (dot)
64 × 32
Pixel Configuration
1R1G1B
Viewing Angle (H/V)
140 (H) / 120 (V)
Frame Rate
50 / 60 Hz
Voltage (V)
AC 100–240
Lifespan
100000 h
Gray Scale
14 / 16 bit
Contrast Ratio
8000:1
02Models5 models in the family

Models compared.

ModelFS 3FS 4FS 5FS 6FS 8
Pixel Pitch (mm)3.076456.678
Panel Size W × H (mm)960 × 960 × 109960 × 960 × 109960 × 960 × 109960 × 960 × 109960 × 960 × 109
Panel Resolution (W × H)312 × 312240 × 240192 × 192144 × 144120 × 120
Panel MaterialDie-casting AluminumDie-casting AluminumDie-casting AluminumDie-casting AluminumDie-casting Aluminum
Panel Weight (Kg/m²)29±5%29±5%29±5%29±5%29±5%
Brightness (nits)5000–60005500–70005500–70006000–100006000–10000
ServiceabilityRearRearRearRearRear
Pixel Density (pixels/m²)10562562500400002250015625
LED TypeSMD1415SMD1921SMD1921SMD2727SMD2727
Brightness AdjustmentProgrammable / Auto / ManualProgrammable / Auto / ManualProgrammable / Auto / ManualProgrammable / Auto / ManualProgrammable / Auto / Manual
Refresh Rate (Hz)3840–76803840–76803840–76803840–76803840–7680
Average Power Consumption (W/m²)170170170170170
Color Temperature (K)2000–100002000–100002000–100002000–100002000–10000
IP RatingFront IP65 / Rear IP54Front IP65 / Rear IP54Front IP65 / Rear IP54Front IP65 / Rear IP54Front IP65 / Rear IP54
Maximum Power Consumption (W/m²)680680680680680
Module Size W × H (mm)320 × 160320 × 160320 × 160320 × 160320 × 160
Module Resolution W × H (dot)104 × 5280 × 4064 × 3248 × 2440 × 20
Pixel Configuration1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B
Viewing Angle (H/V)140 (H) / 120 (V)140 (H) / 120 (V)140 (H) / 120 (V)140 (H) / 120 (V)140 (H) / 120 (V)
Frame Rate (Hz)50 / 6050 / 6050 / 6050 / 6050 / 60
Voltage (V)AC 100–240AC 100–240AC 100–240AC 100–240AC 100–240
Lifespan (Hours)100000100000100000100000100000
Gray Scale (bit)14 / 1614 / 1614 / 1614 / 1614 / 16
Contrast Ratio8000:18000:18000:18000:18000:1
03DescriptionManufacturer's description

What it is.

* All specification values given are per panel. The specifications are for reference only, actual values may vary.

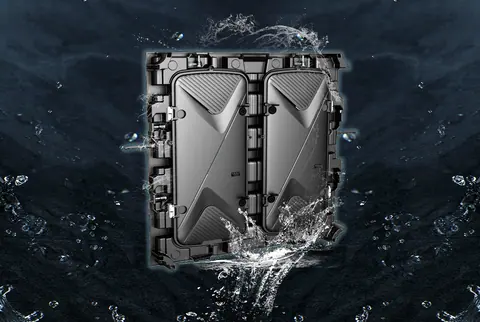

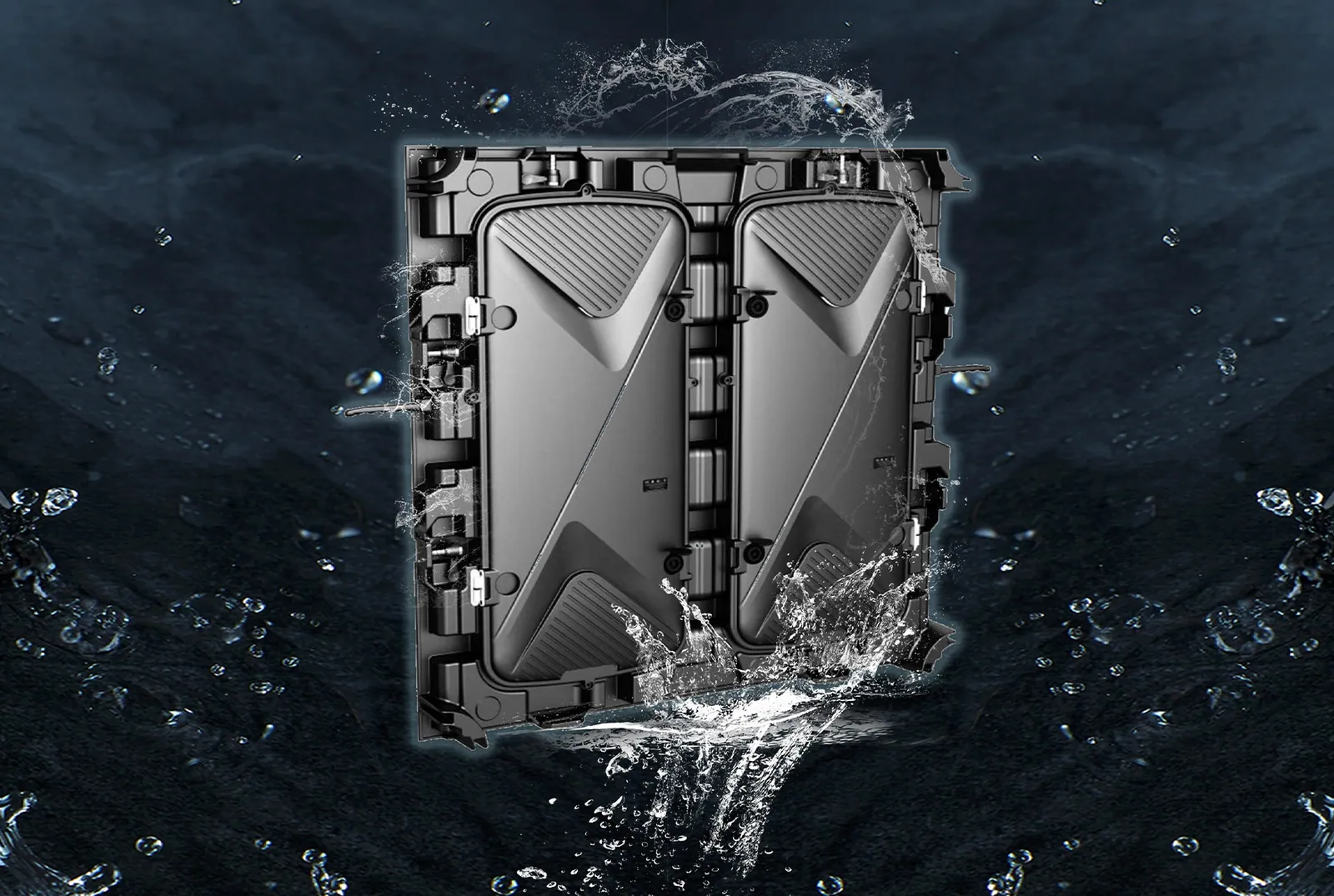

Multiple Protections

Front & rear waterproof design, all-weather durability. IP54 rear protection, reliable operation

LianTronics FS 5: Multiple Protections

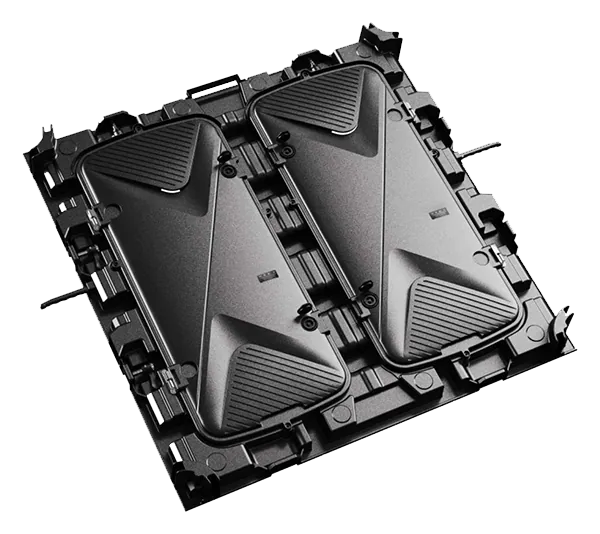

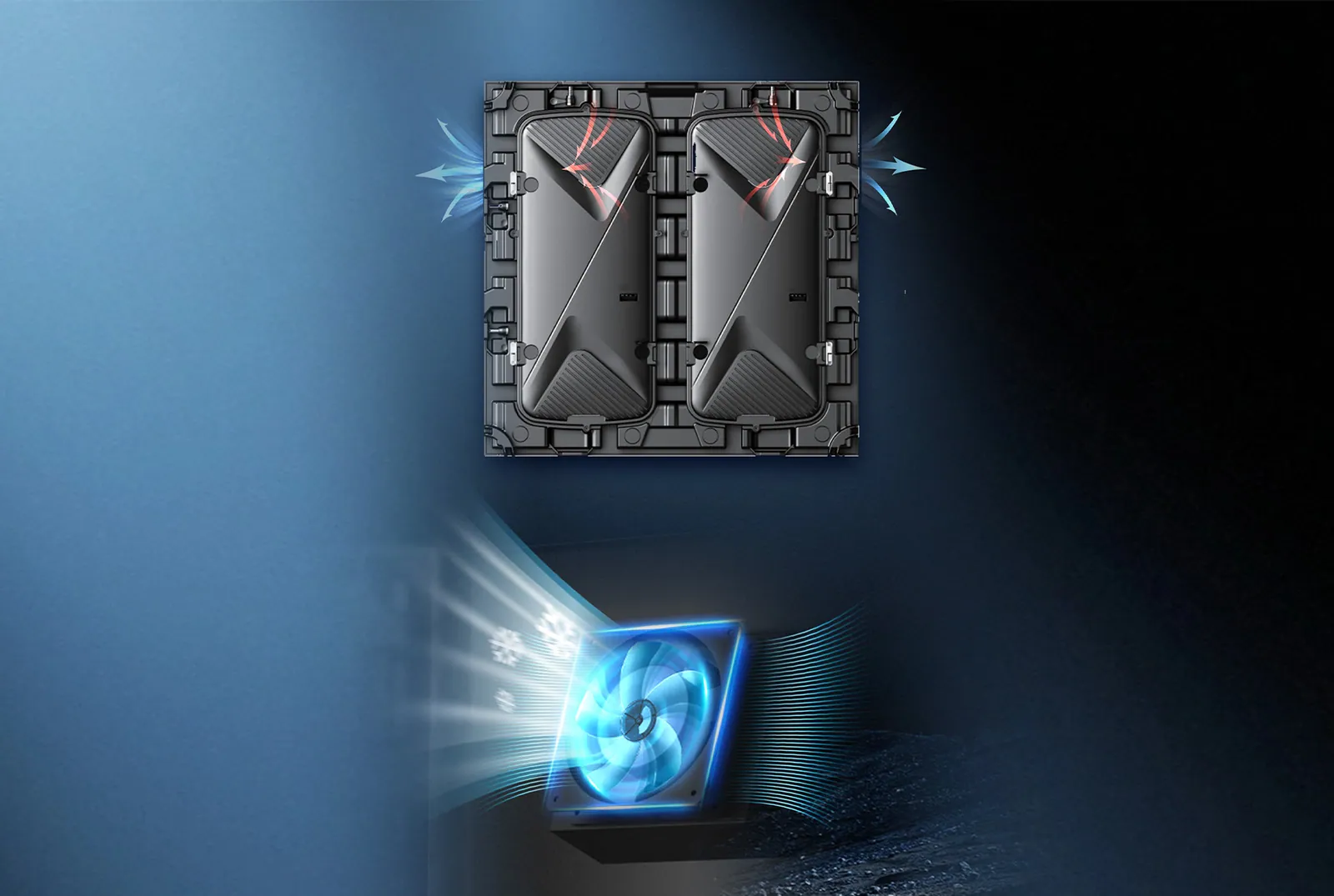

Efficient Cooling System

Active cooling system, efficient heat dissipation. Overheat protection, enhanced reliability

LianTronics FS 5: Efficient Cooling System

160° Ultra-wide Viewing Angle

Ultra-wide viewable angle brings wider coverage to attract audience’s attention

LianTronics FS 5: 160° Ultra-wide Viewing Angle

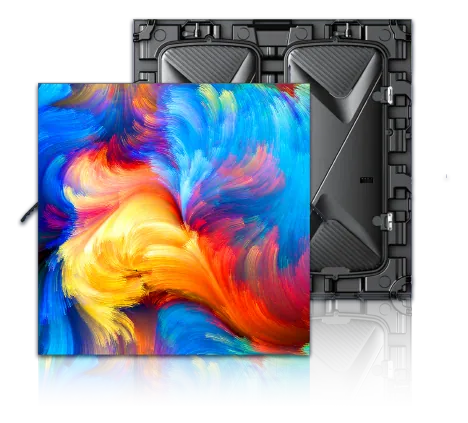

Elaborate Design for Excellent Visual Effect

High-contrast LEDs, superior visual performance. With low-power constant-current ICs, 3840 Hz refresh rate Unique dual-row transistor circuit design, uniform brightness and consistent white balance

LianTronics FS 5: Elaborate Design for Excellent Visual Effect

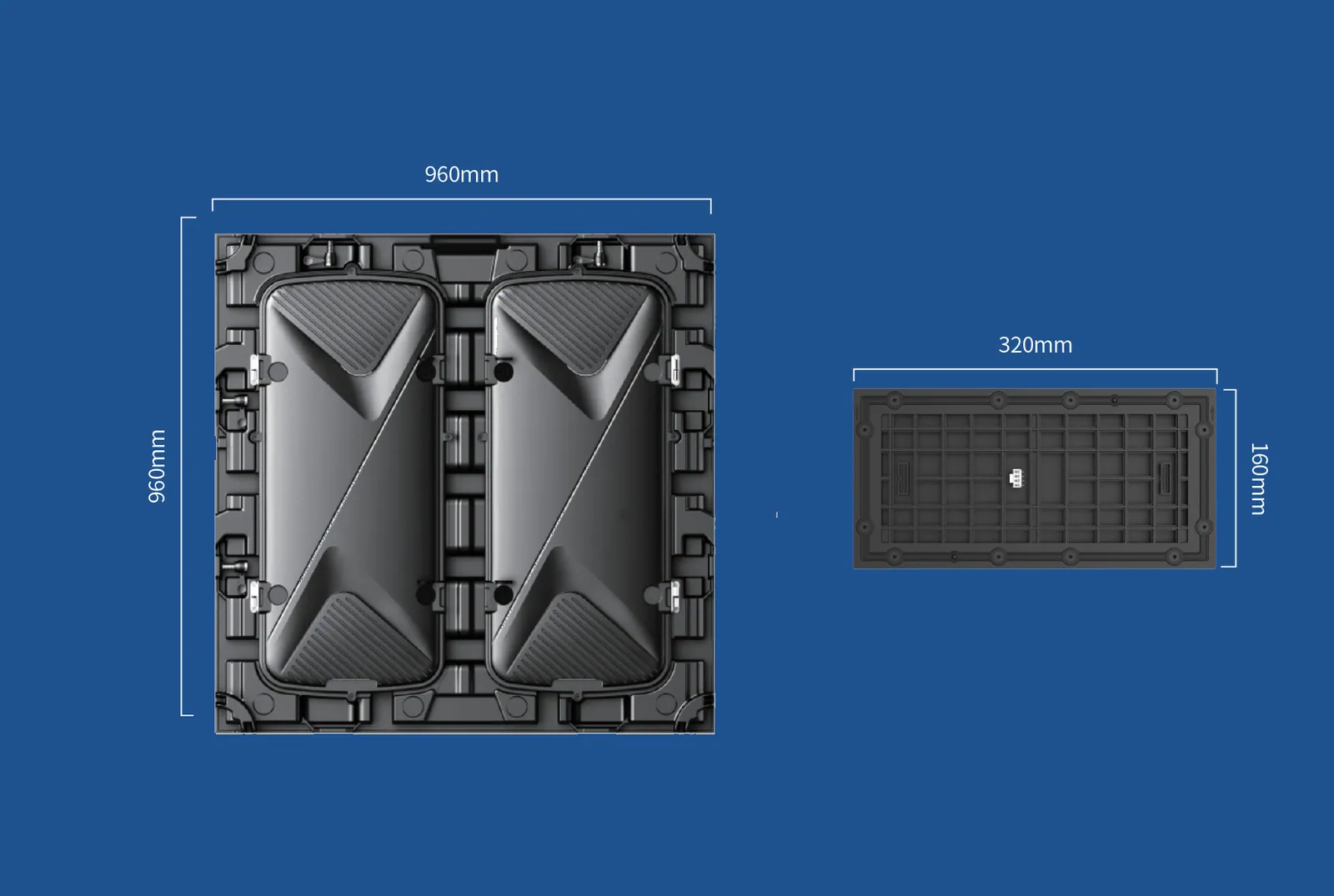

More Standardized, More Flexible

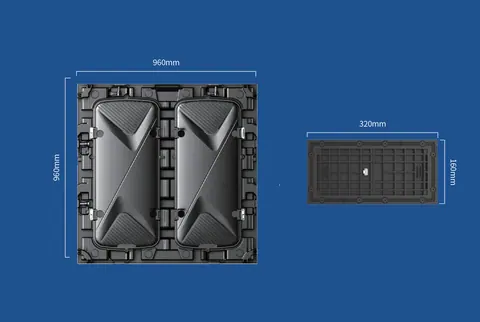

320mm × 160 mm standard modules, flexible integration. Structure-retained upgrades, reduced retrofit costs. Module-based cabinet customization

LianTronics FS 5: More Standardized, More Flexible

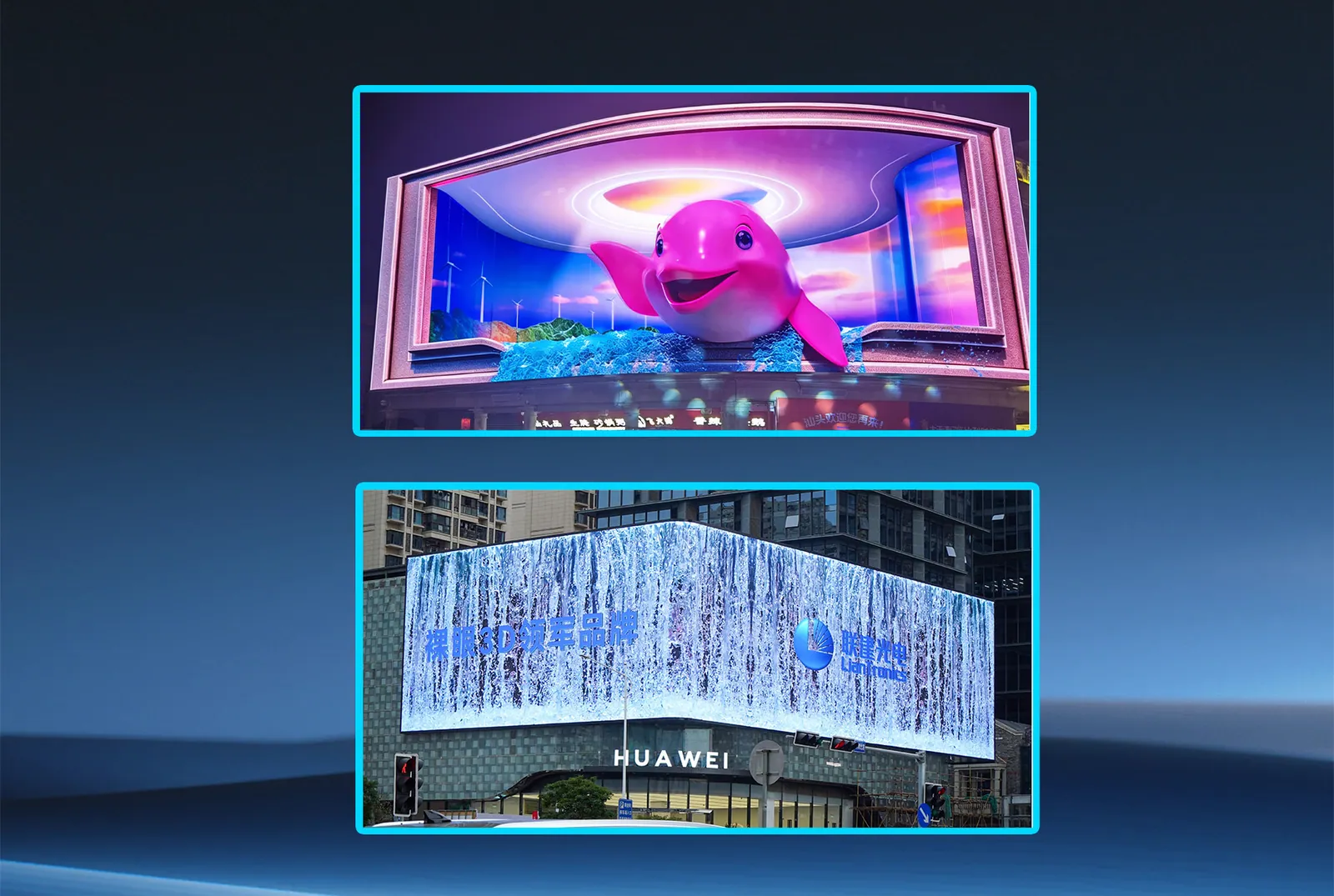

Flexible Customization, Unlimited Creativity

LianTronics FS 5: Flexible Customization, Unlimited Creativity
