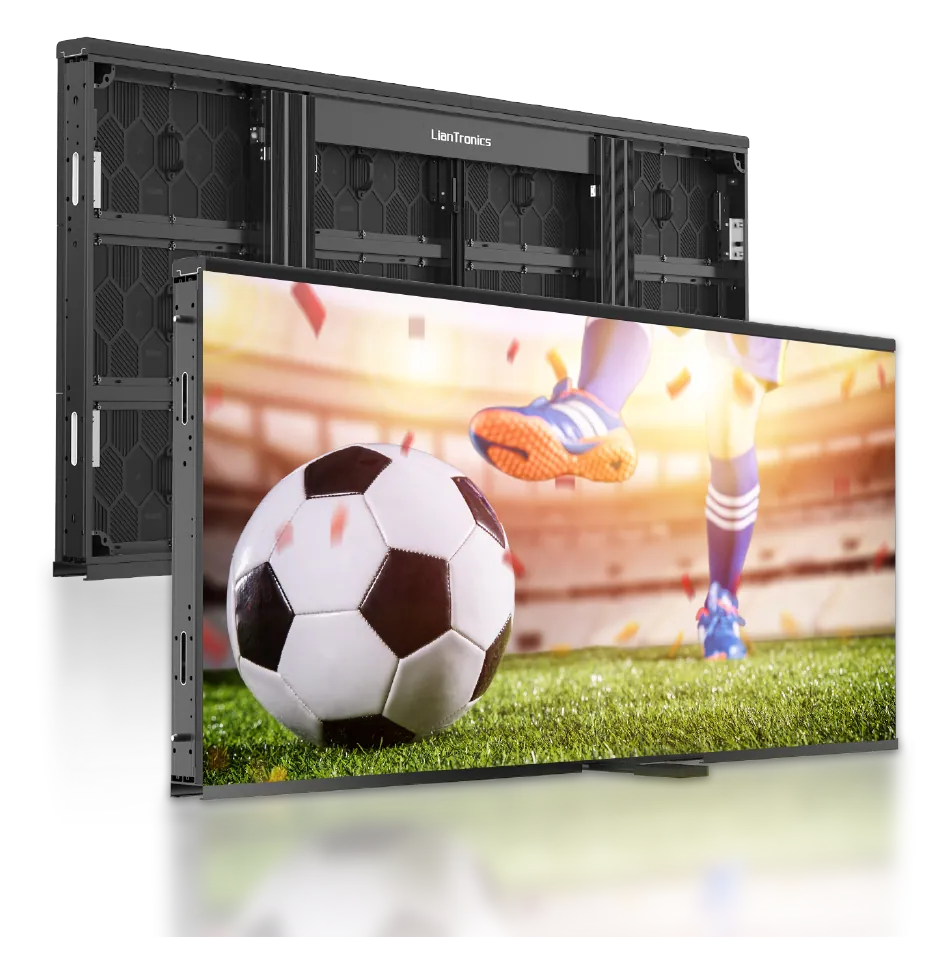

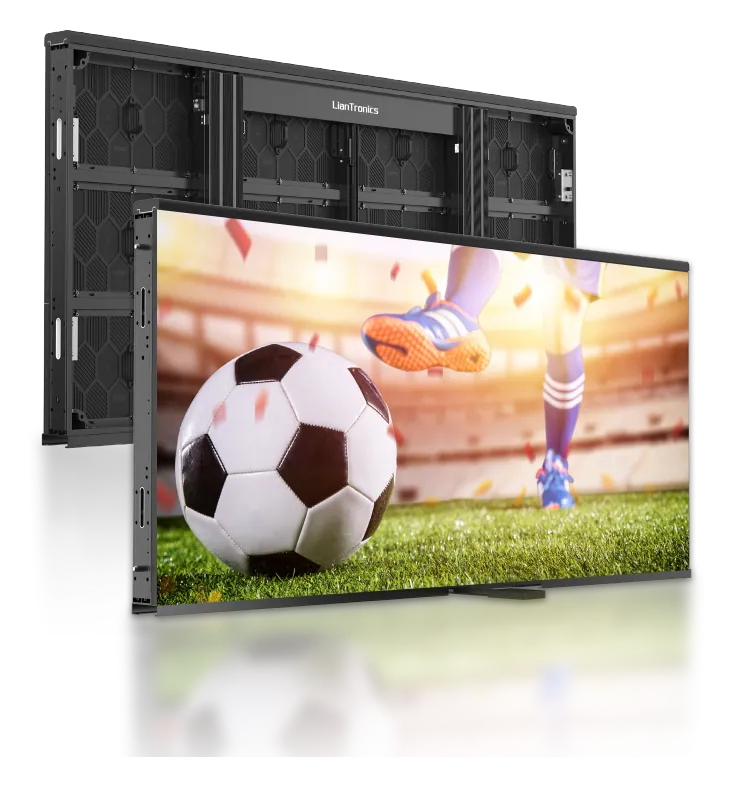

SLG 12.5

UEFA-Compliant perimeter LED display: ultra-slim & light, convenient dolly, UEFA standards compliance.

Series: SLG Series
Pixel pitch: 12.5 × 10 mm
Brightness: 6000 nits
Panel size: 2000 × 900 × 98 mm
Panel resolution: 160 × 90 px
Refresh rate: 7680 Hz
LED type: SMD
IP rating: IP65

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 14 values

What this product is, in numbers.

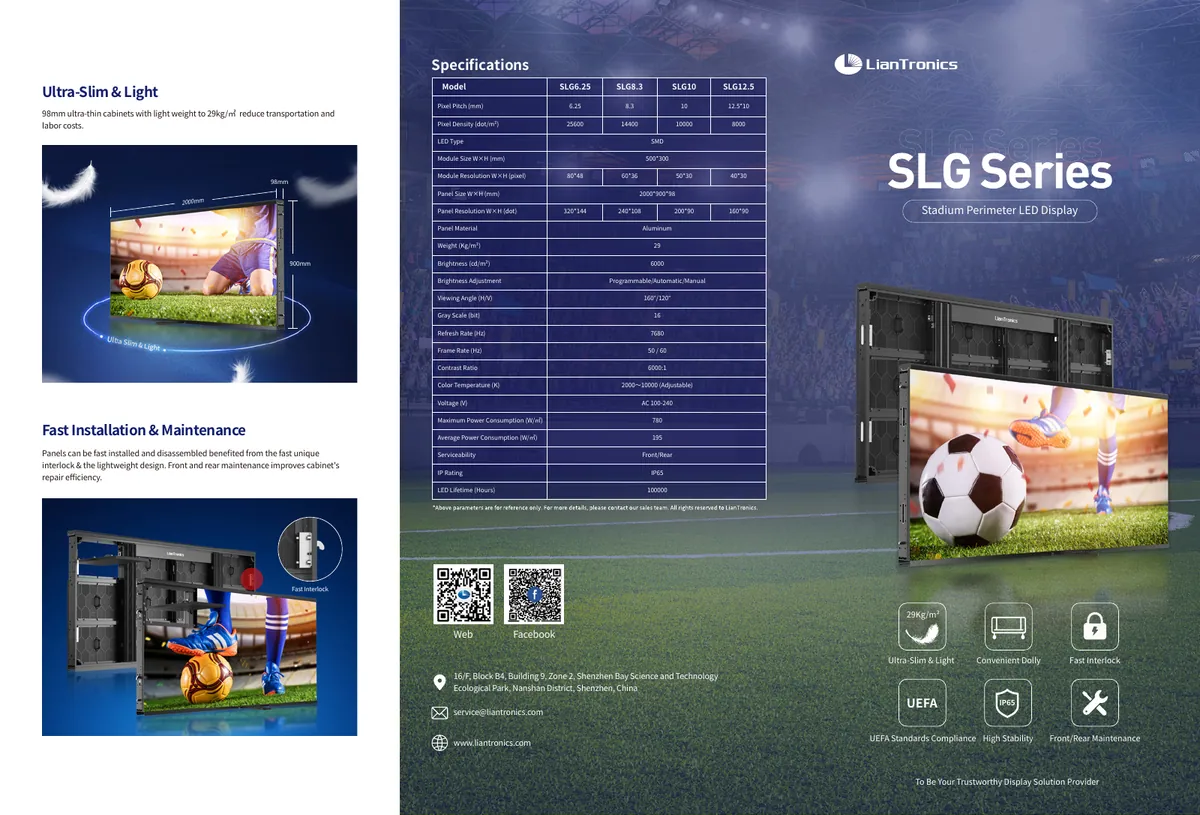

PDFBrochureEN · 2 pages · 2.2 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications14

Pixel Pitch: 12.5 × 10 mm
Panel Resolution: 160 × 90 px
Panel Material: Aluminum
Weight: 29 kg/m²
Brightness: 6000 nits

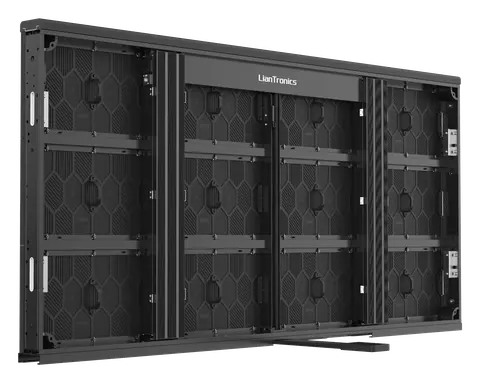

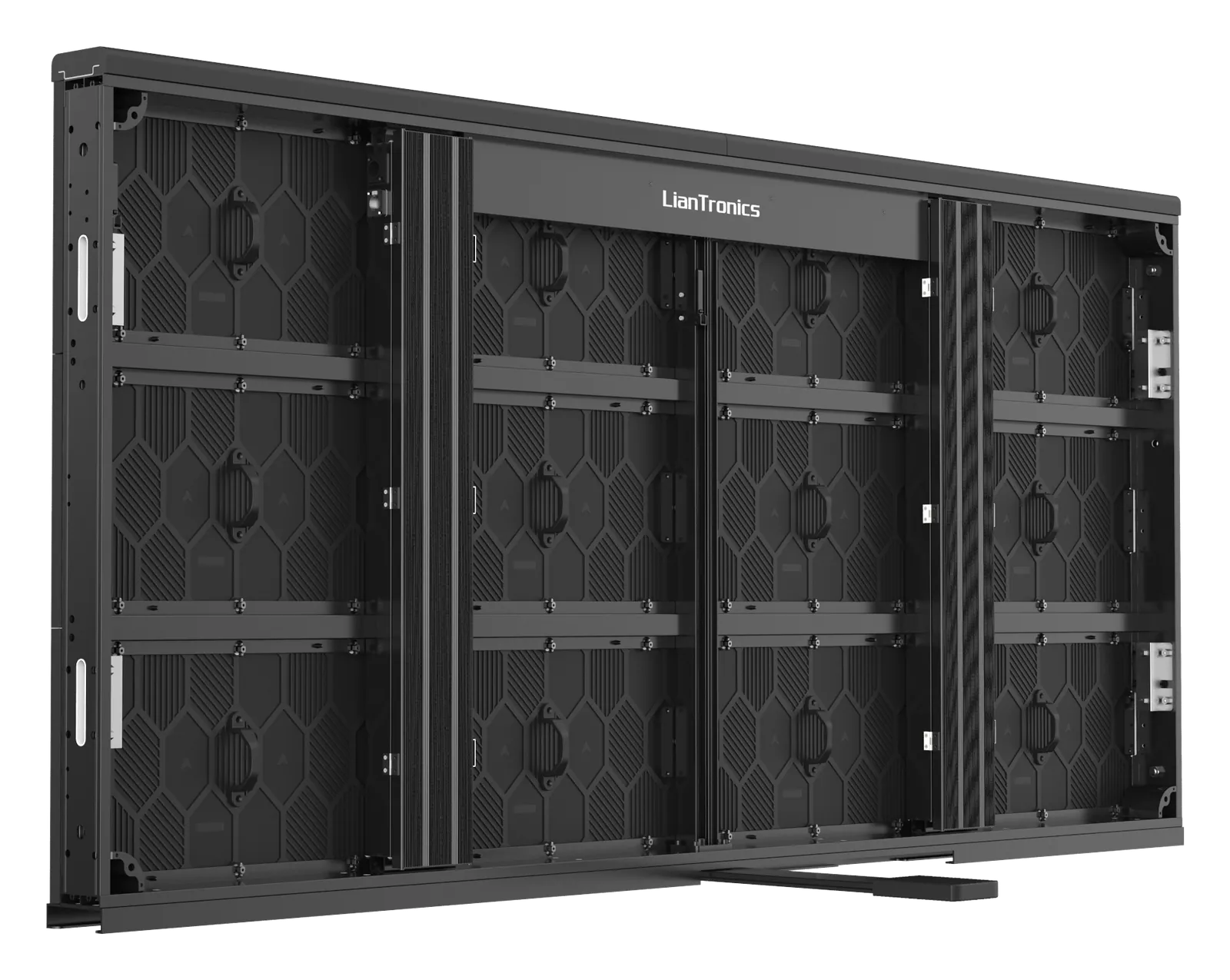

Serviceability: Rear
Pixel Density: 8000 px/m²
LED Type: SMD
Panel Size W × H × D: 2000 × 900 × 98 mm
Brightness Adjustment: Programmable / Automatic / Manual
Refresh Rate: 7680 Hz
Contrast Ratio: 6000:1
Color Temperature: 2000–10000 (Adjustable)
IP Rating: IP65

02Models4 models in the family

Models compared.

Model	SLG 6.25	SLG 8.3	SLG 10.0	SLG 12.5
Pixel Pitch (mm)	6.25	8.3	10	12.5 × 10
Panel Resolution (Pixel)	320 × 144	240 × 108	200 × 90	160 × 90
Panel Material	Aluminum	Aluminum	Aluminum	Aluminum
Weight (Kg/m²)	29	29	29	29
Brightness (nits)	6000	6000	6000	6000
Serviceability	Front / Rear	Front / Rear	Front / Rear	Rear
Pixel Density (pixels/m²)	25600	14400	10000	8000
LED Type	SMD	SMD	SMD	SMD
Panel Size W × H × D (mm)	2000 × 900 × 98	2000 × 900 × 98	2000 × 900 × 98	2000 × 900 × 98
Brightness Adjustment	Programmable / Automatic / Manual	Programmable / Automatic / Manual	Programmable / Automatic / Manual	Programmable / Automatic / Manual
Refresh Rate (Hz)	7680	7680	7680	7680
Contrast Ratio	6000:1	6000:1	6000:1	6000:1
Color Temperature (K)	2000–10000 (Adjustable)	2000–10000 (Adjustable)	2000–10000 (Adjustable)	2000–10000 (Adjustable)
IP Rating	IP65	IP65	IP65	IP65

03DescriptionManufacturer's description

What it is.

Protection for Players

Rubber pads and the module soft mask can keep the athletes safe from sharp objects while protecting the LED display.

With a special design, the perimeter screen can be pushed to both sides quickly to form an exit as an emergency access.

Never Blackout

N+1 power backup and receiving card dual backup can keep the screen running steadily and efficiently.

Superb Picture Quality

The 7680Hz high refresh rate and 6000:1 contrast ratio ensure consistently smooth playback. 6000nits brightness and 140° horizontal view remain perfect in-camera visuals during live streaming or broadcast.

Engineered for Performance and Flexibility

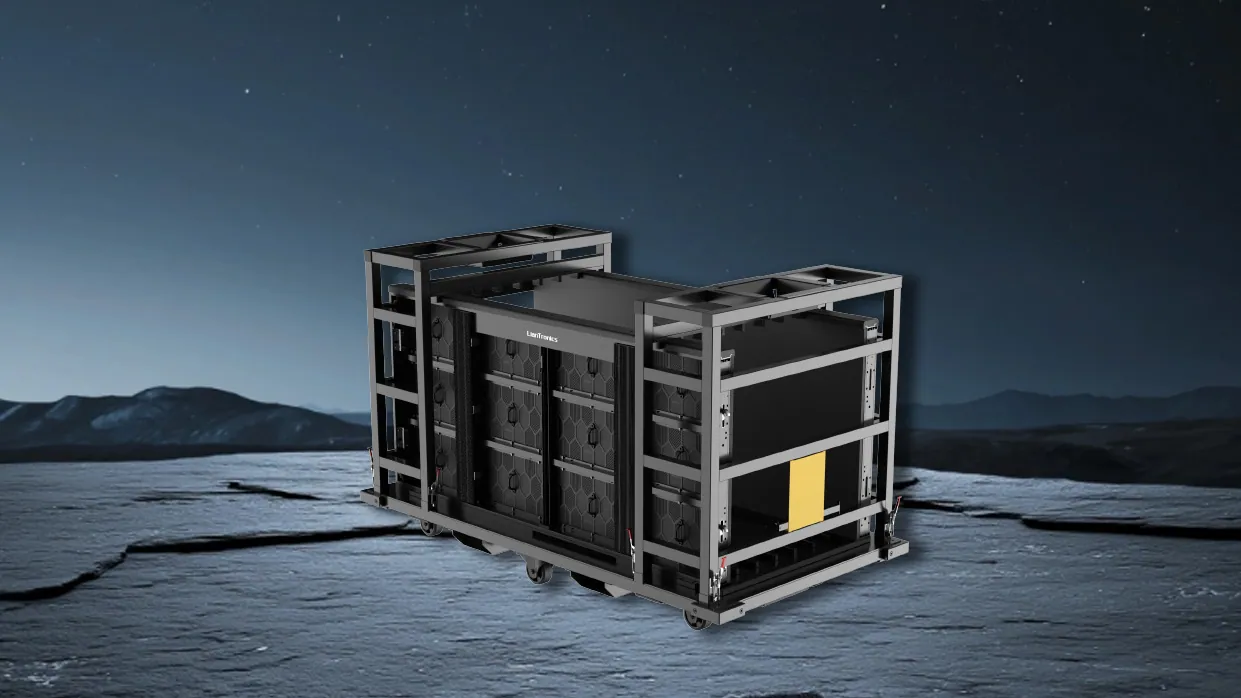

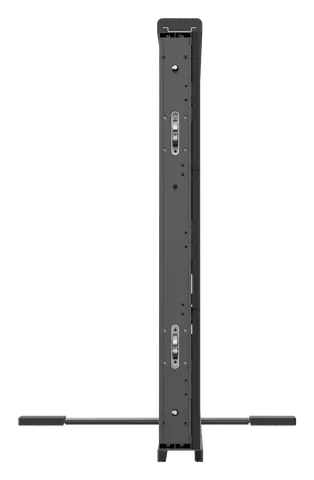

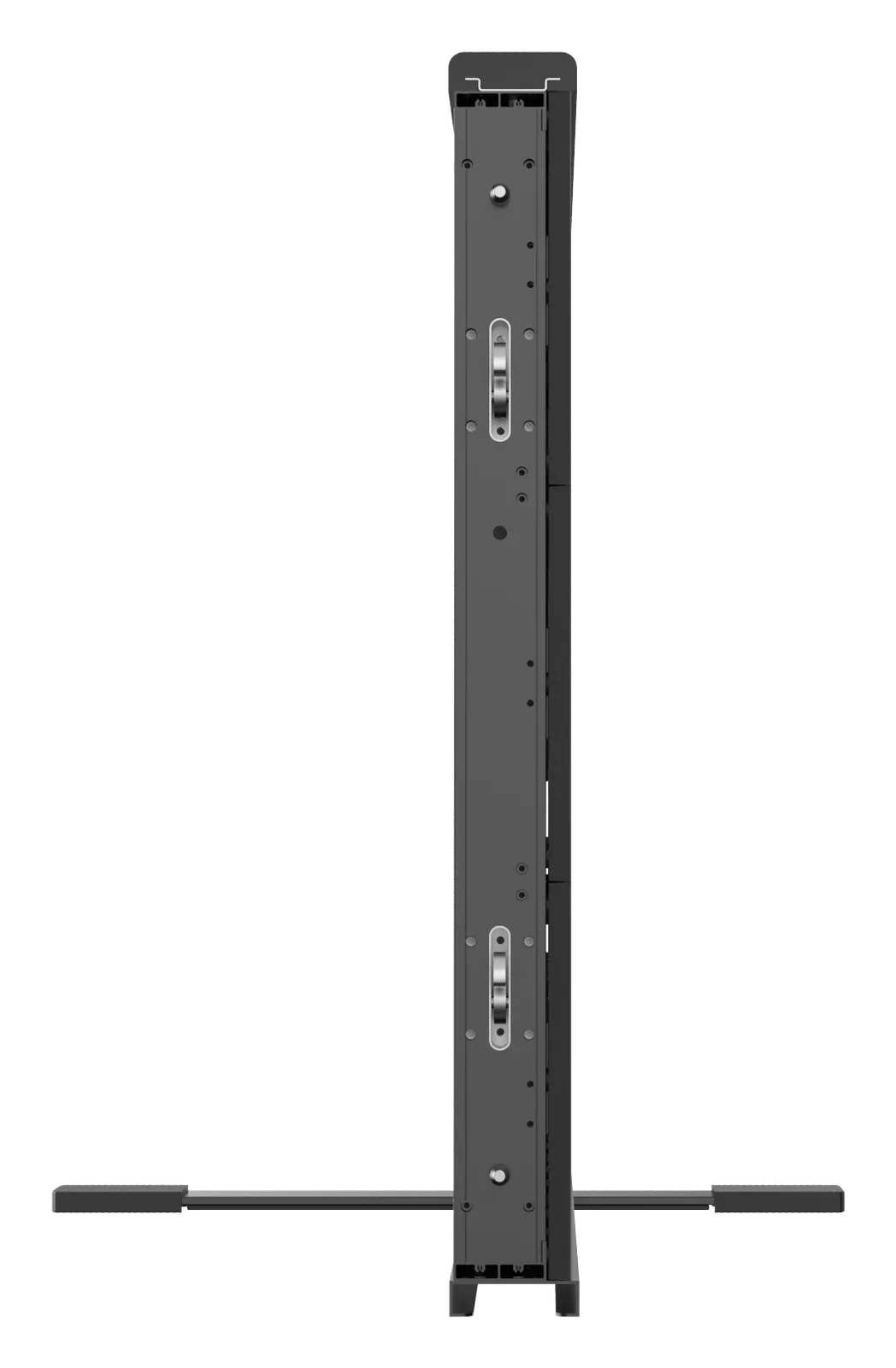

Dollies for Fast Installation

SLG Series supports dollies the same size as the cabinet for fast transportation. Moreover, two dollies allow up-down stacking to save space and one-press disassembly to save installation time.
