Sheet 05.1334
LianTronics · Sports displays

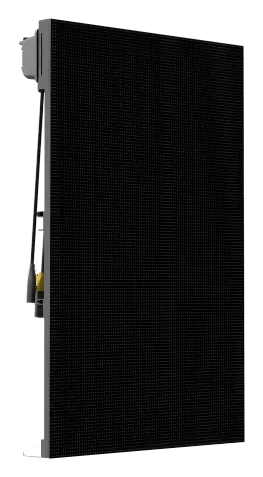

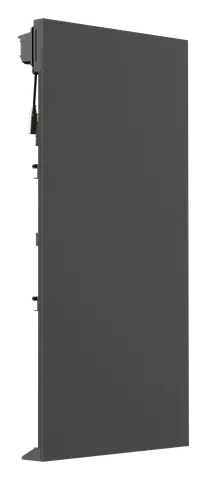

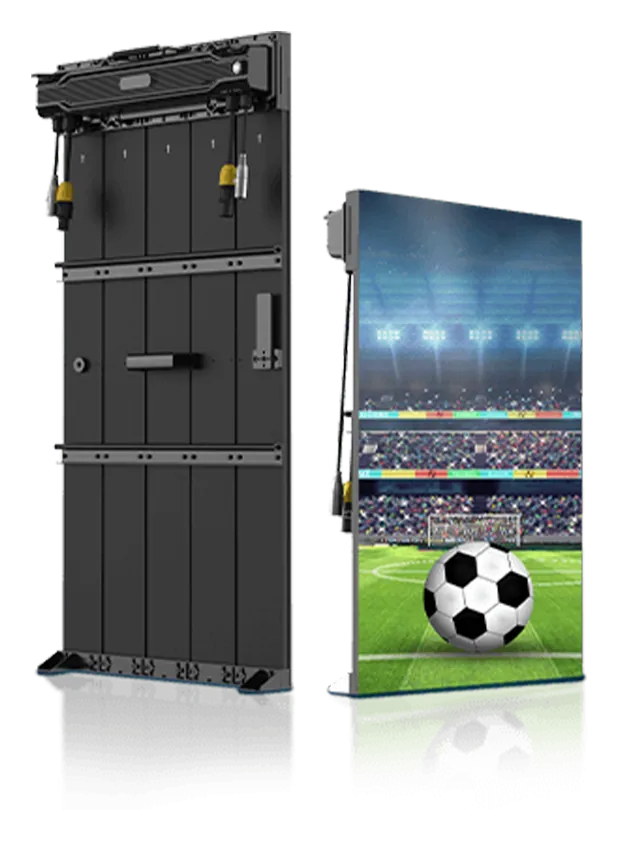

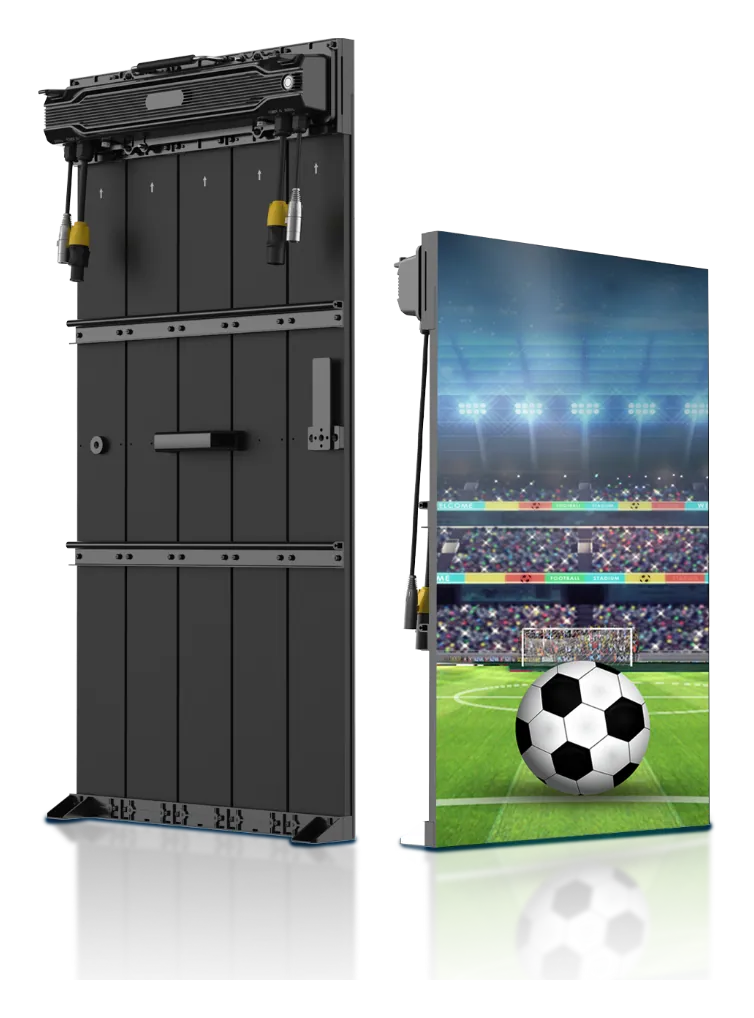

SLR 10
Ultra-slim outdoor LED ribbon board display: slim & lightweight, smooth shooting, anti-direct-sunlight.
- Series
- SLR Series
- Pixel pitch
- 10 mm
- Brightness
- 4500–5500 nits
- Panel size
- 500 × 1000 × 112 / 500 × 750 × 112 mm
- Panel resolution
- 50 × 100 / 50 × 75 px
- Refresh rate
- 3840 Hz
- LED type
- SMD
- IP rating
- IP65
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
SLR 10Price on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 14 values
What this product is, in numbers.

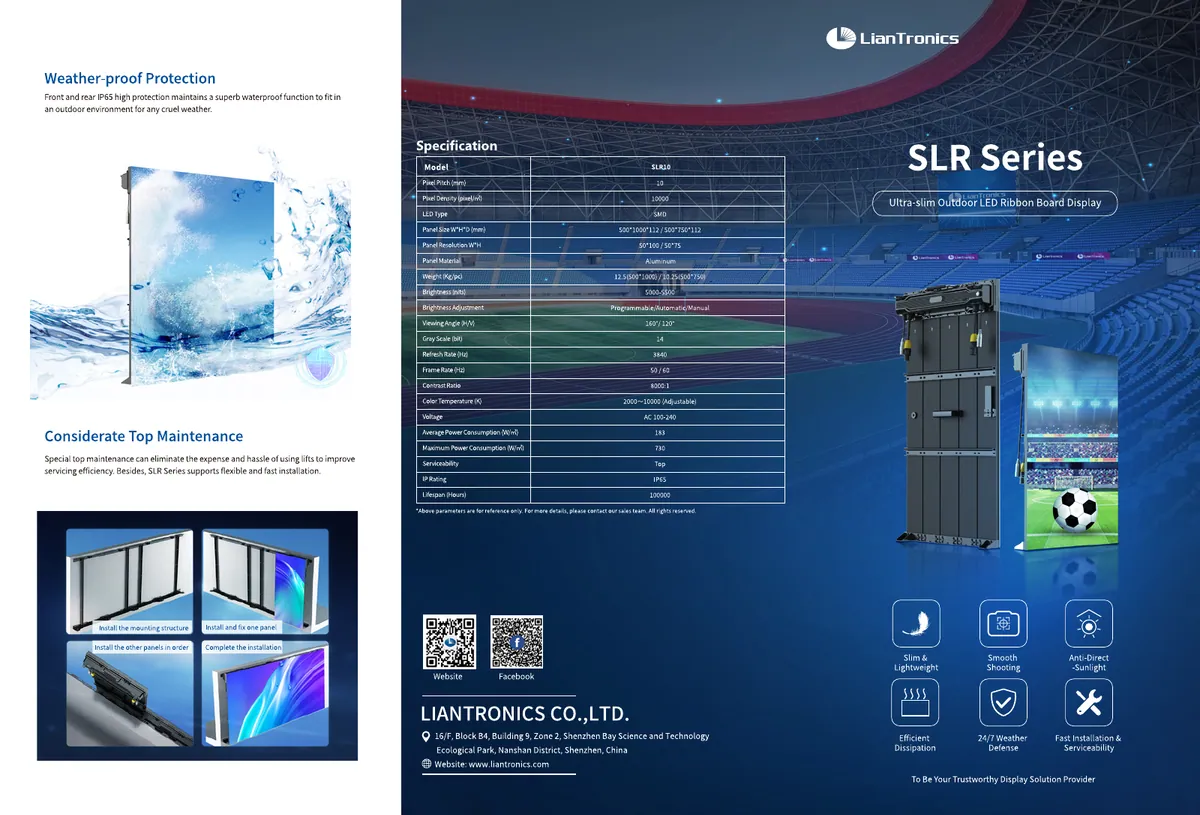

PDFBrochureEN · 2 pages · 1.4 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications14
- Pixel Pitch
- 10 mm
- Panel Size W × H × D
- 500 × 1000 × 112 / 500 × 750 × 112 mm
- Panel Resolution
- 50 × 100 / 50 × 75 px
- Panel Material
- Aluminum
- Weight
- 12.5(500 × 1000) / 10.25(500 × 750) kg
- Brightness
- 4500–5500 nits
- Serviceability
- Top
- Pixel Density
- 10000 px/m²
- LED Type
- SMD
- Brightness Adjustment
- Programmable / Automatic / Manual
- Refresh Rate
- 3840 Hz
- Contrast Ratio
- 8000:1
- Color Temperature
- 2000–10000 (Adjustable)
- IP Rating
- IP65
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.

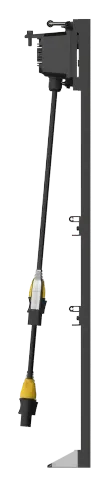

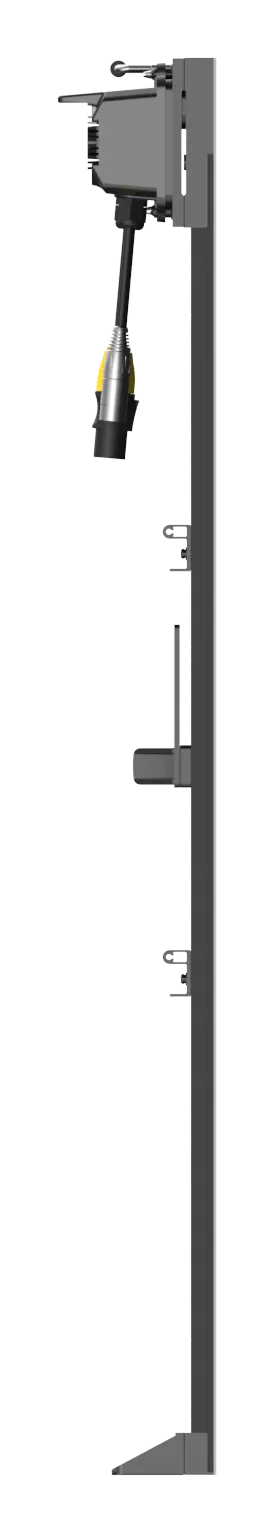

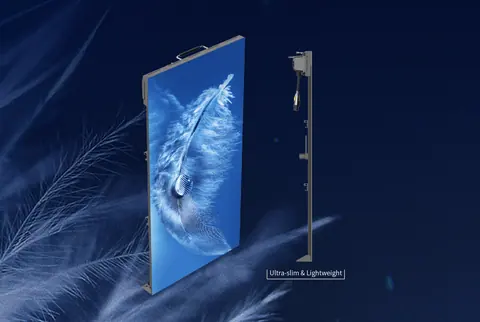

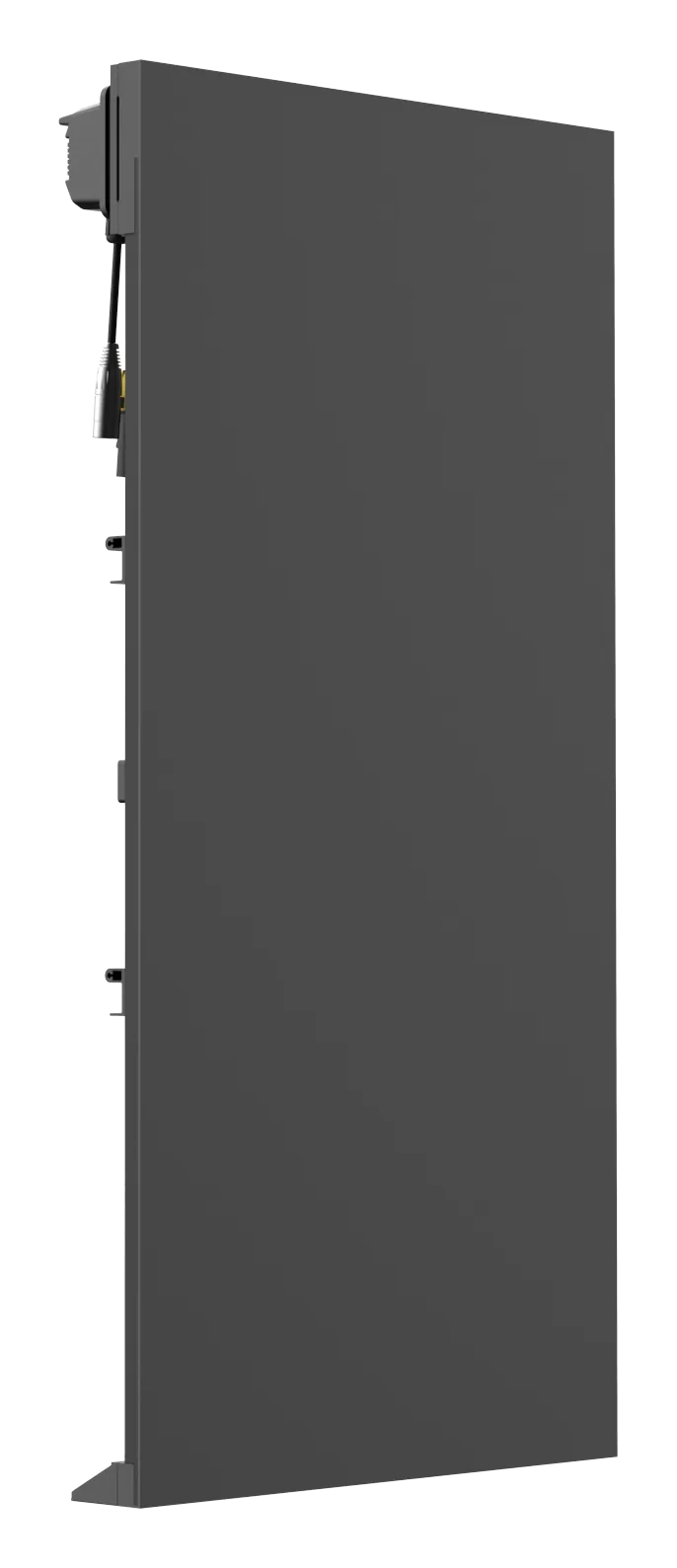

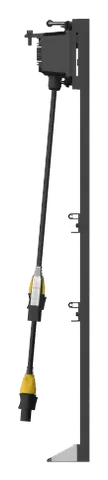

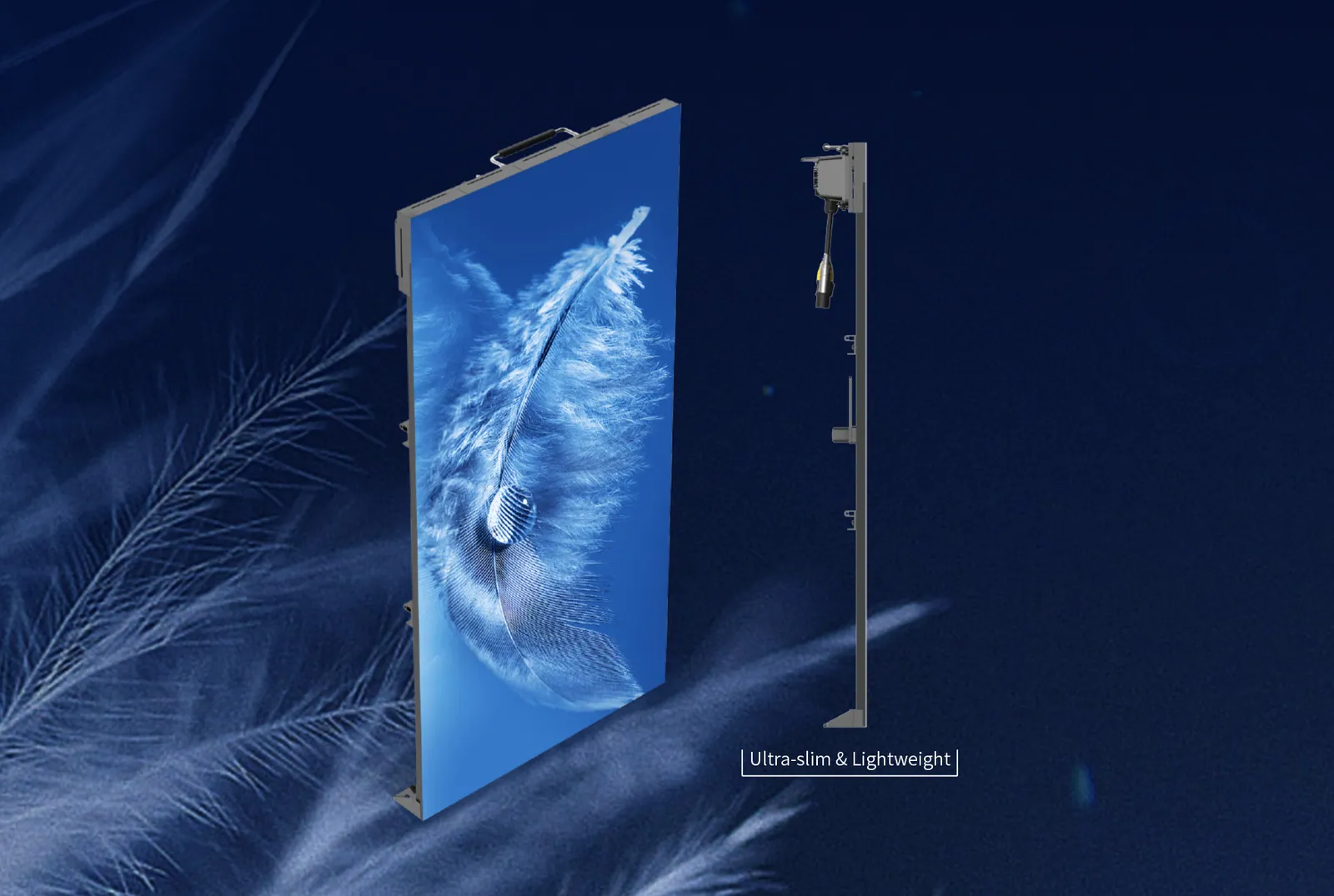

Ultra-slim & Lightweight
Considering the limited weight-bearing and the wall aging, 25KG/m² cabinet with 112mm thickness only can greatly diminish the load-bearing pressure and also reduce labor and transportation costs.
Marvelous In-camera Visuals
3840Hz high refresh rate, 160° viewing angle, and 8000:1 contrast ratio can present bright and uniform colors by reducing the scanline, blurring, and flickering during broadcasting or shooting.
High Brightness to Defense Sunlight
5500nits brightness allows viewers to see clearly outdoors even in the strong direct sun while ensuring an astonishing and fabulous display.

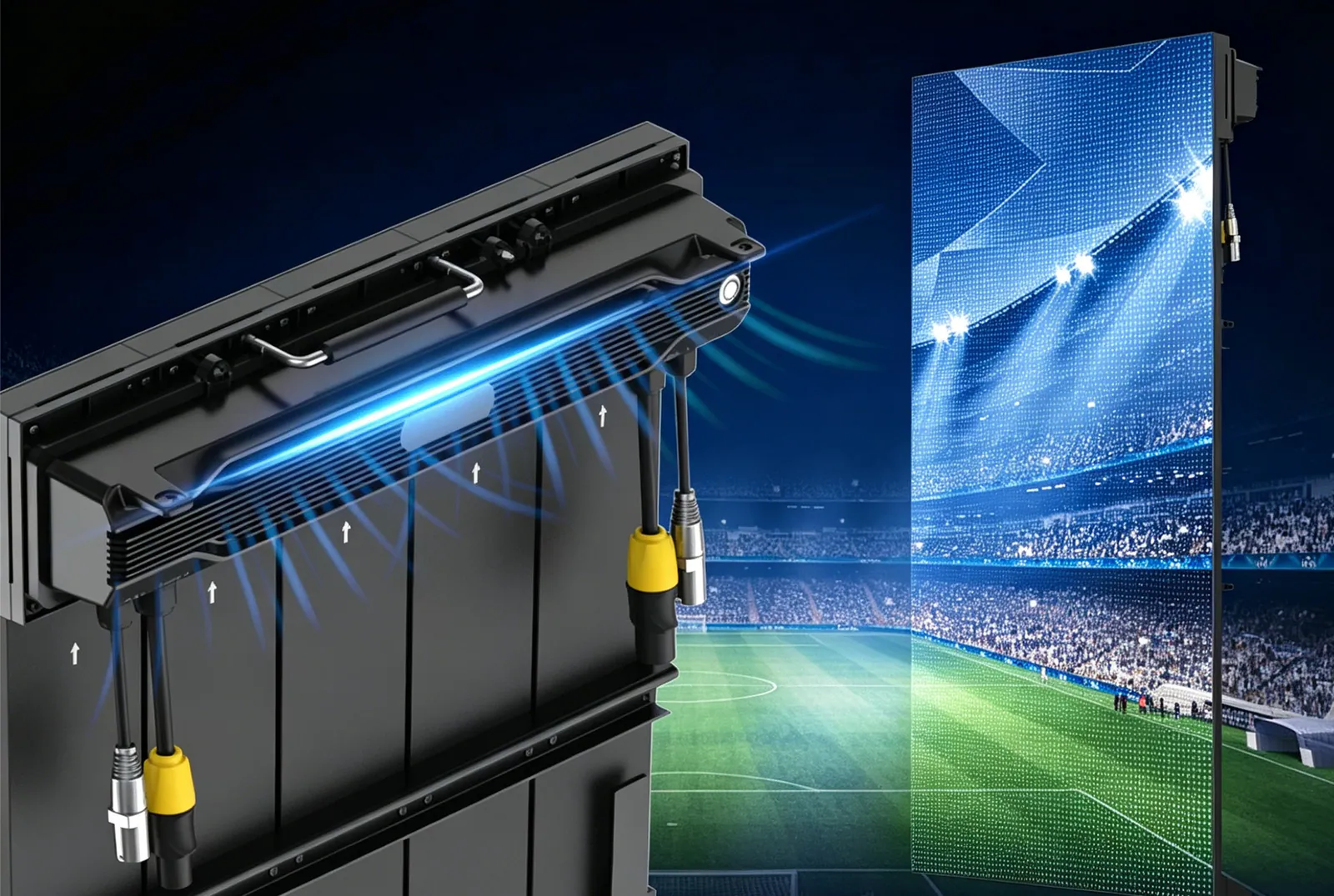

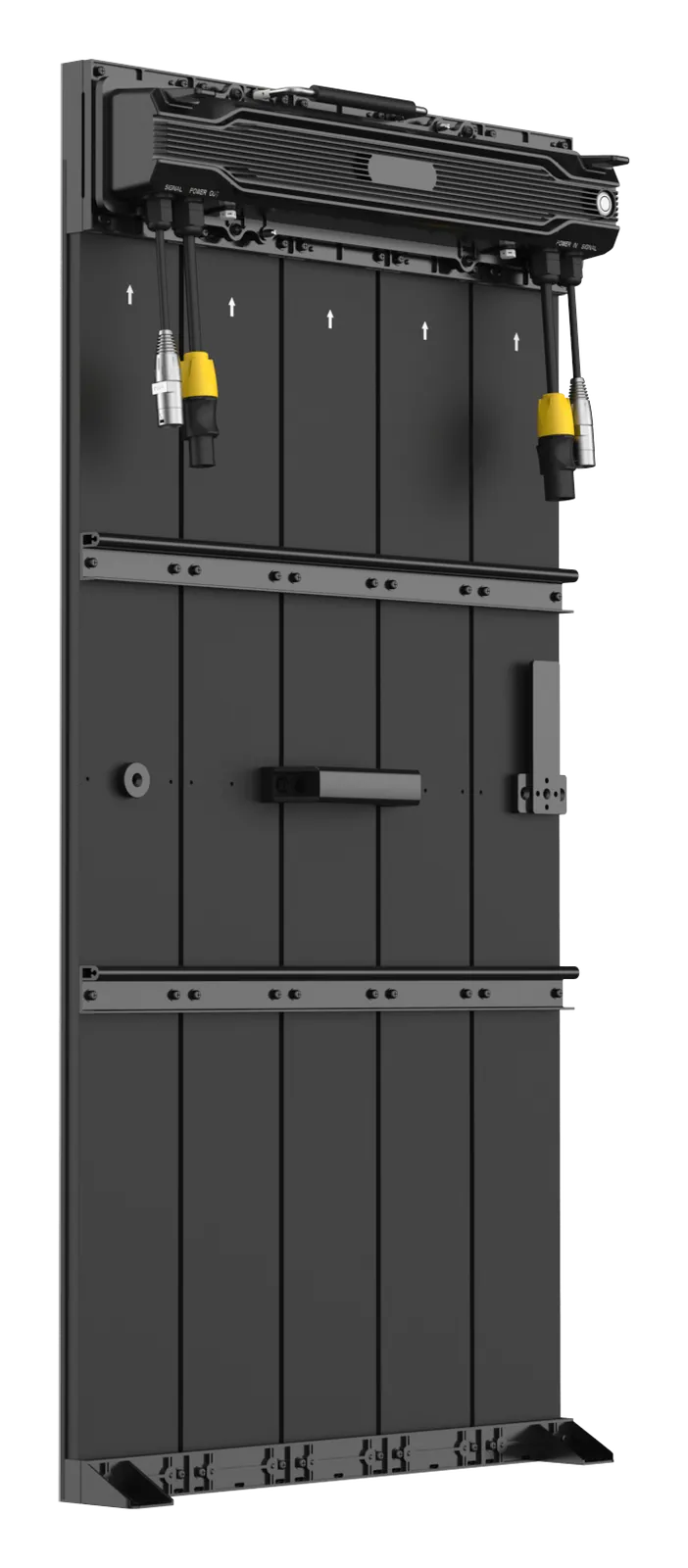

Effectual Heat Dissipation

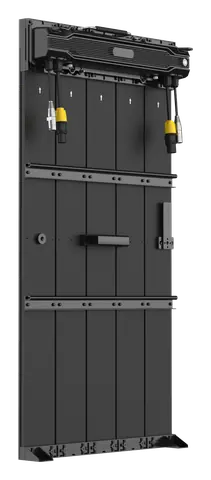

The grid-patterned power box is closely attached to the aluminum back shell for excellent heat dissipation to accelerate the release of heat.

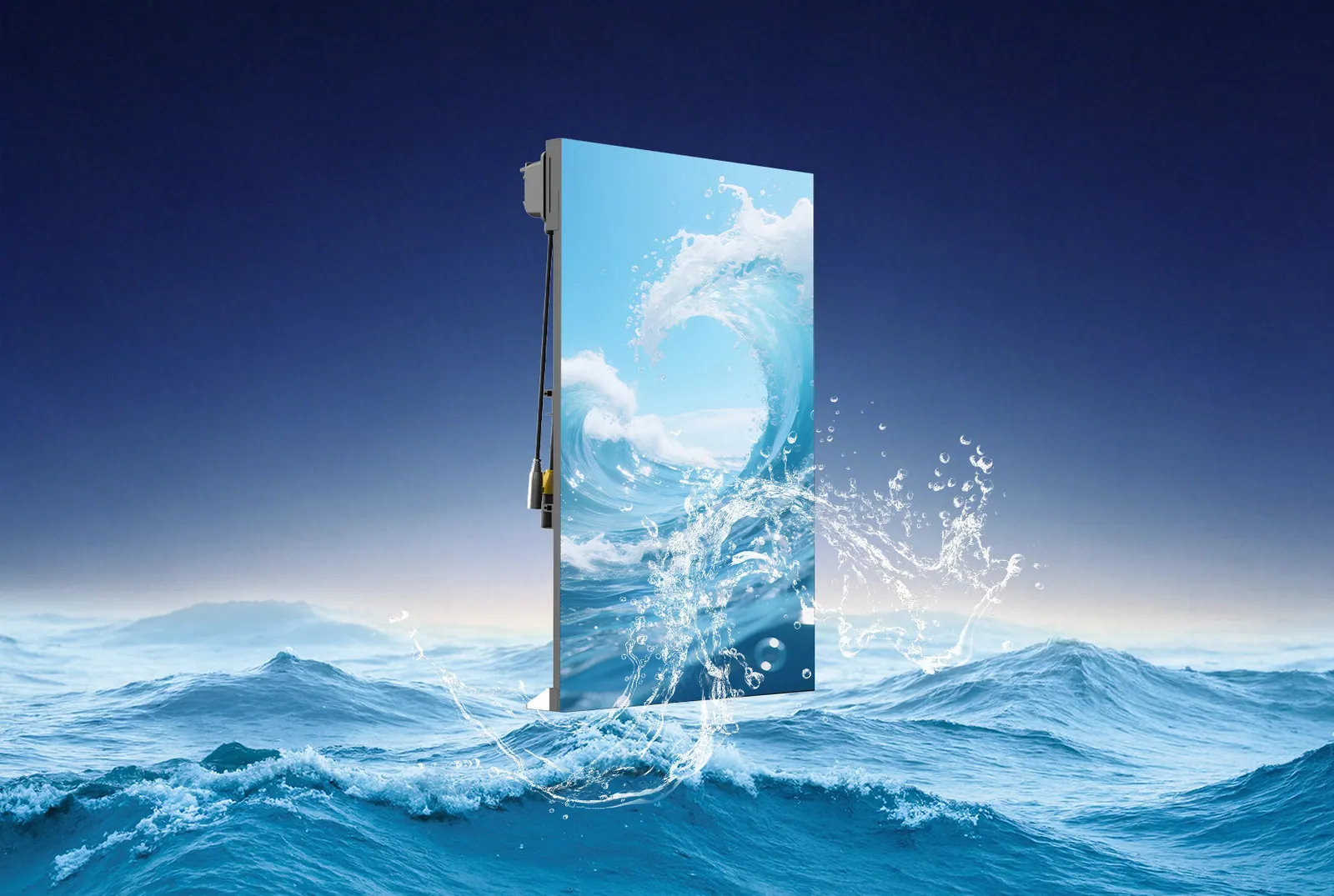

Weather-proof Protection
Front and rear IP65 high protection maintains a superb waterproof function to fit in an outdoor environment for any cruel weather.
Considerate Top Maintenance

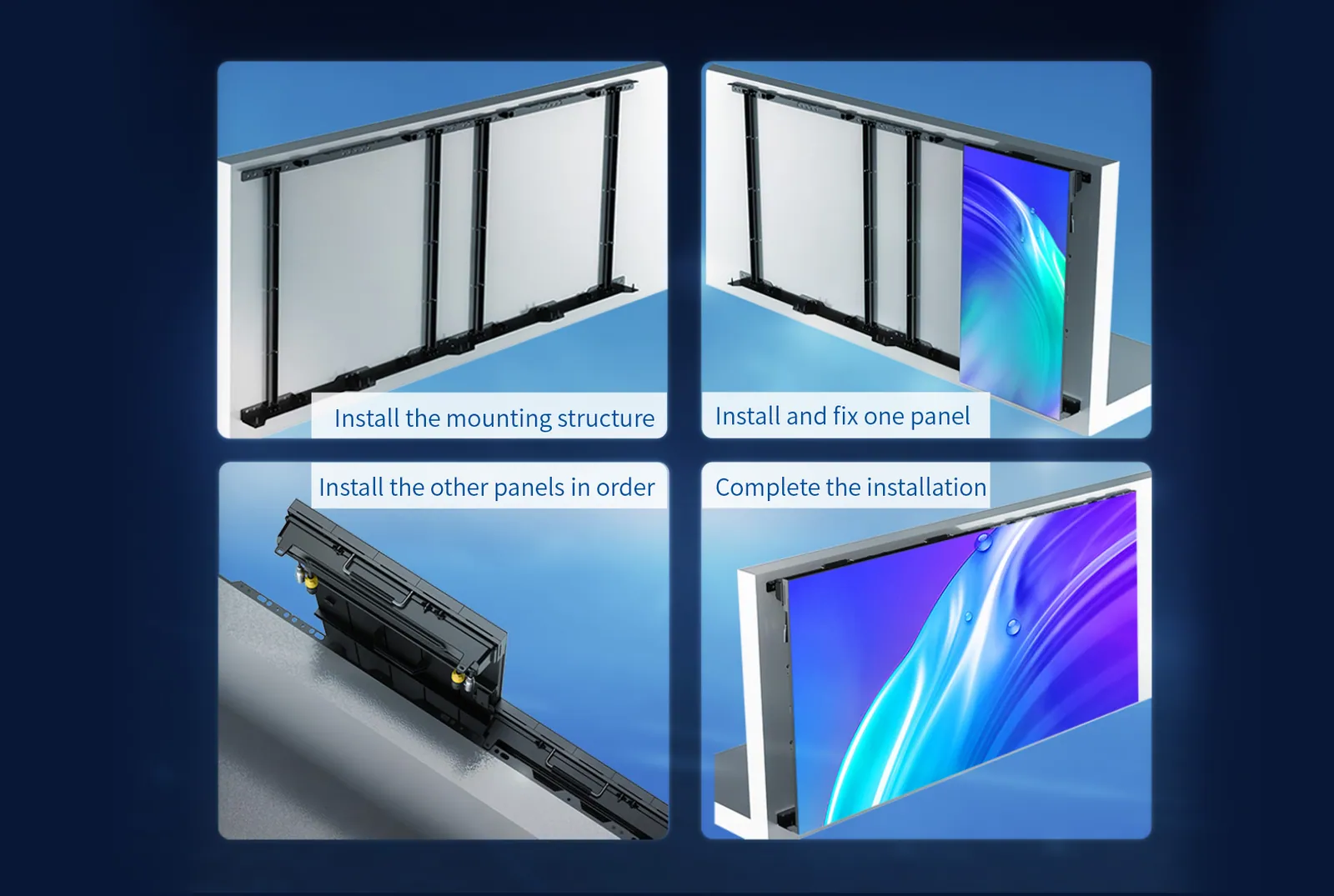

Special top maintenance can eliminate the expense and hassle of using lifts to improve servicing efficiency. Besides, SLR Series supports flexible and fast installation.
- Sports venues
* All specification values given are per panel. The specifications are for reference only, actual values may vary.
03Documents1 file · 1.4 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
