Sheet 05.255
Lucky Tone · Mixers and processors

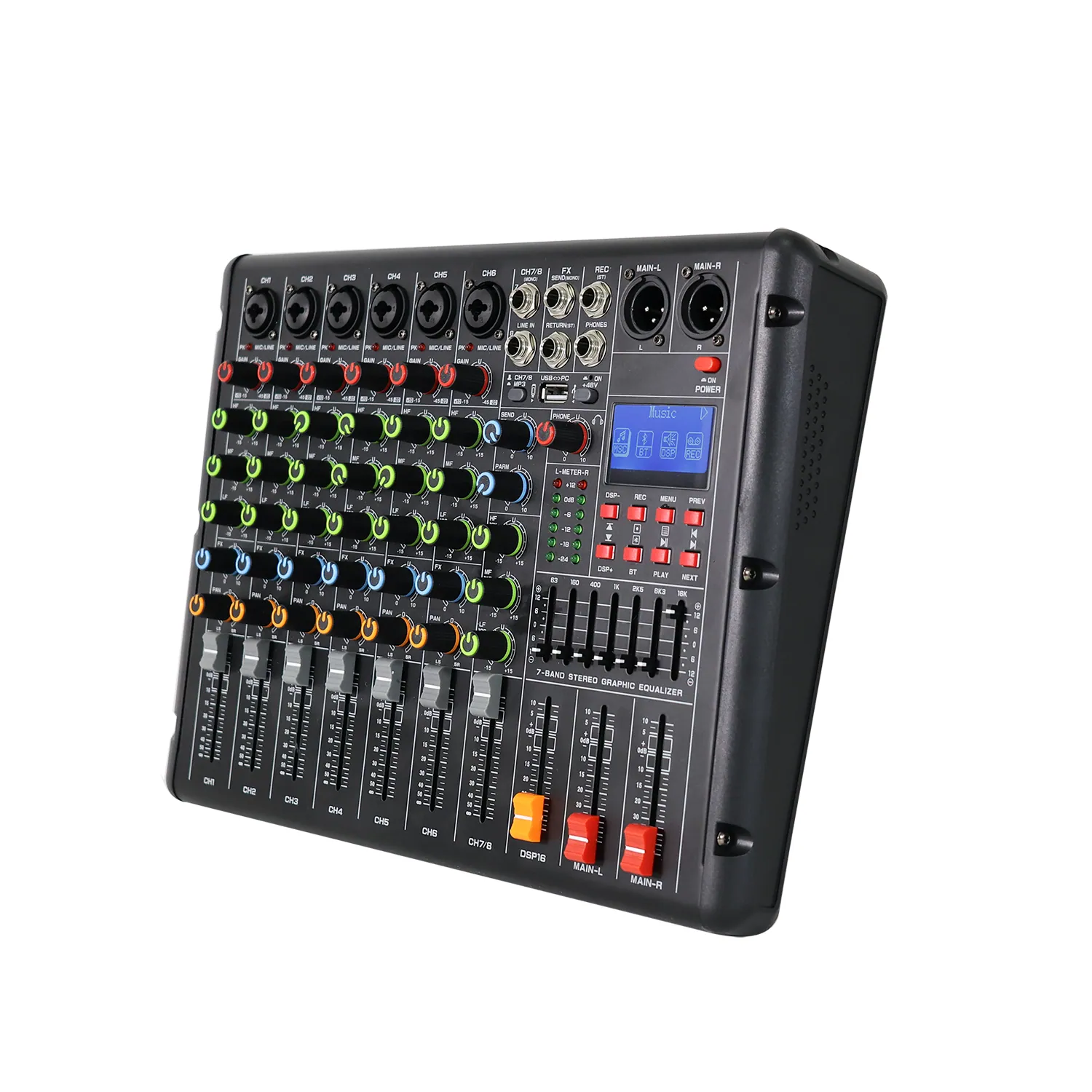

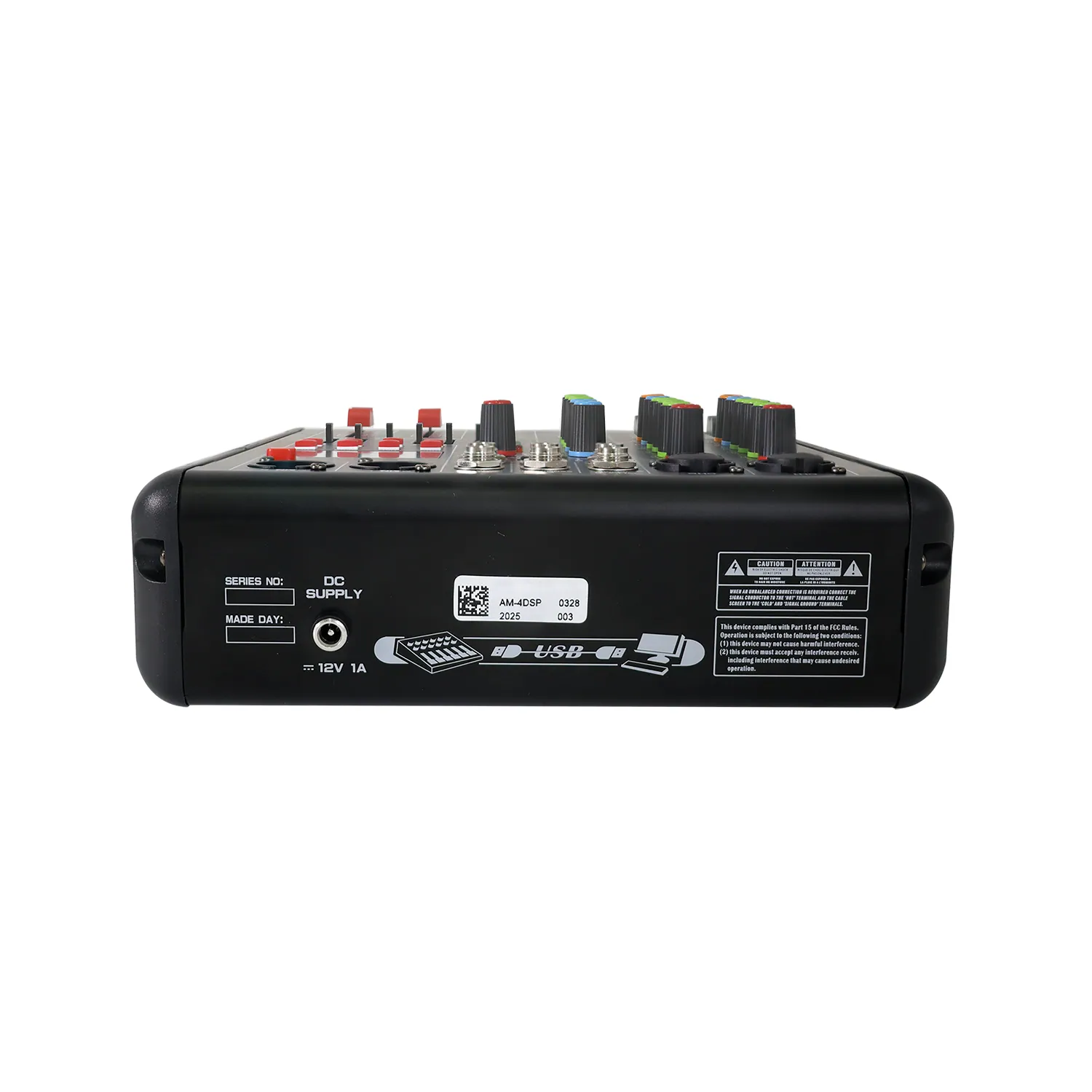

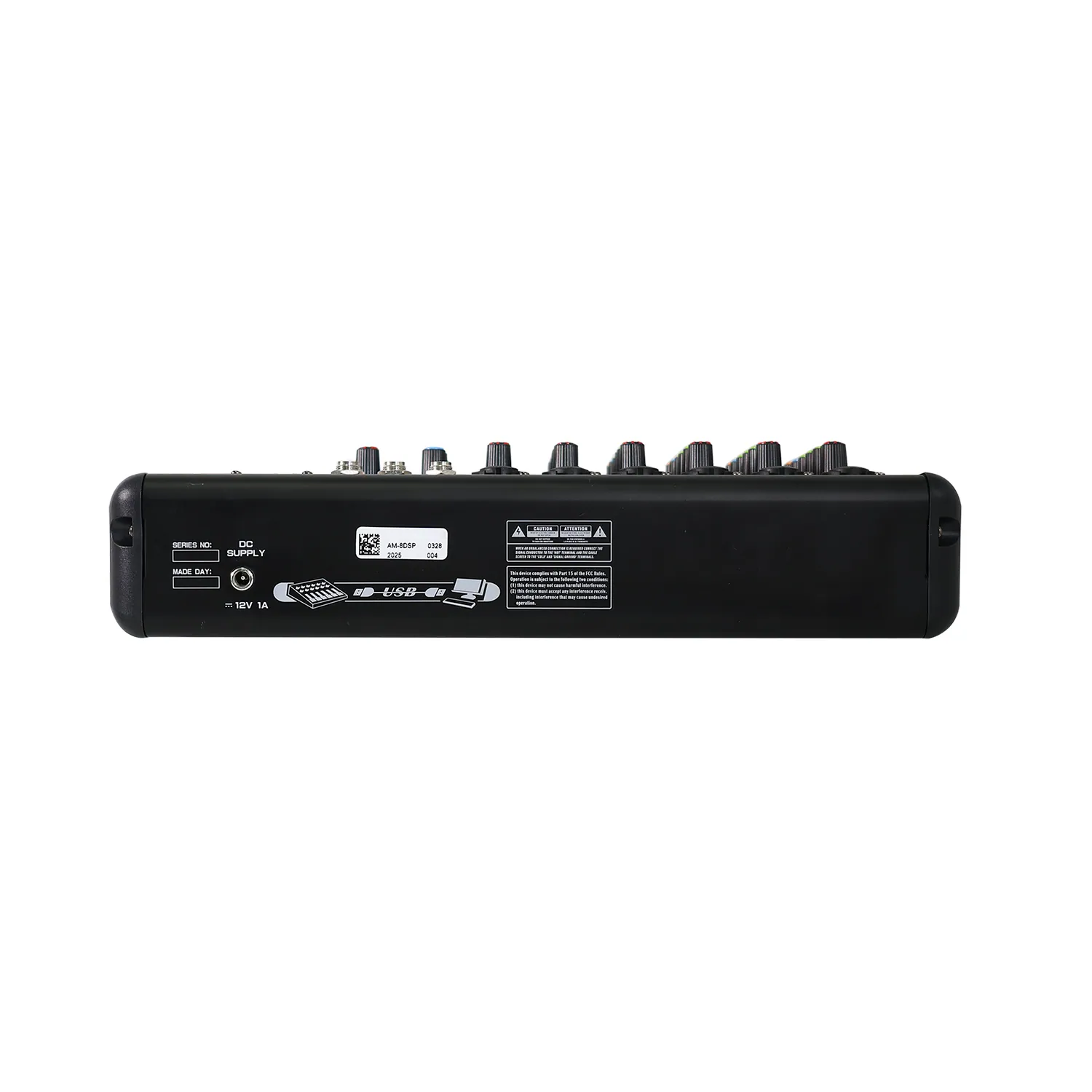

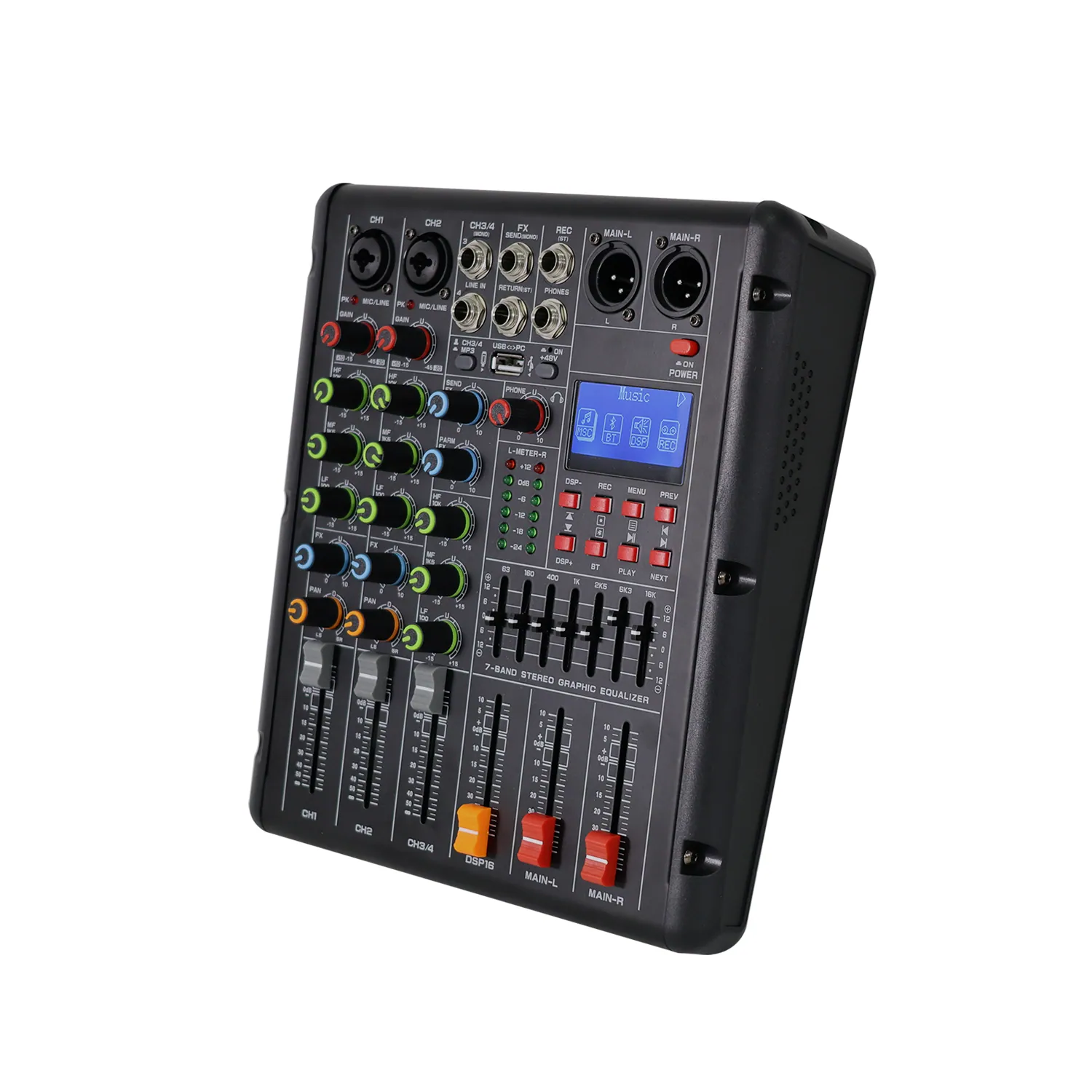

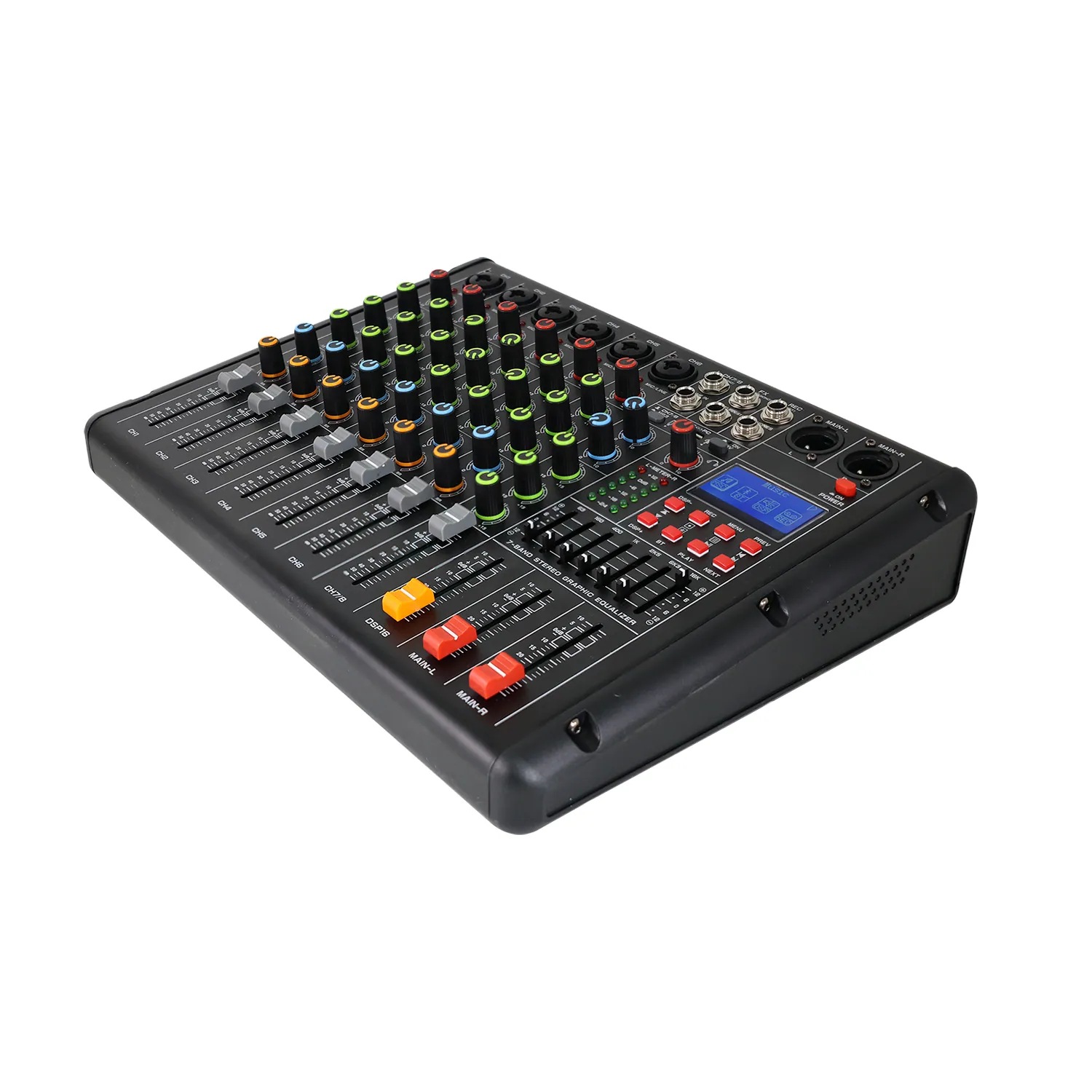

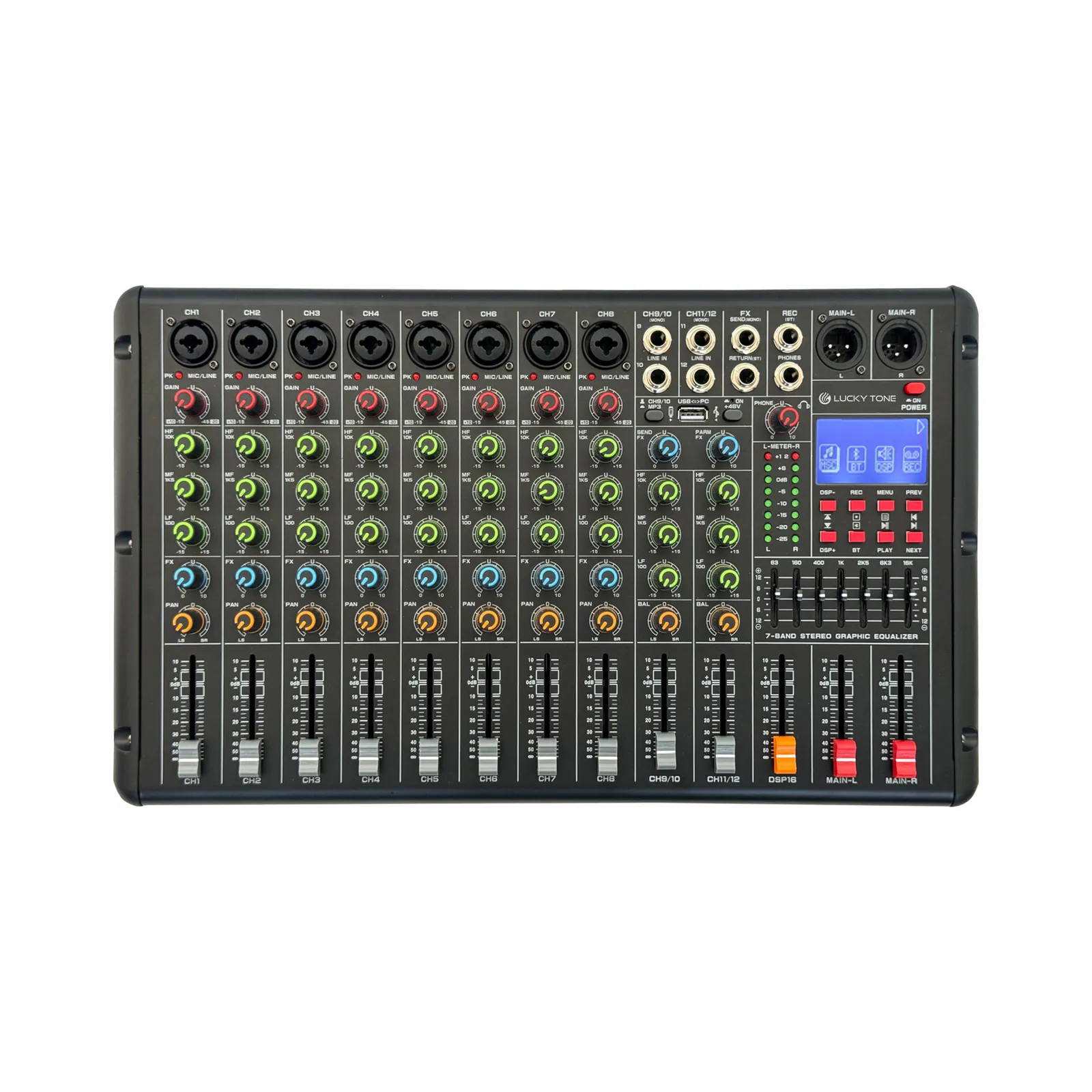

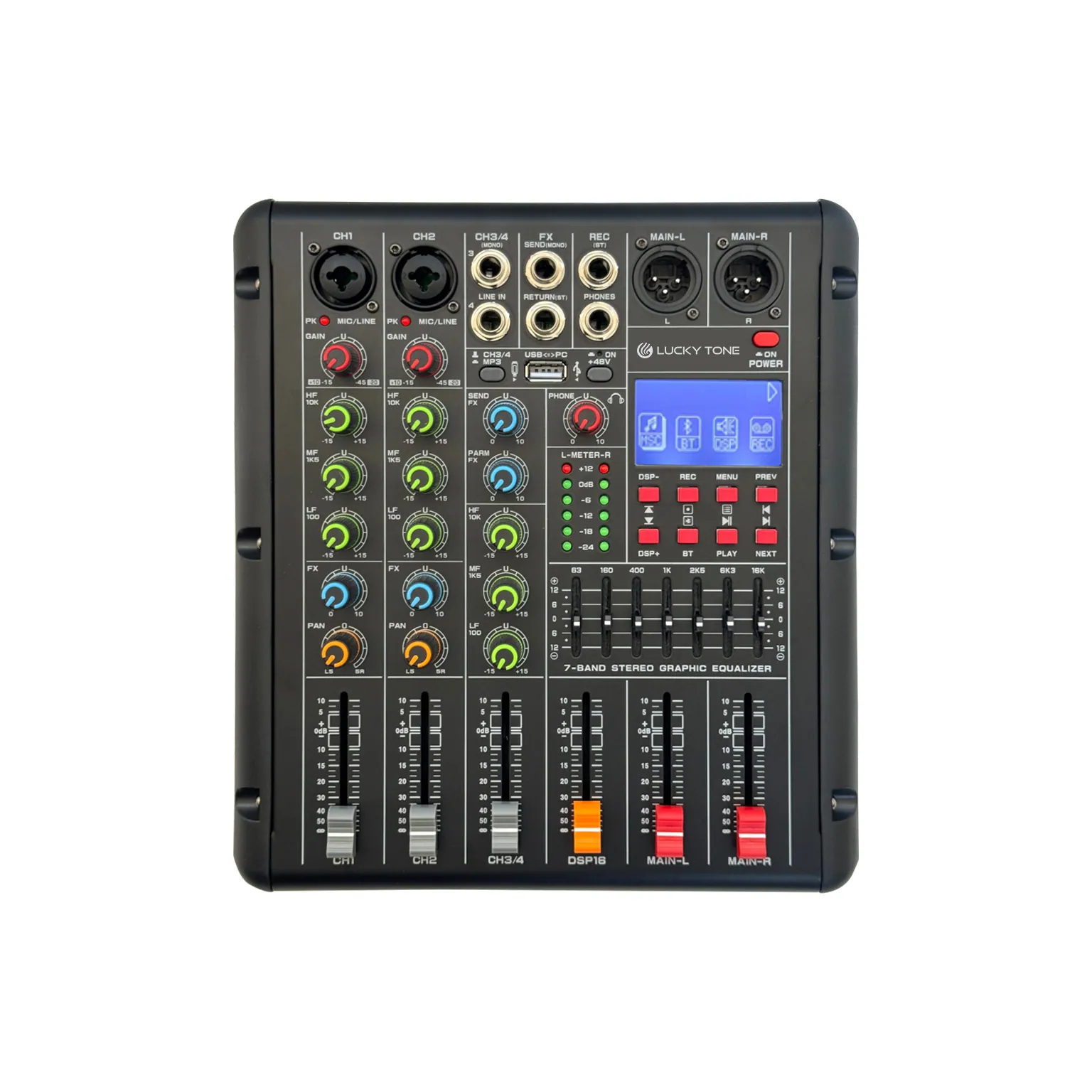

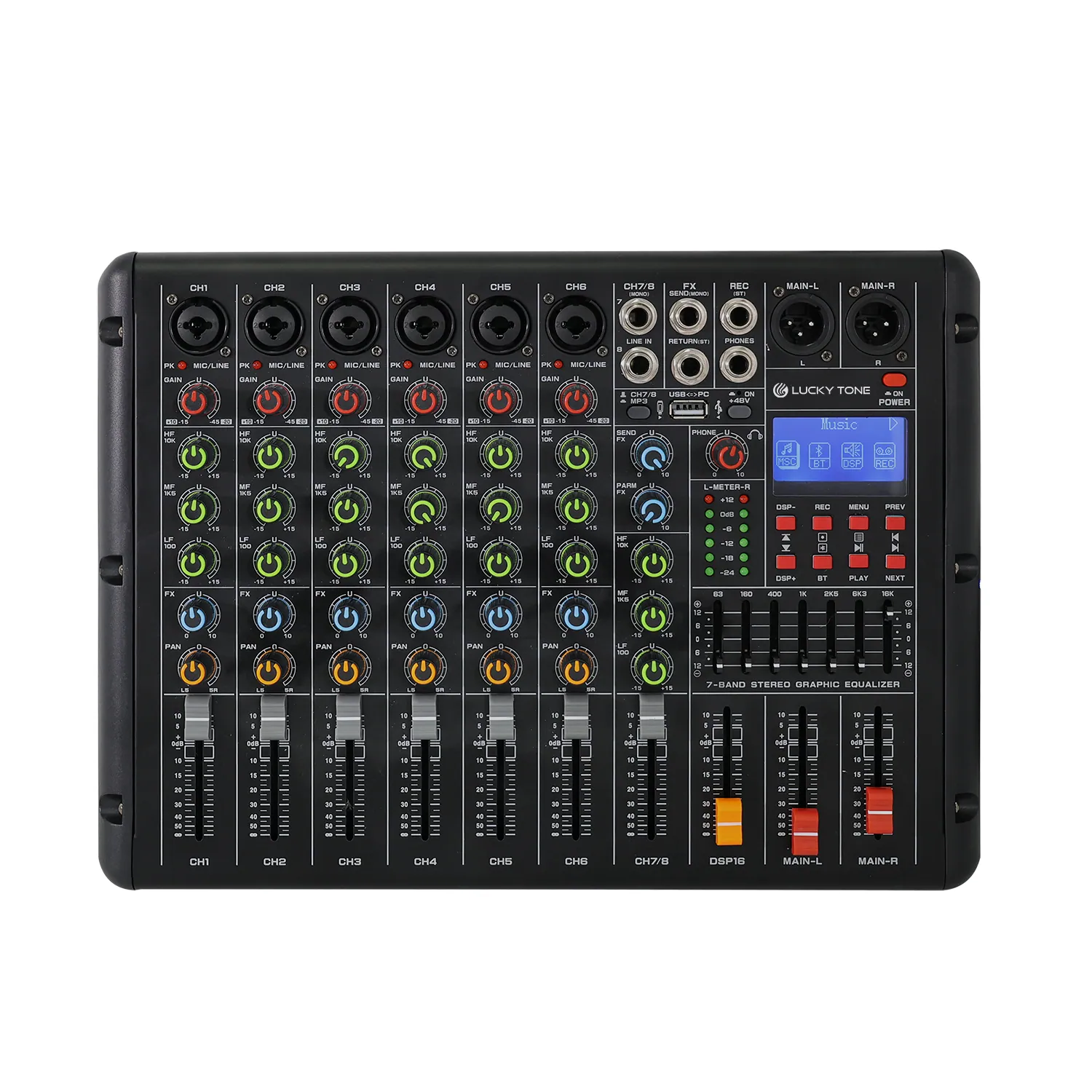

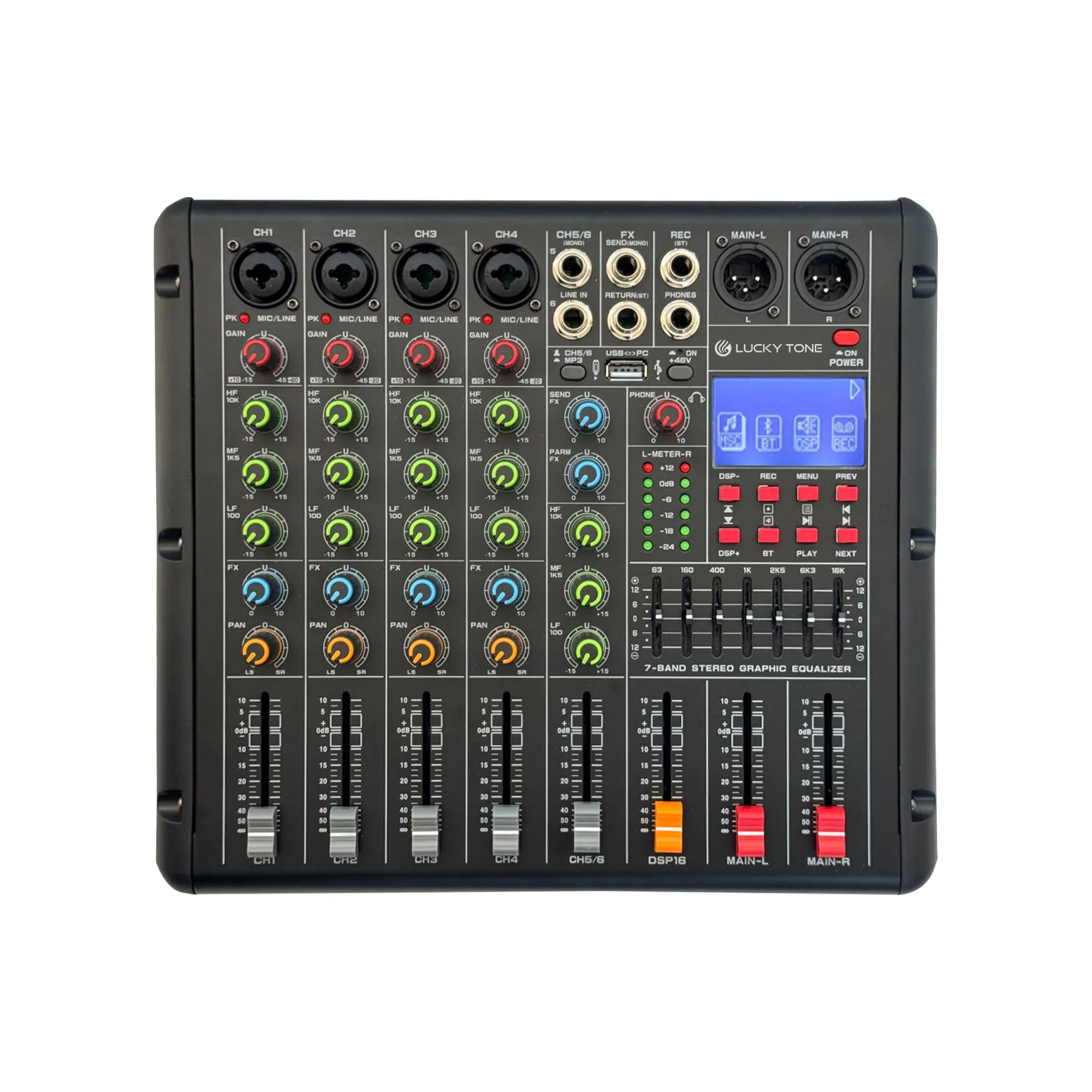

AM Audio Mixer Console
ModelAM-4DSP / AM-6DSP / AM-8DSP / AM-12DSP
Built-in 16 modes digital signal processing for versatile audio control.
- Power supply
- 100-240VAC, 50/60Hz, 0.4A
- Dimensions
- AM-4DSP: 219×243×88mm; AM-4DSP: 219×243×88mm; AM-6DSP: 276×243×88mm; AM-6DSP: 276×243×88mm; AM-8DSP: 350×340×11mm; AM-12DSP: 420×243×88mm; AM-12DSP: 420×243×88mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
AM Audio Mixer ConsolePrice on requestRequest a quotation

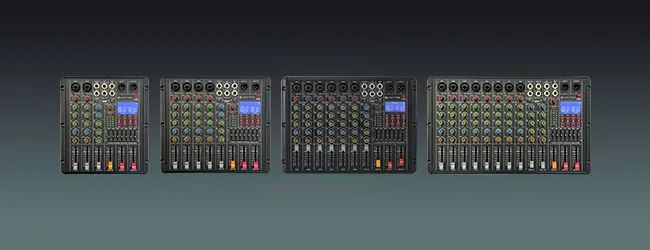

01Models7 models in the family
Models compared.
| Model | AM-4DSP | AM-4DSP | AM-6DSP | AM-6DSP | AM-8DSP | AM-12DSP | AM-12DSP |
|---|---|---|---|---|---|---|---|
| Channels | 2 Microphone Inputs + 1 Stereo Line Input | 2 Microphone Inputs + 1 Stereo Line Input | 4 Microphone Inputs + 1 Stereo Line Input | 4 Microphone Inputs + 1 Stereo Line Input | 6 Microphone Inputs + 1 Stereo Line Input | 8 Microphone Inputs + 2 Stereo Line Inputs | 8 Microphone Inputs + 2 Stereo Line Inputs |
| THD (MIC INPUT to MIX OUT, PHONES, SEND) | <0.1%(THD+N) @+14dB,20Hz-20kHz,600Ω | <0.1%(THD+N) @+14dB,20Hz-20kHz,600Ω | <0.1%(THD+N) @+14dB,20Hz-20kHz,600Ω | <0.1%(THD+N) @+14dB,20Hz-20kHz,600Ω | <0.1%(THD+N) @+14dB,20Hz-20kHz,600Ω | <0.1%(THD+N) @+14dB,20Hz-20kHz,600Ω | <0.1%(THD+N) @+14dB,20Hz-20kHz,600Ω |
| Frequency Response (MIC INPUT to MIX OUT, PHONES, SEND) | 20Hz~20kHz +1dB, -2 dB@0 dB, 600Ω (input gain control at minimum level) | 20Hz~20kHz +1dB, -2 dB@0 dB, 600Ω (input gain control at minimum level) | 20Hz~20kHz +1dB, -2 dB@0 dB, 600Ω (input gain control at minimum level) | 20Hz~20kHz +1dB, -2 dB@0 dB, 600Ω (input gain control at minimum level) | 20Hz~20kHz +1dB, -2 dB@0 dB, 600Ω (input gain control at minimum level) | 20Hz~20kHz +1dB, -2 dB@0 dB, 600Ω (input gain control at minimum level) | 20Hz~20kHz +1dB, -2 dB@0 dB, 600Ω (input gain control at minimum level) |
| Maximum Voltage Gain | 84dB CH MIC INPUT to M1X OUT (CH to MIX) 84dB CH MIC INPUT to AUX OUT, EFFECT SEND 58dB CH LINE INPUT to M1X OUT (CH to MIX) | 84dB CH MIC INPUT to M1X OUT (CH to MIX) 84dB CH MIC INPUT to AUX OUT, EFFECT SEND 58dB CH LINE INPUT to M1X OUT (CH to MIX) | 84dB CH MIC INPUT to M1X OUT (CH to MIX) 84dB CH MIC INPUT to AUX OUT, EFFECT SEND 58dB CH LINE INPUT to M1X OUT (CH to MIX) | 84dB CH MIC INPUT to M1X OUT (CH to MIX) 84dB CH MIC INPUT to AUX OUT, EFFECT SEND 58dB CH LINE INPUT to M1X OUT (CH to MIX) | 84dB CH MIC INPUT to M1X OUT (CH to MIX) 84dB CH MIC INPUT to AUX OUT, EFFECT SEND 58dB CH LINE INPUT to M1X OUT (CH to MIX) | 84dB CH MIC INPUT to M1X OUT (CH to MIX) 84dB CH MIC INPUT to AUX OUT, EFFECT SEND 58dB CH LINE INPUT to M1X OUT (CH to MIX) | 84dB CH MIC INPUT to M1X OUT (CH to MIX) 84dB CH MIC INPUT to AUX OUT, EFFECT SEND 58dB CH LINE INPUT to M1X OUT (CH to MIX) |
| Mono/Stereo INPUT Gain Control | 30dB variable | 30dB variable | 30dB variable | 30dB variable | 30dB variable | 30dB variable | 30dB variable |
| Input Channel Equalization | ±15dB Max *Crossover/roll-off frequency slope: up to -3dB below maximum variable level. HIGH: 10kHz shelving, MID: 2kHz peaking, LOW: 100Hz shelving. | ±15dB Max *Crossover/roll-off frequency slope: up to -3dB below maximum variable level. HIGH: 10kHz shelving, MID: 2kHz peaking, LOW: 100Hz shelving. | ±15dB Max *Crossover/roll-off frequency slope: up to -3dB below maximum variable level. HIGH: 10kHz shelving, MID: 2kHz peaking, LOW: 100Hz shelving. | ±15dB Max *Crossover/roll-off frequency slope: up to -3dB below maximum variable level. HIGH: 10kHz shelving, MID: 2kHz peaking, LOW: 100Hz shelving. | ±15dB Max *Crossover/roll-off frequency slope: up to -3dB below maximum variable level. HIGH: 10kHz shelving, MID: 2kHz peaking, LOW: 100Hz shelving. | ±15dB Max *Crossover/roll-off frequency slope: up to -3dB below maximum variable level. HIGH: 10kHz shelving, MID: 2kHz peaking, LOW: 100Hz shelving. | ±15dB Max *Crossover/roll-off frequency slope: up to -3dB below maximum variable level. HIGH: 10kHz shelving, MID: 2kHz peaking, LOW: 100Hz shelving. |
| Phantom Power | +48V (balanced): Provided to each channel when PHANTOM switch is ON | +48V (balanced): Provided to each channel when PHANTOM switch is ON | +48V (balanced): Provided to each channel when PHANTOM switch is ON | +48V (balanced): Provided to each channel when PHANTOM switch is ON | +48V (balanced): Provided to each channel when PHANTOM switch is ON | +48V (balanced): Provided to each channel when PHANTOM switch is ON | +48V (balanced): Provided to each channel when PHANTOM switch is ON |
| Power Supply | 100-240VAC, 50/60Hz, 0.4A | 100-240VAC, 50/60Hz, 0.4A | 100-240VAC, 50/60Hz, 0.4A | 100-240VAC, 50/60Hz, 0.4A | 100-240VAC, 50/60Hz, 0.4A | 100-240VAC, 50/60Hz, 0.4A | 100-240VAC, 50/60Hz, 0.4A |
| Dimensions(L×W×H) | 219×243×88mm | 219×243×88mm | 276×243×88mm | 276×243×88mm | 350×340×11mm | 420×243×88mm | 420×243×88mm |
| Gross Weight | 1.8kg | 2.2kg | 2.2kg | 2.6kg | 2.6kg | 2.6kg | 3.2kg |
02DescriptionManufacturer's description
What it is.
16 DSP Modes
Durable Fader
High-quality 45mm fader ensures long-lasting performance.
Dynamic Noise Reduction
Integrated noise reduction system for clear microphone audio.
7-Band Stereo EQ
Precise sound shaping with a 7-band graphic equalizer.
HD Multimedia Player
Supports multiple audio formats with high-definition decoding.
USB Sound Card
Compatible with Windows, Android, and iOS systems for flexible playback.
Digital Recording
Supports digital recording for easy audio capture.
Bluetooth Integration
Wireless audio reception, playback, and control.
48V Phantom Power
Provides stable phantom power for condenser microphones.
LCD Screen for DSP control and for multimedia control
