Sheet 05.253
Lucky Tone · Power amplifiers

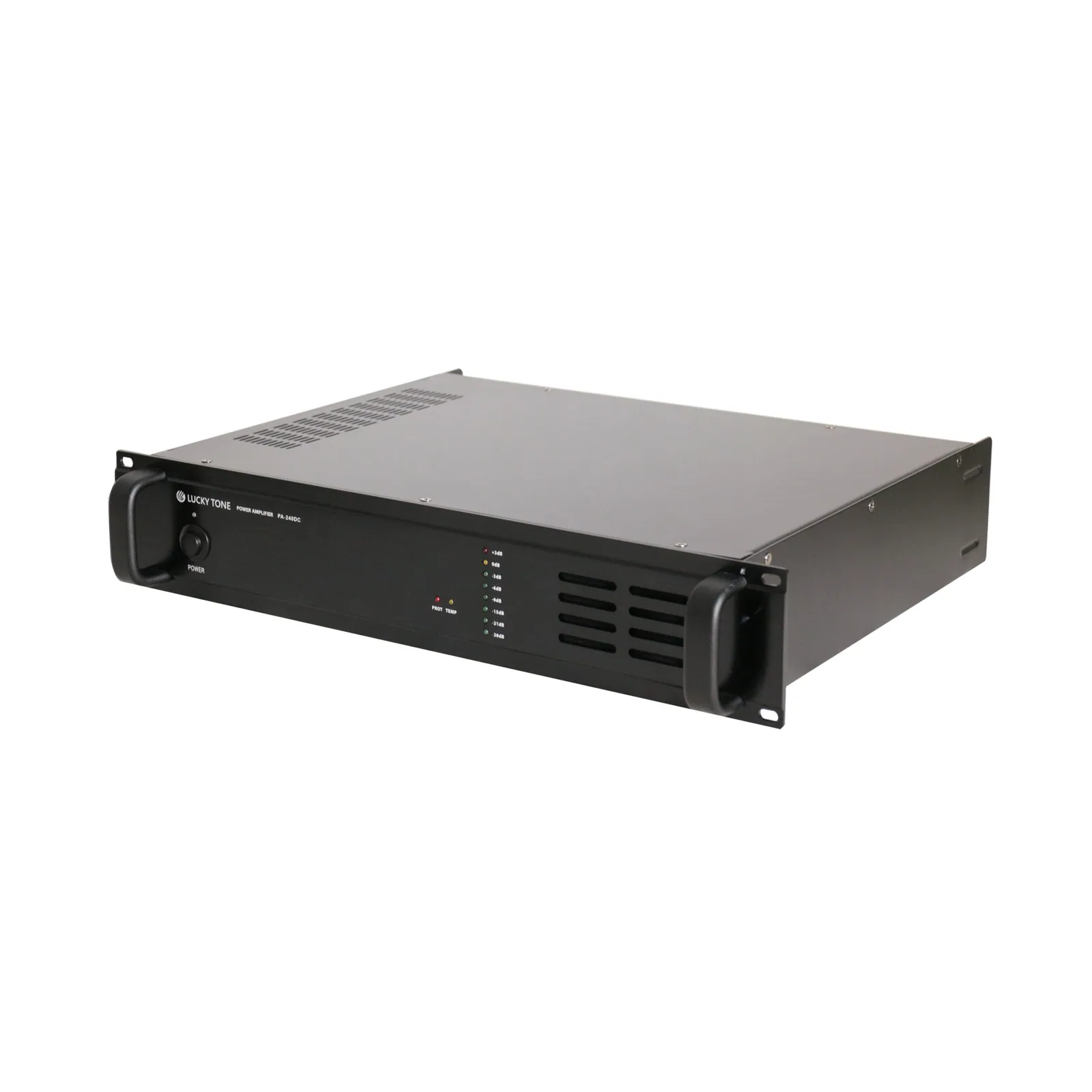

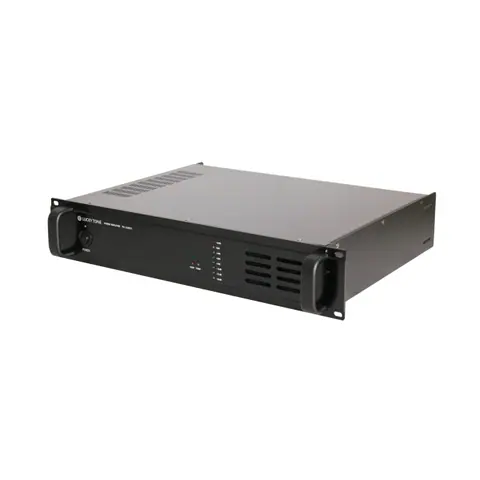

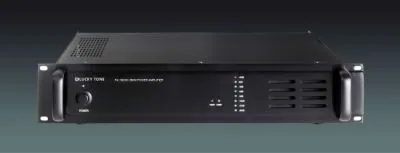

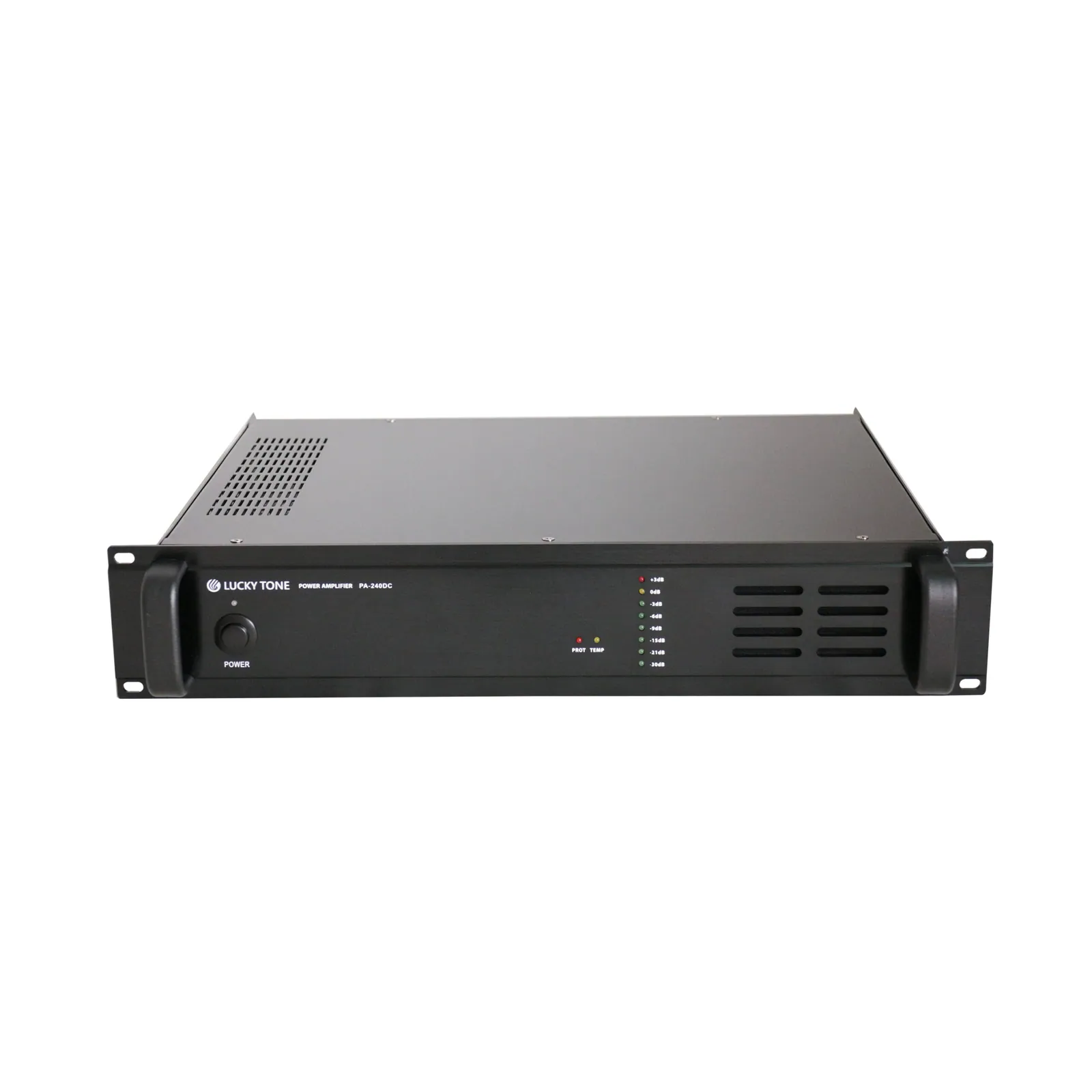

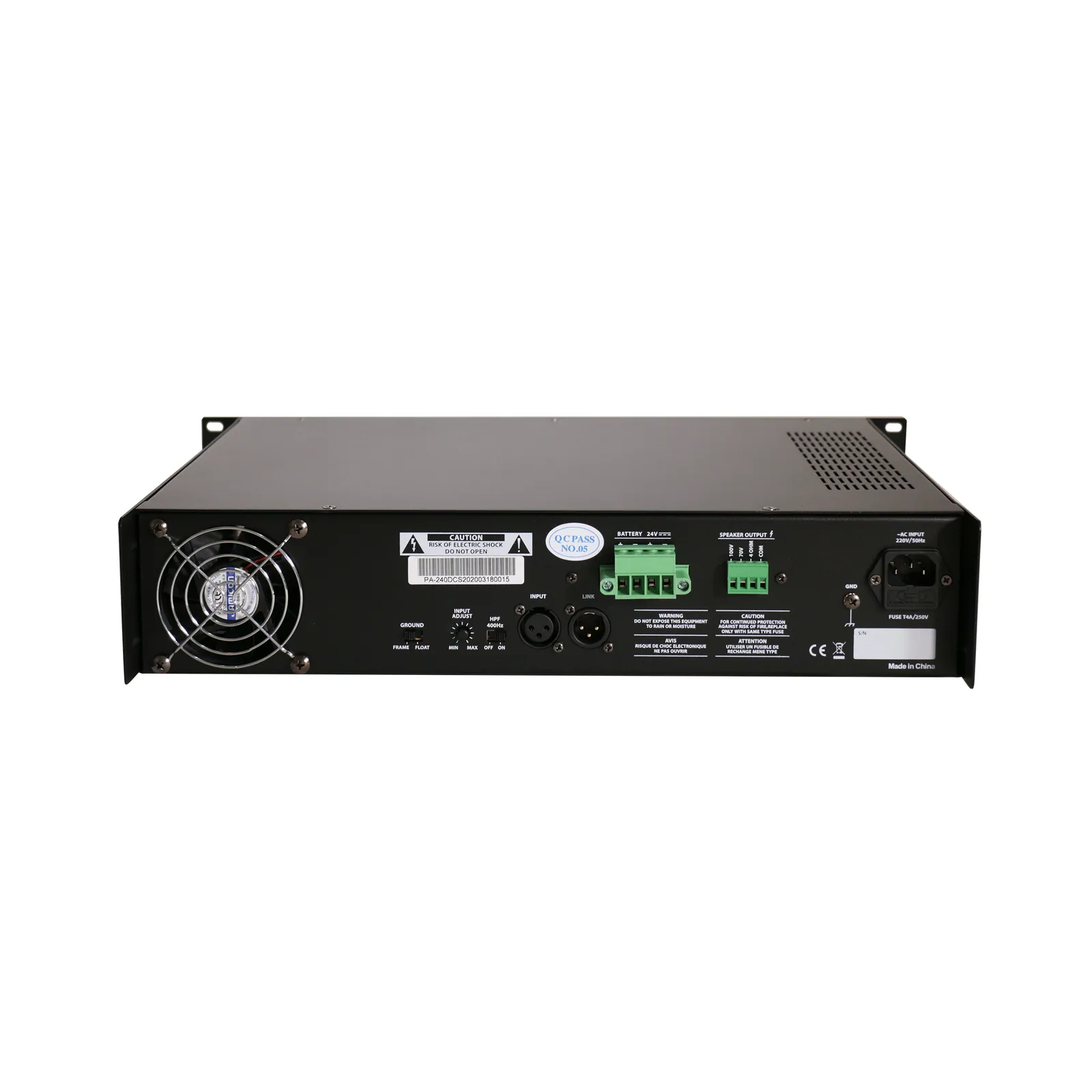

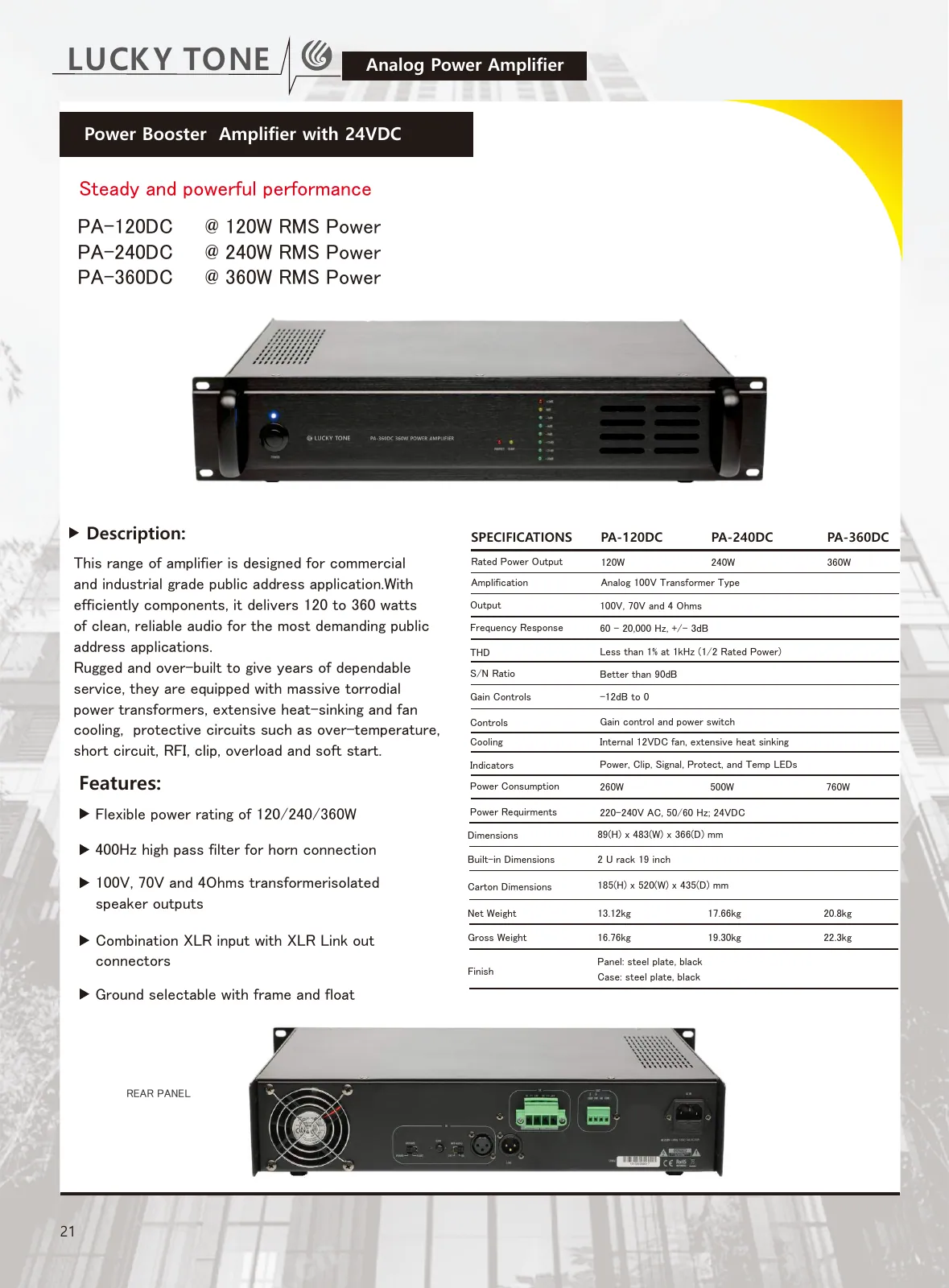

Power Booster Amplifier with 24VDC
ModelPA-120DC / PA-240DC / PA-360DC
This range of amplifier is designed for commercial and industrial grade public address application.With efficiently components, it delivers 120 to 360 watts of clean, reliable audio for the most demanding public address applications.Rugged and over-built to give years of dependable service, they are equipped with massive torrodial power transformers, extensive heat-sinking and fan cooling, protective circuits such as over-temperature, short circuit, RFI, clip, overload and soft start.
- Output power
- PA-120DC: 120W; PA-240DC: 240W; PA-360DC: 360W
- Dimensions
- 89(H) x 483(W) x 366(D) mm
- Weight
- PA-120DC: 13.12kg; PA-240DC: 17.66kg; PA-360DC: 20.8kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Power Booster Amplifier with 24VDCPrice on requestRequest a quotation
01Models3 models in the family
Models compared.
| MODEL | PA-120DC | PA-240DC | PA-360DC |
|---|---|---|---|
| Rated Power Output | 120W | 240W | 360W |
| Amplification | Analog 100V Transformer Type | Analog 100V Transformer Type | Analog 100V Transformer Type |
| Output | 100V, 70V and 4 Ohms | 100V, 70V and 4 Ohms | 100V, 70V and 4 Ohms |
| Frequency Response (-3dB) | 60 – 20,000 Hz, +/- 3dB | 60 – 20,000 Hz, +/- 3dB | 60 – 20,000 Hz, +/- 3dB |
| T.H.D | Less than 1% at 1kHz (1/2 Rated Power) | Less than 1% at 1kHz (1/2 Rated Power) | Less than 1% at 1kHz (1/2 Rated Power) |
| Signal to Noise Ratio | Better than 90dB | Better than 90dB | Better than 90dB |
| Gain Controls | -12dB to 0 | -12dB to 0 | -12dB to 0 |
| Controls | Gain control and power switch | Gain control and power switch | Gain control and power switch |
| Cooling | Internal 12VDC fan, extensive heat sinking | Internal 12VDC fan, extensive heat sinking | Internal 12VDC fan, extensive heat sinking |
| Indicators | Power, Clip, Signal, Protect, and Temp LEDs | Power, Clip, Signal, Protect, and Temp LEDs | Power, Clip, Signal, Protect, and Temp LEDs |
| Power Consumption | 260W | 500W | 760W |
| Power Requirments | 220-240V AC, 50/60 Hz; 24VDC | 220-240V AC, 50/60 Hz; 24VDC | 220-240V AC, 50/60 Hz; 24VDC |
| Dimensions | 89(H) x 483(W) x 366(D) mm | 89(H) x 483(W) x 366(D) mm | 89(H) x 483(W) x 366(D) mm |
| Built-in Dimensions | 2 U rack 19 inch | 2 U rack 19 inch | 2 U rack 19 inch |
| Carton Dimensions | 185(H) x 520(W) x 435(D) mm | 185(H) x 520(W) x 435(D) mm | 185(H) x 520(W) x 435(D) mm |
| Net Weight | 13.12kg | 17.66kg | 20.8kg |
| Gross Weight | 16.76kg | 19.30kg | 22.3kg |
| Finish | Panel: steel plate, black Case: steel plate, black | Panel: steel plate, black Case: steel plate, black | Panel: steel plate, black Case: steel plate, black |
02DescriptionManufacturer's description
What it is.
Features
- Flexible power rating of 120/240/360W
- 400Hz high pass filter for horn connection
- 100V, 70V and 4Ohms transformerisolated speaker outputs
- Combination XLR input with XLR Link out connectors
- Ground selectable with frame and float
