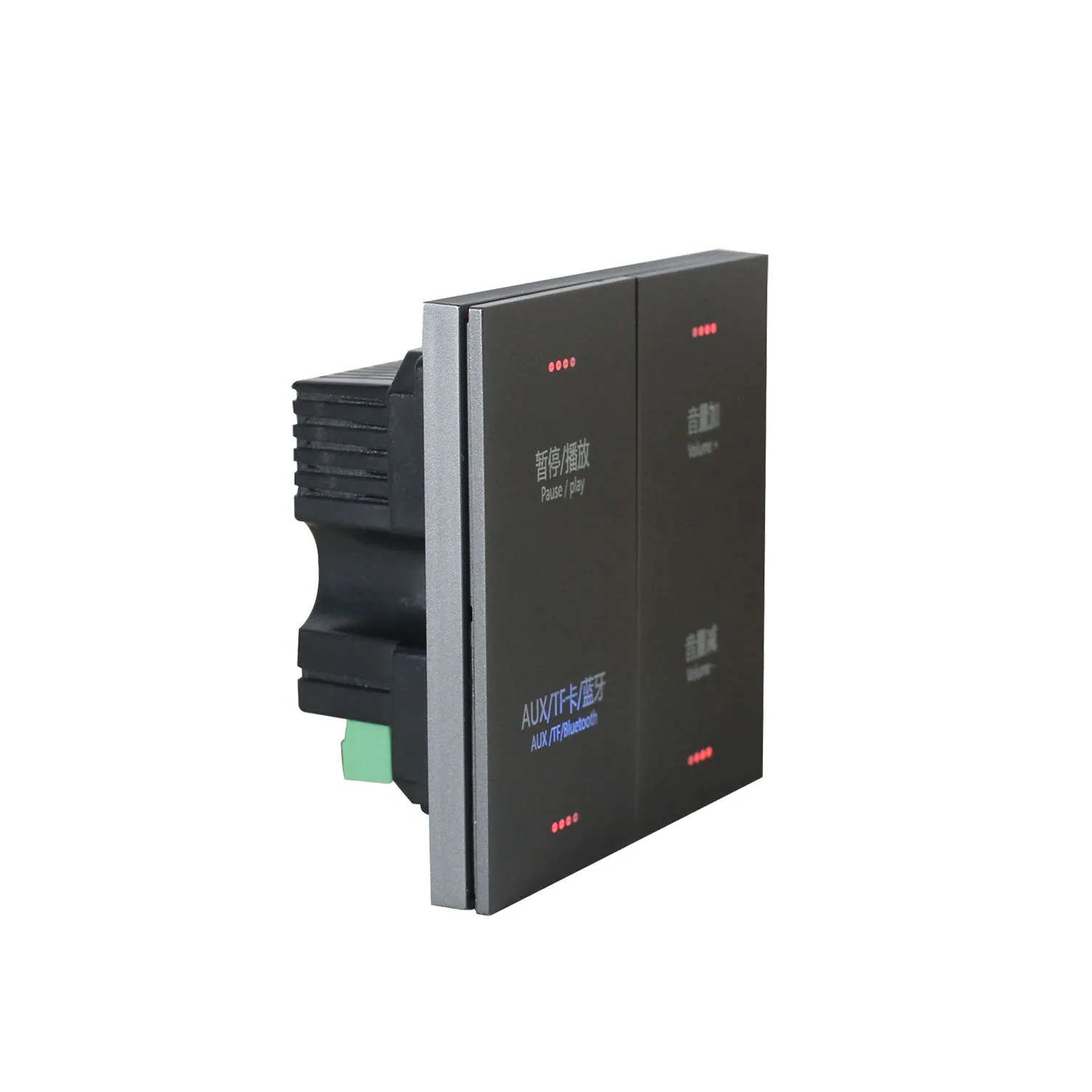

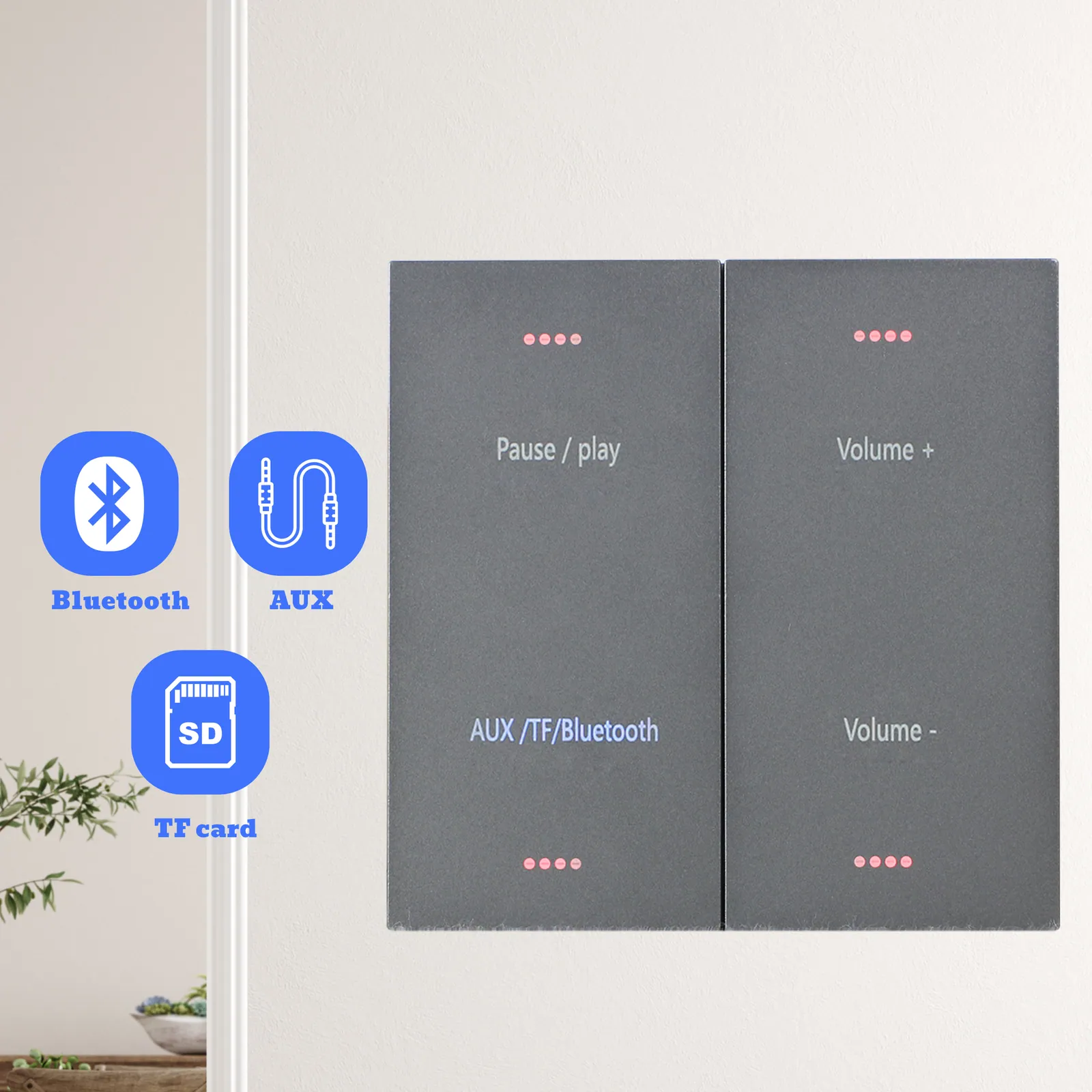

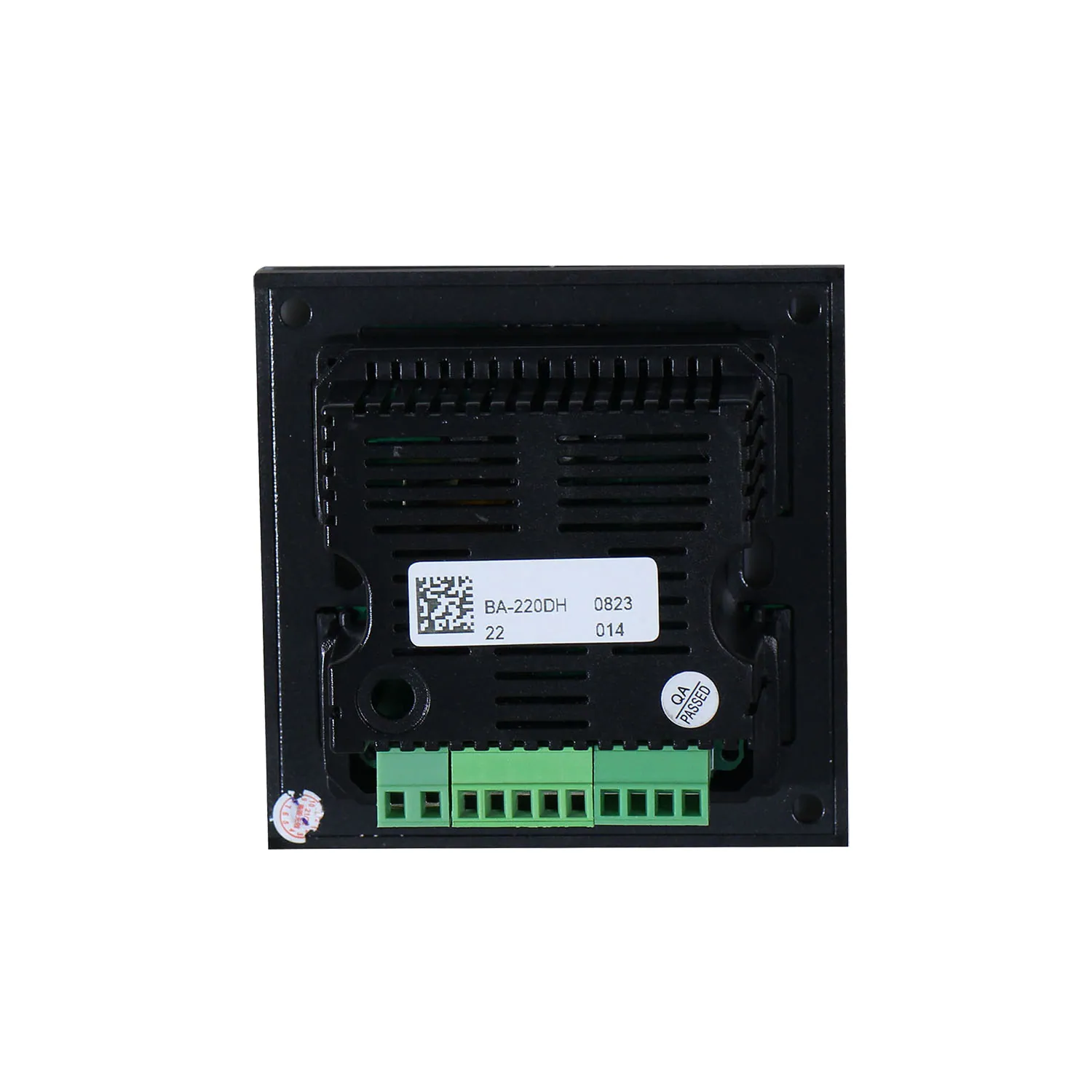

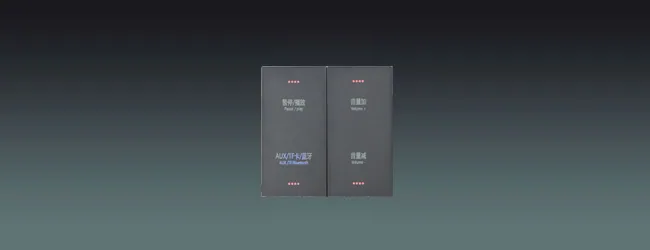

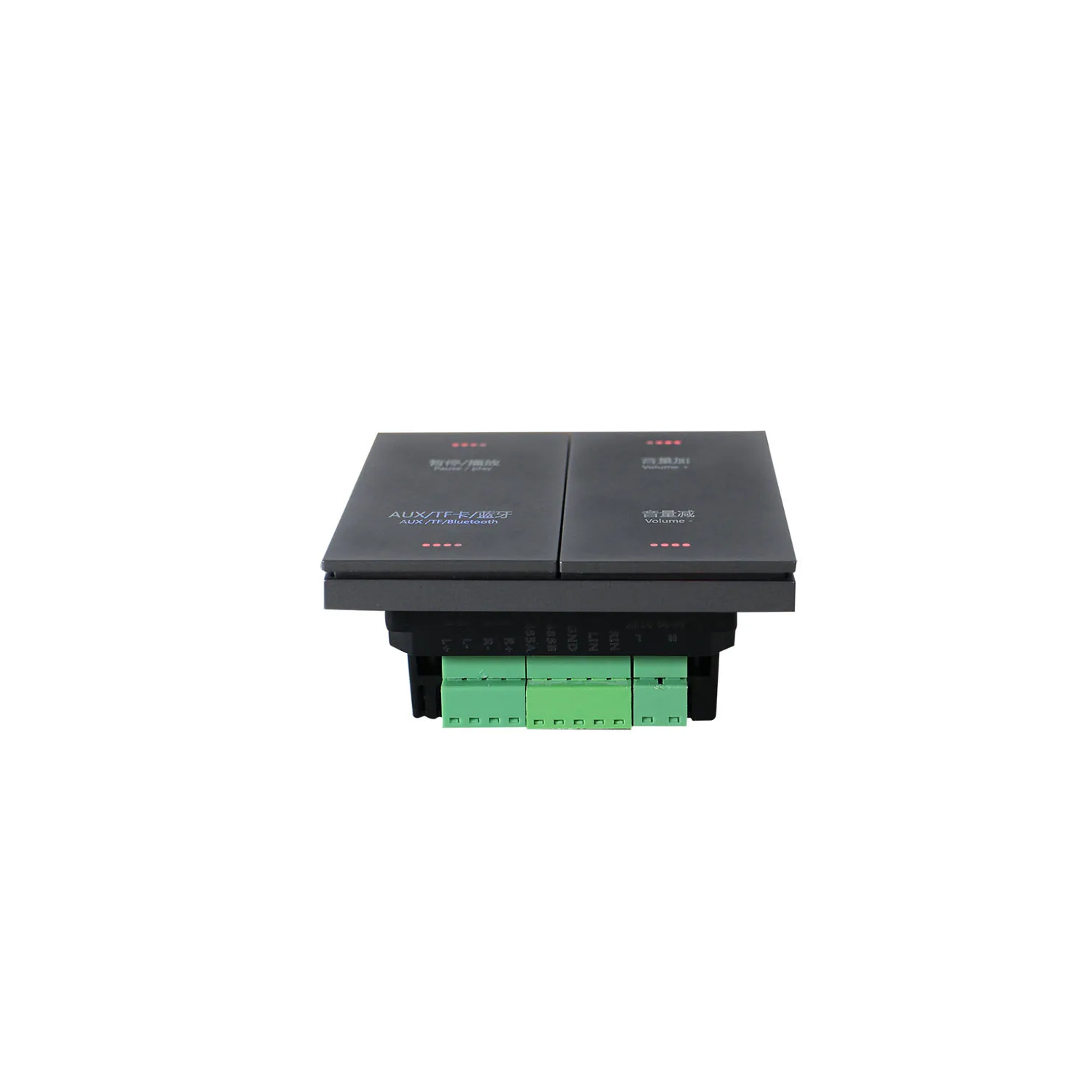

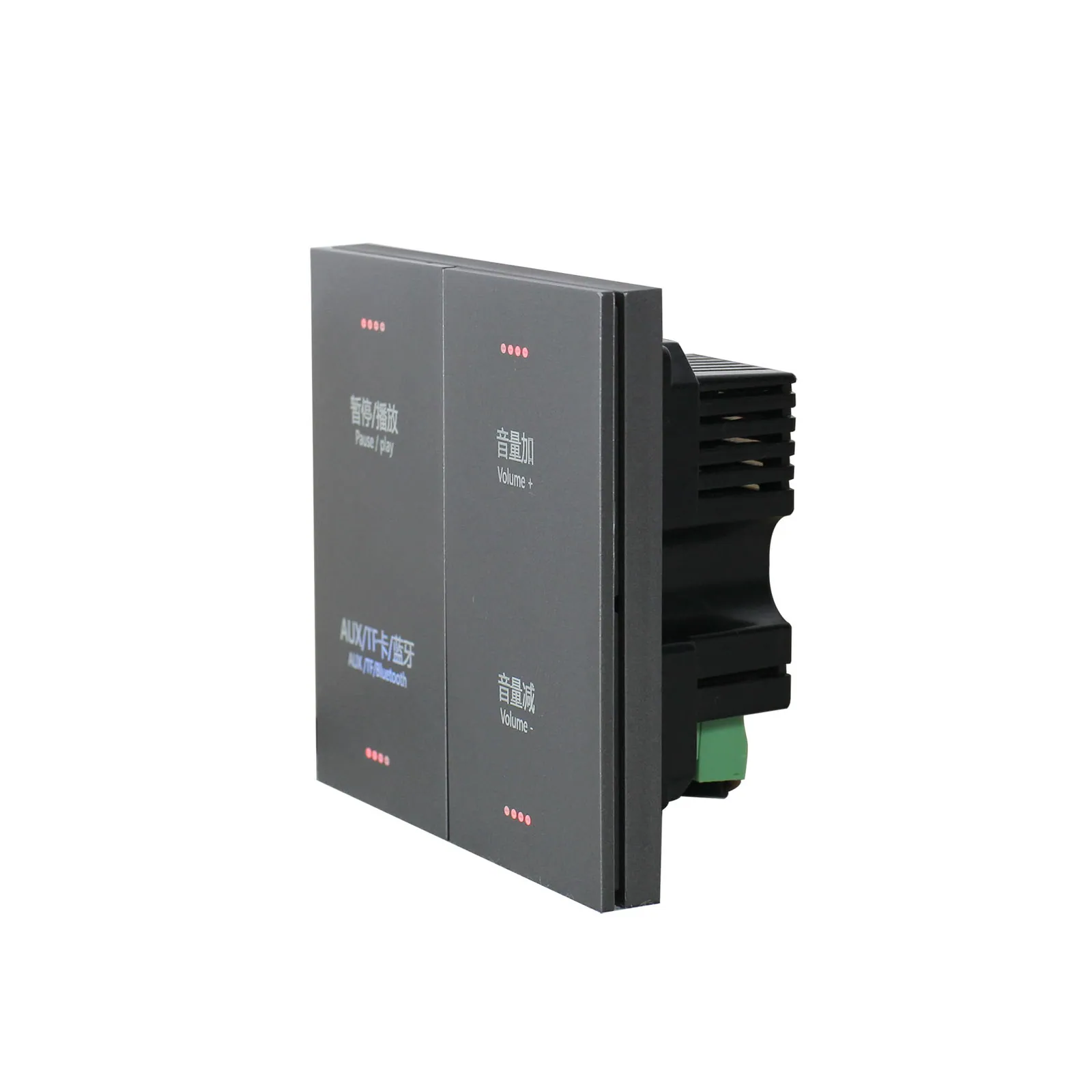

2-CH Wall Amplifier
ModelBA-220DH
Adopt Bluetooth wireless connection technology
- Output power
- 2*20W
- Frequency response
- 20Hz-20KHz
- Weight
- 132g
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications11
- Model
- BA-220DH
- Output Power
- 2*20W
- Speaker Impedance
- 8ohm
- Bluetooth Wireless Range
- ≤10M
- Frequency Response
- 20Hz-20KHz
- Music format
- Mp3, WMA, WAV, AAC, WAW, APE, etc.
- Power Requirements
- 90-250VAC
- Color
- Grey color default, black optional
- Product Dimension
- 86x86x42mm
- Back Box Dimension
- 86x86x56mm
- Net Weight
- 132g
Show the full specificationHide the rest of the specification0 more groups · 0 values
What it is.
- Standard 86 Mounted on the wall for easy control
- RS485 integration with third party system
- Support audio input function with secure and fast connect phoenix connectors
- Suitable for hotels, villa, homes, commercial areas, kid’s room, etc.
