Sheet 05.471
Lucky Tone · Bluetooth, Wi-Fi and smart home

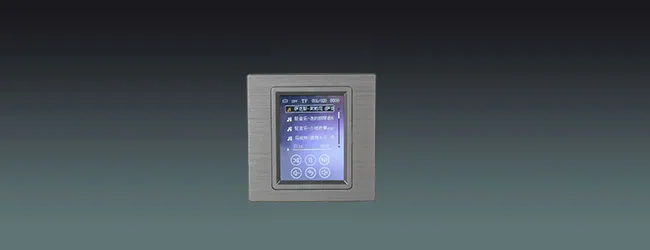

2-CH Wall Amplifier with Touch Screen
ModelBA-220TH
With high-transparency crystal panel and high sensitivity 3-inch touch screen
- Output power
- 2*20W
- Frequency response
- 20Hz-20KHz
- Weight
- 126g
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
2-CH Wall Amplifier with Touch ScreenPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 13 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- Model
- BA-220TH
- Output Power
- 2*20W
- Speaker Impedance
- 8ohm
- Bluetooth Wireless Range
- ≤10M
- SNR
- ≥98dB
- Frequency Response
- 20Hz-20KHz
- Music format
- Mp3, WMA, WAV, AAC, AC3, OGG, FLAC, APE, DTS etc.
- Video format
- MPEG-1/2/3/4, RM/RMVB, WMV, MOV, MK, VOB, AVI, 3GP, H.264
- Power Requirements
- AC110V-250V
- Color
- Grey color default, black optional
- Product Dimension
- 86x86x40mm
- Back Box Dimension
- 86x86x56mm
- Net Weight
- 126g
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.

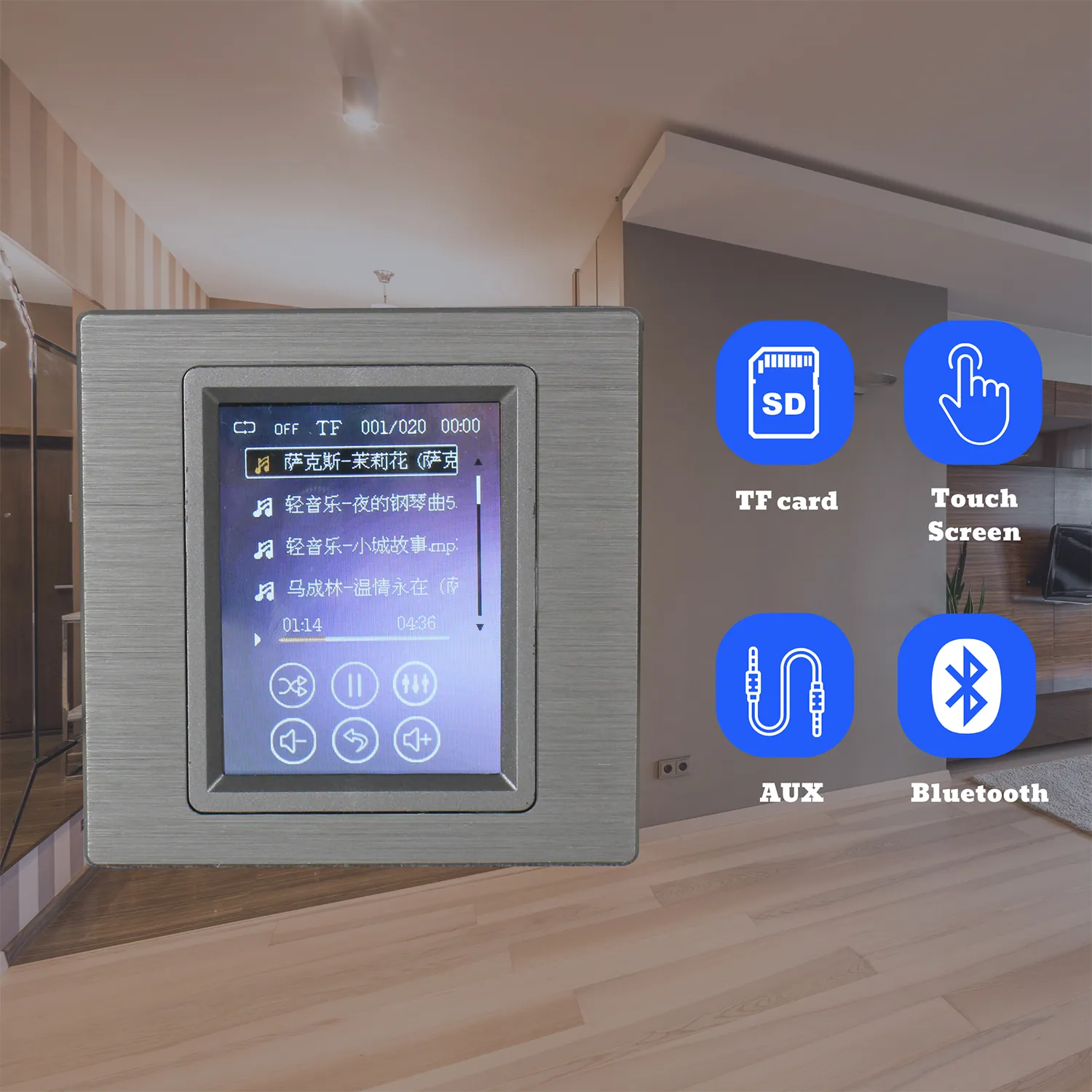

- Adopt Bluetooth wireless connection technology
- RS485 integration with third party system

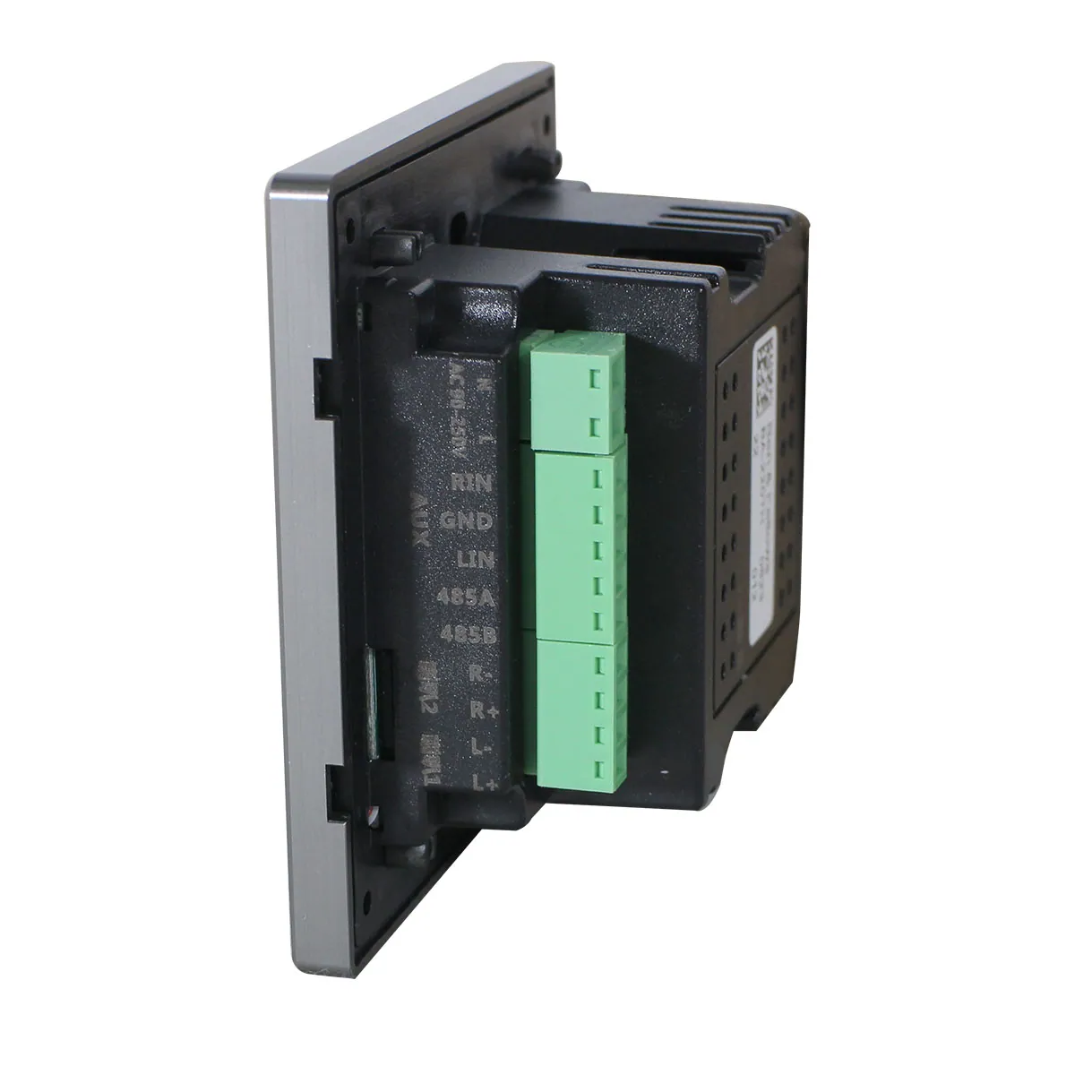

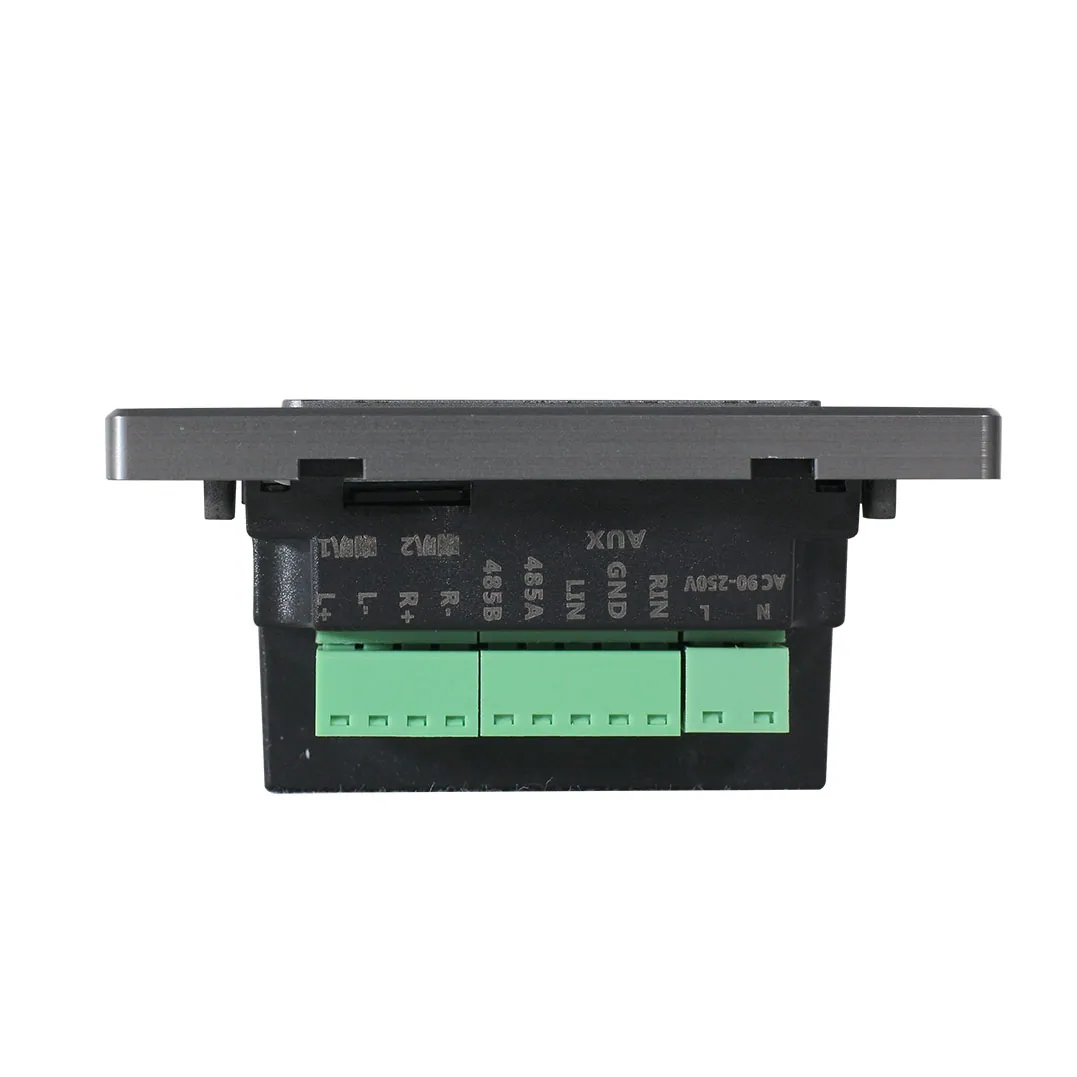

- Support audio input function with secure and fast connect phoenix connectors
- Suitable for hotels, villa, homes, commercial areas, kid’s room, etc.
