2 & 4 -CH Bluetooth Wall Amplifier with Touchscreen

ModelBA-225TC2 / BA-425TC2

This 2-4 channel small Bluetooth multi-home audio system equipped with micro-USB/TF can power 2 to 8 pieces of speakers in your home or small commercial area.

Output power: BA-225TC2: 2*25W; BA-425TC2: 24*25W
Frequency response: 20 Hz-20 kHz (+/-2dB)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Models2 models in the family

Models compared.

Model	BA-225TC2	BA-425TC2
Output power	2*25W	24*25W
Speaker Impedance	4-8ohm	4-8ohm
Expand TF card memory	32GB	32GB
Display	4inch capacitive touch screen	4inch capacitive touch screen
Resolution	480*480 IPS	480*480 IPS
Bluetooth wireless range	≒10M	≒10M
USB	OTG USB, 32G can be read	OTG USB, 32G can be read
THD	0.03% (1W.1KHZ)	0.03% (1W.1KHZ)
Frequency response	20 Hz-20 kHz (+/-2dB)	20 Hz-20 kHz (+/-2dB)
SNR	98db	98db
Sound effect	Ordinary, rock, classical, jazz, pop, etc.	Ordinary, rock, classical, jazz, pop, etc.
Music format	Mp3, WMA, WAV, AAC, WAW, APE, etc.	Mp3, WMA, WAV, AAC, WAW, APE, etc.
Video format	MPEG-1/2/3/4, RM/RMVB, WMV, MOV, MK, VOB, AVI, 3GP, H, 264, etc.	MPEG-1/2/3/4, RM/RMVB, WMV, MOV, MK, VOB, AVI, 3GP, H, 264, etc.

02DescriptionManufacturer's description

What it is.

This 2-4 channel small Bluetooth multi-home audio system equipped with micro-USB/TF can power 2 to 8 pieces of speakers in your home or small commercial area. It uses a high- efficiency class-D amplifier for a maximum output of 2*25 or 4*25 watts, low impedance speakers. The cool display shows relevant track music info. Plus, you can control everything seek, change tracks, and adjust the volume using the included wireless infrared remote controller.

Adopt Bluetooth wireless connection technology
Built-in all-digital auto-tuning radio, 30 radio stations
Standard 86 Mounted on the wall for easy control
With wireless remote control
Support linkage trigger doorbell input
Rs485 integration with third party system(2-CH)

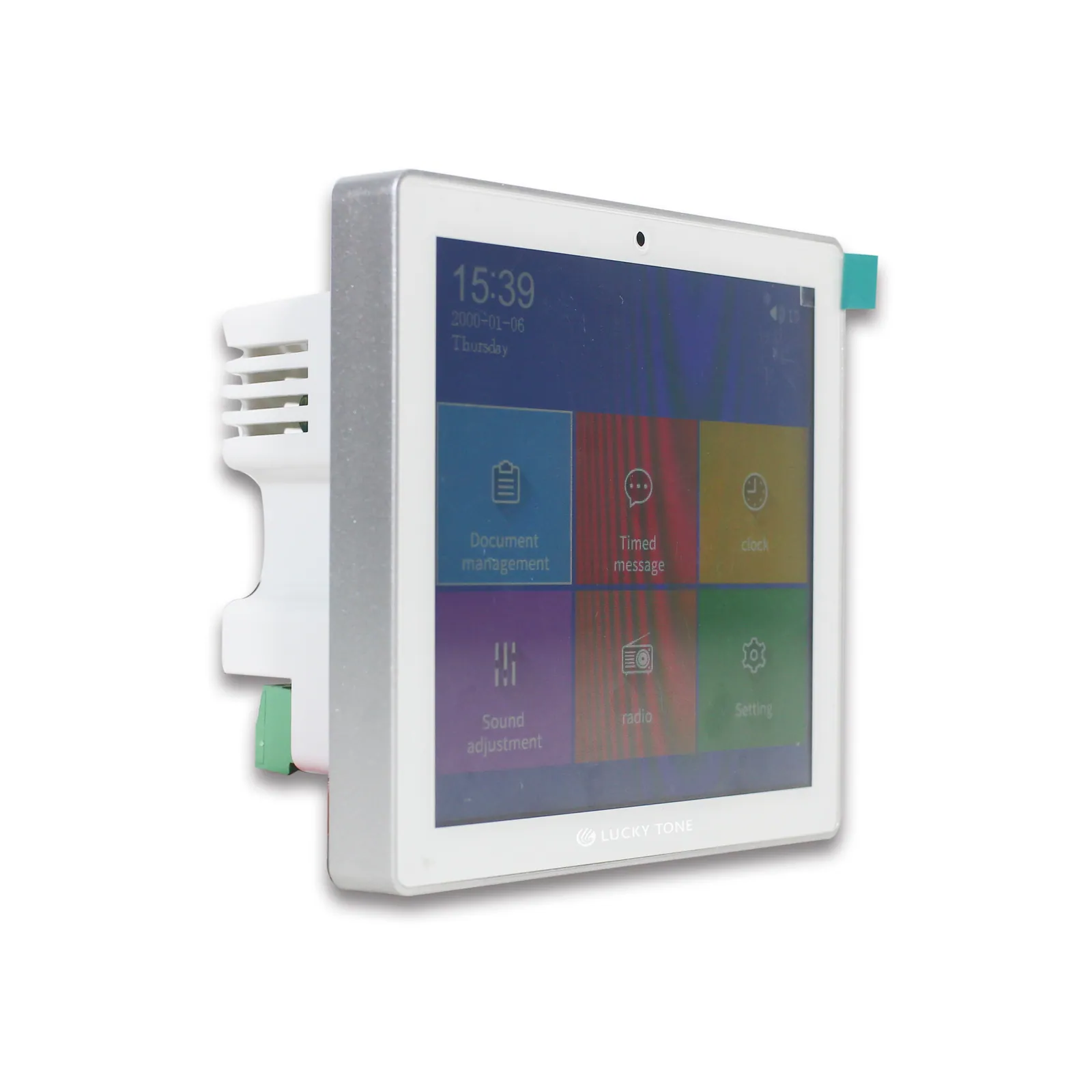

High sensitivity 4-inch touch screen

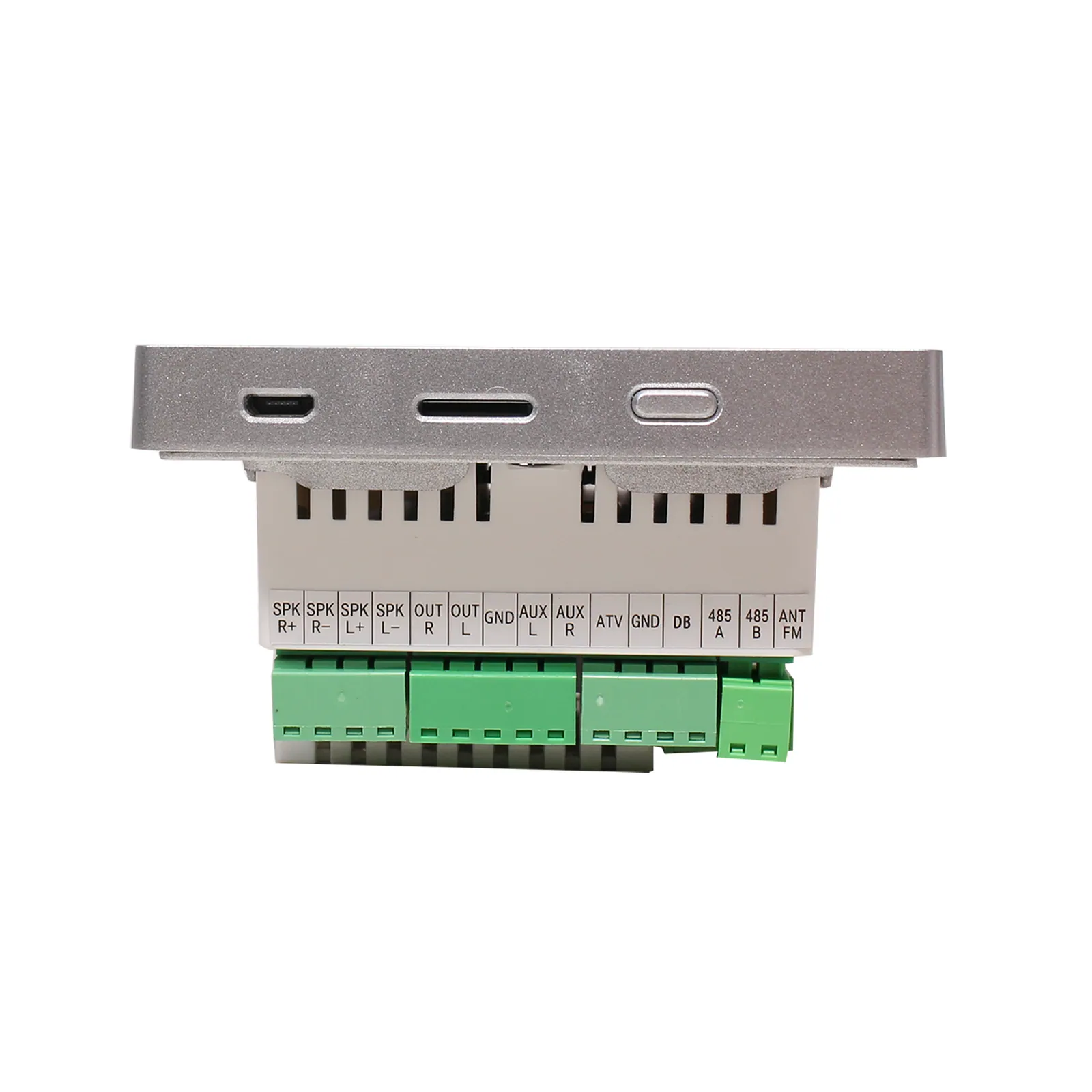

Support audio input and output function with secure and fast connect phoenix connectors
Suitable for homes, commercial areas, kid’s room, etc.
