Lucky Tone Window Intercom System TBK-20
ModelTBK-20

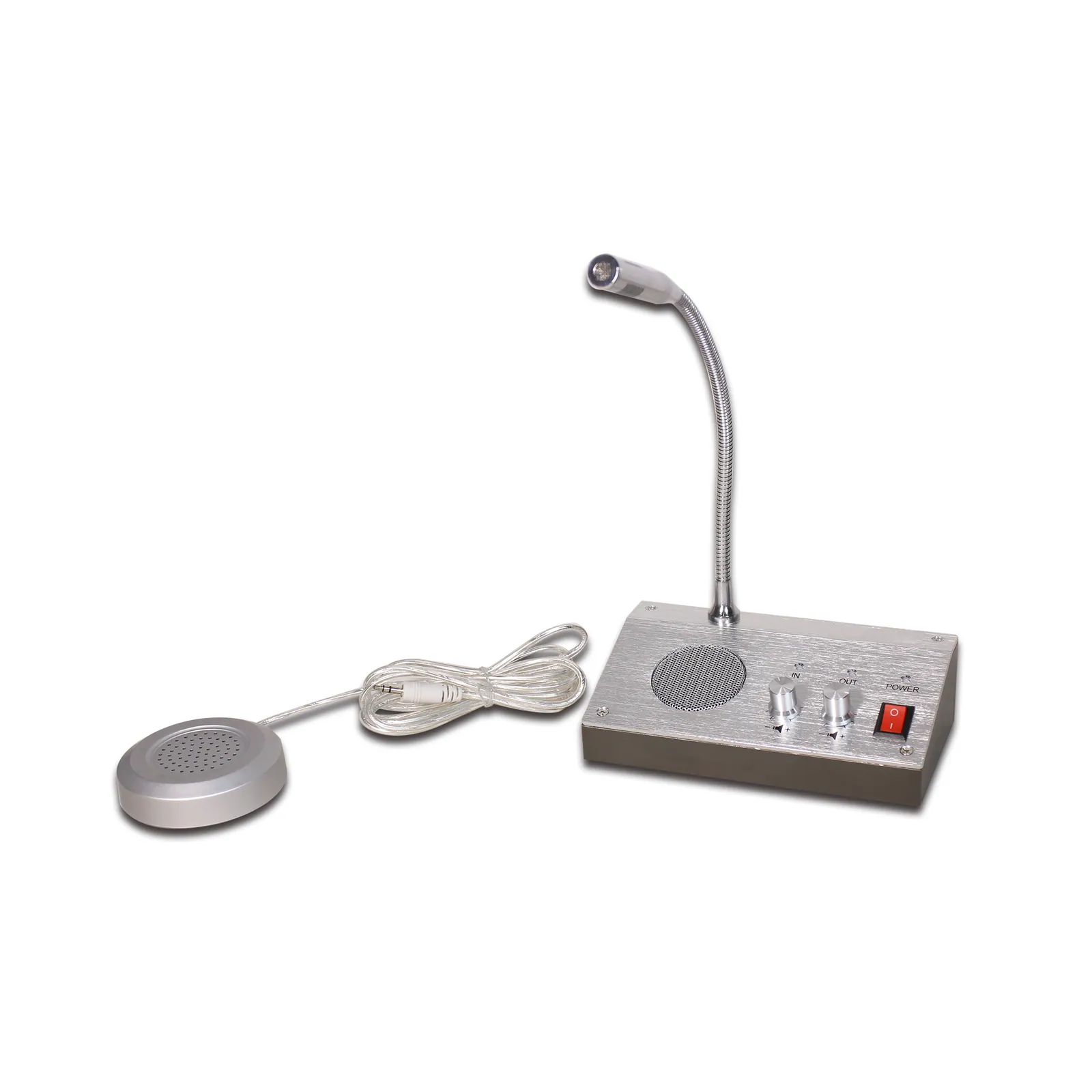

TBK-20 intercom system is primarily used in the counters and Bank/Window, or any places where conversations need to be Assisted.
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Window Intercom SystemPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 8 values
What this product is, in numbers.

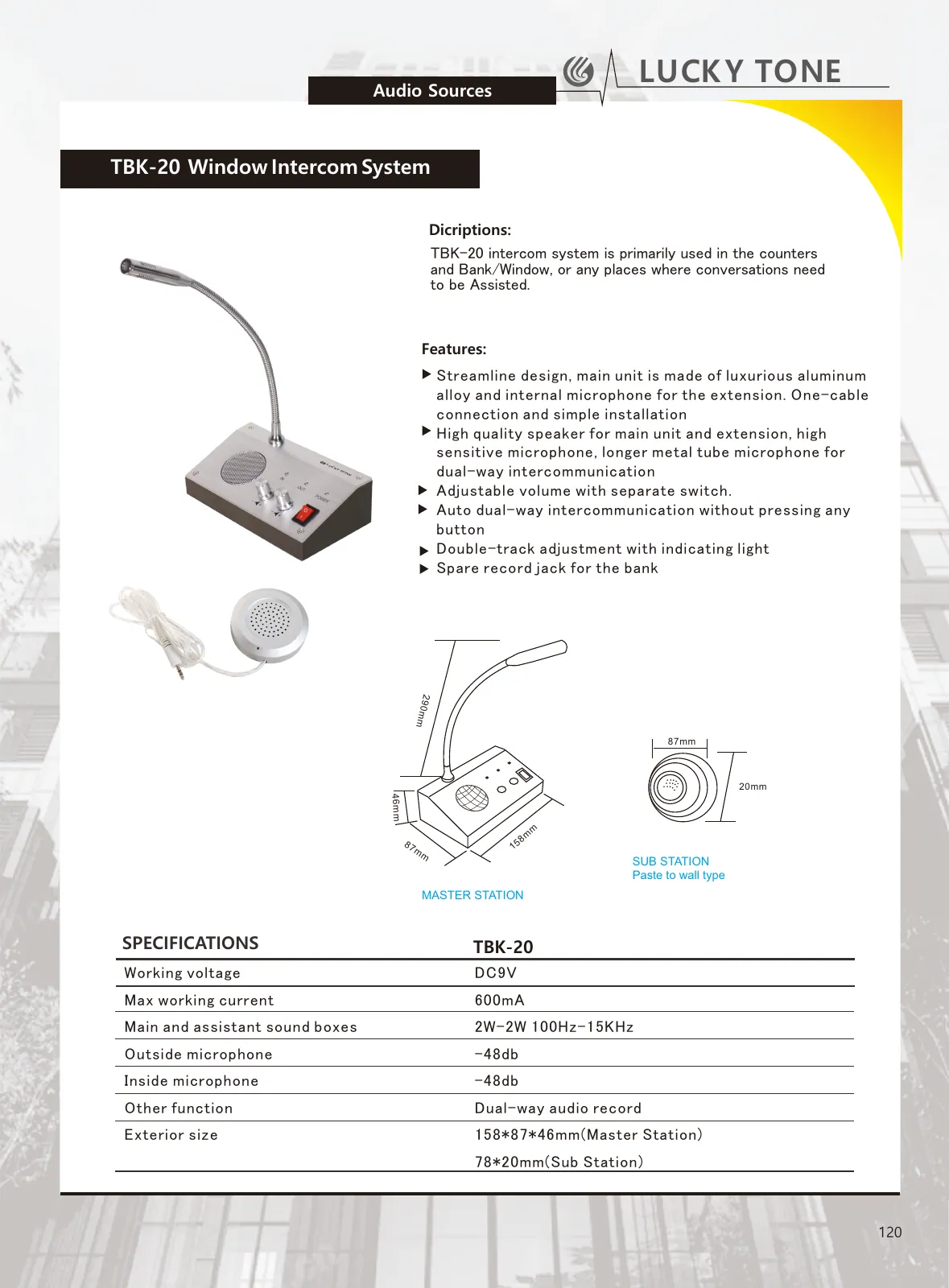

PDFSpecifications3.1 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications8
- MODEL
- TBK-20
- Working voltage
- DC9V
- Max working current
- 600mA
- Main and assistant sound boxes
- 2W-2W 100Hz-15KHz
- Outside microphone
- -48db
- Inside microphone
- -48db
- Other function
- Dual-way audio record
- Exterior size
- 158*87*46mm(Master Station) 78*20mm(Sub Station)
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
TBK-20
Features
- Streamline design, main unit is made of luxurious aluminum
- alloy and internal microphone for the extension. One-cable
- connection and simple installation
High quality speaker for main unit and extension, high sensitive microphone, longer metal tube microphone for dual-way intercommunication
- Adjustable volume with separate switch.
- Auto dual-way intercommunication without pressing any button
- Double-track adjustment with indicating light
- Spare record jack for the bank
