Sheet 05.496
Lucky Tone · Bluetooth, Wi-Fi and smart home

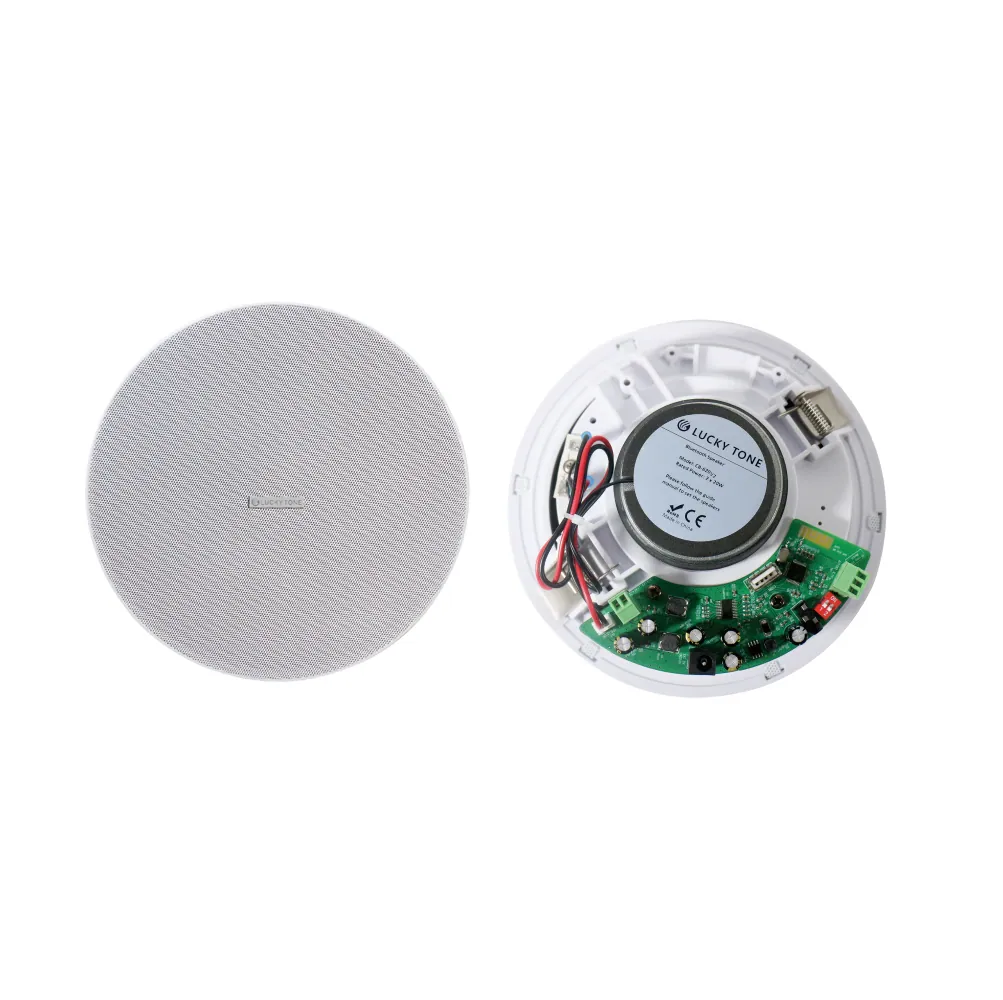

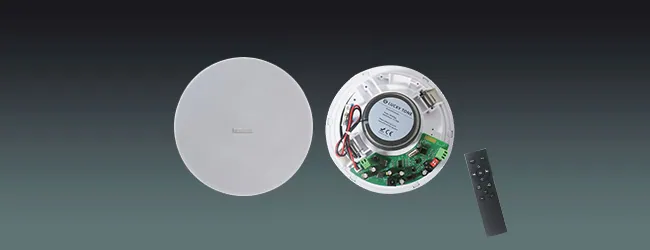

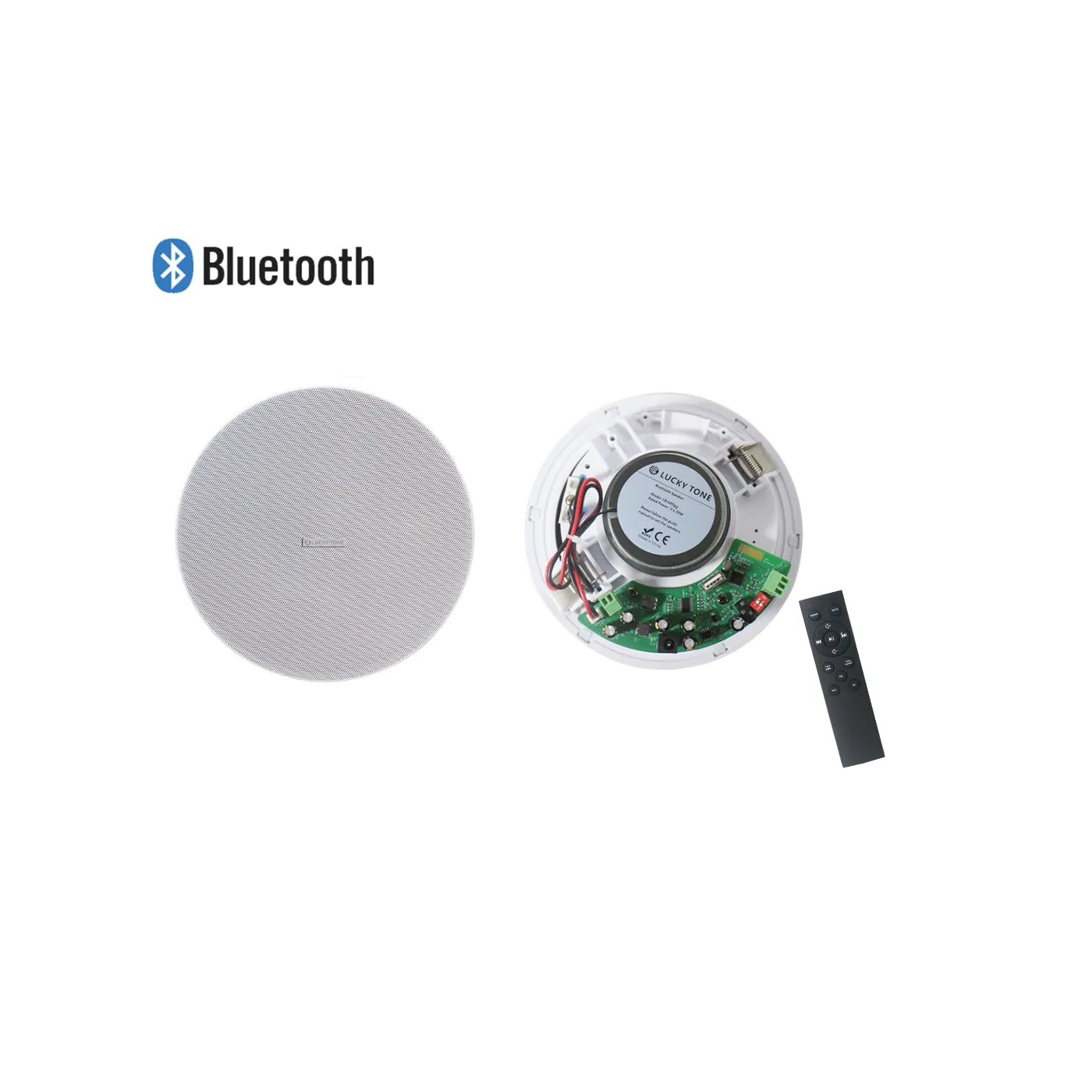

Lucky Tone Bluetooth Ceiling Speakers CB-620V2
ModelCB-620V2
Adopt 4.2 +BR+EDR+BLE Bluetooth technology
- Output power
- 2*20W
- Frequency response
- 80~18KHz
- Dimensions
- Ø185*200mm
- Weight
- 0.9Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Bluetooth Ceiling SpeakersPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 15 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications15
- MODEL
- CB-620V2
- Output Power
- 2*20W
- Impedance
- 8Ω
- SPL (1W/1M)
- 89dB
- Max. SPL
- 101dB
- Frequency Response
- 80~18KHz
- SNR
- 90dB
- Input voltage of the power adapter
- AC110V-240V, 50Hz/60Hz
- Bluetooth Wireless Range
- ≤10M
- Housing Material
- ABS, Iron (Grille)
- Speaker Size
- 6.5″ Woofer
- Weight
- 0.9Kg
- Dimensions
- Ø185*200mm
- Hole Cut-out Size
- Ø170mm
- Color
- White
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- Built-in16bit DAC Digital Audio Processor
- Built-in high efficiency class D amplifier
- Adopt high quality speaker drivers
- Designed for fast installation and easy operation

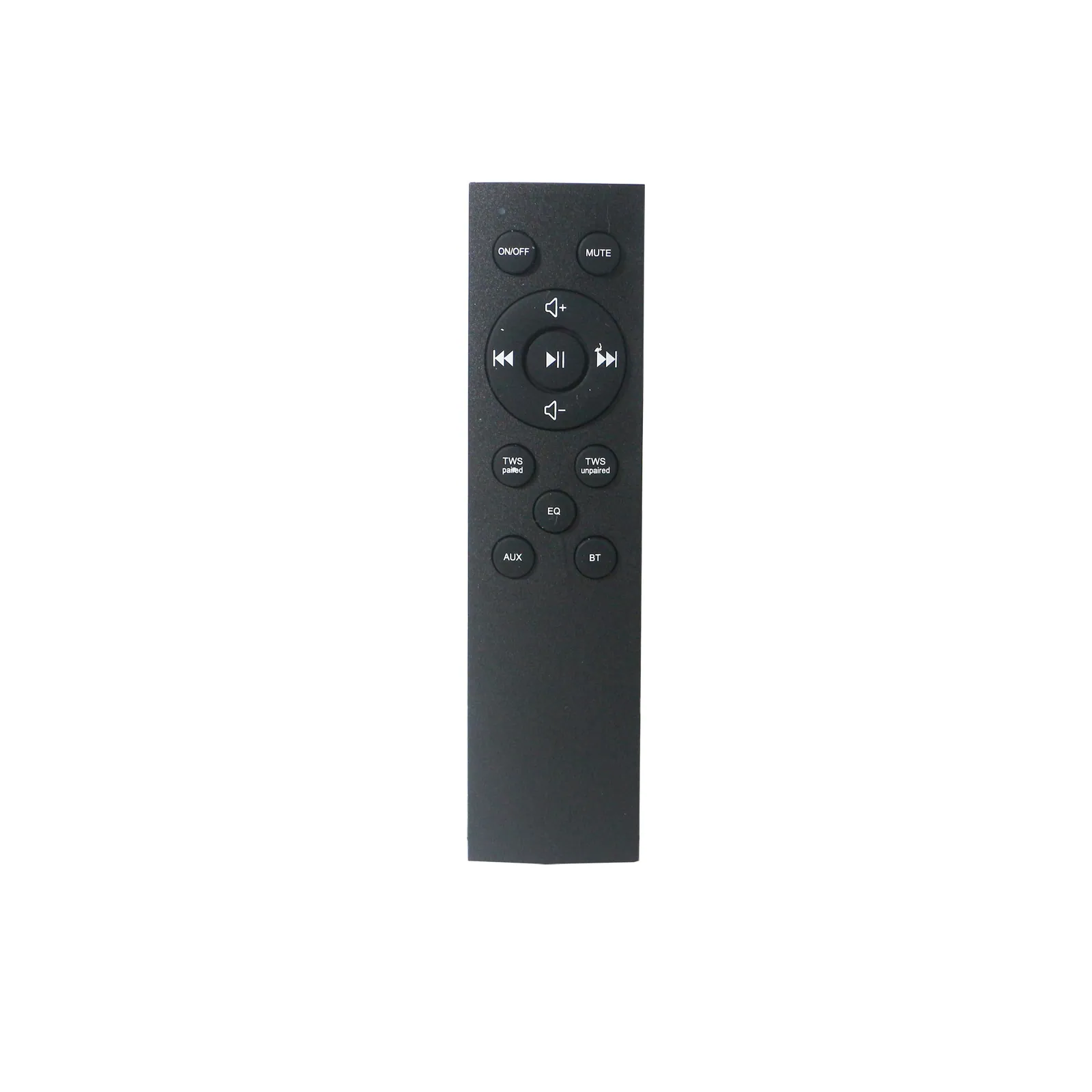

- With remote controller
03Documents1 file · 582 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
