Sheet 05.498
Lucky Tone · Bluetooth, Wi-Fi and smart home

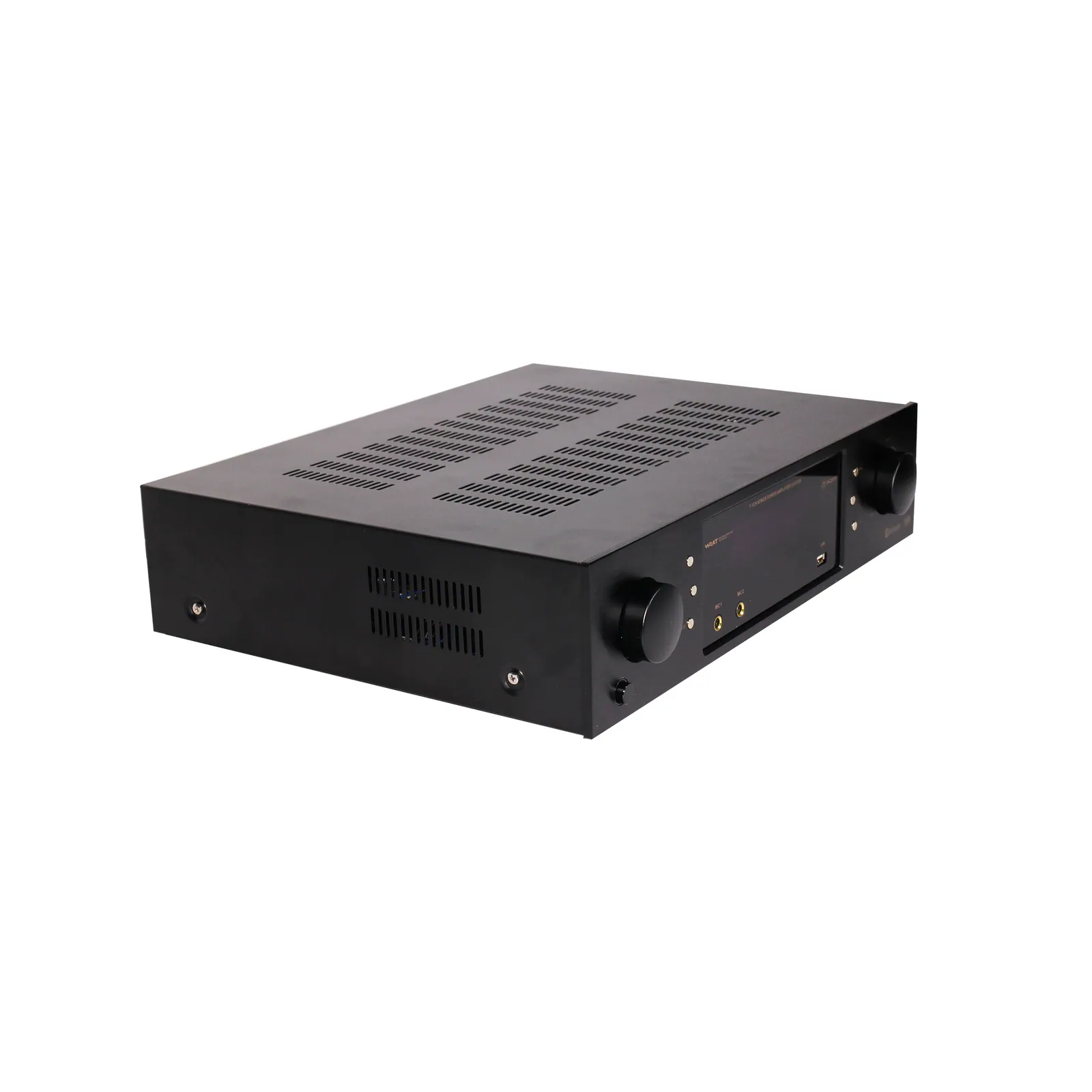

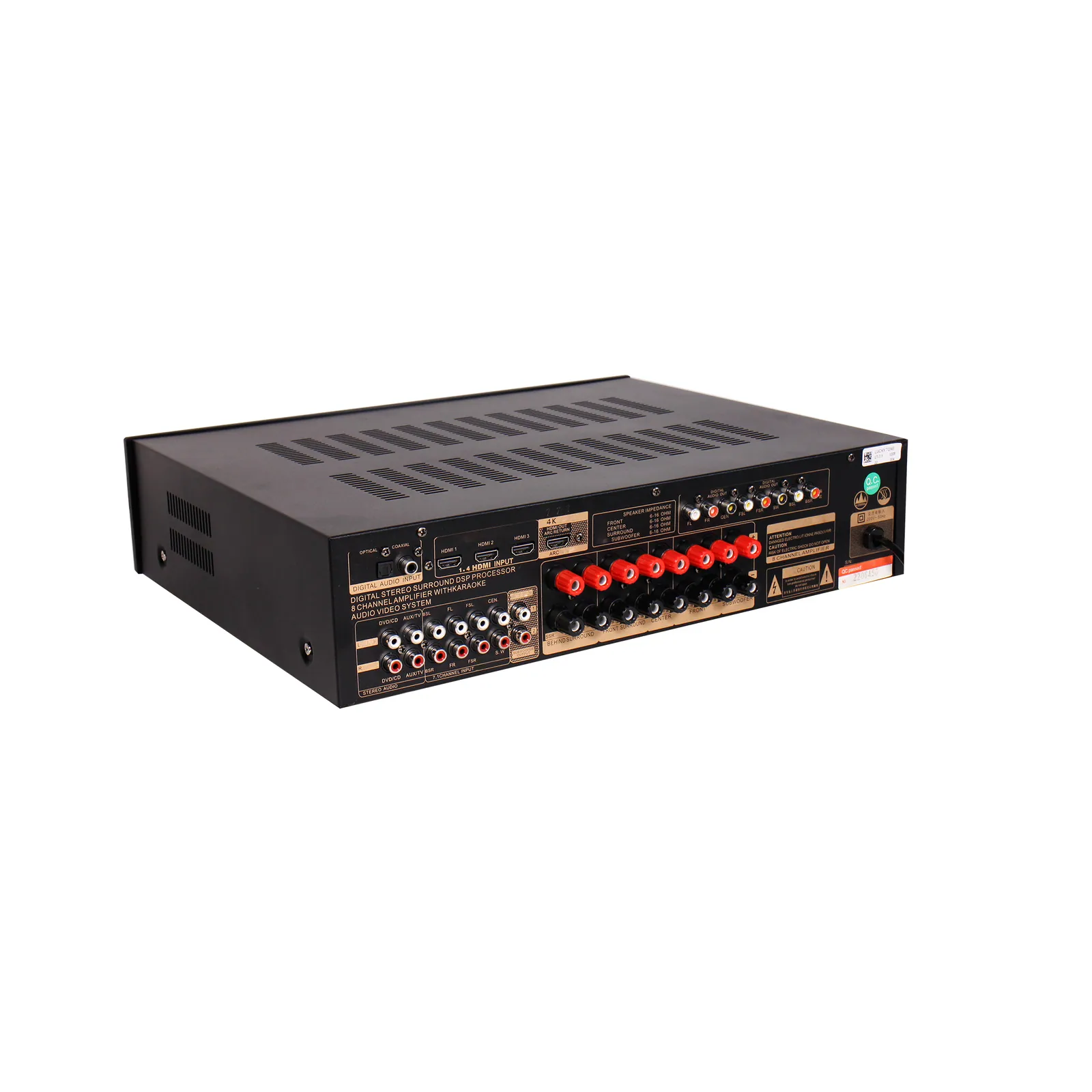

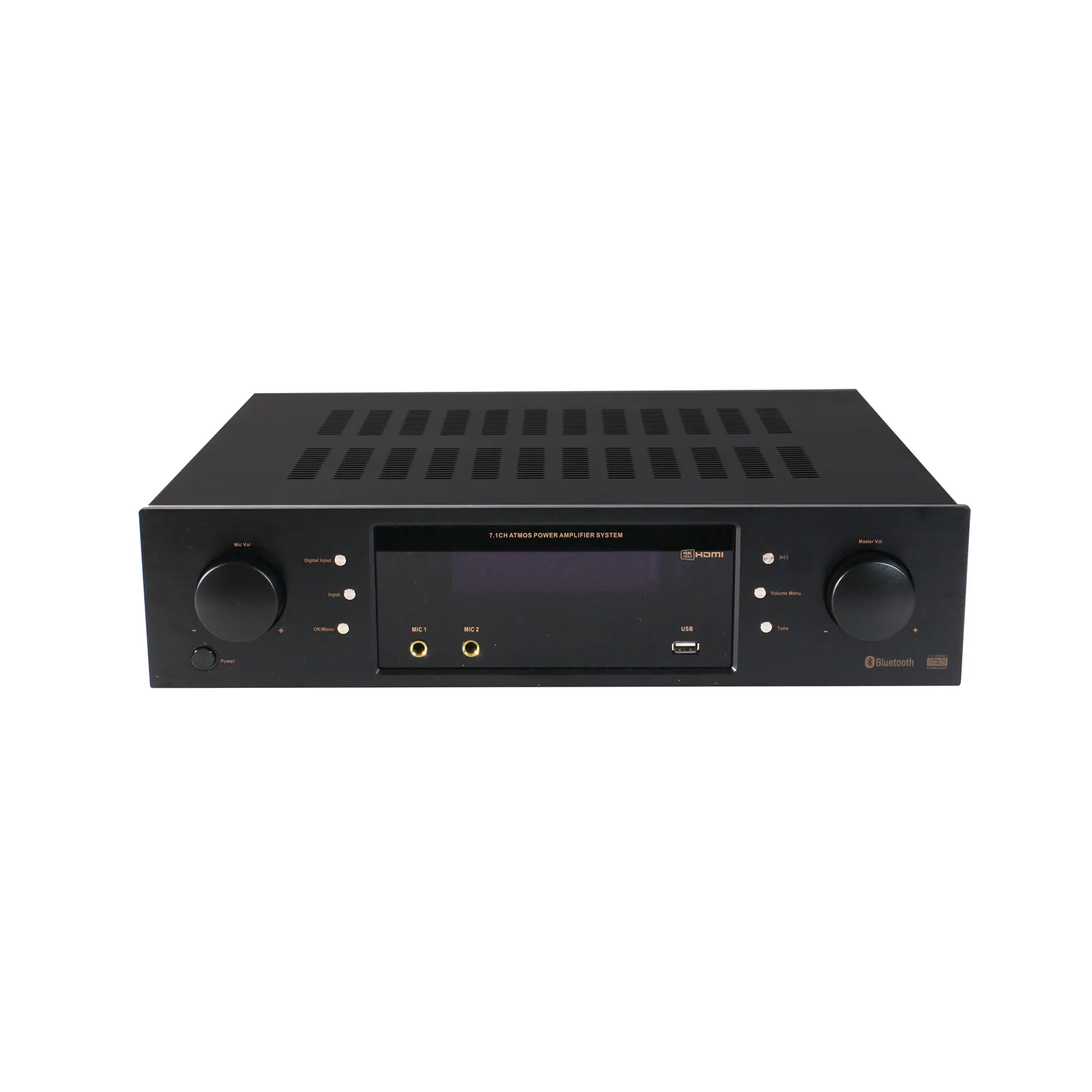

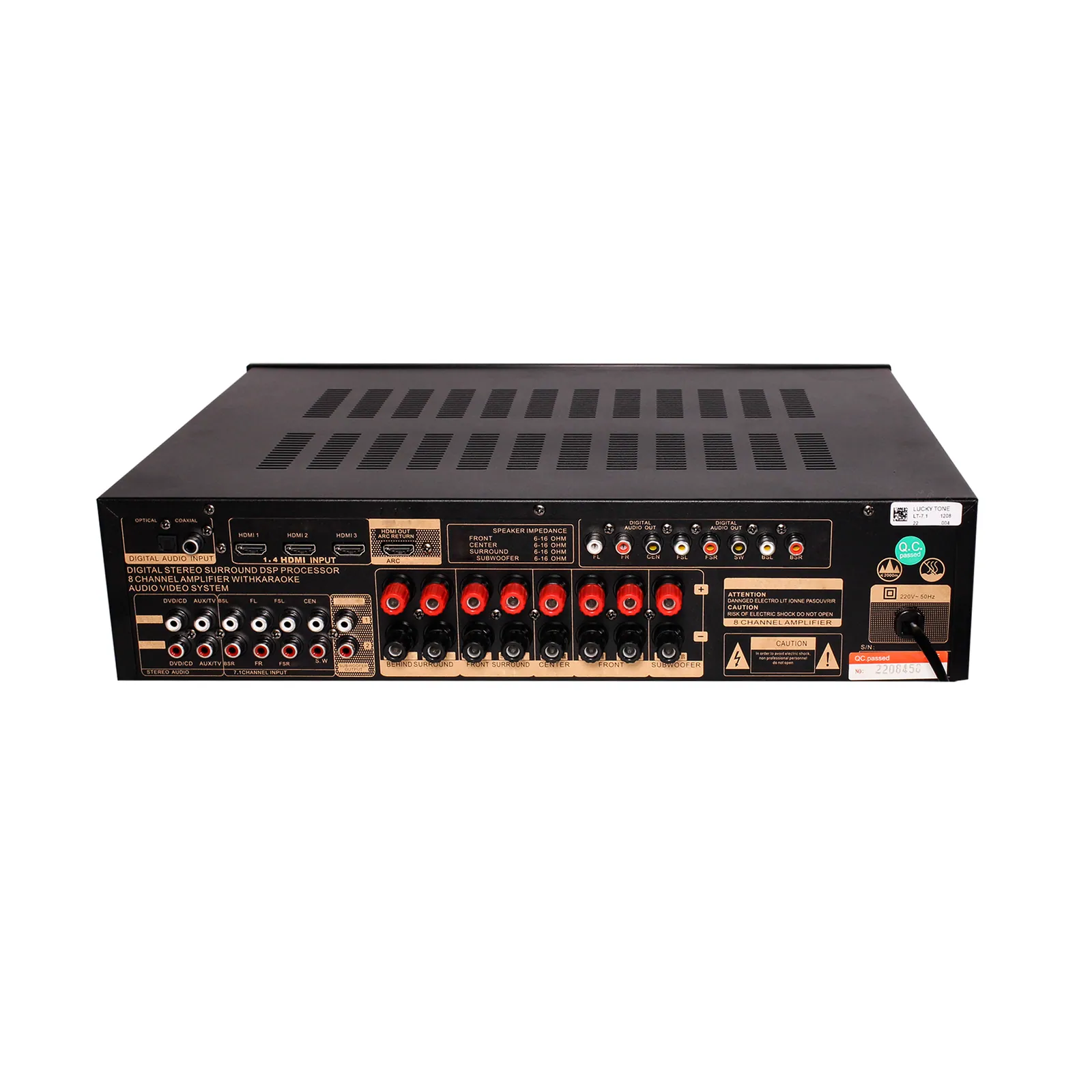

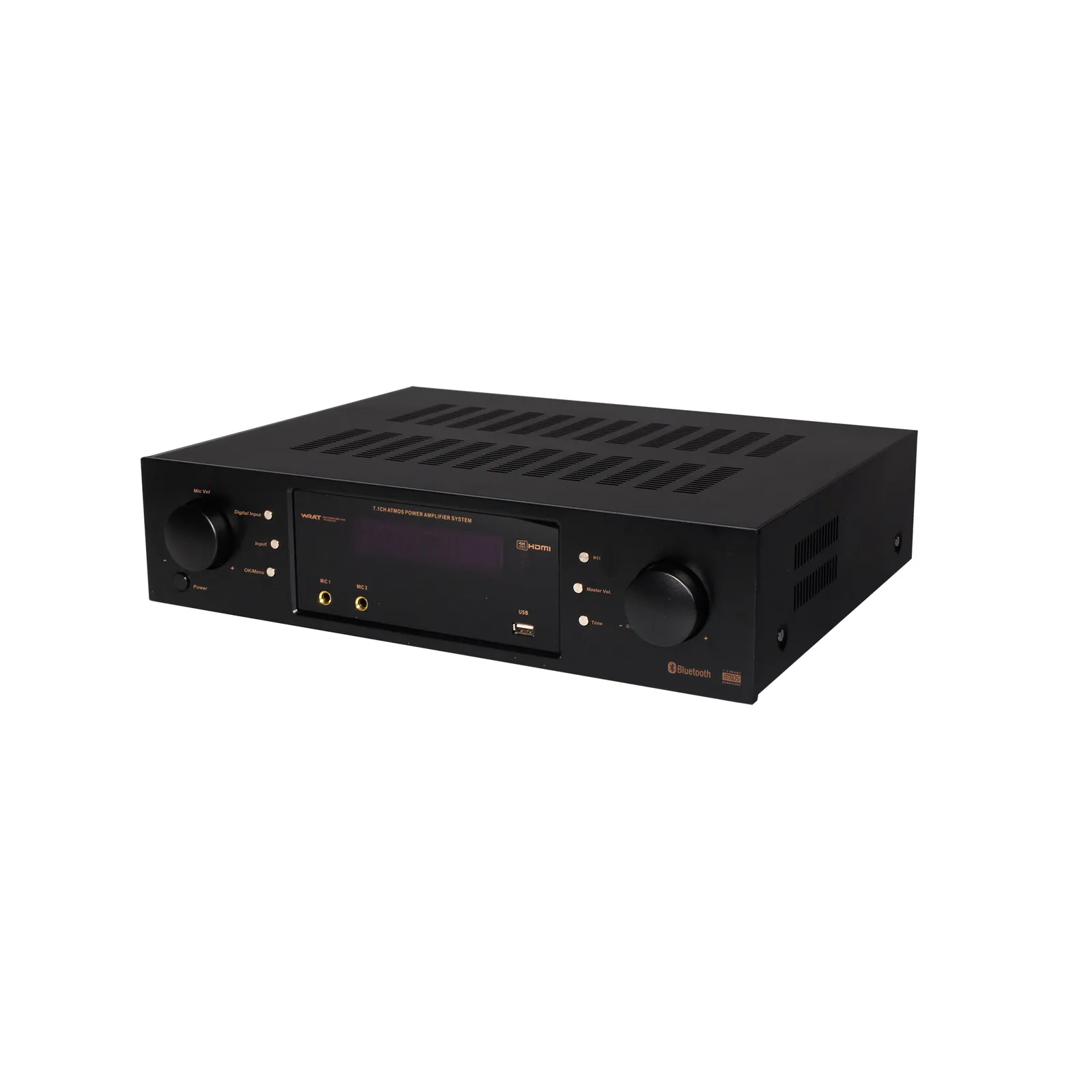

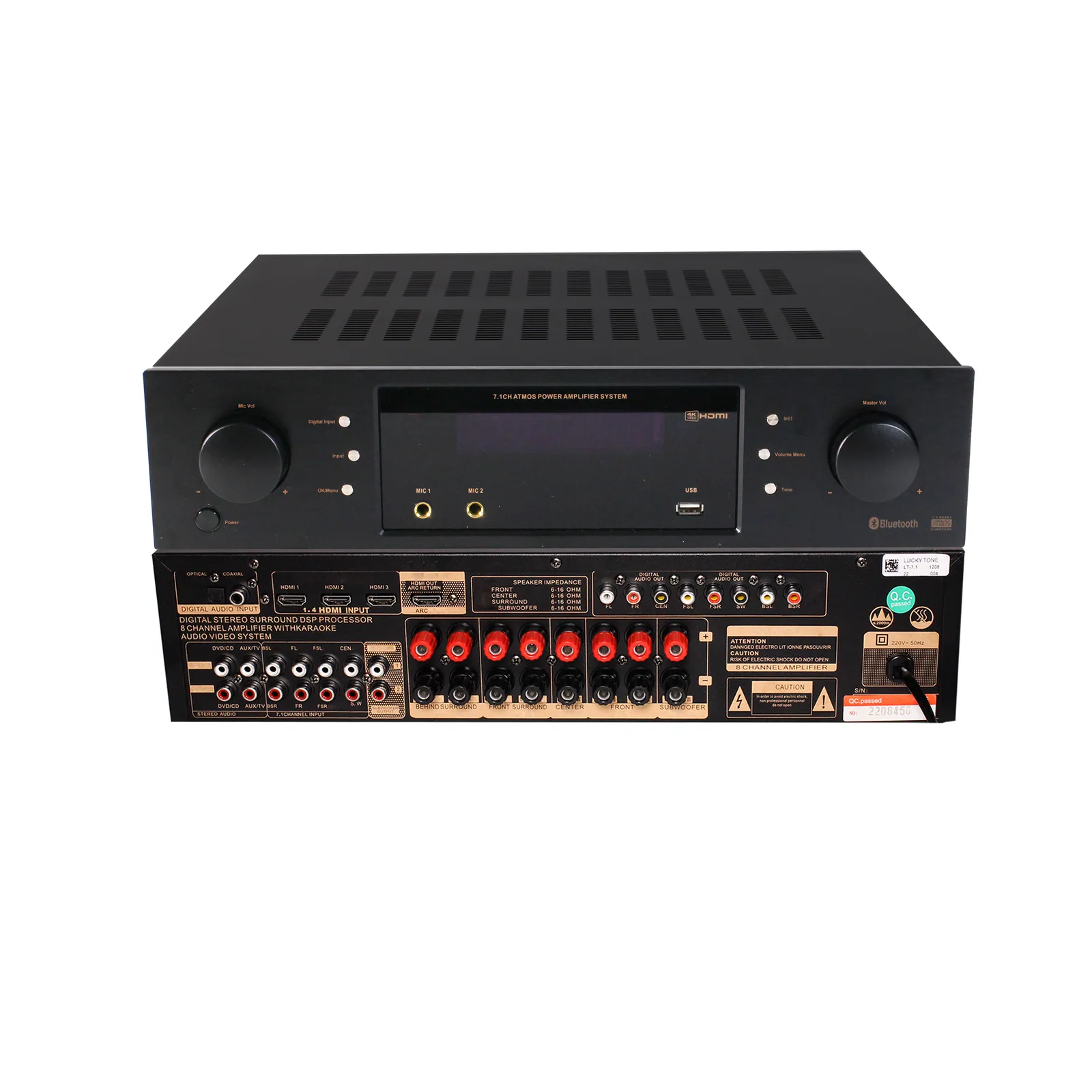

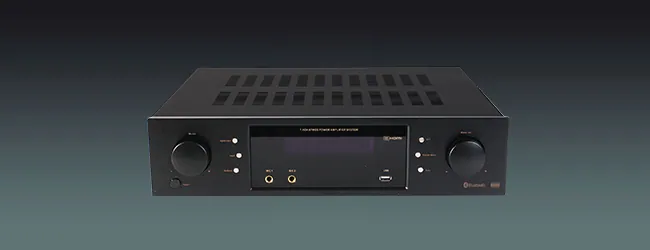

Digital Audio Video Amplifier
ModelLT-7.1
With rigid structure and dynamic sound, LT-7.1 Channel Hi-fi home theater amplifier is perfect for your home entertainment system, giving you super high power to be used for speakers and subwoofer to build a live experience.
- Power supply
- ~220V±10%, 50Hz±1Hz
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Digital Audio Video AmplifierPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 21 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications21
- Model
- LT-7.1
- Front Main Channel Output Power
- 120W+120W
- Front Surround Channel
- 80W+80W
- Rear Surround Channel Output Power
- 80W+80W
- Center Channel Output Power
- 120W
- Bass Channel Output Power
- 120W
- Music Power
- 2000W
- Harmonic Distortion
- <0.5% (1KHz, 5W)
- SNR
- ≥85dB
- Seperation
- ≥45dB
- Input Sensitivity
- ≤500mV
- Frequency Responses
- Frequency Responses
- Front Channel
- 10Hz-40KHz (±2dB)
- Surround Channel
- 10Hz-40KHz (±2dB)
- Center Channel
- 10Hz-40KHz (±2dB)
- Bass Channel
- 10Hz-200Hz (±2dB)
- Treble Adjustment
- Front Channel ± 14dB (100Hz)
- Bass Adjustment
- Front Channel ± 14dB (100Hz)
- Gross Weight
- 9.5kg
- Power Consumption
- 75W
- Power Supply
- ~220V±10%, 50Hz±1Hz
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Simple and elegant intelligent operating system, full digital microcomputer menu control
Using the latest dual decoding chip, support (AC-3, DTS, PCM) optical fiber, coaxial, high-definition decoding
8-channel independent volume adjustment, intelligent output protection circuit
High-speed central processing unit, automatically recognize audio input signals
Full-digital professional KTV karaoke mixing circuit, automatic noise reduction and electronic anti-acoustic processing function
- U disk playback, support lossless audio formats: APE/FLAC/WAV and WMA/MP3
- Built-in high-end Bluetooth chip, support most mobile audio devices
- With a full-function infrared remote controller
- 3 HD HDMI inputs, support 4K HD 3D video, support ARC (TV Audio
- Return) mode, support standby output audio to TV
The HDMI audio adopts the source code mode and supports Dolby Atmos/Dolby-HD/Ac-3/EAc3/dTs-hd/dts-X/PCM2.1/LPCM5.1/LPCM7.1 and other decoding formats
Built-in high-performance professional U-segment wireless karaoke system, making karaoke simpler and more convenient to use
