Sheet 05.110
Lucky Tone · Loudspeakers

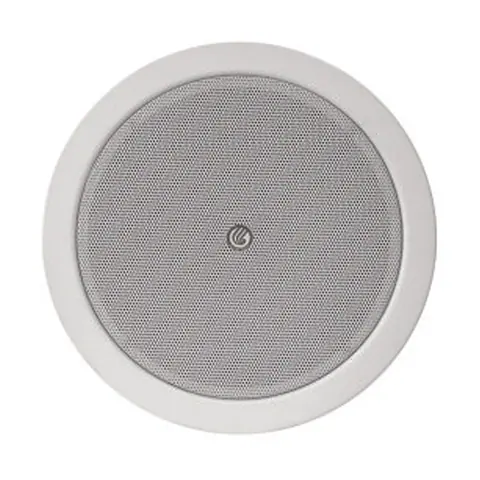

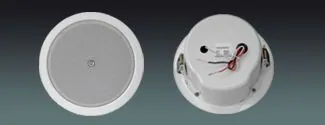

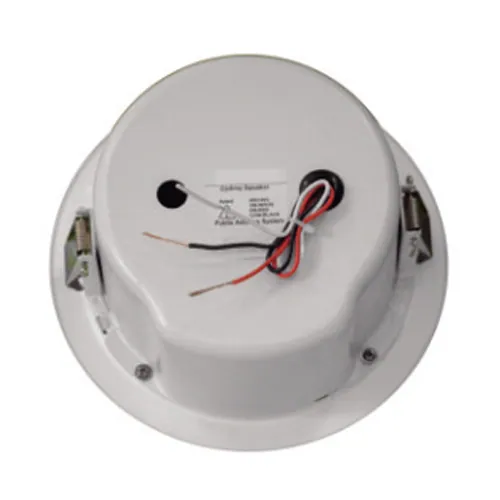

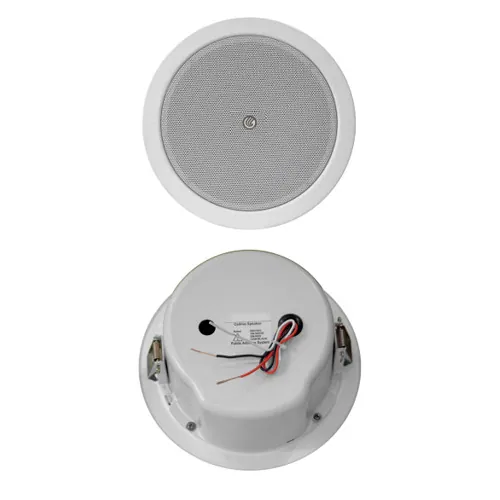

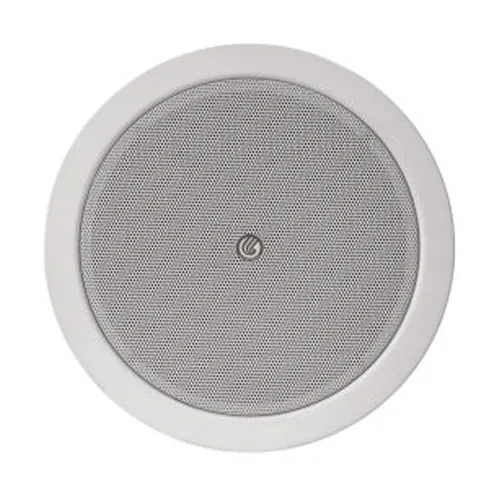

6” Metal Ceiling Speaker with Dome
ModelCM-606H
● Versatile for various PA and BGM applications
- Weight
- 0.95Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
6” Metal Ceiling Speaker with DomePrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 13 values
What this product is, in numbers.
PDFSpecifications3.3 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- MODEL
- CM-606H
- Power at 100V
- 1.5 / 3 / 6W
- Power at 70V
- 0.75 / 1.5 / 3W
- SPL (1W/1M)
- 91dB
- Max SPL@1M
- 98dB
- Freq.Response
- 100Hz-18KHz
- Cutout Size
- Dia 175mm
- Product Size
- Dia 200x90mm(H)
- Installation
- Inceiling
- Enclosure Material
- Metal
- Weight
- 0.95Kg
- Finish
- White
- Speakers
- 6″ x 1 full range
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
● Metal ceiling speaker
● With heavy duty fire dome
03Documents1 file · 3.3 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
