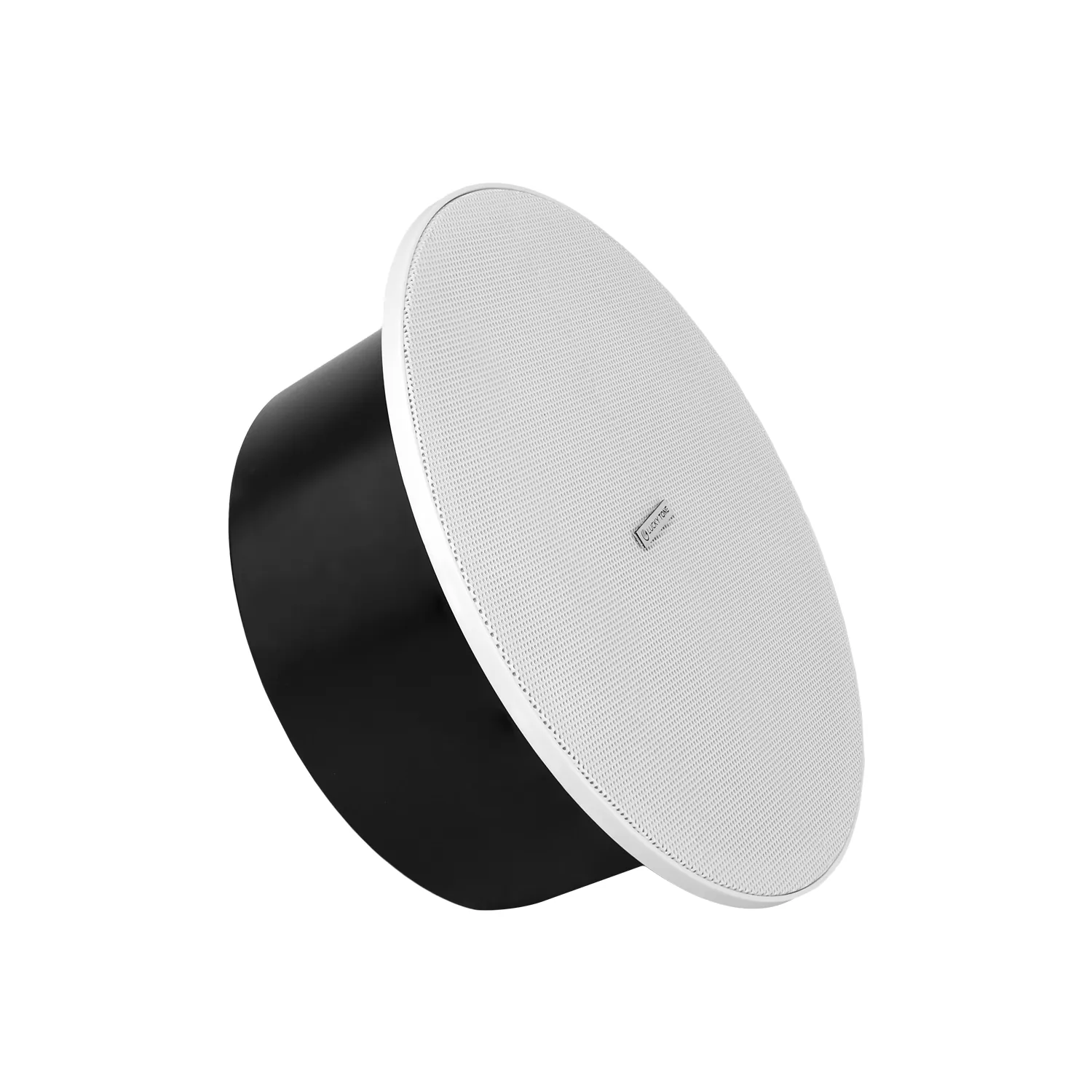

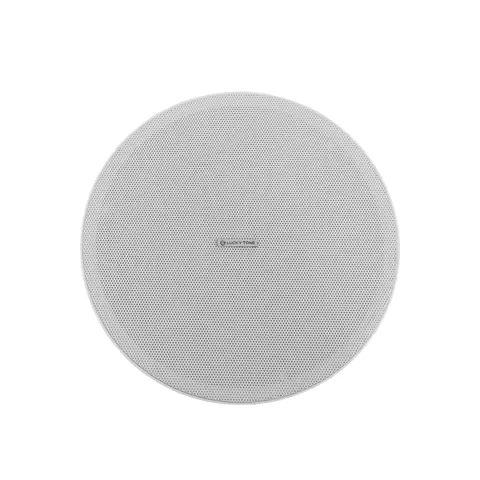

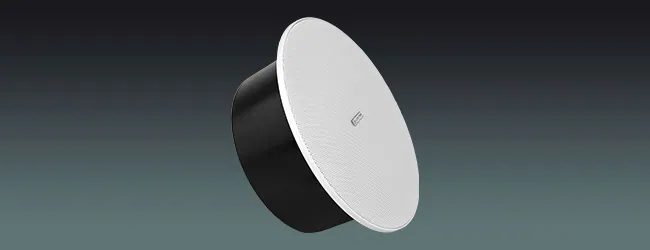

6″ Twin Cone Marine Ceiling Speaker

ModelCT-6YH

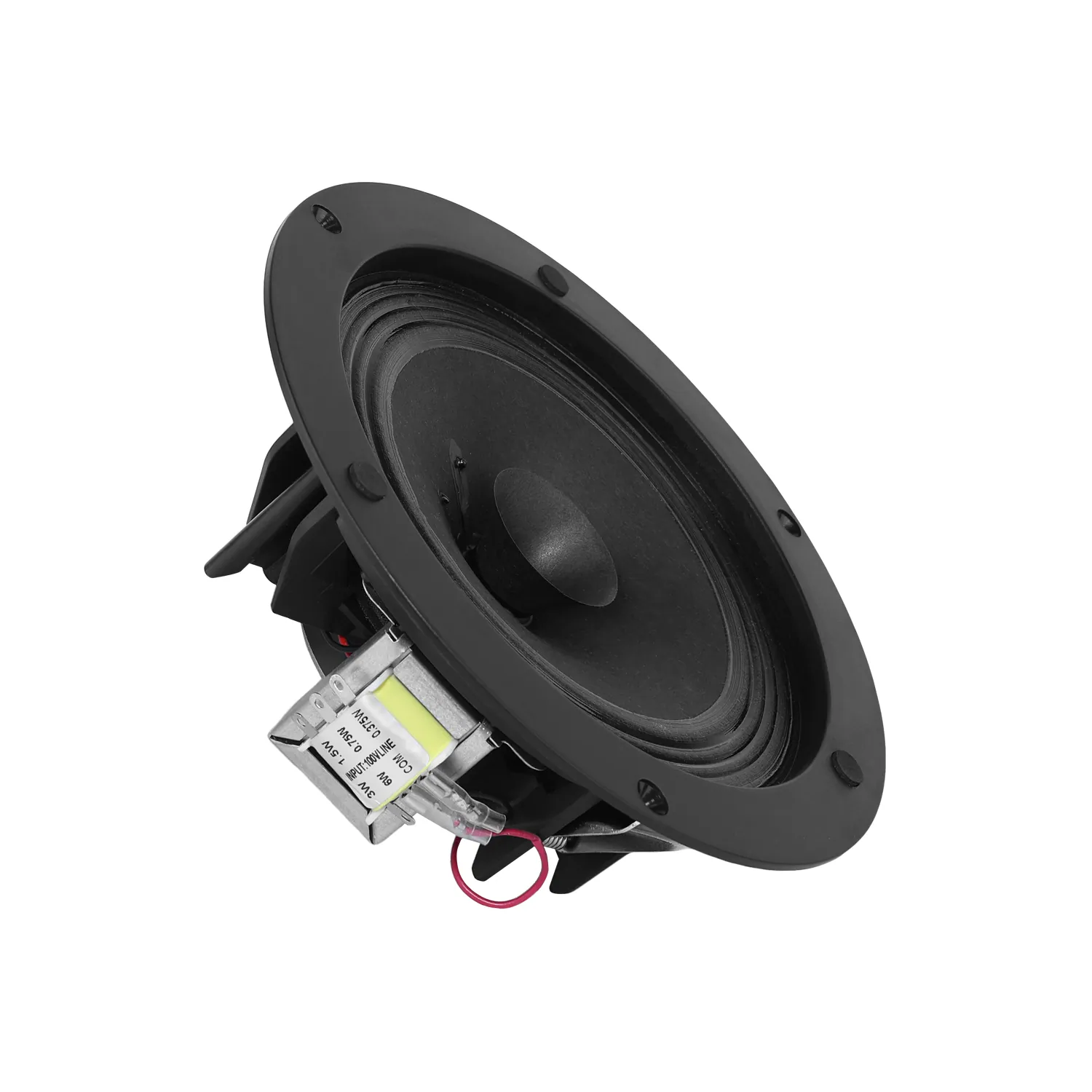

Equipped with a 6W multi-tapped 100V transformer.

Frequency response: 100Hz – 17kHz
Weight: 0.9kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 13 values

What this product is, in numbers.

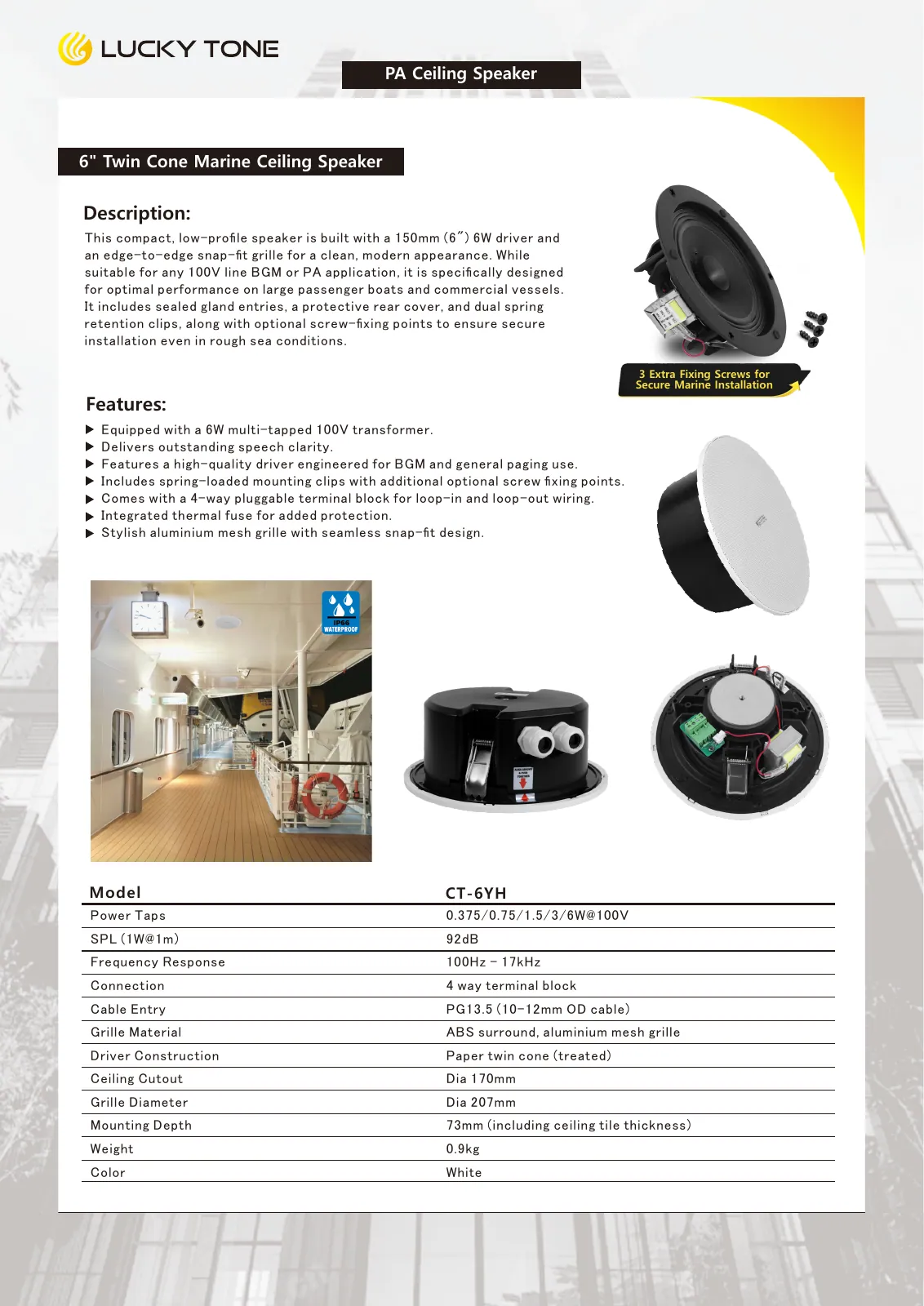

PDFSpecifications17 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications13

Model: CT-6YH
Power Taps: 0.375,0.75,1.5,3,6W@100V
SPL (1W@1m): 92dB
Frequency Response: 100Hz – 17kHz
Connection: 4 way terminal block

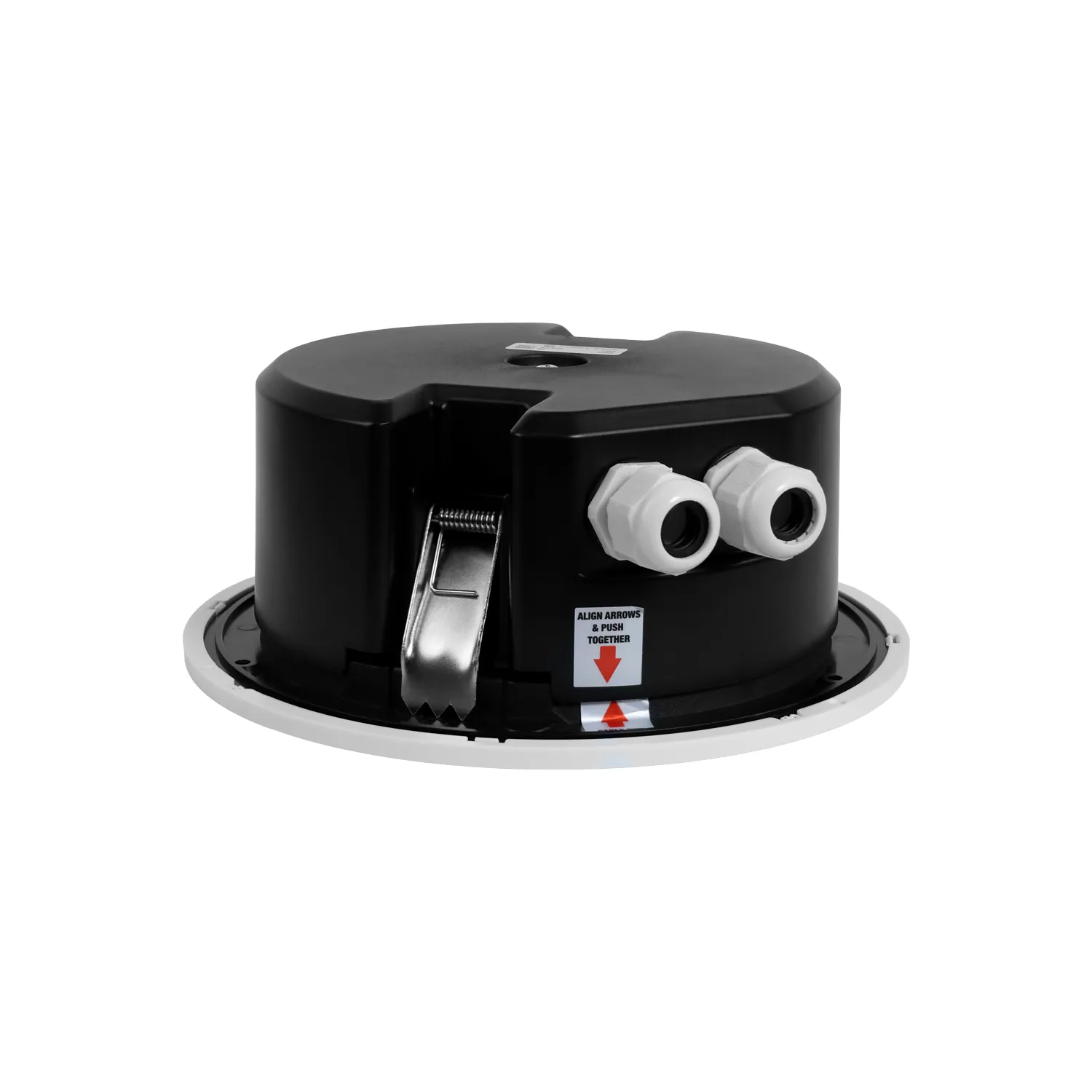

Cable Entry: PG13.5 (10-12mm OD cable)

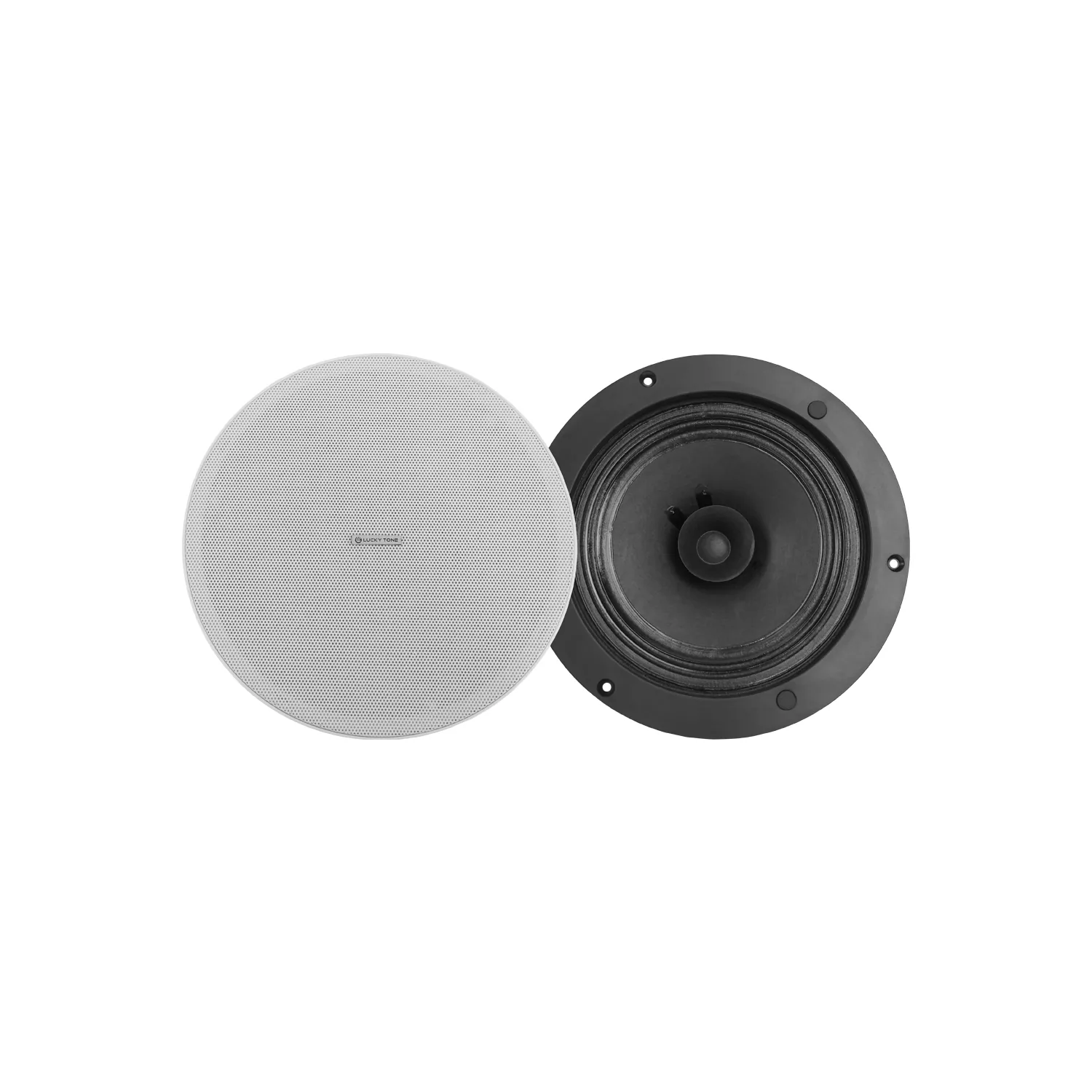

Grille Material: ABS surround, aluminium mesh grille

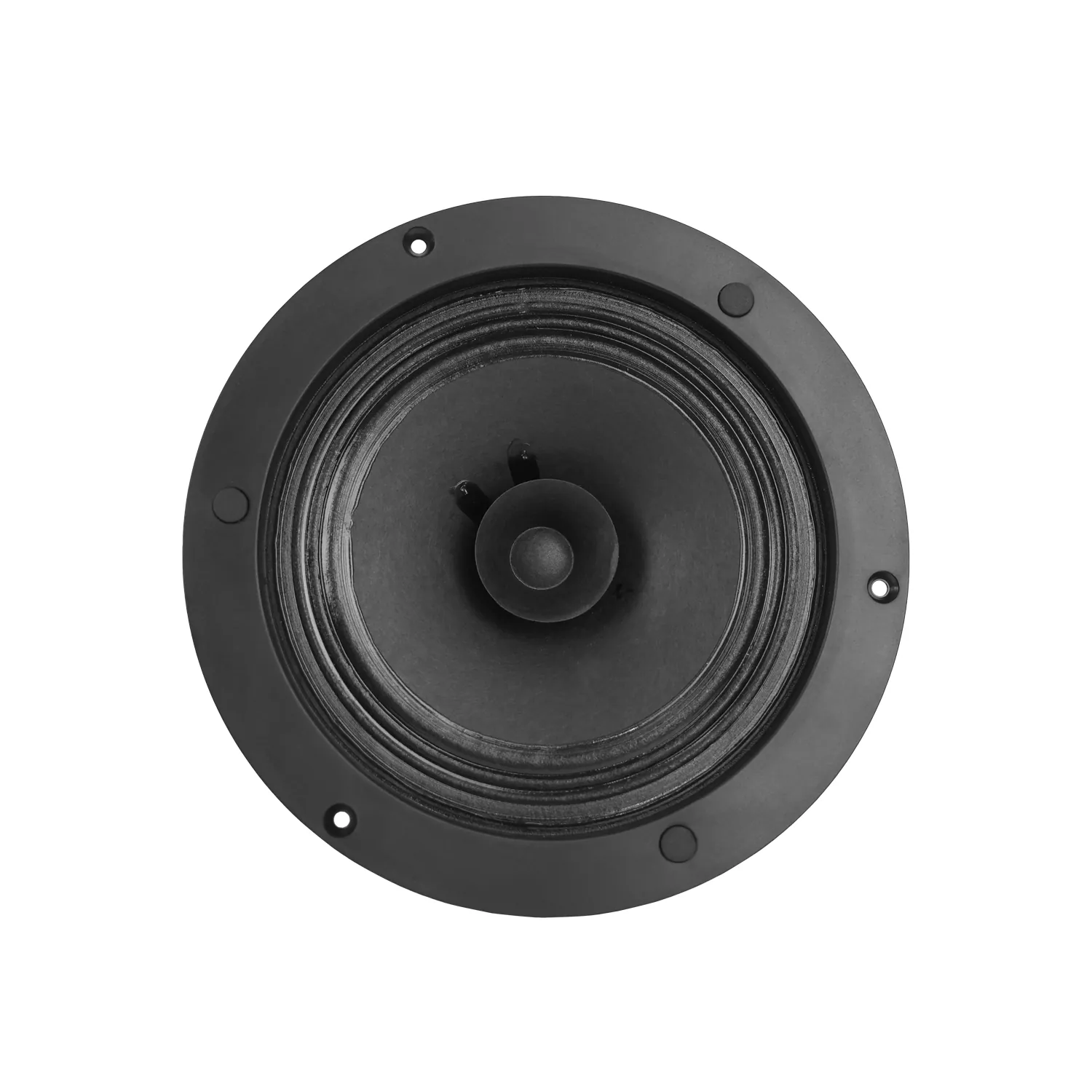

Driver Construction: Paper twin cone (treated)
Ceiling Cutout: Dia 170mm
Grille Diameter: Dia 207mm
Mounting Depth: 73mm (including ceiling tile thickness)
Weight: 0.9kg
Color: White

02DescriptionManufacturer's description

What it is.

Features

Delivers outstanding speech clarity.
Features a high-quality driver engineered for BGM and general paging use.
Includes spring-loaded mounting clips with additional optional screw fixing points.

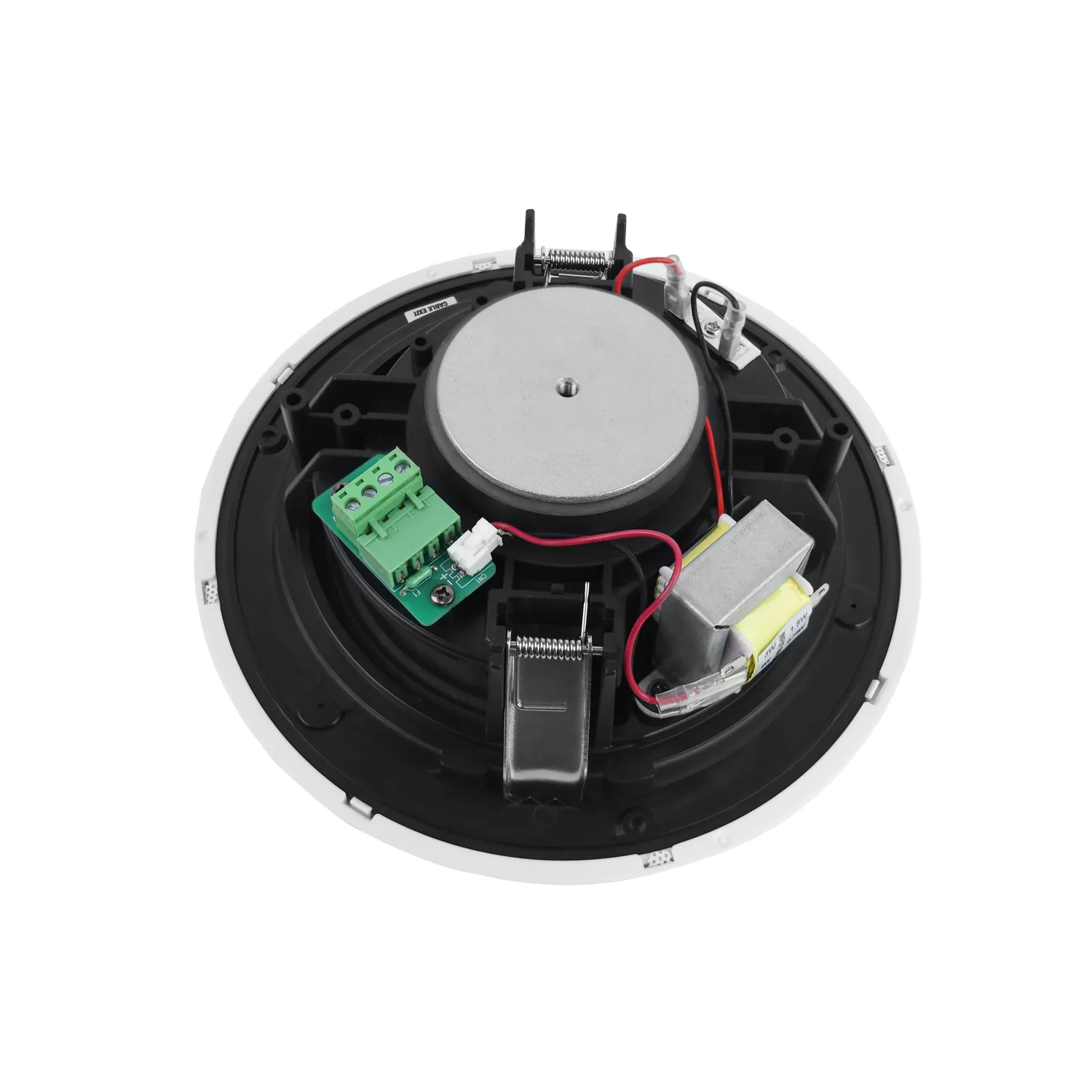

Comes with a 4-way pluggable terminal block for loop-in and loop-out wiring.
Integrated thermal fuse for added protection.

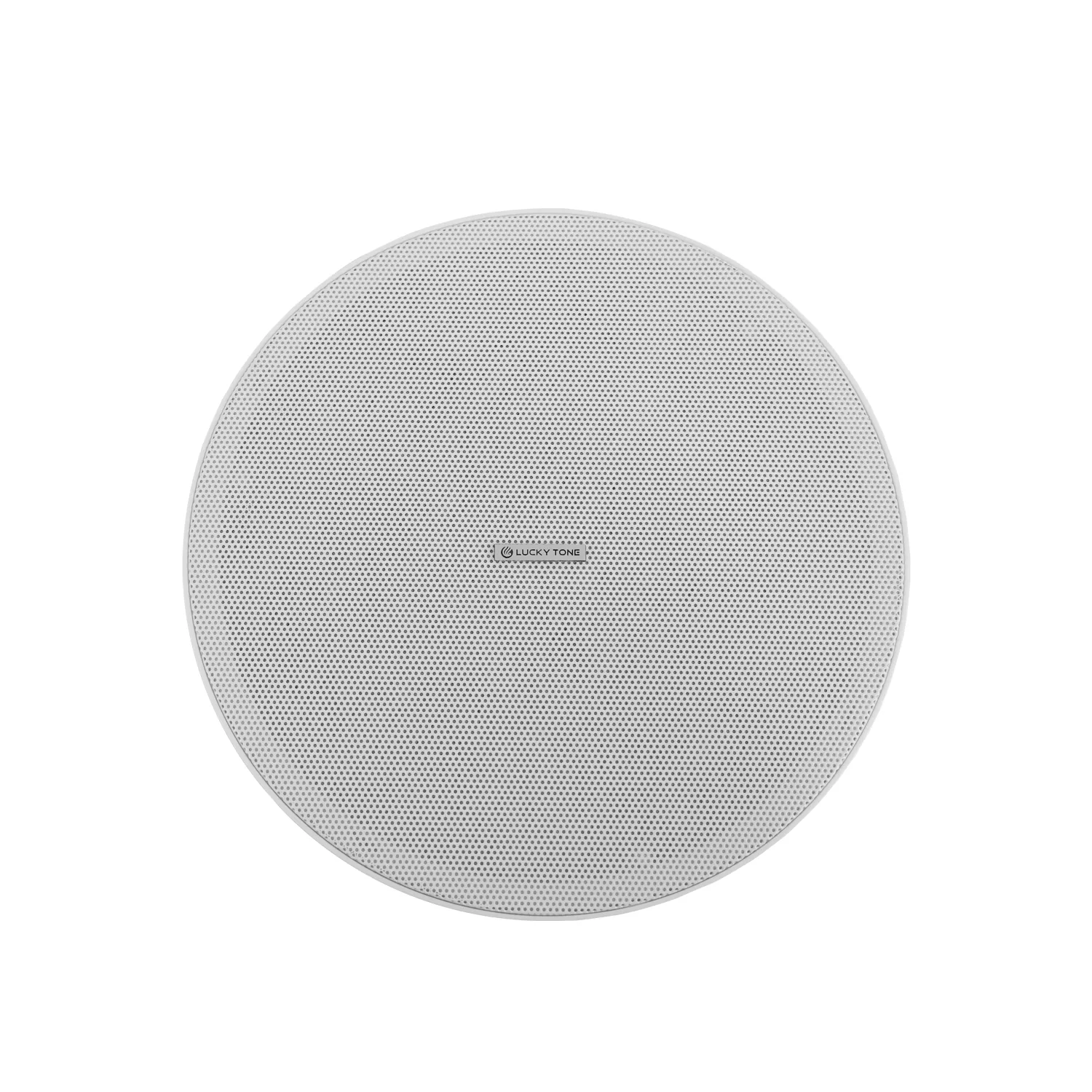

Stylish aluminium mesh grille with seamless snap-fit design.

03Documents1 file · 17 MB
