Sheet 05.87

Lucky Tone · Loudspeakers

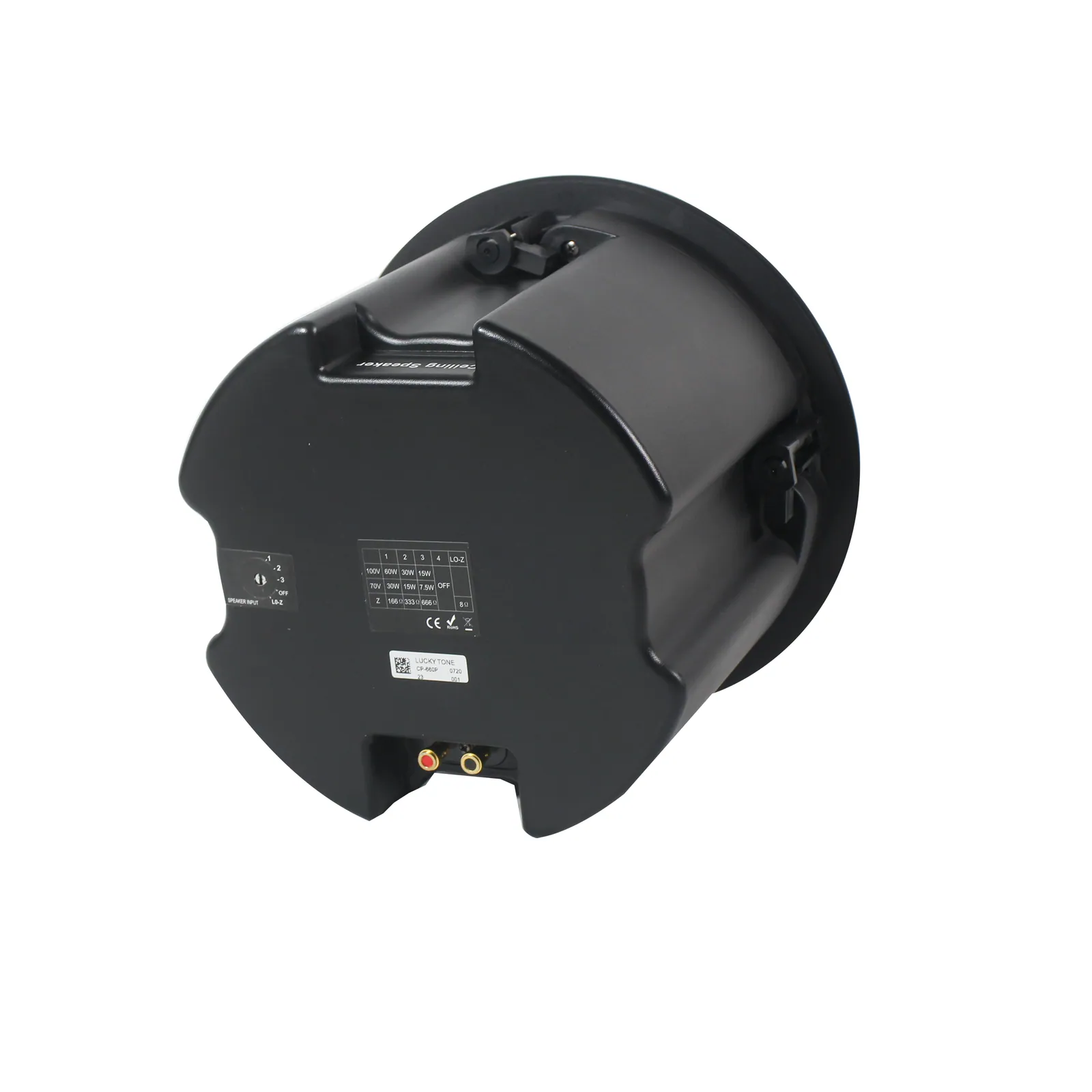

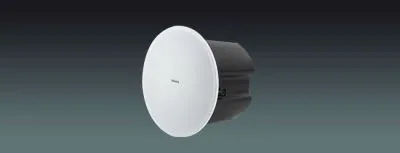

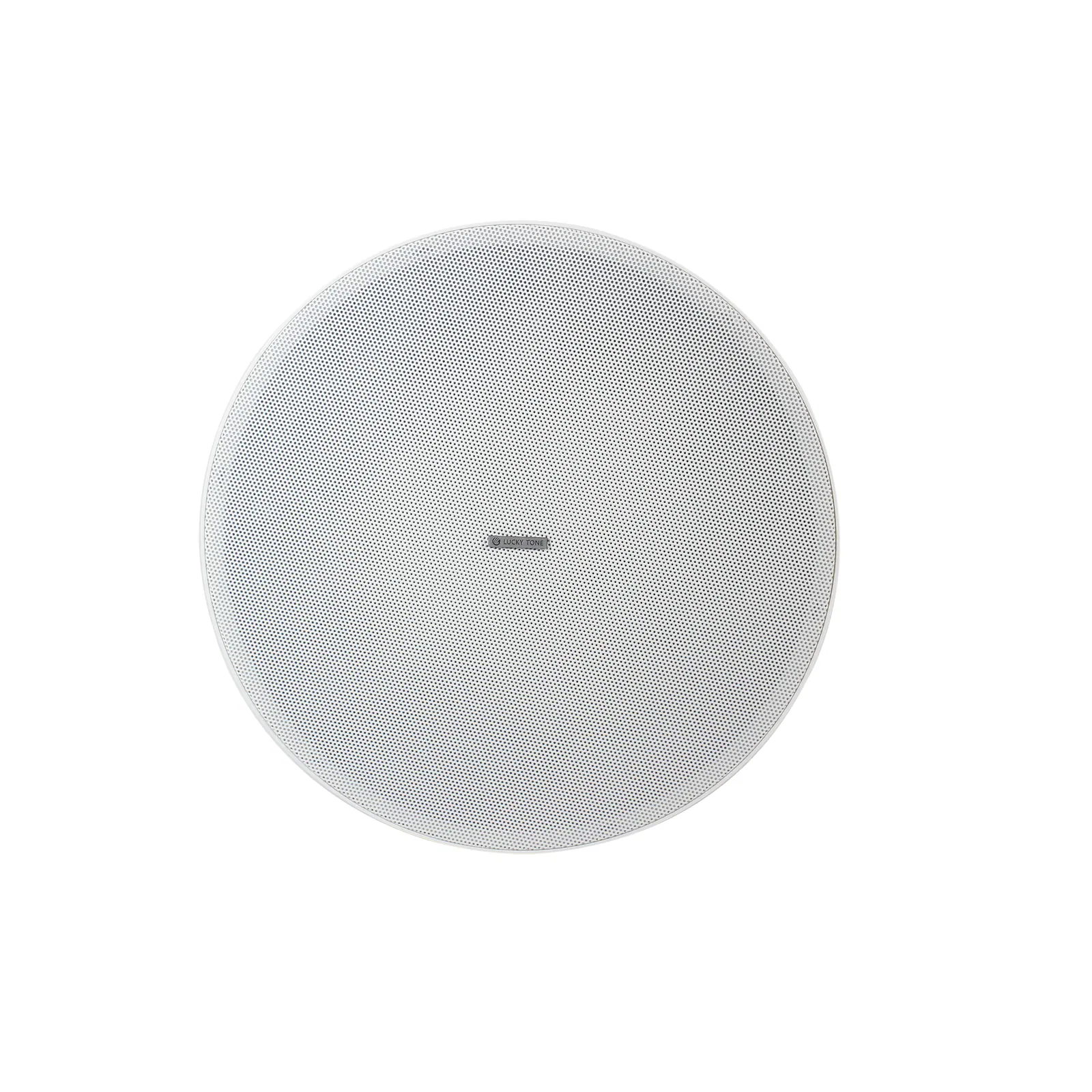

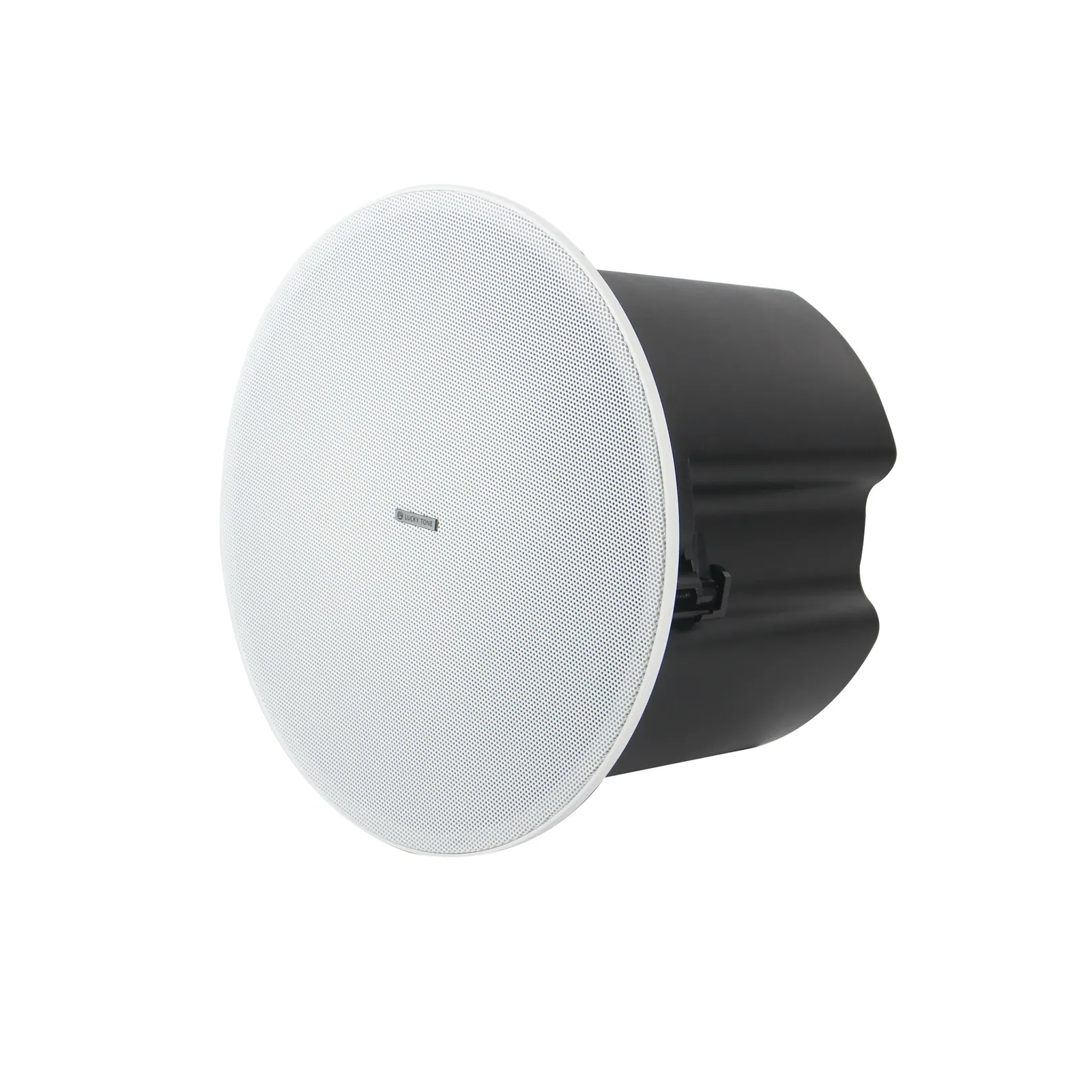

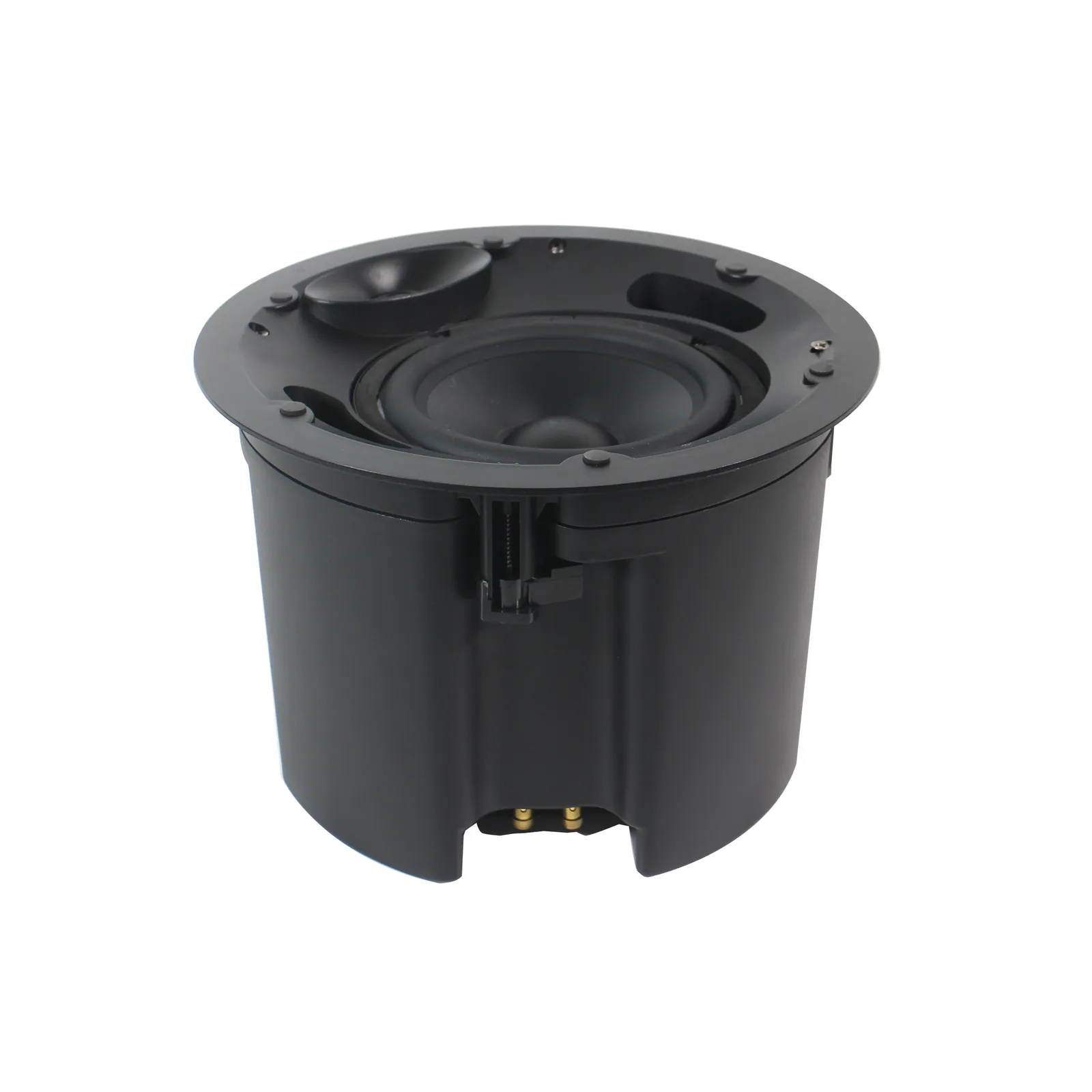

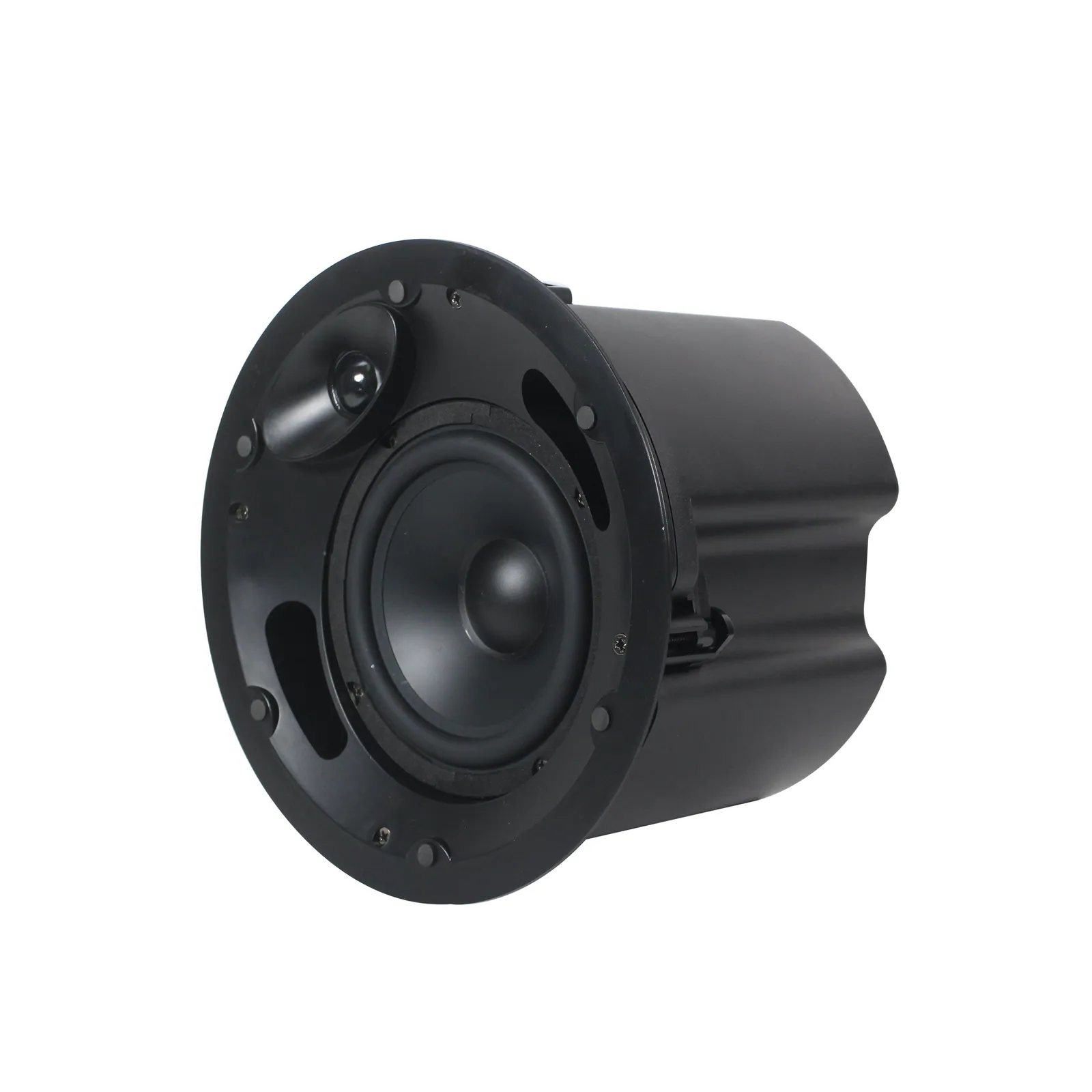

2-Way Speaker with Crossover

ModelCP-660P

2-way ABS in ceiling speaker at high performance

Weight: 3.6kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 15 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications15

Model: CP-660P
Power Tap: 60/30/15W/OFF-8ohm
Power at 8ohm: 60W
Max. Power: 120W
SPL (1W/1M): 95dB
Max SPL@ 1M: 116dB
Freq. Response: 75-20KHz
Dispersion Angle: 180°(1000Hz)
Cutout Size: Dia 245mm
Product Size: φ285x195mm
Installation: In ceiling
Enclosure Material: ABS
Net Weight: 3.6kg
Finish: Black
Speakers: 6.25” woofer x1, 1.5” tweeter x1

02DescriptionManufacturer's description

What it is.

With crossover to produce clear yet powerful sound

Easy for installation

Good for high music demand applications

03Documents1 file · 1.7 MB

Documents and files.

Datasheets and manuals01

PDFLucky-Tone-CP-660P-CP-880P-Catalog-20230907.pdf1.7 MB
